[大数据]Structured Streaming整合Kafka实时统计

Structured Streaming整合Kafka实时统计

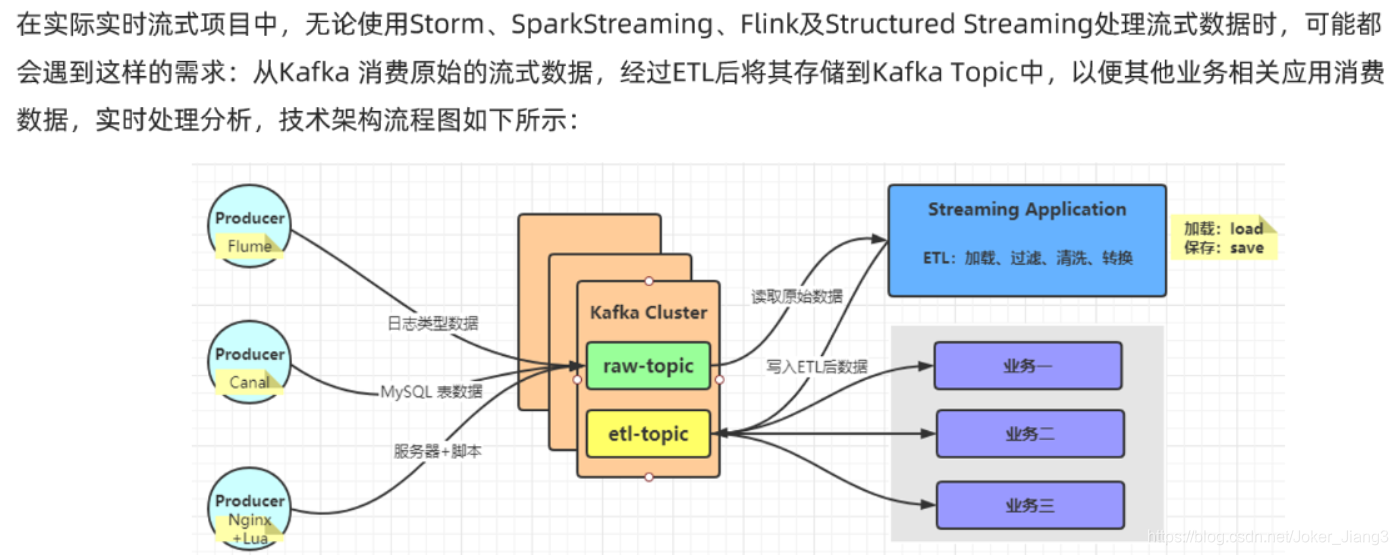

一、实时ETL

启动Zookeeper和kafka

# 启动zookeeper
bin/zkServer.sh start
# 启动kafka
bin/kafka-server-start.sh -daemon  config/server.properties

创建主题

bin/kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 3 --topic stationTopic

bin/kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 3 --topic etlTopic

模拟生成数据代码：

写入kafka 的stationTopic主题

package com.jiang.structed_streaming_kafka

import java.util.Properties

import org.apache.kafka.clients.producer.{KafkaProducer, ProducerRecord}
import org.apache.kafka.common.serialization.StringSerializer

import scala.util.Random

object MockStationLog {

  def main(args: Array[String]): Unit = {

    // 发送 kafka topic
    val props = new Properties()
    props.put("bootstrap.servers", "192.168.89.15:9092")
    props.put("acks", "1")
    props.put("retries", "3")
    props.put("key.serializer", classOf[StringSerializer].getName)
    props.put("value.serializer", classOf[StringSerializer].getName)
    val producer = new KafkaProducer[String, String](props)

    val random = new Random()
    val allStatus = Array(
      "fail", "busy", "barring", "success", "success", "success",
      "success", "success", "success", "success", "success", "success"
    )

    while (true) {
      val callOut: String = "1860000%04d".format(random.nextInt(10000))
      val callIn: String = "1890000%04d".format(random.nextInt(10000))
      val callStatus: String = allStatus(random.nextInt(allStatus.length))
      val callDuration = if ("success".equals(callStatus)) (1 + random.nextInt(10)) * 1000L else 0L

      // 随机产生一条基站日志数据
      val stationLog: StationLog = StationLog(
        "station_" + random.nextInt(10),
        callOut,
        callIn,
        callStatus,
        System.currentTimeMillis(),
        callDuration
      )
      println(stationLog.toString)
      Thread.sleep(100 + random.nextInt(100))

      val record = new ProducerRecord[String, String]("stationTopic", stationLog.toString)
      producer.send(record)
    }

    producer.close() // 关闭连接

  }

  /*
  *
  *  @Description: 基站通话日志数据
  */
  case class StationLog(
                       stationId:String,  // 基站标识符
                       callOut:String,    // 主叫号码
                       callIn:String,     // 被叫号码
                       callStatus:String, // 通话状态
                       callTime:Long,     // 通话时间
                       duration:Long,     // 通话时长
                       ){
    override def toString(): String = {
      s"$stationId,$callOut,$callIn,$callStatus,$callTime,$duration"
    }
  }
}

从stationTopic消费数据---->使用StructuredStreaming进行ETL—>将ETL的结果写入etlTopic主题

获取stationTopic中的success数据

package com.jiang.StructedStreaming

import org.apache.spark.SparkContext
import org.apache.spark.sql.streaming.Trigger
import org.apache.spark.sql.{DataFrame, Dataset, Row, SparkSession}

/*
 * @param null
*
*  @Description: Structured Streaming整合Kafka
*  从stationTopic消费数据---->使用StructuredStreaming进行ETL--->将ETL的结果写入etlTopic主题
*/
object Kafka_ETL {

  def main(args: Array[String]): Unit = {

    //TODO 0.创建环境
    val spark: SparkSession = SparkSession.builder().appName("sparksql").master("local[*]")
      .config("spark.sql.shuffle.partitions","1")
      .getOrCreate()
    val sc: SparkContext = spark.sparkContext
    sc.setLogLevel("WARN")
    import spark.implicits._

    //TODO 1.加载数据  -- kafka的stationTopic主题
    val kafkaDF: DataFrame = spark.readStream
      .format("kafka")
      .option("kafka.bootstrap.servers", "192.168.89.10:9092")
      .option("subscribe", "stationTopic")
      .load()

    val ds: Dataset[String] = kafkaDF.selectExpr("CAST(value AS STRING)").as[String]

    //TODO 2.处理数据 -- ETL-->过滤success的数据
    val etlResult: Dataset[String] = ds.filter(_.contains("success"))

    //TODO 3.输出结果 --kafka的etlTopic主题
    etlResult.writeStream
        .format("kafka")
        .option("kafka.bootstrap.servers", "192.168.89.10:9092")
        .option("topic", "etlTopic")
        .option("checkpointLocation","./ckp")
        .start()
        .awaitTermination()
    //TODO 4.启动并等待结果


    //TODO 5.关闭资源
    spark.stop()

  }

}

二、物联网设备数据实时分析

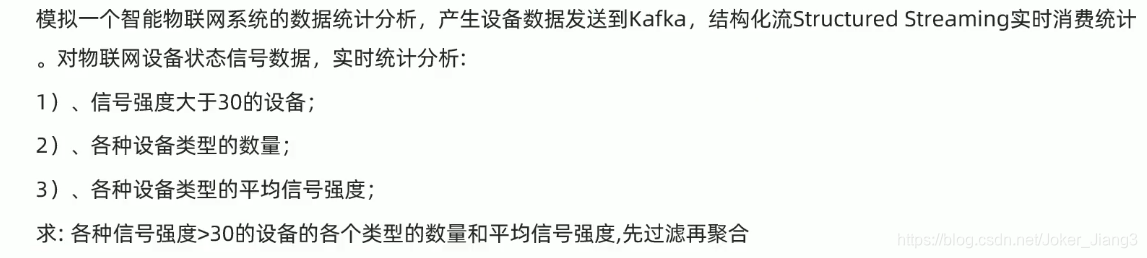

1、需求

2、创建主题

bin/kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 3 --topic iotTopic

3、代码示例

（1）模拟数据的生成代码（数据发送到kafka的iotTopic主题）

package com.jiang.structed_streaming_kafka

import java.util.Properties

import org.apache.kafka.clients.producer.{KafkaProducer, ProducerRecord}
import org.apache.kafka.common.serialization.StringSerializer
import org.json4s.jackson.Json

import scala.util.Random

object MockIotDatas {

  def main(args: Array[String]): Unit = {

    // 发送 kafka topic
    val props = new Properties()
    props.put("bootstrap.servers", "192.168.89.10:9092")
    props.put("acks", "1")
    props.put("retries", "3")
    props.put("key.serializer", classOf[StringSerializer].getName)
    props.put("value.serializer", classOf[StringSerializer].getName)
    val producer = new KafkaProducer[String, String](props)

    val random = new Random()

    val deviceTypes = Array(
      "db", "bigdata", "kafka", "route", "bigdata", "db", "bigdata", "bigdata", "bigdata"
    )

    while (true) {
      val index: Int = random.nextInt(deviceTypes.length)
      val deviceId: String = s"device_${(index + 1) * 10 + random.nextInt(index + 1)}"
      val deviceType: String = deviceTypes(index)
      val deviceSignal: Int = 10 + random.nextInt(90)
      // 模拟构造设备数据
      val deviceData = DeviceData(deviceId, deviceType, deviceSignal, System.currentTimeMillis())
      // 转换为JSON字符串
      val deviceJson: String = new Json(org.json4s.DefaultFormats).write(deviceData)
      //{"device":"device_30","deviceType":"kafka","signal":77.0,"time":1610158709534}

      println(deviceJson)
      Thread.sleep(1000 + random.nextInt(500))

      val record = new ProducerRecord[String, String]("iotTopic", deviceJson)

      producer.send(record)
    }

    producer.close() // 关闭连接

  }
  /**
    * 物联网设备发送状态数据
    */
  case class DeviceData(
                         device: String, //设备标识符ID
                         deviceType: String, //设备类型，如服务器mysql, redis, kafka或路由器route
                         signal: Double, //设备信号
                         time: Long //发送数据时间
                       )

}

（2）业务处理代码（统计信号强度>30的各种设备类型对应的数量和平均信号强度）

? 从kafka的iotTopic主题消费数据 -->使用StructuredStreaming进行实时分析–>将结果写到控制台

package com.jiang.structed_streaming_kafka

import org.apache.commons.lang3.StringUtils
import org.apache.spark.SparkContext
import org.apache.spark.sql.types.DoubleType
import org.apache.spark.sql.{DataFrame, Dataset, SparkSession}

/**
  * Author Jiang
  * Desc 演示StructuredStreaming整合Kafka,
  * 从iotTopic消费数据 -->使用StructuredStreaming进行实时分析-->将结果写到控制台
  */
object Kafka_IOT {

  def main(args: Array[String]): Unit = {

    //TODO 0.创建环境
    //因为StructuredStreaming基于SparkSQL的且编程API/数据抽象是DataFrame/DataSet,所以这里创建SparkSession即可
    val spark: SparkSession = SparkSession.builder().appName("sparksql").master("local[*]")
      .config("spark.sql.shuffle.partitions", "1") //本次测试时将分区数设置小一点,实际开发中可以根据集群规模调整大小,默认200
      .getOrCreate()
    val sc: SparkContext = spark.sparkContext
    sc.setLogLevel("WARN")
    import spark.implicits._
    import org.apache.spark.sql.functions._

    //TODO 1.加载数据 （加载kafka主题iotTopic中的数据）
    val kafkaDF: DataFrame = spark.readStream
      .format("kafka")
      .option("kafka.bootstrap.servers", "192.168.89.10:9092")
      .option("subscribe", "iotTopic")
      .load()
    val valueDS: Dataset[String] = kafkaDF.selectExpr("CAST(value AS STRING)").as[String]
    //{"device":"device_30","deviceType":"kafka","signal":77.0,"time":1610158709534}

    //TODO 2.处理数据
    //需求:统计信号强度>30的各种设备类型对应的数量和平均信号强度
    //解析json(也就是增加schema:字段名和类型)
    //方式1:fastJson/Gson等工具包,后续案例中使用
    //方式2:使用SparkSQL的内置函数,当前案例使用
    val schemaDF: DataFrame = valueDS.filter(StringUtils.isNotBlank(_))
      .select(
        get_json_object($"value", "$.device").as("device_id"),
        get_json_object($"value", "$.deviceType").as("deviceType"),
        get_json_object($"value", "$.signal").cast(DoubleType).as("signal")
      )

    //需求:统计信号强度>30的各种设备类型对应的数量和平均信号强度
    //TODO ====SQL
    schemaDF.createOrReplaceTempView("t_iot")
    val sql: String =
      """
        |select deviceType,count(*) as counts,avg(signal) as avgsignal
        |from t_iot
        |where signal > 30
        |group by deviceType
        |""".stripMargin
    val result1: DataFrame = spark.sql(sql)

    //TODO ====DSL
    val result2: DataFrame = schemaDF.filter('signal > 30)
      .groupBy('deviceType)
      .agg(
        count('device_id) as "counts",
        avg('signal) as "avgsignal"
      )

    //TODO 3.输出结果-控制台
    result1.writeStream
      .format("console")
      .outputMode("complete")
      //.option("truncate", false)
      .start()
    //.awaitTermination()

    //TODO 4.启动并等待结束
    result2.writeStream
      .format("console")
      .outputMode("complete")
      //.trigger(Trigger.ProcessingTime(0))
      //.option("truncate", false)
      .start()
      .awaitTermination()

    //TODO 5.关闭资源
    spark.stop()

  }

}
