[大数据]kafka集群以及和springboot集成(Mac OS)

kafka简介:

kafka是一个基于发布/订阅的分布式消息系统,主要设计目标有:

1.高性能的消息持久化能力

2.高通吐且对硬件要求不高

3.支持分区存储,分布式消费,且能保证分区内的消息顺序.

4.支持离线/在线的数据传输处理

5.支持水平扩展

kafka安装配置

1.下载压缩包

http://kafka.apache.org/downloads

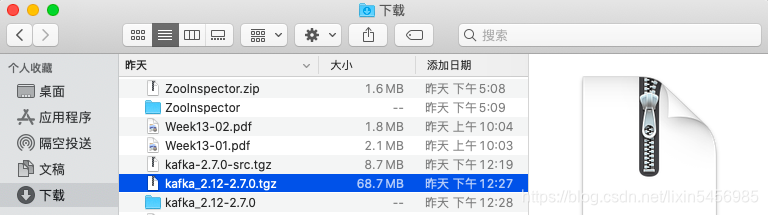

2.解压

3.进入kafka_2.12-2.7.0文件夹

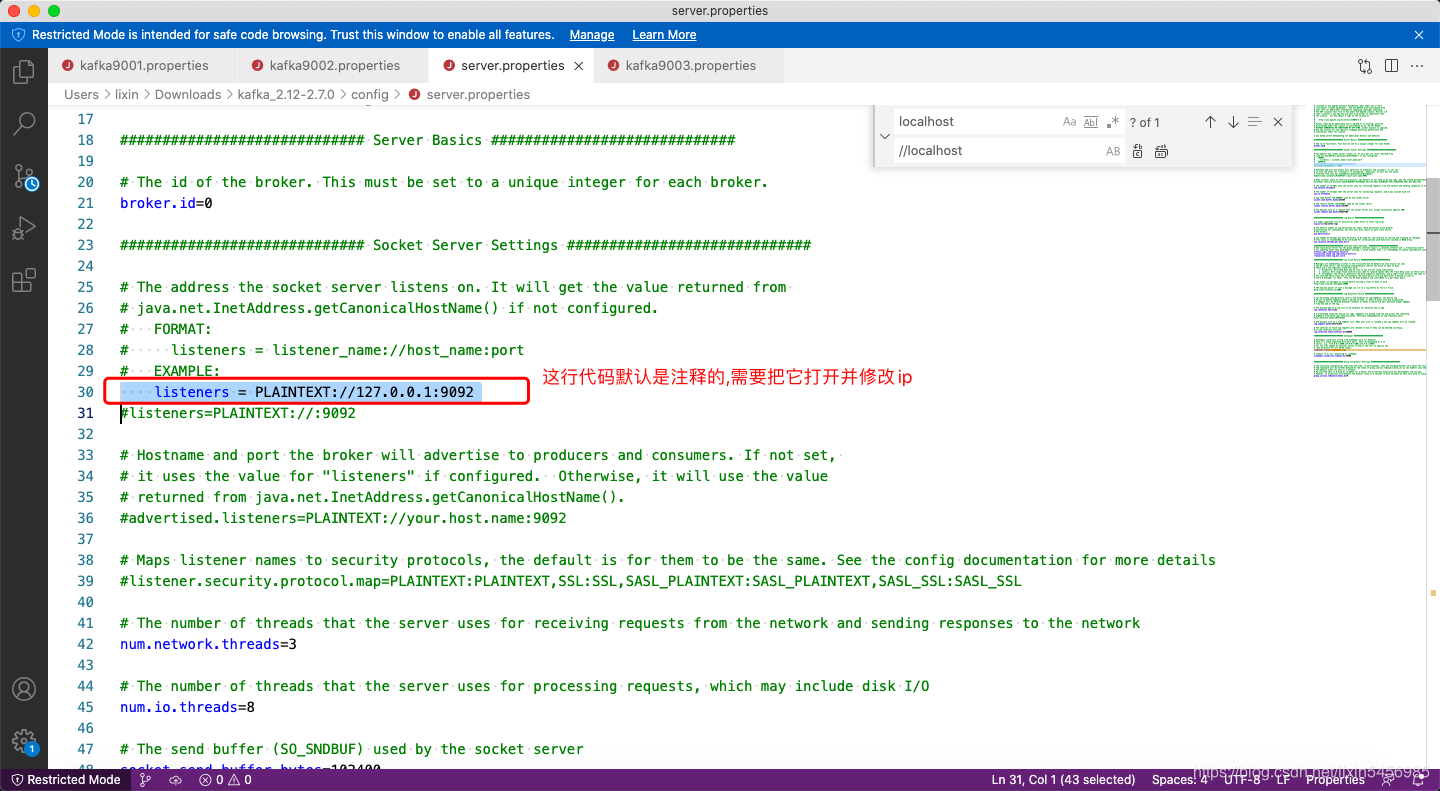

4.进入config文件夹找到 server.properties文件打开,打开listeners = PLAINTEXT://127.0.0.1:9092代码的注释并修改ip,然后保存修改并退出.

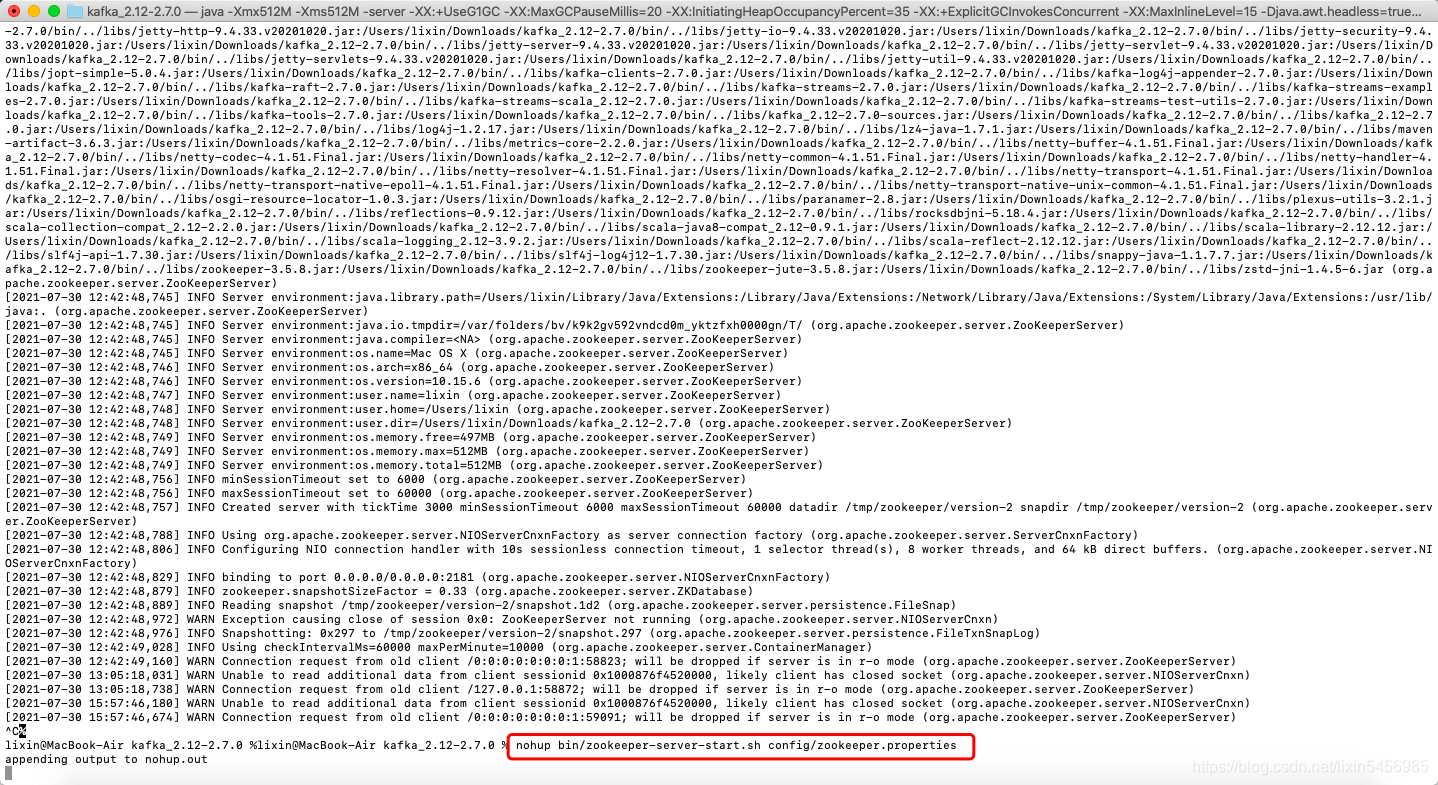

?5.打开终端,进入kafka_2.12-2.7.0文件夹下.输入命令:

bin/zookeeper-server-start.sh config/zookeeper.properties

?启动zookeeper,这是kafka自带的zookeeper,用来管理broker(代理服务),像注册中心一样.

?加上nohup代码是后台启动.

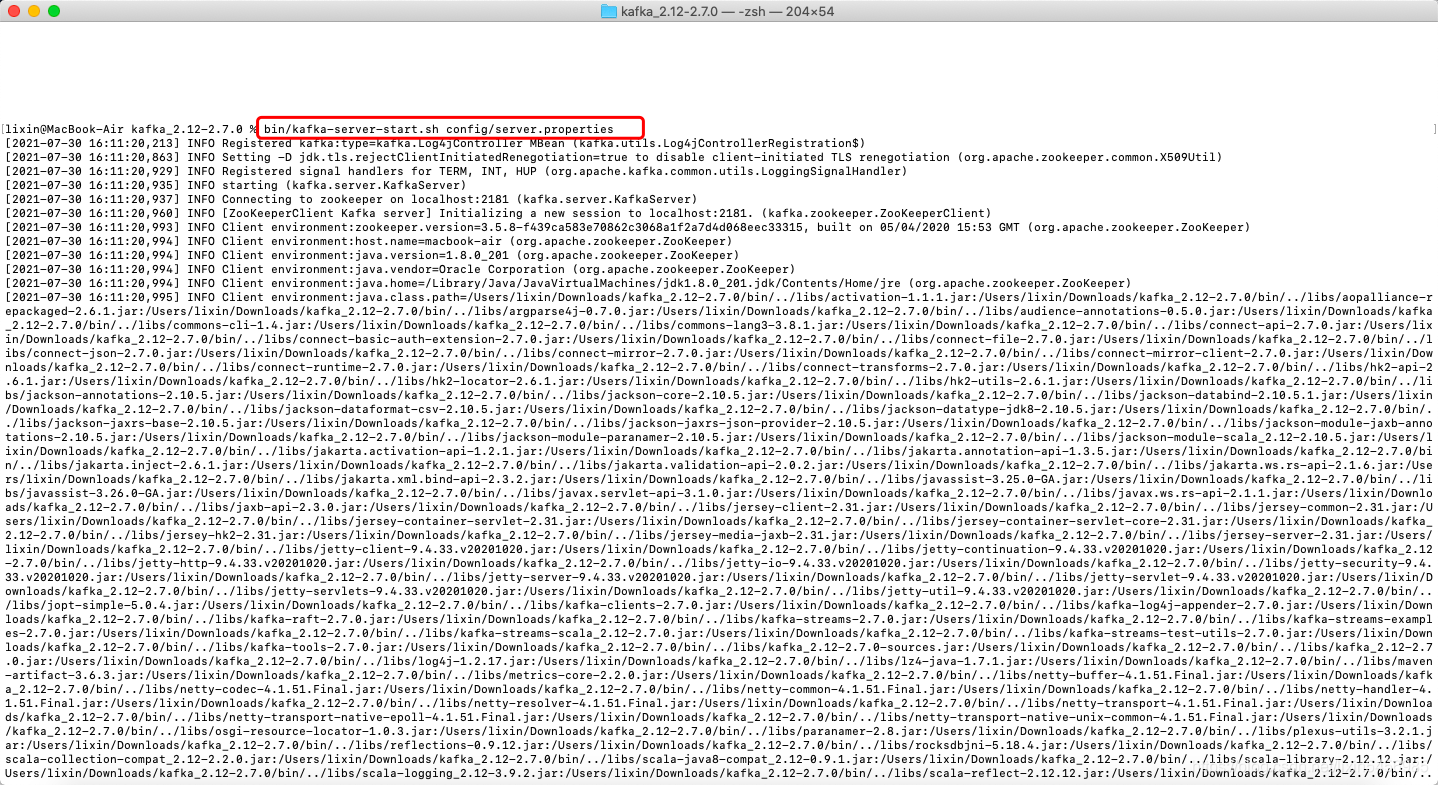

6.启动kafka,使用:bin/kafka-server-start.sh config/server.properties命令

7.操作命令

//查看topic列表
bin/kafka-topics.sh --zookeeper localhost:2181 --list

//创建一个名为topicTest的topic,分区为3,副本为1
bin/kafka-topics.sh --zookeeper localhost:2181 --create --topic topicTest --partitions 3 --replication- factor 1

//查看topicTest详情
bin/kafka-topics.sh --zookeeper localhost:2181 --describe --topic topicTest
//创建一个消费者
bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --from-beginning --topic topicTest
//创建一个生产者
bin/kafka-console-producer.sh --bootstrap-server localhost:9092 --topic topicTest

kafka集群配置

1.因为我们前面配置了单机的,zookeeper里面的配置需要清空,不然集群起不来.所以需要下载一个页面工具ZooInspector,下载地址https://issues.apache.org/jira/secure/attachment/12436620/ZooInspector.zip

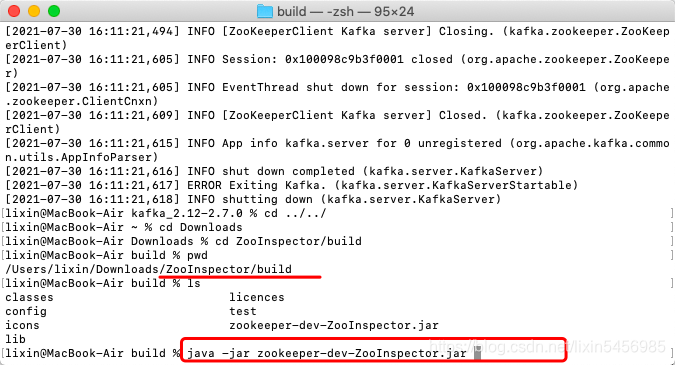

2.下载完成后从终端进入到ZooInspector/build目录下启动zookeeper-dev-ZooInspector.jar

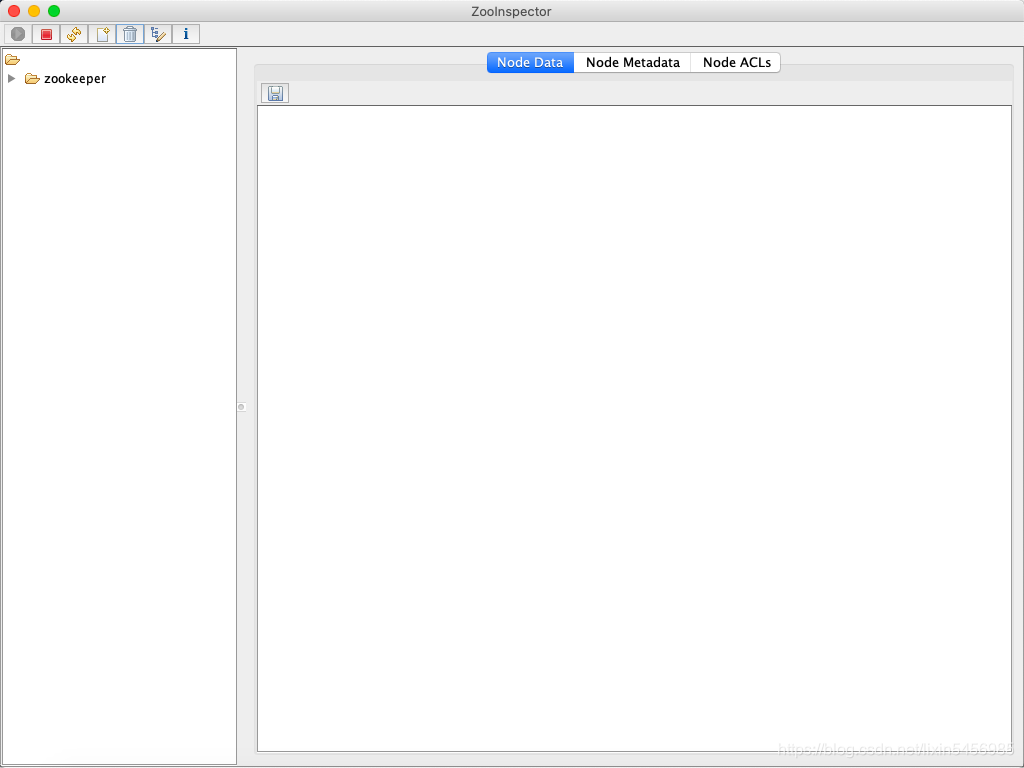

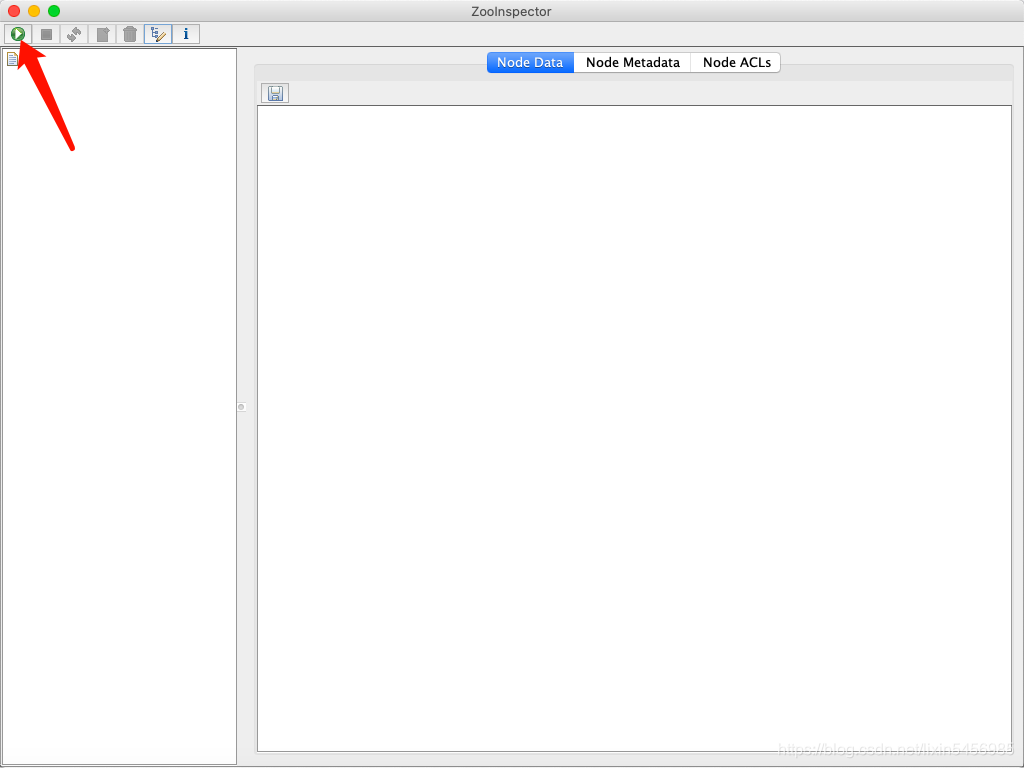

3.连接上本地的zookeeper

4.将目录清理至如下

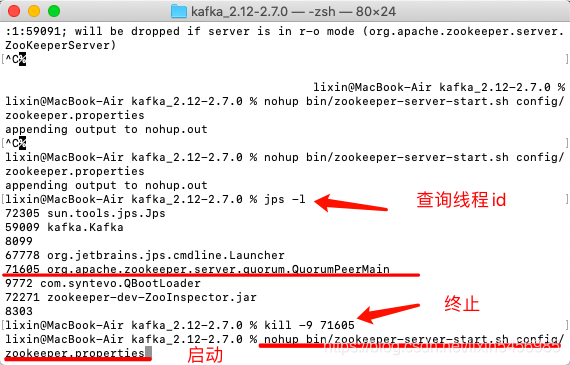

5.重启zookeeper服务

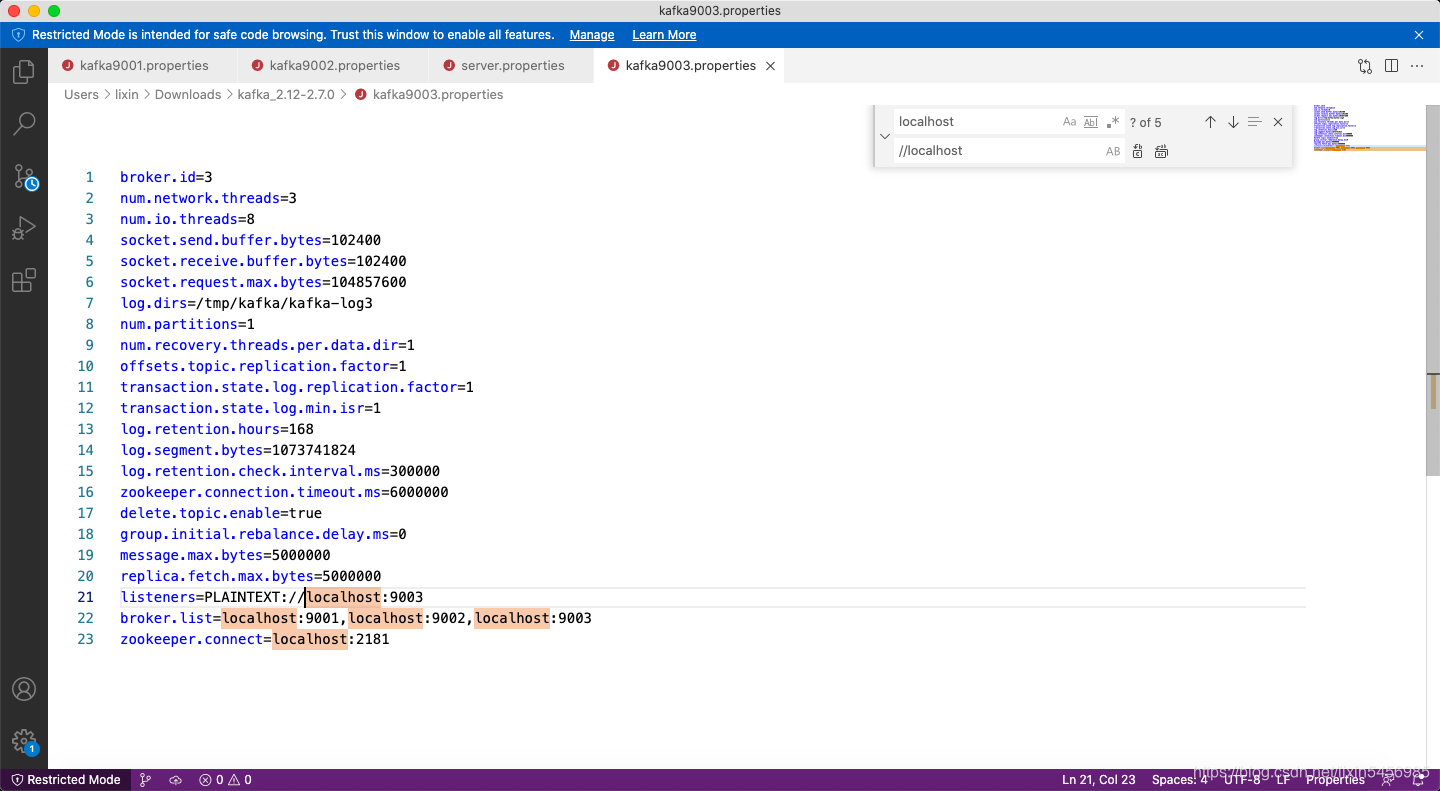

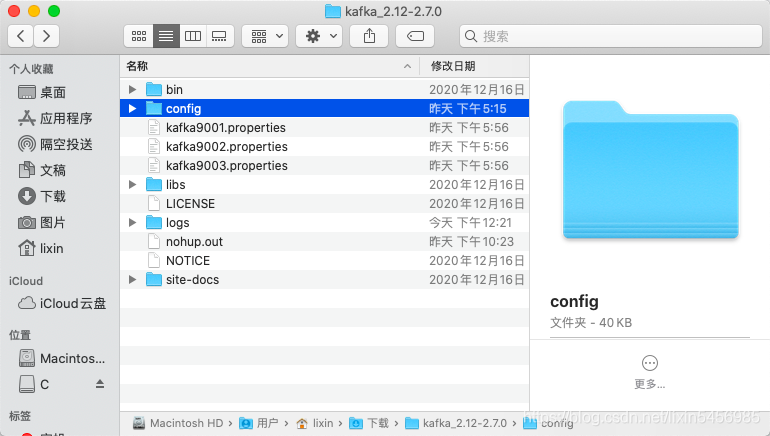

6.准备3个配置文件,放在kafka_2.12-2.7.0文件夹下

//不同文件ibroker.id不同
broker.id=11
num.network.threads=3
num.io.threads=8
socket.send.buffer.bytes=102400
socket.receive.buffer.bytes=102400
socket.request.max.bytes=104857600
//日志文件路径不同
log.dirs=/tmp/kafka/kafka-log1
num.partitions=1
num.recovery.threads.per.data.dir=1
offsets.topic.replication.factor=1
transaction.state.log.replication.factor=1
transaction.state.log.min.isr=1
log.retention.hours=168
log.segment.bytes=1073741824
log.retention.check.interval.ms=300000
zookeeper.connection.timeout.ms=6000000
delete.topic.enable=true
group.initial.rebalance.delay.ms=0
message.max.bytes=5000000
replica.fetch.max.bytes=5000000
//端口不同
listeners=PLAINTEXT://localhost:9001
broker.list=localhost:9001,localhost:9002,localhost:9003
zookeeper.connect=localhost:2181

?7.启动这3台kafka

./bin/kafka-server-start.sh kafka9001.properties

./bin/kafka-server-start.sh kafka9002.properties

./bin/kafka-server-start.sh kafka9003.properties

启动成功.

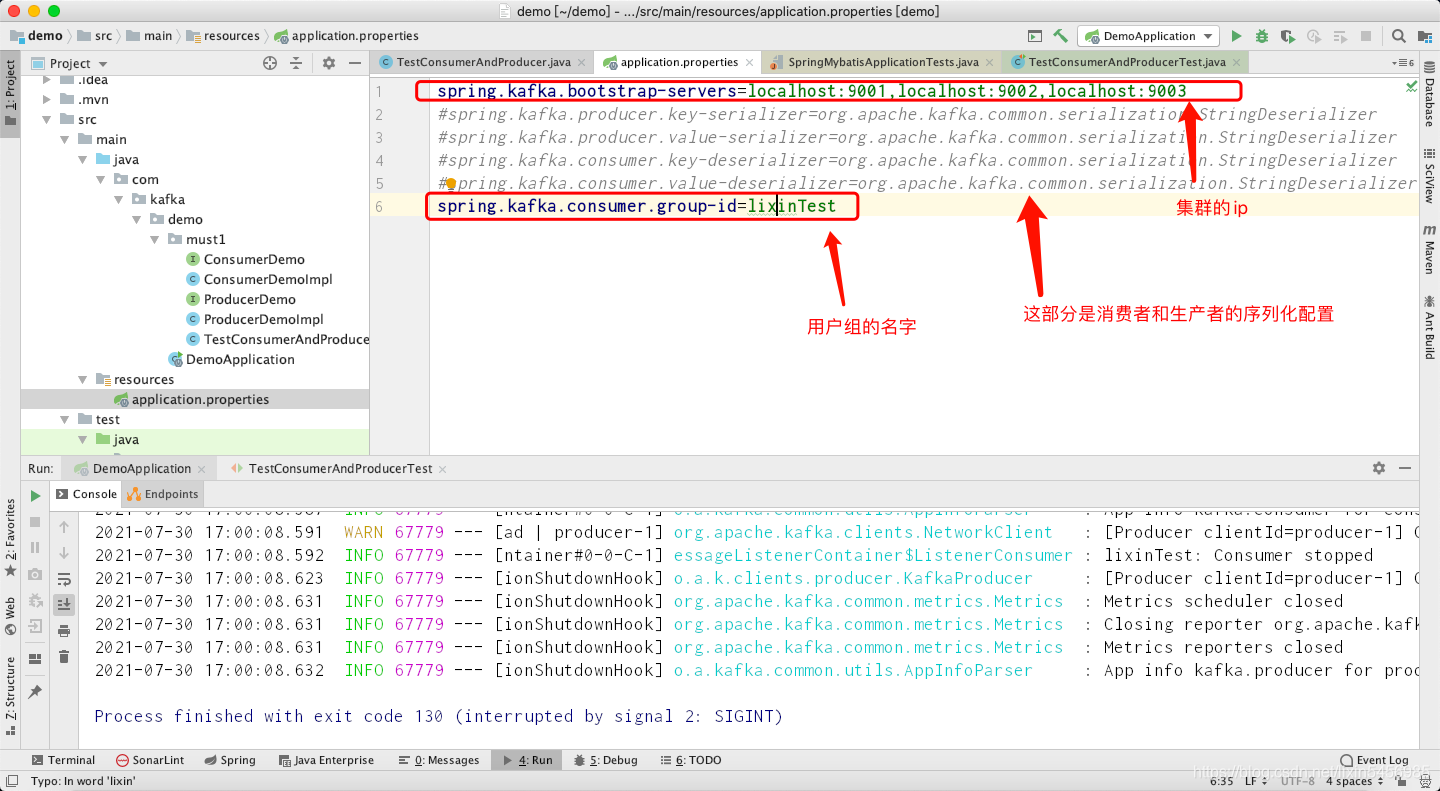

?8.spring boot集成,配置文件

?9.引入依赖

        <dependency>
            <groupId>org.apache.kafka</groupId>
            <artifactId>kafka-streams</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <version>2.5.3</version>
            <scope>compile</scope>
        </dependency>

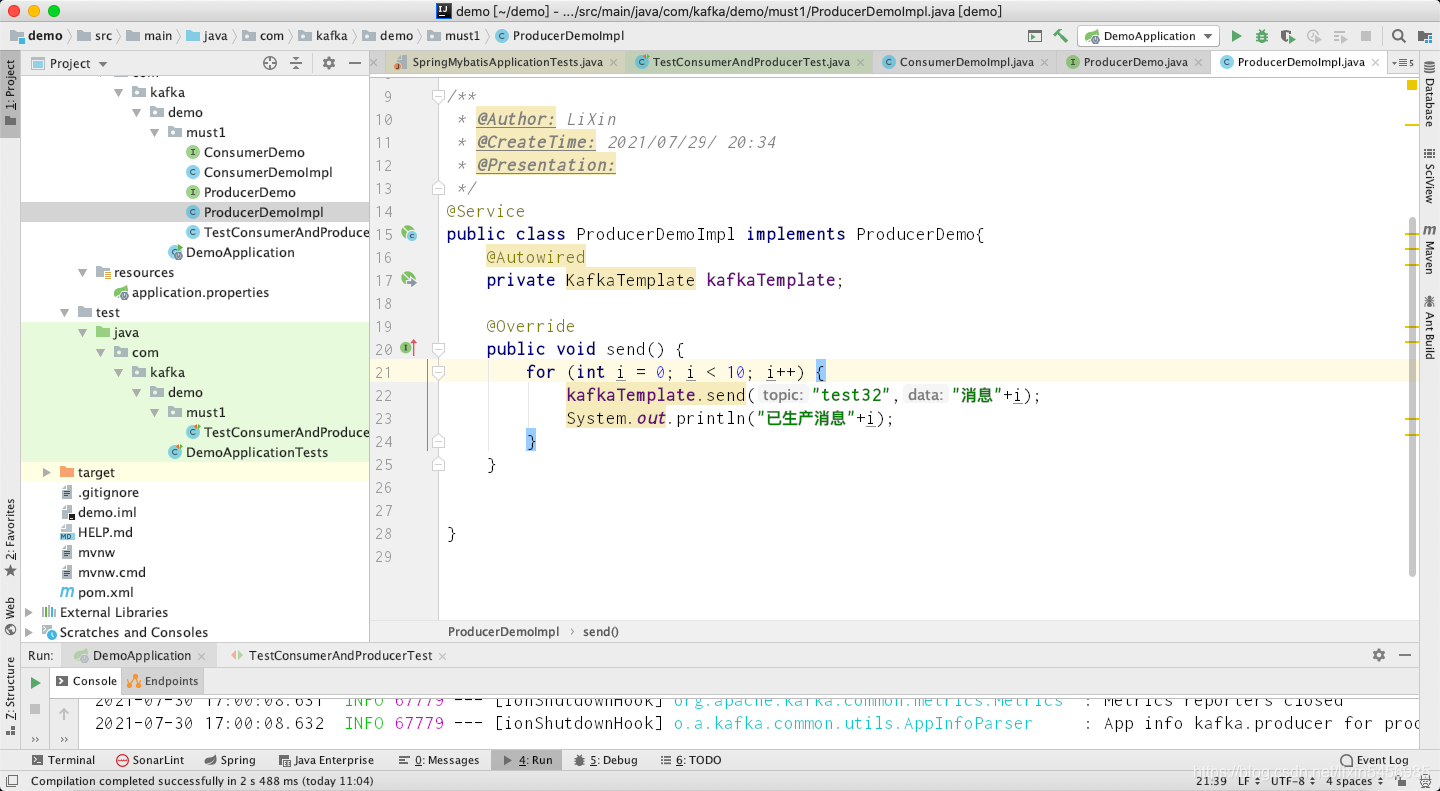

10.编写生产者和消费者类

?

package com.kafka.demo.must1;

import org.apache.kafka.common.serialization.Serializer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.kafka.core.KafkaTemplate;


/**
 * @Author: LiXin
 * @CreateTime: 2021/07/29/ 20:34
 * @Presentation:
 */
@Service
public class ProducerDemoImpl implements ProducerDemo{
    @Autowired
    private KafkaTemplate kafkaTemplate;

    @Override
    public void send() {
        for (int i = 0; i < 10; i++) {
            kafkaTemplate.send("test32","消息"+i);
            System.out.println("已生产消息"+i);
        }
    }


}

?

package com.kafka.demo.must1;

import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.springframework.kafka.annotation.KafkaListener;
import org.springframework.stereotype.Service;
import org.apache.kafka.common.serialization.Serializer;


/**
 * @Author: LiXin
 * @CreateTime: 2021/07/29/ 20:34
 * @Presentation:
 */
@Service
public class ConsumerDemoImpl implements ConsumerDemo{

    @Override
    @KafkaListener(topics = {"test32"})
    public void consumer(ConsumerRecord record) {
        System.out.println("消费者收到消息"+record.value());
    }
}

11.创建一个controller接口,便于从页面访问

package com.kafka.demo.must1;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

/**
 * @Author: LiXin
 * @CreateTime: 2021/07/29/ 22:33
 * @Presentation:
 */
@Controller
public class TestConsumerAndProducer {
    @Autowired
    private ProducerDemo producerDemo;

    //页面访问地址:http://localhost:8080/sendMsg
    @GetMapping("/sendMsg")
    public String show(){
        producerDemo.send();
        return "调用生产成功";
    }
}

12.启动服务

?

13.访问服务

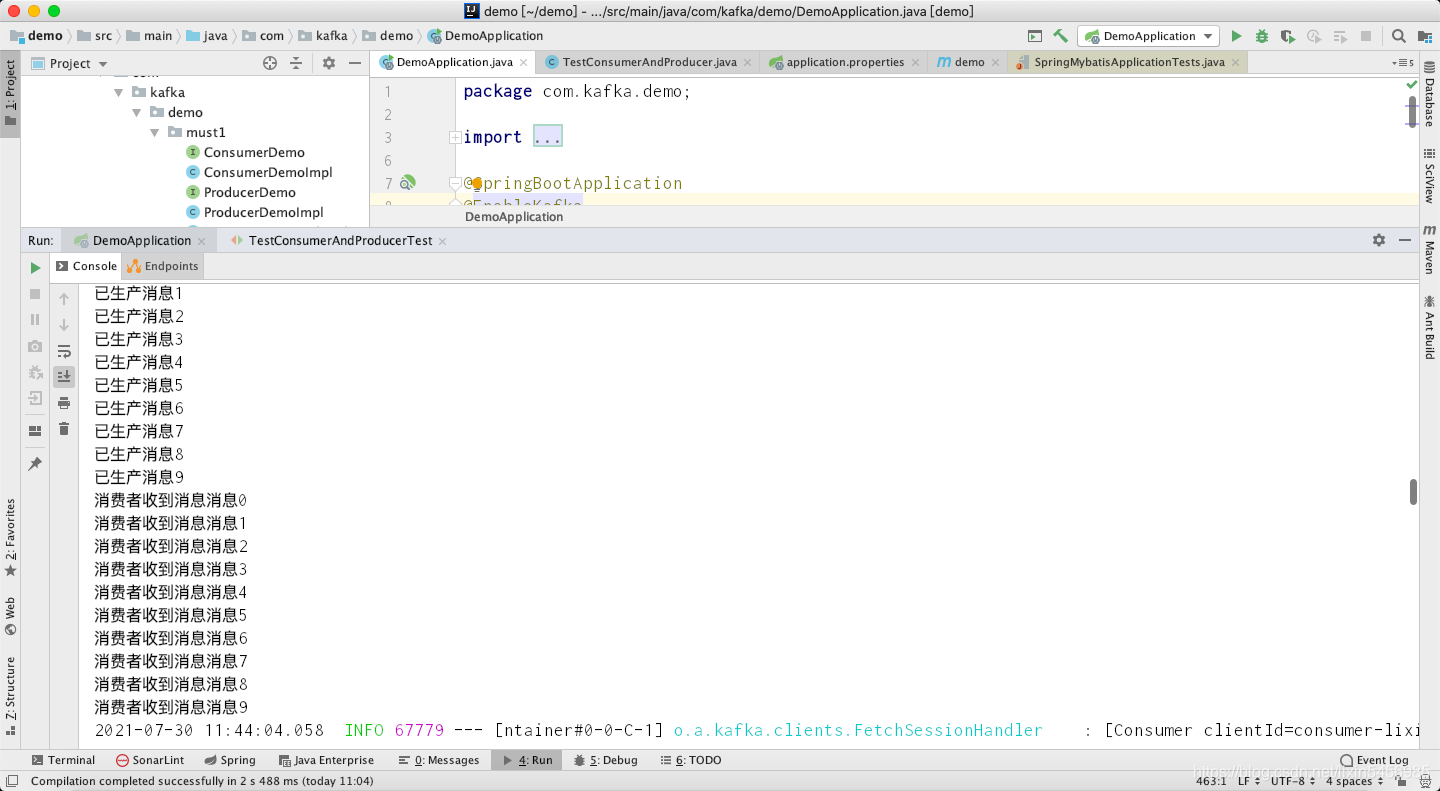

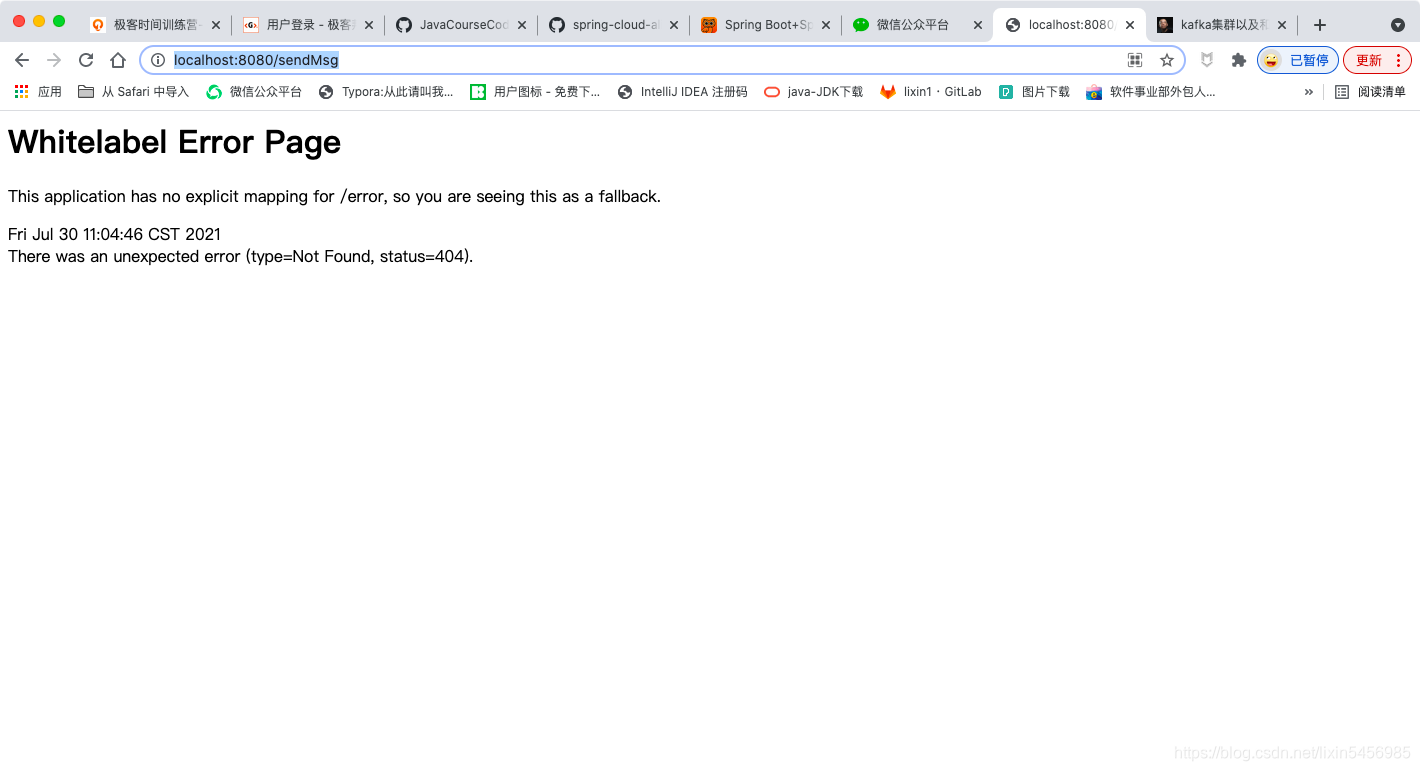

页面因为没有返回资源,所以会报错404,但控制台可以看出是成功的

?
