[大数据]使用waterdrop将kudu数据抽取到clickhouse

1.waterdrop下载

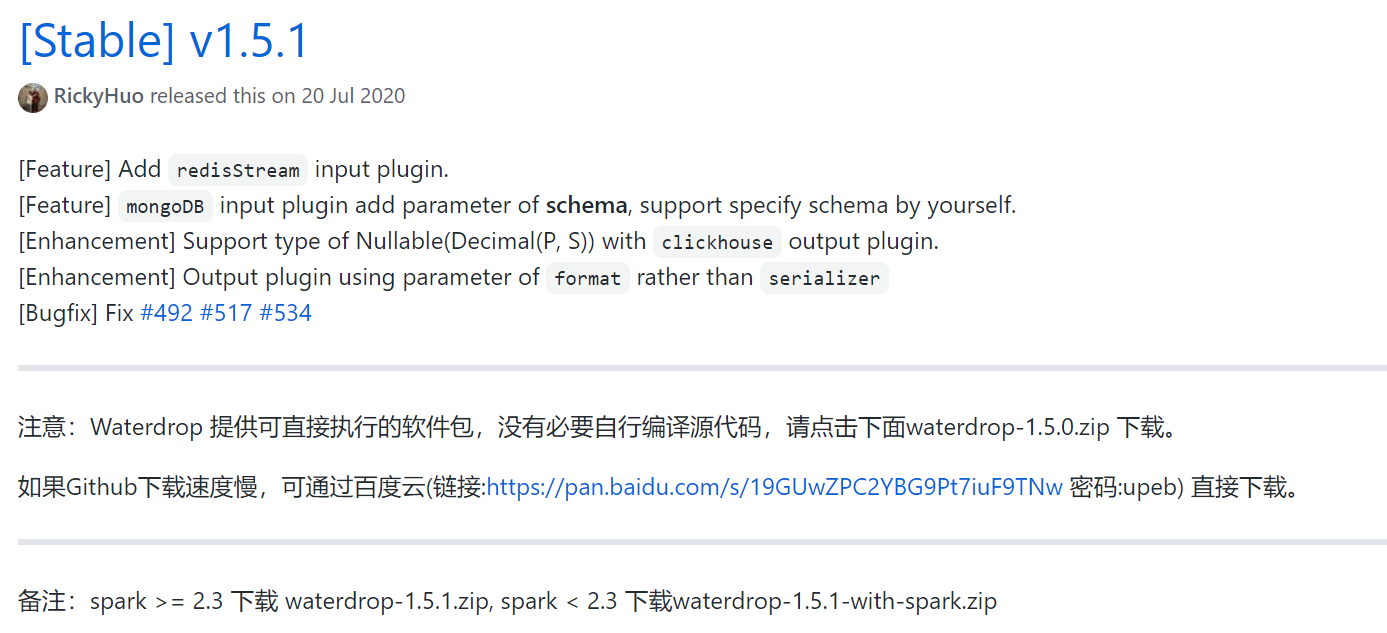

下载链接:https://github.com/InterestingLab/waterdrop/releases

根据waterdrop官网提示:我本地测试环境spark版本是2.4.8,waterdrop版本是1.5.1。

先解压缩：tar -zxvf waterdrop-1.5.1.zip -C /opt/
然后修改配置文件:vim /opt/waterdrop-1.5.1/config/waterdrop-env.sh
# 添加spark执行环境
SPARK_HOME=/opt/spark-2.4.8-bin-hadoop2.7

2.kudu数据准备

kudu表结构如下图所示:

3.clickhouse建表

CREATE TABLE test.user_info
(
    `id` String,
    `name` String,
    `sex` String,
    `city` String,
    `occupation` String,
    `tel` String,
    `fixPhoneNum` String,
    `bankName` String,
    `address` String,
    `marriage` String,
    `childNum` String
)
ENGINE = MergeTree
ORDER BY id;

4.配置文件

spark {
  #程序名称
  spark.app.name = "Waterdrop"
  #executor的数量(数据量大可以适当增大)
  spark.executor.instances = 1
  #每个excutor核数(并行度,数据量大可以适当增大到服务器核数一半以下,尽量不要影响clickhouse)
  spark.executor.cores = 1
  #每个excutor内存(不能小于512m)
  spark.executor.memory = "1g"
}

input {
 kudu{
   kudu_master="node04:7051"
   kudu_table="user_info"

  #输出中需要指定sourcex_table_name="kudu_source"
   result_table_name="user_info"
 }
}

filter {
}

output {

 clickhouse {

  #指定从哪个源临时表输出
    source_table_name="user_info"
    host = "node04:8123"
    clickhouse.socket_timeout = 50000
    database = "test"
    table = "user_info"
    fields = ["id","name","sex","city","occupation","tel","fixPhoneNum","bankName","address","marriage","childNum"]
    username = ""
    password = ""
    bulk_size = 20000
}
}

5.效果展示

启动任务:/opt/waterdrop-1.5.1/bin/start-waterdrop.sh --master local[1] --deploy-mode client --config /opt/waterdrop-1.5.1/config/kudu2clickhouse.conf

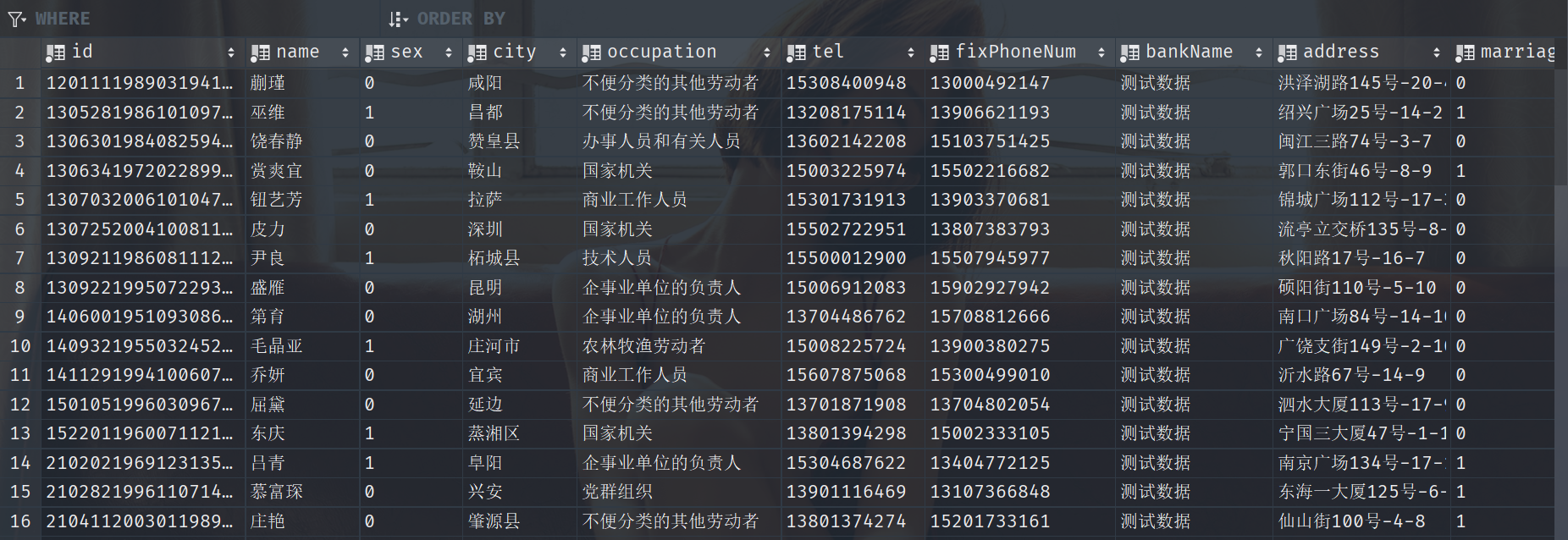

查询clickhouse表:select * from test.user_info;
