1. 整体的架构
1.1 官网
https://dolphinscheduler.apache.org/zh-cn/index.html

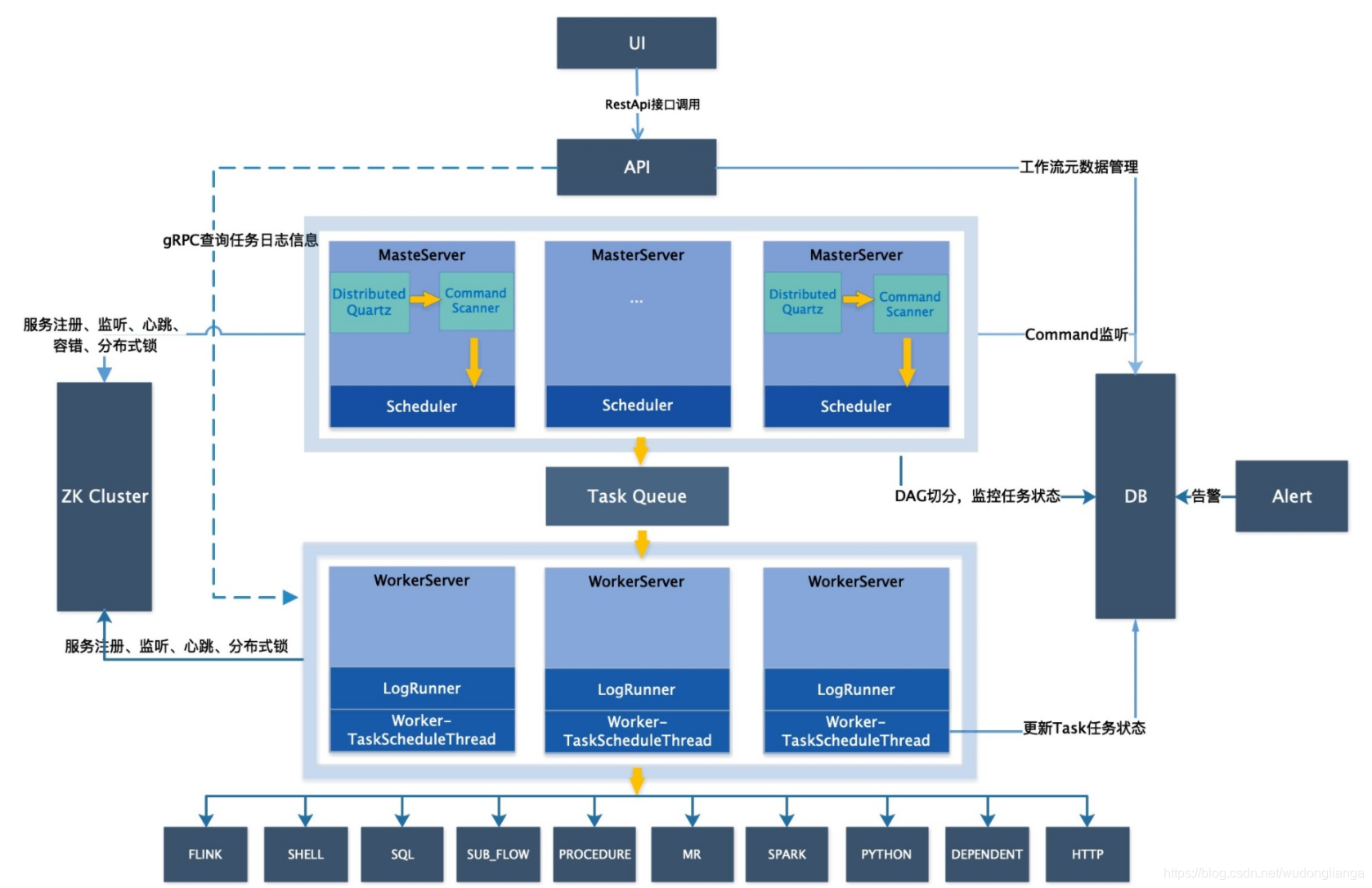

1.2 架构图
1.3 源码下载： 本文下载的1.3.6 版本
https://github.com/apache/dolphinscheduler/releases
1.4 下载好解压：
unzip dolphinscheduler-1.3.6.zip
2.修改源码和大数据的版本pom 文件
主要修改hdfs 和hive 的版本对应 ambari 或者cdh 的里面的hive 和 hdfs 的版本
进入 dolphinscheduler-1.3.6
修改：
<hadoop.version>3.1.1</hadoop.version>
<hive.jdbc.version>3.1.0</hive.jdbc.version>
2.1 进行编译：
mvn -U clean package -Prelease -Dmaven.test.skip=true
[INFO] Building tar: /opt/module/dolphinscheduler/dolphinscheduler-1.3.6/dolphinscheduler-dist/target/apache-dolphinscheduler-1.3.6-bin.tar.gz
...............................................
[INFO]
[INFO] --- maven-assembly-plugin:3.1.0:single (src) @ dolphinscheduler-dist ---
[INFO] Reading assembly descriptor: src/main/assembly/dolphinscheduler-src.xml
[INFO] Building tar: /opt/module/dolphinscheduler/dolphinscheduler-1.3.6/dolphinscheduler-dist/target/apache-dolphinscheduler-1.3.6-src.tar.gz
[INFO]
[INFO] --- maven-javadoc-plugin:2.10.3:jar (attach-javadocs) @ dolphinscheduler-dist ---
[INFO] Not executing Javadoc as the project is not a Java classpath-capable package
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Summary for dolphinscheduler 1.3.6:
[INFO]
[INFO] dolphinscheduler ................................... SUCCESS [ 1.360 s]
[INFO] dolphinscheduler-ui ................................ SUCCESS [ 42.789 s]
[INFO] dolphinscheduler-plugin-api ........................ SUCCESS [ 1.258 s]
[INFO] dolphinscheduler-common ............................ SUCCESS [01:16 min]
[INFO] dolphinscheduler-dao ............................... SUCCESS [ 45.908 s]
[INFO] dolphinscheduler-remote ............................ SUCCESS [ 12.852 s]
[INFO] dolphinscheduler-service ........................... SUCCESS [ 21.570 s]
[INFO] dolphinscheduler-alert ............................. SUCCESS [ 11.064 s]
[INFO] dolphinscheduler-server ............................ SUCCESS [ 5.140 s]
[INFO] dolphinscheduler-api ............................... SUCCESS [01:04 min]
[INFO] dolphinscheduler-skywalking ........................ SUCCESS [01:33 min]
[INFO] dolphinscheduler-dist .............................. SUCCESS [05:47 min]
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 12:03 min
[INFO] Finished at: 2021-07-31T18:47:53+08:00
[INFO] ------------------------------------------------------------------------
[root@node01 dolphinscheduler-1.3.6]#
正常编译完后，会在 dolphinscheduler-dist/target ?目录下?生成如下安装包：
[root@node01 target]# cd /opt/module/dolphinscheduler/dolphinscheduler-1.3.6/dolphinscheduler-dist/target
[root@node01 target]# ll
总用量 230828
-rw-r--r-- 1 root root 234705278 7月 31 18:47 apache-dolphinscheduler-1.3.6-bin.tar.gz
-rw-r--r-- 1 root root 1657273 7月 31 18:47 apache-dolphinscheduler-1.3.6-src.tar.gz
drwxr-xr-x 2 root root 6 7月 31 18:42 archive-tmp
drwxr-xr-x 3 root root 22 7月 31 18:42 maven-shared-archive-resources
[root@node01 target]# pwd
/opt/module/dolphinscheduler/dolphinscheduler-1.3.6/dolphinscheduler-dist/target
[root@node01 target]#
4. 部署规划
| 服务名 | noe01 | noe02 | noe03 |
|---|---|---|---|
| master | ? | ? | |
| worker/logServer | ? | ? | |
| alertServer | ? | ||
| apiServer | ? | ||
| ui | ? | ||
| mysql | ? |
5. 安装
[root@node01 dolphinscheduler]# ll
总用量 234428
-rw-r--r-- 1 root root 234705278 7月 31 18:57 apache-dolphinscheduler-1.3.6-bin.tar.gz
drwxr-xr-x 22 root root 4096 7月 31 17:59 apache-dolphinscheduler-1.3.6-src
-rw-r--r-- 1 root root 1718499 7月 31 17:59 apache-dolphinscheduler-1.3.6-src.tar.gz
drwxr-xr-x 24 root root 4096 7月 31 18:35 dolphinscheduler-1.3.6
-rw-r--r-- 1 root root 3610157 7月 31 18:03 dolphinscheduler-1.3.6.zip
drwxr-xr-x 27 root root 4096 7月 31 14:43 incubator-dolphinscheduler
[root@node01 dolphinscheduler]# tar -zxvf apache-dolphinscheduler-1.3.6-bin.tar.gz
5.1. 赋值权限
[root@node01 dolphinscheduler]# cd apache-dolphinscheduler-1.3.6-bin
[root@node01 apache-dolphinscheduler-1.3.6-bin]# ll
总用量 156
drwxr-xr-x 2 root root 79 7月 31 18:58 bin
drwxr-xr-x 5 root root 4096 7月 31 18:58 conf
drwxr-xr-x 3 root root 30 7月 31 18:58 ext
-rwxr-xr-x 1 root root 4663 4月 25 11:13 install.sh
drwxr-xr-x 2 root root 12288 7月 31 18:58 lib
-rw-r--r-- 1 root root 38823 4月 25 11:13 LICENSE
drwxr-xr-x 3 root root 12288 7月 31 18:58 licenses
-rw-r--r-- 1 root root 70929 4月 25 11:13 NOTICE
drwxr-xr-x 2 root root 218 7月 31 18:58 script
drwxr-xr-x 4 root root 125 7月 31 18:58 sql
drwxr-xr-x 8 root root 113 7月 31 18:58 ui
[root@node01 apache-dolphinscheduler-1.3.6-bin]# chmod ugo+x bin/*
[root@node01 apache-dolphinscheduler-1.3.6-bin]# chmod ugo+x script/*
[root@node01 apache-dolphinscheduler-1.3.6-bin]# chmod ugo+x install.sh
[root@node01 apache-dolphinscheduler-1.3.6-bin]# chmod ugo+x conf/env/dolphinscheduler_env.sh
[root@node01 apache-dolphinscheduler-1.3.6-bin]# pwd
/opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin
5.2 数据库配置
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi conf/datasource.properties
#
# mysql
spring.datasource.driver-class-name=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://192.168.1.161:3306/dolphinscheduler1.3.6?useUnicode=true&characterEncoding=UTF-8
spring.datasource.username=root
spring.datasource.password=123456
5.3 添加数据库驱动
[root@node01 lib]# pwd
/opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin/lib
[root@node01 lib]# ln -s /usr/share/java/mysql-connector-java.jar mysql-connector-java.jar
[root@node01 lib]#
[root@node01 apache-dolphinscheduler-1.3.6-bin]# pwd
/opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin
[root@node01 apache-dolphinscheduler-1.3.6-bin]# ll
总用量 156
drwxr-xr-x 2 root root 79 7月 31 18:58 bin
drwxr-xr-x 5 root root 4096 7月 31 19:07 conf
drwxr-xr-x 3 root root 30 7月 31 18:58 ext
-rwxr-xr-x 1 root root 4663 4月 25 11:13 install.sh
drwxr-xr-x 2 root root 12288 7月 31 19:09 lib
-rw-r--r-- 1 root root 38823 4月 25 11:13 LICENSE
drwxr-xr-x 3 root root 12288 7月 31 18:58 licenses
-rw-r--r-- 1 root root 70929 4月 25 11:13 NOTICE
drwxr-xr-x 2 root root 218 7月 31 18:58 script
drwxr-xr-x 4 root root 125 7月 31 18:58 sql
drwxr-xr-x 8 root root 113 7月 31 18:58 ui
[root@node01 apache-dolphinscheduler-1.3.6-bin]# sh ./script/create-dolphinscheduler.sh
y_id` varchar(200); END IF; END;
19:18:08.674 [main] INFO org.apache.dolphinscheduler.common.utils.ScriptRunner - sql: CALL uc_dolphin_T_qrtz_fired_triggers_R_entry_id
19:18:08.714 [main] INFO org.apache.dolphinscheduler.common.utils.ScriptRunner - sql: DROP PROCEDURE uc_dolphin_T_qrtz_fired_triggers_R_entry_id
19:18:08.717 [main] INFO org.apache.dolphinscheduler.dao.upgrade.UpgradeDao - sqlSQLFilePath/opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin/sql/upgrade/1.3.6_schema/mysql/dolphinscheduler_dml.sql
19:18:08.726 [main] INFO org.apache.dolphinscheduler.dao.upgrade.shell.CreateDolphinScheduler - upgrade DolphinScheduler finished
19:18:08.727 [main] INFO org.apache.dolphinscheduler.dao.upgrade.shell.CreateDolphinScheduler - create DolphinScheduler success
[root@node01 apache-dolphinscheduler-1.3.6-bin]#
5.4 配置大数据的环境变量
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi conf/env/dolphinscheduler_env.sh
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
export HADOOP_HOME=/usr/hdp/current/hadoop-client
export HADOOP_CONF_DIR=etc/hadoop/conf
#export SPARK_HOME1=/opt/soft/spark1
export SPARK_HOME2=/opt/module/spark-2.4.3-bin-hadoop2.7/bin
export PYTHON_HOME=/usr/bin/python
export JAVA_HOME=/opt/module/jdk1.8.0_231
export HIVE_HOME=/usr/hdp/current/hive-client
export PATH=$HADOOP_HOME/bin:$SPARK_HOME2/bin:$PYTHON_HOME:$JAVA_HOME/bin:$HIVE_HOME/bin:$PATH
5.5 修改配置集群的参数
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi conf/config/install_config.conf
# NOTICE : If the following config has special characters in the variable `.*[]^${}\+?|()@#&`, Please escape, for example, `[` escape to `\[`
# postgresql or mysql
dbtype="mysql"
# db config
# db address and port
dbhost="192.168.1.162:3306"
# db username
username="root"
# database name
dbname="dolphinscheduler1.3.6"
# db passwprd
# NOTICE: if there are special characters, please use the \ to escape, for example, `[` escape to `\[`
password="123456"
# zk cluster
zkQuorum="192.168.1.161:2181,192.168.1.162:2181,192.168.1.163:2181"
# Note: the target installation path for dolphinscheduler, please not config as the same as the current path (pwd)
installPath="/ds1.3.6"
# deployment user
# Note: the deployment user needs to have sudo privileges and permissions to operate hdfs. If hdfs is enabled, the root directory needs to be created by itself
deployUser="root"
# 邮件协议
mailProtocol="SMTP"
# alert config
# mail server port
# note: Different protocols and encryption methods correspond to different ports, when SSL/TLS is enabled, make sure the port is correct.
mailServerPort="25"
# sender
mailSender="460030103@qq.com"
# user
mailUser="460030103@qq.com"
# sender password
# note: The mail.passwd is email service authorization code, not the email login password.
mailPassword="xxxxxx"
# TLS mail protocol support
starttlsEnable="true"
# SSL mail protocol support
# only one of TLS and SSL can be in the true state.
sslEnable="false"
#note: sslTrust is the same as mailServerHost
sslTrust="smtp.qq.com"
# resource storage type: HDFS, S3, NONE
resourceStorageType="HDFS"
# if resourceStorageType is HDFS，defaultFS write namenode address，HA you need to put core-site.xml and hdfs-site.xml in the conf directory.
# if S3，write S3 address，HA，for example ：s3a://dolphinscheduler，
# Note，s3 be sure to create the root directory /dolphinscheduler
defaultFS="hdfs://node01.com:8020"
# if resourceStorageType is S3, the following three configuration is required, otherwise please ignore
s3Endpoint="http://192.168.xx.xx:9010"
s3AccessKey="xxxxxxxxxx"
s3SecretKey="xxxxxxxxxx"
# if resourcemanager HA is enabled, please set the HA IPs; if resourcemanager is single, keep this value empty
yarnHaIps="192.168.xx.xx,192.168.xx.xx"
# if resourcemanager HA is enabled or not use resourcemanager, please keep the default value; If resourcemanager is single, you only need to replace ds1 to actual resourcemanager hostname
singleYarnIp="yarnIp1"
# resource store on HDFS/S3 path, resource file will store to this hadoop hdfs path, self configuration, please make sure the directory exists on hdfs and have read write permissions. "/dolphinscheduler" is recommended
resourceUploadPath="/dolphinscheduler"
# who have permissions to create directory under HDFS/S3 root path
# Note: if kerberos is enabled, please config hdfsRootUser=
hdfsRootUser="hdfs"
# kerberos config
# whether kerberos starts, if kerberos starts, following four items need to config, otherwise please ignore
kerberosStartUp="false"
# kdc krb5 config file path
krb5ConfPath="$installPath/conf/krb5.conf"
# keytab username
keytabUserName="hdfs-mycluster@ESZ.COM"
# username keytab path
keytabPath="$installPath/conf/hdfs.headless.keytab"
# api server port
apiServerPort="12345"
# install hosts
# Note: install the scheduled hostname list. If it is pseudo-distributed, just write a pseudo-distributed hostname
ips="node01.com,node02.com,node03.com"
# ssh port, default 22
# Note: if ssh port is not default, modify here
sshPort="22"
# run master machine
# Note: list of hosts hostname for deploying master
masters="node01.com,node02.com"
# run worker machine
# note: need to write the worker group name of each worker, the default value is "default"
workers="node02.com,node03.com"
# run alert machine
# note: list of machine hostnames for deploying alert server
alertServer="node02.com"
# run api machine
# note: list of machine hostnames for deploying api server
apiServers="node03.com"
-- INSERT --
5.6 修改安装文件：
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi install.sh
#!/bin/sh
#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#
workDir=`dirname $0`
workDir=`cd ${workDir};pwd`
source ${workDir}/conf/config/install_config.conf
# 1.replace file
echo "1.replace file"
txt=""
if [[ "$OSTYPE" == "darwin"* ]]; then
# Mac OSX
txt="''"
fi
datasourceDriverClassname="com.mysql.jdbc.Driver"
if [ $dbtype == "postgresql" ];then
datasourceDriverClassname="org.postgresql.Driver"
fi
sed -i ${txt} "s#spring.datasource.driver-class-name.*#spring.datasource.driver-class-name=${datasourceDriverClassname}#g" conf/datasource.properties
sed -i ${txt} "s#spring.datasource.url.*#spring.datasource.url=jdbc:${dbtype}://${dbhost}/${dbname}?characterEncoding=UTF-8\&allowMultiQueries=true#g" conf/datasource.properties
sed -i ${txt} "s#spring.datasource.username.*#spring.datasource.username=${username}#g" conf/datasource.properties
sed -i ${txt} "s#spring.datasource.password.*#spring.datasource.password=${password}#g" conf/datasource.properties
sed -i ${txt} "s#fs.defaultFS.*#fs.defaultFS=${defaultFS}#g" conf/common.properties
sed -i ${txt} "s#fs.s3a.endpoint.*#fs.s3a.endpoint=${s3Endpoint}#g" conf/common.properties
sed -i ${txt} "s#fs.s3a.access.key.*#fs.s3a.access.key=${s3AccessKey}#g" conf/common.properties
sed -i ${txt} "s#fs.s3a.secret.key.*#fs.s3a.secret.key=${s3SecretKey}#g" conf/common.properties
sed -i ${txt} "s#yarn.resourcemanager.ha.rm.ids.*#yarn.resourcemanager.ha.rm.ids=${yarnHaIps}#g" conf/common.properties
sed -i ${txt} "s#yarn.application.status.address.*#yarn.application.status.address=http://${singleYarnIp}:8088/ws/v1/cluster/apps/%s#g" conf/common.properties
sed -i ${txt} "s#hdfs.root.user.*#hdfs.root.user=${hdfsRootUser}#g" conf/common.properties
sed -i ${txt} "s#resource.upload.path.*#resource.upload.path=${resourceUploadPath}#g" conf/common.properties
sed -i ${txt} "s#resource.storage.type.*#resource.storage.type=${resourceStorageType}#g" conf/common.properties
sed -i ${txt} "s#hadoop.security.authentication.startup.state.*#hadoop.security.authentication.startup.state=${kerberosStartUp}#g" conf/common.properties
sed -i ${txt} "s#java.security.krb5.conf.path.*#java.security.krb5.conf.path=${krb5ConfPath}#g" conf/common.properties
sed -i ${txt} "s#login.user.keytab.username.*#login.user.keytab.username=${keytabUserName}#g" conf/common.properties
sed -i ${txt} "s#login.user.keytab.path.*#login.user.keytab.path=${keytabPath}#g" conf/common.properties
sed -i ${txt} "s#zookeeper.quorum.*#zookeeper.quorum=${zkQuorum}#g" conf/zookeeper.properties
sed -i ${txt} "s#server.port.*#server.port=${apiServerPort}#g" conf/application-api.properties
sed -i ${txt} "s#mail.server.host.*#mail.server.host=${mailServerHost}#g" conf/alert.properties
sed -i ${txt} "s#mail.server.port.*#mail.server.port=${mailServerPort}#g" conf/alert.properties
sed -i ${txt} "s#mail.sender.*#mail.sender=${mailSender}#g" conf/alert.properties
sed -i ${txt} "s#mail.user.*#mail.user=${mailUser}#g" conf/alert.properties
sed -i ${txt} "s#mail.passwd.*#mail.passwd=${mailPassword}#g" conf/alert.properties
sed -i ${txt} "s#mail.smtp.starttls.enable.*#mail.smtp.starttls.enable=${starttlsEnable}#g" conf/alert.properties
sed -i ${txt} "s#mail.smtp.ssl.trust.*#mail.smtp.ssl.trust=${sslTrust}#g" conf/alert.properties
sed -i ${txt} "s#mail.smtp.ssl.enable.*#mail.smtp.ssl.enable=${sslEnable}#g" conf/alert.properties
# 2.create directory
echo "2.create directory"
if [ ! -d $installPath ];then
sudo mkdir -p $installPath
sudo chown -R $deployUser:$deployUser $installPath
fi
hostsArr=(${ips//,/ })
for host in ${hostsArr[@]}
do
# create if programPath does not exist
if ! ssh $host test -e $programPath; then
ssh $host "sudo mkdir -p $programPath;sudo chown -R $deployUser:$deployUser
$programPath"
fi
# create if downloadPath does not exist
if ! ssh $host test -e $downloadPath; then
ssh $host "sudo mkdir -p $downloadPath;sudo chown -R $deployUser:$deployUser
$downloadPath"
fi
# create if execPath does not exist
if ! ssh $host test -e $execPath; then
ssh $host "sudo mkdir -p $execPath; sudo chown -R $deployUser:$deployUser
$execPath"
fi
# create if xlsFilePath does not exist
if ! ssh $host test -e $xlsFilePath; then
ssh $host "sudo mkdir -p $xlsFilePath; sudo chown -R $deployUser:$deployUser
$xlsFilePath"
fi
done
# 3.scp resources
echo "3.scp resources"
sh ${workDir}/script/scp-hosts.sh
if [ $? -eq 0 ]
then
echo 'scp copy completed'
else
echo 'scp copy failed to exit'
exit 1
fi
# 4.stop server
echo "4.stop server"
sh ${workDir}/script/stop-all.sh
# 5.delete zk node
echo "5.delete zk node"
sh ${workDir}/script/remove-zk-node.sh $zkRoot
# 6.startup
echo "6.startup"
sh ${workDir}/script/start-all.sh
-- INSERT --
刷新
source /opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin/conf/env/dolphinscheduler_env.sh
5.7 加hdfs 配置文件
[root@node01 apache-dolphinscheduler-1.3.6-bin]# scp /etc/hadoop/conf/core-site.xml /opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin/conf/
[root@node01 apache-dolphinscheduler-1.3.6-bin]# scp /etc/hadoop/conf/hdfs-site.xml /opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin/conf/
[root@node01 apache-dolphinscheduler-1.3.6-bin]#
5.8 修改 java 的环境变量
两个文件最前面添加 export JAVA_HOME=/opt/module/jdk1.8.0_231
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi bin/dolphinscheduler-daemon.sh
[root@node01 apache-dolphinscheduler-1.3.6-bin]# vi script/dolphinscheduler-daemon.sh
[root@node01 apache-dolphinscheduler-1.3.6-bin]# pwd
/opt/module/dolphinscheduler/apache-dolphinscheduler-1.3.6-bin
[root@node01 apache-dolphinscheduler-1.3.6-bin]#
5.9 一键部署 ./install.sh
命令： ./install.sh
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-worker.xml -Ddruid.mysql.usePingMethod=false -Xms2g -Xmx2g -Xmn1g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.worker.WorkerServer > /ds1.3.6/logs/dolphinscheduler-worker-server-node03.com.out 2>&1 &
End start worker-server.
Begin start logger-server......
Info: Skywalking not enabled.
starting logger-server, logging to /ds1.3.6/logs/dolphinscheduler-logger-server-node03.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.log.LoggerServer > /ds1.3.6/logs/dolphinscheduler-logger-server-node03.com.out 2>&1 &
End start logger-server.
node02.com worker server is starting
Begin start worker-server......
Info: Skywalking not enabled.
starting worker-server, logging to /ds1.3.6/logs/dolphinscheduler-worker-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-worker.xml -Ddruid.mysql.usePingMethod=false -Xms2g -Xmx2g -Xmn1g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.worker.WorkerServer > /ds1.3.6/logs/dolphinscheduler-worker-server-node02.com.out 2>&1 &
End start worker-server.
Begin start logger-server......
Info: Skywalking not enabled.
starting logger-server, logging to /ds1.3.6/logs/dolphinscheduler-logger-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.log.LoggerServer > /ds1.3.6/logs/dolphinscheduler-logger-server-node02.com.out 2>&1 &
End start logger-server.
Begin start alert-server......
Info: Skywalking not enabled.
starting alert-server, logging to /ds1.3.6/logs/dolphinscheduler-alert-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogback.configurationFile=conf/logback-alert.xml -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.alert.AlertServer > /ds1.3.6/logs/dolphinscheduler-alert-server-node02.com.out 2>&1 &
End start alert-server.
node03.com worker server is starting
Begin start api-server......
Info: Skywalking not enabled.
starting api-server, logging to /ds1.3.6/logs/dolphinscheduler-api-server-node03.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-api.xml -Dspring.profiles.active=api -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.api.ApiApplicationServer > /ds1.3.6/logs/dolphinscheduler-api-server-node03.com.out 2>&1 &
End start api-server.
[root@node01 apache-dolphinscheduler-1.3.6-bin]# rumRemoteCmd "jps" all
6.0 启动服务命令
启动命令： bin/start-all.sh
[root@node01 bin]# ./start-all.sh
node02.com
node03.com
node01.com master server is starting
Begin start master-server......
Info: Skywalking not enabled.
starting master-server, logging to /ds1.3.6/logs/dolphinscheduler-master-server-node01.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-master.xml -Ddruid.mysql.usePingMethod=false -Xms4g -Xmx4g -Xmn2g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.master.MasterServer > /ds1.3.6/logs/dolphinscheduler-master-server-node01.com.out 2>&1 &
End start master-server.
node02.com master server is starting
Begin start master-server......
Info: Skywalking not enabled.
starting master-server, logging to /ds1.3.6/logs/dolphinscheduler-master-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-master.xml -Ddruid.mysql.usePingMethod=false -Xms4g -Xmx4g -Xmn2g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.master.MasterServer > /ds1.3.6/logs/dolphinscheduler-master-server-node02.com.out 2>&1 &
End start master-server.
node03.com worker server is starting
Begin start worker-server......
Info: Skywalking not enabled.
starting worker-server, logging to /ds1.3.6/logs/dolphinscheduler-worker-server-node03.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-worker.xml -Ddruid.mysql.usePingMethod=false -Xms2g -Xmx2g -Xmn1g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.worker.WorkerServer > /ds1.3.6/logs/dolphinscheduler-worker-server-node03.com.out 2>&1 &
End start worker-server.
Begin start logger-server......
Info: Skywalking not enabled.
starting logger-server, logging to /ds1.3.6/logs/dolphinscheduler-logger-server-node03.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.log.LoggerServer > /ds1.3.6/logs/dolphinscheduler-logger-server-node03.com.out 2>&1 &
End start logger-server.
node02.com worker server is starting
Begin start worker-server......
Info: Skywalking not enabled.
starting worker-server, logging to /ds1.3.6/logs/dolphinscheduler-worker-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-worker.xml -Ddruid.mysql.usePingMethod=false -Xms2g -Xmx2g -Xmn1g -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.worker.WorkerServer > /ds1.3.6/logs/dolphinscheduler-worker-server-node02.com.out 2>&1 &
End start worker-server.
Begin start logger-server......
Info: Skywalking not enabled.
starting logger-server, logging to /ds1.3.6/logs/dolphinscheduler-logger-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.server.log.LoggerServer > /ds1.3.6/logs/dolphinscheduler-logger-server-node02.com.out 2>&1 &
End start logger-server.
Begin start alert-server......
Info: Skywalking not enabled.
starting alert-server, logging to /ds1.3.6/logs/dolphinscheduler-alert-server-node02.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogback.configurationFile=conf/logback-alert.xml -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.alert.AlertServer > /ds1.3.6/logs/dolphinscheduler-alert-server-node02.com.out 2>&1 &
End start alert-server.
node03.com worker server is starting
Begin start api-server......
Info: Skywalking not enabled.
starting api-server, logging to /ds1.3.6/logs/dolphinscheduler-api-server-node03.com.out
nohup /opt/module/jdk1.8.0_231/bin/java -Dlogging.config=classpath:logback-api.xml -Dspring.profiles.active=api -Xms1g -Xmx1g -Xmn512m -server -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=128m -Xss512k -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+CMSParallelRemarkEnabled -XX:LargePageSizeInBytes=128m -XX:+UseCMSInitiatingOccupancyOnly -XX:CMSInitiatingOccupancyFraction=70 -XX:+PrintGCDetails -Xloggc:/ds1.3.6/logs/gc.log -XX:+HeapDumpOnOutOfMemoryError -XX:HeapDumpPath=dump.hprof -XshowSettings:vm -classpath /ds1.3.6/conf:/ds1.3.6/lib/* org.apache.dolphinscheduler.api.ApiApplicationServer > /ds1.3.6/logs/dolphinscheduler-api-server-node03.com.out 2>&1 &
End start api-server.
[root@node01 bin]#

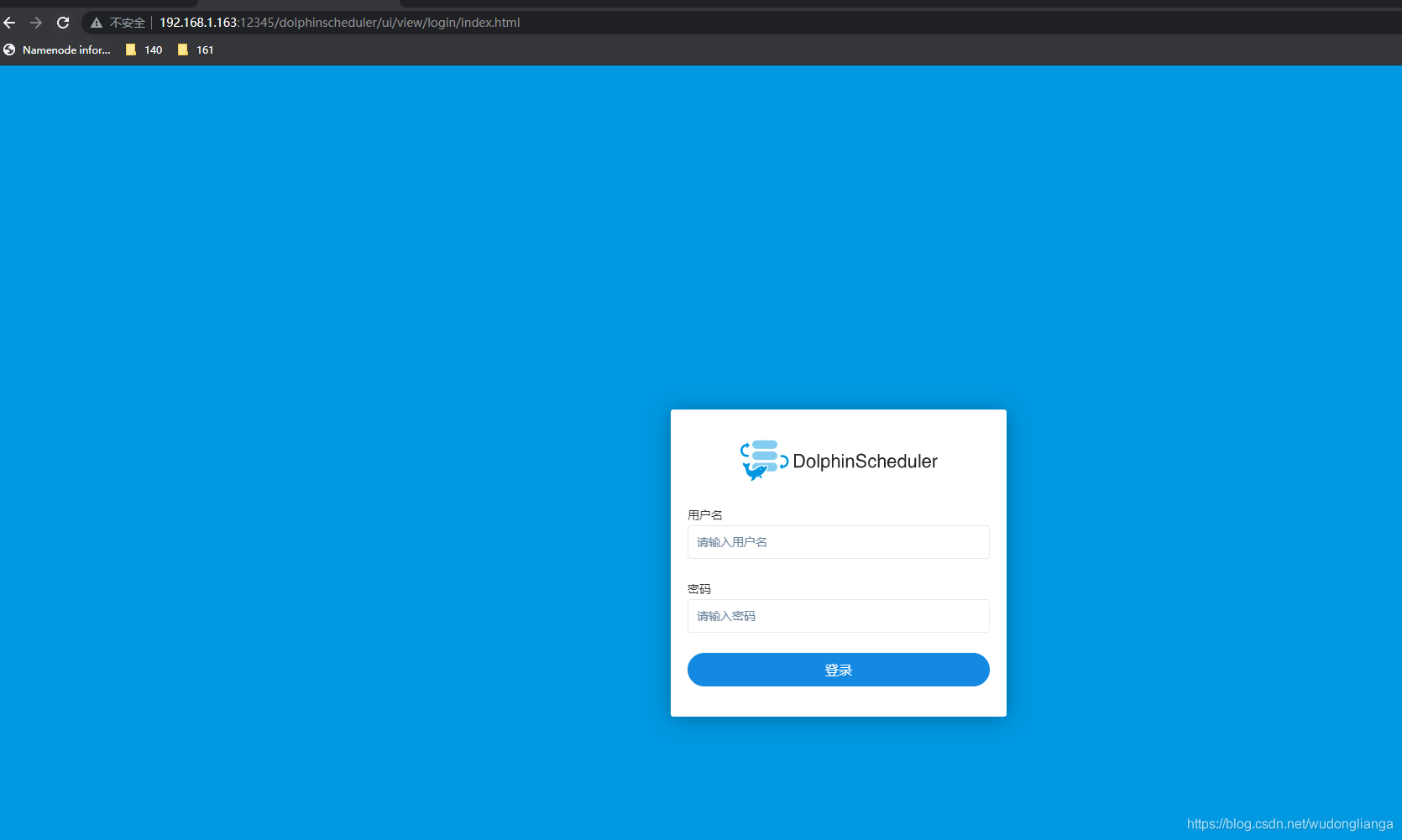

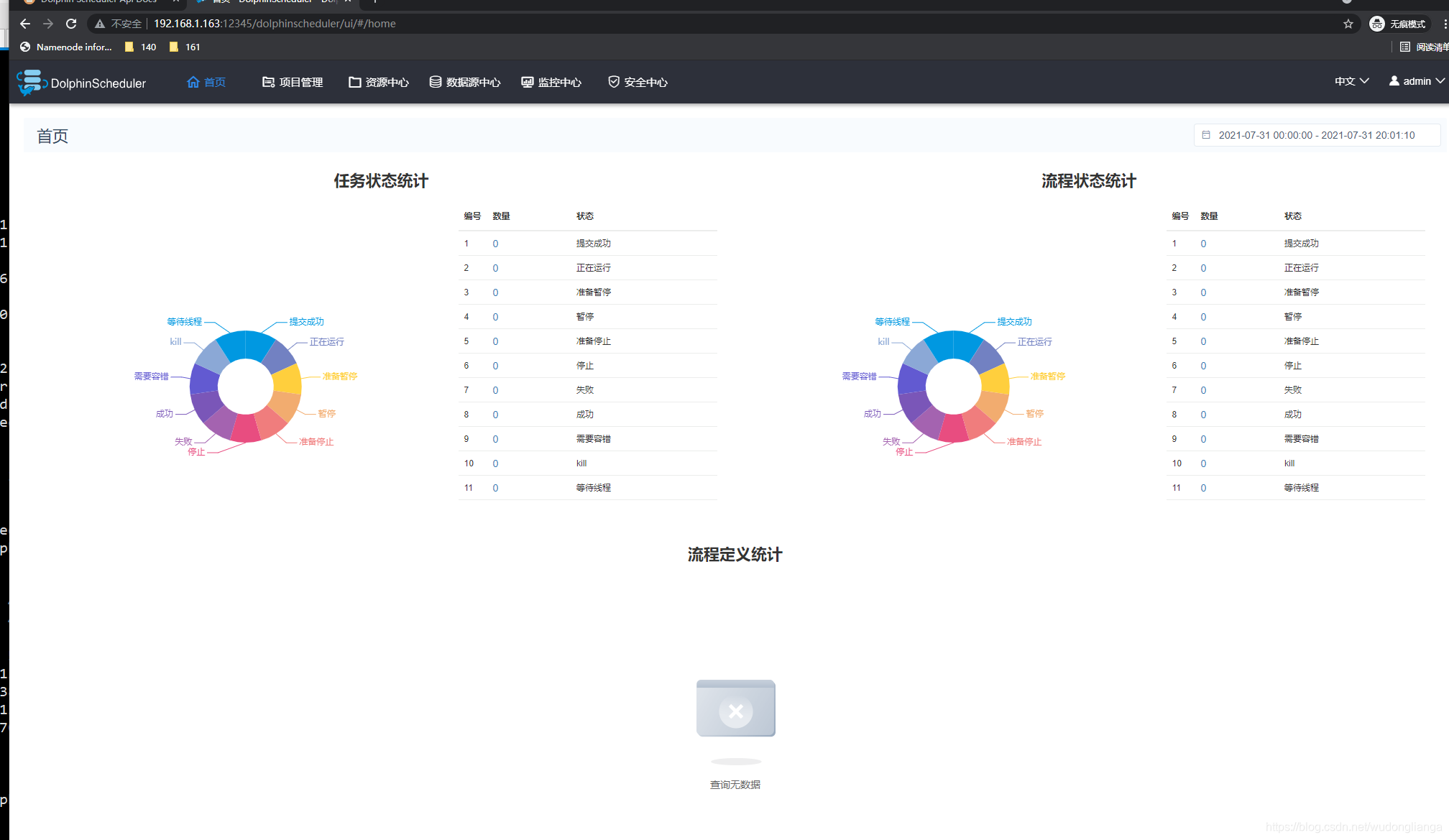

7.访问地址：
http://192.168.1.163:12345/dolphinscheduler/ui/#/home
admin/dolphinscheduler123
8. 对应api 文档地址
http://192.168.1.163:12345/dolphinscheduler/doc.html
