[大数据]大数据入门--Flume（二）agent内部原理与进阶案例

Flume Agent内部原理

架构图

如有问题，欢迎指正，学习中，勿喷！

主要组件

• Source
• Channel Processor
• Interceptor
• Channel Selector
  • Replicating Channel Selector (default，类似MQ的订阅模式)
  • Multiplexing Channel Selector（多路复用，需要配合自定义Interceptor添加自定义header，根据配置策略进行channel的选择）
  • Custom Channel Selector
• Sink Processor
  • Default Sink Processor（只接受一个sink,即Processor下游只能有一个sink）
  • Failover Sink Processor（故障转移，可以配置多个sink，根据优先级进行故障切换，同一时刻只有一个工作者）
  • Load balancing Sink Processor（负载均衡，多个sink共同协作，同一时刻，可以并行工作）
• Sink

其中黑体部分为重点内容

进阶案例

使用avro对flume进行拓扑连接

复制

练习重点：Channel Selector 复制选择器，也是默认情况
场景案例：
假设我们有三台机器，hadoop102、hadoop102、hadoop103。其中hadoop101需要从本地端口监听数据，并将数据分别下发给hadoop102、hadoop103

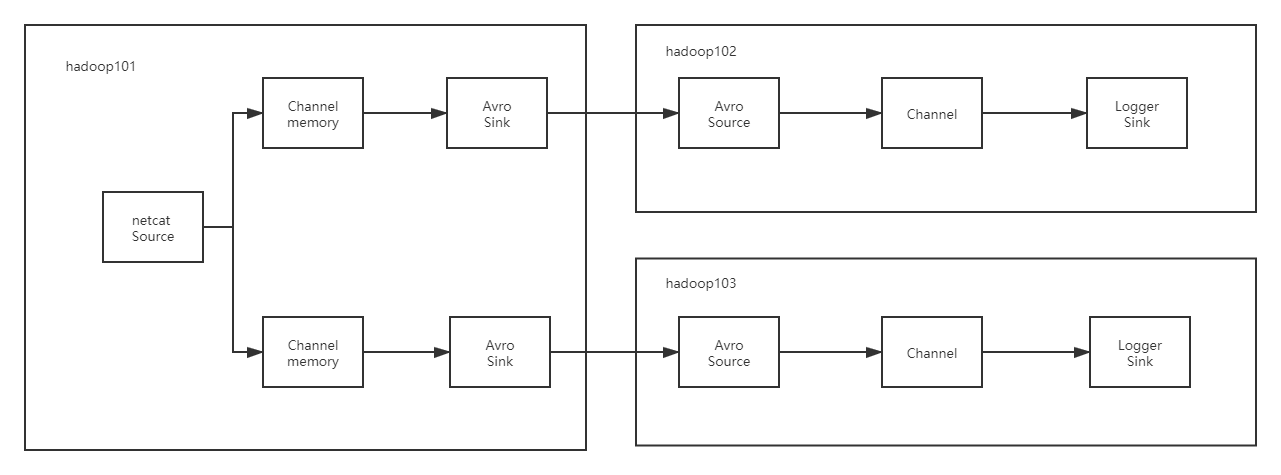

所以架构设计图为

问题：为什么这里我们hadoop101使用了两个Channel??
答：是因为如果我们这里使用的是一个Channel，无法在向下同时推送进入两个sink，因为Sink Processor只有failover和load balancing两种策略是可以接收多个sink的，但是他们又不是复制分发的策略。

hadoop101配置文件

a1.sources = r1
a1.sinks = k1 k2
a1.channels = c1 c2

# 描述Source
a1.sources.r1.type = netcat
a1.sources.r1.bind = hadoop101
a1.sources.r1.port = 4141

# 描述Sink，这里有两个
a1.sinks.k1.type = avro
a1.sinks.k1.channel = c1
a1.sinks.k1.hostname = hadoop102
a1.sinks.k1.port = 4142

a1.sinks.k2.type = avro
a1.sinks.k2.channel = c1
a1.sinks.k2.hostname = hadoop103
a1.sinks.k2.port = 4143

# 描述Channel，也是两个，使用内存
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

a1.channels.c2.type = memory
a1.channels.c2.capacity = 1000
a1.channels.c2.transactionCapacity = 100

# 绑定三者关联
# 此处可以不声明（因为是默认配置），配置r1的channel selector 为复制
a1.sources.r1.selector.type = replicating
a1.sources.r1.channels = c1 c2
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c2

hadoop102配置文件

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# 描述Source
a1.sources.r1.type = avro
a1.sources.r1.channels = c1
a1.sources.r1.bind = hadoop102
a1.sources.r1.port = 4142

# 描述Sink
a1.sinks.k1.type = logger

# 描述Channel，也是两个，使用内存
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100


# 绑定三者关联
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

hadoop103配置文件

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# 描述Source
a1.sources.r1.type = avro
a1.sources.r1.channels = c1
a1.sources.r1.bind = hadoop103
a1.sources.r1.port = 4143

# 描述Sink
a1.sinks.k1.type = logger

# 描述Channel，也是两个，使用内存
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100


# 绑定三者关联
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

故障转移

考察重点：Sink Processor的策略
案例：需求与上述类似，本次hadoop102、hadoop103不在是接收相同的数据，而是hadoop103作为hadoo102的热备份，当hadoop102宕机时通过hadoop103来接收数据。

此案例只需要修改hadoop101配置

a1.sources = r1
a1.sinks = k1 k2
a1.channels = c1

# 描述Source
a1.sources.r1.type = netcat
a1.sources.r1.bind = hadoop101
a1.sources.r1.port = 4141

# 描述Sink，这里有两个
a1.sinks.k1.type = avro
a1.sinks.k1.channel = c1
a1.sinks.k1.hostname = hadoop102
a1.sinks.k1.port = 4142

a1.sinks.k2.type = avro
a1.sinks.k2.channel = c1
a1.sinks.k2.hostname = hadoop103
a1.sinks.k2.port = 4143

# 描述Channel
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# 绑定三者关联
# 此处可以不声明（因为是默认配置），配置r1的channel selector 为复制
a1.sources.r1.selector.type = replicating
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c1

#sink组定义
a1.sinkgroups = g1
a1.sinkgroups.g1.sinks = k1 k2
a1.sinkgroups.g1.processor.type = failover
a1.sinkgroups.g1.processor.priority.k1 = 10
a1.sinkgroups.g1.processor.priority.k2 = 5
# backoff 最大时间，单位：毫秒
a1.sinkgroups.g1.processor.maxpenalty = 10000

修改内容主要：

• 去掉一个channel
• 增加sink 组定义，设置为faliover相关配置

注意：如果hadoop102下线了，那么hadoop103会顶上去，但是当hadoop102再次上线，因为优先级别高所以再次会得到接收权（前提是超过了processor.maxpenalty）

负载均衡

考察重点：Sink Processor的策略
案例：这次hadoop103不在是热备份，需要hadoop103和hadoop102一起工作，分担压力

同样的还是只需要修改hadoop101的配置，将组策略调整为load balance。
故：只贴出修改的内容

#sink组定义
a1.sinkgroups = g1
a1.sinkgroups.g1.sinks = k1 k2
a1.sinkgroups.g1.processor.type = load_balance
a1.sinkgroups.g1.processor.backoff = true
# 负载均衡的策略可以是随机或者轮训:random/round_robin(default)
a1.sinkgroups.g1.processor.selector = random

多路复用

案例：hadoop101负责通过netcat收集数据，每条数据信息的第一个单词如果包含hello字符串，则需要将其sink到haoop102，否则sink到hadoop103。
可以通过channel selector为多路复用+自定义Interceptor

实现自定义Interceptor
1.pomx.xml

<dependency>
   <groupId>org.apache.flume</groupId>
   <artifactId>flume-ng-core</artifactId>
   <version>1.9.0</version>
</dependency>

2. 实现org.apache.flume.interceptor.Interceptor来实现拦截器逻辑
3. 实现org.apache.flume.interceptor.Interceptor.Builder来实现创建拦截器实例
4. 打包jar放入flume/lib下

package com.xbz.study.bigdata.flume;

import org.apache.flume.Context;
import org.apache.flume.Event;
import org.apache.flume.interceptor.Interceptor;

import java.io.UnsupportedEncodingException;
import java.util.Arrays;
import java.util.List;
import java.util.Map;

public class StateInterceptor implements Interceptor {
    public String key;
    public StateInterceptor(String key){
        this.key = key;
    }
    @Override
    public void initialize() {
        //初始化准备
    }

    @Override
    public Event intercept(Event event) {
        Map<String, String> headers = event.getHeaders();
        try {
            String msg = new String(event.getBody(), "UTF-8");
            String[] split = msg.split("\\s+");
            if(split[0].contains("hello")){
                headers.put(key,"sink1");
            }else{
                headers.put(key,"sink2");
            }
        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
        }
        return event;
    }

    @Override
    public List<Event> intercept(List<Event> list) {
        list.forEach(this::intercept);
        return list;
    }

    @Override
    public void close() {
        //关闭资源
    }

    public static class Builder implements Interceptor.Builder{
        private String key = null;
        @Override
        public Interceptor build() {
            return new StateInterceptor(this.key);
        }

        @Override
        public void configure(Context context) {
            key = context.getString("key","state");
        }
    }
}

hadoop101配置文件

a1.sources = r1
a1.sinks = k1 k2
a1.channels = c1 c2

# 描述Source
a1.sources.r1.type = netcat
a1.sources.r1.bind = hadoop101
a1.sources.r1.port = 4141

# 描述Sink，这里有两个
a1.sinks.k1.type = avro
a1.sinks.k1.channel = c1
a1.sinks.k1.hostname = hadoop102
a1.sinks.k1.port = 4142

a1.sinks.k2.type = avro
a1.sinks.k2.channel = c1
a1.sinks.k2.hostname = hadoop103
a1.sinks.k2.port = 4143

# 描述Channel
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

a1.channels.c2.type = memory
a1.channels.c2.capacity = 1000
a1.channels.c2.transactionCapacity = 100


#定义拦截器
a1.sources.r1.interceptors = i1
a1.sources.r1.interceptors.i1.type = com.xbz.study.bigdata.flume.StateInterceptor$Builder
a1.sources.r1.interceptors.i1.key = state

# 绑定三者关联
## channel selector 多路复用
a1.sources.r1.selector.type = multiplexing
a1.sources.r1.channels = c1 c2
## 根据header的state字段进行分发
a1.sources.r1.selector.header = state
## header中state = sink1 分发到c1
a1.sources.r1.selector.mapping.sink1 = c1
a1.sources.r1.selector.mapping.sink2 = c2
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c2

聚合

分别通过hadoop101和hadoop102进行netcat数据收集，然后通过hadoop103进行数据的聚合
hadoop103可选则是从一个Source进行收集还是两个Source进行收集，这里我们选择使用一个sink进行收集

hadoop101配置文件

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# 描述Source
a1.sources.r1.type = netcat
a1.sources.r1.bind = hadoop101
a1.sources.r1.port = 4141

# 描述Sink
a1.sinks.k1.type = avro
a1.sinks.k1.channel = c1
a1.sinks.k1.hostname = hadoop103
a1.sinks.k1.port = 4143

# 描述Channel
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# 绑定三者关联
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

hadoop102配置

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# 描述Source
a1.sources.r1.type = netcat
a1.sources.r1.bind = hadoop102
a1.sources.r1.port = 4142

# 描述Sink
a1.sinks.k1.type = avro
a1.sinks.k1.channel = c1
a1.sinks.k1.hostname = hadoop103
a1.sinks.k1.port = 4143

# 描述Channel
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# 绑定三者关联
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1

hadoop102配置

a1.sources = r1
a1.sinks = k1
a1.channels = c1

# 描述Source
a1.sources.r1.type = avro
a1.sources.r1.channels = c1
a1.sources.r1.bind = hadoop103
a1.sources.r1.port = 4143

# 描述Sink
a1.sinks.k1.type = logger

# 描述Channel，也是两个，使用内存
a1.channels.c1.type = memory
a1.channels.c1.capacity = 1000
a1.channels.c1.transactionCapacity = 100

# 绑定三者关联
a1.sources.r1.channels = c1
a1.sinks.k1.channel = c1
