一、任务调度机制的概述
当一个Spark Application被提交之后，Spark启动driver，driver端主要承担着解析代码的工作，并对Application中的运行逻辑进行划分
从层级上来看
Application -> Job：Application可以以Action算子划分为多个Job
Job?-> Stage：Job会进入到DAGScheduler中，DAGScheduler会构建为基于Job的DAG（逻辑上的），并将DAG根据宽依赖和窄依赖划分为多个Stage
Stage -> Task：Stage有多个Task组成，它会被封装到一个TaskSet对象内，TaskSet会进入到TaskScheduler中，并根据partition数来划分出一个个Task，一般一个Task对应一个partition，最终Task会按照指定的调度被分发到已经启动好的Executor去执行
整体调度流程如下图所示
二、任务调度机制的源码
1、Application -> Job
在本文第一部分我们说过一个Application根据Action算子来划分为一个个Job
以如下代码为例
object ApplicationSubmit {
def main(args: Array[String]): Unit = {
val sparkSession = SparkSession.builder().master("local").getOrCreate()
val rdd = sparkSession.sparkContext.makeRDD(Seq(1,2,3,4,5,6))
rdd.foreach(print)
println(rdd.sum())
}
}运行这段code，我们可以查看console输出的日志
注意图中红框圈出的文字，我们可以发现SparkContext先运行了Job 0：foreach()，直至Job 0结束，才运行Job 1：Sum()
sum和foreach都是Action算子，通过这个log信息我们进一步验证了一个Application以Action算子为界进行对Job的划分
2、Job?-> Stage
1、withScope方法
根据上面的代码块，我们选取其中一个Action算子进行深入研究，以foreach算子为例
查看foreach()的source code，是如下的代码
/**
* Applies a function f to all elements of this RDD.
*/
def foreach(f: T => Unit): Unit = withScope {
val cleanF = sc.clean(f)
sc.runJob(this, (iter: Iterator[T]) => iter.foreach(cleanF))
}可以看到这是个高阶函数，并且它方法的主体最外层套着一个withScope方法
withScope方法是RDDOperationScope中的一个方法，它的主要目的是为了做DAG可视化的，我们可以在Spark UI中查看到一个个stage可视化的执行流程
我们可以看到foreach方法方法主体里面有一个clean方法和runJob方法
2、clean方法
clean方法在spark源码中大量的出现，点击进去查看它的源码
/**
* Clean a closure to make it ready to be serialized and sent to tasks
* (removes unreferenced variables in $outer's, updates REPL variables)
* If <tt>checkSerializable</tt> is set, <tt>clean</tt> will also proactively
* check to see if <tt>f</tt> is serializable and throw a <tt>SparkException</tt>
* if not.
*
* @param f the closure to clean
* @param checkSerializable whether or not to immediately check <tt>f</tt> for serializability
* @throws SparkException if <tt>checkSerializable</tt> is set but <tt>f</tt> is not
* serializable
* @return the cleaned closure
*/
private[spark] def clean[F <: AnyRef](f: F, checkSerializable: Boolean = true): F = {
ClosureCleaner.clean(f, checkSerializable)
f
}发现底层调用的是ClosureCleaner.clean()方法，并且官方注释是这么说的
Clean a closure to make it ready to be serialized and sent to tasks
翻译过来就是
清除闭包以使该闭包能够序列化并发送到各task
我们继续按深入去查看clean方法
/**
* Helper method to clean the given closure in place.
*
* The mechanism is to traverse the hierarchy of enclosing closures and null out any
* references along the way that are not actually used by the starting closure, but are
* nevertheless included in the compiled anonymous classes. Note that it is unsafe to
* simply mutate the enclosing closures in place, as other code paths may depend on them.
* Instead, we clone each enclosing closure and set the parent pointers accordingly.
*
* .......该注释过长这里只展示一部分
*/
private def clean(
func: AnyRef,
checkSerializable: Boolean,
cleanTransitively: Boolean,
accessedFields: Map[Class[_], Set[String]]): Unit = {
// most likely to be the case with 2.12, 2.13
// so we check first
// non LMF-closures should be less frequent from now on
val lambdaFunc = getSerializedLambda(func)
if (!isClosure(func.getClass) && lambdaFunc.isEmpty) {
logDebug(s"Expected a closure; got ${func.getClass.getName}")
return
}
//......
//......
//......该方法过长这里只展示一部分
if (checkSerializable) {
ensureSerializable(func)
}
}最终停留在ClosureCleaner的这个clean方法
首先看注释，注释的意思是说清理用不到引用，并且确保该闭包一定能够序列化
查看该方法体，内部通过反射获取了我们传递进来的func内部的使用的class、field等等，并一一进行check，如果没有任何问题，将会在该方法的末尾返回ensureSerializable(func)，并确定该func可以正常执行。
那为什么要进行这个操作呢？因为spark是支持分布式运行的，那么有分布式必然会涉及到网络IO，那么有IO必然需要序列化，所以需要进行这样的check操作。
举个例子
object ApplicationSubmit {
def main(args: Array[String]): Unit = {
val sparkSession = SparkSession.builder().master("local").getOrCreate()
val rdd = sparkSession.sparkContext.makeRDD(Seq(new TestClass("1"),new TestClass("2")))
rdd.foreach(println)
}
class TestClass(name: String) {
val className: String = name
}
}这段代码里创建了一各包含未序列化Class的RDD，运行后果然报出了一堆报错信息
Exception in thread "main" org.apache.spark.SparkException: Job aborted due to stage failure: Failed to serialize task 0, not attempting to retry it. Exception during serialization: java.io.NotSerializableException: sourceCodeParse.ApplicationSubmit$TestClass
Serialization stack:
- object not serializable (class: sourceCodeParse.ApplicationSubmit$TestClass, value: sourceCodeParse.ApplicationSubmit$TestClass@21dc04fd)
- element of array (index: 0)
- array (class [LsourceCodeParse.ApplicationSubmit$TestClass;, size 2)
- field (class: scala.collection.mutable.WrappedArray$ofRef, name: array, type: class [Ljava.lang.Object;)
- object (class scala.collection.mutable.WrappedArray$ofRef, WrappedArray(sourceCodeParse.ApplicationSubmit$TestClass@21dc04fd, sourceCodeParse.ApplicationSubmit$TestClass@7b65a1cd))
- writeObject data (class: org.apache.spark.rdd.ParallelCollectionPartition)
- object (class org.apache.spark.rdd.ParallelCollectionPartition, org.apache.spark.rdd.ParallelCollectionPartition@691)
- field (class: org.apache.spark.scheduler.ResultTask, name: partition, type: interface org.apache.spark.Partition)
- object (class org.apache.spark.scheduler.ResultTask, ResultTask(0, 0))
我们将其改成case class或者令其extends Serializable
object ApplicationSubmit {
def main(args: Array[String]): Unit = {
val sparkSession = SparkSession.builder().master("local").getOrCreate()
val rdd = sparkSession.sparkContext.makeRDD(Seq(new TestClass("1"),new TestClass("2")))
rdd.foreach(print)
}
case class TestClass(name: String) {
val className: String = name
}
}结果成功运行了
3、runJob
clean()方法运行过后，runJob()将被调用，在spark源码中，有许多runJob()方法，它们最后都会调用如下方法
/**
* Run a function on a given set of partitions in an RDD and pass the results to the given
* handler function. This is the main entry point for all actions in Spark.
*
* @param rdd target RDD to run tasks on
* @param func a function to run on each partition of the RDD
* @param partitions set of partitions to run on; some jobs may not want to compute on all
* partitions of the target RDD, e.g. for operations like `first()`
* @param resultHandler callback to pass each result to
*/
def runJob[T, U: ClassTag](
rdd: RDD[T],
func: (TaskContext, Iterator[T]) => U,
partitions: Seq[Int],
resultHandler: (Int, U) => Unit): Unit = {
if (stopped.get()) {
throw new IllegalStateException("SparkContext has been shutdown")
}
val callSite = getCallSite
val cleanedFunc = clean(func)
logInfo("Starting job: " + callSite.shortForm)
if (conf.getBoolean("spark.logLineage", false)) {
logInfo("RDD's recursive dependencies:\n" + rdd.toDebugString)
}
dagScheduler.runJob(rdd, cleanedFunc, partitions, callSite, resultHandler, localProperties.get)
progressBar.foreach(_.finishAll())
rdd.doCheckpoint()
}首先是getCallSite，callSite在源码里是这样描述的
CallSite represents a place in user code. It can have a short and a long form.
翻译过来就是
CallSite代表了用户代码里的一个位置，它有长格式和短格式
这时我们查看getCallSite的源码，其方法大致的功能是取当前线程的堆栈信息，将符合规则的放入栈顶，并最终返回，其目的就是为了打印出log信息，便于查看job的进度。
接下来是
dagScheduler.runJob(rdd, cleanedFunc, partitions, callSite, resultHandler, localProperties.get)看到dagScheduler，Job要开始被dagSchduler调用划分为一个个stage了。
注意dagScheduler在sparkContext创建时就创建了，其连续调用的构造方法分别是
_dagScheduler = new DAGScheduler(this)
def this(sc: SparkContext) = this(sc, sc.taskScheduler)
def this(sc: SparkContext, taskScheduler: TaskScheduler) = {
this(
sc,
taskScheduler,
sc.listenerBus,
sc.env.mapOutputTracker.asInstanceOf[MapOutputTrackerMaster],
sc.env.blockManager.master,
sc.env)
}可以注意到taskScheduler也被一并传进来了，代表taskScheduler也被创建了，并且先于dagScheduler创建好，其构造方法是
val (sched, ts) = SparkContext.createTaskScheduler(this, master, deployMode)
_schedulerBackend = sched
_taskScheduler = tsschedulerBackend是一个trait，它有CoarseGrainedSchedulerBackend，StandaloneSchedulerBackend和LocalSchedulerBackend三种不同的实现，它们被sparkContext用于管理不同deploy mode下的资源。
4、submitJob方法与event的处理
回到dagScheduler.runJob()方法，我们发现内部又调用了submitJob()的这样一个方法
val waiter = submitJob(rdd, func, partitions, callSite, resultHandler, properties)其内部源码是
def submitJob[T, U](
rdd: RDD[T],
func: (TaskContext, Iterator[T]) => U,
partitions: Seq[Int],
callSite: CallSite,
resultHandler: (Int, U) => Unit,
properties: Properties): JobWaiter[U] = {
// Check to make sure we are not launching a task on a partition that does not exist.
val maxPartitions = rdd.partitions.length
partitions.find(p => p >= maxPartitions || p < 0).foreach { p =>
throw new IllegalArgumentException(
"Attempting to access a non-existent partition: " + p + ". " +
"Total number of partitions: " + maxPartitions)
}
val jobId = nextJobId.getAndIncrement()
if (partitions.size == 0) {
// Return immediately if the job is running 0 tasks
return new JobWaiter[U](this, jobId, 0, resultHandler)
}
assert(partitions.size > 0)
val func2 = func.asInstanceOf[(TaskContext, Iterator[_]) => _]
val waiter = new JobWaiter(this, jobId, partitions.size, resultHandler)
eventProcessLoop.post(JobSubmitted(
jobId, rdd, func2, partitions.toArray, callSite, waiter,
SerializationUtils.clone(properties)))
waiter
}可以看到其内部先生成了一个JobId，随后又创建了一个JobWaiter去监听Job的执行状态，其标记状态的有成功和失败，只有当所有task都成功其状态才会标记为成功，否则将标记为失败
接下来是eventProcessLoop类，它实际上是一个DAGSchedulerEventProcessLoop类，DAGSchedulerEventProcessLoop继承了EventLoop类，在其内部对onReceive方法进行了重写，用以调用doOnReceive方法，以下是doOnReceive的源码
private def doOnReceive(event: DAGSchedulerEvent): Unit = event match {
case JobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties) =>
dagScheduler.handleJobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties)
//......省略大部分
case ResubmitFailedStages =>
dagScheduler.resubmitFailedStages()
}可以看到其内部使用了case进行event匹配，最终调用了dagScheduler.handleJobSubmitted这个方法进行Job的处理
那么onReceive方法又是如何触发的呢，回到eventProcessLoop处，其调用了post()方法，点进去post()方法内部
/**
* Put the event into the event queue. The event thread will process it later.
*/
def post(event: E): Unit = {
eventQueue.put(event)
}eventQueue是一个LinkedBlockingDeque，将我们传入的event放入到这个事件队列里，而post方法本身被EventLoop所持有，EventLoop内部有一个eventThread，是一个Thread类，其持有一个run()方法，run()方法内部为
override def run(): Unit = {
try {
while (!stopped.get) {
val event = eventQueue.take()
try {
onReceive(event)
} catch {
case NonFatal(e) =>
try {
onError(e)
} catch {
case NonFatal(e) => logError("Unexpected error in " + name, e)
}
}
}
} catch {
case ie: InterruptedException => // exit even if eventQueue is not empty
case NonFatal(e) => logError("Unexpected error in " + name, e)
}

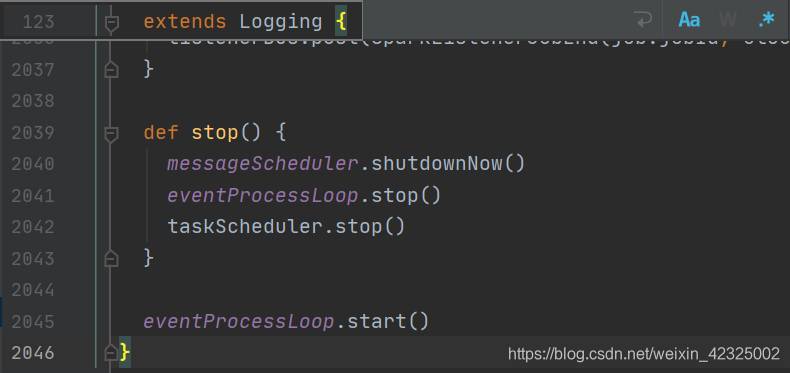

}我们可以看到eventQueue取出了其内部所存在的event，并使用onReceive方法调用，而DAGSchedulerEventProcessLoop就是eventProcessLoop类，其本身继承了EventLoop类，而eventProcessLoop类会在DagScheduler类体中的结尾处调用eventProcessLoop.start()方法（本质上就是个DagScheduler构造函数内部调用，所以eventThread在DagScheduler创建时就启动了）
start()方法会调用eventThread中的start()方法，其内部调用run()方法，run()方法内部调用抽像方法onReceive()，进而反复的处理submit上去的event（JobSubmit事件）
5、handleJobSubmitted()方法与stage的划分
接下来我们回到doOnReceive()方法处，我们刚刚提交的是JobSubmitted类，则将触发这段代码
case JobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties) =>
dagScheduler.handleJobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties)进入handleJobSubmitted()这个方法
private[scheduler] def handleJobSubmitted(jobId: Int,
finalRDD: RDD[_],
func: (TaskContext, Iterator[_]) => _,
partitions: Array[Int],
callSite: CallSite,
listener: JobListener,
properties: Properties) {
var finalStage: ResultStage = null
try {
// New stage creation may throw an exception if, for example, jobs are run on a
// HadoopRDD whose underlying HDFS files have been deleted.
finalStage = createResultStage(finalRDD, func, partitions, jobId, callSite)
} catch {
case e: BarrierJobSlotsNumberCheckFailed =>
logWarning(s"The job $jobId requires to run a barrier stage that requires more slots " +
"than the total number of slots in the cluster currently.")
// If jobId doesn't exist in the map, Scala coverts its value null to 0: Int automatically.
val numCheckFailures = barrierJobIdToNumTasksCheckFailures.compute(jobId,
new BiFunction[Int, Int, Int] {
override def apply(key: Int, value: Int): Int = value + 1
})
if (numCheckFailures <= maxFailureNumTasksCheck) {
messageScheduler.schedule(
new Runnable {
override def run(): Unit = eventProcessLoop.post(JobSubmitted(jobId, finalRDD, func,
partitions, callSite, listener, properties))
},
timeIntervalNumTasksCheck,
TimeUnit.SECONDS
)
return
} else {
// Job failed, clear internal data.
barrierJobIdToNumTasksCheckFailures.remove(jobId)
listener.jobFailed(e)
return
}
case e: Exception =>
logWarning("Creating new stage failed due to exception - job: " + jobId, e)
listener.jobFailed(e)
return
}
// Job submitted, clear internal data.
barrierJobIdToNumTasksCheckFailures.remove(jobId)
val job = new ActiveJob(jobId, finalStage, callSite, listener, properties)
clearCacheLocs()
logInfo("Got job %s (%s) with %d output partitions".format(
job.jobId, callSite.shortForm, partitions.length))
logInfo("Final stage: " + finalStage + " (" + finalStage.name + ")")
logInfo("Parents of final stage: " + finalStage.parents)
logInfo("Missing parents: " + getMissingParentStages(finalStage))
val jobSubmissionTime = clock.getTimeMillis()
jobIdToActiveJob(jobId) = job
activeJobs += job
finalStage.setActiveJob(job)
val stageIds = jobIdToStageIds(jobId).toArray
val stageInfos = stageIds.flatMap(id => stageIdToStage.get(id).map(_.latestInfo))
listenerBus.post(
SparkListenerJobStart(job.jobId, jobSubmissionTime, stageInfos, properties))
submitStage(finalStage)
}一个job实际上就只能被分为ResultStage和ShuffleMapStage两种类型。ResultStage是执行一个action操作的最后的一个stage，一般用来做一些生成结果的操作，如输出结果，写文件之类的。而ShuffleMapStage会生成用于shuffle的数据，即中间数据。可以看到一个finalStage通过createResultStage()方法被创建，查看该方法源码如下
/**
* Create a ResultStage associated with the provided jobId.
*/
private def createResultStage(
rdd: RDD[_],
func: (TaskContext, Iterator[_]) => _,
partitions: Array[Int],
jobId: Int,
callSite: CallSite): ResultStage = {
checkBarrierStageWithDynamicAllocation(rdd)
checkBarrierStageWithNumSlots(rdd)
checkBarrierStageWithRDDChainPattern(rdd, partitions.toSet.size)
val parents = getOrCreateParentStages(rdd, jobId)
val id = nextStageId.getAndIncrement()
val stage = new ResultStage(id, rdd, func, partitions, parents, jobId, callSite)
stageIdToStage(id) = stage
updateJobIdStageIdMaps(jobId, stage)
stage
}看到内部先调用了getOrCreateParentStages()方法获取了parents，进入该方法发现底层调用了这样一段代码，进一步证实了stage确实根据shuffle操作进行划分的
getShuffleDependencies(rdd).map { shuffleDep =>
getOrCreateShuffleMapStage(shuffleDep, firstJobId)
}.toListgetOrCreateParentStages()其实是划分job为一个个stage的核心方法，其处理同一个stage内rdd的顺序是完全随机，内部调用了getOrCreateShuffleMapStage()方法，该方法主要部分如下
shuffleIdToMapStage.get(shuffleDep.shuffleId) match {
case Some(stage) =>
stage
case None =>
getMissingAncestorShuffleDependencies(shuffleDep.rdd).foreach { dep =>
if (!shuffleIdToMapStage.contains(dep.shuffleId)) {
createShuffleMapStage(dep, firstJobId)
}
}
createShuffleMapStage(shuffleDep, firstJobId)
}
可以看到内部通过调用createShuffleMapStage()方法根据一个个shuffle创建并返回shuffleMapStage类，所以说实质上stage create方法的实际调用完成顺序是这样的
createShuffleMapStage(shuffleDep, firstJobId)
getOrCreateShuffleMapStage(shuffleDep, firstJobId)
getOrCreateParentStages(rdd, jobId)
createResultStage(finalRDD, func, partitions, jobId, callSite)
在调用createResultStage()方法时就已经将他之前依赖的所有parent Stage创建完成了，包括我们在createShuffleMapStage()方法内也可以看到对parents的获取
def createShuffleMapStage(shuffleDep: ShuffleDependency[_, _, _], jobId: Int): ShuffleMapStage = {
val rdd = shuffleDep.rdd
checkBarrierStageWithDynamicAllocation(rdd)
checkBarrierStageWithNumSlots(rdd)
checkBarrierStageWithRDDChainPattern(rdd, rdd.getNumPartitions)
val numTasks = rdd.partitions.length
val parents = getOrCreateParentStages(rdd, jobId)
val id = nextStageId.getAndIncrement()
//......
}在各stage划分完毕之后，回到handleJobSubmitted()方法，可以看到一个ActiveJob类被创建
val job = new ActiveJob(jobId, finalStage, callSite, listener, properties)到底这里一个Job才算是真正被生成了，注意在某些情况下Job会本地运行
（1）spark.localExecution.enabled设置为true
（2）用户指定本地运行
（3）finalStage没有parent Stage
（4）仅有一个partition
在（3）、（4）的情况下本地运行是为了保证任务的快速执行
listnerBus是一个trait，可以接收事件并将事件提交给对应的事件监听器
listenerBus.post(
SparkListenerJobStart(job.jobId, jobSubmissionTime, stageInfos, properties))3、Stage -> Task
1、sumbitStage()方法
随后触发了submitStage()方法对stage进行提交
submitStage(finalStage)点击进入submitStage内，源码如下
/** Submits stage, but first recursively submits any missing parents. */
private def submitStage(stage: Stage) {
val jobId = activeJobForStage(stage)
if (jobId.isDefined) {
logDebug("submitStage(" + stage + ")")
if (!waitingStages(stage) && !runningStages(stage) && !failedStages(stage)) {
val missing = getMissingParentStages(stage).sortBy(_.id)
logDebug("missing: " + missing)
if (missing.isEmpty) {
logInfo("Submitting " + stage + " (" + stage.rdd + "), which has no missing parents")
submitMissingTasks(stage, jobId.get)
} else {
for (parent <- missing) {
submitStage(parent)
}
waitingStages += stage
}
}
} else {
abortStage(stage, "No active job for stage " + stage.id, None)
}
}内部调用了getMissingParentStages()方法和递归调用了submitStage()方法，其主要目的是递归调用那些未提交的parent stage，只有所有parent stage调用并计算完毕后，才轮到该stage提交并计算。
当missing这个List为空时，代表没有未提交和计算的parent stage了，可以执行submitMissingTasks提交当前得stage了
在submitMissingTasks内部中，获取了需要计算的当前stage的分区partitionsToCompute，并将该stage加入到runningStages的HashSet中，随后是如下代码
stage match {
case s: ShuffleMapStage =>
outputCommitCoordinator.stageStart(stage = s.id, maxPartitionId = s.numPartitions - 1)
case s: ResultStage =>
outputCommitCoordinator.stageStart(
stage = s.id, maxPartitionId = s.rdd.partitions.length - 1)
}outPutCommitCoordinator实际上是一个输出提交协调器，source code中注释对它的描述是
/**
* Authority that decides whether tasks can commit output to HDFS. Uses a "first committer wins"
*/有权决定能否将tasks输出提交到HDFS。使用“第一个提交者获胜”的策略（FIFO）
outPutCommitCoordinator在Driver端和Executors端都是有实例的，同时在driver端上还注册了一个OutputCommitCoordinatorEndpoint，该class继承了RpcEndpoint，Executors上的OutputCommitCoordinator都会通过OutputCommitCoordinatorEndpoint的RpcEndpointRefDriver上的OutputCommitCoordinator通信，并向其询问是否能够将输出提交到HDFS
val taskIdToLocations: Map[Int, Seq[TaskLocation]] = try {
stage match {
case s: ShuffleMapStage =>
partitionsToCompute.map { id => (id, getPreferredLocs(stage.rdd, id))}.toMap
case s: ResultStage =>
partitionsToCompute.map { id =>
val p = s.partitions(id)
(id, getPreferredLocs(stage.rdd, p))
}.toMap
}
} catch {
case NonFatal(e) =>
stage.makeNewStageAttempt(partitionsToCompute.size)
listenerBus.post(SparkListenerStageSubmitted(stage.latestInfo, properties))
abortStage(stage, s"Task creation failed: $e\n${Utils.exceptionString(e)}", Some(e))
runningStages -= stage
return
}getPreferredLocs是用来返回RDD分区中的位置信息的，里面调用了getPreferredLocsInternal方法，getPreferredLocsInternal方法体如下
注：
Spark 有五种不同的 Locality Level，分别是
PROCESS_LOCAL：数据和task在同一个Executor中，中间无需任何数据传输，效率最高，如cache后的数据一般就是这种Locality level。
NODE_LOCAL：数据和task在同一个worker上，但是他们在不同的Executor，或者在HDFS上，这个效率稍慢一些，需要从文件读或者进程间传输。
NO_PREF: 数据从哪里访问都一样快，不需要位置优先，一般是读取数据库里的数据会产生这 种Locality Level。
RACK_LOCAL: 数据在同一机架的不同节点上，需要通过网络传输数据及文件 IO。
ANY: 数据在非同一机架的网络上，速度最慢，出现跨集群传输数据才会有这种情况，一般不会出现。
该方法内会依次
private def getPreferredLocsInternal(
rdd: RDD[_],
partition: Int,
visited: HashSet[(RDD[_], Int)]): Seq[TaskLocation] = {
// If the partition has already been visited, no need to re-visit.
// This avoids exponential path exploration. SPARK-695
if (!visited.add((rdd, partition))) {
// Nil has already been returned for previously visited partitions.
return Nil
}
// If the partition is cached, return the cache locations
val cached = getCacheLocs(rdd)(partition)
if (cached.nonEmpty) {
return cached
}
// If the RDD has some placement preferences (as is the case for input RDDs), get those
val rddPrefs = rdd.preferredLocations(rdd.partitions(partition)).toList
if (rddPrefs.nonEmpty) {
return rddPrefs.map(TaskLocation(_))
}
// If the RDD has narrow dependencies, pick the first partition of the first narrow dependency
// that has any placement preferences. Ideally we would choose based on transfer sizes,
// but this will do for now.
rdd.dependencies.foreach {
case n: NarrowDependency[_] =>
for (inPart <- n.getParents(partition)) {
val locs = getPreferredLocsInternal(n.rdd, inPart, visited)
if (locs != Nil) {
return locs
}
}
case _ =>
}
Nil
}判断该rdd的partition是否被访问，是否被cache，并最终返回其一个最佳的locality information。注意到里面调用了TaskLocation，TaskLocation是一个sealed trait，有三个子类实现了它，分别是
case class ExecutorCacheTaskLocation(override val host: String, executorId: String)
extends TaskLocation {
override def toString: String = s"${TaskLocation.executorLocationTag}${host}_$executorId"
}
/**
* A location on a host.
*/
private [spark] case class HostTaskLocation(override val host: String) extends TaskLocation {
override def toString: String = host
}
/**
* A location on a host that is cached by HDFS.
*/
private [spark] case class HDFSCacheTaskLocation(override val host: String) extends TaskLocation {
override def toString: String = TaskLocation.inMemoryLocationTag + host
}ExecutorCacheTaskLocation代表数据已经被cache了，正是PROCESS_LOCAL情况，HostTaskLocation和HDFSCacheTaskLocation分别代表数据存储在同worker上和存储在HDFS上，正是NODE_LOCAL的情况。task的locality level与partition是一致的。
接下来会通过根据不同的task类型，通过broadCast分发不同的数据到executor上
For ShuffleMapTask, serialize and broadcast (rdd, shuffleDep).
对于ShuffleMapTask，它序列化和分发rdd以及shuffleDep
For ResultTask, serialize and broadcast (rdd,?func).
对于ResultTask，它序列化和分发rdd以及func
RDDCheckpointData.synchronized {
taskBinaryBytes = stage match {
case stage: ShuffleMapStage =>
JavaUtils.bufferToArray(
closureSerializer.serialize((stage.rdd, stage.shuffleDep): AnyRef))
case stage: ResultStage =>
JavaUtils.bufferToArray(closureSerializer.serialize((stage.rdd, stage.func): AnyRef))
}
partitions = stage.rdd.partitions
}
taskBinary = sc.broadcast(taskBinaryBytes)之后将根据不同的stage类型生成不同的task，其对应的源码如下
val tasks: Seq[Task[_]] = try {
val serializedTaskMetrics = closureSerializer.serialize(stage.latestInfo.taskMetrics).array()
stage match {
case stage: ShuffleMapStage =>
stage.pendingPartitions.clear()
partitionsToCompute.map { id =>
val locs = taskIdToLocations(id)
val part = partitions(id)
stage.pendingPartitions += id
new ShuffleMapTask(stage.id, stage.latestInfo.attemptNumber,
taskBinary, part, locs, properties, serializedTaskMetrics, Option(jobId),
Option(sc.applicationId), sc.applicationAttemptId, stage.rdd.isBarrier())
}
case stage: ResultStage =>
partitionsToCompute.map { id =>
val p: Int = stage.partitions(id)
val part = partitions(p)
val locs = taskIdToLocations(id)
new ResultTask(stage.id, stage.latestInfo.attemptNumber,
taskBinary, part, locs, id, properties, serializedTaskMetrics,
Option(jobId), Option(sc.applicationId), sc.applicationAttemptId,
stage.rdd.isBarrier())
}
}
} catch {
case NonFatal(e) =>
abortStage(stage, s"Task creation failed: $e\n${Utils.exceptionString(e)}", Some(e))
runningStages -= stage
return
}最后会执行taskScheduler.submitTasks(new TaskSet( tasks.toArray, stage.id, stage.latestInfo.attemptNumber, jobId, properties))方法，stage被封装成一个个TaskSet通过submitTasks提交，至此DagScheduler的工作全部完成，进入taskScheduler的工作。
2、taskScheduler.submitTasks()方法
之前提到过taskScheduler是一个trait，其实现类是TaskSchedulerImpl，该类在sparkContext创建时通过createTaskScheduler方法创建好了，点进去查看可以看到有着数量众多的
val scheduler = new TaskSchedulerImpl()
证明askScheduler的实例类确实是TaskSchedulerImpl，回到submitTasks方法，源码如下
override def submitTasks(taskSet: TaskSet) {
val tasks = taskSet.tasks
logInfo("Adding task set " + taskSet.id + " with " + tasks.length + " tasks")
this.synchronized {
val manager = createTaskSetManager(taskSet, maxTaskFailures)
val stage = taskSet.stageId
val stageTaskSets =
taskSetsByStageIdAndAttempt.getOrElseUpdate(stage, new HashMap[Int, TaskSetManager])
stageTaskSets.foreach { case (_, ts) =>
ts.isZombie = true
}
stageTaskSets(taskSet.stageAttemptId) = manager
schedulableBuilder.addTaskSetManager(manager, manager.taskSet.properties)
if (!isLocal && !hasReceivedTask) {
starvationTimer.scheduleAtFixedRate(new TimerTask() {
override def run() {
if (!hasLaunchedTask) {
logWarning("Initial job has not accepted any resources; " +
"check your cluster UI to ensure that workers are registered " +
"and have sufficient resources")
} else {
this.cancel()
}
}
}, STARVATION_TIMEOUT_MS, STARVATION_TIMEOUT_MS)
}
hasReceivedTask = true
}
backend.reviveOffers()
}首先创建一个TaskSetManager，TaskSetManager会根据数据的locality-aware（其locality-aware就是之前partition所获取prefered locality信息）为Task分配计算资源，监控Task的执行状态，并在失败时采取重试策略，或者推迟执行。该类主要的接口是resourceOffer，该方法会询问TaskSet，否想要在一个节点上运行一个task，并在task状态变更时通知TaskSet。
taskSetsByStageIdAndAttempt底层是一个HashMap，它会先通过stageId获取一个名为stageTaskSets的HashMap<Int, TaskSetManager>，stageAttemptId则是自动生成的一个stage尝试id，个人理解这里是因为关于该stage前面的尝试都有问题，所以要将前面所有的TaskSetManager的状态均设为zombie，随后在该段代码内
stageTaskSets(taskSet.stageAttemptId) = manager重新添加新的尝试id stageAttemptId和该stage的TaskSetManager。
随后将TaskSetManager添加到schedulableBuilder内，这里SchedulableBuilder实质上是一个trait，他有两个实现类，分别是FIFOSchedulableBuilder（先进先出）和FairSchedulableBuilder（公平调度），默认是FIFO，可以通过spark.scheduler.mode模式进行设置。该类是在SparkContext执行TaskSchedulerImpl的initialize()方法进行创建的。其source code如下
def initialize(backend: SchedulerBackend) {
this.backend = backend
schedulableBuilder = {
schedulingMode match {
case SchedulingMode.FIFO =>
new FIFOSchedulableBuilder(rootPool)
case SchedulingMode.FAIR =>
new FairSchedulableBuilder(rootPool, conf)
case _ =>
throw new IllegalArgumentException(s"Unsupported $SCHEDULER_MODE_PROPERTY: " +
s"$schedulingMode")
}
}
schedulableBuilder.buildPools()
}starvationTimer.scheduleAtFixedRate是一个防止task没资源进入长期饥饿的定时器，该task提交后这个定时器就会被cancel掉。
最后调用了backend.reviveOffers()方法。
3、SchedulerBackend的start与reviveOffers()方法
我们知道SchedulerBackend是一个trait，有三种实现类，用以管理不同deploy mode下的资源的，并且在SparkContext初始化时就已经创建好。
则我们以CoarseGrainedSchedulerBackend的reviveOffers为例，看到其override的方法为
override def reviveOffers() {
driverEndpoint.send(ReviveOffers)
}可以看到里面是调用了driverEndpoint的send()方法，driverEndpoint实际上是一个RpcEndpointRef类，该类只有一个实现类就是NettyRpcEndpointRef，主要功能是用来通信的，用于driver端发送信息为各TaskSet分配执行所需的资源。
接下来从send()方法深入进去，发现什么都没有了，而且我们也并不知道diverEndpoint实在何时创建的，并且这个send的发信对象是谁也不清楚。那么TaskScheduler又是如何提交Task的呢？
回到TaskSchedulerImpl class处，会发现上面的注释中有这么一句话
/**
* Clients should first call initialize() and start(), then submit task sets through the
* submitTasks method.
*/大概意思就是initialize() and start()会被先调用，随后才会调用submitTasks提交task，initialize方法我们知道在sparkContext创建的时候就被调用用来创建TaskScheduler了，那么start()方法其实就是在随后被调用的，我们可以看到sparkContext内有这么一段代码
// Create and start the scheduler
val (sched, ts) = SparkContext.createTaskScheduler(this, master, deployMode)
_schedulerBackend = sched
_taskScheduler = ts
_dagScheduler = new DAGScheduler(this)
_heartbeatReceiver.ask[Boolean](TaskSchedulerIsSet)
_taskScheduler.start()在TaskSchedulerImpl内override的start方法为
override def start() {
backend.start()
if (!isLocal && conf.getBoolean("spark.speculation", false)) {
logInfo("Starting speculative execution thread")
speculationScheduler.scheduleWithFixedDelay(new Runnable {
override def run(): Unit = Utils.tryOrStopSparkContext(sc) {
checkSpeculatableTasks()
}
}, SPECULATION_INTERVAL_MS, SPECULATION_INTERVAL_MS, TimeUnit.MILLISECONDS)
}
}可以看到内部调用了backend的start()方法，我们之前说过SchedulerBackend一个trait，内部有三个实现类，用以管理不同deploy mode下的资源调度，进入CoarseGrainedSchedulerBackend的start方法内部，代码如下
verride def start() {
val properties = new ArrayBuffer[(String, String)]
for ((key, value) <- scheduler.sc.conf.getAll) {
if (key.startsWith("spark.")) {
properties += ((key, value))
}
}
// TODO (prashant) send conf instead of properties
driverEndpoint = createDriverEndpointRef(properties)
}可以看到再获取完spark相关的conf之后，driverEndpoint通过createDriverEndpointRef方法创建，
createDriverEndpointRef方法内部为
protected def createDriverEndpointRef(
properties: ArrayBuffer[(String, String)]): RpcEndpointRef = {
rpcEnv.setupEndpoint(ENDPOINT_NAME, createDriverEndpoint(properties))
}可以看到里面有这样一段代码，rpcEnv.setupEndpoint((ENDPOINT_NAME, createDriverEndpoint(properties))，而createDriverEndpoint(properties)方法内部为
protected def createDriverEndpoint(properties: Seq[(String, String)]): DriverEndpoint = {
new DriverEndpoint(rpcEnv, properties)
}很明显创建出了一个DriverEndpoint类，并且该类被设为rpcEnv的Endpoint，回到banked.reviveOffers方法，我们终于明白了这个send方法的发信对象正是被设为Endpoint的DriverEndpoint，并且发送的是一个ReviveOffers message
总结下来就是CoarseGrainedSchedulerBackend所持有的driverEndpoint本质是一个RpcEndpointRef，其底层只有一个继承实现类就是NettyRpcEndpointRef，它在初始化的时候设置好了其发信的接收节点driverEndpoint，用以给driverEndpoint发信。
那么driverEndpoint底层又是什么呢，我们在CoarseGrainedSchedulerBackend中找到定义好的driverEndpoint
class DriverEndpoint(override val rpcEnv: RpcEnv, sparkProperties: Seq[(String, String)])
extends ThreadSafeRpcEndpoint with Logging {
/*..*/
}可以看到其继承了ThreadSafeRpcEndpoint? trait，它又继承了RpcEndpoint trait，这一个线程安全的RpcEndpoint。我们可以看到RpcEndpoint trait内有许多方法
private[spark] trait RpcEndpoint {
/**
* The [[RpcEnv]] that this [[RpcEndpoint]] is registered to.
*/
val rpcEnv: RpcEnv
/**
* The [[RpcEndpointRef]] of this [[RpcEndpoint]]. `self` will become valid when `onStart` is
* called. And `self` will become `null` when `onStop` is called.
*
* Note: Because before `onStart`, [[RpcEndpoint]] has not yet been registered and there is not
* valid [[RpcEndpointRef]] for it. So don't call `self` before `onStart` is called.
*/
final def self: RpcEndpointRef = {
require(rpcEnv != null, "rpcEnv has not been initialized")
rpcEnv.endpointRef(this)
}
/**
* Process messages from `RpcEndpointRef.send` or `RpcCallContext.reply`. If receiving a
* unmatched message, `SparkException` will be thrown and sent to `onError`.
*/
def receive: PartialFunction[Any, Unit] = {
case _ => throw new SparkException(self + " does not implement 'receive'")
}
/**
* Process messages from `RpcEndpointRef.ask`. If receiving a unmatched message,
* `SparkException` will be thrown and sent to `onError`.
*/
def receiveAndReply(context: RpcCallContext): PartialFunction[Any, Unit] = {
case _ => context.sendFailure(new SparkException(self + " won't reply anything"))
}
/**
* Invoked when any exception is thrown during handling messages.
*/
def onError(cause: Throwable): Unit = {
// By default, throw e and let RpcEnv handle it
throw cause
}
/**
* Invoked when `remoteAddress` is connected to the current node.
*/
def onConnected(remoteAddress: RpcAddress): Unit = {
// By default, do nothing.
}
/**
* Invoked when `remoteAddress` is lost.
*/
def onDisconnected(remoteAddress: RpcAddress): Unit = {
// By default, do nothing.
}
/**
* Invoked when some network error happens in the connection between the current node and
* `remoteAddress`.
*/
def onNetworkError(cause: Throwable, remoteAddress: RpcAddress): Unit = {
// By default, do nothing.
}
/**
* Invoked before [[RpcEndpoint]] starts to handle any message.
*/
def onStart(): Unit = {
// By default, do nothing.
}
/**
* Invoked when [[RpcEndpoint]] is stopping. `self` will be `null` in this method and you cannot
* use it to send or ask messages.
*/
def onStop(): Unit = {
// By default, do nothing.
}
/**
* A convenient method to stop [[RpcEndpoint]].
*/
final def stop(): Unit = {
val _self = self
if (_self != null) {
rpcEnv.stop(_self)
}
}
}其中onStart()方法指将在处理message前invoke，接下来则是receive和receiveAndReply方法，它们在收到RpcEndpointRef的send()方法或ask()方法时分别触发，最后则是onStop()方法结束它的生命周期。所以其调用的顺序是
driverEndpoint（RpcEndpointRef）：Banked.start ->?createDriverEndpointRef（创建）-> rpcEnv.setupEndpoint（设置接收message得Endpoint）
DriverEndpoint（DriverEndpoint）：Banked.start -> 通过createDriverEndpointRef内createDriverEndpoint创建 -> message来时onStart ->?receive或receiveAndReply -> onStop()
那么了解了他们的调用顺序，回到reviveOffers()方法，其driverEndpoint向DriverEndpoint send的是ReviveOffers信息，那我们找到DriverEndpoint内的receive()，可以看到这段代码
case ReviveOffers =>
makeOffers()4、makeOffer()方法与资源分配
点进makeOffer()方法，可以看到如下代码
private def makeOffers() {
// Make sure no executor is killed while some task is launching on it
val taskDescs = withLock {
// Filter out executors under killing
val activeExecutors = executorDataMap.filterKeys(executorIsAlive)
val workOffers = activeExecutors.map {
case (id, executorData) =>
new WorkerOffer(id, executorData.executorHost, executorData.freeCores,
Some(executorData.executorAddress.hostPort))
}.toIndexedSeq
scheduler.resourceOffers(workOffers)
}
if (!taskDescs.isEmpty) {
launchTasks(taskDescs)
}
}该方法主要是为了给executor分配计算资源，首先是taskDescs变量，它是withLock()方法得返回值，withLock()方法是一个加锁操作。注释里写的很清楚，它要确保在task launching时没有executor被kill或者正处在被killing。
首先通过executorDataMap.filterKeys()方法过滤到只剩下alive的executor，剩下通过resourceOffers()方法对worker进行resource的分配。
最后在没有问题的情况下执行launchTasks(taskDescs)，其代码内部如下
private def launchTasks(tasks: Seq[Seq[TaskDescription]]) {
for (task <- tasks.flatten) {
val serializedTask = TaskDescription.encode(task)
if (serializedTask.limit() >= maxRpcMessageSize) {
Option(scheduler.taskIdToTaskSetManager.get(task.taskId)).foreach { taskSetMgr =>
try {
var msg = "Serialized task %s:%d was %d bytes, which exceeds max allowed: " +
"spark.rpc.message.maxSize (%d bytes). Consider increasing " +
"spark.rpc.message.maxSize or using broadcast variables for large values."
msg = msg.format(task.taskId, task.index, serializedTask.limit(), maxRpcMessageSize)
taskSetMgr.abort(msg)
} catch {
case e: Exception => logError("Exception in error callback", e)
}
}
}
else {
val executorData = executorDataMap(task.executorId)
executorData.freeCores -= scheduler.CPUS_PER_TASK
logDebug(s"Launching task ${task.taskId} on executor id: ${task.executorId} hostname: " +
s"${executorData.executorHost}.")
executorData.executorEndpoint.send(LaunchTask(new SerializableBuffer(serializedTask)))
}
}
}首先做个对ask serialized后message的超长判断，默认为128M，之后进行executorData的创建并更新一下资源信息，最后通过executorEndpoint.send方法发送message
那该executorEndpoint的发信对象是谁呢，点进LaunchTask这个msg对象，内部有一段注释
// Driver to executors
case class LaunchTask(data: SerializableBuffer) extends CoarseGrainedClusterMessageDriver to executors
从这里我们知道该msg是发给executor的，我们找到org.apache.spark.executor.CoarseGrainedExecutorBackend，这个类的作用和CoarseGrainedSchedulerBackend类似，都是用来管理资源的，我们可以看它的receive()方法内有
case LaunchTask(data) =>
if (executor == null) {
exitExecutor(1, "Received LaunchTask command but executor was null")
} else {
val taskDesc = TaskDescription.decode(data.value)
logInfo("Got assigned task " + taskDesc.taskId)
executor.launchTask(this, taskDesc)
}首先对task进行解码，并且执行executor.launchTask(this, taskDesc)，至此，task才真正开始被执行，launchTask()方法内部如下
def launchTask(context: ExecutorBackend, taskDescription: TaskDescription): Unit = {
val tr = new TaskRunner(context, taskDescription)
runningTasks.put(taskDescription.taskId, tr)
threadPool.execute(tr)
}就是将task创建为一个TaskRunner并放入线程池中等待执行，具体执行的流程在override的run()方法内部，在执行结束后，会有结果和其他信息返回driver段，至此spark任务调用基本主体到此就结束了。
后话
本人刚入行不久，本文主要也以记录自己的学习过程为主，大部分是自己通过查阅资料和动手尝试下自己的见解，若有不对的地方欢迎指出。
