[大数据]初识Flink

Flink

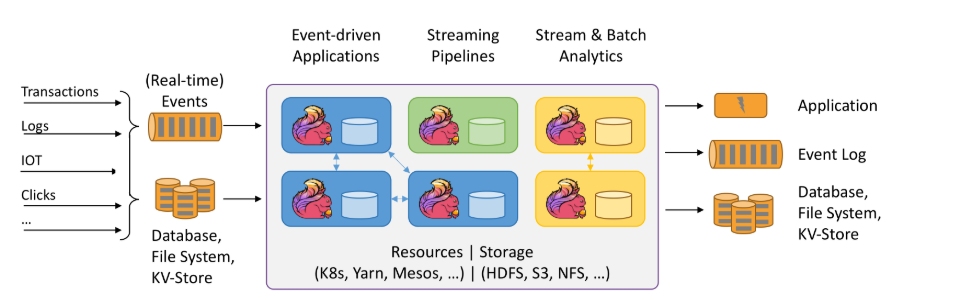

批流一体
支持数据类型
编程模型 *
DataStream ****
Data source
内置
对接第三方
自定义
Transformation
sink
内置
第三方
自定义
时间 & 窗口 & WM *****
Connector
State 状态管理
Table API & SQL 1.11 和1.10 系列 完全不一样
CEP
项目： 搞一个 成数据接入到后面 全是实时的

1. Flink 初用

1.1 flink 批处理

        <scala.binary.version>2.12</scala.binary.version>
        <flink.version>1.11.2</flink.version>

    <dependencies>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-scala_${scala.binary.version}</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_${scala.binary.version}</artifactId>
        </dependency>
    </dependencies>


package com.hpznyf.flink.basic

import org.apache.flink.api.scala.ExecutionEnvironment
import org.apache.flink.api.scala._
object BatchWCApp {
  def main(args: Array[String]): Unit = {
    val env = ExecutionEnvironment.getExecutionEnvironment

    val text = env.readTextFile("data/wc.txt")

    text.flatMap(_.split(",")).map((_,1)).groupBy(0).sum(1).print()

  }
}

1.2 flink 流处理

package com.hpznyf.flink.basic

import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
import org.apache.flink.api.scala._

object StreamingWCApp {
  def main(args: Array[String]): Unit = {
    val env = StreamExecutionEnvironment.getExecutionEnvironment

    val text = env.socketTextStream("hadoop001", 9527)

    text.flatMap(_.split(",")).map((_,1)).keyBy(_._1).sum(1).print()

    env.execute(getClass.getCanonicalName)
  }
}

[root@hadoop001 ~]# nc -l -p 9527
ruoze,ruoze,ruoze
pk,pk,pk

思考，这里面有没有状态？
肯定有啊！！！
前面有固定的分区号~

如果设置并行度

setParallelism(1)

那么就没有并行度，大家都在一个上面

1.3 java版本批处理

package com.ruozedata.flink;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.util.Collector;

public class BatchWCApp {
    public static void main(String[] args) throws  Exception{
        final ExecutionEnvironment executionEnvironment = ExecutionEnvironment.getExecutionEnvironment();

        executionEnvironment.readTextFile("data/wc.txt")
                .flatMap(new RuozedataFlatMapFunction())
                .map(new RuozedataMapFunction())
                .groupBy(0)
                .sum(1)
                .print();
    }
}
class RuozedataFlatMapFunction implements FlatMapFunction<String,String>{

    @Override
    public void flatMap(String value, Collector<String> out) throws Exception {
        String[] splits = value.split(",");
        for(String word : splits){
            out.collect(word);
        }
    }
}

class RuozedataMapFunction implements MapFunction<String, Tuple2<String,Integer>>{

    @Override
    public Tuple2<String, Integer> map(String value) throws Exception {
        return new Tuple2(value, 1);
    }
}

1.4 java版本流处理

package com.ruozedata.flink;

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.util.Collector;

public class StreamWCApp {
    public static void main(String[] args) throws Exception{
        final StreamExecutionEnvironment executionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment();

        executionEnvironment.socketTextStream("hadoop001", 9527)
                .flatMap(new FlatMapFunction<String, String>() {
                    @Override
                    public void flatMap(String value, Collector<String> out) throws Exception {
                        String[] split = value.split(",");
                        for(String word : split){
                            out.collect(word);
                        }
                    }
                }).map(new MapFunction<String, Tuple2<String, Integer>>() {
            @Override
            public Tuple2<String, Integer> map(String value) throws Exception {
                return new Tuple2(value, 1);
            }
        }).keyBy(0).sum(1).print();

        executionEnvironment.execute(StreamWCApp.class.getCanonicalName());

    }
}
