[大数据]flink（二）：DataStreamAPI和状态管理

flink（二）：DataStreamAPI和状态管理

Stream(DataStreamAPI)

参考：
https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/datastream_api.html

DataSource:数据源

数据源是程序读取数据的来源。用户可以通过StreamExecutionEnvironment.addSource(sourceFunction)将数据源添加到程序中。Flink提供了很多的sourceFunction，用户也可以自定义sourceFunction。可以通过实现SourceFunction接口实现非并行化，也可以通过实现ParallelSourceFunction或者继承RichParallelSourceFunction实现并行化。

一系列数据源的应用

File-based（了解）

• readTextFile(path) - Reads text files, i.e. files that respect the TextInputFormat specification, line-by-line and returns them as Strings.

• 读取本地文件
• 读取分布式文件系统HDFS

1. 添加Hadoop依赖
2. 读取hdfs中的文件

<!-- https://mvnrepository.com/artifact/org.apache.hadoop/hadoop-client -->
 <dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-client</artifactId>
   <version>2.10.0</version>
 </dependency>

 <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-streaming-scala -->
 <dependency>
   <groupId>org.apache.flink</groupId>
   <artifactId>flink-streaming-scala_2.11</artifactId>
   <version>1.10.0</version>
 </dependency>

//1.创建执行环境
 val environment = StreamExecutionEnvironment.getExecutionEnvironment


 //2.获取数据源

 val text = environment.readTextFile("hdfs://flink.baizhiedu.com:8020/flink/flink-words")

 //3.对获取到的数据进行转换
 val result = text.flatMap(line => line.split("\\s+"))
   .map(word => (word, 1))
   .keyBy(0)
   .sum(1)

 //4.打印结果
 result.print()

 //5.执行job
 environment.execute("myFlinkJob")

Note:

• 必须保证hdfs中有代码中对应的文件

hdfs://flink.baizhiedu.com:8020/flink/flink-words

Socket-based

• socketTextStream - Reads from a socket. Elements can be separated by a delimiter.

  val text = environment.socketTextStream("flink.baizhiedu.com",9999)


Read from Apache Kafka☆

[外链图片转存失败,源站可能有防盗链机制,建议将图片保存下来直接上传(img-q1iAQYps-1629010052770)(day2笔记.assets/image-20210318173223077.png)]

previously on Zookeeper&Kafka

• Zookeeper （standalone）

https://zookeeper.apache.org/doc/current/zookeeperStarted.html

1.启动zookeeper
[root@flink apache-zookeeper-3.5.7-bin]# bin/zkServer.sh start
ZooKeeper JMX enabled by default
Using config: /opt/install/apache-zookeeper-3.5.7-bin/bin/../conf/zoo.cfg
Starting zookeeper ... STARTED

2.连接zookeeper
[root@flink apache-zookeeper-3.5.7-bin]# bin/zkCli.sh -server 127.0.0.1:2181

• Kafka （standalone）

http://kafka.apache.org/quickstart

1.启动kafka
[root@flink kafka_2.11-2.2.0]# bin/kafka-server-start.sh config/server.properties

2.创建主题
[root@flink kafka_2.11-2.2.0]# bin/kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic test

3.查看主题
[root@flink kafka_2.11-2.2.0]#  bin/kafka-topics.sh --list --bootstrap-server localhost:9092
test

4.发送消息
[root@flink kafka_2.11-2.2.0]# bin/kafka-console-producer.sh --broker-list localhost:9092 --topic topica

5.消费消息
[root@flink kafka_2.11-2.2.0]# bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic topic01 --from-beginning

Flink集成Kafka

? https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/connectors/kafka.html

1. 引入maven依赖

   <dependency>
     <groupId>org.apache.flink</groupId>
     <artifactId>flink-connector-kafka_2.11</artifactId>
     <version>1.10.0</version>
   </dependency>


2. 各种DataSource的应用

   • SimpleStringSchema

     SimpleStringSchema只会反序列化value

     object QuickStart {
       def main(args: Array[String]): Unit = {
         //1.创建执行环境
         val environment = StreamExecutionEnvironment.getExecutionEnvironment

         val properties = new Properties()
         properties.setProperty("bootstrap.servers", "flink.baizhiedu.com:9092")

         var text = environment
           .addSource(new FlinkKafkaConsumer[String]("topic01", new SimpleStringSchema(), properties));


         //3.对获取到的数据进行转换
         val result = text.flatMap(line => line.split("\\s+"))
           .map(word => (word, 1))
           .keyBy(0)
           .sum(1)

         //4.打印结果
         result.print()

         //5.执行job
         environment.execute("myFlinkJob")
     //    println(environment.getExecutionPlan)

       }

     }


   • **KafkaDeserializationSchema **

     通过实现这个接口，可以反序列化key、value、partition、offset等

     import org.apache.flink.api.common.typeinfo.TypeInformation
     import org.apache.flink.streaming.connectors.kafka.KafkaDeserializationSchema
     import org.apache.kafka.clients.consumer.ConsumerRecord
     import org.apache.flink.api.scala._

     /**
       * 泛型分别是key/value/partition/offset的类型
       */
     class MyKafkaDeserializationSchema extends KafkaDeserializationSchema[(String,String,Int,Long)]{
       override def isEndOfStream(t: (String, String, Int, Long)): Boolean = false;

       override def deserialize(consumerRecord: ConsumerRecord[Array[Byte], Array[Byte]]): (String, String, Int, Long) = {

         if(consumerRecord.key()!=null){

           (new String(consumerRecord.key()),new String(consumerRecord.value()),consumerRecord.partition(),consumerRecord.offset())
         }else{
           (null,new String(consumerRecord.value()),consumerRecord.partition(),consumerRecord.offset())


         }
       }

       override def getProducedType: TypeInformation[(String, String, Int, Long)] = {
         createTypeInformation[(String, String, Int, Long)];
       }
     }


     import java.util.Properties

     import org.apache.flink.api.common.serialization.SimpleStringSchema
     import org.apache.flink.streaming.api.scala._
     import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer

     object QuickStart {
       def main(args: Array[String]): Unit = {
         //1.创建执行环境
         val environment = StreamExecutionEnvironment.getExecutionEnvironment

         val properties = new Properties()
         properties.setProperty("bootstrap.servers", "flink.baizhiedu.com:9092")

         /*var text = environment
           .addSource(new FlinkKafkaConsumer[String]("topic01", new SimpleStringSchema(), properties));*/
         var text = environment
           .addSource(new FlinkKafkaConsumer[(String,String,Int,Long)]("topic01", new MyKafkaDeserializationSchema(), properties));


         //3.对获取到的数据进行转换
         val result = text.flatMap(line =>line._2.split("\\s+"))
           .map(word => (word, 1))
           .keyBy(0)
           .sum(1)

         //4.打印结果
         result.print()

         //5.执行job
         environment.execute("myFlinkJob")
     //    println(environment.getExecutionPlan)

       }

     }


   • JSONKeyValueDeserializationSchema

     这个是flink-kafka提供的类，可以直接使用，在使用的时候要求kafka中topic的key、value都必须是json。也可以在使用的过程中，指定是否读取元数据（topic、partition、offset等）

     import java.util.Properties

     import org.apache.flink.shaded.jackson2.com.fasterxml.jackson.databind.node.ObjectNode
     import org.apache.flink.streaming.api.scala.StreamExecutionEnvironment
     import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer
     import org.apache.flink.streaming.util.serialization.JSONKeyValueDeserializationSchema
     import org.apache.flink.api.scala._

     object JSONKeyValueDeserializationSchema {


       def main(args: Array[String]): Unit = {
         //1.创建执行环境
         val environment = StreamExecutionEnvironment.getExecutionEnvironment

         //设置并行度，通过打印执行计划查看并行度是否起作用
         var properties: Properties = new Properties()
         properties.setProperty("bootstrap.servers", "flink.baizhiedu.com:9092")

         //2.获取数据源
     //    val result = environment.addSource(new FlinkKafkaConsumer[ObjectNode]("topic01", new JSONKeyValueDeserializationSchema(true), properties));


         val text = environment
             .addSource(new FlinkKafkaConsumer[ObjectNode]("topic05",new JSONKeyValueDeserializationSchema(false),properties));

         //先查看一下内容整体
         //text.map(t=>t.toString).print()

         text.map(t=>(t.get("value").get("id").asInt(),t.get("value").get("name").asText())).print()


         //5.执行job
         environment.execute("myFlinkJob")

       }

     }


     [root@flink kafka_2.11-2.2.0]# bin/kafka-console-producer.sh --broker-list localhost:9092 --topic topic05
     >{"id":101,"name":"xiaohei"}


     Note

     1. 注意导包import org.apache.flink.api.scala._
     2. Kafka中的数据需要是JSON格式

算子

参考：https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/stream/operators/

• map以及flatmap

 //输入数据为a b  c
//    val value: DataStream[String] = dataStream.flatMap(_.split("\\s+"))
//    value.print() //打印出来就是a b c三个元素
    val dataStream2: DataStream[Array[String]] = dataStream.map(_.split("\\s+"))//
    dataStream2.print()//打印出来就是一个数组地址
    val value: DataStream[String] = dataStream2.map(e => e(0) + "***" + e(1))//从数组中获取对应位置的元素，然后拼接成字符串
    value.print()//a***b

• keyedStream的理解

  在flink中，数据是有状态的；数据的状态很多时候是和keyedStream结合在一起使用的；keyedState（同一个key对应的是同一块状态区域）

datasink：数据输出

支持多种输出方式：打印、文件(HDFS)、redis、kafka…

https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/datastream_api.html#data-sinks

生产环境，通常使用flink-connector-filesystem把结果写入到外部文件系统

1. 添加flink-connector-filesystem依赖

<!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-filesystem -->
<dependency>
    <groupId>org.apache.flink</groupId>
    <artifactId>flink-connector-filesystem_2.11</artifactId>
    <version>1.10.0</version>
</dependency>

2. 代码实现

import org.apache.flink.api.common.serialization.SimpleStringEncoder
import org.apache.flink.core.fs.Path
import org.apache.flink.streaming.api.functions.sink.filesystem.StreamingFileSink
import org.apache.flink.streaming.api.functions.sink.filesystem.bucketassigners.DateTimeBucketAssigner
import org.apache.flink.streaming.api.scala._

object FileDataSinkFlinkConnectorFileSystem {


  def main(args: Array[String]): Unit = {
    //1.创建执行环境
    val environment = StreamExecutionEnvironment.getExecutionEnvironment


    //2.获取数据源
    val text = environment.socketTextStream("flink.baizhiedu.com",9999)

    var streamFileSink = StreamingFileSink.forRowFormat(new Path("hdfs://flink.baizhiedu.com:8020/flink-result"),
      new SimpleStringEncoder[(String,Int)]())
      //按照指定格式生成写入路径;如果没有这个，系统flink会按照其内置的路径yyyy-MM-dd--HH
      .withBucketAssigner(new DateTimeBucketAssigner[(String, Int)]("yyyy-MM-dd"))
      .build();

    //3.对获取到的数据进行转换
    val result = text.flatMap(line => line.split("\\s+"))
      .map(word => (word, 1))
      .keyBy(0)
      .sum(1)

    //4.把数据写入到文件系统
    result.addSink(streamFileSink)

    //5.执行job
    environment.execute("myFlinkJob")

  }

}

状态管理

参考https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/stream/state/state.html

Flink是基于状态的流计算引擎。

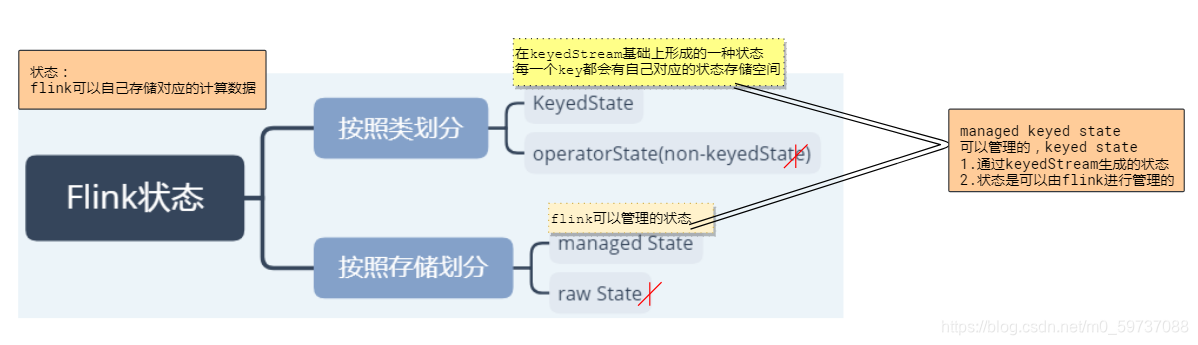

在Flink中有两种基本类型的state，分别是Keyed State和Operator State。Keyed State只能应用在KeyedStream上的操作。每一个keyed operator都会绑定一个或多个状态值。Operator State又被称为non-keyed state，每一个算子都会有对应的operator state。

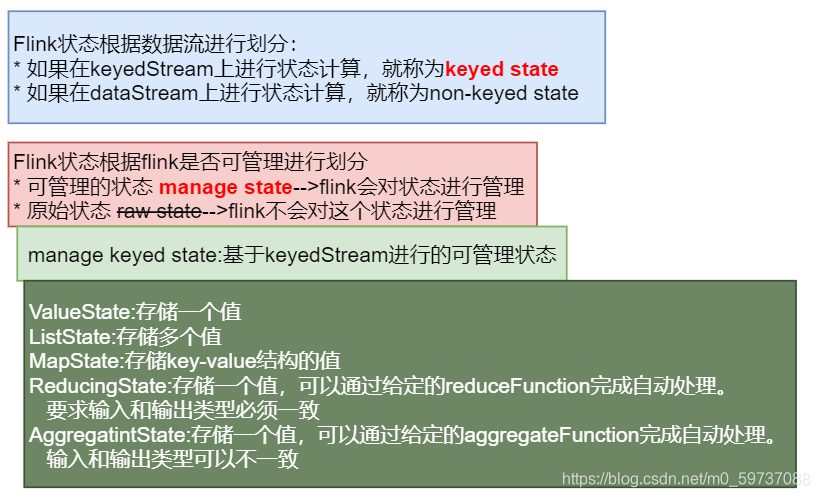

Keyed State以及Operator State都会以两种方式存储：managed和raw。

managed state指的是由Flink控制state的数据结构，比如使用内部hash表、RocksDB等。正是基于此，Flink可以更好地在managed state基础上进行内存优化和故障恢复。

raw state指的是Flink只知道state是一些字节数组，其余一无所知。需要用户自己完成state的序列化以及反序列化。因此，Flink不能基于raw state进行内存优化以及故障恢复。所以在企业实战中，很少使用raw state

Managed Keyed State（必须掌握）☆

managed keyed state 接口提供了对不同数据类型的state的访问，这些state都是和key绑定的。这也就意味着managed keyed state只能应用在KeyedStream上。Flink内置的有以下几种managed keyed state

• ValueState<T> getState(ValueStateDescriptor<T>)
• ReducingState<T> getReducingState(ReducingStateDescriptor<T>)
• ListState<T> getListState(ListStateDescriptor<T>)
• AggregatingState<IN, OUT> getAggregatingState(AggregatingStateDescriptor<IN, ACC, OUT>)
• FoldingState<T, ACC> getFoldingState(FoldingStateDescriptor<T, ACC>)
• MapState<UK, UV> getMapState(MapStateDescriptor<UK, UV>)

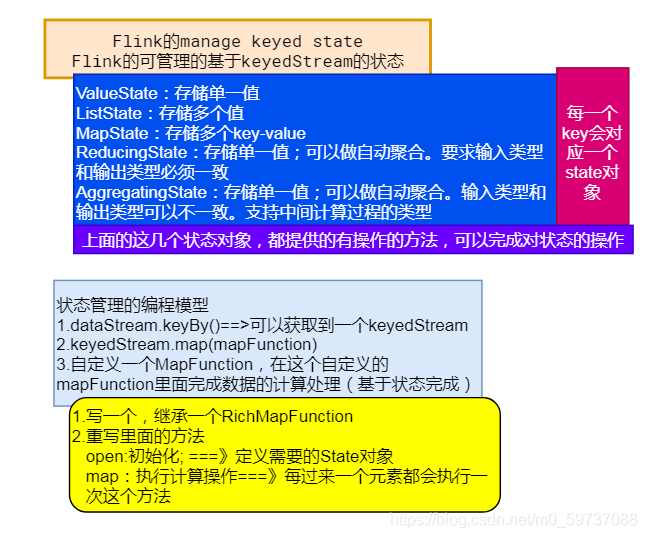

代码实现整体思路☆☆☆

1. 写一个类，继承RichMapFunction类
2. 重写RichMapFunction里面的open方法

在open方法中，通过RuntimeContext对象的getXxxState(XxxStateDescriptor)方法获取到XxxState对象

3. 实现RichMapFunction里面的map方法

在map方法中，通过XxxState对象根据业务需要实现具体功能

4. 在代码中的KeyedStream上使用自定义的MapFunction

ValueState

? 实现wordcount

package com.baizhi.flink.state

import org.apache.flink.api.common.functions.{RichMapFunction, RuntimeContext}
import org.apache.flink.api.common.state.{ValueState, ValueStateDescriptor}
import org.apache.flink.api.java.tuple.Tuple
import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.scala._

/**
 * 通过wordcount功能，看ValueState的应用
 * 在这个代码中，会详细的聊一下state对象的创建思路
 */
object ValueStateJob {
  def main(args: Array[String]): Unit = {

    val environment: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment


    val dataStream: DataStream[String] = environment.socketTextStream("hadoop10", 9999)

    val keyedStream: KeyedStream[(String, Int), Tuple] = dataStream
      .flatMap(_.split("\\s+"))
      .map((_, 1))
      .keyBy(0)

    val result: DataStream[String] = keyedStream.map(new MyMapFunction)

    result.print()



    environment.execute("ValueStateJob")
  }

}
//两个类型参数，分别表示的是输入类型和输出类型
//输入类型：就是使用这个函数的keyedStream中的数据类型
//输出类型：是根据业务需要自己设置的类型
class MyMapFunction extends RichMapFunction[(String, Int),String]{

  //valueState中存储的是单词的个数
  var valueState:ValueState[Int]=_

  //open方法，用来做初始化的方法：只执行一次
  //在这个方法里面创建需要的状态对象
  override def open(parameters: Configuration): Unit = {

    //要创建状态对象，只需要通过RuntimeContext对象，提供的方法就可以把对象创建出来
    val runtimeContext: RuntimeContext = getRuntimeContext//通过RichMapFunction里面提供的方法getRuntimeContext可以获取到一个RuntimeContext对象

    //valueStateDescriptor:就是valueState的一个描述者，就是在这个里面声明ValueState中存储的数据的类型
    //两个参数分别表示：唯一标记以及状态中需要存储的数据的类型信息
    var valueStateDescriptor:ValueStateDescriptor[Int]=new ValueStateDescriptor[Int]("valueState",createTypeInformation[Int])
    valueState=runtimeContext.getState(valueStateDescriptor)//通过runtimeContext提供的getState方法可以获取一个ValueState对象

  }

  //value:就是输入（流）进来的数据;每流入进来一个元素都会执行一次这个方法
  override def map(value: (String, Int)): String = {
    //在这个方法中完成word count的计算
    //思路：首先从状态中把word对应的count获取到，然后加1,加完之后，再把最新的结果存入到状态中

    //1.通过valueState的value方法，获取到状态中存储的数据
    val oldCount: Int = valueState.value()

    //让原来的数据加1
    val newCount: Int = oldCount + value._2//也可以这样写：oldCount+1

    //2.通过valueState的update方法，把新计算的结果存入到状态中
    valueState.update(newCount)

    value._1+"==的数量是==>"+newCount
  }
}

总结

1. 必须有keyedStream才可以使用keyed state(ValueState/ListState/MapState/ReducingState/AggregatintState)

   keyedState就是和key绑定在一起的状态（每一个key对应一个状态；不同的key对应的是不同的状态）

2. 要使用state，就需要创建

   通过RuntimeContext对象提供的方法完成state的创建

   • 通过flink提供的方法，获取到runtimContext对象
   • 创建state对象的方法需要stateDescriptor（描述者，用来描述创建出来的state可以存储什么类型的数据）—》通过new关键字创建Descriptor

3. 在map方法中使用state完成数据的存取处理

ListState

? 实现用户浏览商品类别统计

package com.baizhi.flink.state

import java.lang

import org.apache.flink.api.common.functions.RichMapFunction
import org.apache.flink.api.common.state.{ListState, ListStateDescriptor}
import org.apache.flink.api.java.tuple.Tuple
import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.scala._

import scala.collection.JavaConverters._

/**
 * 通过用户访问的类别
 * 业务系统发送过来的日志信息是这样的格式：用户编号  用户名  访问的类别名
 *
 * 通过状态完成统计处理
 * 应该根据用户做统计（keyBy(用户)）；一个用户有可能会访问很多类别：应该使用ListState存储用户访问过的类别
 */
object ListStateJob {
  def main(args: Array[String]): Unit = {


    val environment: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment

    //模拟采集业务系统的日志信息；接下来测试的时候，就应该按照这种格式输入数据：用户编号 用户名 访问的类别
    val dataStream: DataStream[String] = environment.socketTextStream("hadoop10", 9999)

    val keyedStream: KeyedStream[(String, String, String), Tuple] = dataStream
      .map(_.split("\\s+"))
      .map(array => (array(0), array(1), array(2)))
      .keyBy(0)

    val result: DataStream[(String, String)] = keyedStream.map(new MyListStateMapFunction)

    result.print()




    environment.execute("ListStateJob")

  }

}
class MyListStateMapFunction extends RichMapFunction[(String, String, String),(String,String)]{

  var listState:ListState[String]=_

  override def open(parameters: Configuration): Unit = {

    listState=getRuntimeContext.getListState(new ListStateDescriptor[String]("lsd",createTypeInformation[String]))


  }

  override def map(value: (String, String, String)): (String, String) = {

    /*//根据业务需要，从状态中获取数据，然后处理数据，然后把数据在保存到状态中

    listState.add(value._3)//add方法就是往状态中添加一个数据


    //构建返回值
    //get方法，获取到状态中存储的数据
    val iter: lang.Iterable[String] = listState.get()


    val scalaIterable: Iterable[String] = iter.asScala//把java的Iterable转换成scala的Iterable

    val str: String = scalaIterable.mkString(",")//通过mkString方法，把iterable对象中的元素都通过逗号连接起来*/

    //考虑到去重：存储的数据就是已经去重的数据
    //1.从状态中数据获取到，把新进来的数据添加上，然后去重；然后再存入状态中
    val oldIterable: lang.Iterable[String] = listState.get()
    val scalaList: List[String] = oldIterable.asScala.toList
//    println(scalaList)
    val list: List[String] = scalaList :+ value._3//追加:
//    println(scalaList+"=========================")
    val distinctList: List[String] = list.distinct//去重

    listState.update(distinctList.asJava)//更新状态中的数据;upate方法需要一个util.list;所以应该通过asJava转换一下

    (value._1+":"+value._2,distinctList.mkString(" | "))
  }
}

MapState

? 统计用户浏览商品类别以及该类别的次数

var count = 1;
if(mapState.contains(value._2)){
 count=mapState.get(value._2)+1
}

//把新的数据存储到mapState中
mapState.put(value._2,count)

//处理返回值
//1.从mapState中获取到现有数据
val nowData: List[String] = mapState.entries().asScala.map(entry=>entry.getKey+"->"+entry.getValue).toList

//2.把nowData转换成字符串，流入下游
(value._1,nowData.mkString(" | "))

package day2

import org.apache.flink.api.common.functions.RichMapFunction
import org.apache.flink.api.common.state.{ListState, ListStateDescriptor, MapState, MapStateDescriptor}
import org.apache.flink.api.java.tuple.Tuple
import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.scala._

import scala.collection.JavaConverters._

/**
 * 通过MapState记录用户浏览的类别以及该类别对应的浏览次数
 */
object MapStateJob {
  def main(args: Array[String]): Unit = {
    /**
     * 1.2.3.4.5
     */
    val environment: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment

    //数据===》用户编号 用户名 所访问的类别
    val dataStream: DataStream[String] = environment.socketTextStream("hadoop10", 9999)

    //要处理，就应该根据用户分组===》根据用户做keyby
    val keyedStream: KeyedStream[(String, String), Tuple] = dataStream.map(_.split("\\s+"))
      .map(words => (words(0) + ":" + words(1), words(2)))
      .keyBy(0)
    val result: DataStream[String] = keyedStream.map(new MyMapMapFunction)

    result.print()

    environment.execute("MapStateJob")

  }

}
class MyMapMapFunction extends RichMapFunction[(String,String),String]{

  //通过MapState把用户访问的类别存储起来
  //mapState中的key是类别，value是该类别对应的访问次数
  var mapState:MapState[String,Int]=_


  override def open(parameters: Configuration): Unit = {

    mapState=getRuntimeContext.getMapState(new MapStateDescriptor[String,Int]("MapStateDescriptor",createTypeInformation[String],createTypeInformation[Int]))
  }

  override def map(value: (String, String)): String = {
    var category:String = value._2
    //如果类别已经访问过，访问次数就在原有基础上加1；如果没有访问过，就标记为1
    var count:Int=0
    if(mapState.contains(category)){
      count=mapState.get(category)
    }

    //把类别以及对应的访问次数放入到状态中
    mapState.put(category,count+1)


    //构建返回值
    val list: List[String] = mapState.entries().asScala.map(entry => entry.getKey + ":" + entry.getValue).toList

    val str: String = list.mkString(" | ")

    value._1+"--->"+str
  }
}

ReducingState

? (存储单一值，可以自动运算，要求输入类型和输出类型是一致的)

? 实现wordCount自动统计

package day2

import org.apache.flink.api.common.functions.{ReduceFunction, RichMapFunction, RuntimeContext}
import org.apache.flink.api.common.state.{ReducingState, ReducingStateDescriptor, ValueState, ValueStateDescriptor}
import org.apache.flink.api.common.typeinfo.TypeInformation
import org.apache.flink.api.java.tuple.Tuple
import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.scala._
/**
 * 通过ReducingState实现wordcount自动统计
 */
object ReducingStateJob {
  def main(args: Array[String]): Unit = {
    /**
     * 1.执行环境
     * 2.数据源：socket
     * 3.数据处理：
     *    3.1 flatmap
     *    3.2 map--->(word,1)
     *    3.3 keyby   ===>dataStream转换成了keyedStream
     *    3.4 map(new MyMapFunction)
     * 4.sink:print
     * 5.executeJob
     */
    /**
     * class MyMapFunction extends RichMapFunction
     * 通过valueState完成数据的统计处理
     * 1.在open方法中创建valueState对象
     *    a.需要RuntimeContext对象
     *
     *    b.RuntimeContext对象中提供的有方法，可以获取到ValueState
     * 2.在map方法中使用valueState对象
     */

    val environment: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment

    val dataStream: DataStream[String] = environment.socketTextStream("hadoop10", 9999)

    val keyedStream: KeyedStream[(String, Int), Tuple] = dataStream.flatMap(_.split("\\s+"))
      .map((_, 1))
      .keyBy(0)

    val result: DataStream[String] = keyedStream.map(new MyReducingMapFunction)


    result.print()

    environment.execute("ReducingStateJob")

  }

}

/**
 * In：输入数据的类型;根据使用这个函数的数据流（keyedStream）类型决定
 * Out：输出数据的类型；map方法的返回值类型。根据业务需要决定
 */
/*class MyMapFunction extends RichMapFunction[IN,Out]*/
class MyReducingMapFunction extends RichMapFunction[(String,Int),String]{

  //通过ReducingState完成wordcount 的自动统计
  var reducingState:ReducingState[Int]=_



  override def open(parameters: Configuration): Unit = {

    val context: RuntimeContext = getRuntimeContext
    val name:String="ReducingStateDescriptor"
    val typeInfo:TypeInformation[Int]=createTypeInformation[Int]
    val reduceFunction: ReduceFunction[Int] = new ReduceFunction[Int] {
      override def reduce(value1: Int, value2: Int): Int = {
//        print(value1+"****"+value2)
        value1+value2
      }
    }
    var reducingStateDescriptor:ReducingStateDescriptor[Int]=new ReducingStateDescriptor[Int](name,reduceFunction,typeInfo)

    reducingState=context.getReducingState(reducingStateDescriptor)
  }

  override def map(value: (String, Int)): String = {

    reducingState.add(value._2)//把需要计算的数据添加到reducingState里面

    value._1+":"+reducingState.get()
  }
}

AggeragetingState

(存储单一值，可以自动运算，输入类型和输出类型可以不一致的；还可以在运算过程中有中间类型)

? 实现用户订单平均金额

package day2

import org.apache.flink.api.common.functions.{AggregateFunction, RichMapFunction}
import org.apache.flink.api.common.state.{AggregatingState, AggregatingStateDescriptor}
import org.apache.flink.api.common.typeinfo.TypeInformation
import org.apache.flink.api.java.tuple.Tuple
import org.apache.flink.configuration.Configuration
import org.apache.flink.streaming.api.scala._

object AggregatingStateJob {
  def main(args: Array[String]): Unit = {
    val environment: StreamExecutionEnvironment = StreamExecutionEnvironment.getExecutionEnvironment

    //要求输入的数据：  用户编号  用户名  订单金额
    val dataStream: DataStream[String] = environment.socketTextStream("hadoop10", 9999)

    val keyedStream: KeyedStream[(String, Double), Tuple] = dataStream.map(_.split("\\s+"))
      .map(words => (words(0) + ":" + words(1), words(2).toDouble))
      .keyBy(0)


    val result: DataStream[String] = keyedStream.map(new MyAggregateMapFunction)

    result.print()

    environment.execute("AggregatingStateJob")
  }

}

//通过aggregatingState完成订单的平均金额的计算
class MyAggregateMapFunction extends RichMapFunction[(String,Double),String]{

  //第一个Double表示的是订单金额；第二个Double表示的是用户的订单平均金额
  var aggregatingState:AggregatingState[Double,Double]=_


  override def open(parameters: Configuration): Unit = {

    //第一个Double:输入类型，就是订单金额
    //第二个类型（Double,Int）:中间类型，计算过程中的类型，表示（订单总金额,订单个数）
    //第三个类型Double:输出类型，就是订单平均金额
    var name:String="aggregatingStateDescriptor"
    var aggFunction:AggregateFunction[Double,(Double,Int),Double]=new AggregateFunction[Double,(Double,Int),Double] {
      override def createAccumulator(): (Double, Int) = (0,0)//初始值

      /**
       * 中间计算过程
       * @param value 输入数据，订单金额
       * @param accumulator 中间计算结果 (订单总金额,订单个数)
       * @return
       */
      override def add(value: Double, accumulator: (Double, Int)): (Double, Int) = (accumulator._1+value,accumulator._2+1)

      //计算结果
      override def getResult(accumulator: (Double, Int)): Double = accumulator._1/accumulator._2

      override def merge(a: (Double, Int), b: (Double, Int)): (Double, Int) = (a._1+b._1,a._2+b._2)
    }
    var accType:TypeInformation[(Double,Int)]=createTypeInformation[(Double,Int)]
    var aggregatingStateDescriptor:AggregatingStateDescriptor[Double,(Double,Int),Double]= new AggregatingStateDescriptor[Double,(Double,Int),Double](name,aggFunction,accType)
    aggregatingState=getRuntimeContext.getAggregatingState[Double,(Double,Int),Double](aggregatingStateDescriptor)
  }

  override def map(value: (String, Double)): String = {

    aggregatingState.add(value._2)//把这一次订单的金额放进去

    val avg: Double = aggregatingState.get()//获取到状态中计算完成之后的订单平均金额
    value._1+"的订单平均金额："+avg
  }
}
