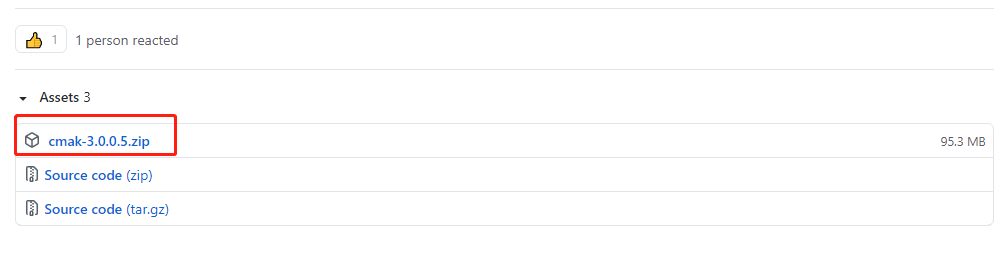

1、环境说明 操作系统:centos 7.9 JDK版本:11.0.12 JDK下载地址: https://www.oracle.com/java/technologies/javase-jdk11-downloads.html  CMAK版本:3.0.0.5 CMAK下载地址: https://github.com/yahoo/CMAK/releases/tag/3.0.0.5  2、jdk安装 参考 https://blog.csdn.net/zyj81092211/article/details/118055068  3、配置kafka集群 搭建部分参考: kafka集群搭建 https://blog.csdn.net/zyj81092211/article/details/119326105 kafka connect 分布式部署 https://blog.csdn.net/zyj81092211/article/details/119647591

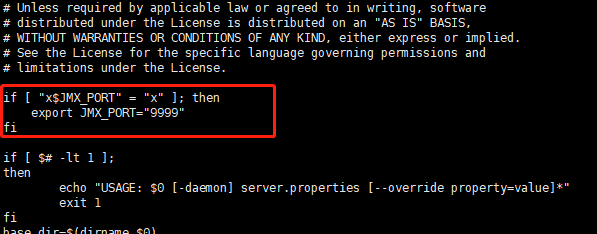

在原有配置文件上添加如下配置 (1)kafka开启JMX(CMKA监控用) 所有节点,在kafka bin目录下,修改kafka-server-start.sh 文件,最上方添加如下:
if [ "x$JMX_PORT" = "x" ]; then
export JMX_PORT="9999"
fi

重新启动kafka
kafka-server-stop.sh
kafka-server-start.sh -daemon /data/kafka/config/server.properties
 (2)kafka添加删除topic参数 在所有节点 conf目录下,修改server.properties,添加如下:
delete.topic.enable=true
auto.create.topics.enable=false
重新启动kafka
kafka-server-stop.sh
kafka-server-start.sh -daemon /data/kafka/config/server.properties
4、上传CMAK软件包,并重名cmak,路径/usr/local下  5、配置CMAK环境变量
vi /etc/profile
添加如下:
export CMAK_HOME=/data/kafka-connect
export PATH=$PATH:$CMAK_HOME/bin
重新加载环境变量:
source /etc/profile
6、更改cmak配置文件 conf/application.conf 内容如下:
play.crypto.secret="^<csmm5Fx4d=r2HEX8pelM3iBkFVv?k[mc;IZE<_Qoq8EkX_/7@Zt6dP05Pzea3U"
play.crypto.secret=${?APPLICATION_SECRET}
play.http.session.maxAge="1h"
play.i18n.langs=["en"]
play.http.requestHandler = "play.http.DefaultHttpRequestHandler"
play.http.context = "/"
play.application.loader=loader.KafkaManagerLoader
kafka-manager.zkhosts="zk01.wtown.com:2181,zk02.wtown.com:2181,zk03.wtown.com:2181"
kafka-manager.zkhosts=${?ZK_HOSTS}
cmak.zkhosts="zk01.wtown.com:2181,zk02.wtown.com:2181,zk03.wtown.com:2181"
cmak.zkhosts=${?ZK_HOSTS}
pinned-dispatcher.type="PinnedDispatcher"
pinned-dispatcher.executor="thread-pool-executor"
application.features=["KMClusterManagerFeature","KMTopicManagerFeature","KMPreferredReplicaElectionFeature","KMReassignPartitionsFeature", "KMScheduleLeaderElectionFeature"]
akka {
loggers = ["akka.event.slf4j.Slf4jLogger"]
loglevel = "INFO"
}
akka.logger-startup-timeout = 60s
basicAuthentication.enabled=true
basicAuthentication.enabled=${?KAFKA_MANAGER_AUTH_ENABLED}
basicAuthentication.ldap.enabled=false
basicAuthentication.ldap.enabled=${?KAFKA_MANAGER_LDAP_ENABLED}
basicAuthentication.ldap.server=""
basicAuthentication.ldap.server=${?KAFKA_MANAGER_LDAP_SERVER}
basicAuthentication.ldap.port=389
basicAuthentication.ldap.port=${?KAFKA_MANAGER_LDAP_PORT}
basicAuthentication.ldap.username=""
basicAuthentication.ldap.username=${?KAFKA_MANAGER_LDAP_USERNAME}
basicAuthentication.ldap.password=""
basicAuthentication.ldap.password=${?KAFKA_MANAGER_LDAP_PASSWORD}
basicAuthentication.ldap.search-base-dn=""
basicAuthentication.ldap.search-base-dn=${?KAFKA_MANAGER_LDAP_SEARCH_BASE_DN}
basicAuthentication.ldap.search-filter="(uid=$capturedLogin$)"
basicAuthentication.ldap.search-filter=${?KAFKA_MANAGER_LDAP_SEARCH_FILTER}
basicAuthentication.ldap.group-filter=""
basicAuthentication.ldap.group-filter=${?KAFKA_MANAGER_LDAP_GROUP_FILTER}
basicAuthentication.ldap.connection-pool-size=10
basicAuthentication.ldap.connection-pool-size=${?KAFKA_MANAGER_LDAP_CONNECTION_POOL_SIZE}
basicAuthentication.ldap.ssl=false
basicAuthentication.ldap.ssl=${?KAFKA_MANAGER_LDAP_SSL}
basicAuthentication.ldap.ssl-trust-all=false
basicAuthentication.ldap.ssl-trust-all=${?KAFKA_MANAGER_LDAP_SSL_TRUST_ALL}
basicAuthentication.username="admin"
basicAuthentication.username=${?KAFKA_MANAGER_USERNAME}
basicAuthentication.password="Smtgbk_123"
basicAuthentication.password=${?KAFKA_MANAGER_PASSWORD}
basicAuthentication.realm="Kafka-Manager"
basicAuthentication.excluded=["/api/health"]
kafka-manager.consumer.properties.file=${?CONSUMER_PROPERTIES_FILE}
7、启动cmak
cmak -Dconfig.file=/usr/local/cmak/conf/application.conf -Dapplication.home=/usr/local/cmak -Dhttp.port=9000 >> /dev/null 2>&1 &
启动报错参考: https://github.com/yahoo/CMAK/issues/298

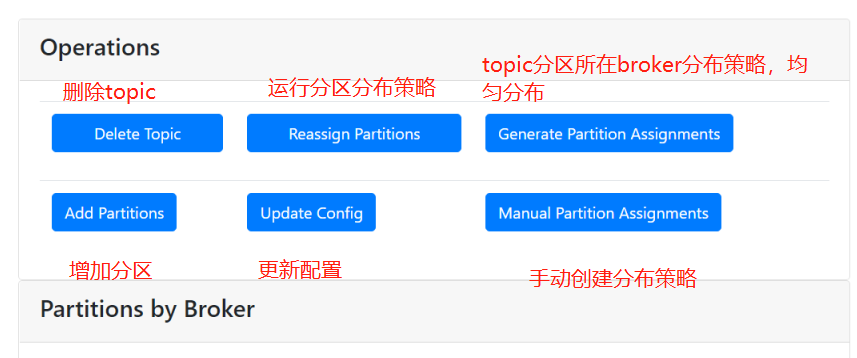

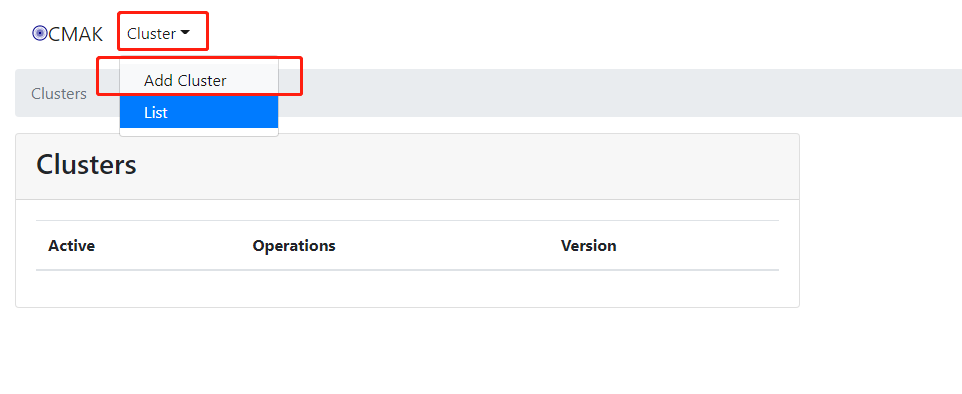

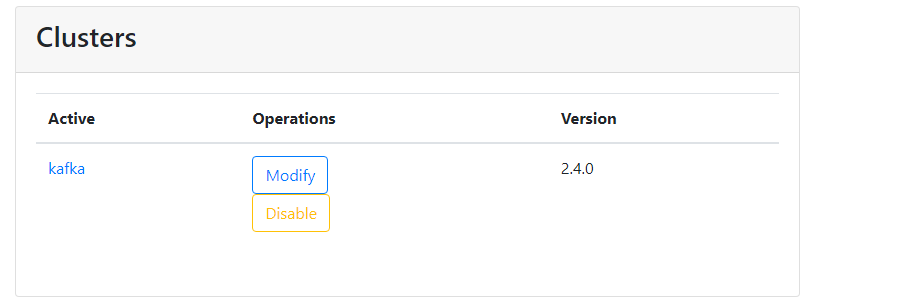

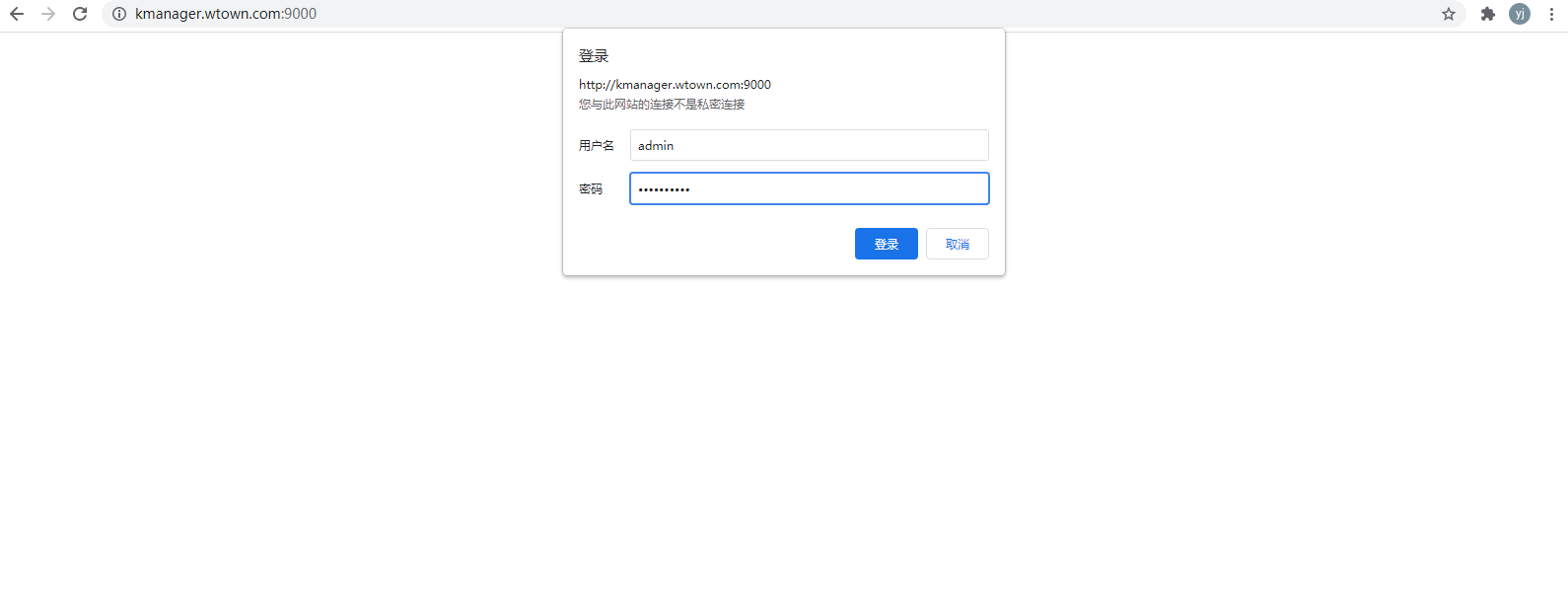

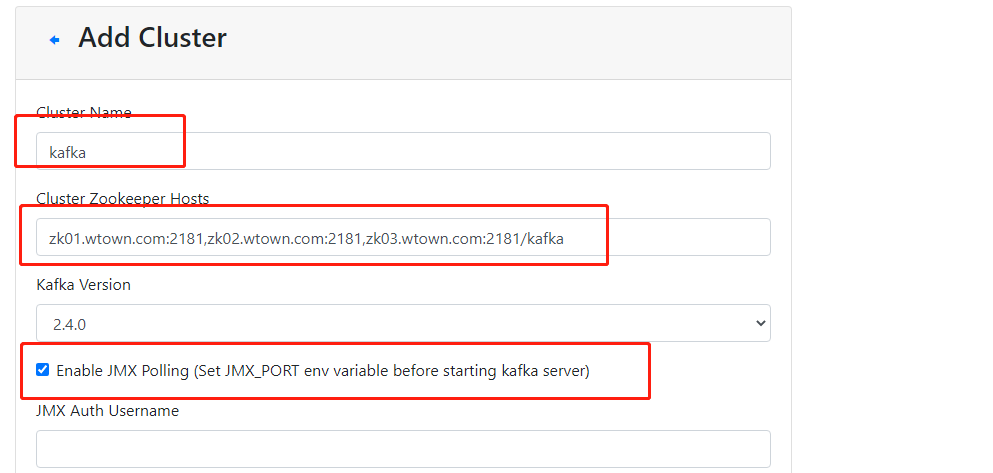

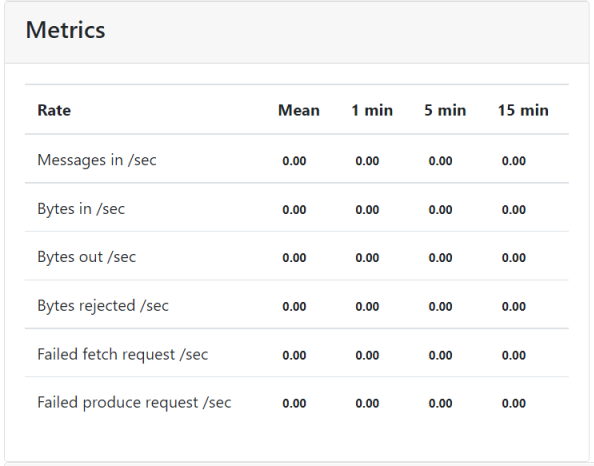

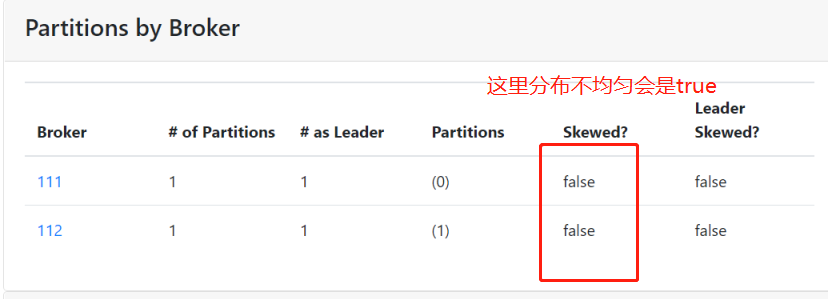

8、访问服务器9000端口 输入配置文件的用户名密码  9、添加集群   显示添加成功  10、界面介绍 topic页面   运行信息
|
