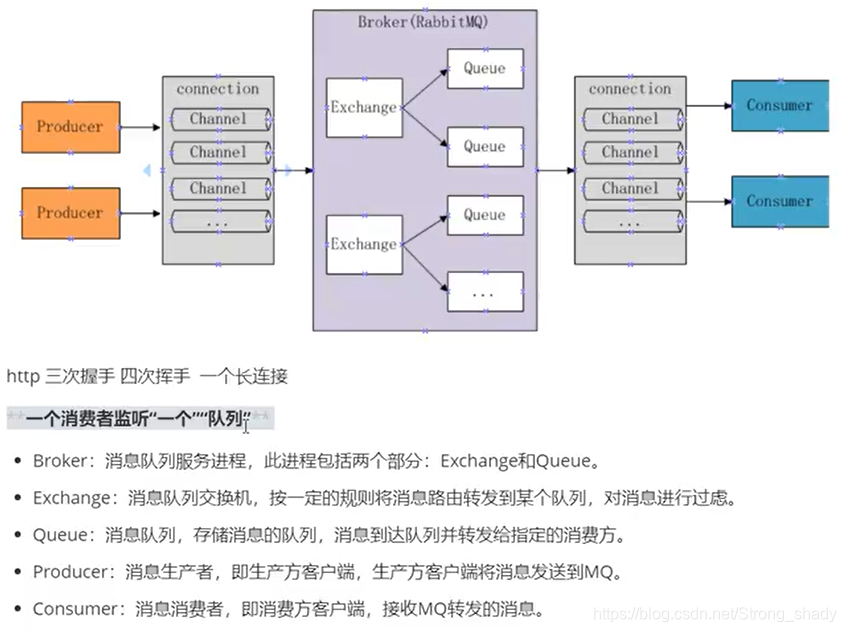

原理图
原生生产者代码
/**
* 简单模式：发送消息
*/
public class Producer {
static final String QUEUE_NAME = "simple_queue";
public static void main(String[] args) throws Exception {
//1. 创建连接工厂（设置RabbitMQ的连接参数）；
ConnectionFactory connectionFactory = new ConnectionFactory();
//主机；默认localhost
connectionFactory.setHost("localhost");
//连接端口；默认5672
connectionFactory.setPort(5672);
//虚拟主机；默认/
connectionFactory.setVirtualHost("/");
//用户名；默认guest
connectionFactory.setUsername("guest");
//密码；默认guest
connectionFactory.setPassword("guest");
//2. 创建连接；
Connection connection = connectionFactory.newConnection();
//3. 创建频道；
Channel channel = connection.createChannel();
//4. 声明队列；
/**
* 参数1：队列名称
* 参数2：是否定义持久化队列（消息会持久化保存在服务器上）
* 参数3：是否独占本连接
* 参数4：是否在不使用的时候队列自动删除
* 参数5：其它参数
*/
channel.queueDeclare(QUEUE_NAME, true, false, false, null);
//5. 发送消息；
String message = "你好。";
/**
* 参数1：交换机名称；如果没有则指定空字符串（表示使用默认的交换机）
* 参数2：路由key，简单模式中可以使用队列名称
* 参数3：消息其它属性
* 参数4：消息内容
*/
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println("已发送消息：" + message);
//6. 关闭资源
channel.close();
connection.close();
}
}
原生消费者代码
public class ComsumerHi {
static final String QUEUE_NAME="hello_queue";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare("hello_queue",true,false,false,null);
DefaultConsumer defaultConsumer = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//路由key
System.out.println("路由key为：" + envelope.getRoutingKey());
//交换机
System.out.println("交换机为：" + envelope.getExchange());
//消息id
System.out.println("消息id为：" + envelope.getDeliveryTag());
//接收到的消息
System.out.println("接收到的消息为：" + new String(body, "utf-8"));
}
};
channel.basicConsume(QUEUE_NAME,true,defaultConsumer);
}
}
2.工作队列模式(包工头)
在同一个队列中可以有多个消费者，消费者之间对于消息的接收是竞争关系。
注：在简单模式的基础上直接再启动多几个consumer就行了
3.订阅发布模式(联想微博)：
一个消息可以被多个消费者接收；其实是使用了订阅模式，交换机类型为：fanout广播
生产者代码：
public class PubSub {
static final String SMS_QUEUE="sms_queue";
static final String EMAIL_QUEUE="email_queue";
static final String FANOUT_EXCHANGE="fanout_exchange";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(FANOUT_EXCHANGE, BuiltinExchangeType.FANOUT,true,false,false,null);
channel.queueDeclare(SMS_QUEUE,true,false,false,null);
channel.queueDeclare(EMAIL_QUEUE,true,false,false,null);
channel.queueBind(SMS_QUEUE,FANOUT_EXCHANGE,"");
channel.queueBind(EMAIL_QUEUE,FANOUT_EXCHANGE,"");
String msg ="gwiogj";
channel.basicPublish(FANOUT_EXCHANGE,"",null,msg.getBytes());
channel.close();
connection.close();
}
}
消费者：
只需要修改一处代码，也就是修改队列名即可：
SMS消费者
channel.basicConsume(SMS_QUEUE,true,defaultConsumer);
EMAIL消费者：
channel.basicConsume(EMAIL_QUEUE,true,defaultConsumer);
但是：万一运维率先启动的是消费者，那么开发人员最好把队列和交换机照着生产者代码声明一遍，防止找不到交换机和队列的绑定关系
★★★4.路由模式(分布式日志收集)：
比发布/订阅模式更灵活。
Routing 路由模式要求队列绑定到交换机的时候指定路由key；消费发送时候需要携带路由key；只有消息的路由key与队列路由key完全一致才能让该队列接收到消息。
生产者：
public class ProducerRouting {
static final String ALERT_QUEUE="alert_queue";
static final String LOG_QUEUE="log_queue";
static final String DIRECT_EXCHANGE="direct_exchange";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(DIRECT_EXCHANGE, BuiltinExchangeType.DIRECT,true,false,false,null);
channel.queueDeclare(ALERT_QUEUE,true,false,false,null);
channel.queueDeclare(LOG_QUEUE,true,false,false,null);
// 第三个参数声明路由Key
channel.queueBind(ALERT_QUEUE,DIRECT_EXCHANGE,"error");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"info");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"warning");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"error");
for (int i = 0; i < 5; i++) {
String msg ="正常info";
channel.basicPublish(DIRECT_EXCHANGE,"info",null,msg.getBytes());
}
for (int i = 0; i < 5; i++) {
String msg ="异常error";
channel.basicPublish(DIRECT_EXCHANGE,"error",null,msg.getBytes());
}
channel.close();
connection.close();
}
}
消费者：
在生产者的队列和交换机都在消费者代码声明好的前提下，只需改动消费者监听的队列名称即可
public class RoutingConsumer {
static final String ALERT_QUEUE="alert_queue";
static final String LOG_QUEUE="log_queue";
static final String DIRECT_EXCHANGE="direct_exchange";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare("hello_queue",true,false,false,null);
channel.exchangeDeclare(DIRECT_EXCHANGE, BuiltinExchangeType.DIRECT,true,false,false,null);
channel.queueDeclare(ALERT_QUEUE,true,false,false,null);
channel.queueDeclare(LOG_QUEUE,true,false,false,null);
// 第三个参数声明路由Key
channel.queueBind(ALERT_QUEUE,DIRECT_EXCHANGE,"error");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"info");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"warning");
channel.queueBind(LOG_QUEUE,DIRECT_EXCHANGE,"error");
DefaultConsumer defaultConsumer = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//路由key
System.out.println("路由key为：" + envelope.getRoutingKey());
//交换机
System.out.println("交换机为：" + envelope.getExchange());
//消息id
System.out.println("消息id为：" + envelope.getDeliveryTag());
//接收到的消息
System.out.println("接收到的消息为：" + new String(body, "utf-8"));
}
};
channel.basicConsume(LOG_QUEUE,true,defaultConsumer);
}
}
topics通配符模式(路由模式升级版)：
可以根据路由key将消息传递到对应路由key的队列；队列绑定到交换机的路由key可以有多个；通配符模式中路由key可以使用 * 和 # ；使用了通配符模式之后对于路由Key的配置更加灵活。
生产者：
public class ProducerTopics {
static final String GUANGZHOU_XIAOZHANG_QUEUE="guangzhou_xiaozhang_queue";
static final String ZONGBU_CAIWU_QUEUE="zongbu_caiwu_queue";
static final String TOPIC_EXCHANGE="topic_exchange";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(TOPIC_EXCHANGE, BuiltinExchangeType.TOPIC,true,false,false,null);
channel.queueDeclare(GUANGZHOU_XIAOZHANG_QUEUE,true,false,false,null);
channel.queueDeclare(ZONGBU_CAIWU_QUEUE,true,false,false,null);
// 第三个参数声明路由Key
★★★channel.queueBind(GUANGZHOU_XIAOZHANG_QUEUE,TOPIC_EXCHANGE,"guangzhou.*.*");
★★★channel.queueBind(ZONGBU_CAIWU_QUEUE,TOPIC_EXCHANGE,"*.caiwu.*");
for (int i = 0; i < 5; i++) {
String msg ="正常info";
channel.basicPublish(TOPIC_EXCHANGE,"guangzhou.caiwu.info",null,msg.getBytes());
}
for (int i = 0; i < 5; i++) {
String msg ="异常error";
channel.basicPublish(TOPIC_EXCHANGE,"guangzhou.renshi.error",null,msg.getBytes());
}
for (int i = 0; i < 5; i++) {
String msg ="success";
channel.basicPublish(TOPIC_EXCHANGE,"Santeeyago.caiwu.info",null,msg.getBytes());
}
channel.close();
connection.close();
}
}
消费者：
public class TopicsConsumerXiaozhang {
static final String GUANGZHOU_XIAOZHANG_QUEUE="guangzhou_xiaozhang_queue";
static final String ZONGBU_CAIWU_QUEUE="zongbu_caiwu_queue";
static final String TOPIC_EXCHANGE="topic_exchange";
public static void main(String[] args) throws Exception{
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("localhost");
connectionFactory.setPort(5672);
connectionFactory.setVirtualHost("/");
connectionFactory.setUsername("guest");
connectionFactory.setPassword("guest");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(TOPIC_EXCHANGE, BuiltinExchangeType.TOPIC,true,false,false,null);
channel.queueDeclare(GUANGZHOU_XIAOZHANG_QUEUE,true,false,false,null);
channel.queueDeclare(ZONGBU_CAIWU_QUEUE,true,false,false,null);
// 第三个参数声明路由Key
channel.queueBind(GUANGZHOU_XIAOZHANG_QUEUE,TOPIC_EXCHANGE,"guangzhou.*.*");
channel.queueBind(ZONGBU_CAIWU_QUEUE,TOPIC_EXCHANGE,"*.caiwu.*");
DefaultConsumer defaultConsumer = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//路由key
System.out.println("路由key为：" + envelope.getRoutingKey());
//交换机
System.out.println("交换机为：" + envelope.getExchange());
//消息id
System.out.println("消息id为：" + envelope.getDeliveryTag());
//接收到的消息
System.out.println("接收到的消息为：" + new String(body, "utf-8"));
}
};
channel.basicConsume(GUANGZHOU_XIAOZHANG_QUEUE,true,defaultConsumer);
}
}
