[大数据]Flink CDC实时获取MySQL数据并转换为Json格式

1.Flink CDC简介

（参考：http://www.dreamwu.com/post-1594.html）

1.1?什么是CDC

CDC是Change Data Capture(变更数据获取)的简称。核心思想是监测并捕获数据库的变动（包括数据或数据表的插入、更新以及删除等），将这些变更按发生的顺序完整记录下来，写入到消息中间件中以供其他服务进行订阅及消费。常见的CDC组件有基于查询的Sqoop、Kafka JDBC Source，基于Binlog的Canal、Maxwell、Debezium等。

1.2?Flink CDC

Flink CDC是Flink社区开发的flink-cdc-connectors 组件，可以直接从 MySQL、Oracle、PostgreSQL等数据库直接读取全量数据和增量变更数据。

2.代码实现

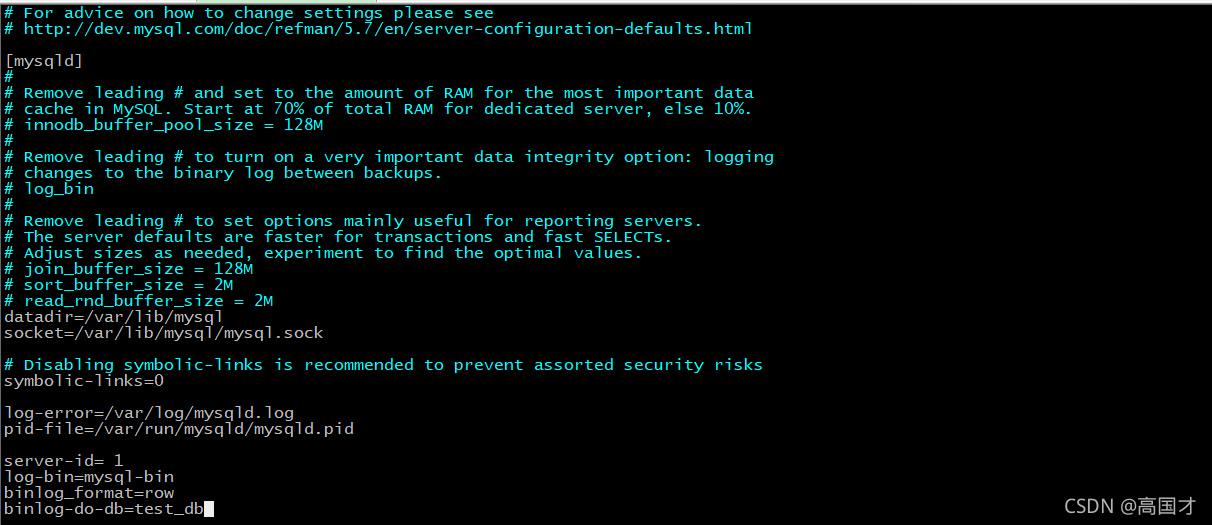

2.1 开启MySQL Binlog

当前使用的是mysql 5.7

vim /etc/my.cnf

?2.2 创建maven工程，添加依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.gao</groupId>
    <artifactId>flink_cdc</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>1.12.0</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>3.1.3</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.48</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba.ververica</groupId>
            <artifactId>flink-connector-mysql-cdc</artifactId>
            <version>1.2.0</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>

    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.0.0</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

2.2 创建FlinkCDCTest测试类

import com.alibaba.ververica.cdc.connectors.mysql.MySQLSource;
import com.alibaba.ververica.cdc.connectors.mysql.table.StartupOptions;
import com.alibaba.ververica.cdc.debezium.StringDebeziumDeserializationSchema;
import org.apache.flink.api.common.restartstrategy.RestartStrategies;
import org.apache.flink.runtime.state.filesystem.FsStateBackend;
import org.apache.flink.streaming.api.CheckpointingMode;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.CheckpointConfig;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;

public class FlinkCDCTest {

    public static void main(String[] args) throws Exception {
        //TODO 1.基础环境
        //1.1流处理执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //1.2设置并行度
        env.setParallelism(1);//设置并行度为1方便测试

        //TODO 2.检查点配置
        //2.1 开启检查点
        env.enableCheckpointing(5000L, CheckpointingMode.EXACTLY_ONCE);//5秒执行一次，模式：精准一次性
        //2.2 设置检查点超时时间
        env.getCheckpointConfig().setCheckpointTimeout(60*1000);
        //2.3 设置重启策略
        env.setRestartStrategy(RestartStrategies.fixedDelayRestart(2, 2*1000));//两次，两秒执行一次
        //2.4 设置job取消后检查点是否保留
        env.getCheckpointConfig().enableExternalizedCheckpoints(
                CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);保留
        //2.5 设置状态后端-->保存到hdfs
        env.setStateBackend(new FsStateBackend("hdfs://192.168.231.121:8020/ck"));
        //2.6 指定操作hdfs的用户
        System.setProperty("HADOOP_USER_NAME", "gaogc");

        //TODO 3.FlinkCDC
        //3.1 创建MySQLSource
        SourceFunction<String> sourceFunction = MySQLSource.<String>builder()
                .hostname("192.168.231.121")
                .port(3306)
                .databaseList("test_db")//库
                .tableList("test_db.user")//表
                .username("root")
                .password("123456")
                .startupOptions(StartupOptions.initial())//启动的时候从第一次开始读取
                .deserializer(new MyDeserializationSchemaFunction ())//这里使用自定义的反序列化器将数据封装成json格式
                .build();

        //3.2 从源端获取数据
        DataStreamSource<String> sourceDS = env.addSource(sourceFunction);

        //打印测试
        sourceDS.print();

        //执行
        env.execute();
    }

}

2.3 自定义反序列化器

import com.alibaba.fastjson.JSONObject;
import com.alibaba.ververica.cdc.debezium.DebeziumDeserializationSchema;
import io.debezium.data.Envelope;
import org.apache.flink.api.common.typeinfo.TypeInformation;
import org.apache.flink.util.Collector;
import org.apache.kafka.connect.data.Field;
import org.apache.kafka.connect.data.Struct;
import org.apache.kafka.connect.source.SourceRecord;

/**
 * 自定义反序列化器，将FlinkCDC读取到的数据转为json格式
 */
public class MyDeserializationSchemaFunction implements DebeziumDeserializationSchema<String> {
    @Override
    public void deserialize(SourceRecord sourceRecord, Collector<String> collector) throws Exception {
        Struct valueStruct = (Struct) sourceRecord.value();
        Struct sourceStrut = valueStruct.getStruct("source");
        //获取数据库的名称
        String database = sourceStrut.getString("db");
        //获取表名
        String table = sourceStrut.getString("table");

        //获取类型（c-->insert,u-->update）
        String type = Envelope.operationFor(sourceRecord).toString().toLowerCase();
        if(type.equals("create")){
            type="insert";
        }
        JSONObject jsonObj = new JSONObject();
        jsonObj.put("database",database);
        jsonObj.put("table",table);
        jsonObj.put("type",type);

        //获取数据data
        Struct afterStruct = valueStruct.getStruct("after");
        JSONObject dataJsonObj = new JSONObject();
        if(afterStruct!=null){
            for (Field field : afterStruct.schema().fields()) {
                String fieldName = field.name();
                Object fieldValue = afterStruct.get(field);
                dataJsonObj.put(fieldName,fieldValue);
            }
        }
        jsonObj.put("data",dataJsonObj);

        //向下游传递数据
        collector.collect(jsonObj.toJSONString());

    }

    @Override
    public TypeInformation<String> getProducedType() {
        return TypeInformation.of(String.class);
    }
}
