1. 逻辑回归分类器

1.1 数据处理

只使用其中的两个特征，实现二分类

package com.zz.spark

import org.apache.spark.sql.{Row, SparkSession, functions}
import org.apache.spark.ml.linalg.{Vector, Vectors}
import org.apache.spark.ml.evaluation.MulticlassClassificationEvaluator
import org.apache.spark.ml.{Pipeline, PipelineModel}
import org.apache.spark.ml.feature.{HashingTF, IndexToString, StringIndexer, Tokenizer, VectorIndexer}
import org.apache.spark.ml.classification.{BinaryLogisticRegressionSummary, LogisticRegression, LogisticRegressionModel}

object WordCount {
  case class Iris(features: Vector, label: String)

  def main(args: Array[String]): Unit = {
    val spark = SparkSession
      .builder()
      .appName("lr")
      .master("local")
      .getOrCreate()

    import spark.implicits._
    var inputPath = "/Users/zz/Desktop/fwmagic-spark-mllib/data/xgboost/sample.csv"
    val data = spark.sparkContext.textFile(inputPath)
      .map(_.split(","))
      .map(p => Iris(
        Vectors.dense(
          p(0).toDouble,
          p(1).toDouble,
          p(2).toDouble,
          p(3).toDouble
        ),
        p(4).toString()
      )).toDF()

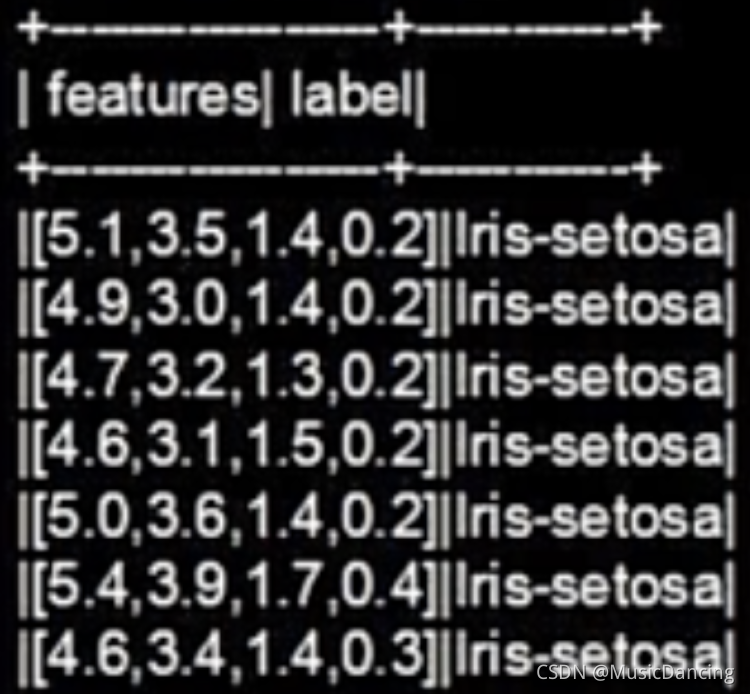

    data.show(false)
    data.createTempView("iris")
    val df = spark.sql("select * from iris where label != 'Iris-setosa'")
    // 将标签放到前面
    df.map(t => t(1) + ":" + t(0))
      .collect().foreach(println)
    // Iris-versicolor:[7.0,3.2,4.7,1.4]
    // Iris-versicolor:[6.4,3.2,4.5,1.5]
  }
}

?训练集测试集划分

val Array(trainData, testData) = df.randomSplit(Array(0.7, 0.3))

1.2 构建pipeline

1. 对标签列和特征列进行索引

val labelIndexer = new StringIndexer()
  .setInputCol("label")
  .setOutputCol("indexerLabel")
  .fit(df)
val featureIndex = new VectorIndexer()
  .setInputCol("features")
  .setOutputCol("indexerFeatures")
  .fit(df)

2. 构建模型

val lr = new LogisticRegression()
  .setLabelCol("indexerLabel")
  .setFeaturesCol("indexerFeatures")
  .setMaxIter(10)
  .setRegParam(0.3)  // 正则化参数
  .setElasticNetParam(0.8)

3. 定义labelConverter，把预测的类别重新转化成字符型的

val labelConverter = new IndexToString()
  .setInputCol("prediction")
  .setOutputCol("predictedLabel")
  .setLabels(labelIndexer.labels)

4. 构建pipeline

val lrPipeline = new Pipeline()
  .setStages(Array(labelIndexer, featureIndex, lr, labelConverter))
val lrPipelineModel = lrPipeline.fit(trainData)

?1.3 模型预测

pipeline --> Estimator，pipelineModel --> Transformer

val lrPredictions = lrPipelineModel.transform(testData)
lrPredictions.show(false)

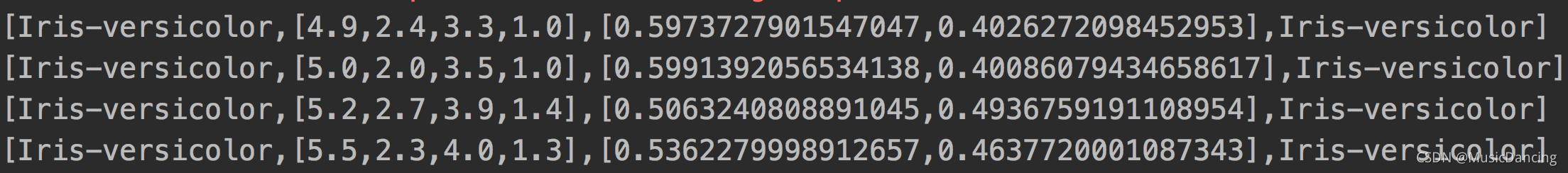

// 输出的值依次是：真实分类、特征值、预测属于不同分类地概率、预测的分类。
lrPredictions.select("label", "featues", "probability", "predictedLabel")
  .collect()
  .foreach(println)

1.4 模型评估

val evaluator = new MulticlassClassificationEvaluator()
  .setLabelCol("indexerLabel")
  .setPredictionCol("prediction")
val accuracy = evaluator.evaluate(lrPredictions)
println("test error = " + (1.0-accuracy))

?test error = 0.38579067990832705

1.5 获取模型相关参数

val lrModel = lrPipelineModel.stages(2).asInstanceOf[LogisticRegressionModel]
println(lrModel.coefficients)
// [-0.07036101525577013,0.0,0.0,0.08604194883092327]
println(lrModel.intercept)
// 0.10233333140234194
println(lrModel.numClasses)
// 2
println(lrModel.numFeatures)
// 4

2. 决策树分类器

?学习时利用训练数据，根据损失函数最小化的原则建立决策树模型。

2.1 DT学习的3个步骤

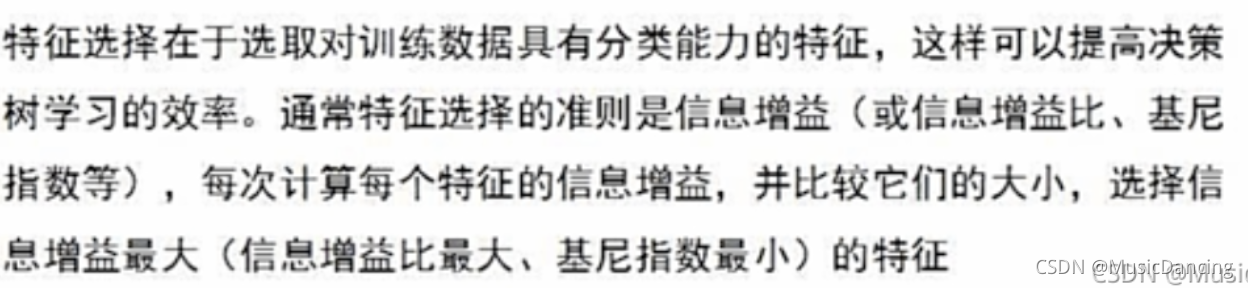

2.1.1 特征选择

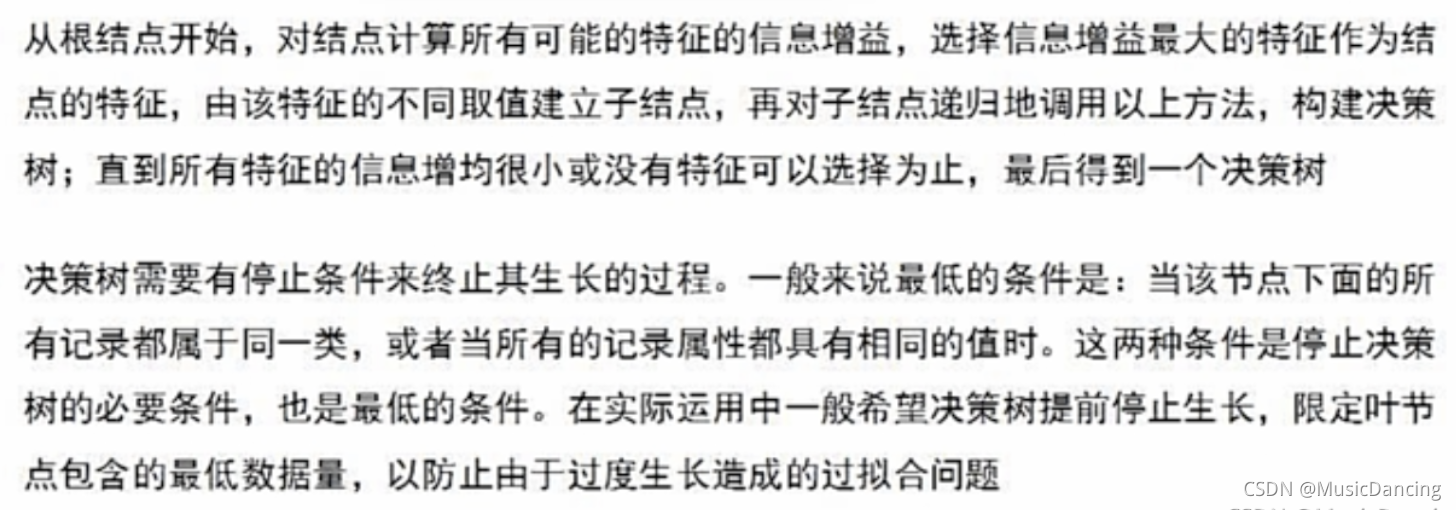

2.1.2 决策树的生成

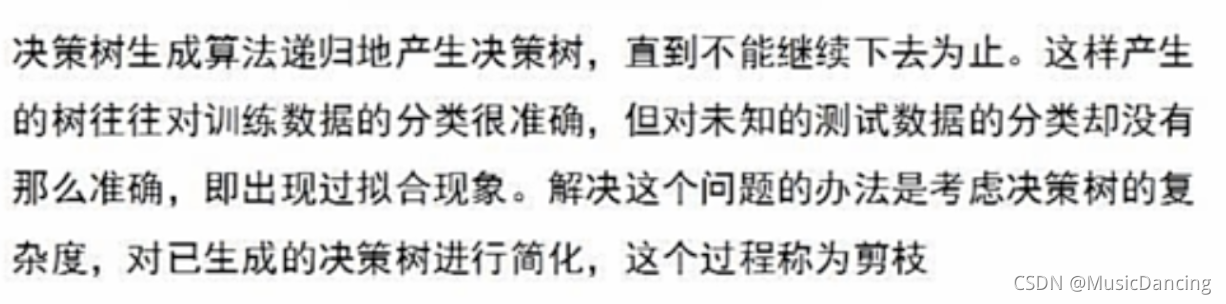

2.1.3 决策树的剪枝

?2.2 构建DT Pipeline

package com.zz.spark

import org.apache.spark.sql.SparkSession
import org.apache.spark.ml.linalg.{Vector, Vectors}
import org.apache.spark.ml.evaluation.MulticlassClassificationEvaluator
import org.apache.spark.ml.Pipeline
import org.apache.spark.ml.feature.{IndexToString, StringIndexer, VectorIndexer}
import org.apache.spark.ml.classification.{DecisionTreeClassifier,DecisionTreeClassificationModel}

object DT {
  case class Iris(features: Vector, label: String)

  def main(args: Array[String]): Unit = {

    val spark = SparkSession
      .builder()
      .appName("lr")
      .master("local")
      .getOrCreate()

    import spark.implicits._
    val inputPath = "/Users/zz/Desktop/fwmagic-spark-mllib/data/xgboost/sample.csv"
    val data = spark.sparkContext.textFile(inputPath)
      .map(_.split(","))
      .map(p => Iris(
        Vectors.dense(
          p(0).toDouble,
          p(1).toDouble,
          p(2).toDouble,
          p(3).toDouble
        ),
        p(4).toString()
      )).toDF()
    data.createTempView("iris")
    val df = spark.sql("select * from iris")
    df.map(t => t(1) + ":" + t(0))
    val Array(trainData, testData) = df.randomSplit(Array(0.7, 0.3))

    val labelIndexer = new StringIndexer()
      .setInputCol("label")
      .setOutputCol("indexerLabel")
      .fit(df)
    val featureIndex = new VectorIndexer()
      .setInputCol("features")
      .setOutputCol("indexerFeatures")
      .setMaxCategories(4)
      .fit(df)
    val labelConverter = new IndexToString()
      .setInputCol("prediction")
      .setOutputCol("predictedLabel")
      .setLabels(labelIndexer.labels)

    val dt = new DecisionTreeClassifier()
      .setLabelCol("indexerLabel")
      .setFeaturesCol("indexerFeatures")
    val dtPipeline = new Pipeline()
      .setStages(Array(labelIndexer, featureIndex, dt, labelConverter))
    val dtPipelineModel = dtPipeline.fit(trainData)
    val dtPredictions = dtPipelineModel.transform(testData)

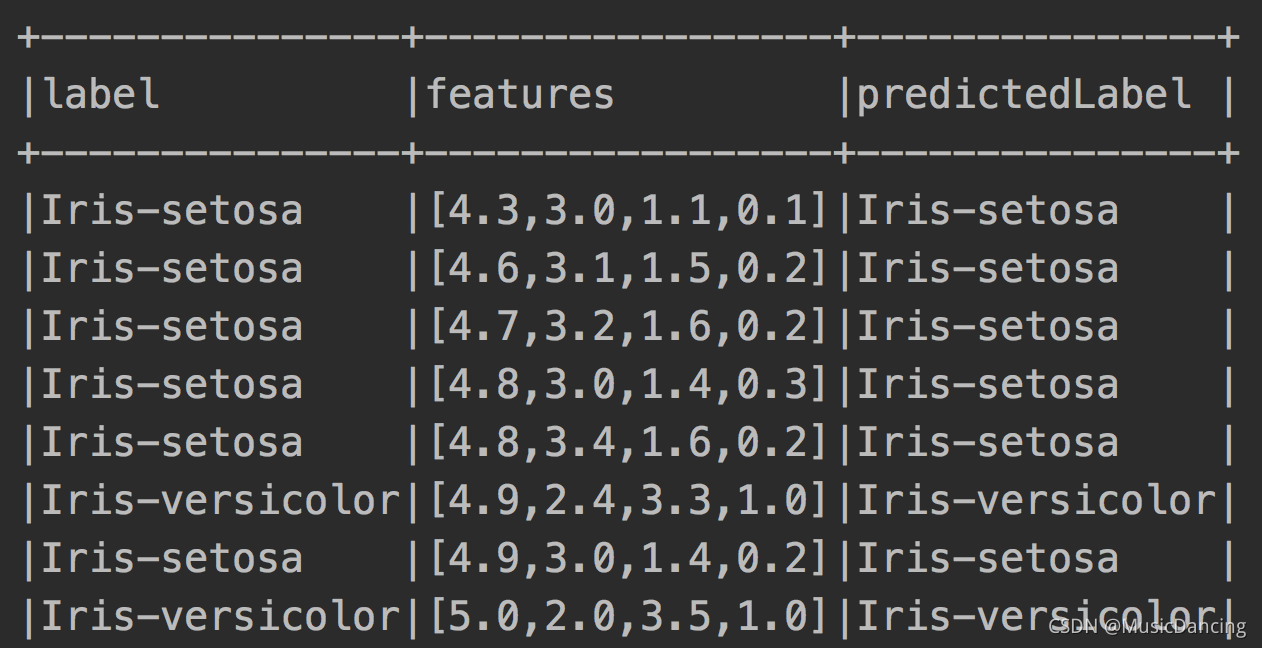

    dtPredictions.select("label", "features", "predictedLabel")
      .show(false)
    val evaluator = new MulticlassClassificationEvaluator()
      .setLabelCol("indexerLabel")
      .setPredictionCol("prediction")
      .setMetricName("accuracy")
    val accuracy = evaluator.evaluate(dtPredictions)
    println("test error = " + (1.0-accuracy))
    // test error = 0.020408163265306145

    val dtModel = dtPipelineModel.stages(2).asInstanceOf[DecisionTreeClassificationModel]
    println(dtModel.featureImportances)
    // (4,[0,1,2,3],[0.008953900709219849,0.03880023640661938,0.8662341500107458,0.0860117128734151])
    println(dtModel.rootNode)
    // InternalNode(prediction = 0.0, impurity = 0.663464366238604, split = org.apache.spark.ml.tree.ContinuousSplit@999a0003)
    println(dtModel.numClasses)
    // 3
    println(dtModel.numFeatures)
    // 4
  }
}
