Pager介绍

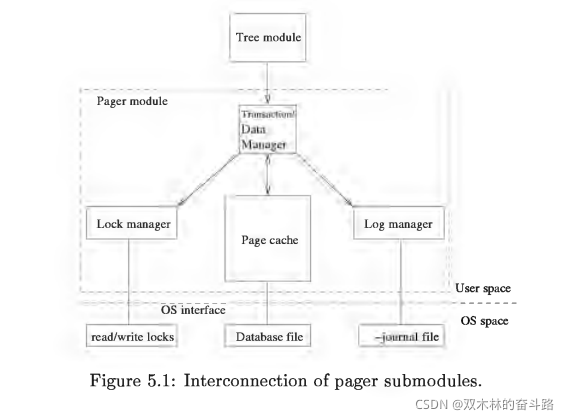

根据上图我们能够大致了解Pager模块在SQLite占据的地位，它是底层模块了，能够对数据库文件进行直接的读与写。在SQLite里面，BTree模块不会直接和磁盘上的数据文件打交道，而是通过Pager对象里面的各种资源来操作数据文件。上图表示，Pager模块包含四个模块，事务管理模块，锁管理模块，缓存模块和日志管理模块，其中事务管理模块的实现依赖于另外三个模块。
对于Lock manager：为了实验数据文件的并发控制，锁管理模块必须确保事务在访问数据页之前，一定先对数据文件上锁。
对于Page cache：当应用程序访问数据库文件时，pager模块会以块为单位进行缓存，每一个连接都有自己独有的pager模块，因此每个连接都有自己独有的缓存。
对于Log manager：是保证了事务的原子性，要么完整写入数据，要么不写入数据。日志记录了事务在更新数据库文件之前的数据，如果数据写入过程中发生异常中断，在下一次连接时会把日志里记录的原始数据还原回数据库文件。
SQLite对数据文件进行控制时，需要创建一个pager对象，通过pager对象内的资源来操作文件。对于同一个文件，一个进程可能有多个pager对象；这些对象之间都是相互独立的。对于共享缓存模式，每个数据文件只有一个pager对象，所有连接共享这个pager对象。
Pager对象
Pager对象是SQLite访问数据文件必不可少的元素，以下是pager对象具体实现代码
英文版：
struct Pager {
sqlite3_vfs *pVfs; /* OS functions to use for IO */
u8 exclusiveMode; /* Boolean. True if locking_mode==EXCLUSIVE */
u8 journalMode; /* One of the PAGER_JOURNALMODE_* values */
u8 useJournal; /* Use a rollback journal on this file */
u8 noSync; /* Do not sync the journal if true */
u8 fullSync; /* Do extra syncs of the journal for robustness */
u8 extraSync; /* sync directory after journal delete */
u8 syncFlags; /* SYNC_NORMAL or SYNC_FULL otherwise */
u8 walSyncFlags; /* See description above */
u8 tempFile; /* zFilename is a temporary or immutable file */
u8 noLock; /* Do not lock (except in WAL mode) */
u8 readOnly; /* True for a read-only database */
u8 memDb; /* True to inhibit all file I/O */
/**************************************************************************
** The following block contains those class members that change during
** routine operation. Class members not in this block are either fixed
** when the pager is first created or else only change when there is a
** significant mode change (such as changing the page_size, locking_mode,
** or the journal_mode). From another view, these class members describe
** the "state" of the pager, while other class members describe the
** "configuration" of the pager.
*/
u8 eState; /* Pager state (OPEN, READER, WRITER_LOCKED..) */
u8 eLock; /* Current lock held on database file */
u8 changeCountDone; /* Set after incrementing the change-counter */
u8 setSuper; /* Super-jrnl name is written into jrnl */
u8 doNotSpill; /* Do not spill the cache when non-zero */
u8 subjInMemory; /* True to use in-memory sub-journals */
u8 bUseFetch; /* True to use xFetch() */
u8 hasHeldSharedLock; /* True if a shared lock has ever been held */
Pgno dbSize; /* Number of pages in the database */
Pgno dbOrigSize; /* dbSize before the current transaction */
Pgno dbFileSize; /* Number of pages in the database file */
Pgno dbHintSize; /* Value passed to FCNTL_SIZE_HINT call */
int errCode; /* One of several kinds of errors */
int nRec; /* Pages journalled since last j-header written */
u32 cksumInit; /* Quasi-random value added to every checksum */
u32 nSubRec; /* Number of records written to sub-journal */
Bitvec *pInJournal; /* One bit for each page in the database file */
sqlite3_file *fd; /* File descriptor for database */
sqlite3_file *jfd; /* File descriptor for main journal */
sqlite3_file *sjfd; /* File descriptor for sub-journal */
i64 journalOff; /* Current write offset in the journal file */
i64 journalHdr; /* Byte offset to previous journal header */
sqlite3_backup *pBackup; /* Pointer to list of ongoing backup processes */
PagerSavepoint *aSavepoint; /* Array of active savepoints */
int nSavepoint; /* Number of elements in aSavepoint[] */
u32 iDataVersion; /* Changes whenever database content changes */
char dbFileVers[16]; /* Changes whenever database file changes */
int nMmapOut; /* Number of mmap pages currently outstanding */
sqlite3_int64 szMmap; /* Desired maximum mmap size */
PgHdr *pMmapFreelist; /* List of free mmap page headers (pDirty) */
/*
** End of the routinely-changing class members
***************************************************************************/
u16 nExtra; /* Add this many bytes to each in-memory page */
i16 nReserve; /* Number of unused bytes at end of each page */
u32 vfsFlags; /* Flags for sqlite3_vfs.xOpen() */
u32 sectorSize; /* Assumed sector size during rollback */
int pageSize; /* Number of bytes in a page */
Pgno mxPgno; /* Maximum allowed size of the database */
i64 journalSizeLimit; /* Size limit for persistent journal files */
char *zFilename; /* Name of the database file */
char *zJournal; /* Name of the journal file */
int (*xBusyHandler)(void*); /* Function to call when busy */
void *pBusyHandlerArg; /* Context argument for xBusyHandler */
int aStat[4]; /* Total cache hits, misses, writes, spills */
#ifdef SQLITE_TEST
int nRead; /* Database pages read */
#endif
void (*xReiniter)(DbPage*); /* Call this routine when reloading pages */
int (*xGet)(Pager*,Pgno,DbPage**,int); /* Routine to fetch a patch */
char *pTmpSpace; /* Pager.pageSize bytes of space for tmp use */
PCache *pPCache; /* Pointer to page cache object */
#ifndef SQLITE_OMIT_WAL
Wal *pWal; /* Write-ahead log used by "journal_mode=wal" */
char *zWal; /* File name for write-ahead log */
#endif
};
部分重要信息翻译后：
struct Pager {
sqlite3_vfs *pVfs; /* 访问磁盘IO所用的文件系统接口 */
u8 exclusiveMode; /* 是否在使用EXCLUSIVE锁 */
u8 journalMode; /* 日志模式 */
u8 useJournal; /* 是否使用日志 */
u8 noSync; /* 如果为真，不对日志写入磁盘，如数据库是内存模式的存储 */
u8 fullSync; /* 修改日志后是否立即刷盘 */
u8 extraSync; /* 删除日志后立即刷新磁盘 */
//以下3个参数最终都会传递给OsSync()决定是否立即刷盘
u8 ckptSyncFlags; /* SYNC_NORMAL or SYNC_FULL for checkpoint */
u8 walSyncFlags; /* SYNC_NORMAL or SYNC_FULL for wal writes */
u8 syncFlags; /* SYNC_NORMAL or SYNC_FULL otherwise */
u8 tempFile; /* 临时文件或只读文件 */
u8 noLock; /* Do not lock (except in WAL mode) */
u8 readOnly; /* True for a read-only database */
u8 memDb; /* 内存模式的数据库，不对磁盘操作 */
/**************************************************************************
在模块内的成员决定pager的state，其他成员决定pager的configuration
** The following block contains those class members that change during
** routine operation. Class members not in this block are either fixed
** when the pager is first created or else only change when there is a
** significant mode change (such as changing the page_size, locking_mode,
** or the journal_mode). From another view, these class members describe
** the "state" of the pager, while other class members describe the
** "configuration" of the pager.
*/
u8 eState; /* Pager state (OPEN, READER, WRITER_LOCKED..) */
u8 eLock; /* Current lock held on database file */
u8 changeCountDone; /* Set after incrementing the change-counter */
u8 setMaster; /* True if a m-j name has been written to jrnl */
u8 doNotSpill; /* Do not spill the cache when non-zero */
u8 subjInMemory; /* True to use in-memory sub-journals */
u8 bUseFetch; /* True to use xFetch() */
u8 hasHeldSharedLock; /* True if a shared lock has ever been held */
Pgno dbSize; /* Number of pages in the database */
Pgno dbOrigSize; /* dbSize before the current transaction */
Pgno dbFileSize; /* Number of pages in the database file */
Pgno dbHintSize; /* Value passed to FCNTL_SIZE_HINT call */
int errCode; /* One of several kinds of errors */
int nRec; /* Pages journalled since last j-header written */
u32 cksumInit; /* Quasi-random value added to every checksum */
u32 nSubRec; /* Number of records written to sub-journal */
Bitvec *pInJournal; /* One bit for each page in the database file */
sqlite3_file *fd; /* File descriptor for database */
sqlite3_file *jfd; /* File descriptor for main journal */
sqlite3_file *sjfd; /* File descriptor for sub-journal */
i64 journalOff; /* Current write offset in the journal file */
i64 journalHdr; /* Byte offset to previous journal header */
sqlite3_backup *pBackup; /* Pointer to list of ongoing backup processes */
PagerSavepoint *aSavepoint; /* Array of active savepoints */
int nSavepoint; /* Number of elements in aSavepoint[] */
u32 iDataVersion; /* Changes whenever database content changes */
char dbFileVers[16]; /* Changes whenever database file changes */
int nMmapOut; /* Number of mmap pages currently outstanding */
sqlite3_int64 szMmap; /* Desired maximum mmap size */
PgHdr *pMmapFreelist; /* List of free mmap page headers (pDirty) */
/*
** End of the routinely-changing class members
***************************************************************************/
u16 nExtra; /* Add this many bytes to each in-memory page */
i16 nReserve; /* Number of unused bytes at end of each page */
u32 vfsFlags; /* Flags for sqlite3_vfs.xOpen() */
u32 sectorSize; /* Assumed sector size during rollback */
int pageSize; /* Number of bytes in a page */
Pgno mxPgno; /* Maximum allowed size of the database */
i64 journalSizeLimit; /* Size limit for persistent journal files */
char *zFilename; /* Name of the database file */
char *zJournal; /* Name of the journal file */
int (*xBusyHandler)(void*); /* Function to call when busy */
void *pBusyHandlerArg; /* Context argument for xBusyHandler */
int aStat[3]; /* Total cache hits, misses and writes */
#ifdef SQLITE_TEST
int nRead; /* Database pages read */
#endif
void (*xReiniter)(DbPage*); /* Call this routine when reloading pages */
int (*xGet)(Pager*,Pgno,DbPage**,int); /* Routine to fetch a patch */
#ifdef SQLITE_HAS_CODEC
void *(*xCodec)(void*,void*,Pgno,int); /* Routine for en/decoding data */
void (*xCodecSizeChng)(void*,int,int); /* Notify of page size changes */
void (*xCodecFree)(void*); /* Destructor for the codec */
void *pCodec; /* First argument to xCodec... methods */
#endif
char *pTmpSpace; /* Pager.pageSize bytes of space for tmp use */
PCache *pPCache; /* Pointer to page cache object */
#ifndef SQLITE_OMIT_WAL
Wal *pWal; /* Write-ahead log used by "journal_mode=wal" */
char *zWal; /* File name for write-ahead log */
#endif
};
我们能够看出pager对象十分复杂，里面包含了许多变量，这些都和上面介绍的各个子模块相对应，例如锁、日志、文件读写、cache这些操作。而pager对象是如何生成的呢？通过查询得知，是sqlite3PagerOpe()创建一个pager对象。于是下面附上sqlite3PagerOpen()函数的代码
/*
** Allocate and initialize a new Pager object and put a pointer to it
** in *ppPager. The pager should eventually be freed by passing it
** to sqlite3PagerClose().
**
** The zFilename argument is the path to the database file to open.
** If zFilename is NULL then a randomly-named temporary file is created
** and used as the file to be cached. Temporary files are be deleted
** automatically when they are closed. If zFilename is ":memory:" then
** all information is held in cache. It is never written to disk.
** This can be used to implement an in-memory database.
**
** The nExtra parameter specifies the number of bytes of space allocated
** along with each page reference. This space is available to the user
** via the sqlite3PagerGetExtra() API. When a new page is allocated, the
** first 8 bytes of this space are zeroed but the remainder is uninitialized.
** (The extra space is used by btree as the MemPage object.)
**
** The flags argument is used to specify properties that affect the
** operation of the pager. It should be passed some bitwise combination
** of the PAGER_* flags.
**
** The vfsFlags parameter is a bitmask to pass to the flags parameter
** of the xOpen() method of the supplied VFS when opening files.
**
** If the pager object is allocated and the specified file opened
** successfully, SQLITE_OK is returned and *ppPager set to point to
** the new pager object. If an error occurs, *ppPager is set to NULL
** and error code returned. This function may return SQLITE_NOMEM
** (sqlite3Malloc() is used to allocate memory), SQLITE_CANTOPEN or
** various SQLITE_IO_XXX errors.
*/
SQLITE_PRIVATE int sqlite3PagerOpen(
sqlite3_vfs *pVfs, /* The virtual file system to use */
Pager **ppPager, /* OUT: Return the Pager structure here */
const char *zFilename, /* Name of the database file to open */
int nExtra, /* Extra bytes append to each in-memory page */
int flags, /* flags controlling this file */
int vfsFlags, /* flags passed through to sqlite3_vfs.xOpen() */
void (*xReinit)(DbPage*) /* Function to reinitialize pages */
){
u8 *pPtr;
Pager *pPager = 0; /* Pager object to allocate and return */
int rc = SQLITE_OK; /* Return code */
int tempFile = 0; /* True for temp files (incl. in-memory files) */
int memDb = 0; /* True if this is an in-memory file */
#ifndef SQLITE_OMIT_DESERIALIZE
int memJM = 0; /* Memory journal mode */
#else
# define memJM 0
#endif
int readOnly = 0; /* True if this is a read-only file */
int journalFileSize; /* Bytes to allocate for each journal fd */
char *zPathname = 0; /* Full path to database file */
int nPathname = 0; /* Number of bytes in zPathname */
int useJournal = (flags & PAGER_OMIT_JOURNAL)==0; /* False to omit journal */
int pcacheSize = sqlite3PcacheSize(); /* Bytes to allocate for PCache */
u32 szPageDflt = SQLITE_DEFAULT_PAGE_SIZE; /* Default page size */
const char *zUri = 0; /* URI args to copy */
int nUriByte = 1; /* Number of bytes of URI args at *zUri */
int nUri = 0; /* Number of URI parameters */
/* Figure out how much space is required for each journal file-handle
** (there are two of them, the main journal and the sub-journal). */
journalFileSize = ROUND8(sqlite3JournalSize(pVfs));
/* Set the output variable to NULL in case an error occurs. */
*ppPager = 0;
#ifndef SQLITE_OMIT_MEMORYDB
if( flags & PAGER_MEMORY ){
memDb = 1;
if( zFilename && zFilename[0] ){
zPathname = sqlite3DbStrDup(0, zFilename);
if( zPathname==0 ) return SQLITE_NOMEM_BKPT;
nPathname = sqlite3Strlen30(zPathname);
zFilename = 0;
}
}
#endif
/* Compute and store the full pathname in an allocated buffer pointed
** to by zPathname, length nPathname. Or, if this is a temporary file,
** leave both nPathname and zPathname set to 0.
*/
if( zFilename && zFilename[0] ){
const char *z;
nPathname = pVfs->mxPathname+1;
zPathname = sqlite3DbMallocRaw(0, nPathname*2);
if( zPathname==0 ){
return SQLITE_NOMEM_BKPT;
}
zPathname[0] = 0; /* Make sure initialized even if FullPathname() fails */
rc = sqlite3OsFullPathname(pVfs, zFilename, nPathname, zPathname);
if( rc!=SQLITE_OK ){
if( rc==SQLITE_OK_SYMLINK ){
if( vfsFlags & SQLITE_OPEN_NOFOLLOW ){
rc = SQLITE_CANTOPEN_SYMLINK;
}else{
rc = SQLITE_OK;
}
}
}
nPathname = sqlite3Strlen30(zPathname);
z = zUri = &zFilename[sqlite3Strlen30(zFilename)+1];
while( *z ){
z += strlen(z)+1;
z += strlen(z)+1;
nUri++;
}
nUriByte = (int)(&z[1] - zUri);
assert( nUriByte>=1 );
if( rc==SQLITE_OK && nPathname+8>pVfs->mxPathname ){
/* This branch is taken when the journal path required by
** the database being opened will be more than pVfs->mxPathname
** bytes in length. This means the database cannot be opened,
** as it will not be possible to open the journal file or even
** check for a hot-journal before reading.
*/
rc = SQLITE_CANTOPEN_BKPT;
}
if( rc!=SQLITE_OK ){
sqlite3DbFree(0, zPathname);
return rc;
}
}
/* Allocate memory for the Pager structure, PCache object, the
** three file descriptors, the database file name and the journal
** file name. The layout in memory is as follows:
**
** Pager object (sizeof(Pager) bytes)
** PCache object (sqlite3PcacheSize() bytes)
** Database file handle (pVfs->szOsFile bytes)
** Sub-journal file handle (journalFileSize bytes)
** Main journal file handle (journalFileSize bytes)
** Ptr back to the Pager (sizeof(Pager*) bytes)
** \0\0\0\0 database prefix (4 bytes)
** Database file name (nPathname+1 bytes)
** URI query parameters (nUriByte bytes)
** Journal filename (nPathname+8+1 bytes)
** WAL filename (nPathname+4+1 bytes)
** \0\0\0 terminator (3 bytes)
**
** Some 3rd-party software, over which we have no control, depends on
** the specific order of the filenames and the \0 separators between them
** so that it can (for example) find the database filename given the WAL
** filename without using the sqlite3_filename_database() API. This is a
** misuse of SQLite and a bug in the 3rd-party software, but the 3rd-party
** software is in widespread use, so we try to avoid changing the filename
** order and formatting if possible. In particular, the details of the
** filename format expected by 3rd-party software should be as follows:
**
** - Main Database Path
** - \0
** - Multiple URI components consisting of:
** - Key
** - \0
** - Value
** - \0
** - \0
** - Journal Path
** - \0
** - WAL Path (zWALName)
** - \0
**
** The sqlite3_create_filename() interface and the databaseFilename() utility
** that is used by sqlite3_filename_database() and kin also depend on the
** specific formatting and order of the various filenames, so if the format
** changes here, be sure to change it there as well.
*/
pPtr = (u8 *)sqlite3MallocZero(
ROUND8(sizeof(*pPager)) + /* Pager structure */
ROUND8(pcacheSize) + /* PCache object */
ROUND8(pVfs->szOsFile) + /* The main db file */
journalFileSize * 2 + /* The two journal files */
sizeof(pPager) + /* Space to hold a pointer */
4 + /* Database prefix */
nPathname + 1 + /* database filename */
nUriByte + /* query parameters */
nPathname + 8 + 1 + /* Journal filename */
#ifndef SQLITE_OMIT_WAL
nPathname + 4 + 1 + /* WAL filename */
#endif
3 /* Terminator */
);
assert( EIGHT_BYTE_ALIGNMENT(SQLITE_INT_TO_PTR(journalFileSize)) );
if( !pPtr ){
sqlite3DbFree(0, zPathname);
return SQLITE_NOMEM_BKPT;
}
pPager = (Pager*)pPtr; pPtr += ROUND8(sizeof(*pPager));
pPager->pPCache = (PCache*)pPtr; pPtr += ROUND8(pcacheSize);
pPager->fd = (sqlite3_file*)pPtr; pPtr += ROUND8(pVfs->szOsFile);
pPager->sjfd = (sqlite3_file*)pPtr; pPtr += journalFileSize;
pPager->jfd = (sqlite3_file*)pPtr; pPtr += journalFileSize;
assert( EIGHT_BYTE_ALIGNMENT(pPager->jfd) );
memcpy(pPtr, &pPager, sizeof(pPager)); pPtr += sizeof(pPager);
/* Fill in the Pager.zFilename and pPager.zQueryParam fields */
pPtr += 4; /* Skip zero prefix */
pPager->zFilename = (char*)pPtr;
if( nPathname>0 ){
memcpy(pPtr, zPathname, nPathname); pPtr += nPathname + 1;
if( zUri ){
memcpy(pPtr, zUri, nUriByte); pPtr += nUriByte;
}else{
pPtr++;
}
}
/* Fill in Pager.zJournal */
if( nPathname>0 ){
pPager->zJournal = (char*)pPtr;
memcpy(pPtr, zPathname, nPathname); pPtr += nPathname;
memcpy(pPtr, "-journal",8); pPtr += 8 + 1;
#ifdef SQLITE_ENABLE_8_3_NAMES
sqlite3FileSuffix3(zFilename,pPager->zJournal);
pPtr = (u8*)(pPager->zJournal + sqlite3Strlen30(pPager->zJournal)+1);
#endif
}else{
pPager->zJournal = 0;
}
#ifndef SQLITE_OMIT_WAL
/* Fill in Pager.zWal */
if( nPathname>0 ){
pPager->zWal = (char*)pPtr;
memcpy(pPtr, zPathname, nPathname); pPtr += nPathname;
memcpy(pPtr, "-wal", 4); pPtr += 4 + 1;
#ifdef SQLITE_ENABLE_8_3_NAMES
sqlite3FileSuffix3(zFilename, pPager->zWal);
pPtr = (u8*)(pPager->zWal + sqlite3Strlen30(pPager->zWal)+1);
#endif
}else{
pPager->zWal = 0;
}
#endif
if( nPathname ) sqlite3DbFree(0, zPathname);
pPager->pVfs = pVfs;
pPager->vfsFlags = vfsFlags;
/* Open the pager file.
*/
if( zFilename && zFilename[0] ){
int fout = 0; /* VFS flags returned by xOpen() */
rc = sqlite3OsOpen(pVfs, pPager->zFilename, pPager->fd, vfsFlags, &fout);
assert( !memDb );
#ifndef SQLITE_OMIT_DESERIALIZE
memJM = (fout&SQLITE_OPEN_MEMORY)!=0;
#endif
readOnly = (fout&SQLITE_OPEN_READONLY)!=0;
/* If the file was successfully opened for read/write access,
** choose a default page size in case we have to create the
** database file. The default page size is the maximum of:
**
** + SQLITE_DEFAULT_PAGE_SIZE,
** + The value returned by sqlite3OsSectorSize()
** + The largest page size that can be written atomically.
*/
if( rc==SQLITE_OK ){
int iDc = sqlite3OsDeviceCharacteristics(pPager->fd);
if( !readOnly ){
setSectorSize(pPager);
assert(SQLITE_DEFAULT_PAGE_SIZE<=SQLITE_MAX_DEFAULT_PAGE_SIZE);
if( szPageDflt<pPager->sectorSize ){
if( pPager->sectorSize>SQLITE_MAX_DEFAULT_PAGE_SIZE ){
szPageDflt = SQLITE_MAX_DEFAULT_PAGE_SIZE;
}else{
szPageDflt = (u32)pPager->sectorSize;
}
}
#ifdef SQLITE_ENABLE_ATOMIC_WRITE
{
int ii;
assert(SQLITE_IOCAP_ATOMIC512==(512>>8));
assert(SQLITE_IOCAP_ATOMIC64K==(65536>>8));
assert(SQLITE_MAX_DEFAULT_PAGE_SIZE<=65536);
for(ii=szPageDflt; ii<=SQLITE_MAX_DEFAULT_PAGE_SIZE; ii=ii*2){
if( iDc&(SQLITE_IOCAP_ATOMIC|(ii>>8)) ){
szPageDflt = ii;
}
}
}
#endif
}
pPager->noLock = sqlite3_uri_boolean(pPager->zFilename, "nolock", 0);
if( (iDc & SQLITE_IOCAP_IMMUTABLE)!=0
|| sqlite3_uri_boolean(pPager->zFilename, "immutable", 0) ){
vfsFlags |= SQLITE_OPEN_READONLY;
goto act_like_temp_file;
}
}
}else{
/* If a temporary file is requested, it is not opened immediately.
** In this case we accept the default page size and delay actually
** opening the file until the first call to OsWrite().
**
** This branch is also run for an in-memory database. An in-memory
** database is the same as a temp-file that is never written out to
** disk and uses an in-memory rollback journal.
**
** This branch also runs for files marked as immutable.
*/
act_like_temp_file:
tempFile = 1;
pPager->eState = PAGER_READER; /* Pretend we already have a lock */
pPager->eLock = EXCLUSIVE_LOCK; /* Pretend we are in EXCLUSIVE mode */
pPager->noLock = 1; /* Do no locking */
readOnly = (vfsFlags&SQLITE_OPEN_READONLY);
}
/* The following call to PagerSetPagesize() serves to set the value of
** Pager.pageSize and to allocate the Pager.pTmpSpace buffer.
*/
if( rc==SQLITE_OK ){
assert( pPager->memDb==0 );
rc = sqlite3PagerSetPagesize(pPager, &szPageDflt, -1);
testcase( rc!=SQLITE_OK );
}
/* Initialize the PCache object. */
if( rc==SQLITE_OK ){
nExtra = ROUND8(nExtra);
assert( nExtra>=8 && nExtra<1000 );
rc = sqlite3PcacheOpen(szPageDflt, nExtra, !memDb,
!memDb?pagerStress:0, (void *)pPager, pPager->pPCache);
}
/* If an error occurred above, free the Pager structure and close the file.
*/
if( rc!=SQLITE_OK ){
sqlite3OsClose(pPager->fd);
sqlite3PageFree(pPager->pTmpSpace);
sqlite3_free(pPager);
return rc;
}
PAGERTRACE(("OPEN %d %s\n", FILEHANDLEID(pPager->fd), pPager->zFilename));
IOTRACE(("OPEN %p %s\n", pPager, pPager->zFilename))
pPager->useJournal = (u8)useJournal;
/* pPager->stmtOpen = 0; */
/* pPager->stmtInUse = 0; */
/* pPager->nRef = 0; */
/* pPager->stmtSize = 0; */
/* pPager->stmtJSize = 0; */
/* pPager->nPage = 0; */
pPager->mxPgno = SQLITE_MAX_PAGE_COUNT;
/* pPager->state = PAGER_UNLOCK; */
/* pPager->errMask = 0; */
pPager->tempFile = (u8)tempFile;
assert( tempFile==PAGER_LOCKINGMODE_NORMAL
|| tempFile==PAGER_LOCKINGMODE_EXCLUSIVE );
assert( PAGER_LOCKINGMODE_EXCLUSIVE==1 );
pPager->exclusiveMode = (u8)tempFile;
pPager->changeCountDone = pPager->tempFile;
pPager->memDb = (u8)memDb;
pPager->readOnly = (u8)readOnly;
assert( useJournal || pPager->tempFile );
pPager->noSync = pPager->tempFile;
if( pPager->noSync ){
assert( pPager->fullSync==0 );
assert( pPager->extraSync==0 );
assert( pPager->syncFlags==0 );
assert( pPager->walSyncFlags==0 );
}else{
pPager->fullSync = 1;
pPager->extraSync = 0;
pPager->syncFlags = SQLITE_SYNC_NORMAL;
pPager->walSyncFlags = SQLITE_SYNC_NORMAL | (SQLITE_SYNC_NORMAL<<2);
}
/* pPager->pFirst = 0; */
/* pPager->pFirstSynced = 0; */
/* pPager->pLast = 0; */
pPager->nExtra = (u16)nExtra;
pPager->journalSizeLimit = SQLITE_DEFAULT_JOURNAL_SIZE_LIMIT;
assert( isOpen(pPager->fd) || tempFile );
setSectorSize(pPager);
if( !useJournal ){
pPager->journalMode = PAGER_JOURNALMODE_OFF;
}else if( memDb || memJM ){
pPager->journalMode = PAGER_JOURNALMODE_MEMORY;
}
/* pPager->xBusyHandler = 0; */
/* pPager->pBusyHandlerArg = 0; */
pPager->xReiniter = xReinit;
setGetterMethod(pPager);
/* memset(pPager->aHash, 0, sizeof(pPager->aHash)); */
/* pPager->szMmap = SQLITE_DEFAULT_MMAP_SIZE // will be set by btree.c */
*ppPager = pPager;
return SQLITE_OK;
}
/*
** Return the sqlite3_file for the main database given the name
** of the corresonding WAL or Journal name as passed into
** xOpen.
*/
SQLITE_API sqlite3_file *sqlite3_database_file_object(const char *zName){
Pager *pPager;
while( zName[-1]!=0 || zName[-2]!=0 || zName[-3]!=0 || zName[-4]!=0 ){
zName--;
}
pPager = *(Pager**)(zName - 4 - sizeof(Pager*));
return pPager->fd;
}
代码比较长，主要就是分配内存并初始化该对象，并用一个指针指向它。zFilename参数是要打开的数据库文件的路径。如果zFilename为空，则创建一个随机命名的临时文件并用作要缓存的文件。如果zFilename不为空，说明数据库存在磁盘上，调用sqlite3OsFullPathname()获取文件的路径全名zPathname，再取得路径长度nPathname。通过sqlite3agegetextra(),指定分配的空间字节数nExtra。
