[大数据]自定义监控

自定义监控(进程，日志，MySQL)

自定义监控进程:

写脚本，脚本放到统一的位置
修改被监控机的zabbix_agentd . conf配置文件

• UnsafeParameters=1
• Use rPa rameter=<key> , <command>

重启zabbix_agent
在web界面配置监控项和触发器

监控httpd进程

(被监控机操作)查看一下httpd端口

[root@client ~]# ss -antl
State              Recv-Q             Send-Q                           Local Address:Port                            Peer Address:Port             Process
LISTEN             0                  128                                    0.0.0.0:22                                   0.0.0.0:*
LISTEN             0                  128                                    0.0.0.0:10050                                0.0.0.0:*
LISTEN             0                  128                                       [::]:22                                      [::]:*
LISTEN             0                  128                                          *:80                                       *:*

修改被监控机的配置文件

[root@client ~]# vim /usr/local/etc/zabbix_agentd.conf
......
319 # Mandatory: no
320 # Range: 0-1
321 # Default:
322 UnsafeUserParameters(不安全的用户参数)=1    //取消前面的注释并将0改为1启用
323
324 ### Option: UserParameter
325 #     User-defined parameter to monitor. There can be several user-defined parameters.
326 #     Format: (复制括号后面的内容到文件的最后进行修改)UserParameter=<key>,<shell command>
327 #     See 'zabbix_agentd' directory for examples.
......
527 UserParameter=check_process[*](此key必须与web界面的创建监控项key保持一致),(脚本路径)/scripts/check_process.sh $1(传参数)

写一个脚本在被监控机执行

创建一个目录来放脚本
[root@client ~]# mkdir /scripts
[root@client ~]# cd /scripts/
[root@client scripts]# touch check_process.sh
[root@client scripts]# chmod +x check_process.sh
[root@client scripts]# ls
check_process.sh
[root@client ~]# vim /scripts/check_process.sh

#!/bin/bash

count=$(ps -ef | grep -Ev "grep|$0" |grep -c "$1"(传参数)) //如果过滤到的httpd个数为0则httpd没有运行，就输出1告警
if [ $count -eq 0 ];then
    echo "1"
else
    echo "0"
fi
[root@client ~]# bash /scripts/check_process.sh httpd(传的参数)
0

查看一下httpd进程
[root@client scripts]# ps -aux |grep httpd
root       28232  0.0  0.6 282884 11552 ?        Ss   01:36   0:00 /usr/sbin/httpd -DFOREGROUND
apache     28308  0.0  0.4 296760  8552 ?        S    01:36   0:00 /usr/sbin/httpd -DFOREGROUND
apache     28309  0.0  0.7 1944424 14264 ?       Sl   01:36   0:00 /usr/sbin/httpd -DFOREGROUND
apache     28310  0.0  0.6 1813296 12216 ?       Sl   01:36   0:00 /usr/sbin/httpd -DFOREGROUND
apache     28311  0.0  0.6 1813296 12216 ?       Sl   01:36   0:00 /usr/sbin/httpd -DFOREGROUND
root       84385  0.0  0.0   9208  1176 pts/0    S+   02:06   0:00 grep --color=auto httpd

//重启zabbix_agentd
[root@client ~]# pkill zabbix
[root@client ~]# zabbix_agentd
[root@client ~]# ss -antl
State              Recv-Q             Send-Q                           Local Address:Port                            Peer Address:Port             Process
LISTEN             0                  128                                    0.0.0.0:22                                   0.0.0.0:*
LISTEN             0                  128                                    0.0.0.0:10050                                0.0.0.0:*
LISTEN             0                  128                                       [::]:22                                      [::]:*
LISTEN             0                  128                                          *:80

web网页配置

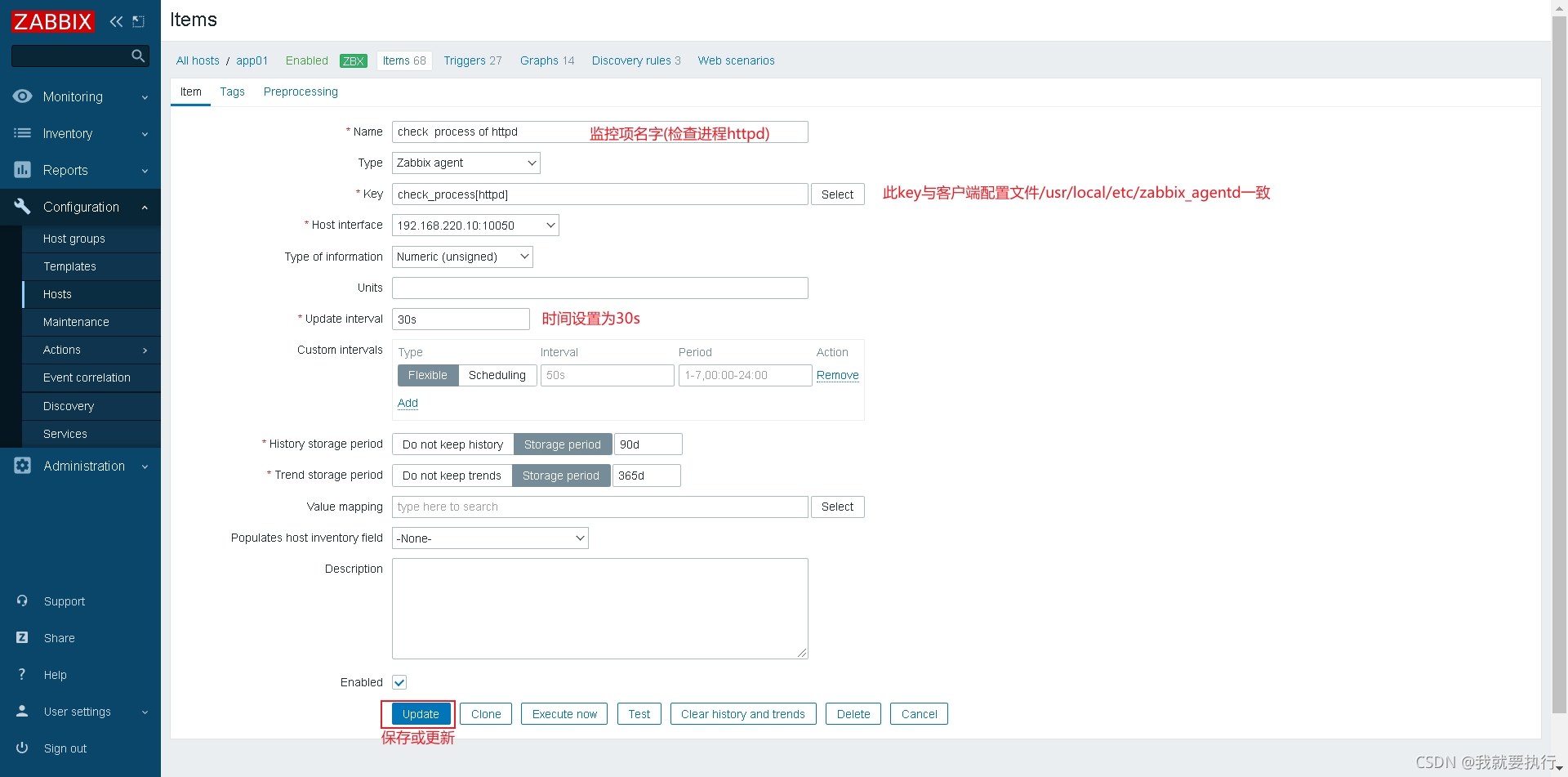

创建自定义监控项

服务端执行这个命令，能获取到数字说明配置文件没有问题 注意防火墙和selinux

[root@server ~]# zabbix_get -s(来源) 192.168.220.10(客户端IP) -k(客户端配置文件中的key) check_process[httpd]
0

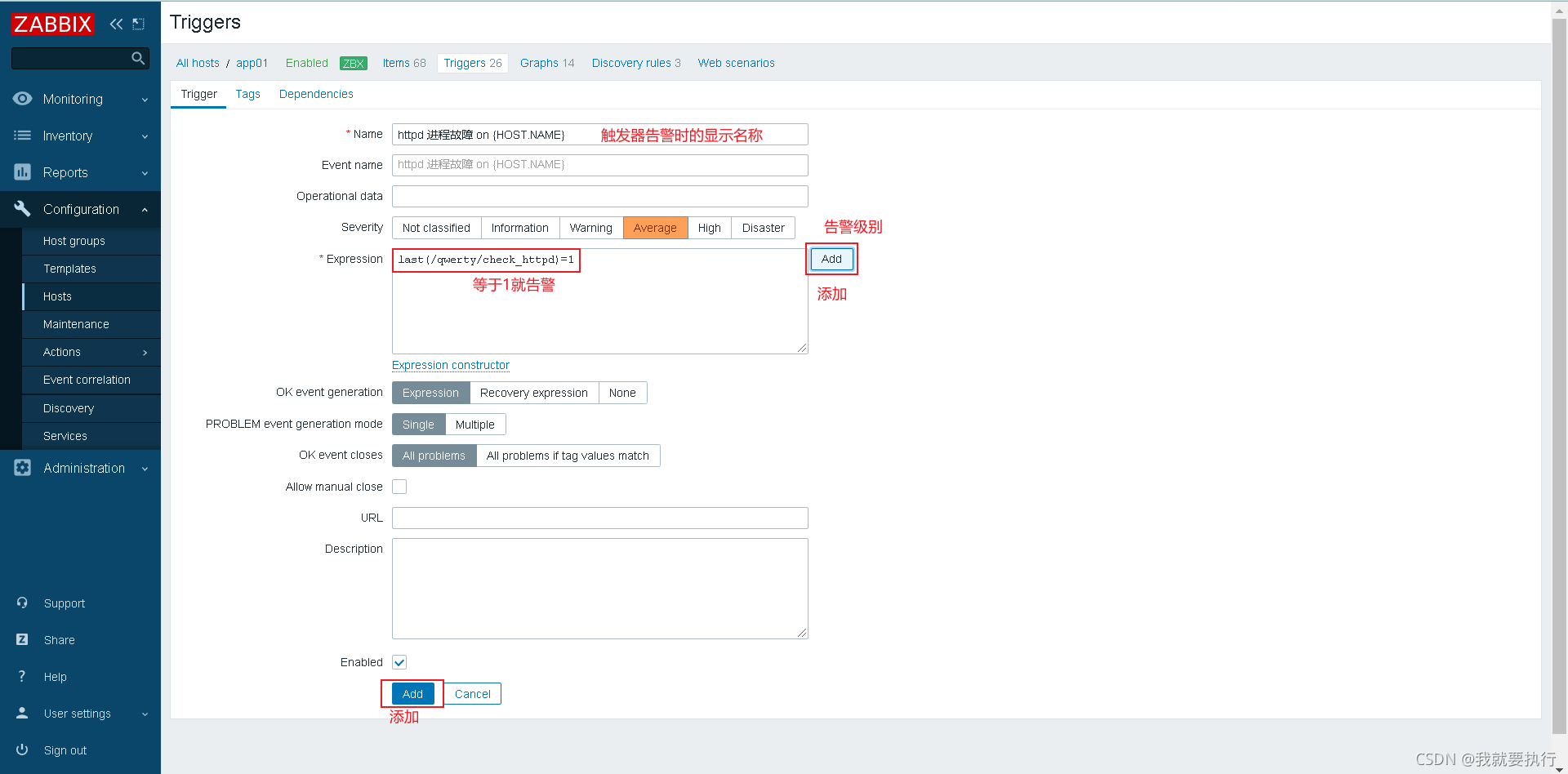

创建触发器

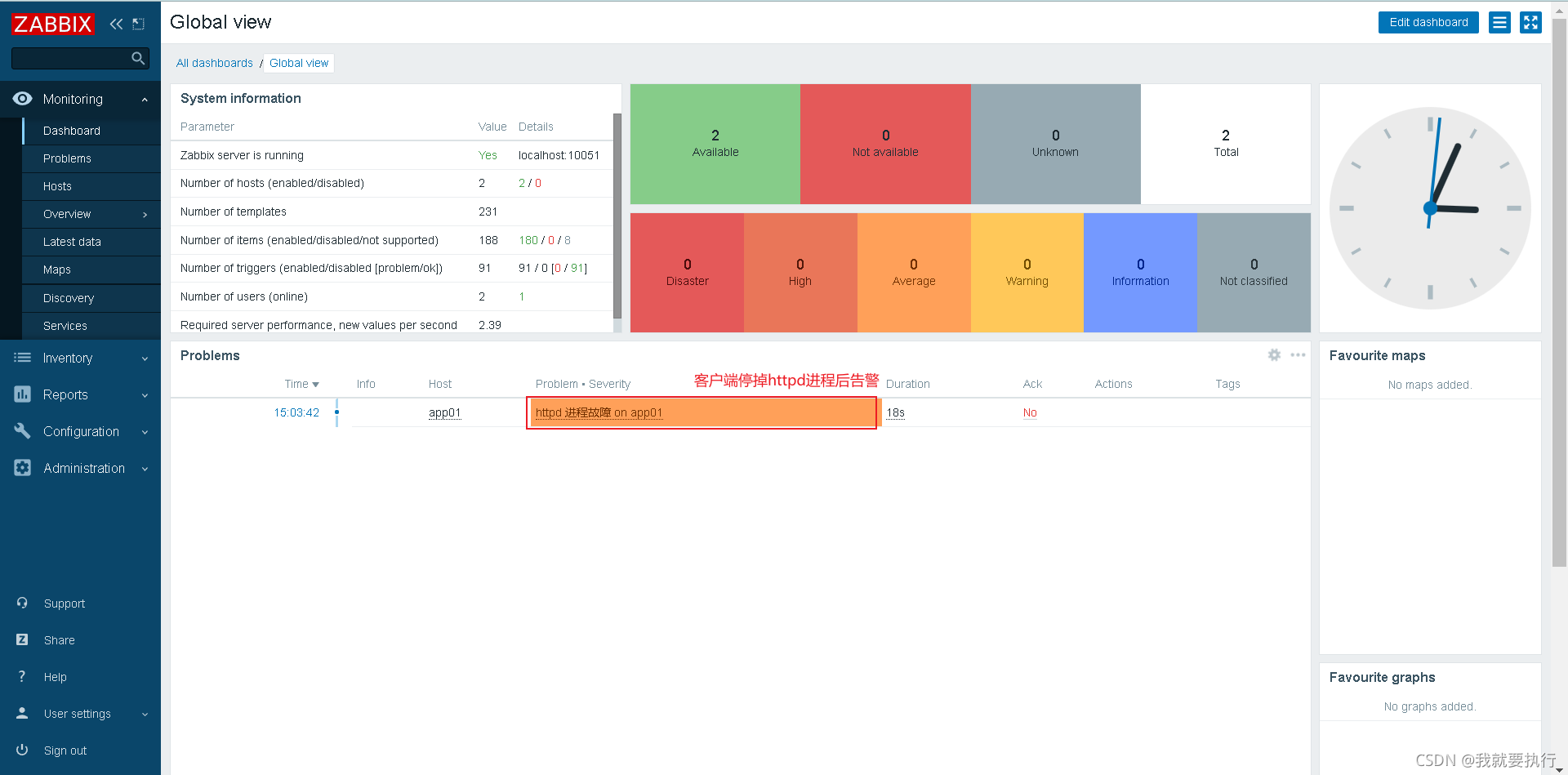

被监控机停掉httpd进程，查看web界面是否告警 注意防火墙和selinux

[root@client ~]# systemctl stop httpd

监控日志

自定义监控进程:

写脚本，脚本放到统一的位置
修改被监控机的zabbix_agentd . conf配置文件

• UnsafeParameters=1
• Use rPa rameter=<key> , <command>

重启zabbix_agent
在web界面配置监控项和触发器

(被监控机操作)需要使用一个python脚本，安装python3

yum -y install python3

将log.py脚本放到/scripts/目录下

[root@client scripts]# cd /scripts
[root@client scripts]# ls
check_process.sh  log.py

[root@client scripts]# vim log.py
  1 #!/usr/bin/env python3
  2 import sys
  3 import re
  4
  5 def prePos(seekfile):
  6     global curpos
  7     try:
  8         cf = open(seekfile)
  9     except IOError:
 10         curpos = 0
 11         return curpos
 12     except FileNotFoundError:
 13         curpos = 0
 14         return curpos
 15     else:
 16         try:
 17             curpos = int(cf.readline().strip())
 18         except ValueError:
 19             curpos = 0
 20             cf.close()
 21             return curpos
 22         cf.close()
 23     return curpos
 24
 25 def lastPos(filename):
 26     with open(filename) as lfile:
 27         if lfile.readline():
 28             lfile.seek(0,2)
 29         else:
 30             return 0
 31         lastPos = lfile.tell()
 32     return lastPos
 33
 34 def getSeekFile():
 35     try:
 36         seekfile = sys.argv[2]
 37     except IndexError:
 38         seekfile = '/tmp/logseek'
 39     return seekfile
 40
 41 def getKey():
 42     try:
 43         tagKey = str(sys.argv[3])
 44     except IndexError:
 45         tagKey = 'Error'
 46     return tagKey
 47
 48 def getResult(filename,seekfile,tagkey):
 49     destPos = prePos(seekfile)
 50     curPos = lastPos(filename)
 51
 52     if curPos < destPos:
 53         curpos = 0
 54
 55     try:
 56         f = open(filename)
 57     except IOError:
 58         print('Could not open file: %s' % filename)
 59     except FileNotFoundError:
 60         print('Could not open file: %s' % filename)
 61     else:
 62         f.seek(destPos)
 63
 64         while curPos != 0 and f.tell() < curPos:
 65             rresult = f.readline().strip()
 66             global result
 67             if re.search(tagkey, rresult):
 68                 result = 1
 69                 break
 70             else:
 71                 result = 0
 72
 73         with open(seekfile,'w') as sf:
 74             sf.write(str(curPos))
 75     finally:
 76         f.close()
 77     return result
 78
 79 if __name__ == "__main__":
 80     result = 0
 81     curpos = 0
 82     tagkey = getKey()
 83     seekfile = getSeekFile()
 84     result = getResult(sys.argv[1],seekfile,tagkey)
 85     print(result)

脚本作用：

log.py
作用: 检查日志文件中是否有指定的关键字
第一个参数为日志文件名(必须有，相对路径、绝对路径均可)
第二个参数为seek position文件的路径 (可选项，若不设置则默认为/tmp/logseek文件。相对路径、绝对路径均可)
第三个参数为搜索关键字，默认为Error

修改被监控机的配置文件/usr/local/etc/zabbix_agentd.conf

[root@client scripts]# vim /usr/local/etc/zabbix_agentd.conf
......
526
527 UserParameter=check_process[*],/scripts/check_process.sh $1
528 UserParameter=check_log[*],/scripts/log.py $1 $2 $3

//重启zabbix_agentd
[root@client scripts]# pkill zabbix
[root@client scripts]# zabbix_agentd

配置web界面

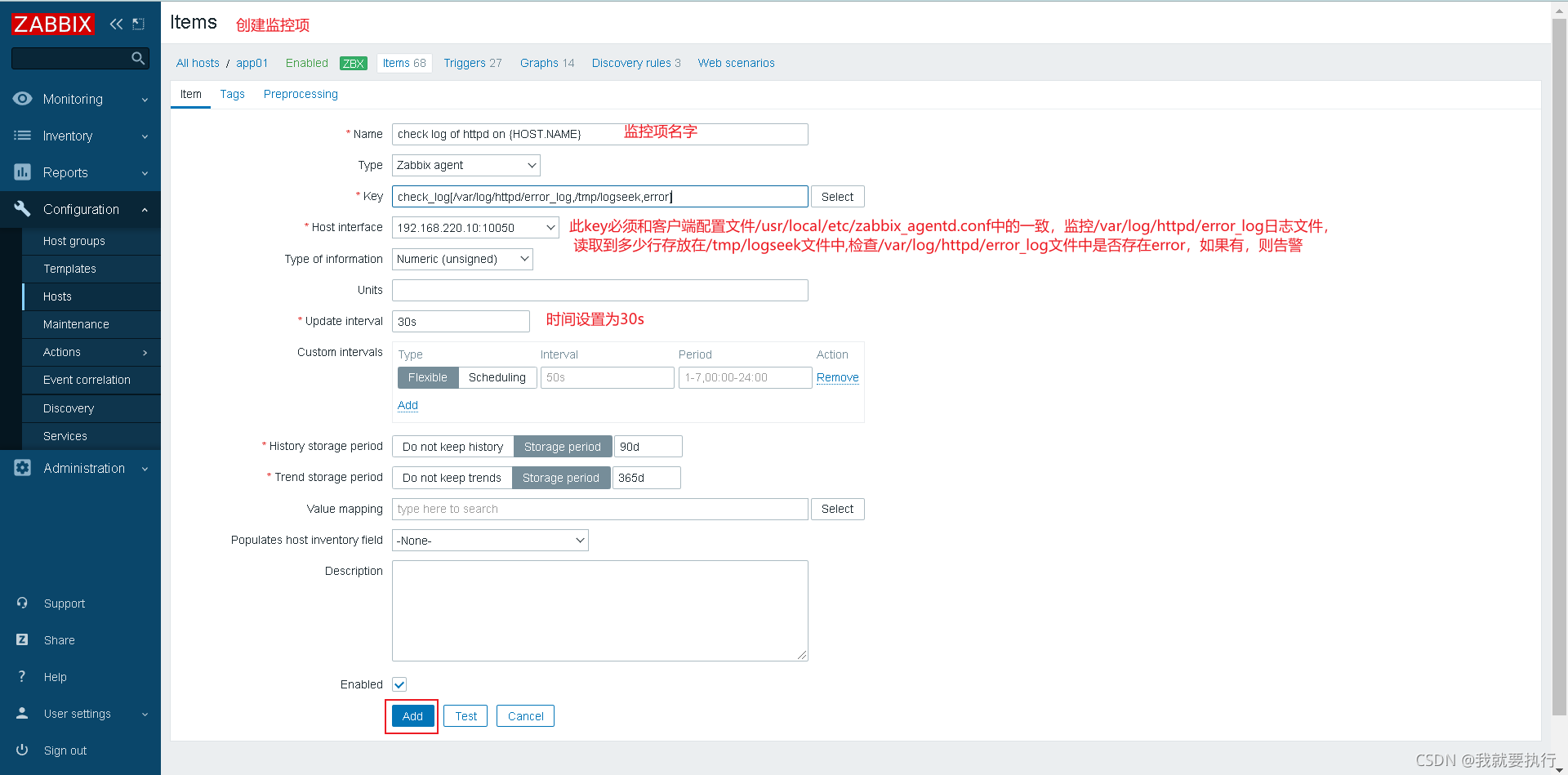

创建日志监控项

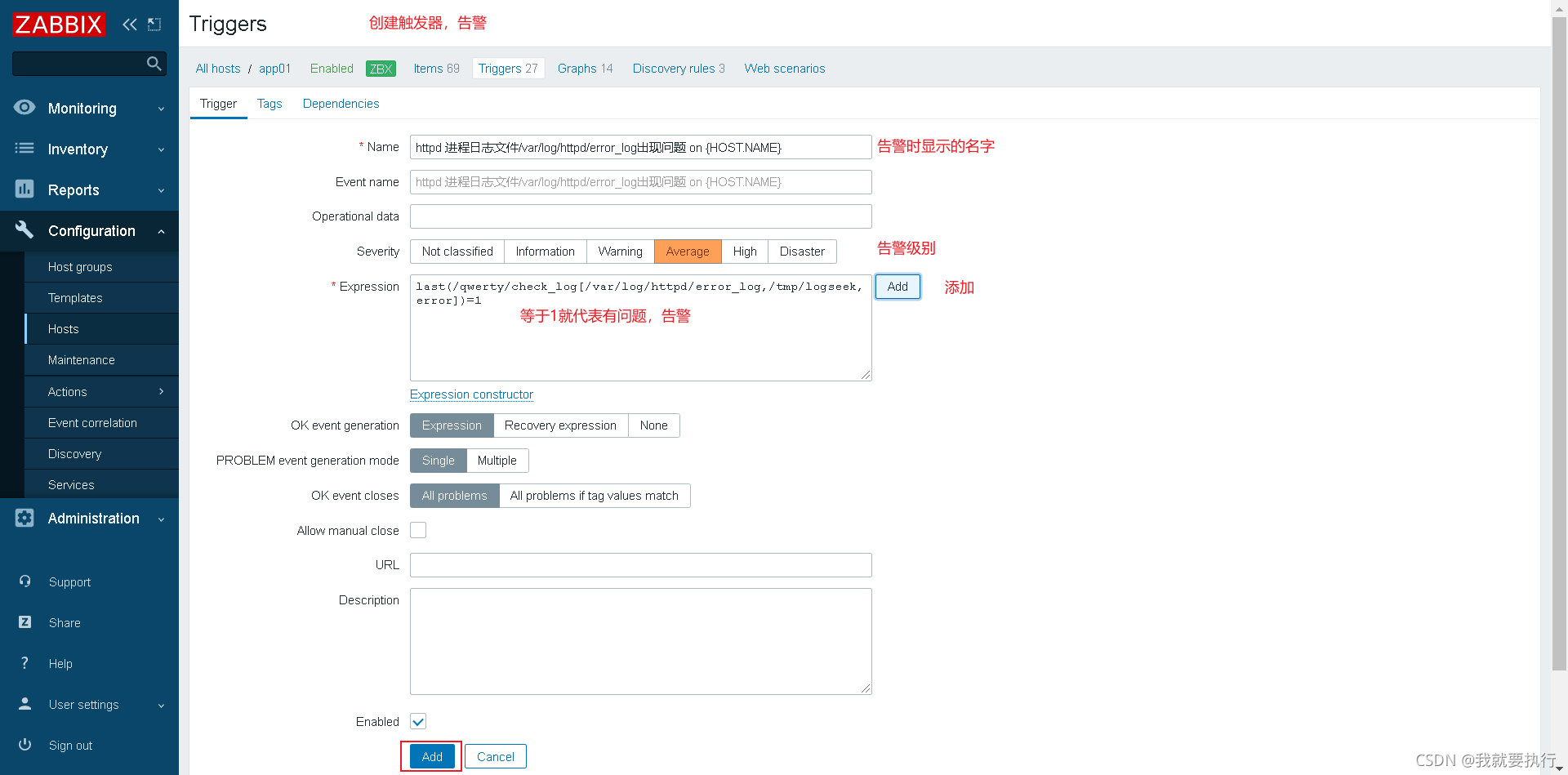

创建日志触发器

给文件权限让zabbix用户能够访问(被监控机)

[root@client scripts]# chmod 755 /var/log/httpd

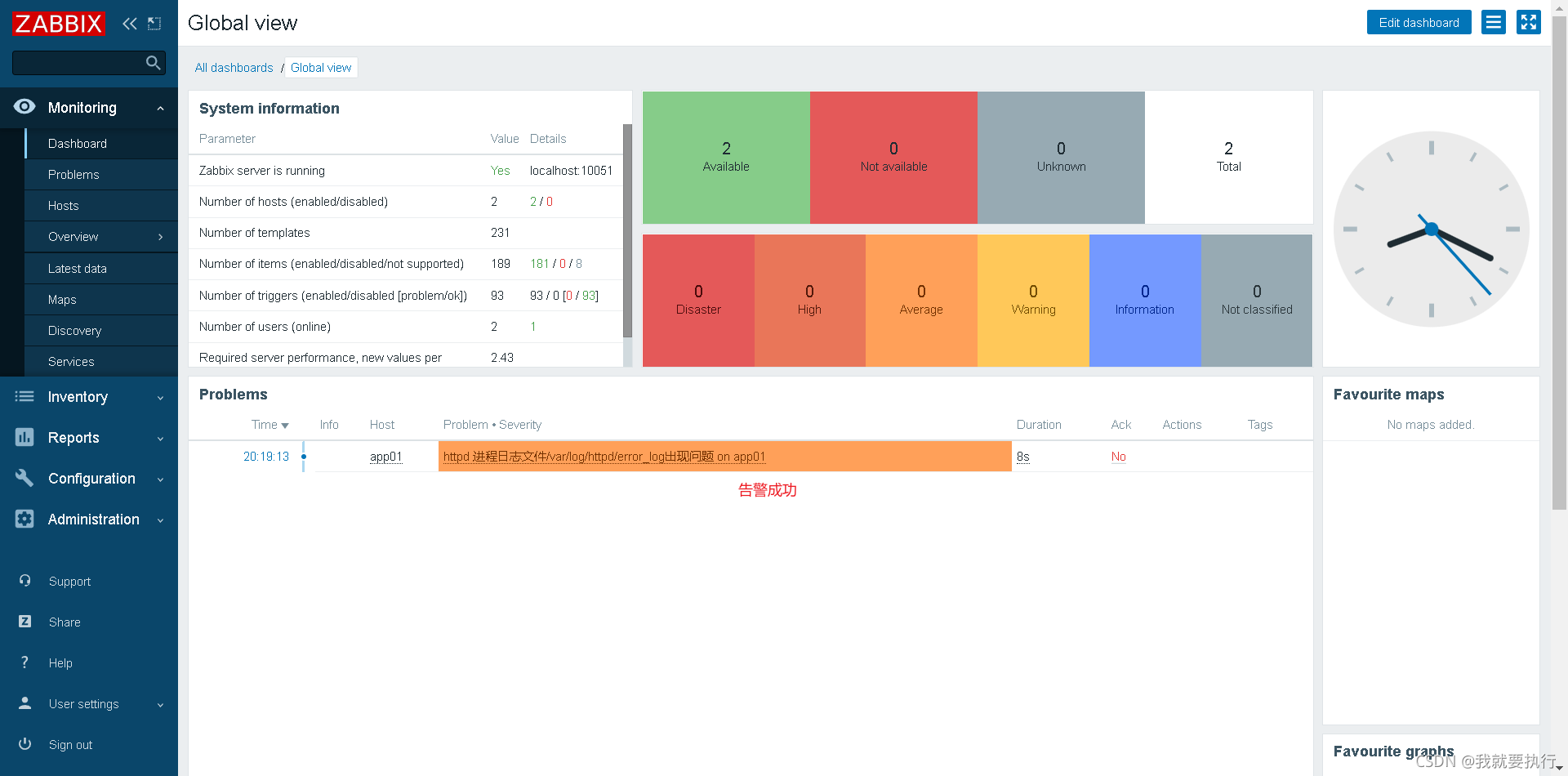

向日志文件/var/log/httpd/error_log文件中追加error，测试告警(被监控机) 注意防火墙和selinux

[root@client scripts]# echo "error" >> /var/log/httpd/error_log

监控MySQL主从状态

MySQL主从配置以前的文章有，这里就省略

编写脚本

[root@localhost scripts]# cat mysql_thread.sh
#!/bin/bash

count=$(mysql -e "show slave status\G;" 2>/dev/null |grep _Running: |grep -c Yes)

if [ $count -ne 2 ];then          //如果过滤到的Yes个数不等于2就输出1，表示有问题
    echo "1"
else
    echo "0"
fi

配置被监控机的配置文件

[root@localhost etc]# vim zabbix_agentd.conf
······
# Default: SOMAXCONN (hard-coded constant, depends on system)
# ListenBacklog=
527 UserParameter=check_process[*],/scripts/check_process.sh $1
528 UserParameter=check_log[*],/scripts/log.py $1 $2 $3
529 UserParameter=mysql.slave[*],/scripts/mysql_thread.sh $1 $2  //添加

[root@client scripts]# chmod +x /scripts/mysql_thread.sh

//重启

[root@localhost etc]# pkill zabbix_agentd
[root@localhost etc]# zabbix_agentd

查看从库状态

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.220.17
                  Master_User: rhel
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql_bin.000001
          Read_Master_Log_Pos: 15651689
               Relay_Log_File: mysql_relay.000002
                Relay_Log_Pos: 15651855
        Relay_Master_Log_File: mysql_bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes

服务端测试

[root@sever ~]# zabbix_get -s 192.168.220.10 -k mysql.slave[io]
0
[root@sever ~]# zabbix_get -s 192.168.220.10 -k mysql.slave[io,sql]
0

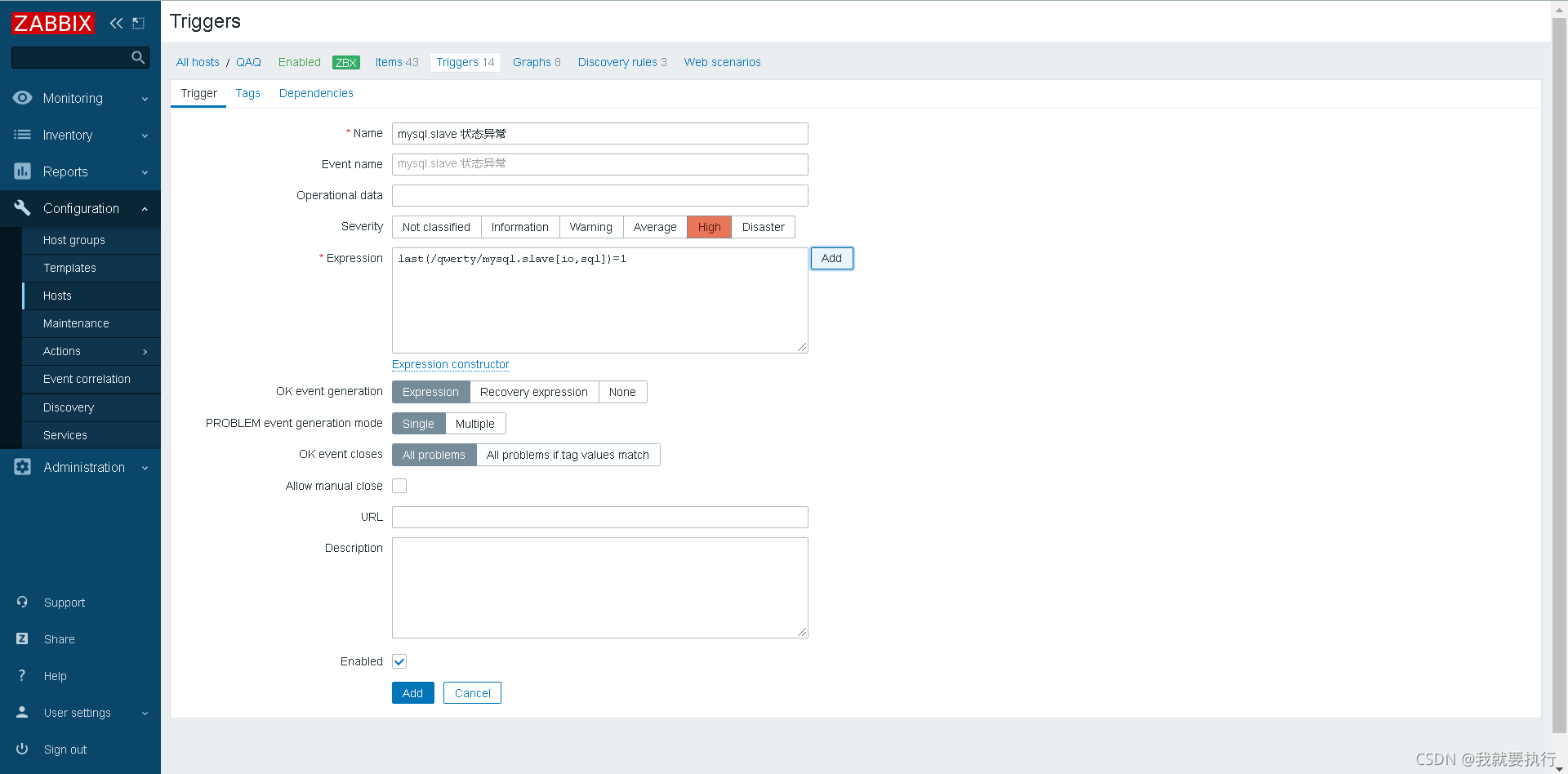

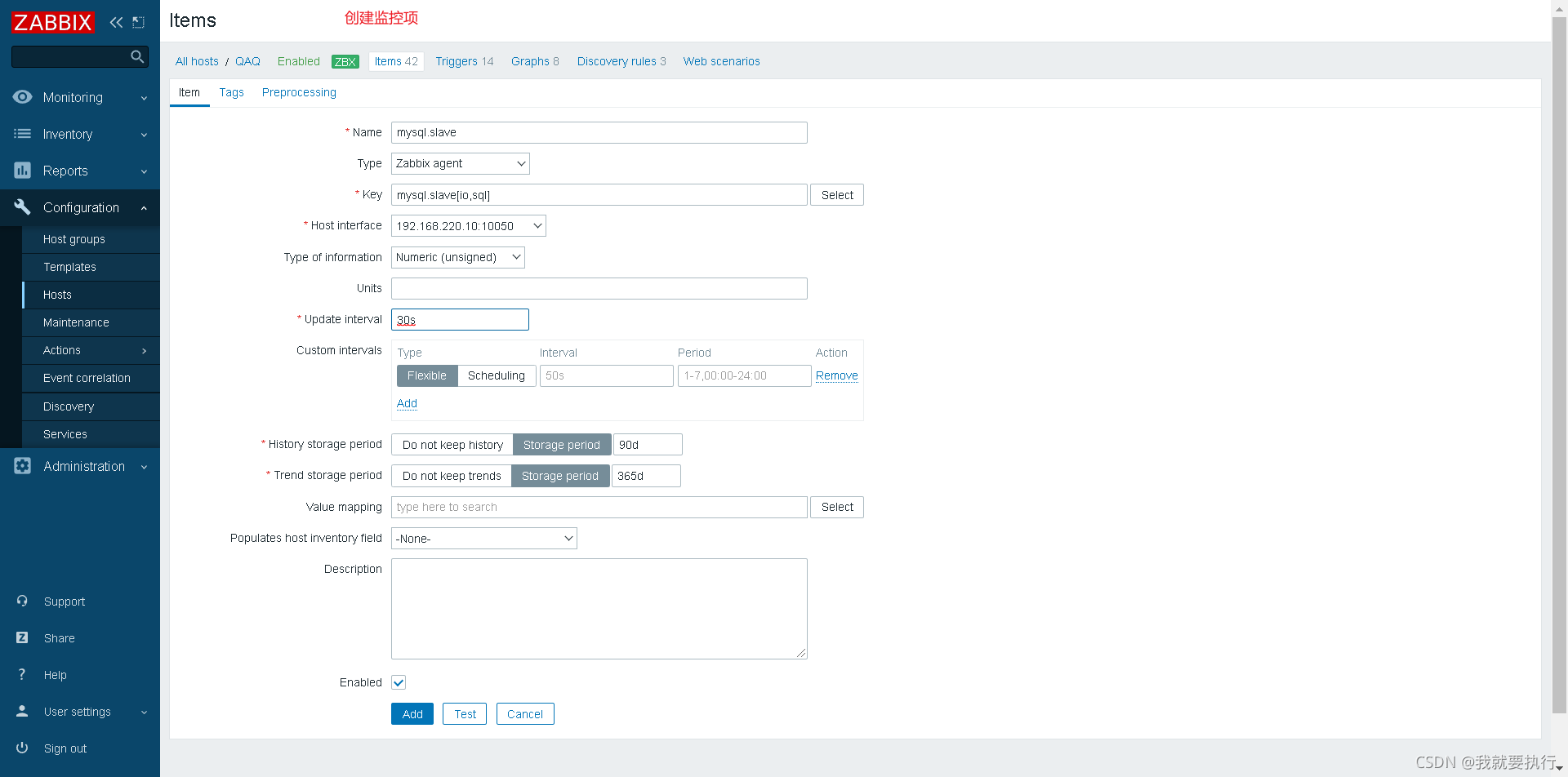

配置web界面

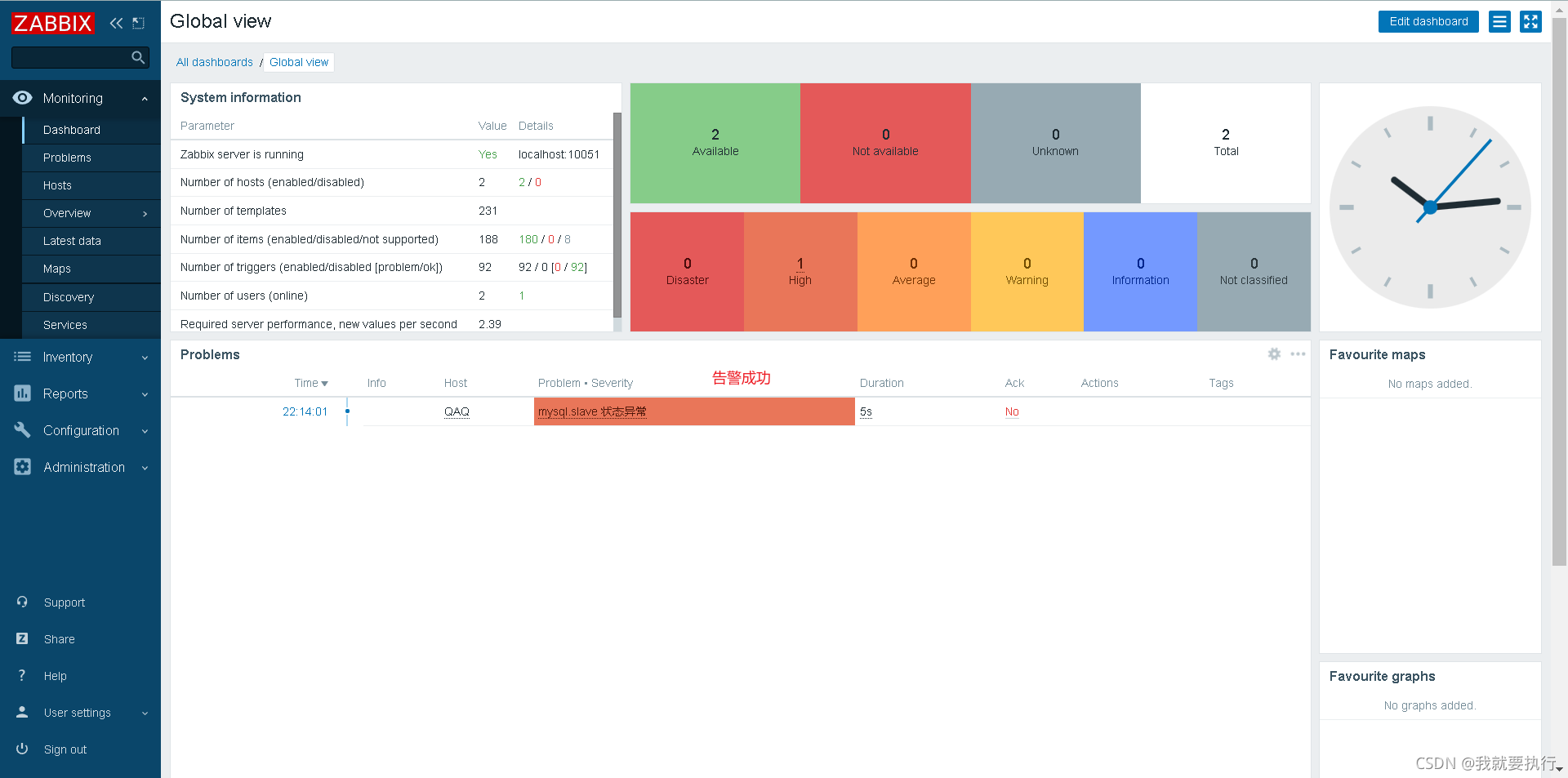

从库停止，查看web界面是否告警

mysql> stop slave;
Query OK, 0 rows affected (0.01 sec)

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State:
                  Master_Host: 192.168.220.17
                  Master_User: rhel
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: mysql_bin.000001
          Read_Master_Log_Pos: 15767640
               Relay_Log_File: mysql_relay.000002
                Relay_Log_Pos: 15767806
        Relay_Master_Log_File: mysql_bin.000001
             Slave_IO_Running: No
            Slave_SQL_Running: No

成功

监控MySQL主从延迟

(被监控机)写脚本取值

[root@client ~]# cd /scripts/
[root@client scripts]# touch delay_mysql.sh
[root@client scripts]# chmod +x delay_mysql.sh
[root@client scripts]# cat delay_mysql.sh
#!/bin/bash

delay=$(mysql -uzabbix -pzabbix -e 'show slave status\G;' 2>/dev/null |grep '_Behind' |awk '{print $2}')
if [ $delay != NULL ];then
    echo $delay
else
    echo "0"

fi

//授权
[root@client ~]# mysql -uroot -p123456
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 252
Server version: 5.7.34 MySQL Community Server (GPL)

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>grant SUPER, REPLICATION CLIENT on *.* to 'zabbix'@'localhost' identified by 'zabbix';


//修改被监控机的配置文件
# Default: SOMAXCONN (hard-coded constant, depends on system)
# ListenBacklog=
527 UserParameter=check_process[*],/scripts/check_process.sh $1
528 UserParameter=check_log[*],/scripts/log.py $1 $2 $3
529 UserParameter=mysql.slave[*],/scripts/mysql_thread.sh $1 $2
530 UserParameter=check_delay(与web界面创建监控项时的key一致),/scripts/delay_mysql.sh         //添加

//重启zabbix_agentd
[root@client ~]# pkill zabbix
[root@client ~]# zabbix_agentd


//服务端测试
[root@sever ~]# zabbix_get -s 192.168.220.10 -k check_delay
0

//查看被监控机的延迟
[root@client scripts]# mysql -e "show slave status\G;"
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.220.17
                 ......
                 Exec_Master_Log_Pos: 154
              Relay_Log_Space: 3988378
              Until_Condition: None
               Until_Log_File:
                Until_Log_Pos: 0
           Master_SSL_Allowed: No
           Master_SSL_CA_File:
           Master_SSL_CA_Path:
              Master_SSL_Cert:
            Master_SSL_Cipher:
               Master_SSL_Key:
        Seconds_Behind_Master: NULL          //延迟
             ......

web界面配置

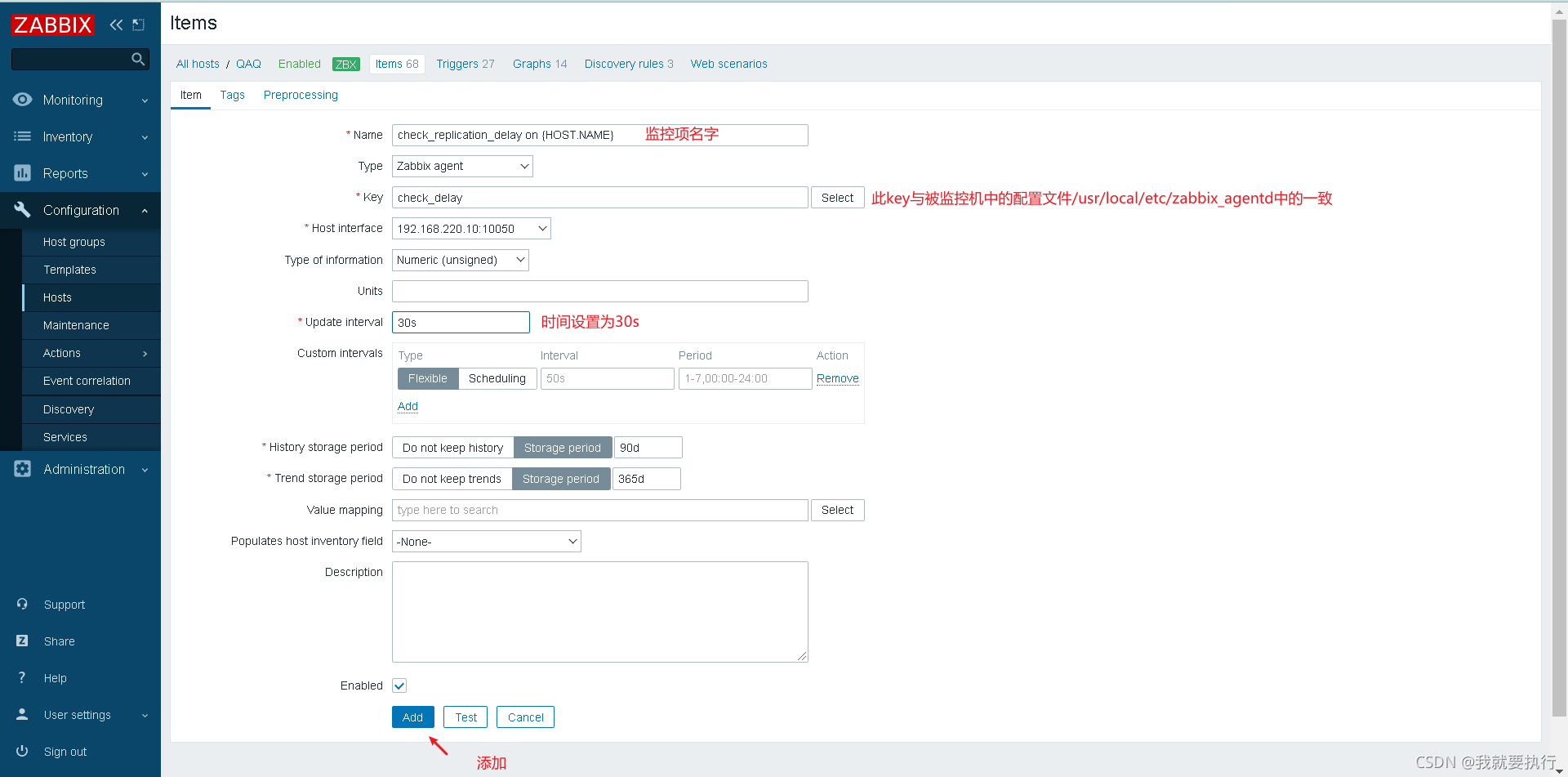

创建监控项

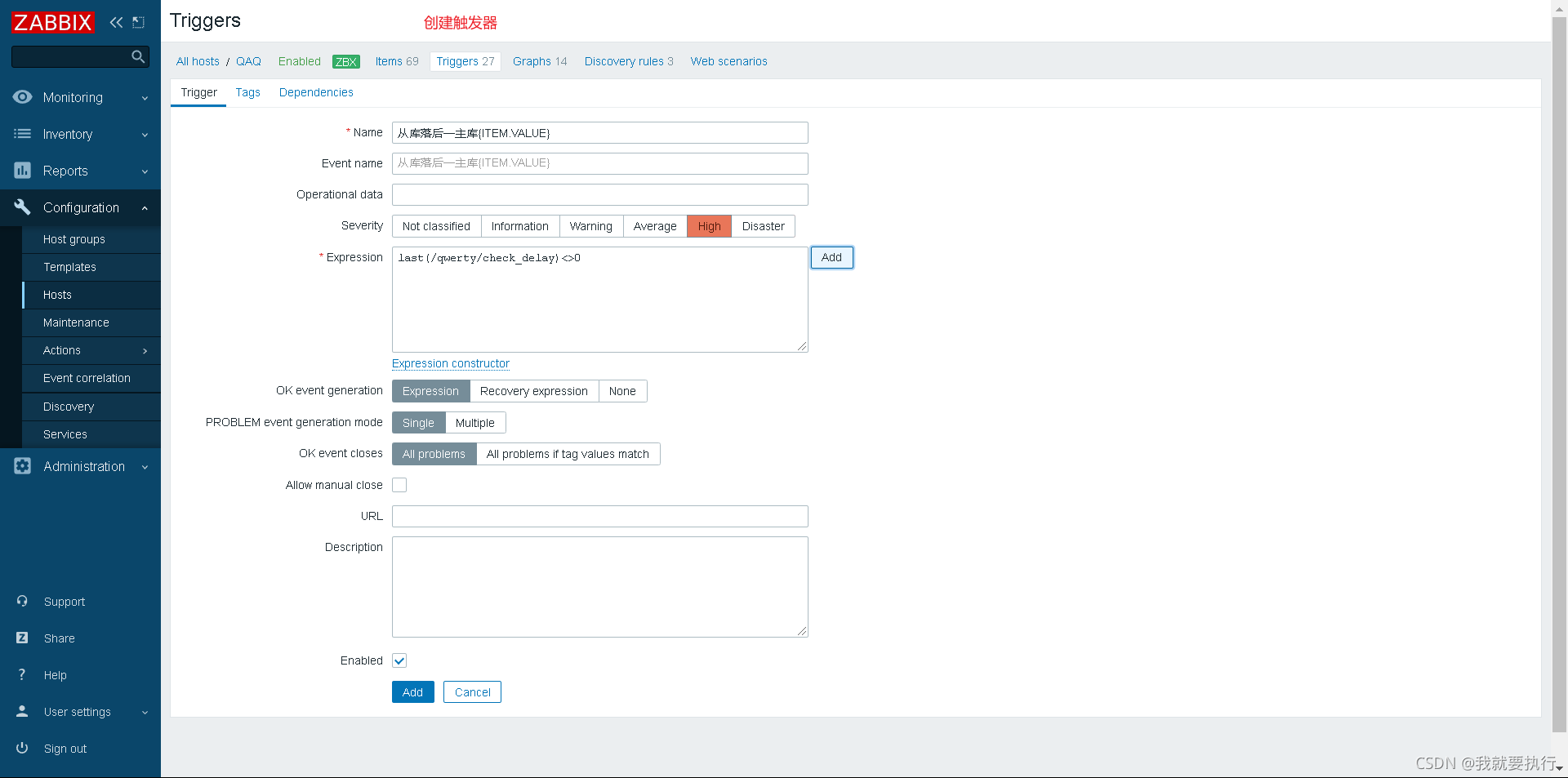

创建触发器，当值不等于0时触发告警

因为我使用的环境不会出现延迟，所以不会告警，但是步骤是没有问题的。
