[大数据]storm源码分析研究（五）

2021SC@SDUSC

spout源码分析（四）

2021SC@SDUSC

spout：

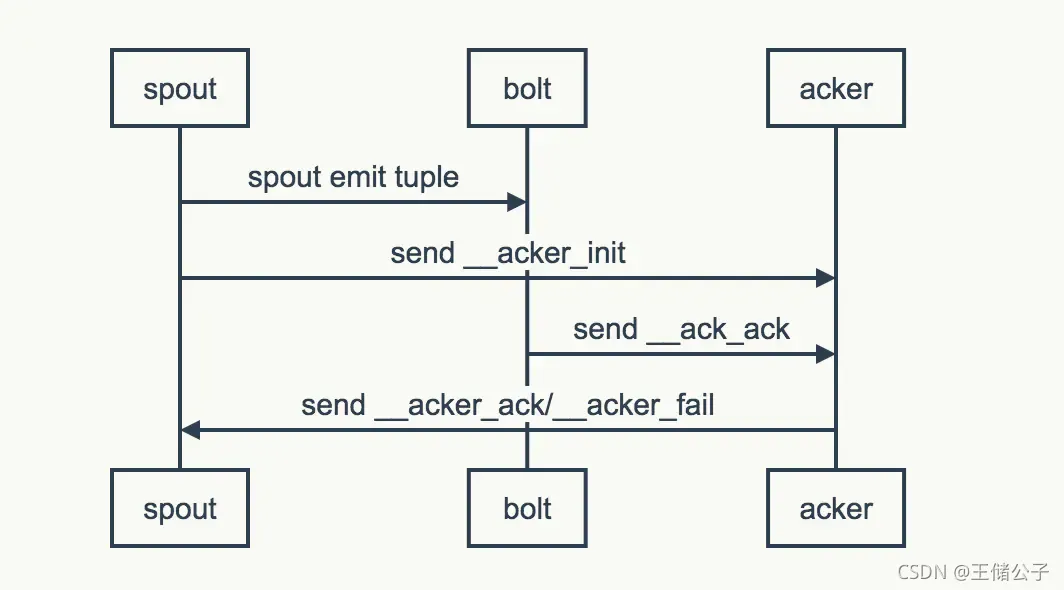

ack机制
为保证无数据丢失，Storm/JStorm使用了非常漂亮的可靠性处理机制，当定义Topology时指定Acker，JStorm除了Topology本身任务外，还会启动一组称为Acker的特殊任务，负责跟踪Topolgogy DAG中的每个消息。每当发现一个DAG被成功处理完成，Acker就向创建根消息的Spout任务发送一个Ack信号。

Acker按照Tuple Tree的方式跟踪消息。当Spout发送一个消息的时候，它就通知对应的Acker一个新的根消息产生了，这时Acker就会创建一个新的Tuple Tree。当Acker发现这棵树被完全处理之后，他就会通知对应的Spout任务。

RandomSentenceSpout.java

表示数据源，这里用从数组随机获取一个元素作为模拟数据源获取，日常开发通常是从MQ中获取相应数据进行数据流驱动。

public void open(Map<String, Object> conf, TopologyContext context, SpoutOutputCollector collector) {
        this.collector = collector;
        rand = new Random();
    }

    @Override
    public void nextTuple() {
        Utils.sleep(100);
        String[] sentences = new String[]{
            sentence("the cow jumped over the moon"), sentence("an apple a day keeps the doctor away"),
            sentence("four score and seven years ago"), sentence("snow white and the seven dwarfs"), sentence("i am at two with nature")
        };
        final String sentence = sentences[rand.nextInt(sentences.length)];

        LOG.debug("Emitting tuple: {}", sentence);

        collector.emit(new Values(sentence));
    }

    protected String sentence(String input) {
        return input;
    }

    @Override
    public void ack(Object id) {
    }

    @Override
    public void fail(Object id) {
    }
@Override
    public void declareOutputFields(OutputFieldsDeclarer declarer) {
        declarer.declare(new Fields("word"));
    }

RandomSentenceSpout实现了IRichSpout接口

而Spout需要实现的接口可以是：
IRichSpout：最基本的Spout,继承自ISpout, IComponent,沒有任何特殊方法
IControlSpout:继承自IComponent,包括open，close，activate，deactivate，nextTuple，ack(Object msgId)，fail等方法

public void open（）：
Spout初始化的时候调用

系统框架会不断调用public void nextTuple() ，其中，定义String[] sentences用来模拟数据源，String sentence是随机取出字符串， collector.emit(new Values(sentence))是将得到的字符串输出到下一个组件，需要注意的是，这里Values中值填充顺序要和下面declareOutputFields中字段声明顺序一致。

对spout来说，需要在emit的时候要指定msgId，然后需要缓存数据，在ack时删除，在fail的时候重新发送进行重试。

SpoutExecutor.java

@Override
    public void tupleActionFn(int taskId, TupleImpl tuple) throws Exception {
        String streamId = tuple.getSourceStreamId();
        if (Constants.SYSTEM_FLUSH_STREAM_ID.equals(streamId)) {
            spoutOutputCollector.flush();
        } else if (streamId.equals(Constants.SYSTEM_TICK_STREAM_ID)) {
            pending.rotate();
        } else if (streamId.equals(Constants.METRICS_TICK_STREAM_ID)) {
            metricsTick(idToTask.get(taskId - idToTaskBase), tuple);
        } else if (streamId.equals(Acker.ACKER_RESET_TIMEOUT_STREAM_ID)) {
            Long id = (Long) tuple.getValue(0);
            TupleInfo pendingForId = pending.get(id);
            if (pendingForId != null) {
                pending.put(id, pendingForId);
            }
        } else {
            Long id = (Long) tuple.getValue(0);
            Long timeDeltaMs = (Long) tuple.getValue(1);
            TupleInfo tupleInfo = pending.remove(id);
            if (tupleInfo != null && tupleInfo.getMessageId() != null) {
                if (taskId != tupleInfo.getTaskId()) {
                    throw new RuntimeException("Fatal error, mismatched task ids: " + taskId + " " + tupleInfo.getTaskId());
                }
                Long timeDelta = null;
                if (hasAckers) {
                    long startTimeMs = tupleInfo.getTimestamp();
                    if (startTimeMs != 0) {
                        timeDelta = timeDeltaMs;
                    }
                }
                if (streamId.equals(Acker.ACKER_ACK_STREAM_ID)) {
                    ackSpoutMsg(this, idToTask.get(taskId - idToTaskBase), timeDelta, tupleInfo);
                } else if (streamId.equals(Acker.ACKER_FAIL_STREAM_ID)) {
                    failSpoutMsg(this, idToTask.get(taskId - idToTaskBase), timeDelta, tupleInfo, "FAIL-STREAM");
                }
            }
        }
    }

    public void ackSpoutMsg(SpoutExecutor executor, Task taskData, Long timeDelta, TupleInfo tupleInfo) {
        try {
            ISpout spout = (ISpout) taskData.getTaskObject();
            int taskId = taskData.getTaskId();
            if (executor.getIsDebug()) {
                LOG.info("SPOUT Acking message {} {}", tupleInfo.getRootId(), tupleInfo.getMessageId());
            }
            spout.ack(tupleInfo.getMessageId());
            if (!taskData.getUserContext().getHooks().isEmpty()) { // avoid allocating SpoutAckInfo obj if not necessary
                new SpoutAckInfo(tupleInfo.getMessageId(), taskId, timeDelta).applyOn(taskData.getUserContext());
            }
            if (hasAckers && timeDelta != null) {
                executor.getStats().spoutAckedTuple(tupleInfo.getStream(), timeDelta);
                taskData.getTaskMetrics().spoutAckedTuple(tupleInfo.getStream(), timeDelta);
            }
        } catch (Exception e) {
            throw Utils.wrapInRuntime(e);
        }
    }

    public void failSpoutMsg(SpoutExecutor executor, Task taskData, Long timeDelta, TupleInfo tupleInfo, String reason) {
        try {
            ISpout spout = (ISpout) taskData.getTaskObject();
            int taskId = taskData.getTaskId();
            if (executor.getIsDebug()) {
                LOG.info("SPOUT Failing {} : {} REASON: {}", tupleInfo.getRootId(), tupleInfo, reason);
            }
            spout.fail(tupleInfo.getMessageId());
            new SpoutFailInfo(tupleInfo.getMessageId(), taskId, timeDelta).applyOn(taskData.getUserContext());
            if (timeDelta != null) {
                executor.getStats().spoutFailedTuple(tupleInfo.getStream());
                taskData.getTaskMetrics().spoutFailedTuple(tupleInfo.getStream());
            }
        } catch (Exception e) {
            throw Utils.wrapInRuntime(e);
        }
    }

SpoutExecutor在tupleActionFn内，
如果接收到ACKER_ACK_STREAM_ID，则进行ackSpoutMsg操作；
如果接收到ACKER_FAIL_STREAM_ID，则进行failSpoutMsg操作。

SpoutExecutor的ackSpoutMsg及failSpoutMsg里头分别调用了具体spout的ack及fail方法，将ack的结果通知到原始的spout
