Saltstack部署zabbix
目录树
[root@master ~]# cd /srv/salt/prod/
[root@master prod]# tree
.
|-- modules
| |-- application
| | `-- php
| | |-- files
| | | |-- install.sh
| | | |-- oniguruma-devel-6.8.2-2.el8.x86_64.rpm
| | | |-- php-7.4.24.tar.gz
| | | |-- php-fpm
| | | |-- php-fpm.conf
| | | |-- php-fpm.service
| | | |-- php.ini
| | | `-- www.conf
| | `-- install.sls
| |-- database
| | `-- mysql
| | |-- files
| | | |-- install.sh
| | | |-- mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz
| | | |-- mysql.server
| | | `-- mysqld.service
| | `-- install.sls
| `-- web
| `-- apache
| |-- files
| | |-- apr-1.7.0.tar.gz
| | |-- apr-util-1.6.1.tar.gz
| | |-- httpd-2.4.48.tar.gz
| | |-- httpd.conf
| | |-- httpd.service
| | `-- install.sh
| `-- install.sls
`-- zabbix
|-- apache.sls
|-- files
| |-- index.php
| |-- my.cnf
| |-- mysql.conf
| `-- vhosts.conf
|-- main.sls
|-- mysql.sls
`-- zabbix
|-- install.sh
|-- zabbix-5.4.4.tar.gz
`-- zabbix.sls
13 directories, 31 files
[root@master prod]#
先部署LAMP架构
PHP安装部分
/srv/salt/prod/modules/application/php/install.sls
/usr/src/oniguruma-devel-6.8.2-2.el8.x86_64.rpm:
file.managed:
- source: salt://modules/application/php/files/oniguruma-devel-6.8.2-2.el8.x86_64.rpm
- user: root
- group: root
- mode: '0644'
cmd.run:
- name: yum -y install /usr/src/oniguruma-devel-6.8.2-2.el8.x86_64.rpm
dnf -y install epel-release:
cmd.run
dep-pkckages-install:
pkg.installed:
- pkgs:
- sqlite-devel
- libzip-devel
- libxml2
- libxml2-devel
- openssl
- openssl-devel
- bzip2
- bzip2-devel
- libcurl
- libcurl-devel
- libicu-devel
- libjpeg-turbo
- libjpeg-turbo-devel
- libpng
- libpng-devel
- openldap-devel
- pcre-devel
- freetype
- freetype-devel
- gmp
- gmp-devel
- libmcrypt
- libmcrypt-devel
- readline
- readline-devel
- libxslt
- libxslt-devel
- mhash
- mhash-devel
/usr/src/php-7.4.24.tar.gz:
file.managed:
- source: salt://modules/application/php/files/php-7.4.24.tar.gz
- user: root
- group: root
- mode: '0644'
salt://modules/application/php/files/install.sh:
cmd.script
copy-php:
file.managed:
- names:
- /etc/init.d/php-fpm:
- source: salt://modules/application/php/files/php-fpm
- user: root
- group: root
- mode: '0755'
- /usr/local/php7/etc/php-fpm.conf:
- source: salt://modules/application/php/files/php-fpm.conf
- /usr/local/php7/etc/php-fpm.d/www.conf:
- source: salt://modules/application/php/files/www.conf
- /usr/lib/systemd/system/php-fpm.service:
- source: salt://modules/application/php/files/php-fpm.service
- /etc/php.ini:
- source: salt://modules/application/php/files/php.ini
php-fpm.service:
service.running:
- enable: true
/srv/salt/prod/modules/application/php/files/install.sh
#!/bin/bash
cd /usr/src
rm -rf php-8.0.10
tar xf php-7.4.24.tar.gz -C /usr/local
cd /usr/local/php-7.4.24
./configure --prefix=/usr/local/php7 \
--with-config-file-path=/etc \
--enable-fpm \
--disable-debug \
--disable-rpath \
--enable-shared \
--enable-soap \
--with-openssl \
--enable-bcmath \
--with-iconv \
--with-bz2 \
--enable-calendar \
--with-curl \
--enable-exif \
--enable-ftp \
--enable-gd \
--with-jpeg \
--with-zlib-dir \
--with-freetype \
--with-gettext \
--enable-mbstring \
--enable-pdo \
--with-mysqli=mysqlnd \
--with-pdo-mysql=mysqlnd \
--with-readline \
--enable-shmop \
--enable-simplexml \
--enable-sockets \
--with-zip \
--enable-mysqlnd-compression-support \
--with-pear \
--enable-pcntl \
--enable-posix && make && make install

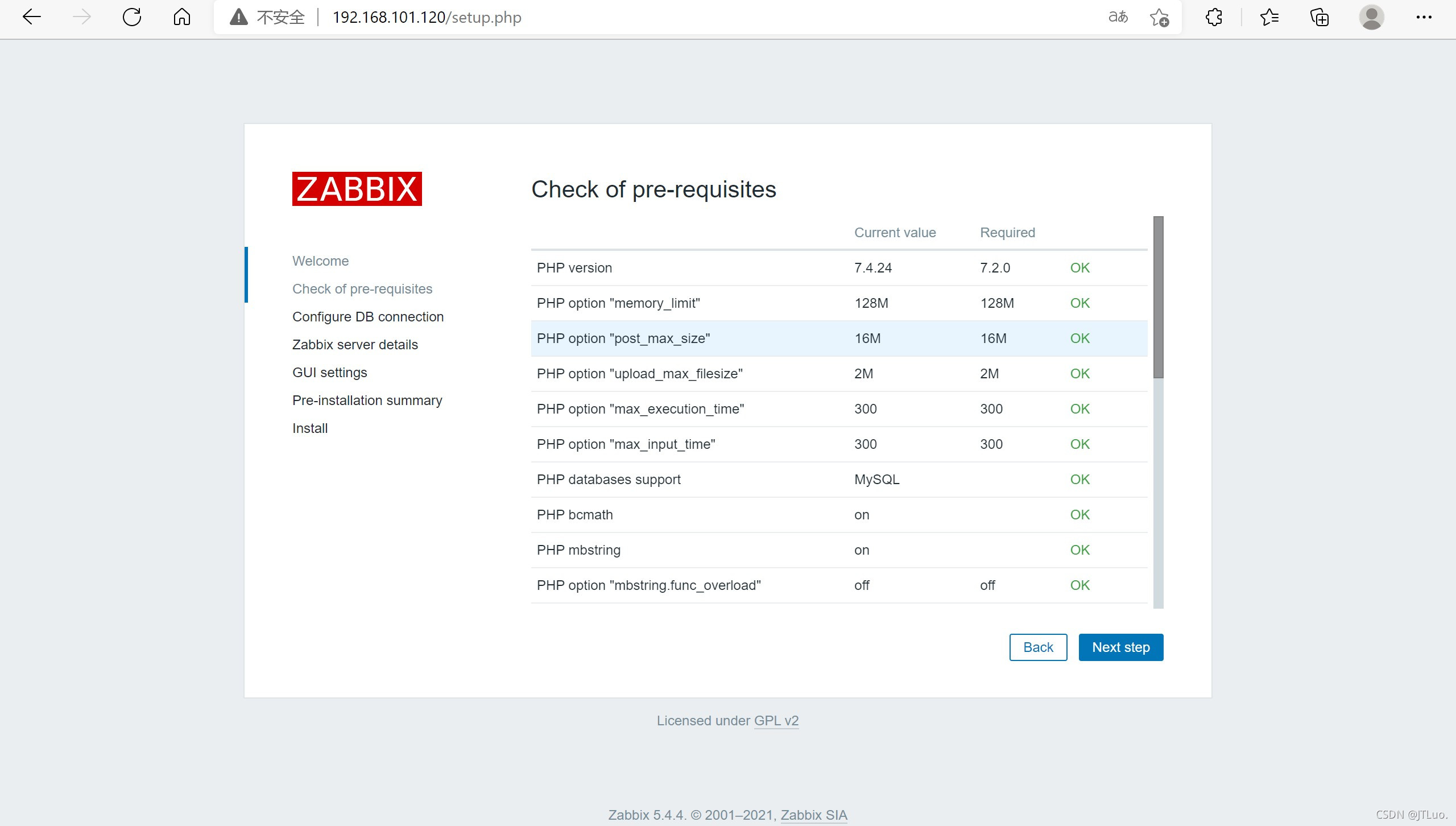

/srv/salt/prod/modules/application/php/files/php.ini
...
409 max_execution_time = 300
....
419 max_input_time = 300
...
703 post_max_size = 16M
...
973 date.timezone = Asia/Shanghai
....
/srv/salt/prod/modules/application/php/files/php-fpm.service
[Unit]
Description=php-fpm server daemon
After=network.target
[Service]
Type=forking
ExecStart=/etc/init.d/php-fpm start
ExecStop=/etc/init.d/php-fpm stop
ExecReload=/bin/kill -HUP $MAINPID
[Install]
WantedBy=multi-user.target
MySQL安装部分
/srv/salt/prod/modules/database/mysql/install.sls
ncurses-compat-libs:
pkg.installed
create-mysql-user:
user.present:
- name: mysql
- createhome: false
- system: true
- shell: /sbin/nologin
create-datadir:
file.directory:
- name: /opt/data
- user: mysql
- group: mysql
- mode: '0755'
- makedirs: true
/usr/src/mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz:
file.managed:
- source: salt://modules/database/mysql/files/mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz
- user: root
- group: root
- mode: '0644'
salt://modules/database/mysql/files/install.sh:
cmd.script
trasfer-files:
file.managed:
- names:
- /usr/local/mysql/support-files/mysql.server:
- source: salt://modules/database/mysql/files/mysql.server
- /usr/lib/systemd/system/mysqld.service:
- source: salt://modules/database/mysql/files/mysqld.service
/srv/salt/prod/modules/database/mysql/files/install.sh
cd /usr/src
tar xf mysql-5.7.34-linux-glibc2.12-x86_64.tar.gz -C /usr/local
ln -s mysql-5.7.34-linux-glibc2.12-x86_64 /usr/local/mysql
chown -R mysql.mysql /usr/local/mysql*
/usr/local/mysql/bin/mysqld --initialize-insecure --user=mysql --datadir=/opt/data/
echo "export PATH=/usr/local/mysql/bin:\$PATH" > /etc/profile.d/mysqld.sh
/srv/salt/prod/modules/database/mysql/files/mysql.server
...
46 basedir=/usr/local/mysql
47 datadir=/opt/data
...
/srv/salt/prod/modules/database/mysql/files/mysqld.service
[Unit]
Description=Mysql server daemon
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/mysql/support-files/mysql.server start
ExecStop=/usr/local/mysql/support-files/mysql.server stop
ExecReload=/bin/kill -HUP $MAINPID
[Install]
WantedBy=multi-user.target
apache安装部分
/srv/salt/prod/modules/web/apache/install.sls
apache-dep-package:
pkg.installed:
- pkgs:
- openssl
- pcre-devel
- expat-devel
- gcc
- gcc-c++
- libtool
- make
apache:
user.present:
- shell: /sbin/nologin
- createhome: false
- system: true
apache-download:
file.managed:
- names:
- /usr/src/apr-1.7.0.tar.gz:
- source: salt://modules/web/apache/files/apr-1.7.0.tar.gz
- /usr/src/apr-util-1.6.1.tar.gz:
- source: salt://modules/web/apache/files/apr-util-1.6.1.tar.gz
- /usr/src/httpd-2.4.48.tar.gz:
- source: salt://modules/web/apache/files/httpd-2.4.48.tar.gz
salt://modules/web/apache/files/install.sh:
cmd.script
/usr/lib/systemd/system/httpd.service:
file.managed:
- source: salt://modules/web/apache/files/httpd.service
- user: root
- group: root
- mode: '0644'
systemctl daemon-reload:
cmd.run
/usr/local/httpd/conf/httpd.conf:
file.managed:
- source: salt://modules/web/apache/files/httpd.conf
- user: root
- group: root
- mode: '0644'
/srv/salt/prod/modules/web/apache/file/install.sh
#!/bin/bash
cd /usr/src
rm -rf apr-1.7.0 apr-util-1.6.1 httpd-2.4.48
tar xf apr-1.7.0.tar.gz
tar xf apr-util-1.6.1.tar.gz
tar xf httpd-2.4.48.tar.gz
cd /usr/src/apr-1.7.0
sed -i '/$RM "$cfgfile"/d' configure
./configure --prefix=/usr/local/apr && \
make && make install
cd ../apr-util-1.6.1
./configure --prefix=/usr/local/apr-util --with-apr=/usr/local/apr && \
make && make install
cd ../httpd-2.4.48
./configure --prefix=/usr/local/httpd \
--with-apr=/usr/local/apr \
--with-apr-util=/usr/local/apr-util/ && \
make && make install
/srv/salt/prod/modules/web/apache/file/httpd.conf
.....
489 #Include conf/extra/httpd-default.conf
490 Include conf/extra/vhosts.conf #
......
/srv/salt/prod/modules/web/apache/file/httpd.service
[Unit]
Description=httpd server daemon
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/httpd/bin/apachectl start
ExecStop=/usr/local/httpd/bin/apachectl stop
ExecReload=/bin/kill -HUP $MAINPID
[Install]
WantedBy=multi-user.target
组合部分
/srv/salt/prod/modules/zabbix/main.sls
include:
- zabbix.apache
- zabbix.mysql
- modules.application.php.install
apache配置部分
/srv/salt/prod/modules/zabbix/apache.sls
"Development Tools":
pkg.group_installed
include:
- modules.web.apache.install
/usr/include/httpd:
file.symlink:
- target: /usr/local/apache/include
/usr/local/httpd/htdocs:
file.directory:
- user: apache
- group: apache
- mode: '0755'
- makedirs: true
/usr/local/httpd/conf/extra/vhosts.conf:
file.managed:
- source: salt://zabbix/files/vhosts.conf
- user: root
- group: root
- mode: '0644'
/usr/local/httpd/htdocs/zabbix:
file.directory:
- user: root
- group: root
- mode: '0755'
- makedirs: true
/usr/local/httpd/htdocs/zabbix/index.php:
file.managed:
- source: salt://zabbix/files/index.php
- user: apache
- group: apache
- mode: '0644'
zabbix-apache-service:
service.running:
- name: httpd
- enable: true
MySQL配置部分
/srv/salt/prod/modules/zabbix/mysql.sls
lamp-dep-package:
pkg.installed:
- pkgs:
- ncurses-devel
- openssl-devel
- openssl
- cmake
- mariadb-devel
- ncurses-compat-libs
include:
- modules.database.mysql.install
provides-mysql-file:
file.managed:
- user: root
- group: root
- mode: '0644'
- names:
- /etc/my.cnf:
- source: salt://zabbix/files/my.cnf
- /etc/ld.so.conf.d/mysql.conf:
- source: salt://zabbix/files/mysql.conf
/usr/local/include/mysql:
file.symlink:
- target: /usr/local/mysql/include
mysqld-start:
service.running:
- name: mysqld
- enable: true
set-password:
cmd.run:
- name: /usr/local/mysql/bin/mysql -e "set password=password('123456');"
配置文件部分
/srv/salt/prod/modules/zabbix/files/index.php
<?php
phpinfo();
?>
/srv/salt/prod/modules/zabbix/files/my.cnf
[mysqld]
port = 3306
datadir = /opt/data
basedir = /usr/local/mysql
socket = /tmp/mysql.sock
pid-file = /opt/data/mysql.pid
log-error = /opt/data/mysql.err
skip-name-resolve
/srv/salt/prod/modules/zabbix/files/mysql.conf
/usr/local/mysql/lib
/srv/salt/prod/modules/zabbix/files/vhosts.conf
<VirtualHost *:80>
DocumentRoot "/usr/local/httpd/htdocs/zabbix"
ServerName zabbix.example.com
ProxyRequests Off
ProxyPassMatch ^/(.*\.php)$ fcgi://0.0.0.0:9000/usr/local/httpd/htdocs/zabbix/$1
<Directory "/usr/local/httpd/htdocs/zabbix">
Options none
AllowOverride none
Require all granted
</Directory>
</VirtualHost>
zabbix安装部分
执行salt 'node1' state.sls zabbix.zabbix.zabbix saltenv=prod
/srv/salt/prod/zabbix/zabbix/zabbix.sls
zabbix-dep-package:
pkg.installed:
- pkgs:
- net-snmp-devel
- libevent-devel
- make
- gcc
- gcc-c++
zabbix:
user.present:
- shell: /sbin/nologin
- createhome: false
- system: true
/usr/src/zabbix-5.4.4.tar.gz:
file.managed:
- source: salt://zabbix/zabbix/zabbix-5.4.4.tar.gz
- user: root
- group: root
- mode: '0644'
salt://zabbix/zabbix/install.sh:
cmd.script
/var/lib/mysql:
file.directory:
- user: root
- group: root
- mode: '0755'
- makedirs: true
ln -s /tmp/mysql.sock /var/lib/mysql/:
cmd.run
zabbix_server:
cmd.run
zabbix_agentd:
cmd.run
service php-fpm restart:
cmd.run
cp -r /usr/local/zabbix-5.4.4/ui/* /usr/local/httpd/htdocs/zabbix/:
cmd.run
/usr/local/httpd/htdocs:
file.directory:
- user: apache
- group: apache
- mode: '0755'
chmod 777 /usr/local/httpd/htdocs/zabbix/conf:
cmd.run
systemctl restart httpd:
cmd.run
/srv/salt/prod/zabbix/zabbix/install.sh
#!/bin/bash
rm -rf zabbix-5.4.4
cd /usr/src/
tar xf zabbix-5.4.4.tar.gz -C /usr/local
/usr/local/mysql/bin/mysql -uroot -p123456 -e "create database zabbix character set utf8 collate utf8_bin;" && \
/usr/local/mysql/bin/mysql -uroot -p123456 -e "create user 'zabbix'@'localhost' identified by 'zabbix';" && \
/usr/local/mysql/bin/mysql -uroot -p123456 -e "grant all privileges on zabbix.* to 'zabbix'@'localhost';" && \
/usr/local/mysql/bin/mysql -uroot -p123456 -e "flush privileges;"
cd /usr/local/zabbix-5.4.4/database/mysql
/usr/local/mysql/bin/mysql -uroot -p123456 zabbix < schema.sql && \
/usr/local/mysql/bin/mysql -uroot -p123456 zabbix < images.sql && \
/usr/local/mysql/bin/mysql -uroot -p123456 zabbix < data.sql
cd /usr/local/zabbix-5.4.4/
./configure --enable-server \
--enable-agent \
--with-mysql \
--with-net-snmp \
--with-libcurl \
--with-libxml2 && make install
sed -i 's/# DBPassword=/DBPassword=zabbix/' /usr/local/etc/zabbix_server.conf

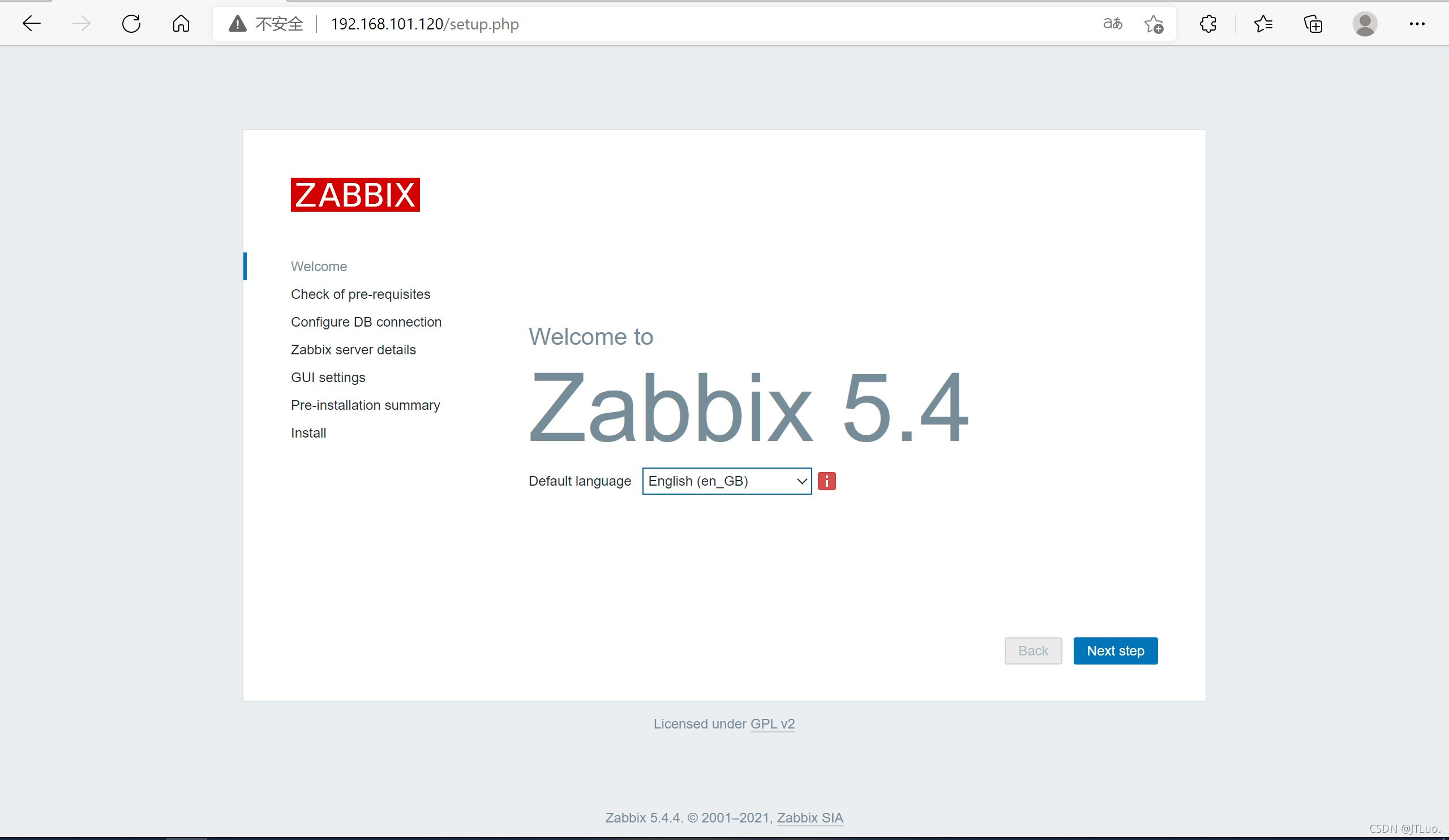

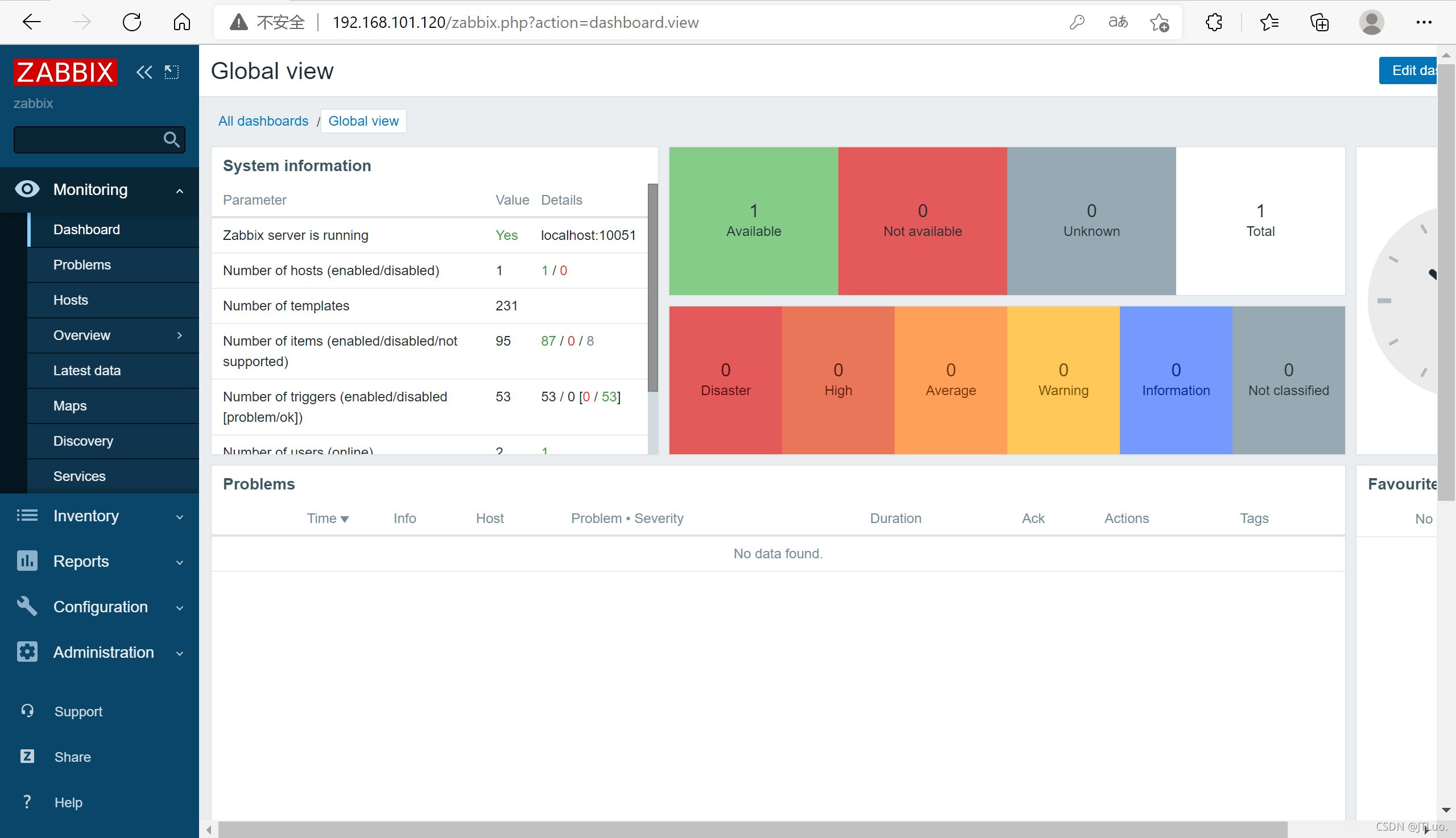

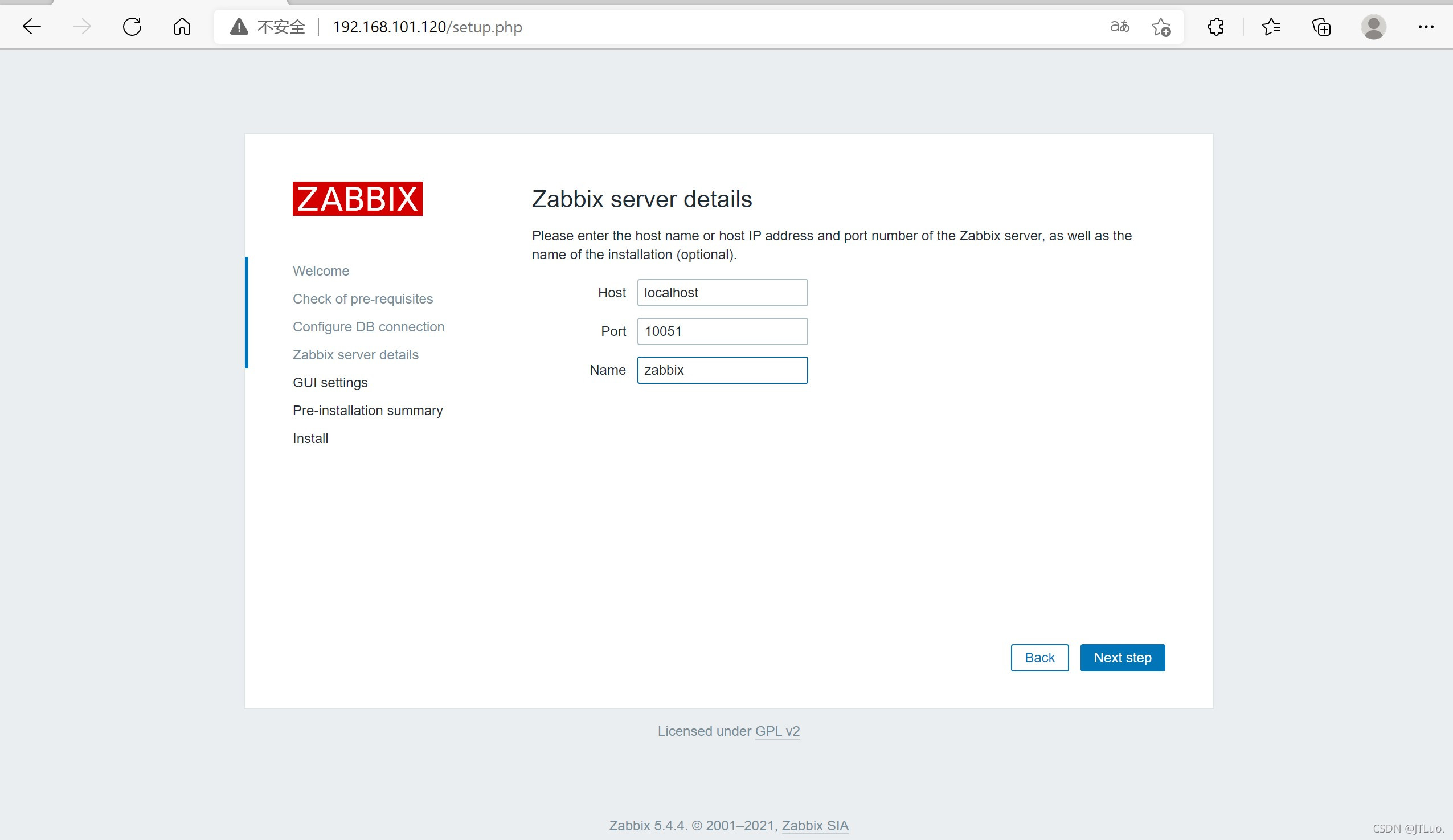

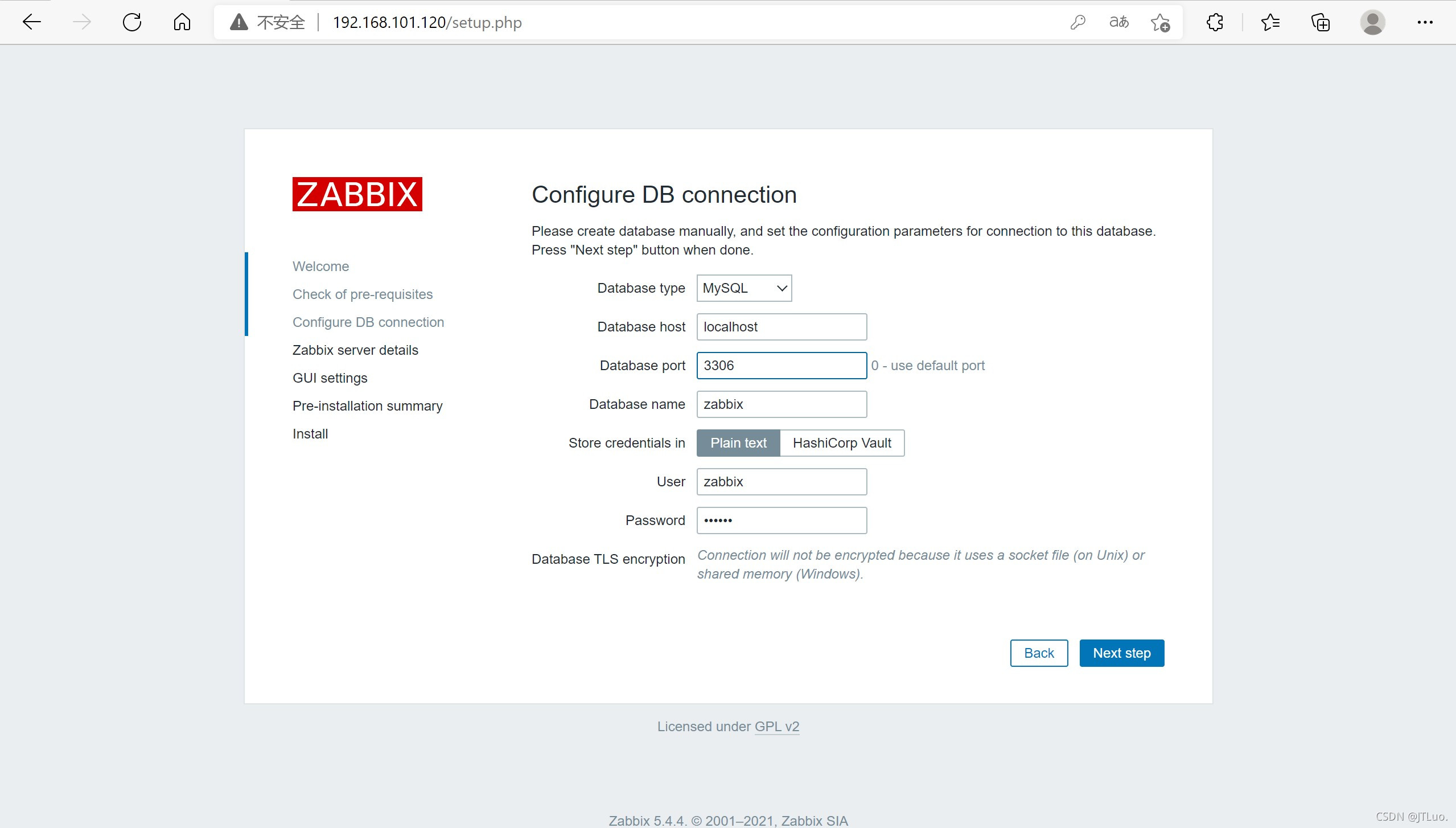

结果显示
