[大数据]Flink cdc 2.1.0发布测试

依赖：

<!--    <dependency>
        <groupId>com.ververica</groupId>
         <artifactId>flink-connector-mysql-cdc</artifactId>
        <version>2.1.0</version>
        <scope>provided</scope>
    </dependency>-->
<dependency>
    <groupId>com.ververica</groupId>
    <artifactId>flink-sql-connector-mysql-cdc</artifactId>
    <version>2.1.0</version>
    <scope>provided</scope>
</dependency>

1，最简单的代码：

package com.ververica.cdc.connectors.mysql.source;

import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import com.ververica.cdc.connectors.mysql.testutils.UniqueDatabase;
import com.ververica.cdc.debezium.JsonDebeziumDeserializationSchema;
import org.junit.Ignore;
import org.junit.Test;

/** Example Tests for {@link MySqlSource}. */
public class MySqlSourceExampleTest extends MySqlSourceTestBase {



    @Test
    @Ignore("Test ignored because it won't stop and is used for manual test")
    public void testConsumingAllEvents() throws Exception {
        inventoryDatabase.createAndInitialize();
        MySqlSource<String> mySqlSource =
                MySqlSource.<String>builder()
                        .hostname(MYSQL_CONTAINER.getHost())
                        .port(MYSQL_CONTAINER.getDatabasePort())
                        .databaseList(inventoryDatabase.getDatabaseName())
                        .tableList(inventoryDatabase.getDatabaseName() + ".products")
                        .username(inventoryDatabase.getUsername())
                        .password(inventoryDatabase.getPassword())
                        .serverId("5401-5404")
                        .deserializer(new JsonDebeziumDeserializationSchema())
                        .includeSchemaChanges(true) // output the schema changes as well
                        .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        // enable checkpoint
        env.enableCheckpointing(3000);
        // set the source parallelism to 4
        env.fromSource(mySqlSource, WatermarkStrategy.noWatermarks(), "MySqlParallelSource")
                .setParallelism(4)
                .print()
                .setParallelism(1);

        env.execute("Print MySQL Snapshot + Binlog");
    }
}

includeSchemaChanges(true)?是开启了，表结构变更感知

我这里只分析mysql?cdc的一些升级：

• 支持所有 MySQL 数据类型

  包括枚举类型、数组类型、地理信息类型等复杂类型。

• 支持 metadata column

  用户可以在 Flink DDL 中通过 db_name STRING METADATA FROM 'database_name' 的方式来访问库名(database_name)、表名（table_name）、变更时间（op_ts）等 meta 信息。这对分库分表场景的数据集成非常使用。

• 支持并发读取的 DataStream API

  在 2.0 版本中，无锁算法，并发读取等功能只在 SQL API 上透出给用户，而 DataStream API 未透出给用户，2.1 版本支持了 DataStream API，可通过 MySqlSourceBuilder 创建数据源。用户可以同时捕获多表数据，借此搭建整库同步链路。同时通过 MySqlSourceBuilder#includeSchemaChanges 还能捕获 schema 变更。

• 支持 currentFetchEventTimeLag，currentEmitEventTimeLag，sourceIdleTime 监控指标

  这些指标遵循 FLIP-33 [1] 的连接器指标规范，可以查看 FLIP-33 获取每个指标的含义。其中，currentEmitEventTimeLag 指标记录的是 Source 发送一条记录到下游节点的时间点和该记录在 DB 里产生时间点差值，用于衡量数据从 DB 产生到离开 Source 节点的延迟。用户可以通过该指标判断 source 是否进入了 binlog 读取阶段：

  • 即当该指标为 0 时，代表还在全量历史读取阶段；

  • 当大于 0 时，则代表进入了 binlog 读取阶段。

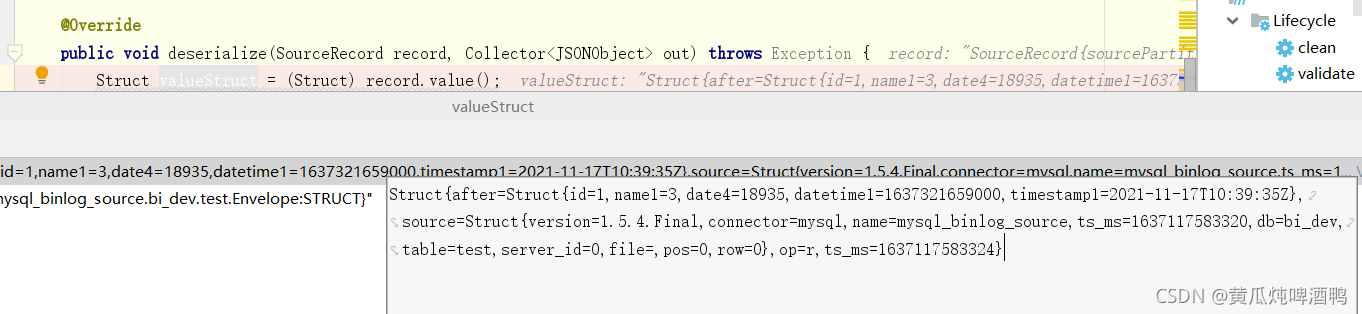

正常读取数据：

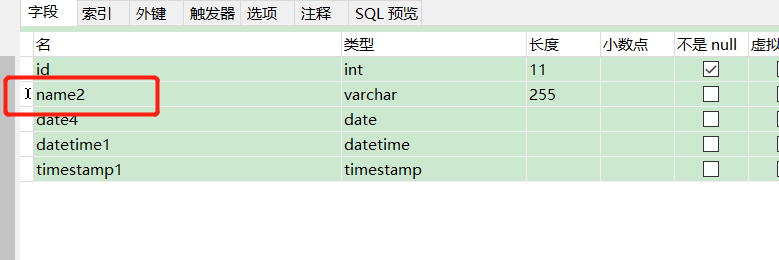

?debug一下结构变更之后：

name1? -> name2

?

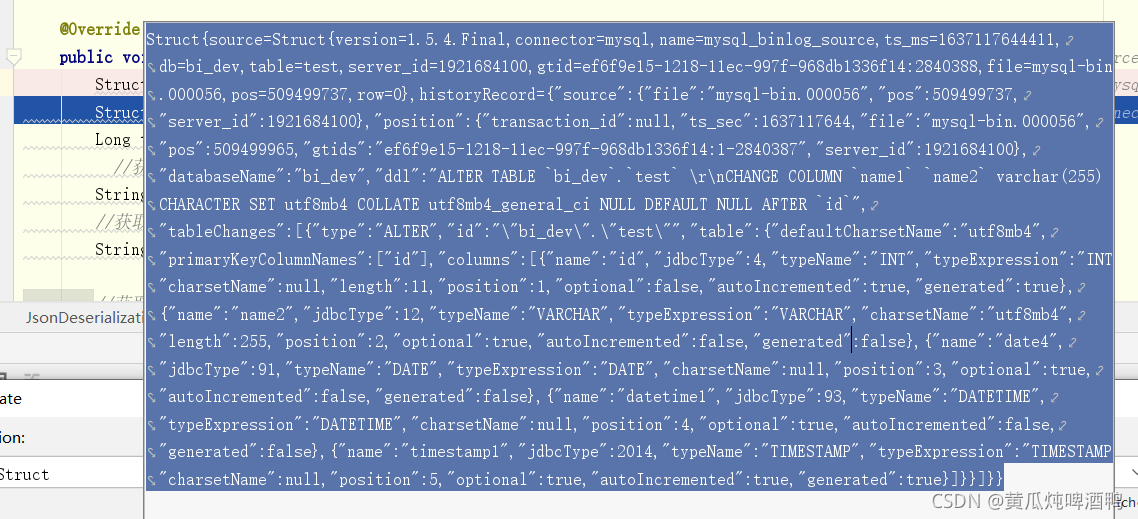

Struct的完整结构：

Struct{source=Struct{version=1.5.4.Final,connector=mysql,name=mysql_binlog_source,ts_ms=1637117644411,db=bi_dev,table=test,server_id=1921684100,gtid=ef6f9e15-1218-11ec-997f-968db1336f14:2840388,file=mysql-bin.000056,pos=509499737,row=0},historyRecord={"source":{"file":"mysql-bin.000056","pos":509499737,"server_id":1921684100},"position":{"transaction_id":null,"ts_sec":1637117644,"file":"mysql-bin.000056","pos":509499965,"gtids":"ef6f9e15-1218-11ec-997f-968db1336f14:1-2840387","server_id":1921684100},"databaseName":"bi_dev","ddl":"ALTER TABLE `bi_dev`.`test` \r\nCHANGE COLUMN `name1` `name2` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL AFTER `id`","tableChanges":[{"type":"ALTER","id":"\"bi_dev\".\"test\"","table":{"defaultCharsetName":"utf8mb4","primaryKeyColumnNames":["id"],"columns":[{"name":"id","jdbcType":4,"typeName":"INT","typeExpression":"INT","charsetName":null,"length":11,"position":1,"optional":false,"autoIncremented":true,"generated":true},{"name":"name2","jdbcType":12,"typeName":"VARCHAR","typeExpression":"VARCHAR","charsetName":"utf8mb4","length":255,"position":2,"optional":true,"autoIncremented":false,"generated":false},{"name":"date4","jdbcType":91,"typeName":"DATE","typeExpression":"DATE","charsetName":null,"position":3,"optional":true,"autoIncremented":false,"generated":false},{"name":"datetime1","jdbcType":93,"typeName":"DATETIME","typeExpression":"DATETIME","charsetName":null,"position":4,"optional":true,"autoIncremented":false,"generated":false},{"name":"timestamp1","jdbcType":2014,"typeName":"TIMESTAMP","typeExpression":"TIMESTAMP","charsetName":null,"position":5,"optional":true,"autoIncremented":true,"generated":true}]}}]}}

修改语句为：

"databaseName":"bi_dev","ddl":"ALTER TABLE `bi_dev`.`test`? CHANGE COLUMN `name1` `name2` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL AFTER `id`"

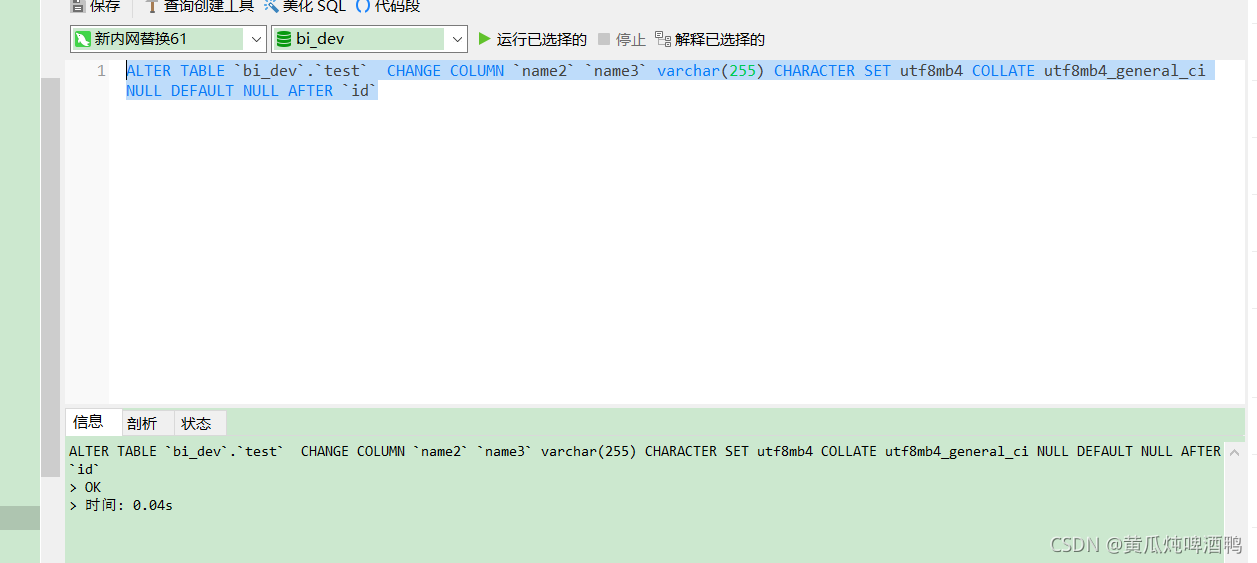

我们执行这个语句,稍微修改一下 ，将目前的name2?修改成name3：

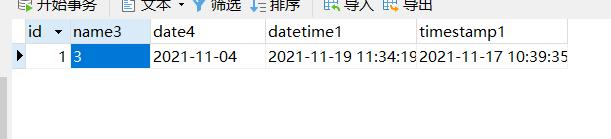

?查看效果：

修改之后的详细情况：

?[
????{
????????"type":"ALTER",
????????"id":"\"bi_dev\".\"test\"",
????????"table":{
????????????"defaultCharsetName":"utf8mb4",
????????????"primaryKeyColumnNames":[
????????????????"id"
????????????],
????????????"columns":[
????????????????{
????????????????????"name":"id",
????????????????????"jdbcType":4,
????????????????????"typeName":"INT",
????????????????????"typeExpression":"INT",
????????????????????"charsetName":null,
????????????????????"length":11,
????????????????????"position":1,
????????????????????"optional":false,
????????????????????"autoIncremented":true,
????????????????????"generated":true
????????????????},
????????????????{
????????????????????"name":"name2",
????????????????????"jdbcType":12,
????????????????????"typeName":"VARCHAR",
????????????????????"typeExpression":"VARCHAR",
????????????????????"charsetName":"utf8mb4",
????????????????????"length":255,
????????????????????"position":2,
????????????????????"optional":true,
????????????????????"autoIncremented":false,
????????????????????"generated":false
????????????????},
????????????????{
????????????????????"name":"date4",
????????????????????"jdbcType":91,
????????????????????"typeName":"DATE",
????????????????????"typeExpression":"DATE",
????????????????????"charsetName":null,
????????????????????"position":3,
????????????????????"optional":true,
????????????????????"autoIncremented":false,
????????????????????"generated":false
????????????????},
????????????????{
????????????????????"name":"datetime1",
????????????????????"jdbcType":93,
????????????????????"typeName":"DATETIME",
????????????????????"typeExpression":"DATETIME",
????????????????????"charsetName":null,
????????????????????"position":4,
????????????????????"optional":true,
????????????????????"autoIncremented":false,
????????????????????"generated":false
????????????????},
????????????????{
????????????????????"name":"timestamp1",
????????????????????"jdbcType":2014,
????????????????????"typeName":"TIMESTAMP",
????????????????????"typeExpression":"TIMESTAMP",
????????????????????"charsetName":null,
????????????????????"position":5,
????????????????????"optional":true,
????????????????????"autoIncremented":true,
????????????????????"generated":true
????????????????}
????????????]
????????}
????}
]

所以一定添加了对元数据修改的操作，数据解析也不一样了，要添加判断，后续代码会添加完整的解析代码,?然后监控元数据操作之后，针对下游的doris表进行元数据修改，未完。?
