[大数据]MapReduce框架原理（二）

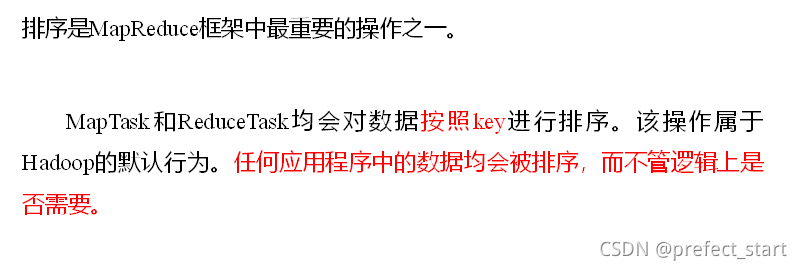

1、WritableComparable 排序

1.1、WritableComparable排序demo

1.1.1、需求

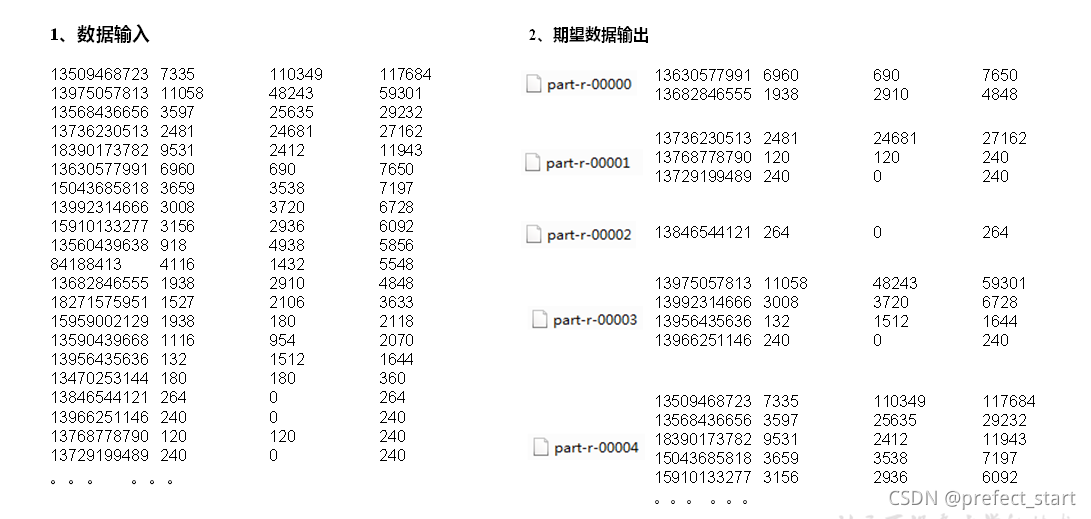

要求每个省份手机号输出的文件中按照总流量内部排序。增加自定义分区类，分区按照省份手机号设置。

13470253144	180	180	360
13509468723	7335	110349	117684
13560439638	918	4938	5856
13568436656	3597	25635	29232
13590439668	1116	954	2070
13630577991	6960	690	7650
13682846555	1938	2910	4848
13729199489	240	0	240
13736230513	2481	24681	27162
13768778790	120	120	240
13846544121	264	0	264
13956435636	132	1512	1644
13966251146	240	0	240
13975057813	11058	48243	59301
13992314666	3008	3720	6728
15043685818	3659	3538	7197
15910133277	3156	2936	6092
15959002129	1938	180	2118
18271575951	1527	2106	3633
18390173782	9531	2412	11943
84188413	4116	1432	5548

1.1.2、分析流程

1.1.3、代码实现

实体bean

package com.song.writablecomparable;

import lombok.Data;
import org.apache.hadoop.io.WritableComparable;

import java.io.DataInput;
import java.io.DataOutput;
import java.io.IOException;

@Data
public class FlowBean implements WritableComparable<FlowBean> {

    private long upFlow; //上行流量
    private long downFlow; //下行流量
    private long sumFlow; //总流量

    //2 提供无参构造
    public FlowBean() {
    }

    public void setSumFlow() {
        this.sumFlow = this.upFlow + this.downFlow;
    }

    //4 实现序列化和反序列化方法,注意顺序一定要保持一致
    @Override
    public void write(DataOutput dataOutput) throws IOException {
        dataOutput.writeLong(upFlow);
        dataOutput.writeLong(downFlow);
        dataOutput.writeLong(sumFlow);
    }

    @Override
    public void readFields(DataInput dataInput) throws IOException {
        this.upFlow = dataInput.readLong();
        this.downFlow = dataInput.readLong();
        this.sumFlow = dataInput.readLong();
    }

    //5 重写ToString
    @Override
    public String toString() {
        return upFlow + "\t" + downFlow + "\t" + sumFlow;
    }

    @Override
    public int compareTo(FlowBean bean) {
        int result;

        // 按照总流量大小，倒序排列
        if (this.sumFlow > bean.getSumFlow()) {
            result = -1;
        } else if (this.sumFlow < bean.getSumFlow()) {
            result = 1;
        } else {
            // 按照上行流量大小，倒序排列
            if (this.upFlow > bean.upFlow) {
                return -1;
            } else if (this.upFlow < bean.upFlow) {
                return 1;
            } else {
                result = 0;
            }
        }

        return result;
    }
}

mapper

package com.song.writablecomparable;

import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;

public class FlowMapper extends Mapper<LongWritable, Text, FlowBean, Text> {

    private FlowBean outK = new FlowBean();
    private Text outV = new Text();

    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

        //1 获取一行数据
        String line = value.toString();

        //2 按照"\t",切割数据
        String[] split = line.split("\t");

        //3 封装outK outV
        outK.setUpFlow(Long.parseLong(split[1]));
        outK.setDownFlow(Long.parseLong(split[2]));
        outK.setSumFlow();
        outV.set(split[0]);

        //4 写出outK outV
        context.write(outK, outV);
    }


}

reducer

package com.song.writablecomparable;

import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

public class FlowReducer extends Reducer<FlowBean, Text, Text, FlowBean> {
    @Override
    protected void reduce(FlowBean key, Iterable<Text> values, Context context) throws IOException, InterruptedException {

        //遍历values集合,循环写出,避免总流量相同的情况
        for (Text value : values) {
            //调换KV位置,反向写出
            context.write(value, key);
        }
    }

}

partitioner

package com.song.partitionerandwritablecomparable;

import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Partitioner;

public class ProvincePartitioner extends Partitioner<FlowBean, Text> {

    @Override
    public int getPartition(FlowBean flowBean, Text text, int numPartitions) {
        //获取手机号前三位prePhone
        String phone = text.toString();
        String prePhone = phone.substring(0, 3);

        //定义一个分区号变量partition,根据prePhone设置分区号
        int partition;

        if ("136".equals(prePhone)) {
            partition = 0;
        } else if ("137".equals(prePhone)) {
            partition = 1;
        } else if ("138".equals(prePhone)) {
            partition = 2;
        } else if ("139".equals(prePhone)) {
            partition = 3;
        } else {
            partition = 4;
        }

        //最后返回分区号partition
        return partition;
    }
}

driver

package com.song.partitionerandwritablecomparable;


import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

public class FlowDriver {
    public static void main(String[] args) throws IOException, ClassNotFoundException, InterruptedException {

        //1 获取job对象
        Configuration conf = new Configuration();
        Job job = Job.getInstance(conf);

        //2 关联本Driver类
        job.setJarByClass(FlowDriver.class);

        //3 关联Mapper和Reducer
        job.setMapperClass(FlowMapper.class);
        job.setReducerClass(FlowReducer.class);

        //4 设置Map端输出KV类型
        job.setMapOutputKeyClass(FlowBean.class);
        job.setMapOutputValueClass(Text.class);


        //5 设置程序最终输出的KV类型
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(FlowBean.class);

        // 指定自定义分区器
        job.setPartitionerClass(ProvincePartitioner.class);

        // 同时指定相应数量的ReduceTask
        job.setNumReduceTasks(5);

        //6 设置程序的输入输出路径
        FileInputFormat.setInputPaths(job, new Path("D:\\test_data\\data.txt"));
        FileOutputFormat.setOutputPath(job, new Path("D:\\test_data\\output8888"));

        //7 提交Job
        boolean b = job.waitForCompletion(true);
        System.exit(b ? 0 : 1);
    }

}

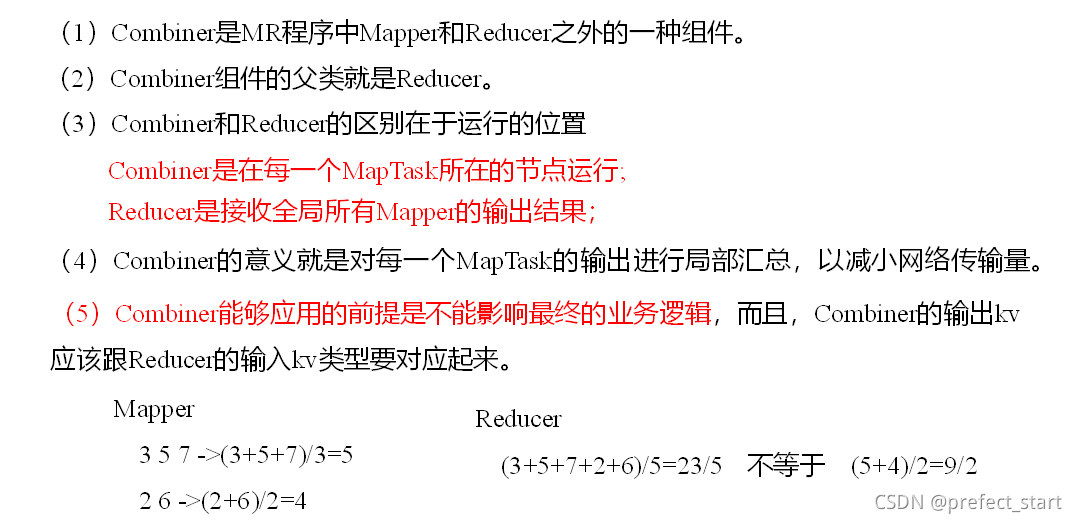

2、Combiner合并

2.1、Combiner合并Demo

2.1.1、需求

统计过程中对每一个MapTask的输出进行局部汇总，以减小网络传输量即采用Combiner功能

2.1.2、数据

banzhang ni hao
xihuan hadoop banzhang
banzhang ni hao
xihuan hadoop banzhang

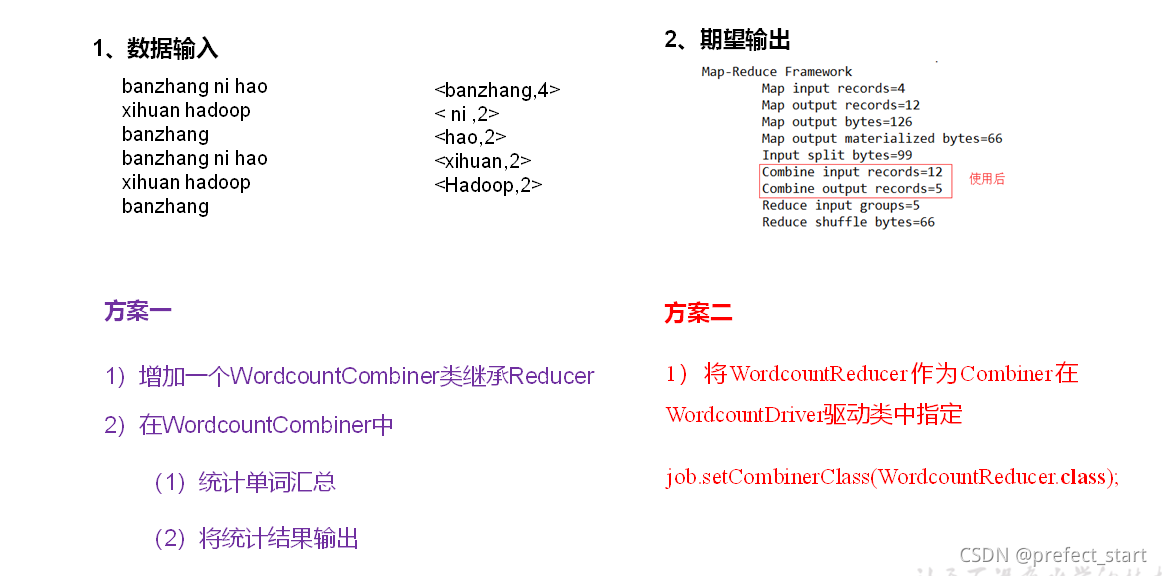

2.1.3、分析

2.1.4、代码实现

mapper

package com.song.combiner;

import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;

public class WordCountMapper extends Mapper<LongWritable, Text, Text, IntWritable> {
    Text k = new Text();
    IntWritable v = new IntWritable(1);

    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
        // 1 获取一行
        String line = value.toString();
        // 2 切割
        String[] words = line.split(" ");

        // 3 输出
        for (String word : words) {
            k.set(word);
            context.write(k, v);
        }
    }

}

reducer

package com.song.combiner;

import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

public class WordCountReducer extends Reducer<Text, IntWritable,Text,IntWritable> {
    int sum;
    IntWritable v = new IntWritable();

    @Override
    protected void reduce(Text key, Iterable<IntWritable> values,Context context) throws IOException, InterruptedException {

        // 1 累加求和
        sum = 0;
        for (IntWritable count : values) {
            sum += count.get();
        }
        // 2 输出
        v.set(sum);
        context.write(key,v);
    }

}

combiner

package com.song.combiner;

import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

public class WordCountCombiner extends Reducer<Text, IntWritable, Text, IntWritable> {
    private IntWritable outV = new IntWritable();

    @Override
    protected void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException {

        int sum = 0;
        for (IntWritable value : values) {
            sum += value.get();
        }
        //封装outKV
        outV.set(sum);
        //写出outKV
        context.write(key, outV);
    }

}

driver

package com.song.combiner;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

public class WordCountDriver {
    public static void main(String[] args) throws IOException, ClassNotFoundException, InterruptedException {

        // 1 获取配置信息以及获取job对象
        Configuration conf = new Configuration();
        Job job = Job.getInstance(conf);

        // 2 关联本Driver程序的jar
        job.setJarByClass(WordCountDriver.class);

        // 3 关联Mapper和Reducer的jar
        job.setMapperClass(WordCountMapper.class);
        job.setReducerClass(WordCountReducer.class);

        // 4 设置Mapper输出的kv类型
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(IntWritable.class);

        // 5 设置最终输出kv类型
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(IntWritable.class);

        // 方式一
//        job.setCombinerClass(WordCountCombiner.class);

        // 方式二
        job.setCombinerClass(WordCountReducer.class);


        // 6 设置输入和输出路径
        FileInputFormat.setInputPaths(job, new Path("D:\\test_data\\hello.txt"));
        FileOutputFormat.setOutputPath(job, new Path("D:\\test_data\\out11"));

        // 7 提交job
        boolean result = job.waitForCompletion(true);
        System.exit(result ? 0 : 1);
    }

}

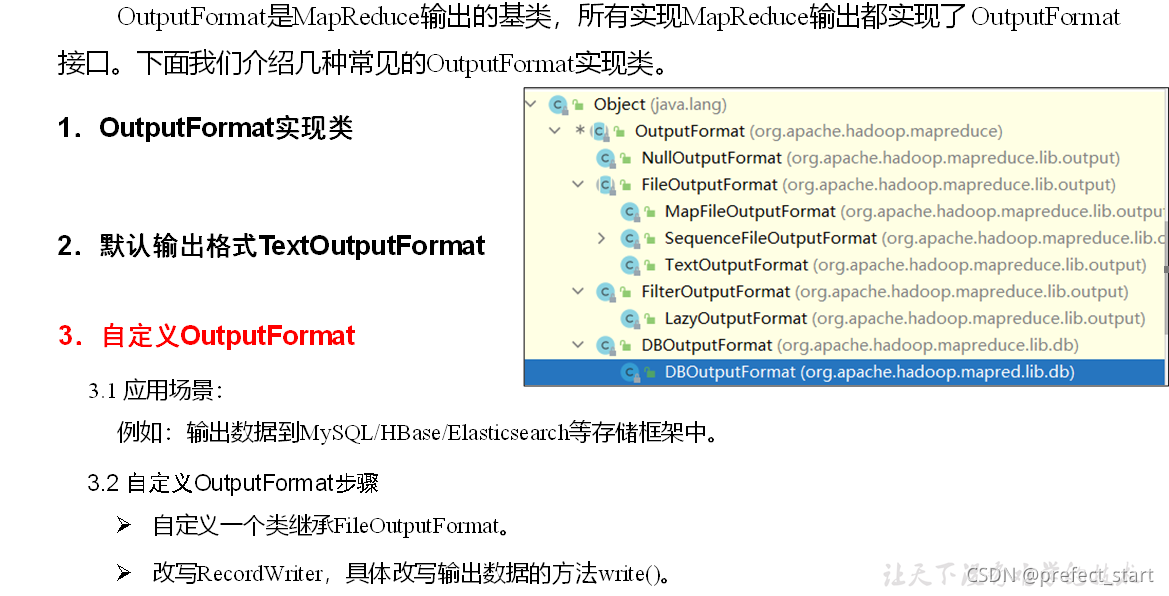

3、OutputFormat数据输出

3.1、自定义OutputFormat案例实操

3.1.1、需求

过滤输入的log日志，包含atguigu的网站输出到e:/atguigu.log，不包含atguigu的网站输出到e:/other.log。

3.1.2、输入数据

http://www.baidu.com
http://www.google.com
http://cn.bing.com
http://www.atguigu.com
http://www.sohu.com
http://www.sina.com
http://www.sin2a.com
http://www.sin2desa.com
http://www.sindsafa.com

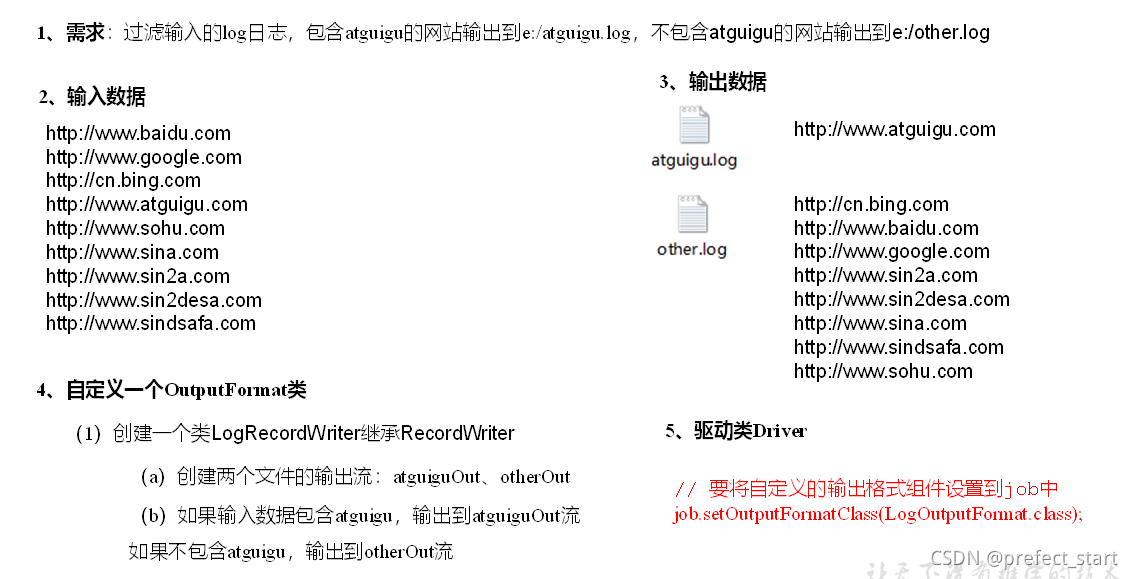

3.1.3、分析

3.1.4、代码实现

mapper

package com.song.outputformat;

import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;

public class LogMapper extends Mapper<LongWritable, Text,Text, NullWritable> {
    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
        //不做任何处理,直接写出一行log数据
        context.write(value,NullWritable.get());
    }
}

reducer

package com.song.outputformat;

import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

public class LogReducer extends Reducer<Text, NullWritable, Text, NullWritable> {
    @Override
    protected void reduce(Text key, Iterable<NullWritable> values, Context context) throws IOException, InterruptedException {
        // 防止有相同的数据,迭代写出
        for (NullWritable value : values) {
            context.write(key, NullWritable.get());
        }
    }
}

LogOutputFormat

package com.song.outputformat;

import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.RecordWriter;
import org.apache.hadoop.mapreduce.TaskAttemptContext;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

public class LogOutputFormat extends FileOutputFormat<Text, NullWritable> {
    @Override
    public RecordWriter<Text, NullWritable> getRecordWriter(TaskAttemptContext job) throws IOException, InterruptedException {
        //创建一个自定义的RecordWriter返回
        return new LogRecordWriter(job);
    }
}

LogRecordWriter

package com.song.outputformat;

import org.apache.hadoop.fs.FSDataOutputStream;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IOUtils;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.RecordWriter;
import org.apache.hadoop.mapreduce.TaskAttemptContext;

import java.io.IOException;

public class LogRecordWriter extends RecordWriter<Text, NullWritable> {

    private FSDataOutputStream atguiguOut;
    private FSDataOutputStream otherOut;

    public LogRecordWriter(TaskAttemptContext job) {
        try {
            //获取文件系统对象
            FileSystem fs = FileSystem.get(job.getConfiguration());
            //用文件系统对象创建两个输出流对应不同的目录
            atguiguOut = fs.create(new Path("d:\\test_data\\hadoop\\atguigu.log"));
            otherOut = fs.create(new Path("d:\\test_data\\hadoop\\other.log"));
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @Override
    public void write(Text key, NullWritable value) throws IOException, InterruptedException {
        String log = key.toString();
        //根据一行的log数据是否包含atguigu,判断两条输出流输出的内容
        if (log.contains("atguigu")) {
            atguiguOut.writeBytes(log + "\n");
        } else {
            otherOut.writeBytes(log + "\n");
        }
    }

    @Override
    public void close(TaskAttemptContext context) throws IOException, InterruptedException {
        //关流
        IOUtils.closeStream(atguiguOut);
        IOUtils.closeStream(otherOut);
    }
}

driver

package com.song.outputformat;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

import java.io.IOException;

public class LogDriver {
    public static void main(String[] args) throws IOException, ClassNotFoundException, InterruptedException {

        Configuration conf = new Configuration();
        Job job = Job.getInstance(conf);

        job.setJarByClass(LogDriver.class);
        job.setMapperClass(LogMapper.class);
        job.setReducerClass(LogReducer.class);

        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(NullWritable.class);

        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(NullWritable.class);

        //设置自定义的outputformat
        job.setOutputFormatClass(LogOutputFormat.class);

        FileInputFormat.setInputPaths(job, new Path("D:\\test_data"));
        //虽然我们自定义了outputformat，但是因为我们的outputformat继承自fileoutputformat
        //而fileoutputformat要输出一个_SUCCESS文件，所以在这还得指定一个输出目录
        FileOutputFormat.setOutputPath(job, new Path("D:\\test_data\\logoutput"));

        boolean b = job.waitForCompletion(true);
        System.exit(b ? 0 : 1);
    }
}
