一、准备工作

已安装 Elasticsearch
已安装logstash
Java开发环境

二、Logstash配置

在 Logstash 的config目录下，新建 logstash-logback.conf 文件：

input {
        tcp {
        // 在4560端口接收logback传来的日志
        host => "0.0.0.0"
        port => 4560
        mode => "server"
        tags => ["tags"]
        codec => json_lines
        }
}
output {

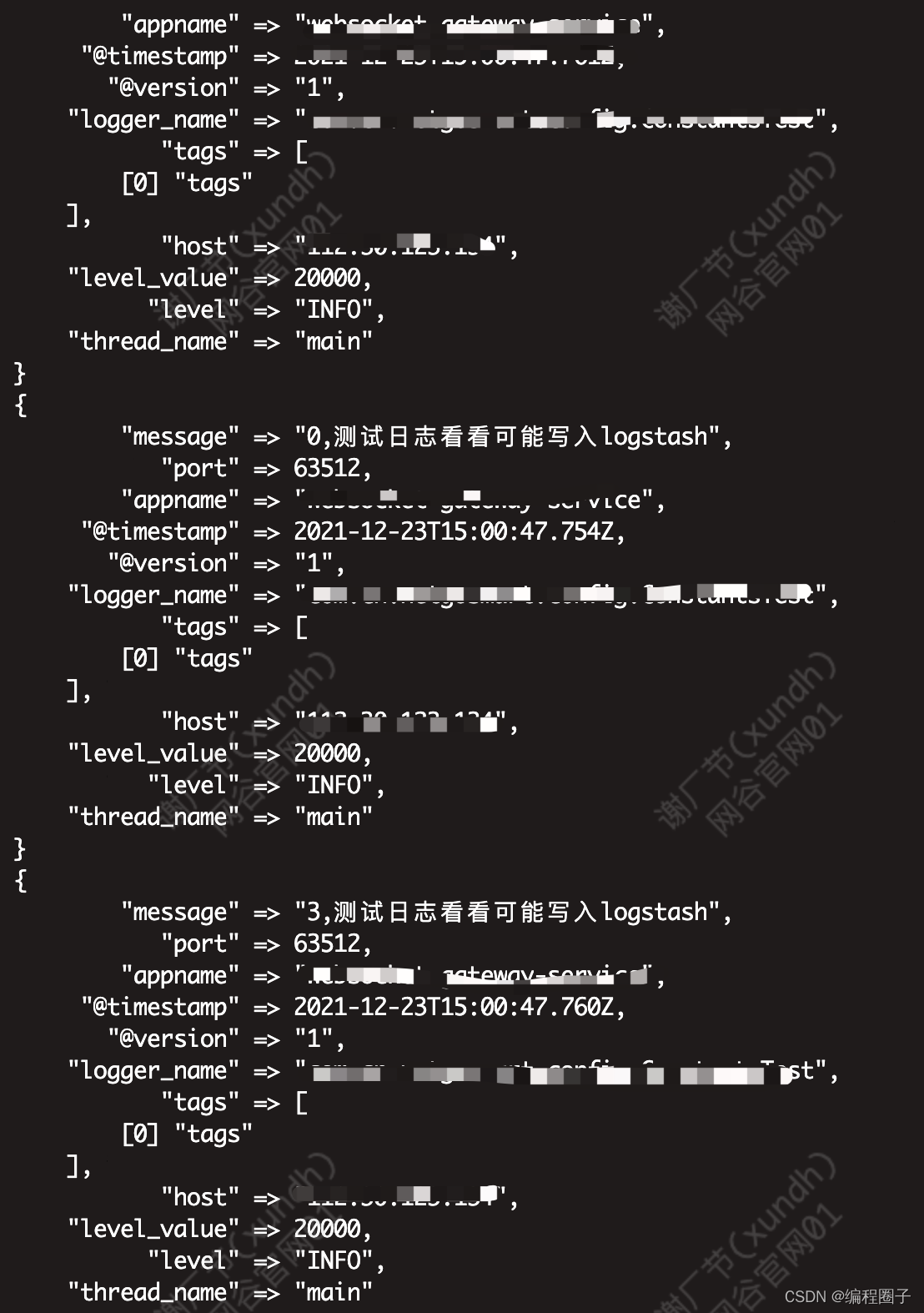

        stdout { codec => rubydebug }
        #输出到es
        elasticsearch { hosts => "127.0.0.1:9200" }
}

启动时，加载该配置文件：

nohup ./bin/logstash -f config/logstash-logback.conf &

三、Logback设置

1. pom.xml引用


        <!-- https://mvnrepository.com/artifact/net.logstash.logback/logstash-logback-encoder -->
        <dependency>
            <groupId>net.logstash.logback</groupId>
            <artifactId>logstash-logback-encoder</artifactId>
            <version>7.0.1</version>
        </dependency>

2. logback-spring.xml设置

 <appender name="logstash" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
        <destination>你的logstash ip</destination>
        <param name="Encoding" value="UTF-8"/>
        <!-- <filter class="com.program.interceptor.ELKFilter"/>-->
        <!-- encoder is required -->
        <encoder charset="UTF-8" class="net.logstash.logback.encoder.LogstashEncoder" >
            <customFields>{"appname":"${appName}"}</customFields>
        </encoder>
    </appender>

这样就可以测试log了。

@RunWith(SpringRunner.class)
@SpringBootTest
@Slf4j
@WebAppConfiguration
public class ConstantsTest {
    @Test
    public void Test() {
        for(int i=0;i<5;i++) {
            log.info("{},测试日志{}",i, "看看可能写入logstash");
        }
    }
}
