简介 ?
?????? kibana 是一款开源的数据分析和可视化平台，它是 Elastic Stack 成员之一，设计用于和 Elasticsearch 协作。您可以使用 Kibana 对 Elasticsearch 索引中的数据进行搜索、查看、交互操作。您可以很方便的利用图表、表格及地图对数据进行多元化的分析和呈现。
实验环境
server1-3 es集群优化好
安装kibana
准备安装包kibana-7.6.1-x86_64.rpm,server4
rpm -ivh kibana-7.6.1-x86_64.rpm 编辑配置文件
cd /etc/kibana/?115??? i18n.locale: "zh-CN"? 中文
37?? kibana.index: ".kibana"
28? elasticsearch.hosts: ["http://172.25.7.1:9200"]
? 2? server.port: 5601
?7?? server.host: "172.25.7.4"
?启动服务查看端口
systemctl start kibana.service

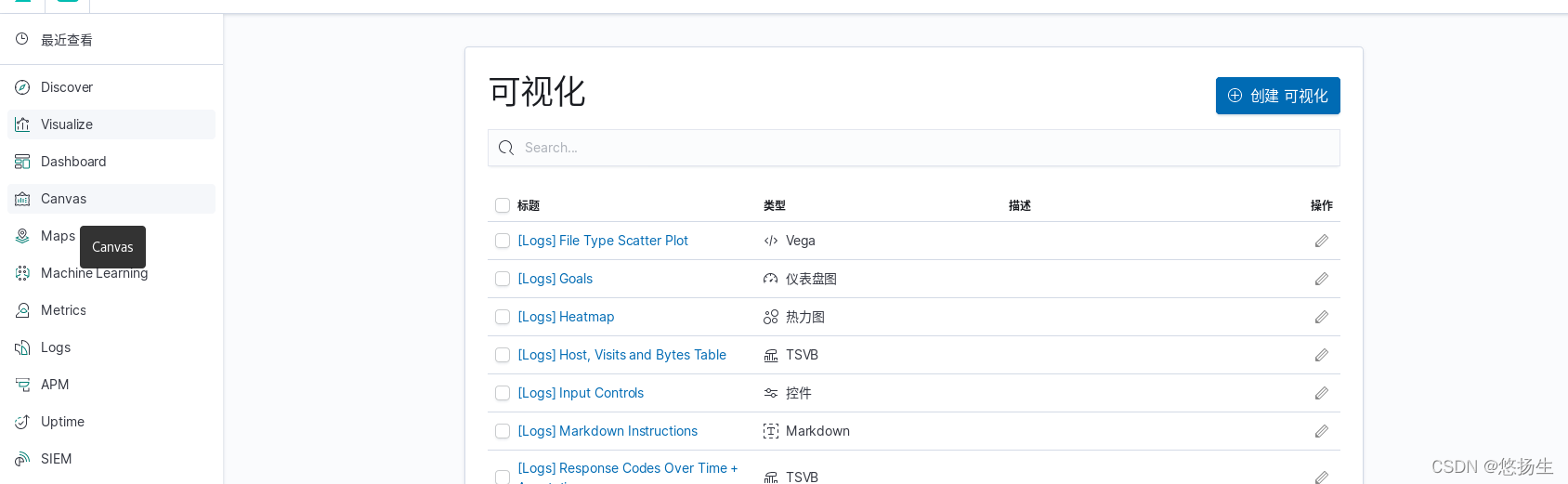

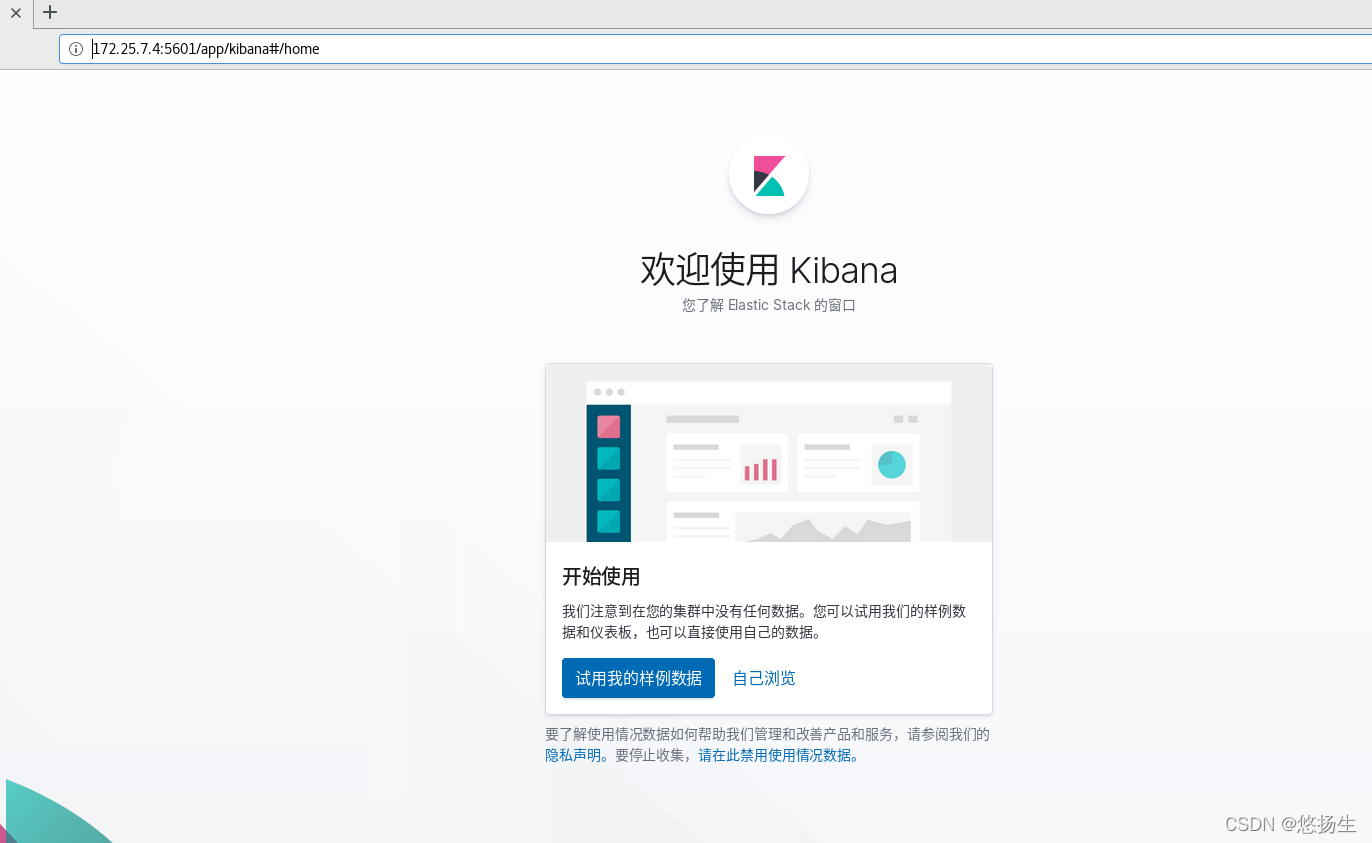

?可视化
?使用样例模板
选swap

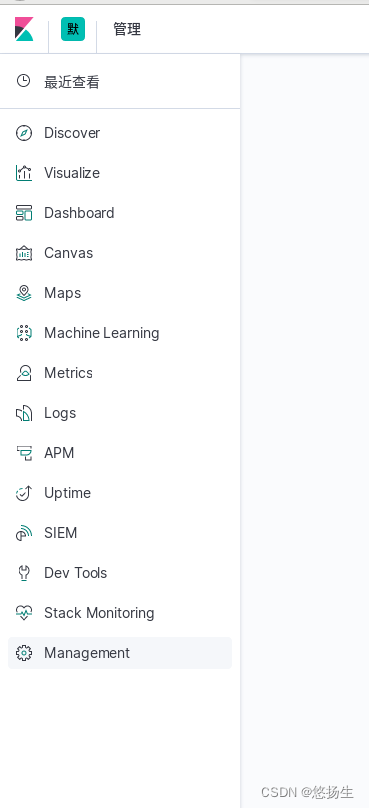

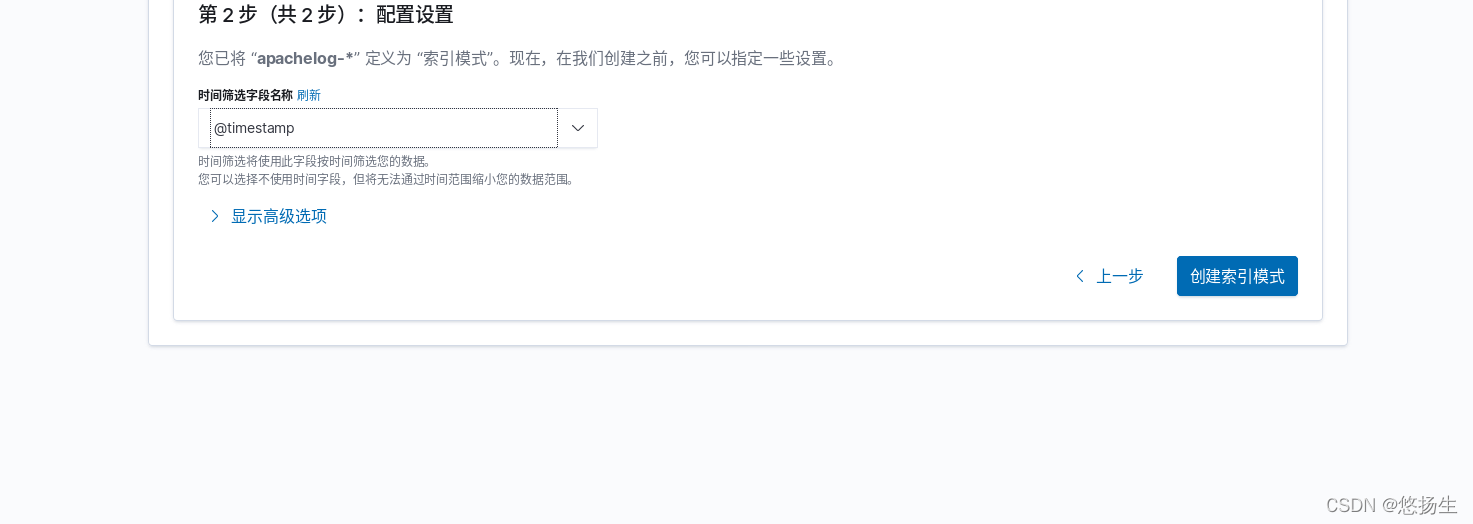

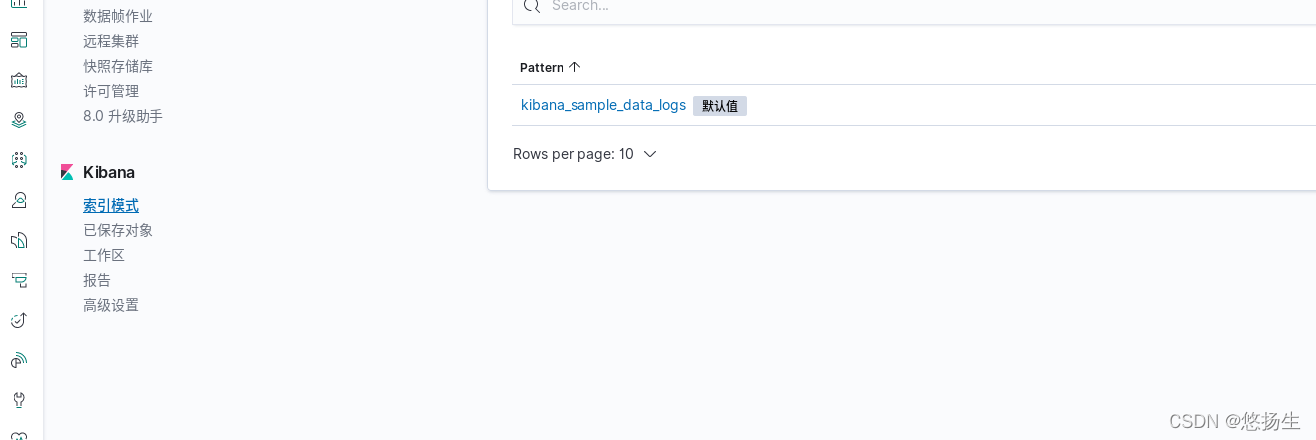

左下脚manager进入管理，创建索引
?
?索引可视化v
?
?当我们再次收集apache
server4 logstash -f /etc/logstash/conf.d/test.conf
主机
ab -c1 -n 500 http://172.25.7.4/index.html

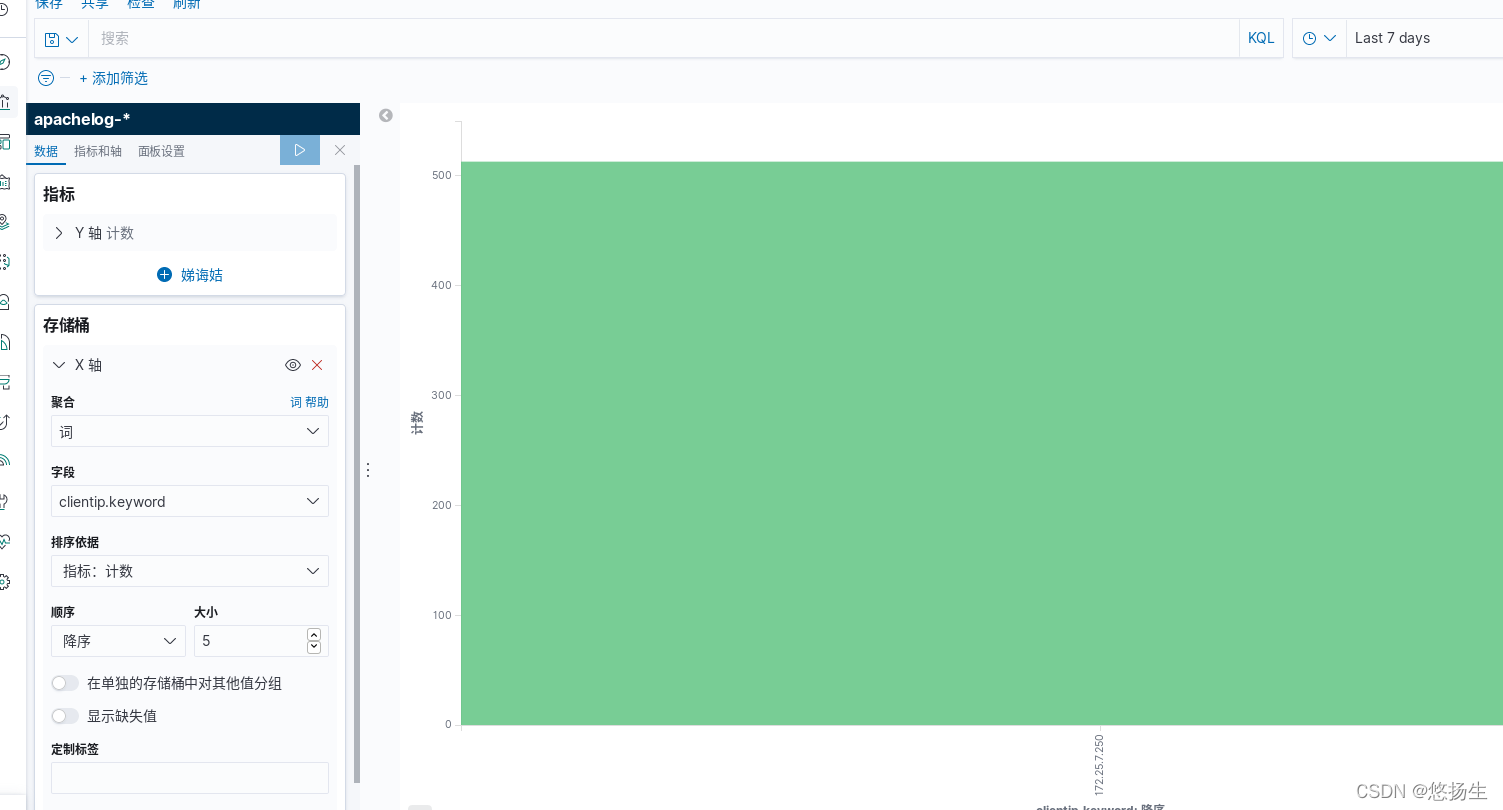

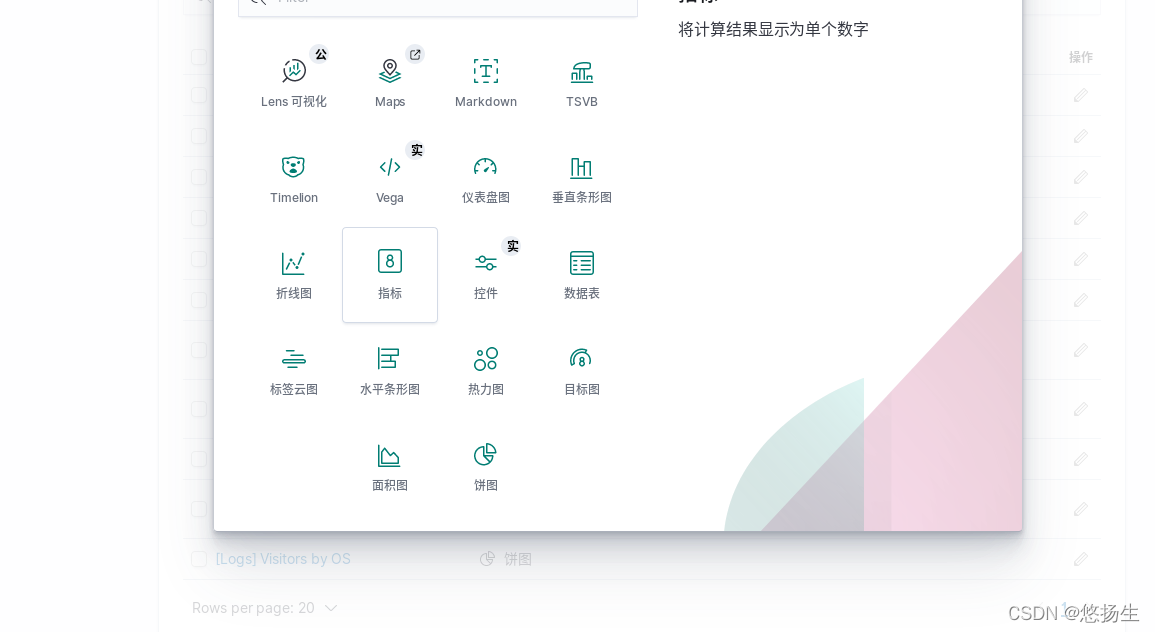

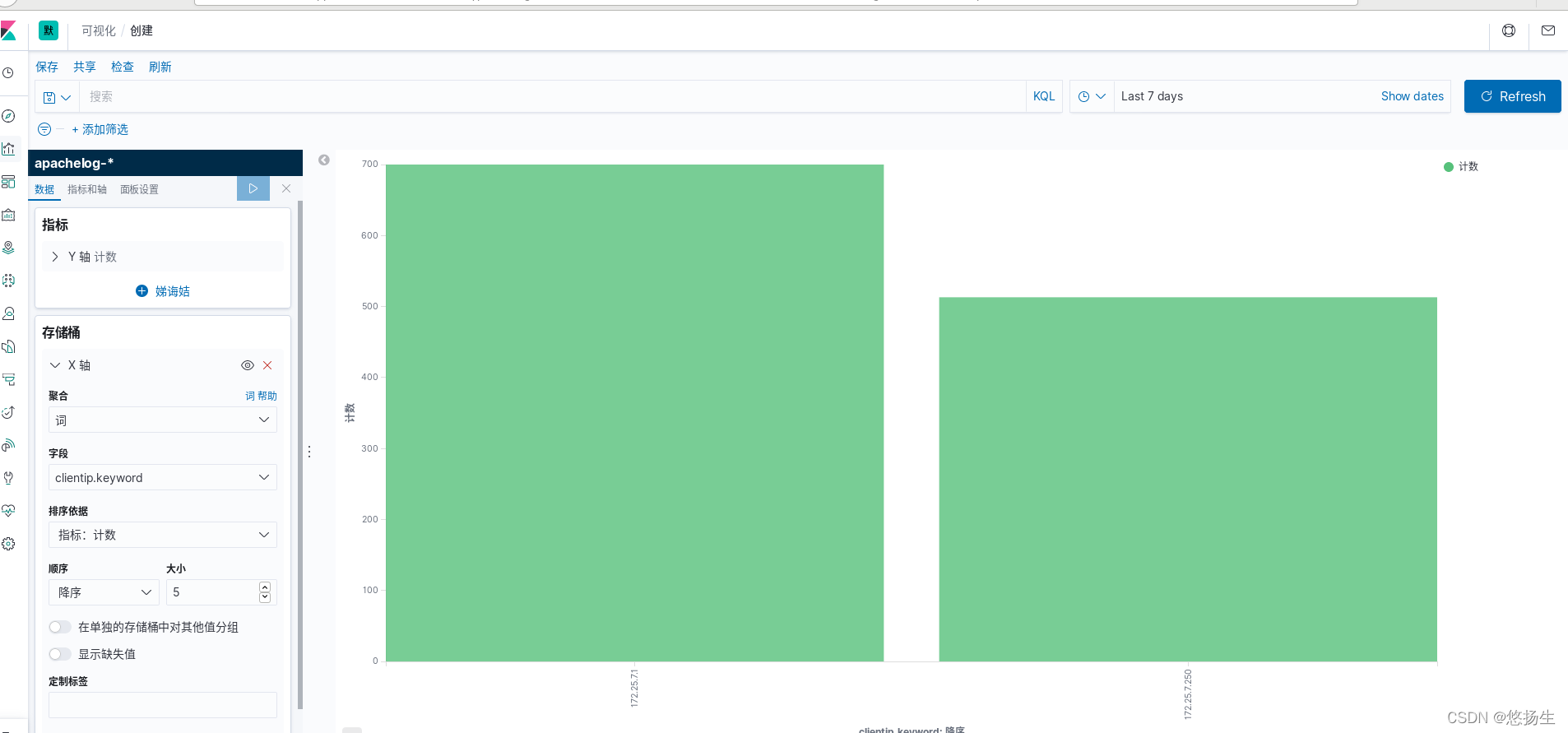

创建可视化垂直
加xy轴
server1主机访问步骤一样

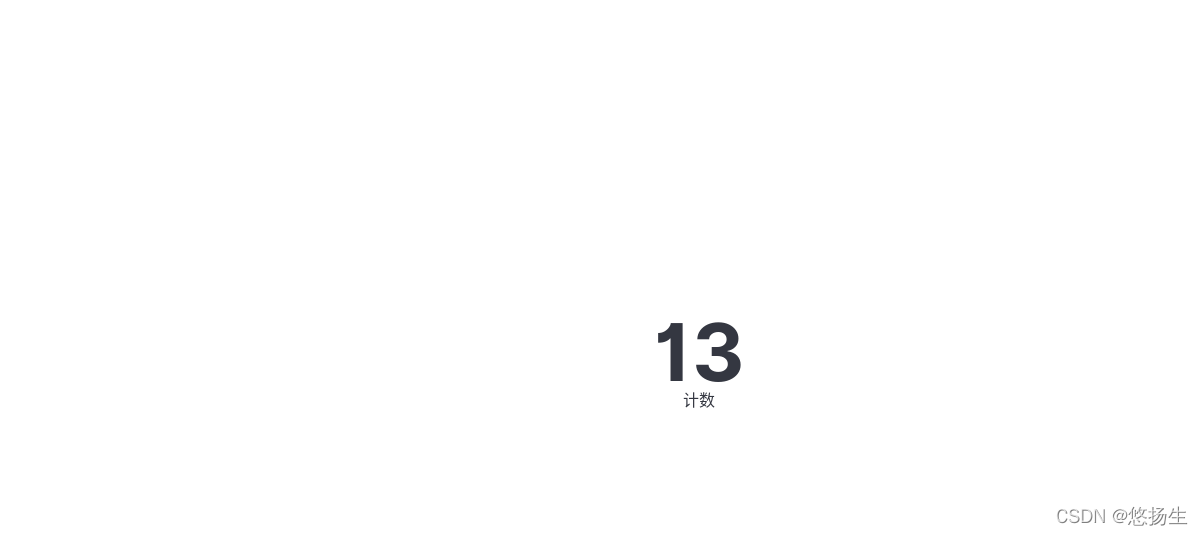

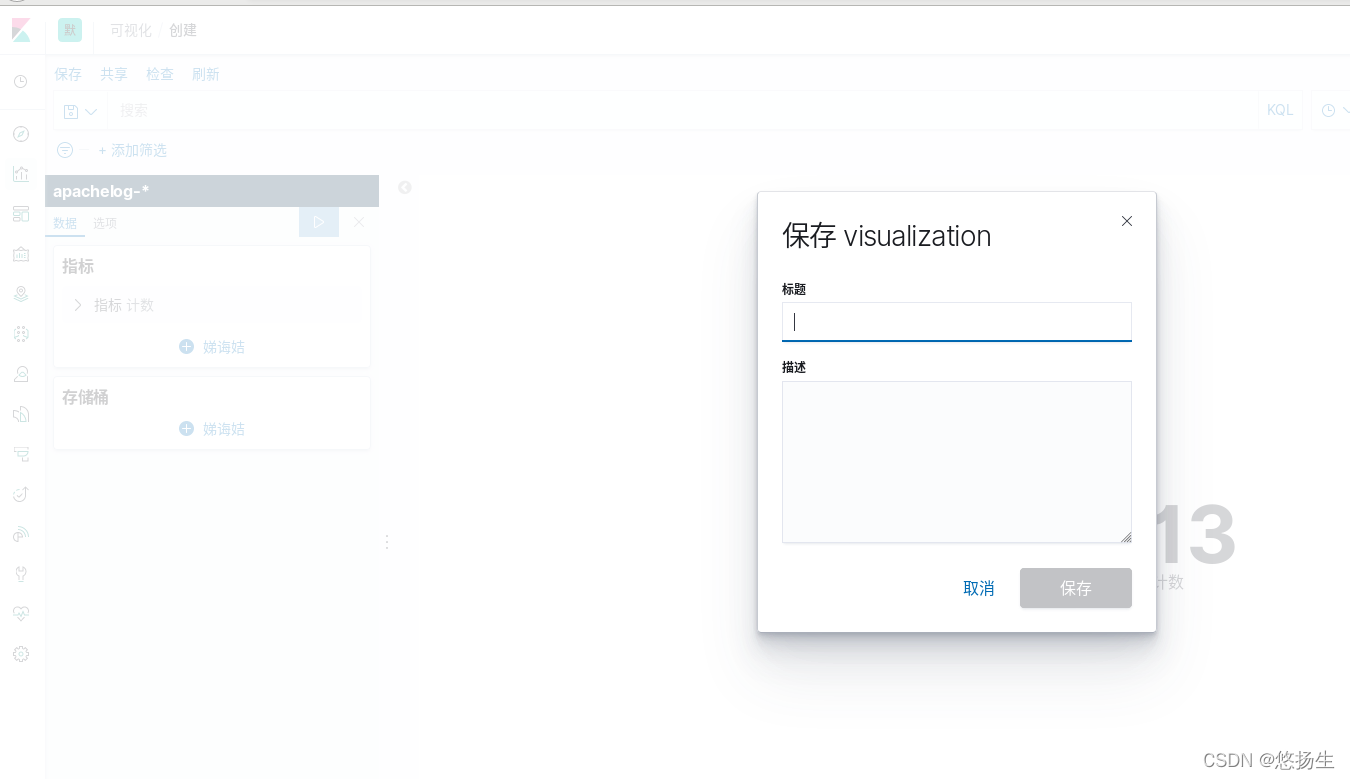

?保存，top3

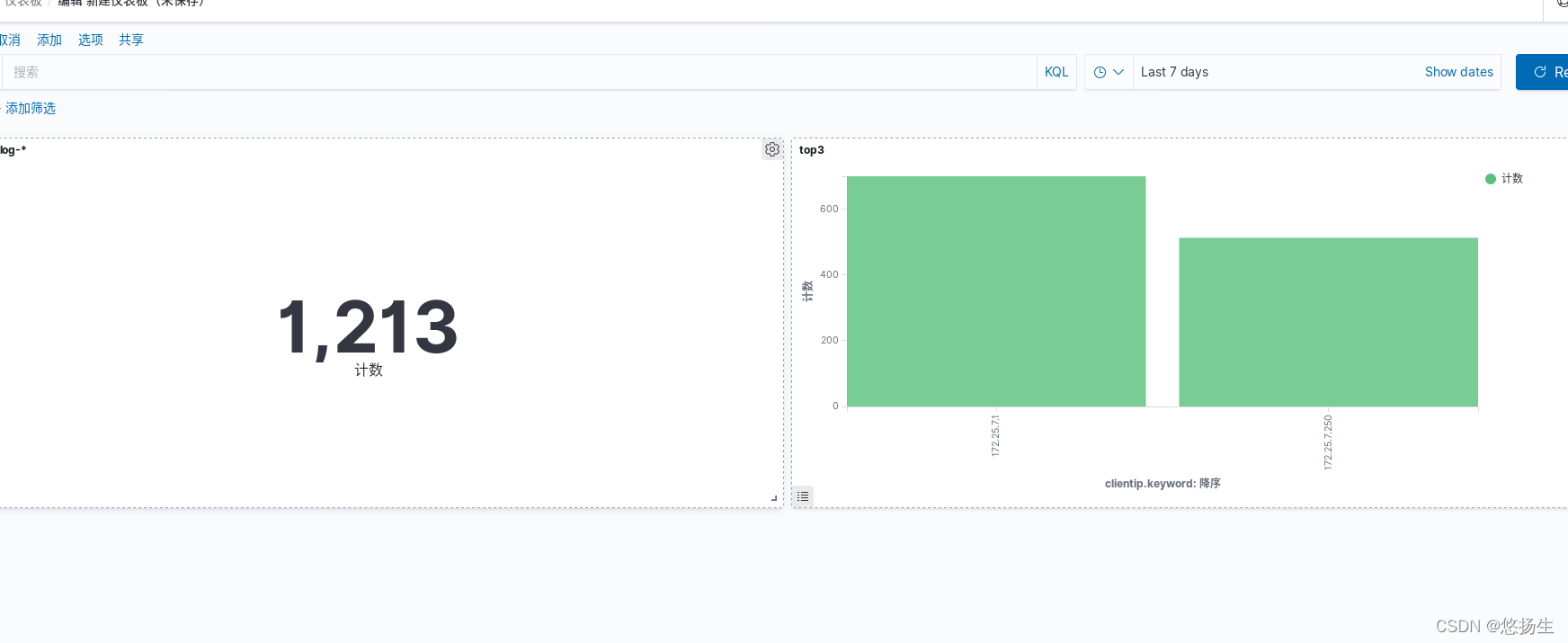

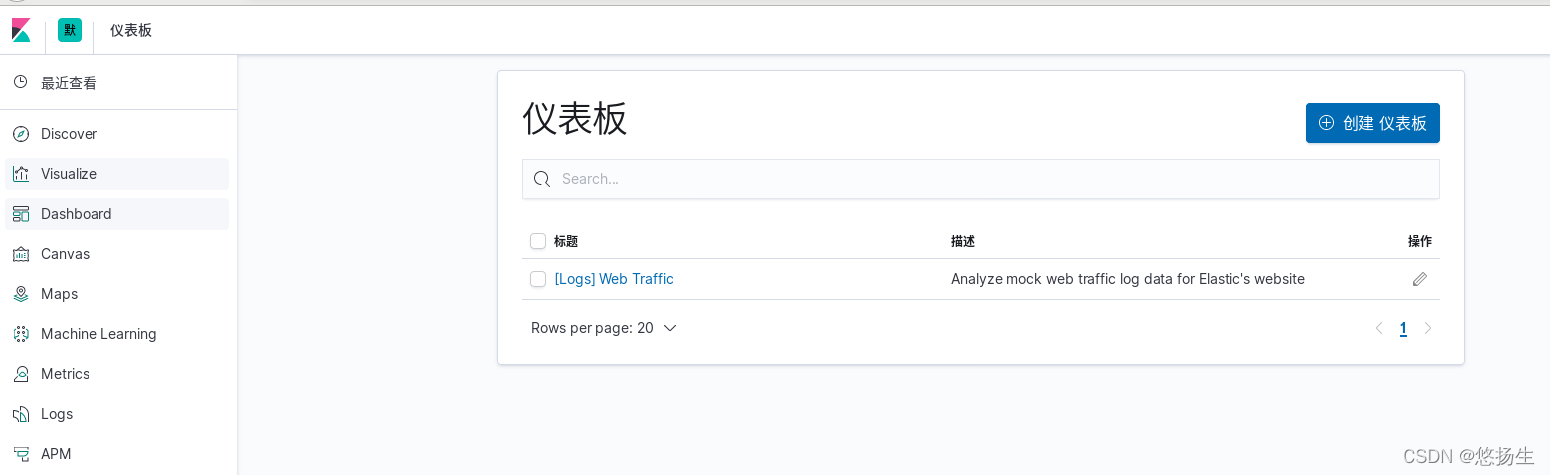

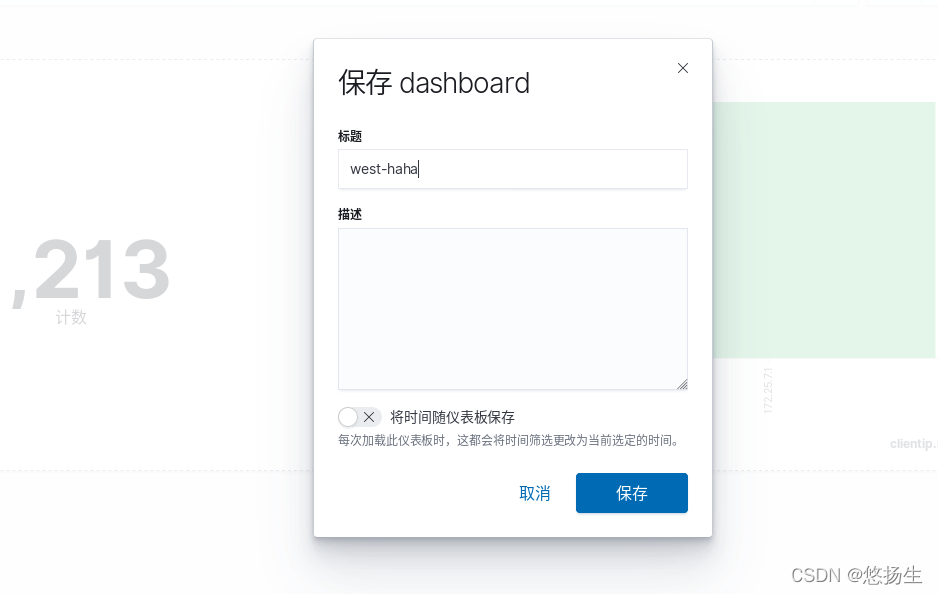

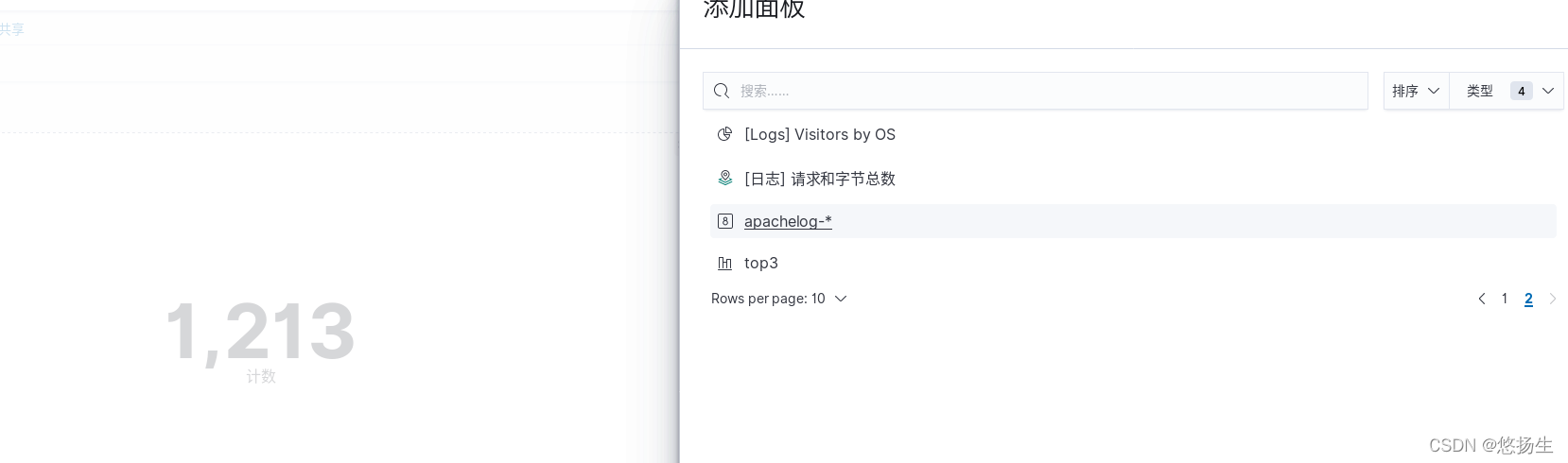

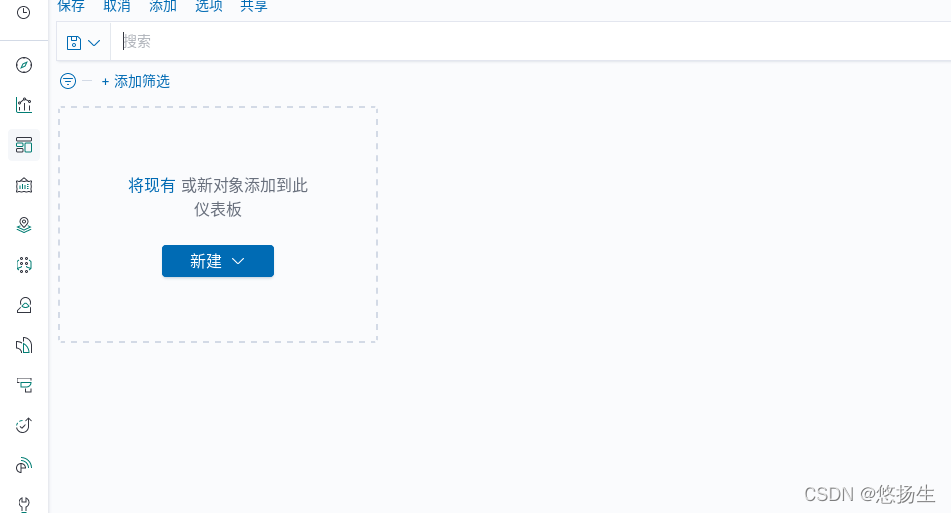

创建仪表板dashbord
?
?
?
?保存

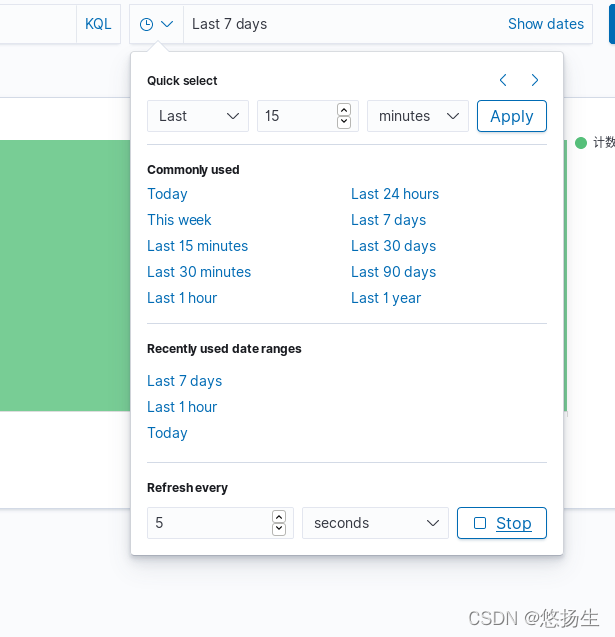

刷新时间
内部信息查询
?启用xpack验证
server1
找到证书工工具
[root@server1 bin]# cd ..

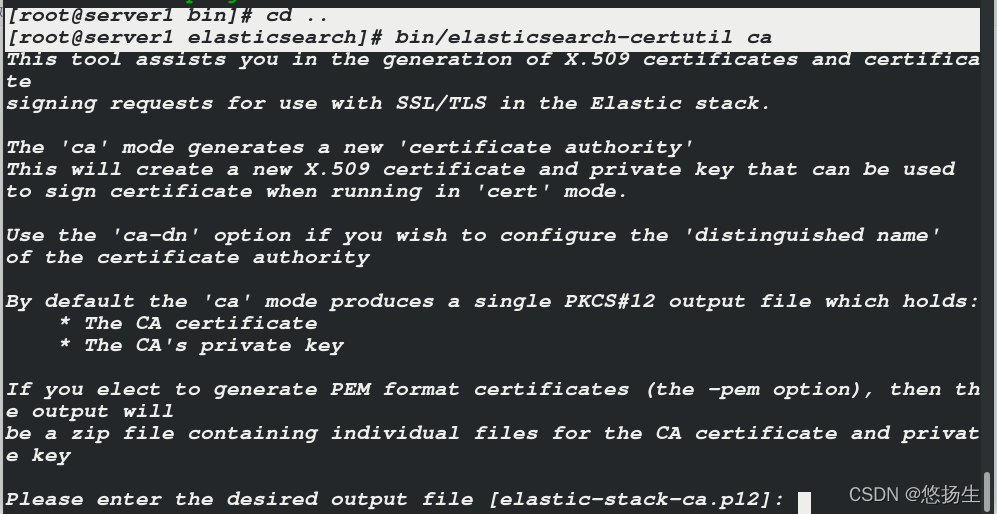

[root@server1 elasticsearch]# bin/elasticsearch-certutil ca
?回车
bin/elasticsearch-certutil cert --ca elastic-stack-ca.p12[root@server1 elasticsearch]# ls
bin?????????????????????? jdk????????? modules???? README.asciidoc
elastic-certificates.p12? lib????????? NOTICE.txt
elastic-stack-ca.p12????? LICENSE.txt? plugins
[root@server1 elasticsearch]

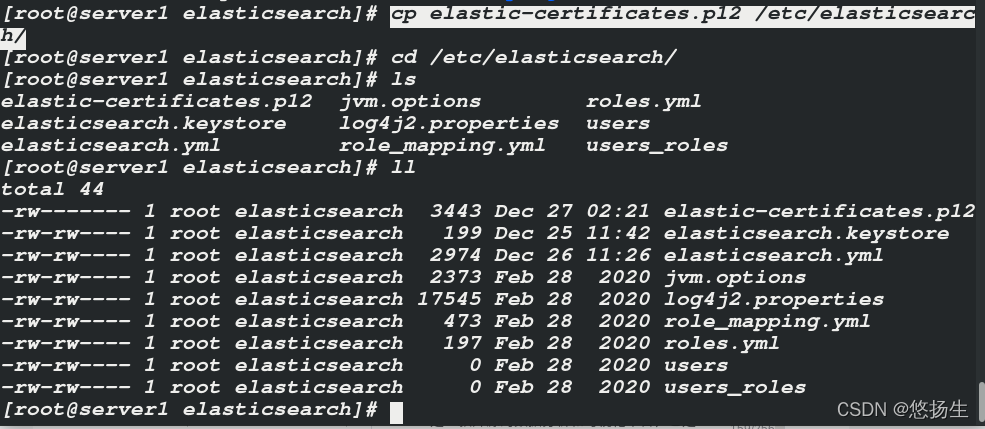

cp elastic-certificates.p12 /etc/elasticsearch/
??每个节点的都需要

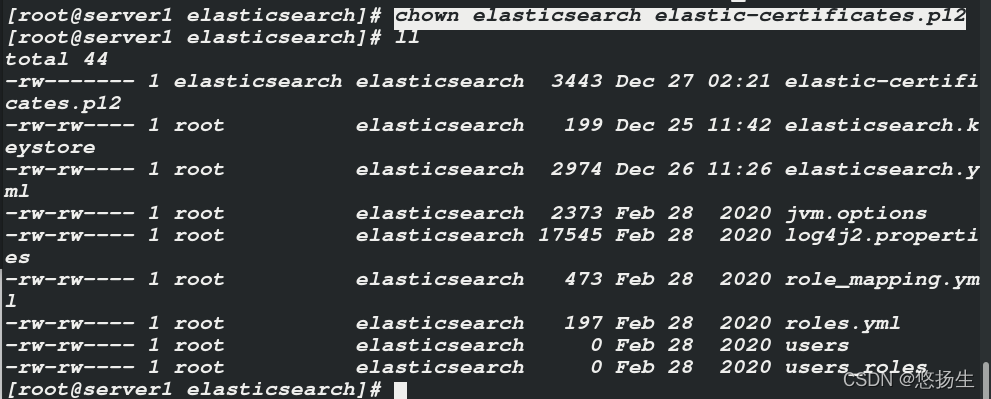

chown elasticsearch elastic-certificates.p12

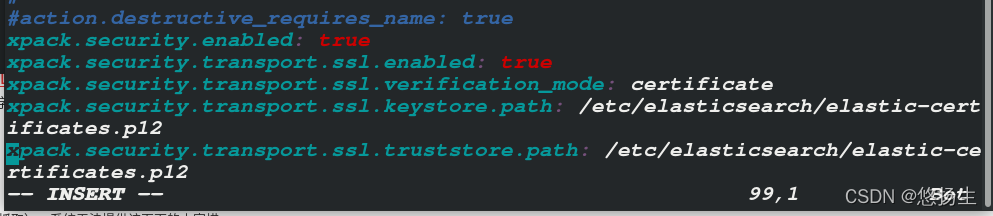

vim elasticsearch.yml
xpack.security.enabled: true
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.verification_mode: certificate
xpack.security.transport.ssl.keystore.path: /etc/elasticsearch/elastic-certificates.p12
xpack.security.transport.ssl.truststore.path: /etc/elasticsearch/elastic-certificates.p12证书复制

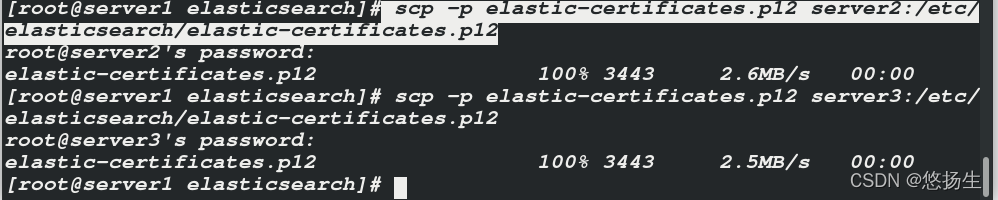

scp -p elastic-certificates.p12 server2:/etc/elasticsearch/elastic-certificates.p12
?重启服务
连接elastic

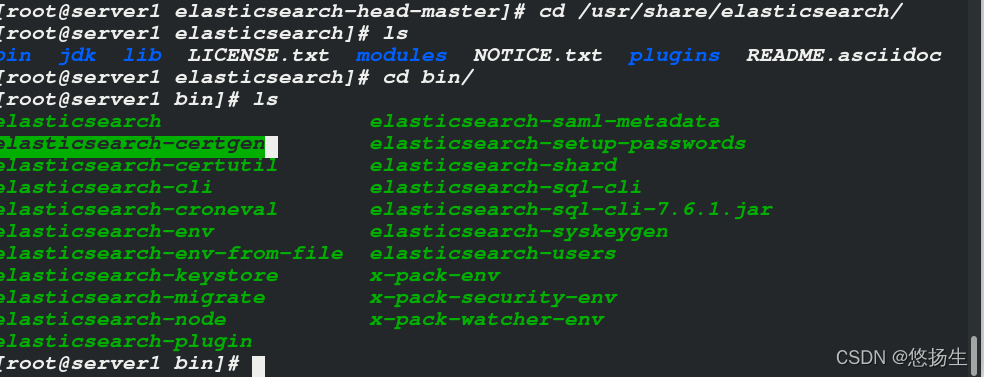

cd /usr/share/elasticsearch/bin/
[root@server1 bin]# ls
elasticsearch??????????????? elasticsearch-saml-metadata
elasticsearch-certgen??????? elasticsearch-setup-passwords
elasticsearch-certutil?????? elasticsearch-shard
elasticsearch-cli??????????? elasticsearch-sql-cli
elasticsearch-croneval?????? elasticsearch-sql-cli-7.6.1.jar
elasticsearch-env??????????? elasticsearch-syskeygen
elasticsearch-env-from-file? elasticsearch-users
elasticsearch-keystore?????? x-pack-env
elasticsearch-migrate??????? x-pack-security-env
elasticsearch-node?????????? x-pack-watcher-env
elasticsearch-plugin
[root@server1 bin]#

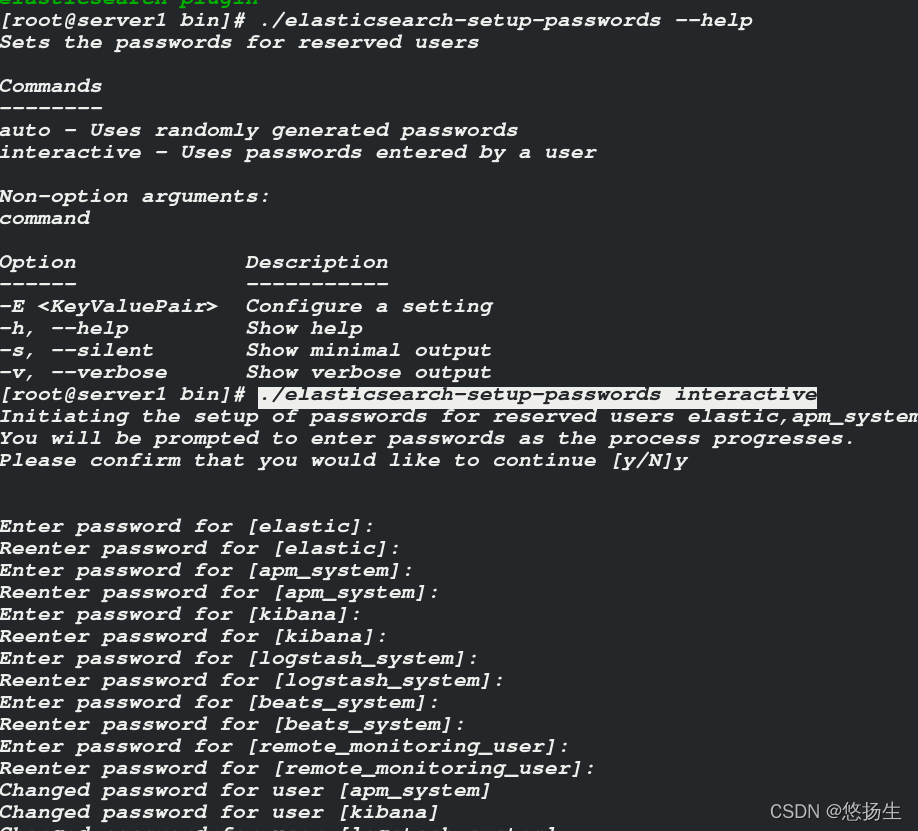

./elasticsearch-setup-passwords --help
./elasticsearch-setup-passwords interactive
交互式设密码
server4
[root@server4 conf.d]# cd /etc/kibana/
[root@server4 kibana]# ls
apm.js kibana.yml
[root@server4 kibana]# vim kibana.yml
elasticsearch.username: "kibana"
elasticsearch.password: "westos"

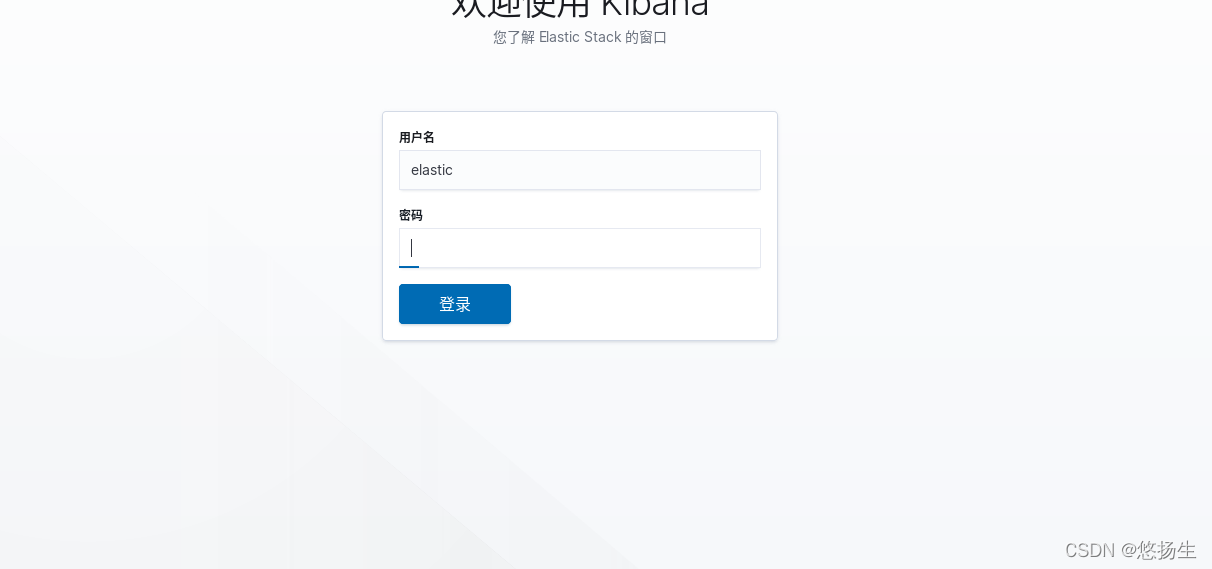

systemctl restart kibana.service
?自己在交互式式的密码
连接logstash
[root@server4 conf.d]# vim test.conf
[root@server4 conf.d]# cat test.confinput {
?? ?file {
?????? path => "/var/log/httpd/access_log"
?? ??? ?start_position => "beginning"
?? ?}}
filter {
?? ?grok {
?? ?match => { "message" => "%{HTTPD_COMBINEDLOG}" }
?? ?}
}output {
?? ?stdout {}?? ?elasticsearch {
?? ??? ?hosts => ["172.25.7.1:9200"]
?? ??? ?index => "apachelog-%{+yyyy.MM.dd}"
??????????????? user => "elastic"
??????????????? password => "westos"
?? ?}
?? ?
}logstash -f test.conf
head连接
[westos@students72 Desktop]$ podman ps
CONTAINER ID? IMAGE? COMMAND? CREATED? STATUS? PORTS? NAMES
[westos@students72 Desktop]$ podman ps -a
CONTAINER ID? IMAGE??????????????????????????????? COMMAND?????????????? CREATED?????? STATUS?? PORTS?????????????????? NAMES
dcb45a704ec0? docker.io/mobz/elasticsearch-head:5? /bin/sh -c grunt ...? 28 hours ago? Created? 0.0.0.0:9100->9100/tcp? head
a22dbf1d5e7f? docker.io/lmenezes/cerebro:latest????????????????????????? 28 hours ago? Created? 0.0.0.0:9000->9000/tcp? cerbro

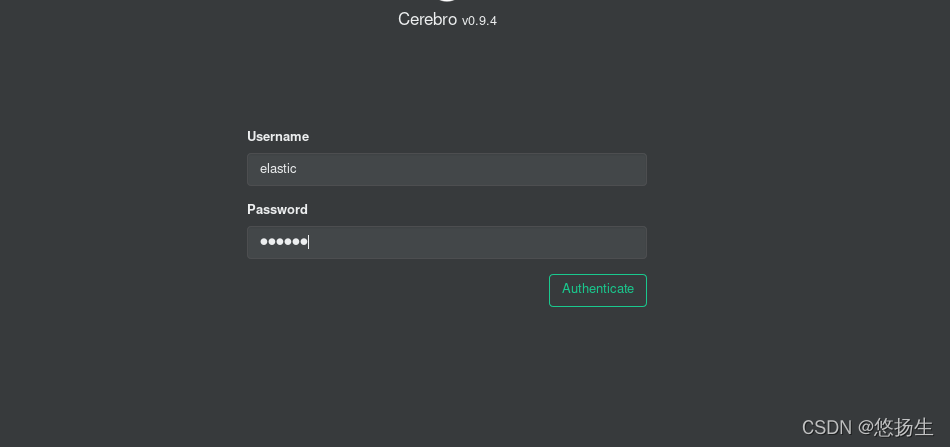

[westos@students72 Desktop]$ podman start cerbro
cerbro
[westos@students72 Desktop]$
?

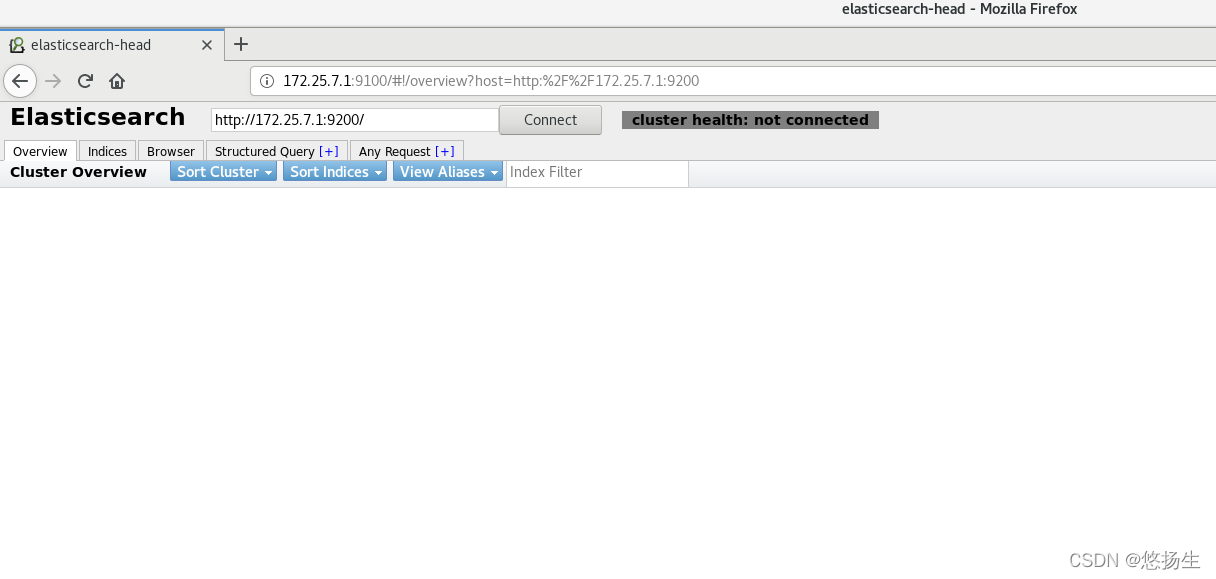

Head连接
?2.server
vim /etc/elasticsearch/elasticsearch.yml添加
http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type重启服务
?http://172.25.7.1:9100//?auth_user=elastic&auth_password=westos
访问连接

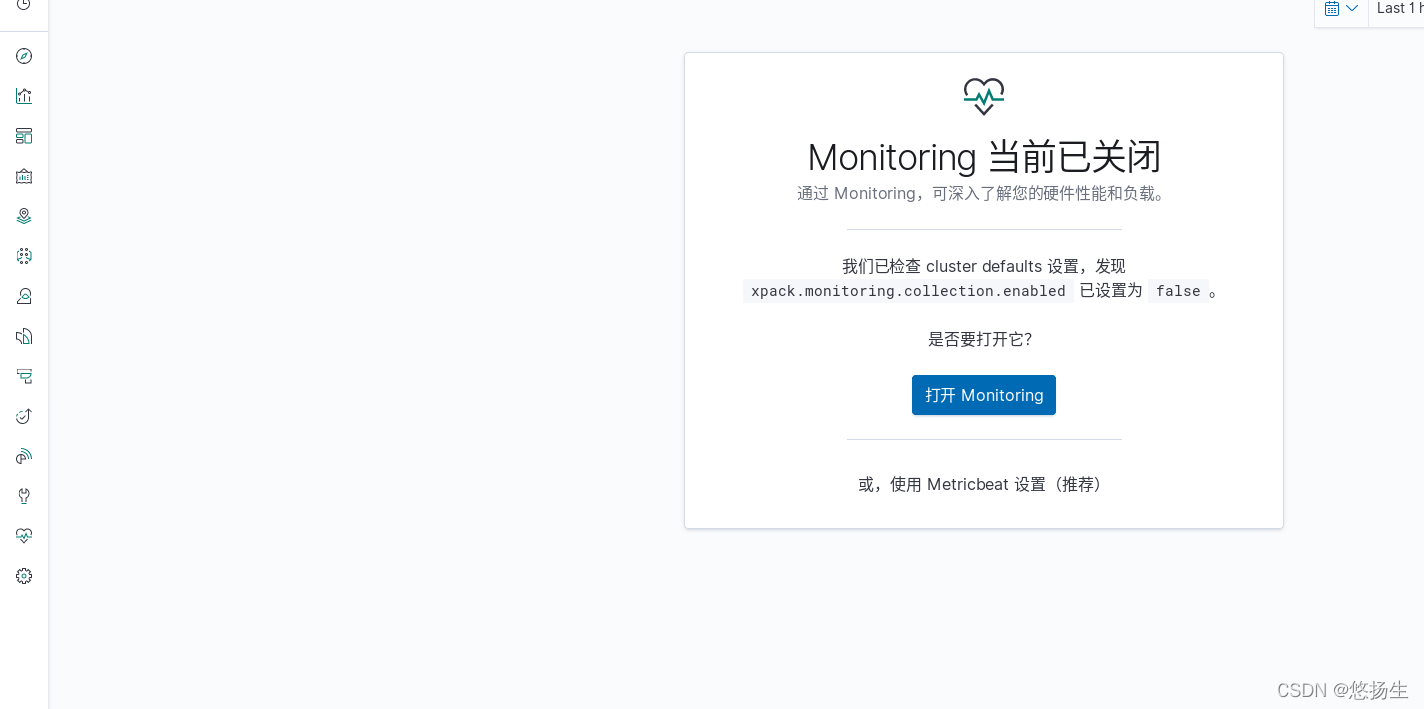

优化

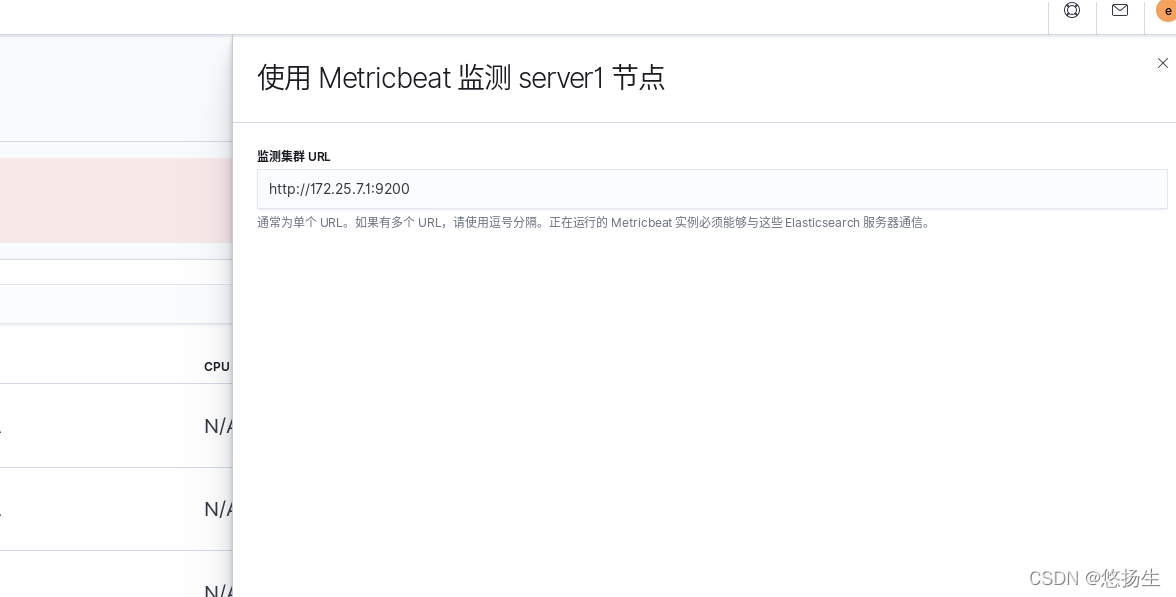

metricbeat 下载

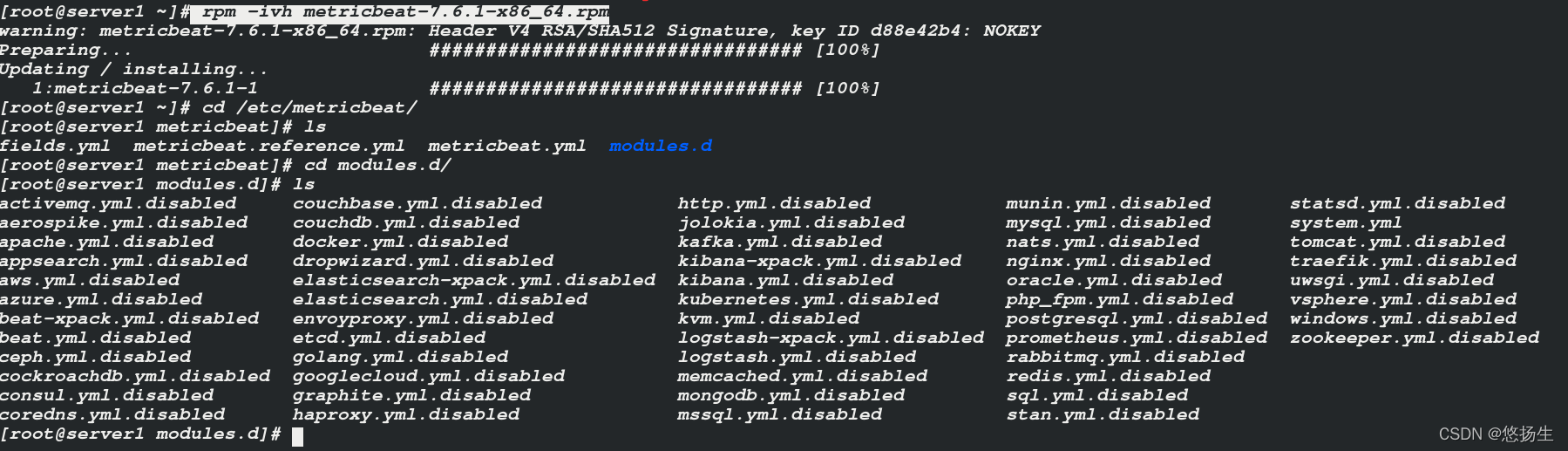

rpm -ivh metricbeat-7.6.1-x86_64.rpm

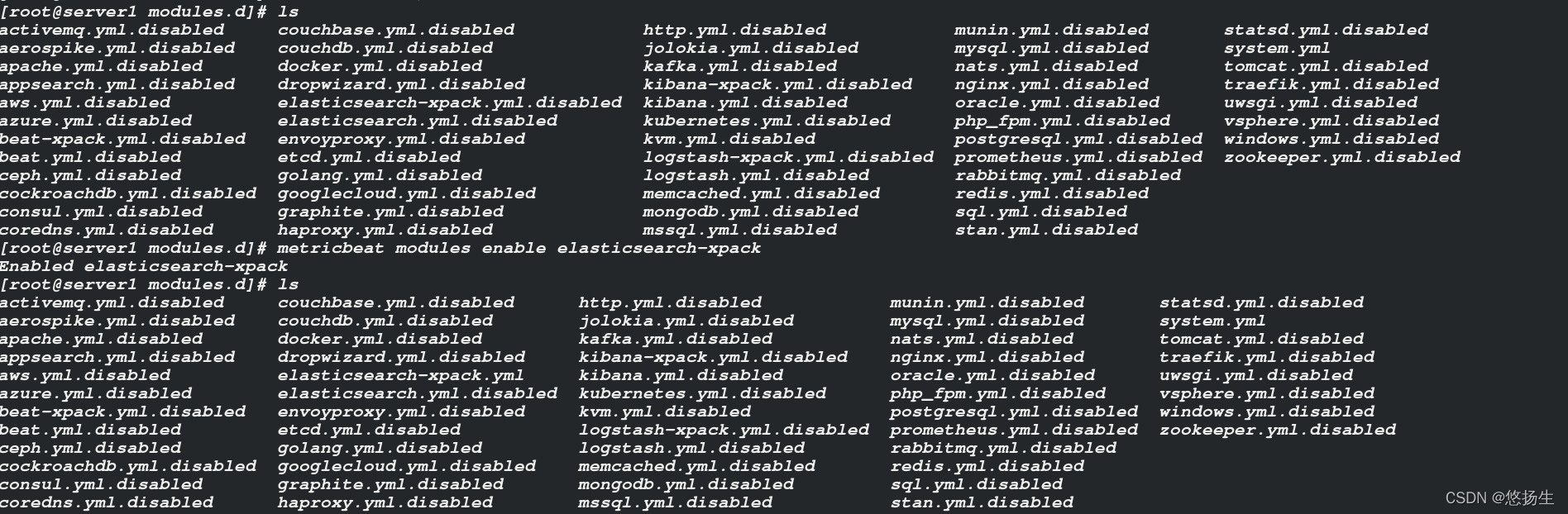

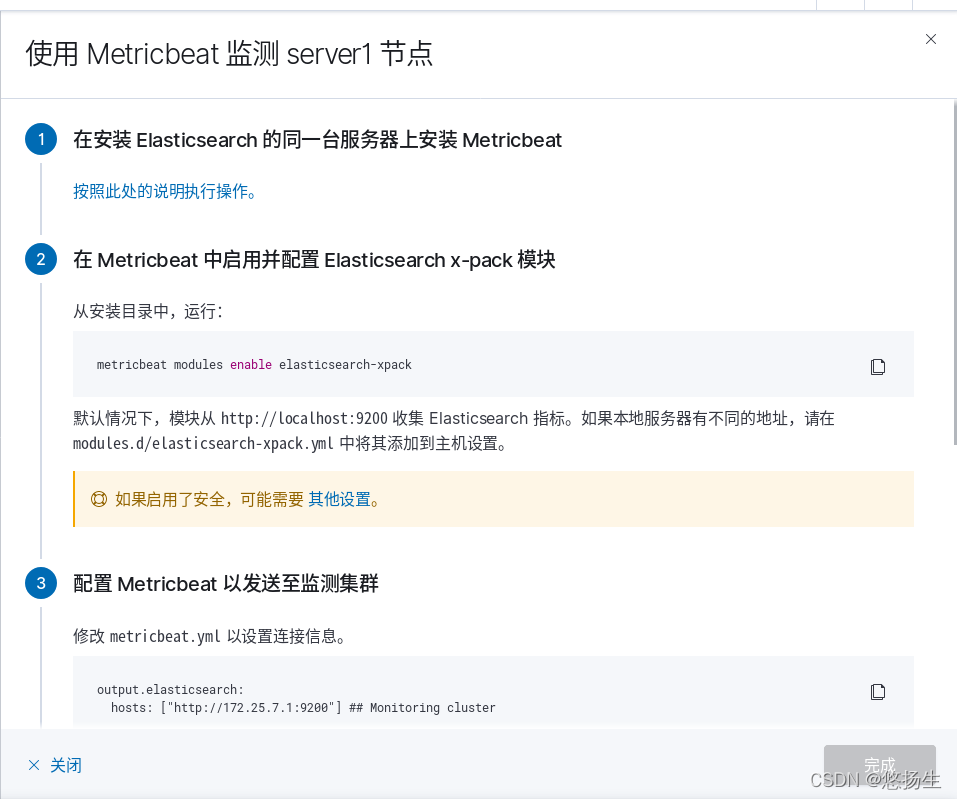

metricbeat modules enable elasticsearch-xpack?

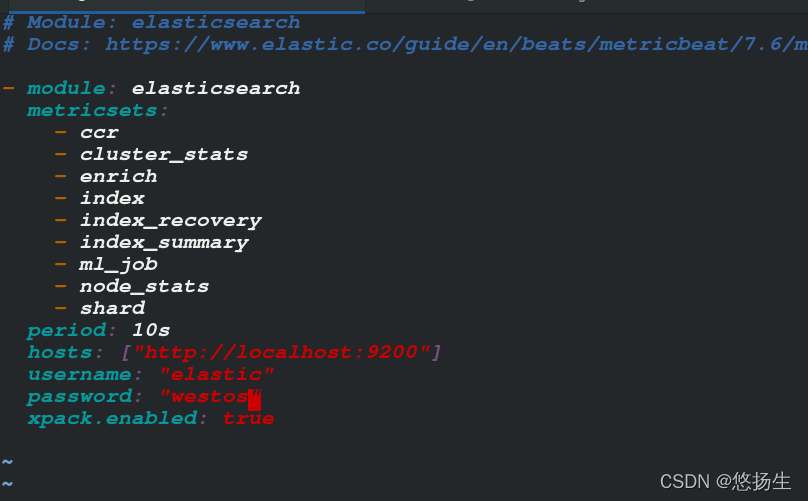

vim elasticsearch-xpack.yml

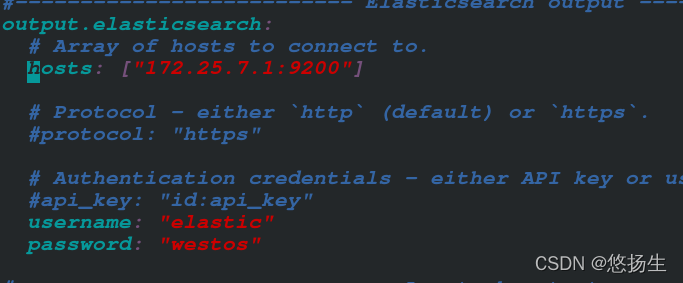

[root@server1 metricbeat]# vim metricbeat.yml
systemctl start metricbeat.service?

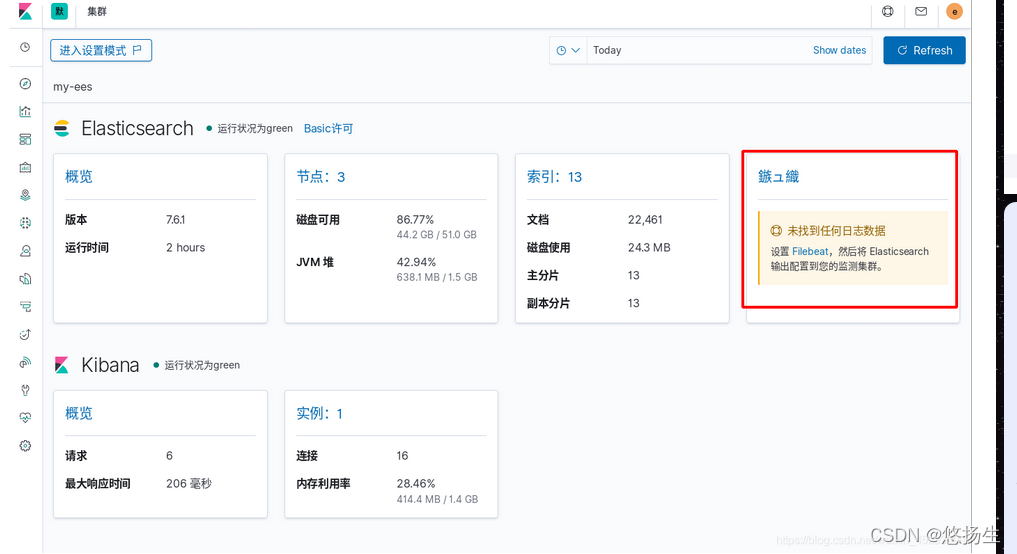

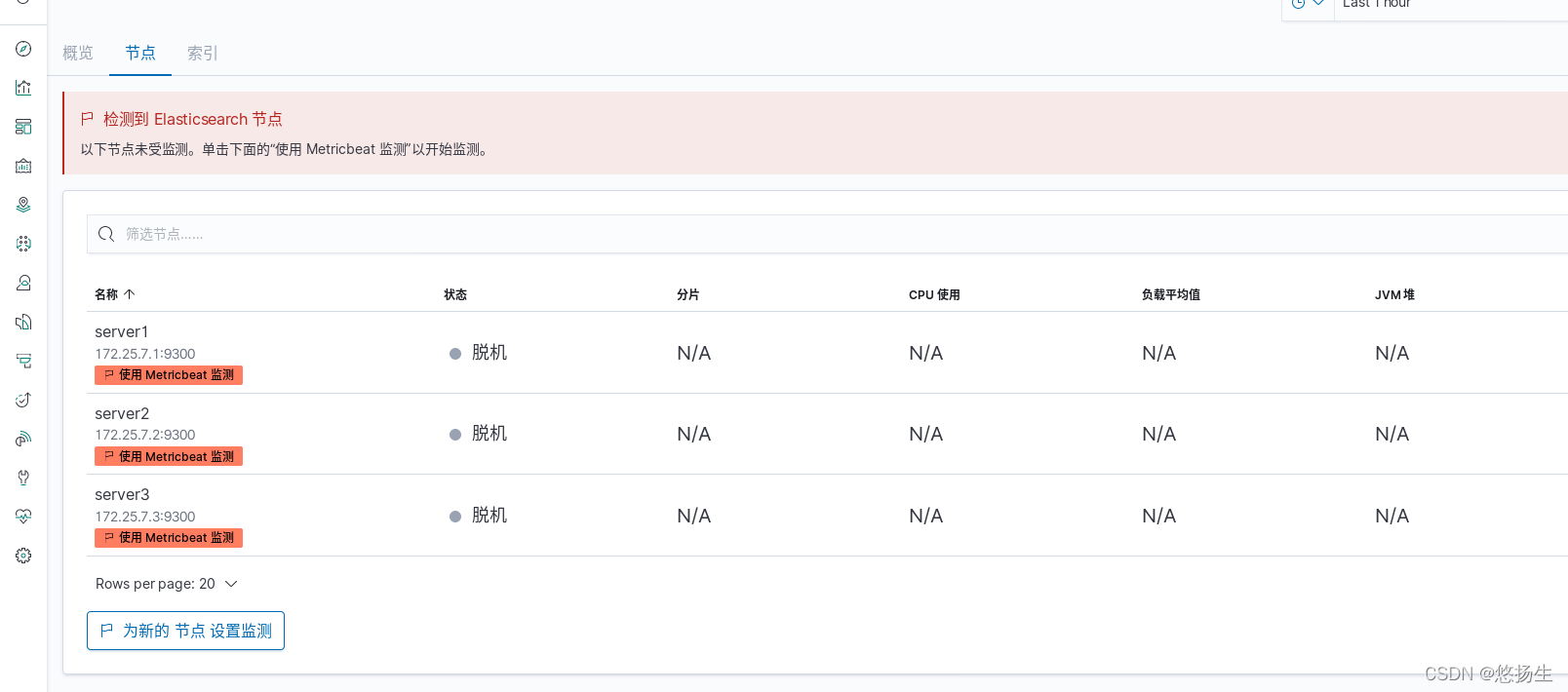

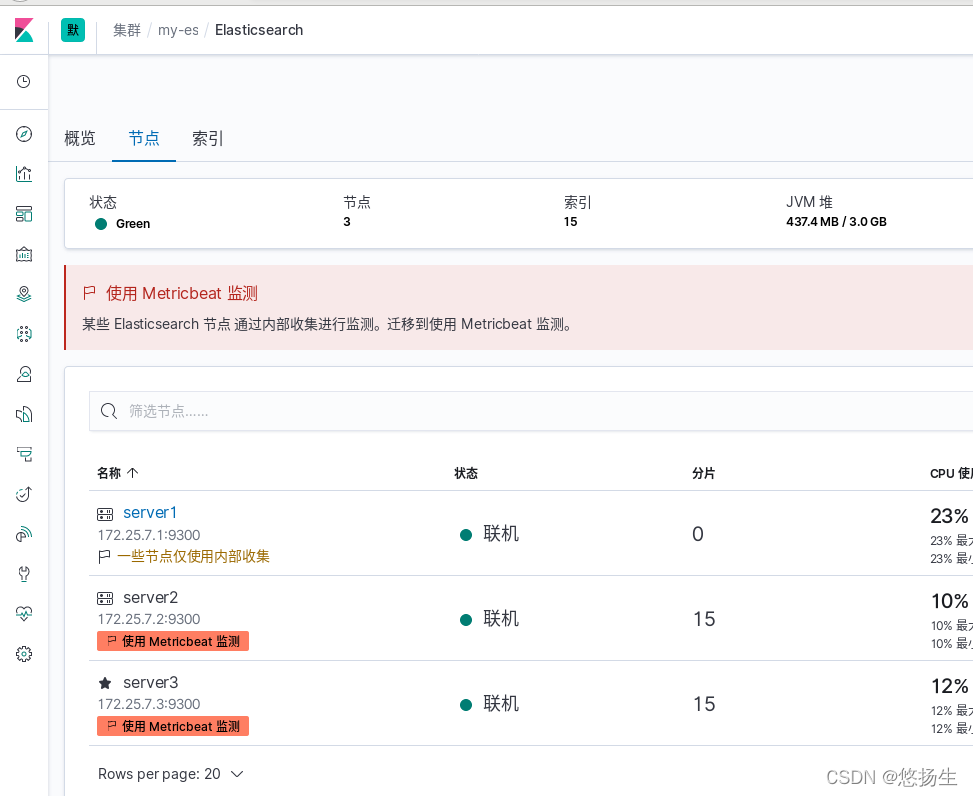

?内部采集进入集群节点3
?2.3同样安装

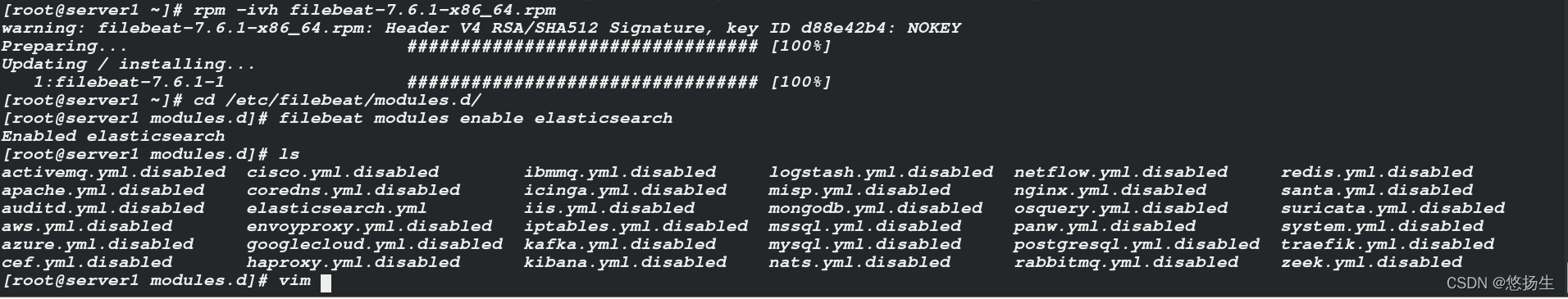

filebeatElasticsearch module | Filebeat Reference [7.6] | Elastic
https://www.elastic.co/guide/en/beats/filebeat/7.6/filebeat-module-elasticsearch.html

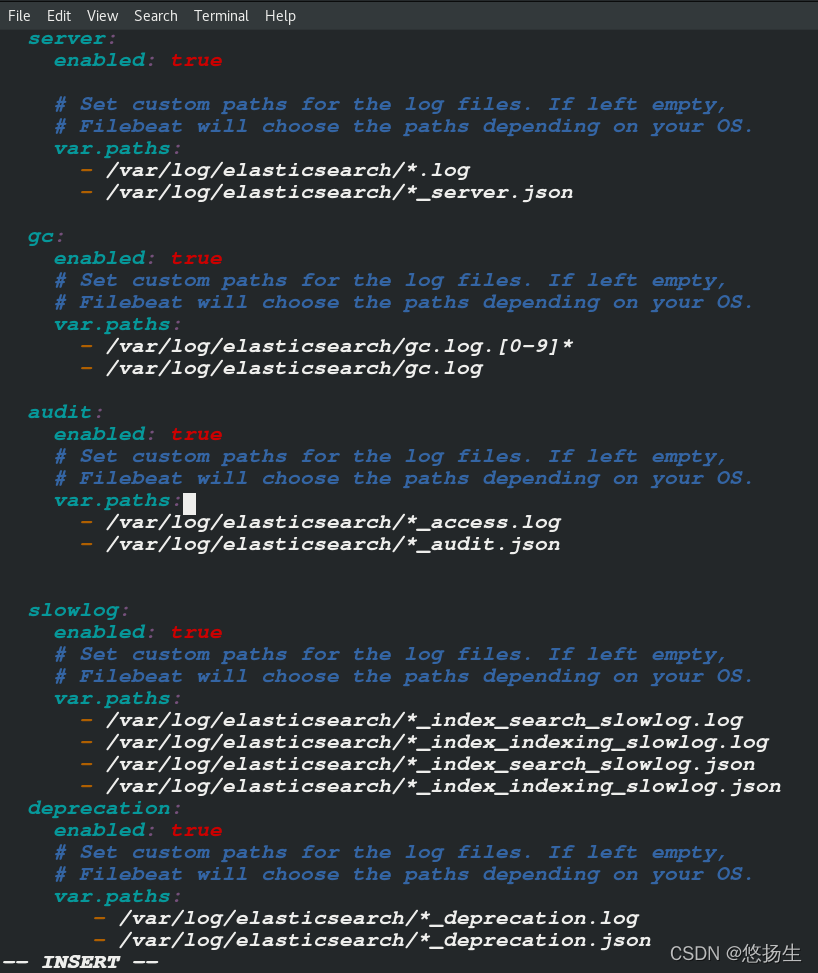

# Module: elasticsearch
# Docs: https://www.elastic.co/guide/en/beats/filebeat/7.6/filebeat-module-elasticsearch.html
- module: elasticsearch
# Server log
server:
enabled: true
# Set custom paths for the log files. If left empty,
# Filebeat will choose the paths depending on your OS.
var.paths:
- /var/log/elasticsearch/*.log
- /var/log/elasticsearch/*_server.json
gc:
enabled: true
# Set custom paths for the log files. If left empty,
# Filebeat will choose the paths depending on your OS.
var.paths:
- /var/log/elasticsearch/gc.log.[0-9]*
- /var/log/elasticsearch/gc.log
audit:
enabled: true
# Set custom paths for the log files. If left empty,
# Filebeat will choose the paths depending on your OS.
var.paths:
- /var/log/elasticsearch/*_access.log
- /var/log/elasticsearch/*_audit.json
slowlog:
enabled: true
# Set custom paths for the log files. If left empty,
# Filebeat will choose the paths depending on your OS.
var.paths:
- /var/log/elasticsearch/*_index_search_slowlog.log
- /var/log/elasticsearch/*_index_indexing_slowlog.log
- /var/log/elasticsearch/*_index_search_slowlog.json
- /var/log/elasticsearch/*_index_indexing_slowlog.json
deprecation:
enabled: true
# Set custom paths for the log files. If left empty,
# Filebeat will choose the paths depending on your OS.
var.paths:
- /var/log/elasticsearch/*_deprecation.log
- /var/log/elasticsearch/*_deprecation.json

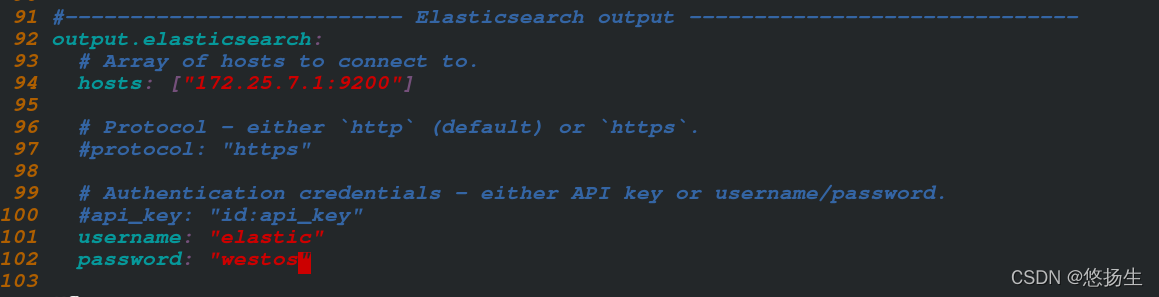

vim filebeat.yml根metricbeat一样
重启服务
?
