Zookeeper客户端(zkCli)的使?

Zookeeper–03–常用Shell命令

在这里插入图片描述

Curator客户端的使?

Curator介绍

Curator是Netflix公司开源的?套zookeeper客户端框架，Curator是对Zookeeper?持最好的客户端框架。
Curator封装了?部分Zookeeper的功能，?如Leader选举、分布式锁等，减少了技术?员在使?Zookeeper时的底层细节开发?作。

1.引?Curator

<!--Curator-->
<dependency>
    <groupId>org.apache.curator</groupId>
    <artifactId>curator-framework</artifactId>
    <version>2.12.0</version>
</dependency>
<dependency>
    <groupId>org.apache.curator</groupId>
    <artifactId>curator-recipes</artifactId>
    <version>2.12.0</version>
</dependency>

<!--Zookeeper-->
<dependency>
    <groupId>org.apache.zookeeper</groupId>
    <artifactId>zookeeper</artifactId>
    <version>3.7.14</version>
</dependency>

application.properties配置?件

curator.retryCount=5
curator.elapsedTimeMs=5000
curator.connectString=172.16.253.35:2181
curator.sessionTimeoutMs=60000
curator.connectionTimeoutMs=5000

注?配置Bean


import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;

@Data
@Component
@ConfigurationProperties(prefix = "curator")
public class WrapperZK {

  private int retryCount;

  private int elapsedTimeMs;

  private String connectString;

  private int sessionTimeoutMs;

  private int connectionTimeoutMs;
}

注?CuratorFramework

import org.apache.curator.framework.CuratorFramework;
import org.apache.curator.framework.CuratorFrameworkFactory;
import org.apache.curator.retry.RetryNTimes;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class CuratorConfig {

    @Autowired
    WrapperZK wrapperZk;

    @Bean(initMethod = "start")
    public CuratorFramework curatorFramework() {
      return CuratorFrameworkFactory.newClient(
        wrapperZk.getConnectString(),
        wrapperZk.getSessionTimeoutMs(),
        wrapperZk.getConnectionTimeoutMs(),
        new RetryNTimes(wrapperZk.getRetryCount(), wrapperZk.getElapsedTimeMs()));
    }
}

2.创建节点

import lombok.extern.slf4j.Slf4j;
import org.apache.curator.framework.CuratorFramework;
import org.apache.curator.framework.recipes.cache.NodeCache;
import org.apache.curator.framework.recipes.cache.NodeCacheListener;
import org.apache.curator.framework.state.ConnectionState;
import org.apache.curator.framework.state.ConnectionStateListener;
import org.apache.zookeeper.CreateMode;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

import java.util.logging.Logger;

@Slf4j
@SpringBootTest
class BootZkClientApplicationTests {

  @Autowired
  CuratorFramework curatorFramework;


  @Test
  void createNode() throws Exception {

    //添加持久节点
    String path = curatorFramework.create().forPath("/curator-node");
    //添加临时序号节点
    String path1 = curatorFramework.create().withMode(CreateMode.EPHEMERAL_SEQUENTIAL).forPath("/curator-node", "some-data".getBytes());

    System.out.println(String.format("curator create node :%s  successfully.",path));
    System.in.read();

  }

}

3.获得节点数据


  @Test
  public void testGetData() throws Exception {
    byte[] bytes = curatorFramework.getData().forPath("/curator-node");

    System.out.println(new String(bytes));
  }

4.修改节点数据


  @Test
  public void testSetData() throws Exception {
    curatorFramework.setData().forPath("/curator-node","changed!".getBytes());
    byte[] bytes = curatorFramework.getData().forPath("/curator-node");

    System.out.println(new String(bytes));
  }

5.创建节点同时创建?节点

  @Test
  public void testCreateWithParent() throws Exception {
    String pathWithParent="/node-parent/sub-node-1";
    String path = curatorFramework.create().creatingParentsIfNeeded().forPath(pathWithParent);

    System.out.println(String.format("curator create node :%s  successfully.",path));
  }

6.删除节点


  @Test
  public void testDelete() throws Exception {
    String pathWithParent="/node-parent";
    curatorFramework.delete().guaranteed().deletingChildrenIfNeeded().forPath(pathWithParent);
  }

zk的watch机制

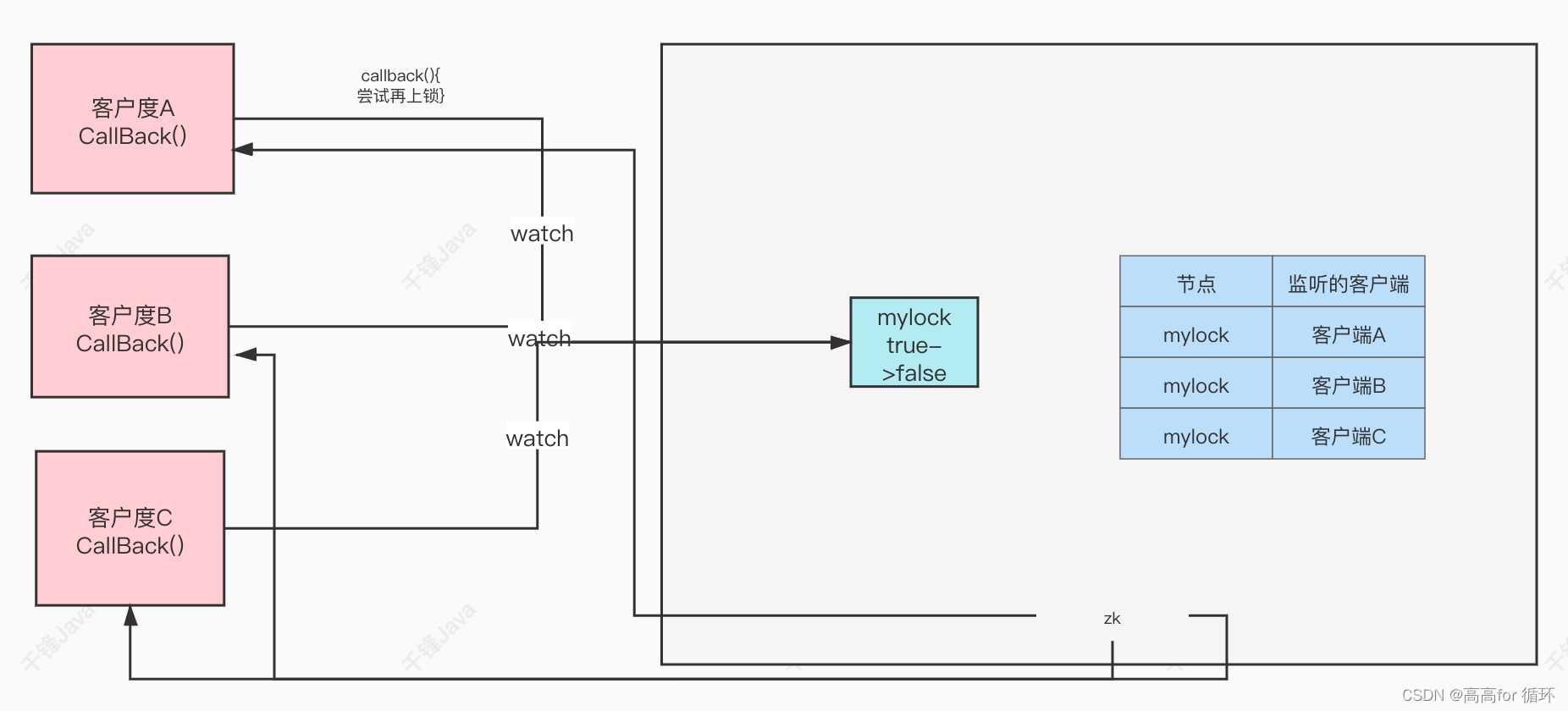

1.Watch机制介绍

我们可以把 Watch 理解成是注册在特定 Znode 上的触发器。
当这个 Znode 发?改变，也就是调?了 create ， delete ， setData ?法的时候，将会触发 Znode上注册的对应事件，请求 Watch 的客户端会接收到异步通知。

具体交互过程如下：

客户端调? getData ?法， watch 参数是 true 。服务端接到请求，返回节点数据，并且在对应的哈希表?插?被 Watch 的 Znode 路径，以及 Watcher 列表。
当被 Watch 的 Znode 已删除，服务端会查找哈希表，找到该 Znode 对应的所有Watcher，异步通知客户端，并且删除哈希表中对应的 Key-Value。

客户端使?了NIO通信模式监听服务端的调?。

2.zkCli客户端使?watch

get -w /test ?次性监听节点

在这里插入图片描述

3.curator客户端使?watch

  @Test
  public void addNodeListener() throws Exception {

    NodeCache nodeCache = new NodeCache(curatorFramework, "/curator-node");
    nodeCache.getListenable().addListener(new NodeCacheListener() {
      @Override
      public void nodeChanged() throws Exception {
        log.info("{} path nodeChanged: ","/curator-node");
        printNodeData();
      }
    });

    nodeCache.start();

    System.in.read();

  }

  public void printNodeData() throws Exception {
    byte[] bytes = curatorFramework.getData().forPath("/curator-node");
    log.info("data: {}",new String(bytes));
  }
