[大数据]【ssm】配置地狱ssm整合

记录一下ssm整合的步骤

环境：

IDEA 2021.2.4
MySQL 8.0.22
Tomcat 8.5.73
Maven 3.8.4

搭建数据库

CREATE DATABASE `ssmbuild`;
USE `ssmbuild`;
DROP TABLE IF EXISTS `books`;
CREATE TABLE `books`(
    `bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
    `bookName` VARCHAR(100) NOT NULL COMMENT '书名',
    `bookCounts` INT(11) NOT NULL COMMENT '数量',
    `detail` VARCHAR(200) NOT NULL COMMENT '描述',
    KEY `bookID`(`bookID`)
)ENGINE=INNODB DEFAULT CHARSET=utf8;
INSERT INTO `books` (`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'JAVA',1,'从入门到入土'),
(2,'MySQL',1,'从删库到跑路'),
(3,'Linux',1,'从入门到坐牢');

导入依赖

Junit
数据库驱动
连接池
servlet
jsp
MyBatis
mybatis-spring
spring

<!--prom.xml-->
<dependencies>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.22</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>servlet-api</artifactId>
        <version>2.5</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet.jsp</groupId>
        <artifactId>jsp-api</artifactId>
        <version>2.2</version>
    </dependency>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.6</version>
    </dependency>
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.6</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.3.3</version>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-jdbc</artifactId>
        <version>5.3.3</version>
    </dependency>
    <dependency>
        <groupId>com.mchange</groupId>
        <artifactId>c3p0</artifactId>
        <version>0.9.5.2</version>
    </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.16</version>
        </dependency>
</dependencies>

静态资源导出

<!--prom.xml-->
<build>
    <resources>
        <resource>
            <directory>src/main/resources</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>true</filtering>
        </resource>
        <resource>
            <directory>src/main/java</directory>
            <includes>
                <include>**/*.properties</include>
                <include>**/*.xml</include>
            </includes>
            <filtering>true</filtering>
        </resource>
    </resources>
</build>

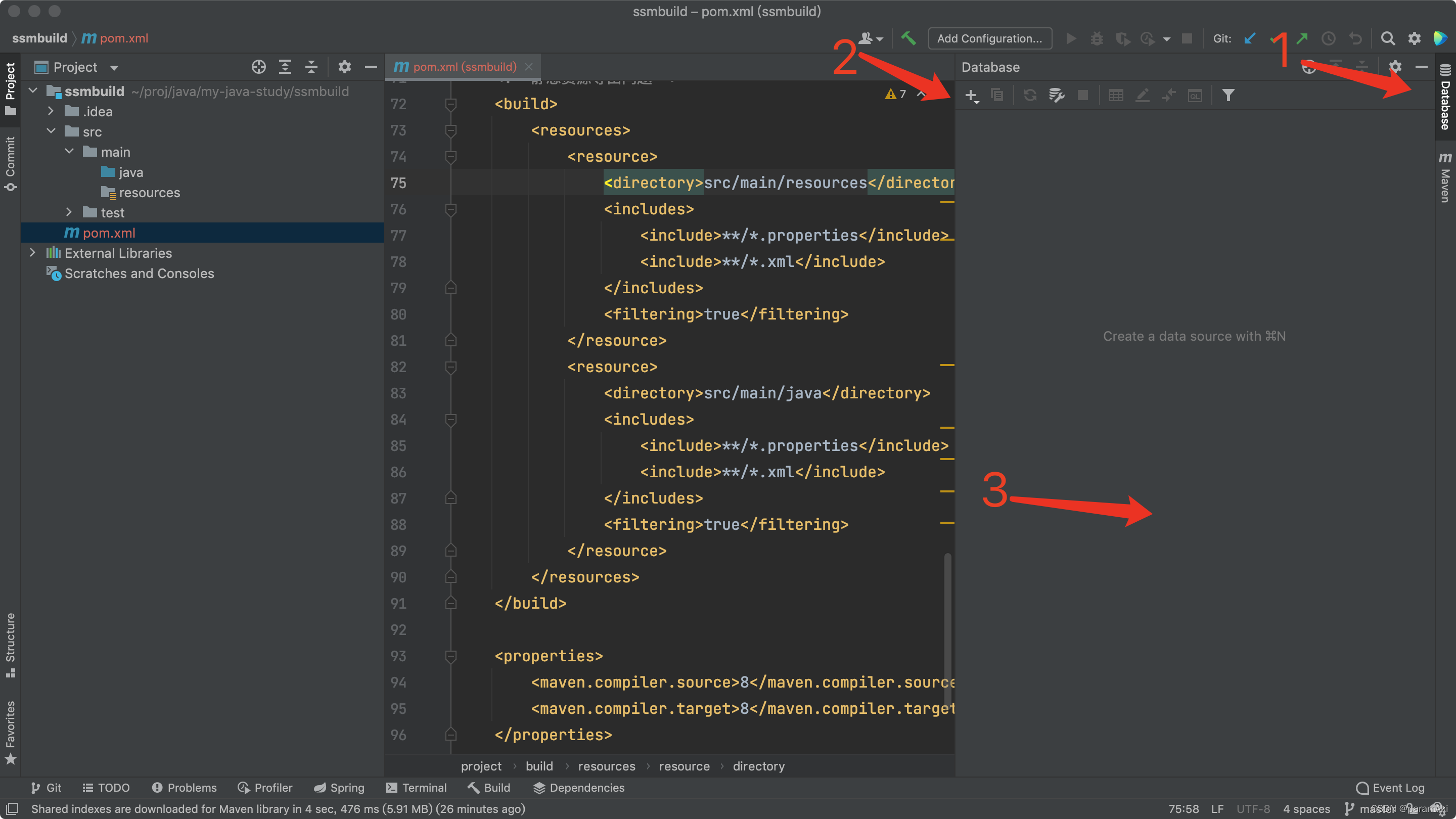

连接数据库

在这里插入图片描述

创建包与核心配置文件

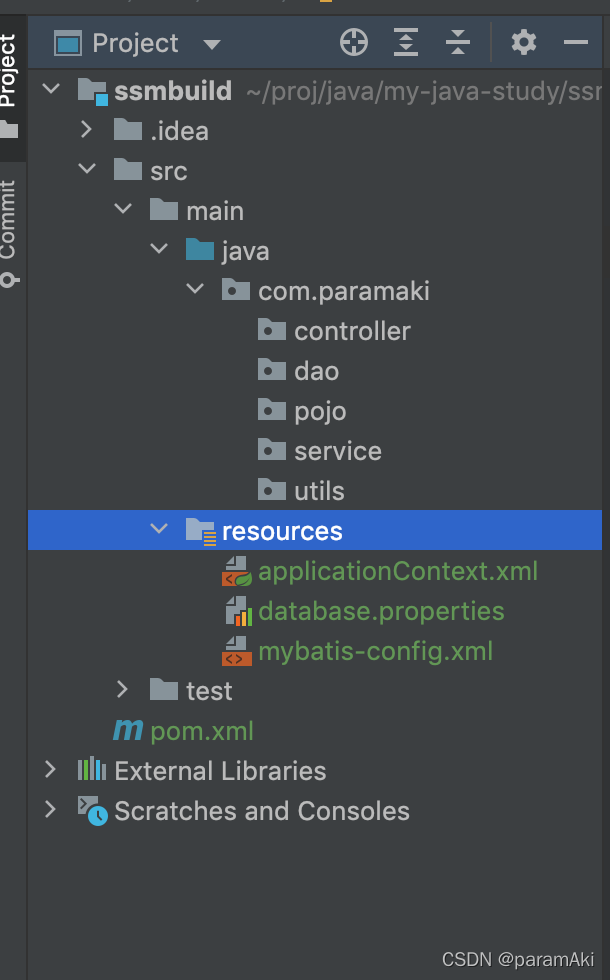

包结构如下：

在这里插入图片描述

applicationContext.xml（作为整合配置文件的总文件）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>

mybatis-config.xml（作为Mybatis的配置文件）

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <typeAliases>
        <package name="com.paramaki.pojo"/>
    </typeAliases>
</configuration>

database.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=true&useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
jdbc.username=root
jdbc.password=

编写实体类

Books.java

@Data
@NoArgsConstructor
@AllArgsConstructor
public class Books {
    private int bookID;
    private String bookName;
    private int bookCounts;
    private String detail;
}

Mapper接口

BookMapper.java

public interface BookMapper {
    //增加一本书
    int addBook(Books books);
    //删除一本书
    int deleteBookById(@Param("bookID") int id);
    //更新一本书
    int updateBook(Books books);
    //查询一本书
    Books queryById(@Param("bookID") int id);
    //查询全部书
    List<Books> queryAllBook();
}

实现BookMapper借接口

BookMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.paramaki.dao.BookMapper">
    <insert id="addBook" parameterType="Book">
        insert into ssmbuild.books(bookName, bookCounts, detail)
        values (#{bookName}, #{bookCounts}, #{detail});
    </insert>

    <delete id="deleteBookById" parameterType="int">
        delete
        from ssmbuild.books
        where bookID = #{bookId};
    </delete>

    <update id="updateBook" parameterType="Book">
        update ssmbuild.books set bookName = #{bookName},bookCounts =#{bookCounts},detail=#{detail}
        where bookID=#{bookId};
    </update>

    <select id="queryBookById" parameterType="int">
        select * from ssmbuild.books where bookID = #{bookId};
    </select>

    <select id="queryAllBook" parameterType="Book">
        select * from ssmbuild.books;
    </select>
</mapper>

注册接口

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!--mybatis的核心配置文件-->
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <typeAliases>
        <package name="com.paramaki.pojo"/>
    </typeAliases>

    <mappers>
        <mapper class="com.paramaki.dao.BookMapper"/>
    </mappers>
</configuration>

Servise接口

BookService.java

public interface BookService {
    //增加一本书
    int addBook(Books books);
    //删除一本书
    int deleteBookById(int id);
    //更新一本书
    int updateBook(Books books);
    //查询一本书
    Books queryById(int id);
    //查询全部书
    List<Books> queryAllBook();
}

实现service接口

BookServiceImpl.java

package com.paramaki.service;

import com.paramaki.dao.BookMapper;
import com.paramaki.pojo.Book;

import java.util.List;

public class BookServiceImpl implements BookService{

    // service层调dao层
    private BookMapper bookMapper;

    public void setBookMapper(BookMapper bookMapper) {
        this.bookMapper = bookMapper;
    }

    @Override
    public int addBook(Book book) {
        return bookMapper.addBook(book);
    }

    @Override
    public int deleteBookById(int id) {
        return bookMapper.deleteBookById(id);
    }

    @Override
    public int updateBook(Book book) {
        return bookMapper.updateBook(book);
    }

    @Override
    public Book queryBookById(int id) {
        return bookMapper.queryBookById(id);
    }

    @Override
    public List<Book> queryAllBook() {
        return bookMapper.queryAllBook();
    }
}

完善数据库配置

spring-mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/context
           https://www.springframework.org/schema/context/spring-context.xsd">

    <!--1.关联数据库文件-->
    <context:property-placeholder location="database.properties"/>

    <!--2.连接池
        dbcp: 半自动化操作，不能自动连接
        c3p0: 自动化操作（自动化加载配置文件，并且可以自动设置到对象中）
        druid:
        hikari
    -->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>

        <property name="maxPoolSize" value="30"/>
        <property name="minPoolSize" value="10"/>
        <property name="autoCommitOnClose" value="false"/>
        <property name="checkoutTimeout" value="5000"/>
        <property name="acquireRetryAttempts" value="2"/>
    </bean>

    <!--3.sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <!--绑定Mybatis的配置文件-->
        <property name="configLocation" value="classpath:mybatis-config.xml"/>
    </bean>

    <!--配置dao接口扫描包，动态实现Dao接口可以注入到Spring容器中-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--注入sqlSessionFactory-->
        <property name="sqlSessionTemplateBeanName" value="sqlSessionFactory"/>
        <!--扫描dao包-->
        <property name="basePackage" value="com.paramaki.dao"/>
    </bean>

</beans>

spring-service.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/context
           https://www.springframework.org/schema/context/spring-context.xsd">

    <!--1.扫描service下的包-->
    <context:component-scan base-package="com.paramaki.service"/>

    <!--2.将所有业务类注入到spring中，可以通过配置或者注解实现-->
    <bean id="BookServiceImpl" class="com.paramaki.service.BookServiceImpl">
        <property name="bookMapper" ref="bookMapper"/>
    </bean>

    <!--3.声明事务位置-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!--注入数据源-->
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <!--4.aop事务支持-->

</beans>

然后添加web支持

修改web.xml配置文件

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>
</web-app>

spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd
           http://www.springframework.org/schema/mvc
           http://www.springframework.org/schema/mvc/spring-mvc.xsd
           http://www.springframework.org/schema/context
           https://www.springframework.org/schema/context/spring-context.xsd">

    <!--注解驱动-->
    <mvc:annotation-driven/>
    <!--静态资源过滤-->
    <mvc:default-servlet-handler/>
    <!--扫描包：controller-->
    <context:component-scan base-package="com.paramaki.controller"/>
    <!--视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp"/>
    </bean>

</beans>

将所有的spring的xml导入到总配置中

ApplicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
           http://www.springframework.org/schema/beans/spring-beans.xsd">

    <import resource="classpath:spring-dao.xml"/>
    <import resource="classpath:spring-service.xml"/>
    <import resource="classpath:spring-mvc.xml"/>

</beans>
