[大数据]mysql实时监听canal+kafka

1.首先安装并启动mysql

mysql5.7版本安装部署详细步骤_怪只怪满眼尽是人间烟火-CSDN博客最新版mysql下载地址：MySQL :: Download MySQL Community Server现在的服务器应该都支持64位了，下载64位即可1.首先新建文件夹，并进入该文件夹，将下载好的mysql文件上传至此文件夹，mkdir local && cd local2.解压及创建目录tar -zxvf mysql-5.7.36-linux-glibc2.12-x86_64.tar.gzmv mysql-5.7.36-linux-glibc2...https://blog.csdn.net/weixin_38959210/article/details/122051301注意mysql的配置文件必须开启日志

# 一般情况下，Window修改mysql目录下的my.ini
# 一般情况下，Linux修改/etc/mysql下的my.cnf

[mysqld]
# 添加的部分，server-id随便填
server-id = 12345
log-bin = mysql-bin
# 必须为ROW
binlog_format = ROW
# 必须为FULL，MySQL-5.7后才有该参数
binlog_row_image  = FULL
expire_logs_days  = 10

2.然后安装并启动kafka

linux单机版kafka启动命令_怪只怪满眼尽是人间烟火-CSDN博客需要java环境，推荐1.8以上下载kafka，解压，进入kafka的bin目录启动zookeeper（Kafka 0.5.x版本以上已经自带ZooKeper）自测的话直接使用自带的zookeeper就行，要是生产的话，建议分离。nohup ./zookeeper-server-start.sh ../config/zookeeper.properties &启动kafkanohup ./kafka-server-start.sh ../config/server....https://qushen.blog.csdn.net/article/details/122682000

3.安装并配置canal
canal.deployer-1.1.5.tar.gz??????https://github.com/alibaba/canal/releases/download/canal-1.1.5/canal.deployer-1.1.5.tar.gz

配置两个文件

/conf/canal.properties

#################################################
######### 		common argument		#############
#################################################
# tcp bind ip
canal.ip =
# register ip to zookeeper
canal.register.ip =
canal.port = 11111
canal.metrics.pull.port = 11112
# canal instance user/passwd
# canal.user = canal
# canal.passwd = E3619321C1A937C46A0D8BD1DAC39F93B27D4458

# canal admin config
#canal.admin.manager = 127.0.0.1:8089
canal.admin.port = 11110
canal.admin.user = admin
canal.admin.passwd = 4ACFE3202A5FF5CF467898FC58AAB1D615029441
# admin auto register
#canal.admin.register.auto = true
#canal.admin.register.cluster =
#canal.admin.register.name =

canal.zkServers =
# flush data to zk
canal.zookeeper.flush.period = 1000
canal.withoutNetty = false
# tcp, kafka, rocketMQ, rabbitMQ  选择kafka
canal.serverMode = kafka
# flush meta cursor/parse position to file
canal.file.data.dir = ${canal.conf.dir}
canal.file.flush.period = 1000
## memory store RingBuffer size, should be Math.pow(2,n)
canal.instance.memory.buffer.size = 16384
## memory store RingBuffer used memory unit size , default 1kb
canal.instance.memory.buffer.memunit = 1024
## meory store gets mode used MEMSIZE or ITEMSIZE
canal.instance.memory.batch.mode = MEMSIZE
canal.instance.memory.rawEntry = true

## detecing config
canal.instance.detecting.enable = false
#canal.instance.detecting.sql = insert into retl.xdual values(1,now()) on duplicate key update x=now()
canal.instance.detecting.sql = select 1
canal.instance.detecting.interval.time = 3
canal.instance.detecting.retry.threshold = 3
canal.instance.detecting.heartbeatHaEnable = false

# support maximum transaction size, more than the size of the transaction will be cut into multiple transactions delivery
canal.instance.transaction.size =  1024
# mysql fallback connected to new master should fallback times
canal.instance.fallbackIntervalInSeconds = 60

# network config
canal.instance.network.receiveBufferSize = 16384
canal.instance.network.sendBufferSize = 16384
canal.instance.network.soTimeout = 30

# binlog filter config
canal.instance.filter.druid.ddl = true
canal.instance.filter.query.dcl = false
canal.instance.filter.query.dml = false
canal.instance.filter.query.ddl = false
canal.instance.filter.table.error = false
canal.instance.filter.rows = false
canal.instance.filter.transaction.entry = false
canal.instance.filter.dml.insert = false
canal.instance.filter.dml.update = false
canal.instance.filter.dml.delete = false

# binlog format/image check
canal.instance.binlog.format = ROW,STATEMENT,MIXED
canal.instance.binlog.image = FULL,MINIMAL,NOBLOB

# binlog ddl isolation
canal.instance.get.ddl.isolation = false

# parallel parser config
canal.instance.parser.parallel = true
## concurrent thread number, default 60% available processors, suggest not to exceed Runtime.getRuntime().availableProcessors()
#canal.instance.parser.parallelThreadSize = 16
## disruptor ringbuffer size, must be power of 2
canal.instance.parser.parallelBufferSize = 256

# table meta tsdb info
canal.instance.tsdb.enable = true
canal.instance.tsdb.dir = ${canal.file.data.dir:../conf}/${canal.instance.destination:}
canal.instance.tsdb.url = jdbc:h2:${canal.instance.tsdb.dir}/h2;CACHE_SIZE=1000;MODE=MYSQL;
canal.instance.tsdb.dbUsername = canal
canal.instance.tsdb.dbPassword = canal
# dump snapshot interval, default 24 hour
canal.instance.tsdb.snapshot.interval = 24
# purge snapshot expire , default 360 hour(15 days)
canal.instance.tsdb.snapshot.expire = 360

#################################################
######### 		destinations		#############
#################################################
canal.destinations = example
# conf root dir
canal.conf.dir = ../conf
# auto scan instance dir add/remove and start/stop instance
canal.auto.scan = true
canal.auto.scan.interval = 5
# set this value to 'true' means that when binlog pos not found, skip to latest.
# WARN: pls keep 'false' in production env, or if you know what you want.
canal.auto.reset.latest.pos.mode = false

canal.instance.tsdb.spring.xml = classpath:spring/tsdb/h2-tsdb.xml
#canal.instance.tsdb.spring.xml = classpath:spring/tsdb/mysql-tsdb.xml

canal.instance.global.mode = spring
canal.instance.global.lazy = false
canal.instance.global.manager.address = ${canal.admin.manager}
#canal.instance.global.spring.xml = classpath:spring/memory-instance.xml
canal.instance.global.spring.xml = classpath:spring/file-instance.xml
#canal.instance.global.spring.xml = classpath:spring/default-instance.xml

##################################################
######### 	      MQ Properties      #############
##################################################
# aliyun ak/sk , support rds/mq
canal.aliyun.accessKey =
canal.aliyun.secretKey =
canal.aliyun.uid=

canal.mq.flatMessage = true
canal.mq.canalBatchSize = 50
canal.mq.canalGetTimeout = 100
# Set this value to "cloud", if you want open message trace feature in aliyun.
canal.mq.accessChannel = local

canal.mq.database.hash = true
canal.mq.send.thread.size = 30
canal.mq.build.thread.size = 8

##################################################
######### 		     Kafka 		     #############
##################################################
#修改kafka地址
kafka.bootstrap.servers = 127.0.0.1:9092
kafka.acks = all
kafka.compression.type = none
kafka.batch.size = 16384
kafka.linger.ms = 1
kafka.max.request.size = 1048576
kafka.buffer.memory = 33554432
kafka.max.in.flight.requests.per.connection = 1
kafka.retries = 0

kafka.kerberos.enable = false
kafka.kerberos.krb5.file = "../conf/kerberos/krb5.conf"
kafka.kerberos.jaas.file = "../conf/kerberos/jaas.conf"

##################################################
######### 		    RocketMQ	     #############
##################################################
rocketmq.producer.group = test
rocketmq.enable.message.trace = false
rocketmq.customized.trace.topic =
rocketmq.namespace =
rocketmq.namesrv.addr = 127.0.0.1:9876
rocketmq.retry.times.when.send.failed = 0
rocketmq.vip.channel.enabled = false
rocketmq.tag =

##################################################
######### 		    RabbitMQ	     #############
##################################################
rabbitmq.host =
rabbitmq.virtual.host =
rabbitmq.exchange =
rabbitmq.username =
rabbitmq.password =
rabbitmq.deliveryMode =

/conf/example/instance.properties

#################################################
## mysql serverId , v1.0.26+ will autoGen 此处id不要和mysql的server-id一致即可
 canal.instance.mysql.slaveId=20

# enable gtid use true/false
canal.instance.gtidon=false

# position info  数据库地址
canal.instance.master.address=127.0.0.1:3306
canal.instance.master.journal.name=
canal.instance.master.position=
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/cdc
#canal.instance.tsdb.dbUsername=root
#canal.instance.tsdb.dbPassword=123456

#canal.instance.standby.address =
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password 数据库账号密码
canal.instance.dbUsername=root
canal.instance.dbPassword=123456
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=.*\\..*
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config  kafka主题
canal.mq.topic=test
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################

启动canal

?/bin/startup.sh

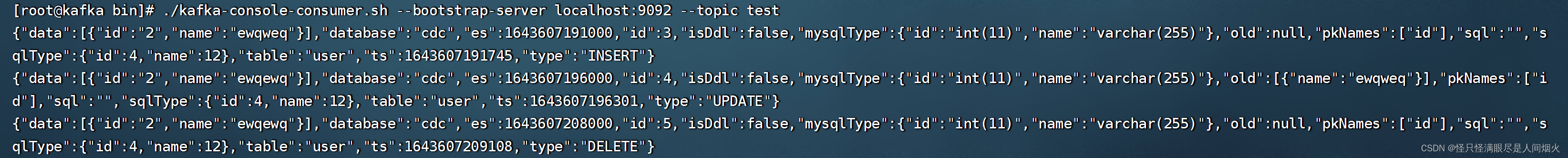

?kafka消费者可以实时监听到数据库变化。

以上 JSON 数据的字段解释如下：
