[大数据]大数据项目之Flink实时数仓(DWM层)

设计思路

之前通过分流等处理手段，将数据拆分成了独立的kafka topic，接下来处理数据，我们应该考虑的是将实时计算使用的指标项进行处理，时效性是实时数仓所追求的，所以在一些场景没有必要和离线数仓一样，大而全的中间层，只需要中间层将一些计算指标保存即可，为下次计算使用提供便利。

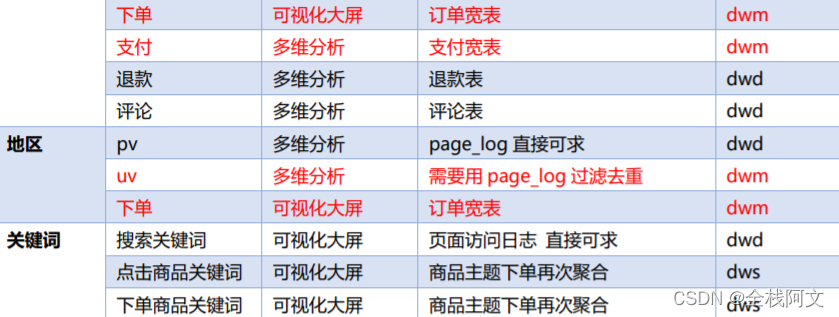

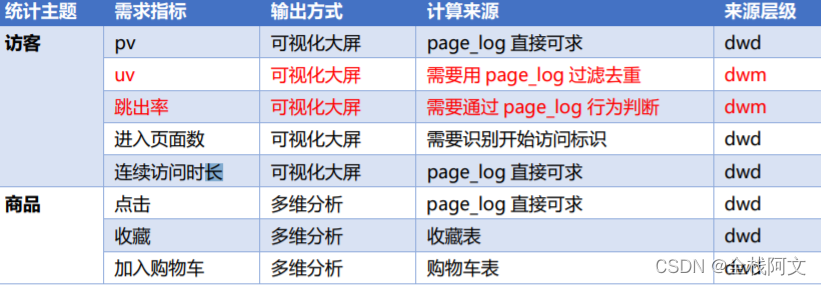

所以需要考虑一些实时计算的指标需求，把这些指标以主题宽表的形式输出就是dws层在这里插入图片描述

这里列出来一部分指标，主要为服务可视化大屏计算，说了这么多，dwm层怎么还没出现，别急，dwm层主要服务dws层，因为部分需求直接从dwd层到dws层会有一些复杂的计算，而且这些计算的结果很可能为dws层多个主题复用，所以dwd层形成一层dwm，主要涉及到业务

访客UV计算
跳出明细计算
订单宽表
支付宽表

访客UV计算

UV(Unique Visitor)，即独立访客，也称为 DAU(DailyActive User)，即每日活跃用户
用户行为日志识别当日访客有两点：

识别出访客打开的第一个页面，表示这个访客开始进入我们的应用
由于访客可以在一天中多次进入应用，所以我们在一天的范围内进行去重

数据流：web/app -> Nginx -> SpringBoot -> Kafka(ods) -> FlinkApp -> Kafka(dwd) -> FlinkApp -> Kafka(dwm)
程序：mockLog -> Nginx -> Logger.sh -> Kafka(ZK) -> BaseLogApp -> kafka -> UniqueVisitApp -> Kafka

        //TODO 1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        //TODO 2.读取Kafka dwd_page_log 主题的数据
        String groupId = "unique_visit_app_210325";
        String sourceTopic = "dwd_page_log";
        String sinkTopic = "dwm_unique_visit";
        DataStreamSource<String> kafkaDS = env.addSource(MyKafkaUtil.getKafkaConsumer(sourceTopic, groupId));

        //TODO 3.将每行数据转换为JSON对象
        SingleOutputStreamOperator<JSONObject> jsonObjDS = kafkaDS.map(JSON::parseObject);

        //TODO 4.过滤数据  状态编程  只保留每个mid每天第一次登陆的数据
        KeyedStream<JSONObject, String> keyedStream = jsonObjDS.keyBy(jsonObj -> jsonObj.getJSONObject("common").getString("mid"));
        SingleOutputStreamOperator<JSONObject> uvDS = keyedStream.filter(new RichFilterFunction<JSONObject>() {

            private ValueState<String> dateState;
            private SimpleDateFormat simpleDateFormat;
            @Override
            public void open(Configuration parameters) throws Exception {
                ValueStateDescriptor<String> valueStateDescriptor = new ValueStateDescriptor<>("date-state", String.class);
                //设置状态的超时时间以及更新时间的方式
                StateTtlConfig stateTtlConfig = new StateTtlConfig
                        .Builder(Time.hours(24))
                        .setUpdateType(StateTtlConfig.UpdateType.OnCreateAndWrite)
                        .build();
                valueStateDescriptor.enableTimeToLive(stateTtlConfig);
                dateState = getRuntimeContext().getState(valueStateDescriptor);

                simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd");
            }
            @Override
            public boolean filter(JSONObject value) throws Exception {
                //取出上一条页面信息
                String lastPageId = value.getJSONObject("page").getString("last_page_id");
                //判断上一条页面是否为Null
                if (lastPageId == null || lastPageId.length() <= 0) {
                    //取出状态数据
                    String lastDate = dateState.value();
                    //取出今天的日期
                    String curDate = simpleDateFormat.format(value.getLong("ts"));
                    //判断两个日期是否相同
                    if (!curDate.equals(lastDate)) {
                        dateState.update(curDate);
                        return true;
                    }
                }
                return false;
            }
        });
        //TODO 5.将数据写入Kafka
        uvDS.print();
        uvDS.map(JSONAware::toJSONString)
                .addSink(MyKafkaUtil.getKafkaProducer(sinkTopic));

        //TODO 6.启动任务
        env.execute("UniqueVisitApp");

数据流：web/app -> Nginx -> SpringBoot -> Kafka(ods) -> FlinkApp -> Kafka(dwd) -> FlinkApp -> Kafka(dwm)
程序：mockLog -> Nginx -> Logger.sh -> Kafka(ZK) -> BaseLogApp -> kafka -> UserJumpDetailApp -> Kafka

跳出明细计算

        //TODO 1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1); //生产环境,与Kafka分区数保持一致

        //TODO 2.读取Kafka主题的数据创建流
        String sourceTopic = "dwd_page_log";
        String groupId = "userJumpDetailApp";
        String sinkTopic = "dwm_user_jump_detail";
        DataStreamSource<String> kafkaDS = env.addSource(MyKafkaUtil.getKafkaConsumer(sourceTopic, groupId));

        //TODO 3.将每行数据转换为JSON对象并提取时间戳生成Watermark
        SingleOutputStreamOperator<JSONObject> jsonObjDS = kafkaDS.map(JSON::parseObject)
                .assignTimestampsAndWatermarks(WatermarkStrategy
                        .<JSONObject>forBoundedOutOfOrderness(Duration.ofSeconds(1))
                        .withTimestampAssigner(new SerializableTimestampAssigner<JSONObject>() {
                            @Override
                            public long extractTimestamp(JSONObject element, long recordTimestamp) {
                                return element.getLong("ts");
                            }
                        }));

        //TODO 4.定义模式序列
        Pattern<JSONObject, JSONObject> pattern = Pattern.<JSONObject>begin("start").where(new SimpleCondition<JSONObject>() {
            @Override
            public boolean filter(JSONObject value) throws Exception {
                String lastPageId = value.getJSONObject("page").getString("last_page_id");
                return lastPageId == null || lastPageId.length() <= 0;
            }
        }).next("next").where(new SimpleCondition<JSONObject>() {
            @Override
            public boolean filter(JSONObject value) throws Exception {
                String lastPageId = value.getJSONObject("page").getString("last_page_id");
                return lastPageId == null || lastPageId.length() <= 0;
            }
        }).within(Time.seconds(10));

        //使用循环模式  定义模式序列
        Pattern.<JSONObject>begin("start").where(new SimpleCondition<JSONObject>() {
            @Override
            public boolean filter(JSONObject value) throws Exception {
                String lastPageId = value.getJSONObject("page").getString("last_page_id");
                return lastPageId == null || lastPageId.length() <= 0;
            }
        })
                .times(2)
                .consecutive() //指定严格近邻(next)
                .within(Time.seconds(10));

        //TODO 5.将模式序列作用到流上
        PatternStream<JSONObject> patternStream = CEP
                .pattern(jsonObjDS.keyBy(json -> json.getJSONObject("common").getString("mid"))
                        , pattern);

        //TODO 6.提取匹配上的和超时事件
        OutputTag<JSONObject> timeOutTag = new OutputTag<JSONObject>("timeOut") {
        };
        SingleOutputStreamOperator<JSONObject> selectDS = patternStream.select(timeOutTag,
                new PatternTimeoutFunction<JSONObject, JSONObject>() {
                    @Override
                    public JSONObject timeout(Map<String, List<JSONObject>> map, long ts) throws Exception {
                        return map.get("start").get(0);
                    }
                }, new PatternSelectFunction<JSONObject, JSONObject>() {
                    @Override
                    public JSONObject select(Map<String, List<JSONObject>> map) throws Exception {
                        return map.get("start").get(0);
                    }
                });
        DataStream<JSONObject> timeOutDS = selectDS.getSideOutput(timeOutTag);

        //TODO 7.UNION两种事件
        DataStream<JSONObject> unionDS = selectDS.union(timeOutDS);

        //TODO 8.将数据写入Kafka
        unionDS.print();
        unionDS.map(JSONAware::toJSONString)
                .addSink(MyKafkaUtil.getKafkaProducer(sinkTopic));

        //TODO 9.启动任务
        env.execute("UserJumpDetailApp");

    }

订单宽表设计

                //TODO 1.获取执行环境
                StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
                env.setParallelism(1);

                //TODO 2.读取Kafka 主题的数据 并转换为JavaBean对象&提取时间戳生成WaterMark
                String orderInfoSourceTopic = "dwd_order_info";
                String orderDetailSourceTopic = "dwd_order_detail";
                String orderWideSinkTopic = "dwm_order_wide";
                String groupId = "order_wide_group_0325";
                SingleOutputStreamOperator<OrderInfo> orderInfoDS = env.addSource(MyKafkaUtil.getKafkaConsumer(orderInfoSourceTopic, groupId))
                        .map(line -> {
                                OrderInfo orderInfo = JSON.parseObject(line, OrderInfo.class);

                                String create_time = orderInfo.getCreate_time();
                                String[] dateTimeArr = create_time.split(" ");
                                orderInfo.setCreate_date(dateTimeArr[0]);
                                orderInfo.setCreate_hour(dateTimeArr[1].split(":")[0]);

                                SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                                orderInfo.setCreate_ts(sdf.parse(create_time).getTime());

                                return orderInfo;
                        }).assignTimestampsAndWatermarks(WatermarkStrategy.<OrderInfo>forMonotonousTimestamps()
                                .withTimestampAssigner(new SerializableTimestampAssigner<OrderInfo>() {
                                        @Override
                                        public long extractTimestamp(OrderInfo element, long recordTimestamp) {
                                                return element.getCreate_ts();
                                        }
                                }));
                SingleOutputStreamOperator<OrderDetail> orderDetailDS = env.addSource(MyKafkaUtil.getKafkaConsumer(orderDetailSourceTopic, groupId))
                        .map(line -> {
                                OrderDetail orderDetail = JSON.parseObject(line, OrderDetail.class);
                                String create_time = orderDetail.getCreate_time();

                                SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                                orderDetail.setCreate_ts(sdf.parse(create_time).getTime());

                                return orderDetail;
                        }).assignTimestampsAndWatermarks(WatermarkStrategy.<OrderDetail>forMonotonousTimestamps()
                                .withTimestampAssigner(new SerializableTimestampAssigner<OrderDetail>() {
                                        @Override
                                        public long extractTimestamp(OrderDetail element, long recordTimestamp) {
                                                return element.getCreate_ts();
                                        }
                                }));

                //TODO 3.双流JOIN
                SingleOutputStreamOperator<OrderWide> orderWideWithNoDimDS = orderInfoDS.keyBy(OrderInfo::getId)
                        .intervalJoin(orderDetailDS.keyBy(OrderDetail::getOrder_id))
                        .between(Time.seconds(-5), Time.seconds(5)) //生成环境中给的时间给最大延迟时间
                        .process(new ProcessJoinFunction<OrderInfo, OrderDetail, OrderWide>() {
                                @Override
                                public void processElement(OrderInfo orderInfo, OrderDetail orderDetail, Context ctx, Collector<OrderWide> out) throws Exception {
                                        out.collect(new OrderWide(orderInfo, orderDetail));
                                }
                        });

                //打印测试
                orderWideWithNoDimDS.print("orderWideWithNoDimDS>>>>>>>>>");

                //TODO 4.关联维度信息  HBase Phoenix
//        orderWideWithNoDimDS.map(orderWide -> {
//            //关联用户维度
//            Long user_id = orderWide.getUser_id();
//            //根据user_id查询Phoenix用户信息
//            //将用户信息补充至orderWide
//            //地区
//            //SKU
//            //SPU
//            //。。。
//            //返回结果
//            return orderWide;
//        });

                //4.1 关联用户维度
                SingleOutputStreamOperator<OrderWide> orderWideWithUserDS = AsyncDataStream.unorderedWait(
                        orderWideWithNoDimDS,
                        new DimAsyncFunction<OrderWide>("DIM_USER_INFO") {
                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return orderWide.getUser_id().toString();
                                }

                                @Override
                                public void join(OrderWide orderWide, JSONObject dimInfo) throws ParseException {
                                        orderWide.setUser_gender(dimInfo.getString("GENDER"));

                                        String birthday = dimInfo.getString("BIRTHDAY");
                                        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");

                                        long currentTs = System.currentTimeMillis();
                                        long ts = sdf.parse(birthday).getTime();

                                        long age = (currentTs - ts) / (1000 * 60 * 60 * 24 * 365L);

                                        orderWide.setUser_age((int) age);
                                }
                        },
                        60,
                        TimeUnit.SECONDS);

                //打印测试
//        orderWideWithUserDS.print("orderWideWithUserDS");

                //4.2 关联地区维度
                SingleOutputStreamOperator<OrderWide> orderWideWithProvinceDS = AsyncDataStream.unorderedWait(orderWideWithUserDS,
                        new DimAsyncFunction<OrderWide>("DIM_BASE_PROVINCE") {
                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return orderWide.getProvince_id().toString();
                                }

                                @Override
                                public void join(OrderWide orderWide, JSONObject dimInfo) throws ParseException {
                                        orderWide.setProvince_name(dimInfo.getString("NAME"));
                                        orderWide.setProvince_area_code(dimInfo.getString("AREA_CODE"));
                                        orderWide.setProvince_iso_code(dimInfo.getString("ISO_CODE"));
                                        orderWide.setProvince_3166_2_code(dimInfo.getString("ISO_3166_2"));
                                }
                        }, 60, TimeUnit.SECONDS);

                //4.3 关联SKU维度
                SingleOutputStreamOperator<OrderWide> orderWideWithSkuDS = AsyncDataStream.unorderedWait(
                        orderWideWithProvinceDS, new DimAsyncFunction<OrderWide>("DIM_SKU_INFO") {
                                @Override
                                public void join(OrderWide orderWide, JSONObject jsonObject) throws ParseException {
                                        orderWide.setSku_name(jsonObject.getString("SKU_NAME"));
                                        orderWide.setCategory3_id(jsonObject.getLong("CATEGORY3_ID"));
                                        orderWide.setSpu_id(jsonObject.getLong("SPU_ID"));
                                        orderWide.setTm_id(jsonObject.getLong("TM_ID"));
                                }

                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return String.valueOf(orderWide.getSku_id());
                                }
                        }, 60, TimeUnit.SECONDS);

                //4.4 关联SPU维度
                SingleOutputStreamOperator<OrderWide> orderWideWithSpuDS = AsyncDataStream.unorderedWait(
                        orderWideWithSkuDS, new DimAsyncFunction<OrderWide>("DIM_SPU_INFO") {
                                @Override
                                public void join(OrderWide orderWide, JSONObject jsonObject) throws ParseException {
                                        orderWide.setSpu_name(jsonObject.getString("SPU_NAME"));
                                }

                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return String.valueOf(orderWide.getSpu_id());
                                }
                        }, 60, TimeUnit.SECONDS);

                //4.5 关联TM维度
                SingleOutputStreamOperator<OrderWide> orderWideWithTmDS = AsyncDataStream.unorderedWait(
                        orderWideWithSpuDS, new DimAsyncFunction<OrderWide>("DIM_BASE_TRADEMARK") {
                                @Override
                                public void join(OrderWide orderWide, JSONObject jsonObject) throws ParseException {
                                        orderWide.setTm_name(jsonObject.getString("TM_NAME"));
                                }

                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return String.valueOf(orderWide.getTm_id());
                                }
                        }, 60, TimeUnit.SECONDS);

                //4.6 关联Category维度
                SingleOutputStreamOperator<OrderWide> orderWideWithCategory3DS = AsyncDataStream.unorderedWait(
                        orderWideWithTmDS, new DimAsyncFunction<OrderWide>("DIM_BASE_CATEGORY3") {
                                @Override
                                public void join(OrderWide orderWide, JSONObject jsonObject) throws ParseException {
                                        orderWide.setCategory3_name(jsonObject.getString("NAME"));
                                }

                                @Override
                                public String getKey(OrderWide orderWide) {
                                        return String.valueOf(orderWide.getCategory3_id());
                                }
                        }, 60, TimeUnit.SECONDS);

                orderWideWithCategory3DS.print("orderWideWithCategory3DS>>>>>>>>>>>");

                //TODO 5.将数据写入Kafka
                orderWideWithCategory3DS
                        .map(JSONObject::toJSONString)
                        .addSink(MyKafkaUtil.getKafkaProducer(orderWideSinkTopic));

                //TODO 6.启动任务
                env.execute("OrderWideApp");
        }

支付宽表设计

        //TODO 1.获取执行环境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        //TODO 2.读取Kafka主题的数据创建流 并转换为JavaBean对象 提取时间戳生成WaterMark
        String groupId = "payment_wide_group";
        String paymentInfoSourceTopic = "dwd_payment_info";
        String orderWideSourceTopic = "dwm_order_wide";
        String paymentWideSinkTopic = "dwm_payment_wide";
        SingleOutputStreamOperator<OrderWide> orderWideDS = env.addSource(MyKafkaUtil.getKafkaConsumer(orderWideSourceTopic, groupId))
                .map(line -> JSON.parseObject(line, OrderWide.class))
                .assignTimestampsAndWatermarks(WatermarkStrategy.<OrderWide>forMonotonousTimestamps()
                        .withTimestampAssigner(new SerializableTimestampAssigner<OrderWide>() {
                            @Override
                            public long extractTimestamp(OrderWide element, long recordTimestamp) {
                                SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                                try {
                                    return sdf.parse(element.getCreate_time()).getTime();
                                } catch (ParseException e) {
                                    e.printStackTrace();
                                    return recordTimestamp;
                                }
                            }
                        }));
        SingleOutputStreamOperator<PaymentInfo> paymentInfoDS = env.addSource(MyKafkaUtil.getKafkaConsumer(paymentInfoSourceTopic, groupId))
                .map(line -> JSON.parseObject(line, PaymentInfo.class))
                .assignTimestampsAndWatermarks(WatermarkStrategy.<PaymentInfo>forMonotonousTimestamps()
                        .withTimestampAssigner(new SerializableTimestampAssigner<PaymentInfo>() {
                            @Override
                            public long extractTimestamp(PaymentInfo element, long recordTimestamp) {
                                SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                                try {
                                    return sdf.parse(element.getCreate_time()).getTime();
                                } catch (ParseException e) {
                                    e.printStackTrace();
                                    return recordTimestamp;
                                }
                            }
                        }));

        //TODO 3.双流JOIN
        SingleOutputStreamOperator<PaymentWide> paymentWideDS = paymentInfoDS.keyBy(PaymentInfo::getOrder_id)
                .intervalJoin(orderWideDS.keyBy(OrderWide::getOrder_id))
                .between(Time.minutes(-15), Time.seconds(5))
                .process(new ProcessJoinFunction<PaymentInfo, OrderWide, PaymentWide>() {
                    @Override
                    public void processElement(PaymentInfo paymentInfo, OrderWide orderWide, Context ctx, Collector<PaymentWide> out) throws Exception {
                        out.collect(new PaymentWide(paymentInfo, orderWide));
                    }
                });

        //TODO 4.将数据写入Kafka
        paymentWideDS.print(">>>>>>>>>");
        paymentWideDS
                .map(JSONObject::toJSONString)
                .addSink(MyKafkaUtil.getKafkaProducer(paymentWideSinkTopic));

        //TODO 5.启动任务
        env.execute("PaymentWideApp");
    }
