背景
本文基于spark 3.1.2,且运行在yarn模式下
最近在调试 spark sql的时候遇到了空指针的问题，如下：
Caused by: java.lang.NullPointerException
at org.apache.spark.sql.execution.DataSourceScanExec.$init$(DataSourceScanExec.scala:57)
at org.apache.spark.sql.execution.FileSourceScanExec.<init>(DataSourceScanExec.scala:172)
at org.apache.spark.sql.execution.FileSourceScanExec.doCanonicalize(DataSourceScanExec.scala:635)
at org.apache.spark.sql.execution.FileSourceScanExec.doCanonicalize(DataSourceScanExec.scala:162)
...
at org.apache.spark.sql.catalyst.expressions.SubExprEvaluationRuntime.proxyExpressions(SubExprEvaluationRuntime.scala:89)
at org.apache.spark.sql.catalyst.expressions.InterpretedPredicate.<init>(predicates.scala:53)
at org.apache.spark.sql.catalyst.expressions.Predicate$.createInterpretedObject(predicates.scala:92)
at org.apache.spark.sql.catalyst.expressions.Predicate$.createInterpretedObject(predicates.scala:85)
at org.apache.spark.sql.catalyst.expressions.CodeGeneratorWithInterpretedFallback.createObject(CodeGeneratorWithInterpretedFallback.scala:56)
at org.apache.spark.sql.catalyst.expressions.Predicate$.create(predicates.scala:101)
at org.apache.spark.sql.execution.FilterExec.$anonfun$doExecute$2(basicPhysicalOperators.scala:246)
at org.apache.spark.sql.execution.FilterExec.$anonfun$doExecute$2$adapted(basicPhysicalOperators.scala:245)
at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsWithIndexInternal$2(RDD.scala:885)
at org.apache.spark.rdd.RDD.$anonfun$mapPartitionsWithIndexInternal$2$adapted(RDD.scala:885)
at org.apache.spark.rdd.MapPartitionsRDD.compute(MapPartitionsRDD.scala:52)
...
at org.apache.spark.rdd.MapPartitionsRDD.compute(MapPartitionsRDD.scala:52)
at org.apache.spark.rdd.RDD.computeOrReadCheckpoint(RDD.scala:373)
at org.apache.spark.rdd.RDD.iterator(RDD.scala:337)
at org.apache.spark.scheduler.ResultTask.runTask(ResultTask.scala:90)
at org.apache.spark.scheduler.Task.run(Task.scala:131)
分析
遇到以上问题，一脸懵？
我们分析一下，这里会涉及到spark的DPP(动态分区裁剪) 以及codegen部分。我们提取最小化的报错sql如下(脱敏处理)：
create table test_a_pt(col1 int, col2 int,pt string) USING parquet PARTITIONED BY (pt);
insert into table test_a_pt values(1,2,'20220101'),(3,4,'20220101'),(1,2,'20220101'),(3,4,'20220101'),(1,2,'20220101'),(3,4,'20220101');
drop table if exists test_b;
create table test_b as select 1 as `搜索demo_uv` ,2 as `搜索demo_gmv`, 'gogo' as scenes, '2021-03-04' as date1;
drop table if exists gg_gg;
create table gg_gg as
SELECT a.pt,
a.scenes
FROM (
SELECT '20220101' as pt
,'comeon' AS scenes
FROM test_b where scenes='gogo' and exists(array(date1),x-> x =='2021-03-04')
UNION ALL
SELECT pt
,'comeon'
FROM (
SELECT pt,COUNT( distinct col2) AS buy_tab_uv
FROM test_a_pt
where pt='20220101'
GROUP BY pt
)
) a
JOIN (
SELECT pt ,COUNT(distinct col2) AS buy_tab_uv
FROM test_a_pt
where pt='20220101'
GROUP BY pt
) b
ON a.pt = b.pt
;
其中exists方法是继承CodegenFallback的

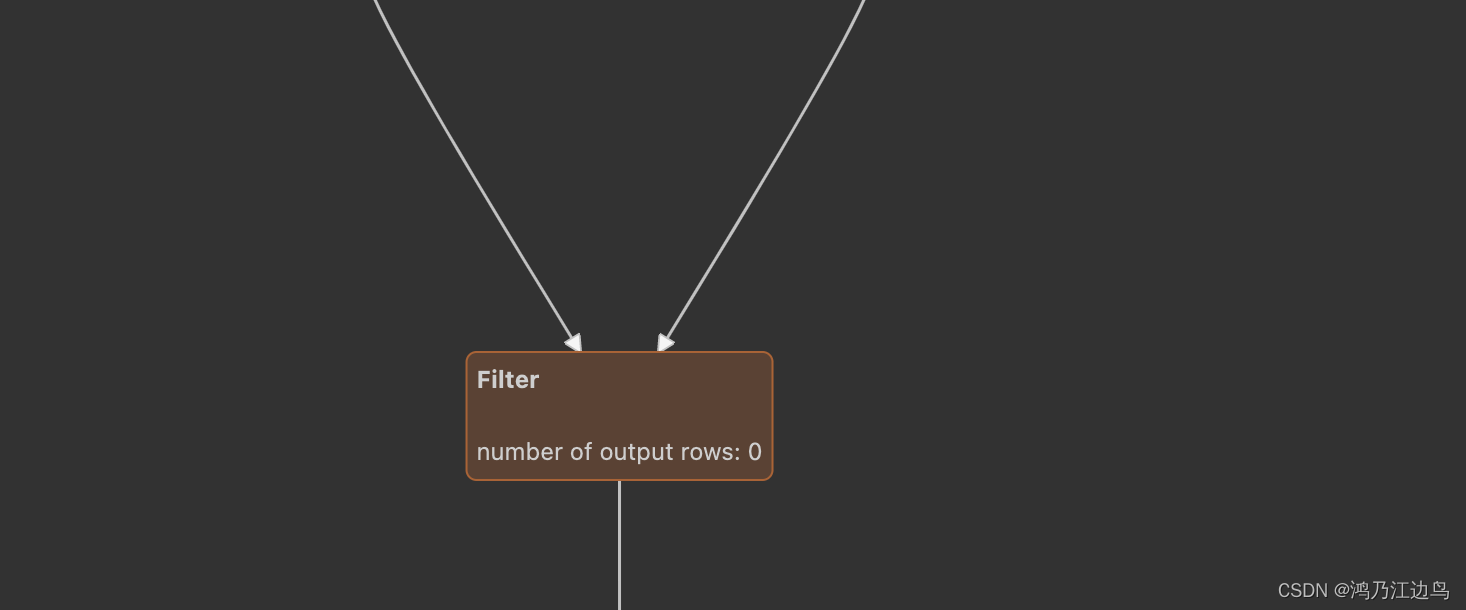

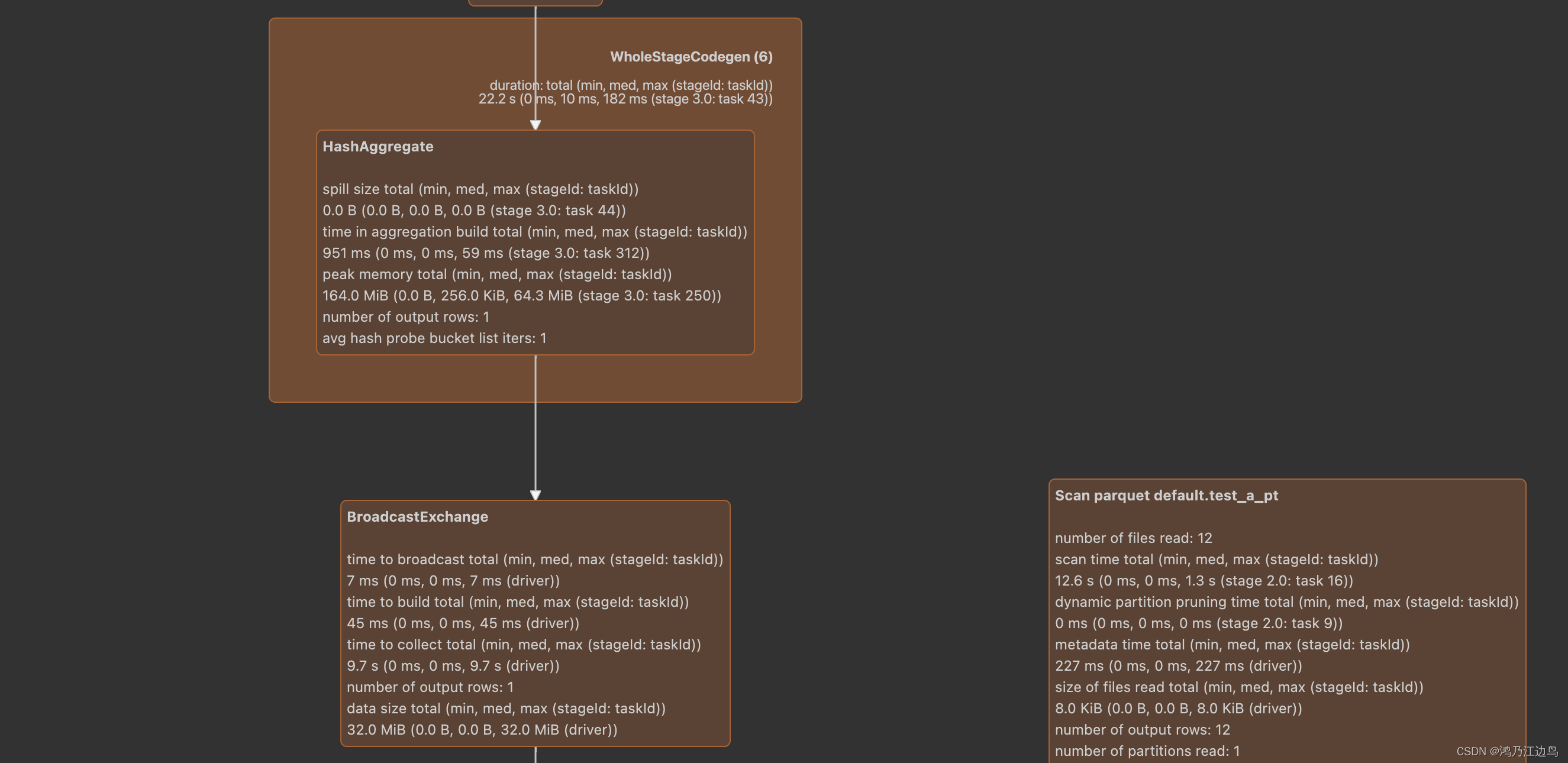

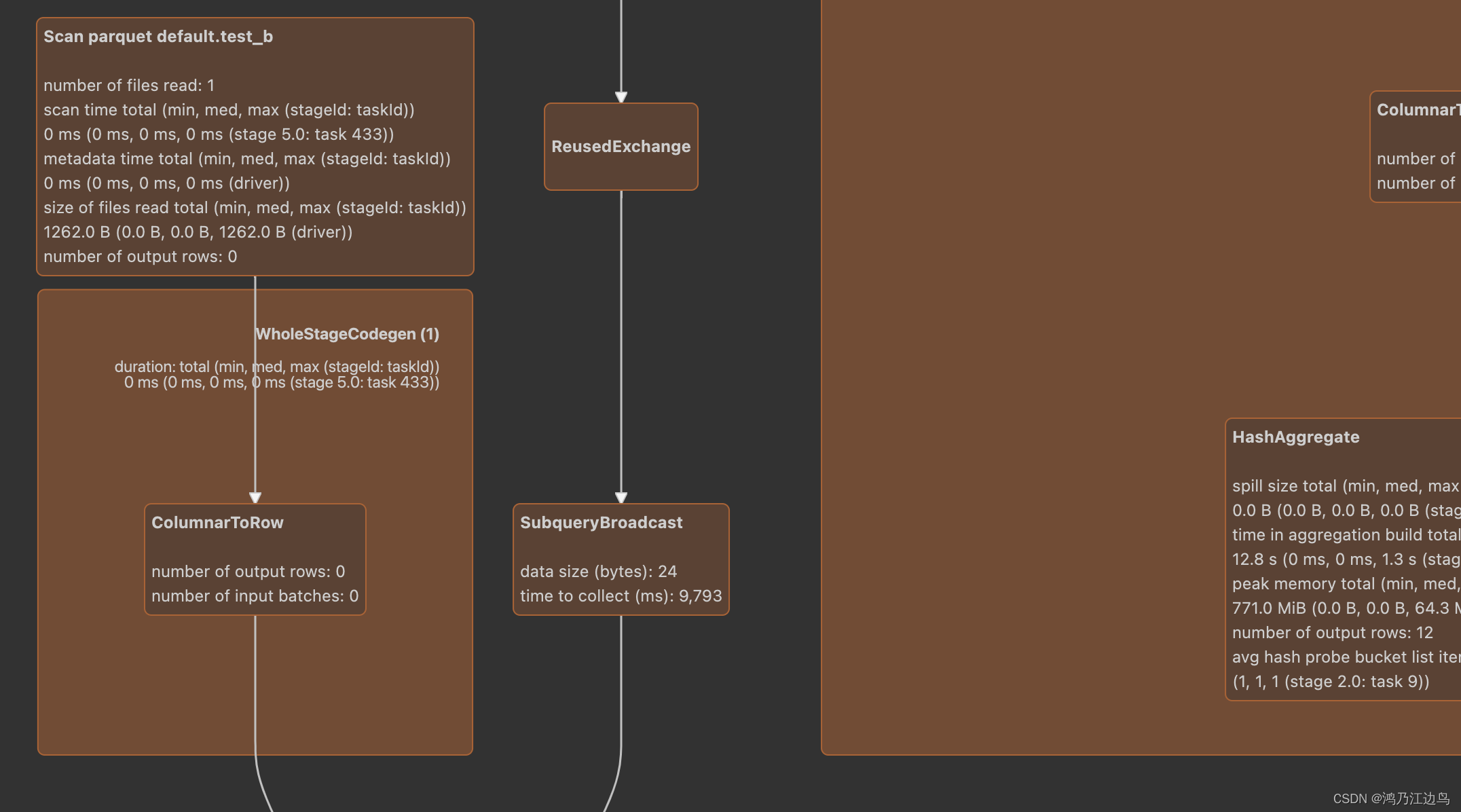

运行完后，我们可以拿到对应的物理计划，
这个sql会生成对应的DynamicPruningExpression(InSubqueryExec(value, broadcastValues, exprId))（这个对下面的分析很重要）表达式，至于为什么会生成对应的表达式，可以看对应的逻辑计划和物理计划的生成日志，这里就不再说明。
我们直接拿堆栈信息进行分析，首先是
Task.run 这说明是在Executor端报错的
再者是FilterExec，对应的代码如下：
protected override def doExecute(): RDD[InternalRow] = {
val numOutputRows = longMetric("numOutputRows")
child.execute().mapPartitionsWithIndexInternal { (index, iter) =>
val predicate = Predicate.create(condition, child.output)
predicate.initialize(0)
iter.filter { row =>
val r = predicate.eval(row)
if (r) numOutputRows += 1
r
}
}
}
这里的Predicate.create方法会根据表达式来生成对应的BasePredicate类，这个类是对输入的每一行进行布尔计算的。
按照正常的流程的话，其实是会先调用在createCodeGeneratedObject，如果报错，就会再调用createInterpretedObject方法的。
细心的同学会发现，我们的报错stack中就只有Predicate$.createInterpretedObject，那第一部的代码生成呢？去哪了？
其实我们知道表达式的代码生成是在executor端的，所以我们可以找到对应executor端的代码，可以找到对应的信息：
22/02/26 19:36:19 WARN Predicate: Expr codegen error and falling back to interpreter mode
java.lang.NullPointerException
at org.apache.spark.sql.execution.DataSourceScanExec.$init$(DataSourceScanExec.scala:57)
at org.apache.spark.sql.execution.FileSourceScanExec.<init>(DataSourceScanExec.scala:172)
at org.apache.spark.sql.execution.FileSourceScanExec.doCanonicalize(DataSourceScanExec.scala:635)
at org.apache.spark.sql.execution.FileSourceScanExec.doCanonicalize(DataSourceScanExec.scala:162)
at org.apache.spark.sql.catalyst.plans.QueryPlan.canonicalized$lzycompute(QueryPlan.scala:373)
at org.apache.spark.sql.catalyst.plans.QueryPlan.canonicalized(QueryPlan.scala:372)
at org.apache.spark.sql.catalyst.plans.QueryPlan.$anonfun$doCanonicalize$1(QueryPlan.scala:387)
at scala.collection.TraversableLike.$anonfun$map$1(TraversableLike.scala:238)
WARN Predicate: Expr codegen error and falling back to interpreter mode 这句就说明了该sql生成codegen的代码报错了，至于为什么生成代码失败了，下一次分析。
我们暂且就按照报错的堆栈进行分析，直接转到InterpretedPredicate类：
case class InterpretedPredicate(expression: Expression) extends BasePredicate {
private[this] val subExprEliminationEnabled = SQLConf.get.subexpressionEliminationEnabled
private[this] lazy val runtime =
new SubExprEvaluationRuntime(SQLConf.get.subexpressionEliminationCacheMaxEntries)
private[this] val expr = if (subExprEliminationEnabled) {
runtime.proxyExpressions(Seq(expression)).head
} else {
expression
}
这里有个subExprEliminationEnabled选项，这个选项是来消除公共表达式的，可以节省计算的时间，默认是开启的,注意这里很关键。
因为该选项开启了，所以我们接着往下走：
proxyExpressions的expressions.foreach(equivalentExpressions.addExprTree(_))方法:
def addExprTree(
expr: Expression,
addFunc: Expression => Boolean = addExpr): Unit = {
val skip = expr.isInstanceOf[LeafExpression] ||
// `LambdaVariable` is usually used as a loop variable, which can't be evaluated ahead of the
// loop. So we can't evaluate sub-expressions containing `LambdaVariable` at the beginning.
expr.find(_.isInstanceOf[LambdaVariable]).isDefined ||
// `PlanExpression` wraps query plan. To compare query plans of `PlanExpression` on executor,
// can cause error like NPE.
(expr.isInstanceOf[PlanExpression[_]] && TaskContext.get != null)
if (!skip && !addFunc(expr)) {
childrenToRecurse(expr).foreach(addExprTree(_, addFunc))
commonChildrenToRecurse(expr).filter(_.nonEmpty).foreach(addCommonExprs(_, addFunc))
}
}
这里有个skip判断，其中有一条是expr.isInstanceOf[PlanExpression[_]] && TaskContext.get != null,这个显然是针对executor端的，因为在executor端会生成TaskContext实例。
还记得我们说的DynamicPruningExpression(InSubqueryExec(value, broadcastValues, exprId))表达式吗(broadcastValues 会包含FileSourceScanExec类)?在这里就很关键了，
但是从报错的堆栈信息里，明显可以知道skip是false，所以才会ReusedExchangeExec.doCanonicalize等信息,才会报NPE问题。
分析一下这里expr.isInstanceOf[PlanExpression[_]] 很显然这个判断是不能判断DynamicPruningExpression的，因为InSubqueryExec才是PlanExpression子类,才满足这个条件，
所以我们改成expr.isInstanceOf[PlanExpression[_]] -> expr.find(_.isInstanceOf[PlanExpression[_]]).isDefined
这样我们就能解决该问题。
我们接着往下走（中间的调用看堆栈信息即可）：
DataSourceScanExec的57行，
trait DataSourceScanExec extends LeafExecNode {
def relation: BaseRelation
def tableIdentifier: Option[TableIdentifier]
protected val nodeNamePrefix: String = ""
override val nodeName: String = {
s"Scan $relation ${tableIdentifier.map(_.unquotedString).getOrElse("")}"
}
// Metadata that describes more details of this scan.
protected def metadata: Map[String, String]
protected val maxMetadataValueLength = sqlContext.sessionState.conf.maxMetadataStringLength
...
也就是protected val maxMetadataValueLength = sqlContext.sessionState.conf.maxMetadataStringLength这行会报错。
其中sqlContext在SparkPlan类中 @transient final val sqlContext = SparkSession.getActiveSession.map(_.sqlContext).orNull
SparkSession.getActiveSession方法如下：
def getActiveSession: Option[SparkSession] = {
if (TaskContext.get != null) {
// Return None when running on executors.
None
} else {
Option(activeThreadSession.get)
}
}
也就是说在executor端getActiveSession返回的是None，从而引发了NPE。
这样整个代码就完全捋顺了。
解决
- 关闭DPP(动态代码生成)
set spark.sql.optimizer.dynamicPartitionPruning.enabled=false - 关闭公共表达式消除
set spark.sql.subexpressionElimination.enabled=false - 修改代码，遇到DPP，直接跳过
这里有对应的jira
BTW 本文只是针对spark 3.1.2,对于3.2以及以上的版本代码进行了重构，具体的一些社区讨论可以参考SPARK-23731,SPARK-35742,SPARK-35798
其实解决方法1.2.3都是逐级的把影响范围缩小，至于怎么选择，看自己的选择。。。
