原理图

采用模板方法设计模式定义插件增强逻辑
处理见证者机制
完成静态方法增强逻辑[允许修改参数]
完成构造方法增强逻辑[构造方法调用后增强,不可修改参数]
完成实例方法增强逻辑[允许修改参数]

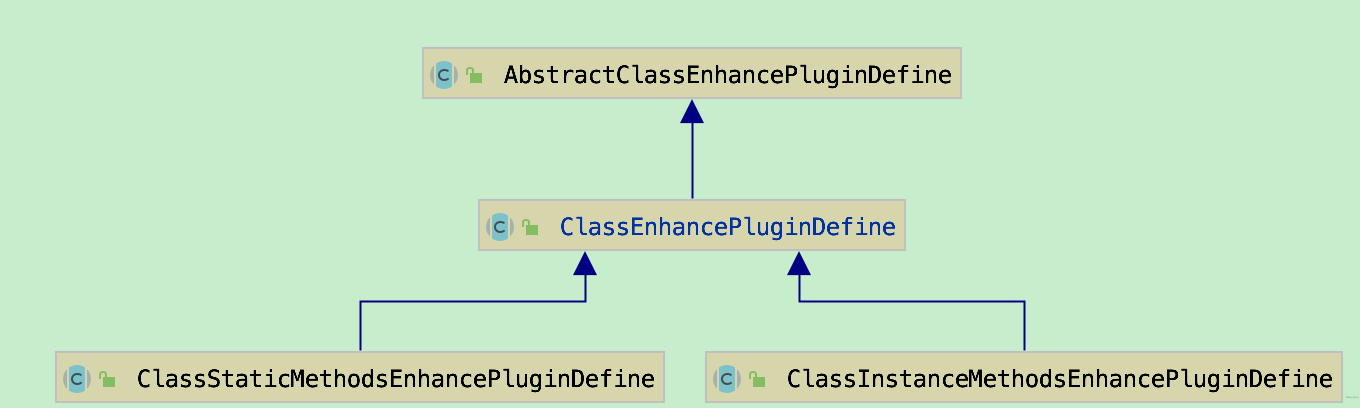

类层次结构:
AbstractClassEnhancePluginDefine定义插件的方法模板
ClassEnhancePluginDefine负责结合bytebuddy完成增强实现
ClassStaticMethodsEnhancePluginDefine完成静态方法插件定义
ClassInstanceMethodsEnhancePluginDefine完成构造和实例方法插件定义

见证者逻辑

使用场景
当被拦截代码存在多版本,比如mysql-5.x-plugin和mysql-8.x-plugin,比如mysql8存在com.mysql.cj.interceptors.QueryInterceptor,则此时拦截如Statement.execute时,使用QueryInterceptor作为见证者,此时mysql-8.x-plugin只对mysql8的jdbc版本生效,对5,x的版本不生效【因为5.x的jdbc无QueryInterceptor类】,这就是见证者机制使用场景

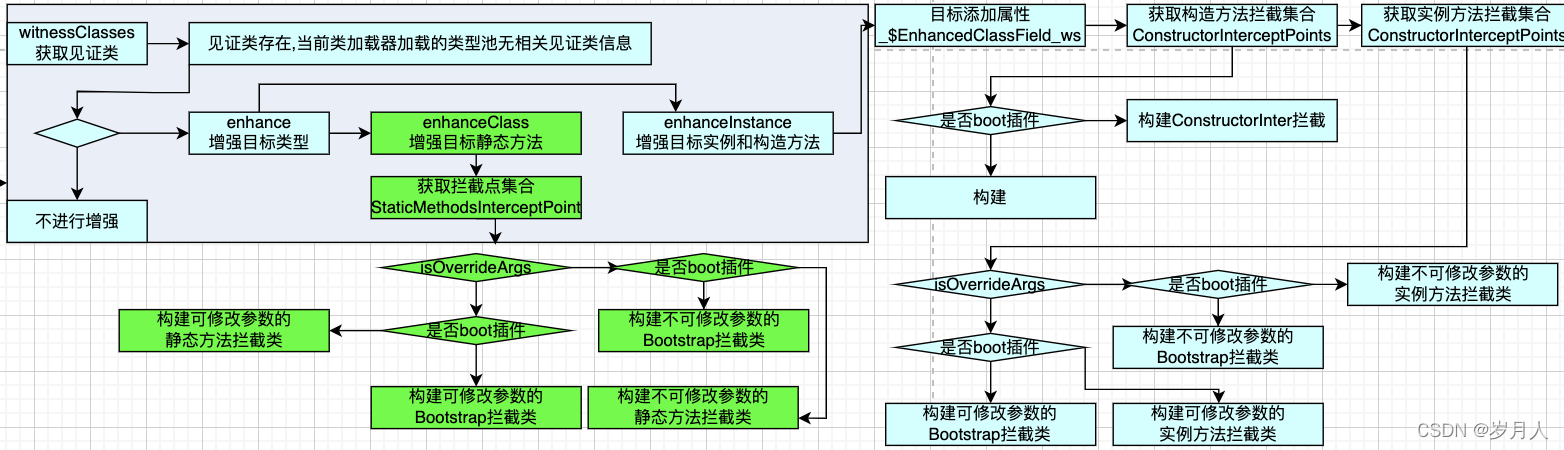

插件增强原理图

在这里插入图片描述

源码分析一AbstractClassEnhancePluginDefine.define

处理见证者机制
完成目标类插桩增强


 public DynamicType.Builder<?> define(TypeDescription typeDescription,
                                         DynamicType.Builder<?> builder, ClassLoader classLoader, EnhanceContext context) throws PluginException {
    ......闪出其他代码
    见证者:对框架不同版本的处理方式,如果见证者不存在则不进行增强
    String[] witnessClasses = witnessClasses();
    if (witnessClasses != null) {
        for (String witnessClass : witnessClasses) {
            通过classloader对应的类型池判断见证者类在不在
            if (!WitnessClassFinder.INSTANCE.exist(witnessClass, classLoader)) {
                return null;
            }
        }
    }
    真正的增强逻辑 处理静态,构造和实例方法
    DynamicType.Builder<?> newClassBuilder = this.enhance(typeDescription, builder, classLoader, context);
     ......闪出其他代码
    return newClassBuilder;
}

源码分析一ClassEnhancePluginDefine.enhance

静态方法增强
构造方法和实例方法增强

protected DynamicType.Builder<?> enhance(TypeDescription typeDescription,
    DynamicType.Builder<?> newClassBuilder, ClassLoader classLoader,
    EnhanceContext context) throws PluginException {
    处理静态方法增强
    newClassBuilder = this.enhanceClass(typeDescription, newClassBuilder, classLoader);
    处理 构造方法 实例方法
    newClassBuilder = this.enhanceInstance(typeDescription, newClassBuilder, classLoader, context);
    return newClassBuilder;
}

源码分析一enhanceClass

与bytebuddy结合实现静态方法增强
如果覆盖参数使用bytebuddy工具api[Morph.Binder.install(OverrideCallable.class)]
区分是否boot插件,boot插件一般定义在bootstrap-plugins目录下


 private DynamicType.Builder<?> enhanceClass(TypeDescription typeDescription,
        DynamicType.Builder<?> newClassBuilder, ClassLoader classLoader) throws PluginException {
    获取插件对应的静态方法拦截点 拦截的方法 和委托的拦截器
    StaticMethodsInterceptPoint[] staticMethodsInterceptPoints = getStaticMethodsInterceptPoints();
    拦截目标
    String enhanceOriginClassName = typeDescription.getTypeName();
    if (staticMethodsInterceptPoints == null || staticMethodsInterceptPoints.length == 0) {
        return newClassBuilder;
    }

    for (StaticMethodsInterceptPoint staticMethodsInterceptPoint : staticMethodsInterceptPoints) {
        String interceptor = staticMethodsInterceptPoint.getMethodsInterceptor();
        ...... 删除其他代码
        StaticMethodsInterWithOverrideArgs 处理
        if (staticMethodsInterceptPoint.isOverrideArgs()) {
            if (isBootstrapInstrumentation()) {
                getMethodsMatcher 拦截的方法
                newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                    .intercept(
                        MethodDelegation.withDefaultConfiguration()
                            覆写参数
                            .withBinders(
                                Morph.Binder.install(OverrideCallable.class)
                            )
                            拦截器
                            .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor))
                    );
            } else {
                newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                    .intercept(
                        MethodDelegation.withDefaultConfiguration()
                            .withBinders(
                                Morph.Binder.install(OverrideCallable.class)
                            )
                            增强交给inter进行 结合了bytebuddy的注解[参见bytebuddy]
                            .to(new StaticMethodsInterWithOverrideArgs(interceptor))
                    );
            }
        StaticMethodsInter处理
        } else {
            if (isBootstrapInstrumentation()) {
                newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                    .intercept(
                        MethodDelegation.withDefaultConfiguration()
                            .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor))
                    );
            } else {
                newClassBuilder = newClassBuilder.method(isStatic().and(staticMethodsInterceptPoint.getMethodsMatcher()))
                    .intercept(
                        MethodDelegation.withDefaultConfiguration()
                            .to(new StaticMethodsInter(interceptor))
                    );
            }
        }

    }

    return newClassBuilder;
}

源码分析一enhanceInstance

为被增强类实现EnhancedInstance接口并添加_$EnhancedClassField_ws属性
与bytebuddy结合处理构造方法[不支持覆盖参数,因为构造方法调用完成后调用拦截逻辑]
与bytebuddy结合处理实例方法[区分是否boot插件以及是否可以覆盖参数]


private DynamicType.Builder<?> enhanceInstance(TypeDescription typeDescription,
        DynamicType.Builder<?> newClassBuilder, ClassLoader classLoader,
        EnhanceContext context) throws PluginException {
    ...... 删除大量代码
    所有代理类均有一个_$EnhancedClassField_ws属性
    if (!context.isObjectExtended()) {
        newClassBuilder = newClassBuilder.defineField(CONTEXT_ATTR_NAME, Object.class, ACC_PRIVATE | ACC_VOLATILE)
            .implement(EnhancedInstance.class)
            .intercept(FieldAccessor.ofField(CONTEXT_ATTR_NAME));
        context.extendObjectCompleted();
    }


    增强构造方法
    if (existedConstructorInterceptPoint) {
        for (ConstructorInterceptPoint constructorInterceptPoint : constructorInterceptPoints) {
            if (isBootstrapInstrumentation()) {
                newClassBuilder = newClassBuilder.constructor(constructorInterceptPoint.getConstructorMatcher()).intercept(SuperMethodCall.INSTANCE
                    .andThen(MethodDelegation.withDefaultConfiguration()
                        .to(BootstrapInstrumentBoost.forInternalDelegateClass(constructorInterceptPoint.getConstructorInterceptor()))
                    )
                );
            } else {
                newClassBuilder = newClassBuilder.constructor(constructorInterceptPoint.getConstructorMatcher()).intercept(SuperMethodCall.INSTANCE
                    .andThen(MethodDelegation.withDefaultConfiguration()
                        .to(new ConstructorInter(constructorInterceptPoint.getConstructorInterceptor(), classLoader))
                    )
                );
            }
        }
    }

    增强实例方法
    if (existedMethodsInterceptPoints) {
        for (InstanceMethodsInterceptPoint instanceMethodsInterceptPoint : instanceMethodsInterceptPoints) {
            String interceptor = instanceMethodsInterceptPoint.getMethodsInterceptor();
            if (StringUtil.isEmpty(interceptor)) {
                throw new EnhanceException("no InstanceMethodsAroundInterceptor define to enhance class " + enhanceOriginClassName);
            }
            ElementMatcher.Junction<MethodDescription> junction = not(isStatic()).and(instanceMethodsInterceptPoint.getMethodsMatcher());
            if (instanceMethodsInterceptPoint instanceof DeclaredInstanceMethodsInterceptPoint) {
                junction = junction.and(ElementMatchers.<MethodDescription>isDeclaredBy(typeDescription));
            }
            if (instanceMethodsInterceptPoint.isOverrideArgs()) {
                if (isBootstrapInstrumentation()) {
                    newClassBuilder =
                        newClassBuilder.method(junction)
                            .intercept(
                                MethodDelegation.withDefaultConfiguration()
                                    .withBinders(
                                        Morph.Binder.install(OverrideCallable.class)
                                    )
                                    .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor))
                            );
                } else {
                    newClassBuilder =
                        newClassBuilder.method(junction)
                            .intercept(
                                MethodDelegation.withDefaultConfiguration()
                                    .withBinders(
                                        Morph.Binder.install(OverrideCallable.class)
                                    )
                                    .to(new InstMethodsInterWithOverrideArgs(interceptor, classLoader))
                            );
                }
            } else {
                if (isBootstrapInstrumentation()) {
                    newClassBuilder =
                        newClassBuilder.method(junction)
                            .intercept(
                                MethodDelegation.withDefaultConfiguration()
                                    .to(BootstrapInstrumentBoost.forInternalDelegateClass(interceptor))
                            );
                } else {
                    newClassBuilder =
                        newClassBuilder.method(junction)
                            .intercept(
                                MethodDelegation.withDefaultConfiguration()
                                    .to(new InstMethodsInter(interceptor, classLoader))
                            );
                }
            }
        }
    }

    return newClassBuilder;
}
