从官网下载安装包
一. Standalone模式
https://flink.apache.org/downloads.html#all-stable-releases
[root@Linux121 conf]# vim flink-conf.yaml
修改主master节点
jobmanager.rpc.address: Linux121
修改主从节点信息
[root@Linux121 conf]# cat masters
Linux121:8081
[root@Linux121 conf]# cat workers
Linux121
Linux122
Linux123
[root@Linux121 conf]#
配置zk信息
zoo.cfg
# ZooKeeper quorum peers
server.1=Linux121:2888:3888
server.2=Linux122:2888:3888
server.3=Linux123:2888:3888
该模式启动flink
./start-cluster.sh

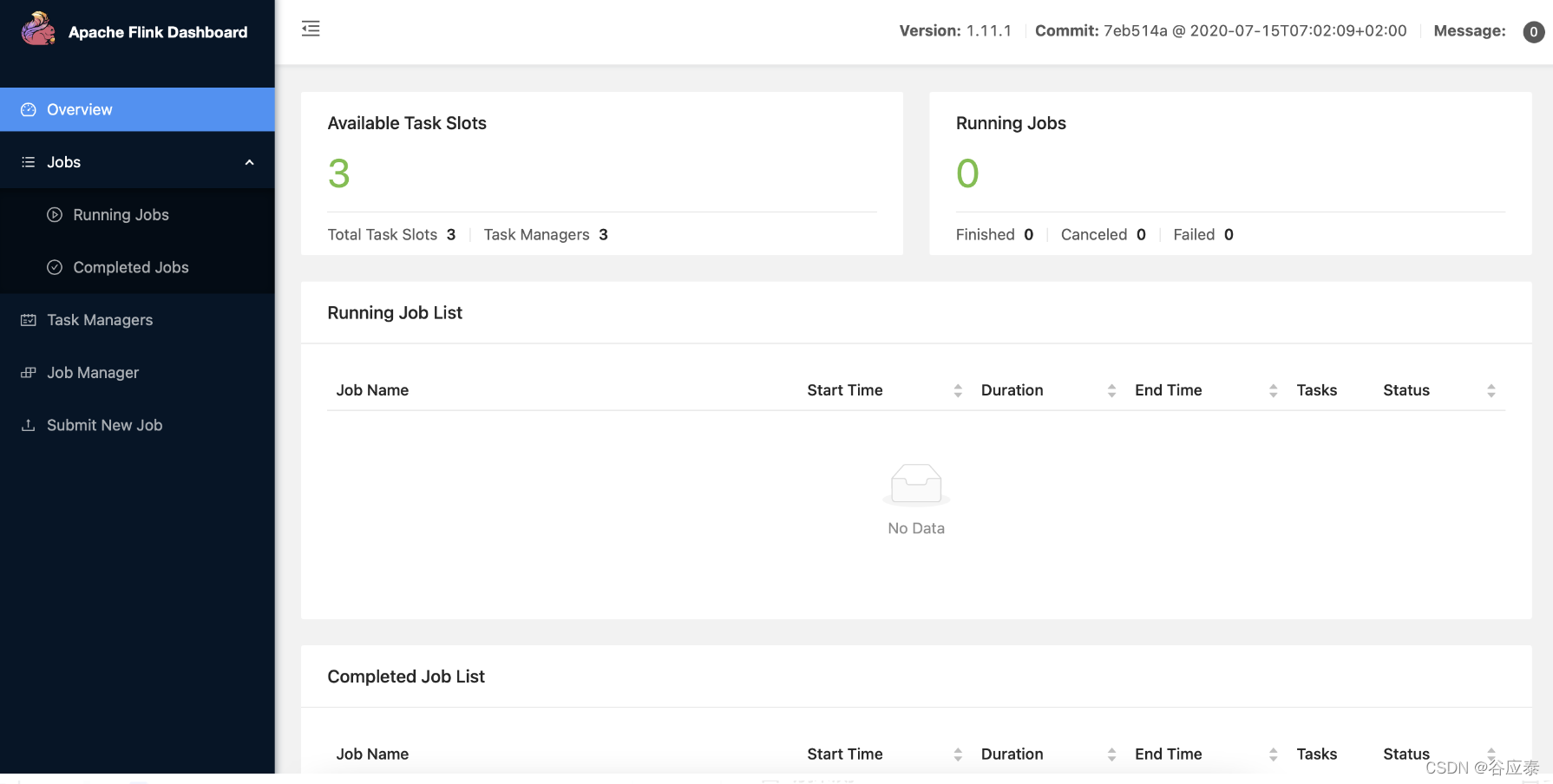

打开FlinkWebUI界面
提交任务
1.通过webUI
2.通过命令行
[root@Linux121 bin]# ./flink run -c WordCountStream -p 2 /root/myJar/Demo-1.0-SNAPSHOT.jar
Job has been submitted with JobID 35e26ebcbfa7743b3058fd2cc08639c3
取消Job
[root@Linux121 bin]# ./flink cancel 35e26ebcbfa7743b3058fd2cc08639c3
Cancelling job 35e26ebcbfa7743b3058fd2cc08639c3.
Cancelled job 35e26ebcbfa7743b3058fd2cc08639c3.
二.Yarn模式
1.yarn session模式
查看常见命令
[root@Linux121 bin]# ./yarn-session.sh -h
Error: A JNI error has occurred, please check your installation and try again
Exception in thread "main" java.lang.NoClassDefFoundError: org/apache/hadoop/yarn/exceptions/YarnException
at java.lang.Class.getDeclaredMethods0(Native Method)
at java.lang.Class.privateGetDeclaredMethods(Class.java:2701)
at java.lang.Class.privateGetMethodRecursive(Class.java:3048)
at java.lang.Class.getMethod0(Class.java:3018)
at java.lang.Class.getMethod(Class.java:1784)
at sun.launcher.LauncherHelper.validateMainClass(LauncherHelper.java:650)
at sun.launcher.LauncherHelper.checkAndLoadMain(LauncherHelper.java:632)
Caused by: java.lang.ClassNotFoundException: org.apache.hadoop.yarn.exceptions.YarnException
at java.net.URLClassLoader.findClass(URLClassLoader.java:382)
at java.lang.ClassLoader.loadClass(ClassLoader.java:418)
at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:355)
at java.lang.ClassLoader.loadClass(ClassLoader.java:351)
... 7 more
顾名思义，提示flink启动缺少Hadoop yarn的相关jar包，从官网下载Flink依赖Hadoop的相关jar包；
https://flink.apache.org/downloads.html
进入官网，下载对应的相关依赖jar包，放到flink lib目录下即可
root@Linux121 bin]# ./yarn-session.sh -h
2022-04-01 23:46:05,631 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: jobmanager.rpc.address, Linux121
2022-04-01 23:46:05,643 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: jobmanager.rpc.port, 6123
2022-04-01 23:46:05,644 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: jobmanager.memory.process.size, 1600m
2022-04-01 23:46:05,644 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: taskmanager.memory.process.size, 1728m
2022-04-01 23:46:05,644 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: taskmanager.numberOfTaskSlots, 1
2022-04-01 23:46:05,644 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: parallelism.default, 1
2022-04-01 23:46:05,644 INFO org.apache.flink.configuration.GlobalConfiguration [] - Loading configuration property: jobmanager.execution.failover-strategy, region
2022-04-01 23:46:06,912 WARN org.apache.hadoop.util.NativeCodeLoader [] - Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2022-04-01 23:46:07,279 INFO org.apache.flink.runtime.security.modules.HadoopModule [] - Hadoop user set to root (auth:SIMPLE)
2022-04-01 23:46:07,344 INFO org.apache.flink.runtime.security.modules.JaasModule [] - Jaas file will be created as /tmp/jaas-8845686346801223383.conf.
Usage:
Optional
-at,--applicationType <arg> Set a custom application type for the application on YARN
-D <property=value> use value for given property
-d,--detached If present, runs the job in detached mode
-h,--help Help for the Yarn session CLI.
-id,--applicationId <arg> Attach to running YARN session
-j,--jar <arg> Path to Flink jar file
-jm,--jobManagerMemory <arg> Memory for JobManager Container with optional unit (default: MB)
-m,--jobmanager <arg> Address of the JobManager to which to connect. Use this flag to connect to a different JobManager than the one specified in the configuration.
-nl,--nodeLabel <arg> Specify YARN node label for the YARN application
-nm,--name <arg> Set a custom name for the application on YARN
-q,--query Display available YARN resources (memory, cores)
-qu,--queue <arg> Specify YARN queue.
-s,--slots <arg> Number of slots per TaskManager
-t,--ship <arg> Ship files in the specified directory (t for transfer)
-tm,--taskManagerMemory <arg> Memory per TaskManager Container with optional unit (default: MB)
-yd,--yarndetached If present, runs the job in detached mode (deprecated; use non-YARN specific option instead)
-z,--zookeeperNamespace <arg> Namespace to create the Zookeeper sub-paths for high availability mode
启动该模式
[root@Linux121 bin]# ./yarn-session.sh -s 1 -jm 1024 -tm 1024
2.yarn perJob模式
[root@Linux121 bin]# ./flink run -m yarn-cluster -ynm flink-job -c WordCountStream /root/myJar/Demo-1.0-SNAPSHOT.jar
出现以下问题
The program finished with the following exception:
org.apache.flink.client.program.ProgramInvocationException: The main method caused an error: Could not deploy Yarn job cluster.
at org.apache.flink.client.program.PackagedProgram.callMainMethod(PackagedProgram.java:302)
at org.apache.flink.client.program.PackagedProgram.invokeInteractiveModeForExecution(PackagedProgram.java:198)
at org.apache.flink.client.ClientUtils.executeProgram(ClientUtils.java:149)
at org.apache.flink.client.cli.CliFrontend.executeProgram(CliFrontend.java:699)
at org.apache.flink.client.cli.CliFrontend.run(CliFrontend.java:232)
at org.apache.flink.client.cli.CliFrontend.parseParameters(CliFrontend.java:916)
at org.apache.flink.client.cli.CliFrontend.lambda$main$10(CliFrontend.java:992)
at java.security.AccessController.doPrivileged(Native Method)
at javax.security.auth.Subject.doAs(Subject.java:422)
at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1836)
at org.apache.flink.runtime.security.contexts.HadoopSecurityContext.runSecured(HadoopSecurityContext.java:41)
at org.apache.flink.client.cli.CliFrontend.main(CliFrontend.java:992)
Caused by: org.apache.flink.client.deployment.ClusterDeploymentException: Could not deploy Yarn job cluster.
at org.apache.flink.yarn.YarnClusterDescriptor.deployJobCluster(YarnClusterDescriptor.java:431)
at org.apache.flink.client.deployment.executors.AbstractJobClusterExecutor.execute(AbstractJobClusterExecutor.java:70)
at org.apache.flink.streaming.api.environment.StreamExecutionEnvironment.executeAsync(StreamExecutionEnvironment.java:1812)
at org.apache.flink.client.program.StreamContextEnvironment.executeAsync(StreamContextEnvironment.java:128)
at org.apache.flink.client.program.StreamContextEnvironment.execute(StreamContextEnvironment.java:76)
at org.apache.flink.streaming.api.environment.StreamExecutionEnvironment.execute(StreamExecutionEnvironment.java:1699)
at org.apache.flink.streaming.api.environment.StreamExecutionEnvironment.execute(StreamExecutionEnvironment.java:1681)
at org.apache.flink.streaming.api.scala.StreamExecutionEnvironment.execute(StreamExecutionEnvironment.scala:688)
at WordCountStream$.main(WordCountStream.scala:9)
at WordCountStream.main(WordCountStream.scala)
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.flink.client.program.PackagedProgram.callMainMethod(PackagedProgram.java:288)
... 11 more
根据网上查询的资料得知原因有二
1.需要增加yarn资源配置
<property>
<name>yarn.nodemanager.resource.memory-mb</name>
<value>2048</value>
</property>
<property>
<name>yarn.scheduler.minimum-allocation-mb</name>
<value>1024</value>
</property>
<property>
<name>yarn.scheduler.maximum-allocation-mb</name>
<value>2048</value>
</property>
2.提交集群版本不匹配我的flink应用打包版本和集群版本不一致导致该问题
再次重新提交

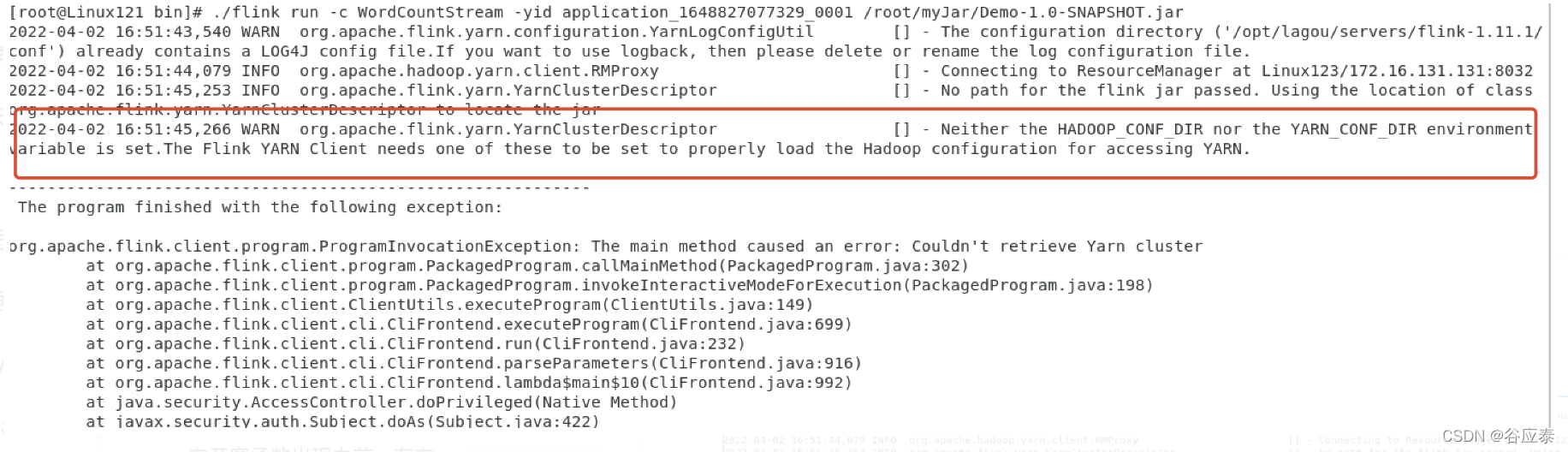

看来环境配置还是有问题
修改了相关配置后再次验证
/etc/profile(注意版本不同配置文件位置可能有差异,根据实际版本进行配置)
#Flink
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
export YARN_CONF_DIR=$HADOOP_HOME/etc/hadoop
export HADOOP_CLASSPATH=`hadoop classpath`
启动成功

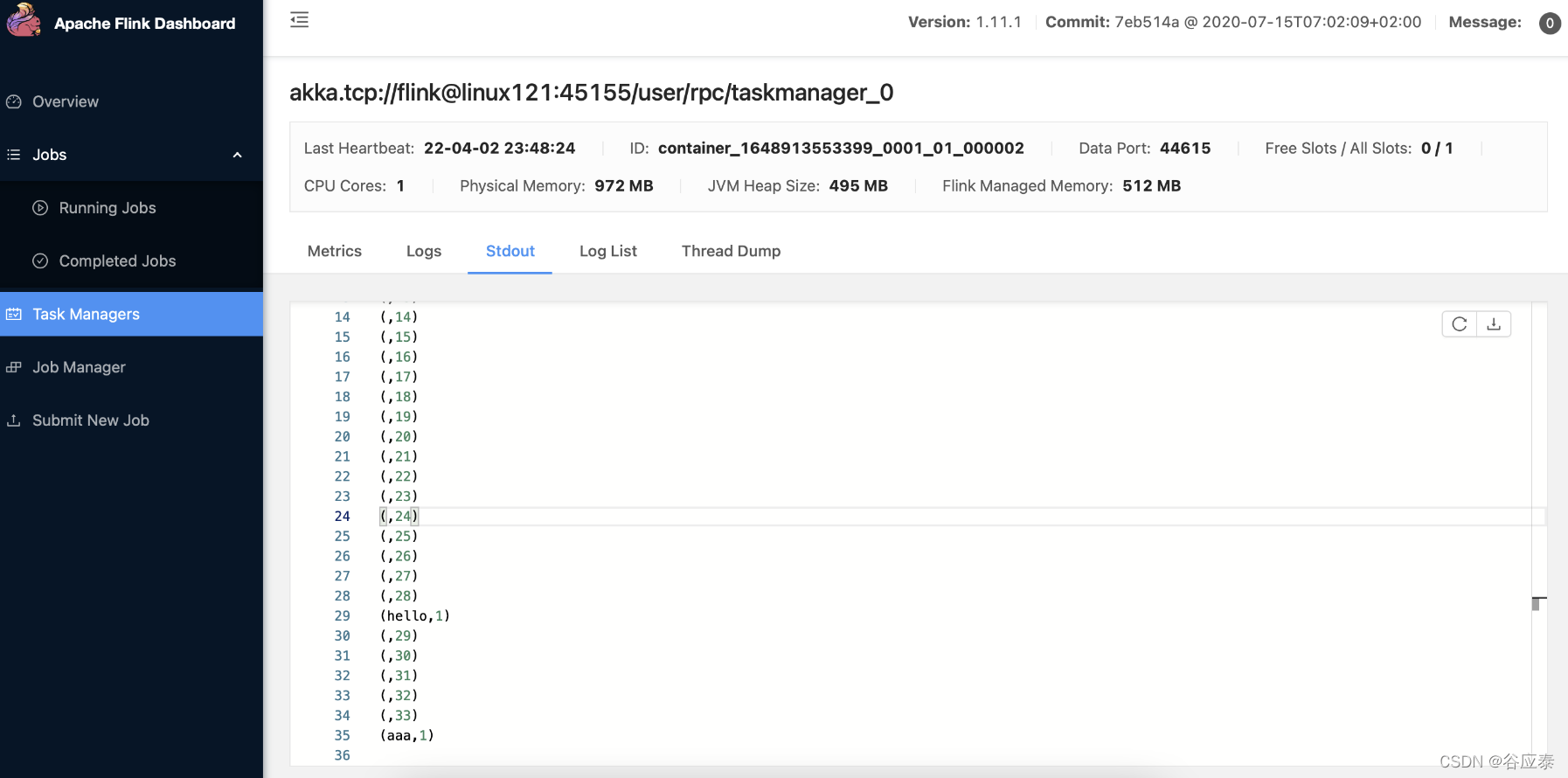

我们通过yarn的WebUI进行点击ApplicationMaster查看FlinkWebUI相关信息接收数据信息同上
