点击流模型的生成plus(解决数据倾斜问题)
如果某个用户访问记录过多，则生成page view模型的时候，会产生数据倾斜，此时该怎样处理呢？
思路：
-
通过Spark UI找到产生倾斜的shuffle算子
-
分析产生倾斜的原因
-
对倾斜的key进行处理
-
对key增加随机数
-
增加并行度
-
单独处理倾斜的key
-
rangepartioner+key转换处理
-
-
编写代码进行验证

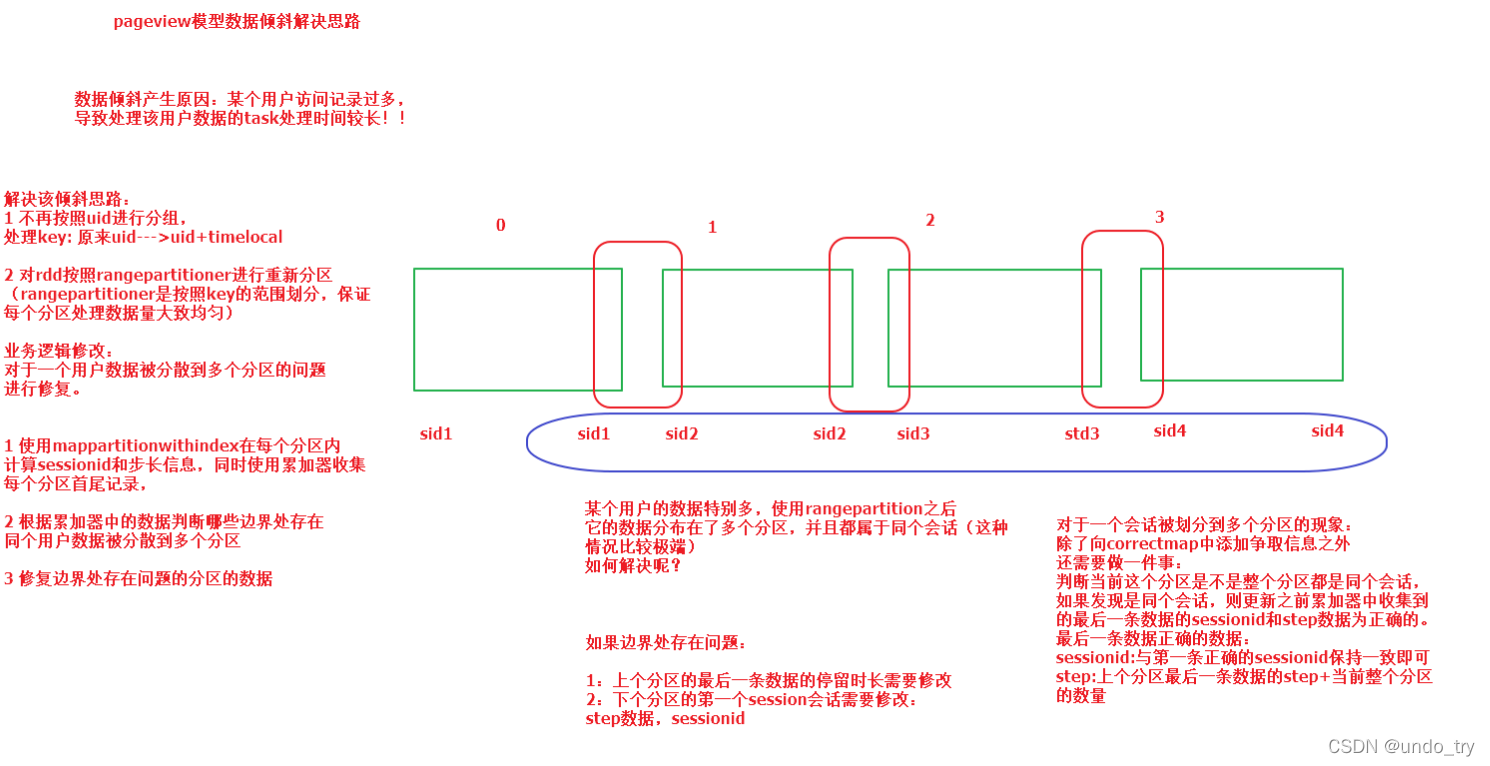

本次倾斜解决具体思路
-
转换key:guid–>guid+time_local,
-
利用sortbykey对guid+time_local进行全局排序
-
使用rangepartioner按照key的范围进行划分（保证每个分区数据大致均匀）
-
第一次生成sessionid,使用累加器收集边界处的数据
-
处理边界处数据获取正确的sessionid
代码实现:
package com.yyds.service
import java.util
import java.util.UUID
import com.itheima.bean.{PageViewsBeanCase, WebLogBean}
import com.itheima.util.DateUtil
import org.apache.spark.RangePartitioner
import org.apache.spark.broadcast.Broadcast
import org.apache.spark.rdd.RDD
import org.apache.spark.sql.SparkSession
import org.apache.spark.util.CollectionAccumulator
import scala.collection.mutable
import scala.collection.mutable.ListBuffer
class PageViewService {
}
object PageViewService {
def savePageViewToHdfs(filterStaticWeblogRdd: RDD[WebLogBean]) = {
/*
1：把key由原来uid变为uid+timeLocal字段
2：使用rangepartitioner进行均匀分区
*/
//key:uid+timeLocal ,value:weblogbean
val uidTimeRdd: RDD[(String, WebLogBean)] = filterStaticWeblogRdd.map(bean => (bean.guid + "&" + bean.time_local, bean))
//为了保证key全局有序使用sortbykey进行排序
val sortedUidTimeRdd: RDD[(String, WebLogBean)] = uidTimeRdd.sortByKey()
//使用rangepartitioner均匀分区
val rangeRdd: RDD[(String, WebLogBean)] = sortedUidTimeRdd.partitionBy(new RangePartitioner(100, sortedUidTimeRdd))
//使用累加器收集每个分区的首尾记录
val spark: SparkSession = SparkSession.getDefaultSession.get
//使用集合类型累加器收集分区的首尾数据
val headTailList: CollectionAccumulator[(String, String)] = spark.sparkContext.collectionAccumulator[(String, String)]("headTailList")
//对每个分区使用mappartitionwithindex算子进行sessionid和步长信息的生成
val questionSessionRdd: RDD[(WebLogBean, String, Int, Long)] = generateSessionid(rangeRdd, headTailList)
//累加器中有数据必须触发计算,使用累加器一定要注意重复计算的问题
//对rdd数据进行cache防止重复计算
questionSessionRdd.cache()
questionSessionRdd.count()
val headTailListValue: util.List[(String, String)] = headTailList.value
//保存数据
questionSessionRdd.saveAsTextFile("/questionSessionRdd")
//根据累加器中的边界数据判断哪些分区的边界存在问题
//方便在累加器数据中获取指定分区的数据，我们把累加器数据结构调整为map类型：key:index+"&first/last",value: 记录的数据
import collection.JavaConverters._
val buffer: mutable.Buffer[(String, String)] = headTailListValue.asScala
//转为一个可变map，方便更新其中的数据
val map: mutable.HashMap[String, String] = mutable.HashMap(buffer.toMap.toSeq: _*) //map装有原来累加器中的数据
//根据首尾数据判断边界问题得到需要修复的正确数据
val correctMap: mutable.HashMap[String, String] = processBoundaryMap(map)
//广播正确的map数据到每个executor
val questionBroadCast: Broadcast[mutable.HashMap[String, String]] = spark.sparkContext.broadcast(correctMap)
//经过修复过后的正确的rdd数据，（uidtime,sessionid,step,staylong）
val correctRdd: RDD[(WebLogBean, String, Int, Long)] =
repairBoundarySession(questionSessionRdd, questionBroadCast)
val pageviewRdd: RDD[PageViewsBeanCase] = correctRdd.map(
t => {
PageViewsBeanCase(
t._2, t._1.remote_addr, t._1.time_local, t._1.request, t._3, t._4,
t._1.http_referer, t._1.http_user_agent, t._1.body_bytes_sent, t._1.status, t._1.guid
)
}
)
pageviewRdd.saveAsTextFile("/pageviewrdd.txt")
}
//修复我们rdd边界处的数据
def repairBoundarySession(uidTimeSessionStepLongRdd: RDD[( WebLogBean, String, Int, Long)],
questionBroadCast: Broadcast[mutable.HashMap[String, String]]) = {
//key:index/first/last,value:last-->timediff,first-->correctsessionid+correctstep+quesitonsessionid
val questionMap: mutable.HashMap[String, String] = questionBroadCast.value
val correctRdd: RDD[(WebLogBean, String, Int, Long)] = uidTimeSessionStepLongRdd.mapPartitionsWithIndex(
(index, iter) => {
//uid&time,sessionid,step,staylong
var orginList = iter.toList
val firstLine: String = questionMap.getOrElse(index + "&first", "")
val lastLine: String = questionMap.getOrElse(index + "&last", "")
if (lastLine != "") {
//当前这个分区最后一条数据他的停留时长需要修改
val buffer: mutable.Buffer[(WebLogBean, String, Int, Long)] = orginList.toBuffer
val lastTuple: (WebLogBean, String, Int, Long) = buffer.remove(buffer.size - 1) //只修改停留时长
buffer += ((lastTuple._1, lastTuple._2, lastTuple._3, lastLine.toLong))
orginList = buffer.toList
}
if (firstLine != "") {
//分区第一条数据有问题，则需要修改：按照错误的sessionid找到所有需要修改的数据，改正sessionid和step
val firstArr: Array[String] = firstLine.split("&")
val tuples: List[(WebLogBean, String, Int, Long)] = orginList.map {
t => {
if (t._2.equals(firstArr(2))) {
//错误的sessionid,修改为正确的sessionid和步长
(t._1, firstArr(0), firstArr(1).toInt + t._3.toInt, t._4)
} else {
t
}
}
}
orginList=tuples
}
orginList.iterator
}
)
correctRdd
}
//根据首尾数据找到有问题边界数据，以及修改的正确数据
def processBoundaryMap(map: mutable.HashMap[String, String]) = {
//定义一个map接收有问题分区需要修改的正确数据：key:index+"&first/last", value需要修改的正确数据
val correctMap: mutable.HashMap[String, String] = new mutable.HashMap[String, String]()
//遍历首尾记录map找到有问题的边界
for (num <- 1 until (map.size / 2)) {
//保证等于分区数据
//获取num分区对应的首尾记录
val numFirstMsg: String = map.get(num + "&first").get //uid+time+sessionid
val numLastMsg: String = map.get(num + "&last").get //uid+time+sessionid+step+partition.size(分区数量)
//获取到上一个分区的最后一条数据
val lastPartLastMsg: String = map.get((num - 1) + "&last").get
//判断当前分区与上个分区是否存在边界问题
val numLastArr: Array[String] = numLastMsg.split("&")
val lastPartLastArr: Array[String] = lastPartLastMsg.split("&")
val numFirstArr: Array[String] = numFirstMsg.split("&")
//判断是否同个用户
if (lastPartLastArr(0).equals(numFirstArr(0))) {
//判断时间差
val timediff = DateUtil.getTimeDiff(lastPartLastArr(1), numFirstArr(1))
if (timediff < 30 * 60 * 1000) {
//说明当前分区第一条数据与上个分区最后一条属于同个会话
//上个分区记录需要修改的正确的停留时长数据
correctMap.put((num - 1) + "&last", timediff.toString)
//当前分区的第一条数据（有可能是多条数据严谨来说应该是当前分区的第一个session的数据）需要修改的数据
//sessionid:与上个分区最后一条数据的sessionid保持一致,step:应该是上个分区最后一条记录的step+1
if (lastPartLastArr.size > 5) {
//正确的sessionid+正确的step+错误的sessionid
correctMap.put(num + "&first", lastPartLastArr(lastPartLastArr.size - 2) + "&"
+ lastPartLastArr(lastPartLastArr.size - 1) + "&" + numFirstArr(2))
} else {
correctMap.put(num + "&first", lastPartLastArr(2) + "&" + lastPartLastArr(3) + "&" + numFirstArr(2))
}
//判断当前整个分区是否属于同个会话，属于同个会话则更新map中当前分区对应的最后一条数据的sessionid和ste数据
if (numFirstArr(2).equals(numLastArr(2))) {
//说明是同个会话，存在了会话穿透多个分区的现象
//更新最后一条数据的step和sessionid信息
//numlastMsg +正确的sessionid（上个分区的最后一条数据的sessionid）+正确的步长step(上个分区最后一条数据的步长+
// 当前分区的数量)
if (lastPartLastArr.size > 5) {
map.put(num + "&last", numLastMsg + "&" + lastPartLastArr(lastPartLastArr.size - 2) + "&" +
(lastPartLastArr(lastPartLastArr.size - 1).toInt + numLastArr(4).toInt))
} else {
//uid+time+sessionid+step+partition.size(分区数量)+sessionid+step
map.put(num + "&last", numLastMsg + "&" + lastPartLastArr(2) + "&" + (lastPartLastArr(3).toInt + numLastArr(4).toInt))
}
}
}
}
}
correctMap
}
//对均匀分区的rdd生成sessionid，使用累加器收集每个分区的首尾数据
def generateSessionid(rangeRdd: RDD[(String, WebLogBean)],
headTailList: CollectionAccumulator[(String, String)]) = {
//使用mappartitionwithindex算子
val sessionidStepPageRdd: RDD[(WebLogBean, String, Int, Long)] = rangeRdd.mapPartitionsWithIndex {
(index, iter) => {
//iter-->list,list集合中依然是按照key有序分布的
val list: List[(String, WebLogBean)] = iter.toList
//准备一个list集合接收每条记录生成的sessionid的信息:数据内容：weblogbean,sessionid,step,pagestaylong
val resultTupleList: ListBuffer[(WebLogBean, String, Int, Long)] = new ListBuffer[(WebLogBean, String, Int, Long)]()
//准备sessionid，step，pagestaylong
var sessionid = UUID.randomUUID().toString
var step = 1
var pagestaylong: Long = 60000
//遍历list集合进行两两比较判断是否是同个用户以及时间是否小于30分钟
import scala.util.control.Breaks._
breakable {
for (num <- 0 until (list.size)) {
//取出当前遍历的数据
val currentTuple: (String, WebLogBean) = list(num)
//累加器收集第一条数据
if (num == 0) {
//把数据装入累加器中:key:分区编号+"&"+first/last,value:uid+time,sessionid
headTailList.add((index + "&first", currentTuple._1 + "&" + sessionid))
}
//判断只有一条数据的情况
if (list.size == 1) {
//当前分区只有一条数据,不需要生成pageviewbeancase类型的数据,
//添加数据到resulttuplelist中
resultTupleList += ((currentTuple._2, sessionid, step, pagestaylong))
//重新生成sessionid
sessionid = UUID.randomUUID().toString
//中止循环
break()
}
//判断不止有一条数据的情况
//第一条数据我们跳过从第二条开始遍历，
//实现第一条数据continue的效果
breakable {
if (num == 0) {
//说明是第一条
break()
}
//从第二条开始判断
//获取到上一条的数据然后两两比较 //生成sessionid需要uid和time字段即可生成
val lastTuple: (String, WebLogBean) = list(num - 1)
val currentUidTime: String = currentTuple._1
val lastUidTime: String = lastTuple._1
//取出uid和time
//uid+"&"+time_local
val currentUidTimeArr: Array[String] = currentUidTime.split("&")
val lastUidTimeArr: Array[String] = lastUidTime.split("&")
//计算时间差
val timeDiff = DateUtil.getTimeDiff(lastUidTimeArr(1), currentUidTimeArr(1))
//是不是同个用户
if (lastUidTimeArr(0).equals(currentUidTimeArr(0)) && timeDiff < 30 * 60 * 1000) {
//说明两条记录是同个session，保存上一条数据：sessionid,step,timediff
resultTupleList += ((lastTuple._2, sessionid, step, timeDiff))
//sessionid和step如何处置，sessionid无需重新生成，step必须要加1
step += 1
} else {
//说明两条记录是不同的会话
resultTupleList += ((lastTuple._2, sessionid, step, pagestaylong))
//sessionid,step
sessionid = UUID.randomUUID().toString
//step重置
step = 1
}
//考虑最后一条数据的输出问题
if (num == list.size - 1) {
//需要保存最后一条数据
resultTupleList += ((currentTuple._2, sessionid, step, pagestaylong))
//使用累加器收集最后一条数据,key:index+"&"last/first,value:uid+time+sessionid+step+partition.size
headTailList.add((index + "&last", currentTuple._1 + "&" + sessionid + "&" + step + "&" + list.size))
//sessionid
sessionid = UUID.randomUUID().toString
}
}
}
}
resultTupleList.toIterator
}
}
sessionidStepPageRdd
}
}
