[大数据]redis6运行架构-多线程处理流程

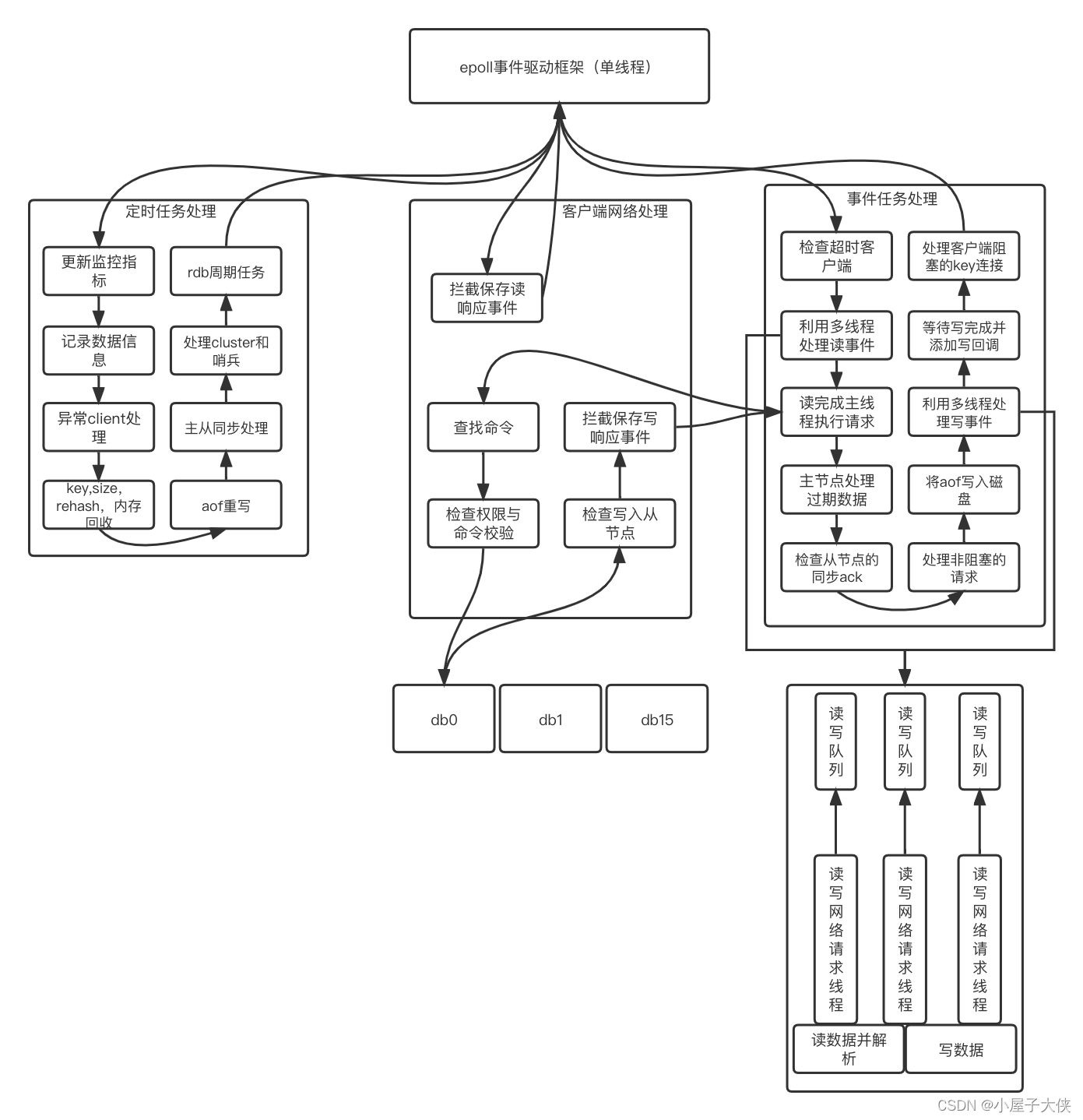

redis6运行架构图

redis6新特性中加入的最大的特性就是加入了多线程来处理网络的读写从而来提高响应性能，本文就简单的剖析一下redis6的运行的机制，学习一下redis6的多线程机制是如何在事件驱动中执行的。下图就是redis6概括的运行的逻辑。

redis6任务分类

在redis6中以事件驱动的工作流程中主要包括了三种类型的任务执行。

1. 事件任务，即在每次进行网络epoll之前或者完成之后都会立马执行，例如多线程处理网络数据的读写等工作。
2. 事件驱动处理程序任务，即网络IO的读写事件通过epoll来触发执行，获取可执行的网络事件。
3. 定时任务，在处理完成任务1和任务2之后，才会判断是否时间任务触发。

任务1和任务3的区别在于，时间任务是按照时间维度来进行执行，但是任务1是再每一次事件驱动中都会执行，所以执行频率上任务1比任务3会高一些（理论上）。

redis6多线程

概述学习一下多线程的工作机制。

多线程初始化

redis6中多线程的初始化主要是在initThreadedIO函数中。

/* Initialize the data structures needed for threaded I/O. */
void initThreadedIO(void) {
    server.io_threads_active = 0; /* We start with threads not active. */  //设置多线程未初始化完成

    /* Don't spawn any thread if the user selected a single thread:
     * we'll handle I/O directly from the main thread. */
    if (server.io_threads_num == 1) return;

    if (server.io_threads_num > IO_THREADS_MAX_NUM) {
        serverLog(LL_WARNING,"Fatal: too many I/O threads configured. "
                             "The maximum number is %d.", IO_THREADS_MAX_NUM); // 如果配置线程太多则报错退出
        exit(1);
    }

    /* Spawn and initialize the I/O threads. */
    for (int i = 0; i < server.io_threads_num; i++) {  // 根据多线程数量来进行初始化
        /* Things we do for all the threads including the main thread. */
        io_threads_list[i] = listCreate();
        if (i == 0) continue; /* Thread 0 is the main thread. */

        /* Things we do only for the additional threads. */
        pthread_t tid;
        pthread_mutex_init(&io_threads_mutex[i],NULL);
        io_threads_pending[i] = 0;
        pthread_mutex_lock(&io_threads_mutex[i]); /* Thread will be stopped. */
        if (pthread_create(&tid,NULL,IOThreadMain,(void*)(long)i) != 0) { // 创建线程并传入执行函数IOThreadMain
            serverLog(LL_WARNING,"Fatal: Can't initialize IO thread.");
            exit(1);
        }
        io_threads[i] = tid;  // 报错tid
    }
}

事件驱动的回调函数

    aeSetBeforeSleepProc(server.el,beforeSleep);
    aeSetAfterSleepProc(server.el,afterSleep);

主要通过aeSetBeforeSleepProc和aeSetAfterSleepProc注册beforeSleep和afterSleep两个回调函数。

整个事件驱动的工作驱动如下。

int aeProcessEvents(aeEventLoop *eventLoop, int flags)
{
    int processed = 0, numevents;

    /* Nothing to do? return ASAP */
    if (!(flags & AE_TIME_EVENTS) && !(flags & AE_FILE_EVENTS)) return 0;

    /* Note that we want call select() even if there are no
     * file events to process as long as we want to process time
     * events, in order to sleep until the next time event is ready
     * to fire. */
    if (eventLoop->maxfd != -1 ||
        ((flags & AE_TIME_EVENTS) && !(flags & AE_DONT_WAIT))) {
        int j;
        aeTimeEvent *shortest = NULL;
        struct timeval tv, *tvp;

        ...

        if (eventLoop->beforesleep != NULL && flags & AE_CALL_BEFORE_SLEEP)
            eventLoop->beforesleep(eventLoop);

        /* Call the multiplexing API, will return only on timeout or when
         * some event fires. */
        numevents = aeApiPoll(eventLoop, tvp);

        /* After sleep callback. */
        if (eventLoop->aftersleep != NULL && flags & AE_CALL_AFTER_SLEEP)
            eventLoop->aftersleep(eventLoop);

       ...
    }
		...
}


...


void aeMain(aeEventLoop *eventLoop) {
    eventLoop->stop = 0;
    while (!eventLoop->stop) {
        aeProcessEvents(eventLoop, AE_ALL_EVENTS|
                                   AE_CALL_BEFORE_SLEEP|
                                   AE_CALL_AFTER_SLEEP);
    }
}

通过aeProcessEvents在执行epoll之前执行beforeSleep回调在epoll之后执行afterSleep回调。

多线程的执行的回调函数就位于beforeSleep的回调中handleClientsWithPendingReadsUsingThreads和handleClientsWithPendingWritesUsingThreads。

handleClientsWithPendingReadsUsingThreads多线程读取网络数据

/* When threaded I/O is also enabled for the reading + parsing side, the
 * readable handler will just put normal clients into a queue of clients to
 * process (instead of serving them synchronously). This function runs
 * the queue using the I/O threads, and process them in order to accumulate
 * the reads in the buffers, and also parse the first command available
 * rendering it in the client structures. */
int handleClientsWithPendingReadsUsingThreads(void) {
    if (!server.io_threads_active || !server.io_threads_do_reads) return 0;
    int processed = listLength(server.clients_pending_read);
    if (processed == 0) return 0;

    if (tio_debug) printf("%d TOTAL READ pending clients\n", processed);

    /* Distribute the clients across N different lists. */
    listIter li;
    listNode *ln;
    listRewind(server.clients_pending_read,&li);
    int item_id = 0;
    while((ln = listNext(&li))) {
        client *c = listNodeValue(ln);
        int target_id = item_id % server.io_threads_num;
        listAddNodeTail(io_threads_list[target_id],c);  // 先将数据放置在每个线程对应的队列上面
        item_id++;
    }

    /* Give the start condition to the waiting threads, by setting the
     * start condition atomic var. */
    io_threads_op = IO_THREADS_OP_READ;
    for (int j = 1; j < server.io_threads_num; j++) {
        int count = listLength(io_threads_list[j]);  // 将每个线程对应的count数量设置在线程的队列上，此时设置之后线程检查到数据不为0就开始执行
        io_threads_pending[j] = count;
    }

    /* Also use the main thread to process a slice of clients. */
    listRewind(io_threads_list[0],&li);  // 主线程也进行一个队列的执行
    while((ln = listNext(&li))) {
        client *c = listNodeValue(ln);
        readQueryFromClient(c->conn);   // 读取网络数据
    }
    listEmpty(io_threads_list[0]);

    /* Wait for all the other threads to end their work. */
    while(1) {
        unsigned long pending = 0;
        for (int j = 1; j < server.io_threads_num; j++)
            pending += io_threads_pending[j];
        if (pending == 0) break;   // 等待所有的网络读事件完成
    }
    if (tio_debug) printf("I/O READ All threads finshed\n");

    /* Run the list of clients again to process the new buffers. */
    while(listLength(server.clients_pending_read)) { // 此时所有的网络数据读取并解析
        ln = listFirst(server.clients_pending_read);
        client *c = listNodeValue(ln);
        c->flags &= ~CLIENT_PENDING_READ;
        listDelNode(server.clients_pending_read,ln);
        /* Clients can become paused while executing the queued commands,
         * so we need to check in between each command. If a pause was
         * executed, we still remove the command and it will get picked up
         * later when clients are unpaused and we re-queue all clients. */
        if (clientsArePaused()) continue;

        if (processPendingCommandsAndResetClient(c) == C_ERR) {  // 挨个执行解析处理的命令
            /* If the client is no longer valid, we avoid
             * processing the client later. So we just go
             * to the next. */
            continue;
        }
        processInputBuffer(c);

        /* We may have pending replies if a thread readQueryFromClient() produced
         * replies and did not install a write handler (it can't).
         */
        if (!(c->flags & CLIENT_PENDING_WRITE) && clientHasPendingReplies(c))
            clientInstallWriteHandler(c);   // 注册到写事件列表
    }

    /* Update processed count on server */
    server.stat_io_reads_processed += processed;

    return processed;
}

修改io_threads_op来标识当前的线程池是进行读操作，将每个线程负责的队列的判断计数标记成待处理的队列长度，等所有的任务都处理完成之后，主线程就挨个处理每个解析好的命令，从而在执行层面保持了命令执行的原子性。

handleClientsWithPendingWritesUsingThreads多线程写处理

int handleClientsWithPendingWritesUsingThreads(void) {
    int processed = listLength(server.clients_pending_write);  // 查看写列表
    if (processed == 0) return 0; /* Return ASAP if there are no clients. */

    /* If I/O threads are disabled or we have few clients to serve, don't
     * use I/O threads, but thejboring synchronous code. */
    if (server.io_threads_num == 1 || stopThreadedIOIfNeeded()) {
        return handleClientsWithPendingWrites();
    }

    /* Start threads if needed. */
    if (!server.io_threads_active) startThreadedIO();

    if (tio_debug) printf("%d TOTAL WRITE pending clients\n", processed);

    /* Distribute the clients across N different lists. */
    listIter li;
    listNode *ln;
    listRewind(server.clients_pending_write,&li);
    int item_id = 0;
    while((ln = listNext(&li))) {   // 主线程将待写的列表分发到各个工作列表中
        client *c = listNodeValue(ln);
        c->flags &= ~CLIENT_PENDING_WRITE;

        /* Remove clients from the list of pending writes since
         * they are going to be closed ASAP. */
        if (c->flags & CLIENT_CLOSE_ASAP) {
            listDelNode(server.clients_pending_write, ln);
            continue;
        }

        int target_id = item_id % server.io_threads_num;
        listAddNodeTail(io_threads_list[target_id],c);
        item_id++;
    }

    /* Give the start condition to the waiting threads, by setting the
     * start condition atomic var. */
    io_threads_op = IO_THREADS_OP_WRITE;
    for (int j = 1; j < server.io_threads_num; j++) {
        int count = listLength(io_threads_list[j]);  // 设置每个队列上面的长度，此时线程开始工作
        io_threads_pending[j] = count;
    }

    /* Also use the main thread to process a slice of clients. */
    listRewind(io_threads_list[0],&li);   // 主线程也处理一个队列
    while((ln = listNext(&li))) {
        client *c = listNodeValue(ln);
        writeToClient(c,0);
    }
    listEmpty(io_threads_list[0]);

    /* Wait for all the other threads to end their work. */
    while(1) {
        unsigned long pending = 0;    // 等待所有的线程执行完成
        for (int j = 1; j < server.io_threads_num; j++)
            pending += io_threads_pending[j];
        if (pending == 0) break;
    }
    if (tio_debug) printf("I/O WRITE All threads finshed\n");

    /* Run the list of clients again to install the write handler where
     * needed. */
    listRewind(server.clients_pending_write,&li);
    while((ln = listNext(&li))) {   // 注册写事件
        client *c = listNodeValue(ln);

        /* Install the write handler if there are pending writes in some
         * of the clients. */
        if (clientHasPendingReplies(c) &&
                connSetWriteHandler(c->conn, sendReplyToClient) == AE_ERR)
        {
            freeClientAsync(c);
        }
    }
    listEmpty(server.clients_pending_write);

    /* Update processed count on server */
    server.stat_io_writes_processed += processed;

    return processed;
}

多线程写的时候会将io_threads_op标记为写操作，此时线程池就都通过writeToClient来将回复给客户端的数据，在回复给客户端的时候只需要将所有数据全部写出即可。

IOThreadMain线程的工作流程

void *IOThreadMain(void *myid) {
    /* The ID is the thread number (from 0 to server.iothreads_num-1), and is
     * used by the thread to just manipulate a single sub-array of clients. */
    long id = (unsigned long)myid;
    char thdname[16];

    snprintf(thdname, sizeof(thdname), "io_thd_%ld", id);
    redis_set_thread_title(thdname);
    redisSetCpuAffinity(server.server_cpulist);
    makeThreadKillable();

    while(1) {
        /* Wait for start */
        for (int j = 0; j < 1000000; j++) {   // 线程开启之后就会在此地循环执行等待队列数量不为0
            if (io_threads_pending[id] != 0) break;
        }

        /* Give the main thread a chance to stop this thread. */
        if (io_threads_pending[id] == 0) {   // 可通过锁来控制线程的启停
            pthread_mutex_lock(&io_threads_mutex[id]);
            pthread_mutex_unlock(&io_threads_mutex[id]);
            continue;
        }

        serverAssert(io_threads_pending[id] != 0);

        if (tio_debug) printf("[%ld] %d to handle\n", id, (int)listLength(io_threads_list[id]));

        /* Process: note that the main thread will never touch our list
         * before we drop the pending count to 0. */
        listIter li;
        listNode *ln;
        listRewind(io_threads_list[id],&li);
        while((ln = listNext(&li))) {  //获取每个队列中的数据
            client *c = listNodeValue(ln);
            if (io_threads_op == IO_THREADS_OP_WRITE) {  // 如果是写则写数据到客户端
                writeToClient(c,0);
            } else if (io_threads_op == IO_THREADS_OP_READ) {  // 如果是读则读取数据并解析
                readQueryFromClient(c->conn);
            } else {
                serverPanic("io_threads_op value is unknown");
            }
        }
        listEmpty(io_threads_list[id]);
        io_threads_pending[id] = 0;

        if (tio_debug) printf("[%ld] Done\n", id);
    }
}

工作流程相对比较简单，主要是通过一个for循环来判断线程是否需要开始工作，在循环等待中通过锁来进行线程的启动与停止，从而避免for循环中高消耗cpu，根据不同的执行状态线程进行读写操作。

那数据是如何加到队列的呢。

在读事件到来时，执行了如下代码。

void readQueryFromClient(connection *conn) {
		...
    /* Check if we want to read from the client later when exiting from
     * the event loop. This is the case if threaded I/O is enabled. */
    if (postponeClientRead(c)) return;
    ...
}

/* Return 1 if we want to handle the client read later using threaded I/O.
 * This is called by the readable handler of the event loop.
 * As a side effect of calling this function the client is put in the
 * pending read clients and flagged as such. */
int postponeClientRead(client *c) {
    if (server.io_threads_active &&
        server.io_threads_do_reads &&
        !clientsArePaused() &&
        !ProcessingEventsWhileBlocked &&
        !(c->flags & (CLIENT_MASTER|CLIENT_SLAVE|CLIENT_PENDING_READ)))
    {
        c->flags |= CLIENT_PENDING_READ;
        listAddNodeHead(server.clients_pending_read,c);  // 如果开启多线程则添加到队列中不立马处理读请求
        return 1;
    } else {
        return 0;
    }
}
...

等到执行beforSleep的时候通过多线程进行处理。

当命令执行完成之后调用addRelpy等函数时，就进行如下流程。

/* Add the object 'obj' string representation to the client output buffer. */
void addReply(client *c, robj *obj) {
    if (prepareClientToWrite(c) != C_OK) return;

    ...
}

...

int prepareClientToWrite(client *c) {
    /* If it's the Lua client we always return ok without installing any
     * handler since there is no socket at all. */
    if (c->flags & (CLIENT_LUA|CLIENT_MODULE)) return C_OK;

    /* If CLIENT_CLOSE_ASAP flag is set, we need not write anything. */
    if (c->flags & CLIENT_CLOSE_ASAP) return C_ERR;

    /* CLIENT REPLY OFF / SKIP handling: don't send replies. */
    if (c->flags & (CLIENT_REPLY_OFF|CLIENT_REPLY_SKIP)) return C_ERR;

    /* Masters don't receive replies, unless CLIENT_MASTER_FORCE_REPLY flag
     * is set. */
    if ((c->flags & CLIENT_MASTER) &&
        !(c->flags & CLIENT_MASTER_FORCE_REPLY)) return C_ERR;

    if (!c->conn) return C_ERR; /* Fake client for AOF loading. */

    /* Schedule the client to write the output buffers to the socket, unless
     * it should already be setup to do so (it has already pending data).
     *
     * If CLIENT_PENDING_READ is set, we're in an IO thread and should
     * not install a write handler. Instead, it will be done by
     * handleClientsWithPendingReadsUsingThreads() upon return.
     */
    if (!clientHasPendingReplies(c) && !(c->flags & CLIENT_PENDING_READ))
            clientInstallWriteHandler(c);  // 键入到写队列中

    /* Authorize the caller to queue in the output buffer of this client. */
    return C_OK;
}

至此，整个redis6的多线程架构就基本上明白了。

简单的用个python脚本来梳理一下redis6的多线程的工作流程如下。

import threading
import time

thread_nums = 3
work_nums = [0 for i in range(thread_nums)]
work_locks = [threading.Lock() for i in range(thread_nums)]
work_queue = []
for i in range(thread_nums):
    work_queue.append([])


def worker(index):
    while True:
        for i in range(1000000):
            if work_nums[index] != 0:
                break

        if work_nums[index] == 0:
            print(" acquire ", index)
            work_locks[index].acquire()
            print(" release ", index)
            work_locks[index].release()
            continue

        print(" start work  ", index, work_queue[index])
        while len(work_queue[index]):
            work_queue[index].pop()

        work_nums[index] = 0


for lock in work_locks:
    lock.acquire()


for i in range(thread_nums):
    t = threading.Thread(target=worker, args=(i, ))
    t.start()


while True:
    time.sleep(20)
    for lock in work_locks:
        lock.release()

    for i in range(thread_nums):
        work_queue[i] = ["index {0} value".format(i) for j in range(i+5)]
    for i in range(thread_nums):
        work_nums[i] = len(work_queue[i])

    for lock in work_locks:
        lock.acquire()

通过不同队列的锁来控制每个线程是否开始执行，先将队列的数据分发完成，然后再设置线程检查的数据值，此时就worker线程就开始执行。

总结

本文简单的概述了一下redis6的运行架构图，流程图中可能有很多细节都忽略掉了，并且描述也不一定正确如有错误请批评改正。redis6的多线程通过锁来控制运行，并通过队列的分发从而完成将任务分发到不同的队列来执行，提高网络解析读数据和数据写入的并发速度。由于本人才疏学浅，如有错误请批评指正。

阅读世界，共赴山海

423全民读书节，邀你共读
