[大数据]Apache SeaTunnel 2.1.0部署及踩坑

简介

SeaTunnel 原名Waterdrop，自2021年10月12日改名为SeaTunnel。
SeaTunnel是一个非常易于使用的超高性能分布式数据集成平台，支持海量数据的实时同步。它每天可以稳定高效地同步数百亿数据，已在近100家公司的生产中使用。

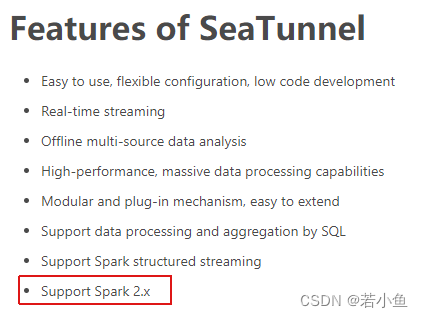

特点

• 易于使用，配置灵活，低代码开发
• 实时流媒体
• 离线多源数据分析
• 高性能、海量数据处理能力
• 模块化和插入式机构，易于扩展
• 支持通过SQL进行数据处理和聚合
• 支持Spark结构化流媒体
• 支持Spark 2.x
  • 这里我们踩了一个坑，因为我们测试的spark环境已经升级到了3.x版本，而目前SeaTunnel只支持2.x，所以要重新部署一个2.x的spark
    -

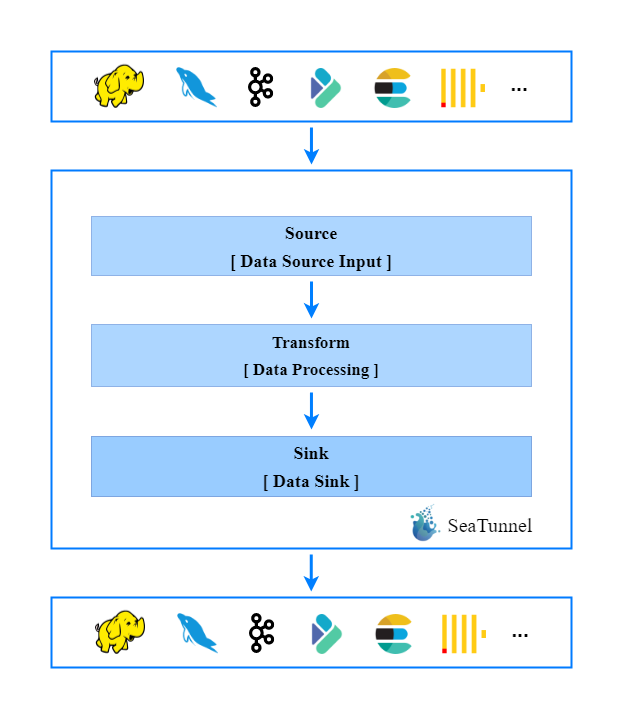

工作流程

安装

安装文档

https://seatunnel.incubator.apache.org/docs/2.1.0/spark/installation

• 环境准备：安装jdk和spark
• config/seatunnel-env.sh
• 下载安装包
• https://www.apache.org/dyn/closer.lua/incubator/seatunnel/2.1.0/apache-seatunnel-incubating-2.1.0-bin.tar.gz
• 解压后编辑 config/seatunnel-env.sh
• 指定必要的环境配置，例如SPARK_HOME（SPARK下载和解压缩后的目录）

1、测试jdbc-to-jdbc

• 创建新的 config/spark.batch.jdbc.to.jdbc.conf 文件

env {
  # seatunnel defined streaming batch duration in seconds
  spark.app.name = "SeaTunnel"
  spark.executor.instances = 1
  spark.executor.cores = 1
  spark.executor.memory = "1g"
}

source {
  jdbc {
    driver = "com.mysql.jdbc.Driver"
    url = "jdbc:mysql://0.0.0.0:3306/database?useUnicode=true&characterEncoding=utf8&useSSL=false"
    table = "table_name"
    result_table_name = "result_table_name"
    user = "root"
    password = "password"
	}

}

transform {
  # split data by specific delimiter

  # you can also use other filter plugins, such as sql
  # sql {
  #   sql = "select * from accesslog where request_time > 1000"
  # }

  # If you would like to get more information about how to configure seatunnel and see full list of filter plugins,
  # please go to https://seatunnel.apache.org/docs/spark/configuration/transform-plugins/Sql
}

sink {
  # choose stdout output plugin to output data to console
  # Console {}
  jdbc {
  	# 这里配置driver参数，否则数据交换不成功
  	driver = "com.mysql.jdbc.Driver",
    saveMode = "update",
    url = "jdbc:mysql://ip:3306/database?useUnicode=true&characterEncoding=utf8&useSSL=false",
    user = "userName",
    password = "***********",
    dbTable = "tableName",
    customUpdateStmt = "INSERT INTO table (column1, column2, created, modified, yn) values(?, ?, now(), now(), 1) ON DUPLICATE KEY UPDATE column1 = IFNULL(VALUES (column1), column1), column2 = IFNULL(VALUES (column2), column2)"
    }
}

yarn启动命令

./bin/start-seatunnel-spark.sh --master 'yarn' --deploy-mode client --config ./config/spark.batch.jdbc.to.jdbc.conf

踩坑：运行时报[driver] as non-empty ，定位发现sink配置里需要设置driver参数

ERROR Seatunnel:121 - Plugin[org.apache.seatunnel.spark.sink.Jdbc] contains invalid config, error: please specify [driver] as non-empty
