<configuration>

   <!-- 把多个 NameNode 的地址组装成一个集群 mycluster -->
  <property>
    <name>fs.defaultFS</name>
    <value>hdfs://mycluster</value>
  </property>

  <!-- 指定 hadoop 运行时产生文件的存储目录 -->
  <property>
    <name>hadoop.tmp.dir</name>
    <value>/opt/module/hadoop-3.2.3/data</value>
  </property>

    <!-- 指定zkfc要连接的zkServer地址 -->
  <property>
    <name>ha.zookeeper.quorum</name>
    <value>hadoop102:2181,hadoop103:2181,hadoop104:2181</value>
  </property>

    <!-- 配置 HDFS 网页登录使用的静态用户为 hadoop -->
    <property>
      <name>hadoop.http.staticuser.user</name>

         <!-- hadoop用户 -->
        <value>hadoop</value>
    </property>

    <!-- 整合 hive -->
    <property>
      <name>hadoop.proxyuser.hadoop.hosts</name>
      <value>*</value>
    </property>

    <property>
      <name>hadoop.proxyuser.hadoop.groups</name>
      <value>*</value>
    </property>

</configuration>

hdfs-site.xml

<configuration>

  <!-- NameNode 数据存储目录 -->
  <property>
    <name>dfs.namenode.name.dir</name>
    <value>file://${hadoop.tmp.dir}/name</value>
  </property>

  <!-- DataNode 数据存储目录 -->
  <property>
    <name>dfs.datanode.data.dir</name>
    <value>file://${hadoop.tmp.dir}/data</value>
  </property>

  <!-- JournalNode 数据存储目录 -->
  <property>
    <name>dfs.journalnode.edits.dir</name>
    <value>${hadoop.tmp.dir}/jn</value>
  </property>

  <!-- 完全分布式集群名称 -->
  <property>
    <name>dfs.nameservices</name>
    <value>mycluster</value>
  </property>

  <!-- 集群中 NameNode 节点都有哪些 -->
  <property>
    <name>dfs.ha.namenodes.mycluster</name>
    <value>nn1,nn2,nn3</value>
  </property>

  <!-- NameNode 的 RPC 通信地址 -->
  <property>
    <name>dfs.namenode.rpc-address.mycluster.nn1</name>
    <value>hadoop102:8020</value>
  </property>
  <property>
    <name>dfs.namenode.rpc-address.mycluster.nn2</name>
    <value>hadoop103:8020</value>
  </property>
  <property>
    <name>dfs.namenode.rpc-address.mycluster.nn3</name>
    <value>hadoop104:8020</value>
  </property>

  <!-- NameNode 的 http 通信地址 -->
  <property>
    <name>dfs.namenode.http-address.mycluster.nn1</name>
    <value>hadoop102:9870</value>
  </property>
  <property>
    <name>dfs.namenode.http-address.mycluster.nn2</name>
    <value>hadoop103:9870</value>
  </property>
  <property>
    <name>dfs.namenode.http-address.mycluster.nn3</name>
    <value>hadoop104:9870</value>
  </property>

  <!-- 指定 NameNode 元数据在 JournalNode 上的存放位置 -->
  <property>
    <name>dfs.namenode.shared.edits.dir</name>
    <value>qjournal://hadoop102:8485;hadoop103:8485;hadoop104:8485/mycluster</value>
  </property>

  <!-- 访问代理类：client 用于确定哪个 NameNode 为 Active -->
  <property>
    <name>dfs.client.failover.proxy.provider.mycluster</name>
    <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
  </property>

  <!-- 配置隔离机制，即同一时刻只能有一台服务器对外响应 -->
  <property>
    <name>dfs.ha.fencing.methods</name>
    <value>sshfence</value>
  </property>

  <!-- 使用隔离机制时需要 ssh 秘钥登录-->
  <property>
    <name>dfs.ha.fencing.ssh.private-key-files</name>
    <value>/home/hadoop/.ssh/id_rsa</value>
  </property>

  <!-- 启动nn故障自动转移 -->
  <property>
    <name>dfs.ha.automatic-failover.enabled</name>
    <value>true</value>
  </property>

</configuration>

mapred-site.xml

<configuration>

    <!-- 指定 MapReduce 程序运行在 Yarn 上 -->
    <property>
      <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>

      <!-- 历史服务器端地址 -->
  <property>
        <name>mapreduce.jobhistory.address</name>
        <value>hadoop102:10020</value>
    </property>

  <!-- 历史服务器 web 端地址 -->
    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>hadoop102:19888</value>
    </property>

</configuration>

yarn-site.xml?

<configuration>

      <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>

  <!-- 启用 resourcemanager ha -->
  <property>
    <name>yarn.resourcemanager.ha.enabled</name>
    <value>true</value>
  </property>

  <!-- 声明 resourcemanager 的地址 -->
  <property>
    <name>yarn.resourcemanager.cluster-id</name>
    <value>cluster-yarn1</value>
  </property>

  <!--指定 resourcemanager 的逻辑列表-->
  <property>
    <name>yarn.resourcemanager.ha.rm-ids</name>
    <value>rm1,rm2,rm3</value>
  </property>
  <!-- ========== rm1 的配置 ========== -->
  <!-- 指定 rm1 的主机名 -->
  <property>
    <name>yarn.resourcemanager.hostname.rm1</name>
    <value>hadoop102</value>
  </property>
  <!-- 指定 rm1 的 web 端地址 -->
  <property>
    <name>yarn.resourcemanager.webapp.address.rm1</name>
    <value>hadoop102:8088</value>
  </property>
  <!-- 指定 rm1 的内部通信地址 -->
  <property>
    <name>yarn.resourcemanager.address.rm1</name>
    <value>hadoop102:8032</value>
  </property>
  <!-- 指定 AM 向 rm1 申请资源的地址 -->
  <property>
    <name>yarn.resourcemanager.scheduler.address.rm1</name>
    <value>hadoop102:8030</value>
  </property>
  <!-- 指定供 NM 连接的地址 -->
  <property>
    <name>yarn.resourcemanager.resource-tracker.address.rm1</name>
    <value>hadoop102:8031</value>
  </property>
  <!-- ========== rm2 的配置 ========== -->
  <!-- 指定 rm2 的主机名 -->
  <property>
    <name>yarn.resourcemanager.hostname.rm2</name>
    <value>hadoop103</value>
  </property>
  <property>
    <name>yarn.resourcemanager.webapp.address.rm2</name>
    <value>hadoop103:8088</value>
  </property>
  <property>
    <name>yarn.resourcemanager.address.rm2</name>
    <value>hadoop103:8032</value>
  </property>
  <property>
    <name>yarn.resourcemanager.scheduler.address.rm2</name>
    <value>hadoop103:8030</value>
  </property>
  <property>
    <name>yarn.resourcemanager.resource-tracker.address.rm2</name>
    <value>hadoop103:8031</value>
  </property>
  <!-- ========== rm3 的配置 ========== -->
  <!-- 指定 rm1 的主机名 -->
  <property>
    <name>yarn.resourcemanager.hostname.rm3</name>
    <value>hadoop104</value>
  </property>
  <!-- 指定 rm1 的 web 端地址 -->
  <property>
    <name>yarn.resourcemanager.webapp.address.rm3</name>
    <value>hadoop104:8088</value>
  </property>
  <!-- 指定 rm1 的内部通信地址 -->
  <property>
    <name>yarn.resourcemanager.address.rm3</name>
    <value>hadoop104:8032</value>
  </property>
  <!-- 指定 AM 向 rm1 申请资源的地址 -->
  <property>
    <name>yarn.resourcemanager.scheduler.address.rm3</name>
    <value>hadoop104:8030</value>
  </property>
  <!-- 指定供 NM 连接的地址 -->
  <property>
    <name>yarn.resourcemanager.resource-tracker.address.rm3</name>
    <value>hadoop104:8031</value>
  </property>
  <!-- 指定 zookeeper 集群的地址 -->
  <property>
    <name>yarn.resourcemanager.zk-address</name>
    <value>hadoop102:2181,hadoop103:2181,hadoop104:2181</value>
  </property>

  <!-- 启用自动恢复 -->
  <property>
    <name>yarn.resourcemanager.recovery.enabled</name>
    <value>true</value>
  </property>

  <!-- 指定 resourcemanager 的状态信息存储在 zookeeper 集群 -->
  <property>
    <name>yarn.resourcemanager.store.class</name>
    <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
  </property>

  <!-- 环境变量的继承 -->
  <property>
    <name>yarn.nodemanager.env-whitelist</name>
    <value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAPRED_HOME</value>
  </property>

    <!-- 开启日志聚集功能 -->
  <property>
        <name>yarn.log-aggregation-enable</name>
        <value>true</value>
    </property>

  <!-- 设置日志聚集服务器地址 -->
    <property>
        <name>yarn.log.server.url</name>
        <value>http://hadoop102:19888/jobhistory/logs</value>
    </property>

  <!-- 设置日志保留时间为7天 -->
    <property>
        <name>yarn.log-aggregation.retain-seconds</name>
        <value>604800</value>
    </property>

</configuration>

自动化Shell脚本

以下是初始化、开关HA集群所用到的Shell脚本

[hadoop@hadoop102 bin]$ pwd
/home/hadoop/bin
[hadoop@hadoop102 bin]$ ls
format-ha  hadoop-ha  jpsall  xcall  xsync  zk
[hadoop@hadoop102 bin]$

format-ha

初始化HA集群

#!/bin/bash

for HOST in hadoop102 hadoop103 hadoop104
do
        echo "========= delete data and logs in $HOST =========="
        ssh $HOST "rm -rf /opt/module/hadoop-3.2.3/data /opt/module/hadoop-3.2.3/logs"
done

echo "------- create journalnode --------"
xcall hdfs --daemon start journalnode

echo "------- format namenode -------"
ssh hadoop102 "hdfs namenode -format"
ssh hadoop102 "hdfs --daemon start namenode"
ssh hadoop103 "hdfs namenode -bootstrapStandby"
ssh hadoop104 "hdfs namenode -bootstrapStandby"
ssh hadoop102 "/opt/module/hadoop-3.2.3/sbin/stop-dfs.sh"
zk start
hdfs zkfc -formatZK
zk stop

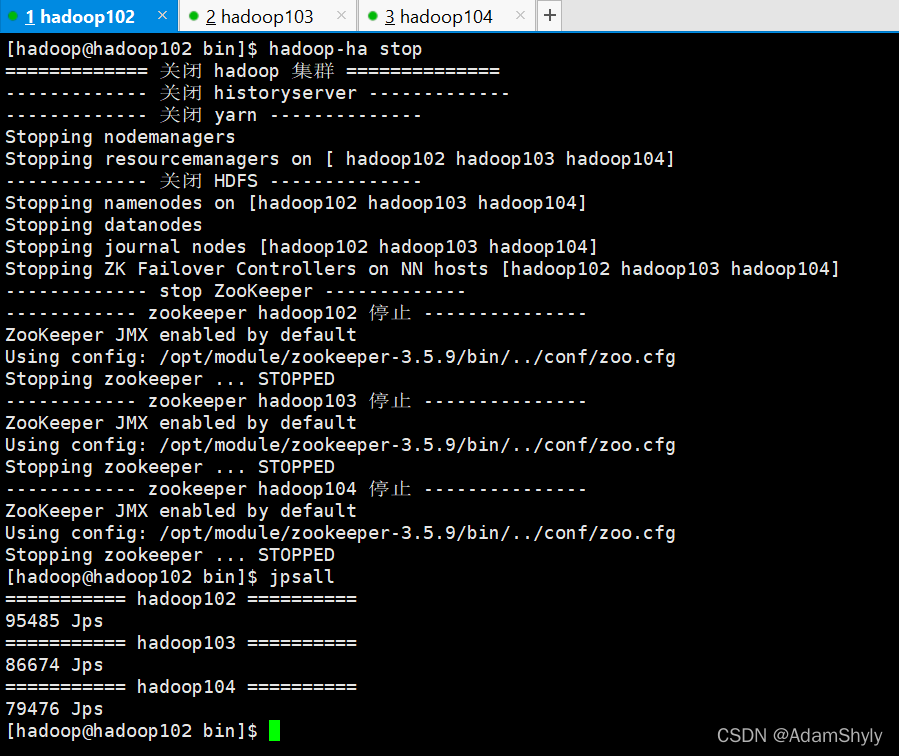

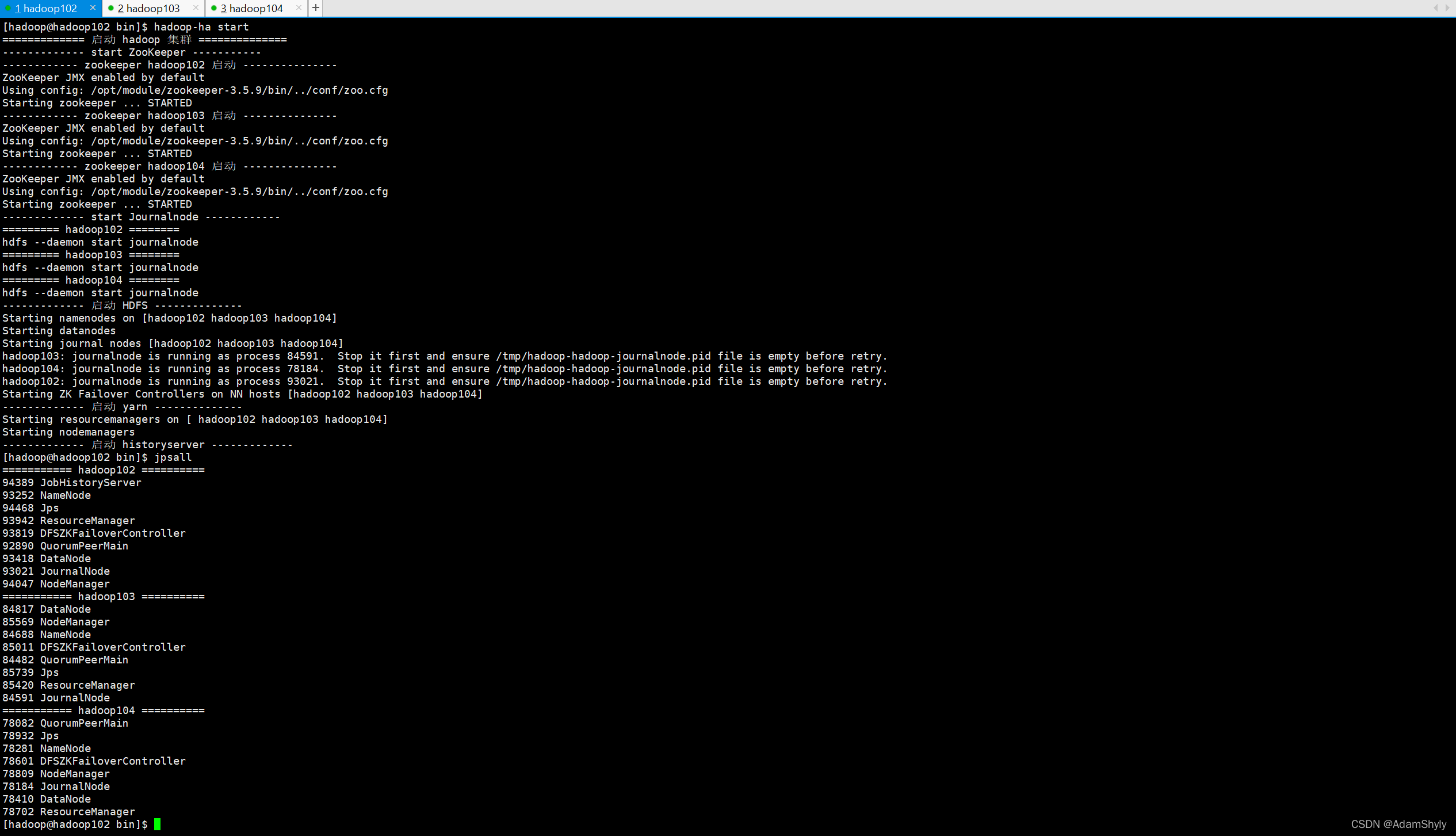

hadoop-ha

开关HA集群

#!/bin/bash

if [ $# -lt 1 ]
then
        echo "No Args Input ..."
        exit;
fi

if [ $# -gt 1 ]
then
        echo "Args Exceeded limit"
        exit;
fi

case $1 in
"start")
        echo "============= 启动 hadoop 集群 =============="

        echo "------------- start ZooKeeper -----------"
        ssh hadoop102 "/home/hadoop/bin/zk start"

        echo "------------- start Journalnode ------------"
        ssh hadoop102 "/home/hadoop/bin/xcall hdfs --daemon start journalnode"

        echo "------------- 启动 HDFS --------------"
        ssh hadoop102 "/opt/module/hadoop-3.2.3/sbin/start-dfs.sh"

        echo "------------- 启动 yarn --------------"
        ssh hadoop103 "/opt/module/hadoop-3.2.3/sbin/start-yarn.sh"

        echo "------------- 启动 historyserver -------------"
        ssh hadoop102 "/opt/module/hadoop-3.2.3/bin/mapred --daemon start historyserver"
;;
"stop")
        echo "============= 关闭 hadoop 集群 =============="

        echo "------------- 关闭 historyserver -------------"
        ssh hadoop102 "/opt/module/hadoop-3.2.3/bin/mapred --daemon stop historyserver"

        echo "------------- 关闭 yarn --------------"
        ssh hadoop103 "/opt/module/hadoop-3.2.3/sbin/stop-yarn.sh"

        echo "------------- 关闭 HDFS --------------"
        ssh hadoop102 "/opt/module/hadoop-3.2.3/sbin/stop-dfs.sh"

        echo "------------- stop ZooKeeper -------------"
        ssh hadoop102 "/home/hadoop/bin/zk stop"
;;
*)
        echo "Input Args Error..."
;;
esac

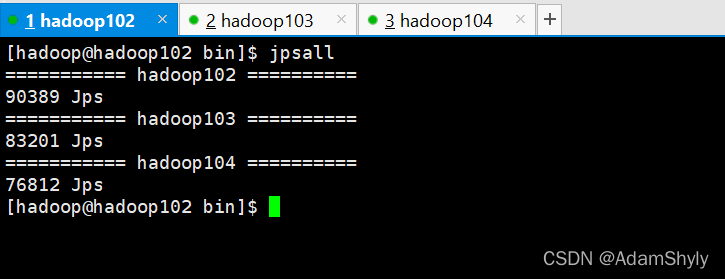

jpsall

查看所有节点服务器所有正在运行的Java进程

#!/bin/bash

for host in hadoop102 hadoop103 hadoop104
do
        echo =========== $host ==========
        ssh $host jps
done

xcall

远程执行bash指令

#!/bin/bash

if [ $# -lt 1 ]
then
        echo not enough arguments
fi

for HOST in hadoop102 hadoop103 hadoop104
do
        echo ========= $HOST ========
        CMD=""
        for I in $@
        do
                CMD="$CMD$I "
        done
        echo $CMD
        ssh $HOST "$CMD"
done

xsync

集群同步文件

#!/bin/bash

if [ $# -lt 1 ]
then
        echo Not Enough Argument!
        exit;
fi

for host in hadoop102 hadoop103 hadoop104
do
        echo =============== $host ===============

        for file in $@
        do

                if [ -e $file ]
                then
                        pdir=$(cd -P $(dirname $file); pwd)   # -P 防止加入软链接路径
                        fname=$(basename $file)
                        ssh $host "mkdir -p $pdir"
                        rsync -av $pdir/$fname $host:$pdir   # 由于dest主机的目标目录是绝对路径，所以需要确定$pdir
                else
                        echo $file dose not exists!
                fi
        done
done

zk

开关ZooKeeper集群

#!/bin/bash

case $1 in
"start"){
        for host in hadoop102 hadoop103 hadoop104
        do
                echo ------------ zookeeper $host 启动 ---------------
                ssh $host "/opt/module/zookeeper-3.5.9/bin/zkServer.sh start"
        done
}
;;
"stop"){
        for host in hadoop102 hadoop103 hadoop104
        do
               echo ------------ zookeeper $host 停止 ---------------
               ssh $host "/opt/module/zookeeper-3.5.9/bin/zkServer.sh stop"
        done
}
;;
"status"){
        for host in hadoop102 hadoop103 hadoop104
        do
               echo ------------ zookeeper $host 状态 ---------------
               ssh $host "/opt/module/zookeeper-3.5.9/bin/zkServer.sh status"
        done

}
;;
*) echo Not exist the instruction
;;
esac
