[移动开发]Android使用OpenGL ES绘制Slam地图（1.绘制地板）

需要制作一个Slam地图的3d显示，捣鼓了两个星期终于弄出来了，虽然效果没有达到预期，记录一下（图片随便找的）

首先是顶点着色器

#version 300 es
layout (location = 0) in vec4 vPosition;
layout (location = 1) in vec2 aTextureCord;
uniform mat4 u_Matrix;
//输出纹理坐标(s,t)
out vec2 vTexCord;
void main() {
    gl_Position  = u_Matrix*vPosition;
    gl_PointSize = 10.0;
    vTexCord = aTextureCord;
}

?片段着色器

#version 300 es
precision mediump float;
uniform sampler2D uTextureUnit;
//接收刚才顶点着色器传入的纹理坐标(s,t)
in vec2 vTexCord;
out vec4 vFragColor;
void main() {
    vFragColor = texture(uTextureUnit,vTexCord);
}

?编译链接程序片段

        //编译
        final int vertexShaderId = ShaderUtils.compileVertexShader(ResReadUtils.readResource(R.raw.vertex_plane_shader));
        final int fragmentShaderId = ShaderUtils.compileFragmentShader(ResReadUtils.readResource(R.raw.fragment_plane_shader));
        //链接程序片段
        mProgram = ShaderUtils.linkProgram(vertexShaderId, fragmentShaderId);

        //获取属性位置
        uMatrixLocation = GLES30.glGetUniformLocation(mProgram, "u_Matrix");
        aPositionLocation = GLES30.glGetAttribLocation(mProgram, "vPosition");
        aTextureLocation = GLES30.glGetAttribLocation(mProgram, "aTextureCord");

设置一块地板的矩阵分为几乘几，现在设置的200就是将图片分割为200*200

    //图片生成的位图
    private float bitSize = 1f;
    private float matrixSize = 200;

随机生成坐标数据，并计算顶点坐标和绘制顶点顺序

public void setMapData() {
        //随机生成坐标数据
        List<Point> points = new ArrayList<>();
        for (int i = -200; i < 200; i++) {
            for (int j = -200; j < 200; j++) {
                if ((int) (Math.random() * 2) == 0)
                    points.add(new Point(i, j));

            }
        }
        POSITION_VERTEX = new float[points.size() * 12];
        VERTEX_INDEX = new int[points.size() * 6];
        TEX_VERTEX = new float[points.size() * 8];

        for (int i = 0; i < points.size(); i++) {
            int x = points.get(i).x;
            int y = points.get(i).y;
            TEX_VERTEX[i * 8 + 0] = x % matrixSize / matrixSize;
            TEX_VERTEX[i * 8 + 1] = 1 - (y % matrixSize / matrixSize);
            TEX_VERTEX[i * 8 + 2] = (x % matrixSize - 1) / matrixSize;
            TEX_VERTEX[i * 8 + 3] = 1 - (y % matrixSize / matrixSize);
            TEX_VERTEX[i * 8 + 4] = (x % matrixSize - 1) / matrixSize;
            TEX_VERTEX[i * 8 + 5] = 1 - (y % matrixSize - 1) / matrixSize;
            TEX_VERTEX[i * 8 + 6] = x % matrixSize / matrixSize;
            TEX_VERTEX[i * 8 + 7] = 1 - (y % matrixSize - 1) / matrixSize;

            VERTEX_INDEX[i * 6] = (i * 4);
            VERTEX_INDEX[i * 6 + 1] = (i * 4 + 1);
            VERTEX_INDEX[i * 6 + 2] = (i * 4 + 2);
            VERTEX_INDEX[i * 6 + 3] = (i * 4);
            VERTEX_INDEX[i * 6 + 4] = (i * 4 + 2);
            VERTEX_INDEX[i * 6 + 5] = (i * 4 + 3);

            POSITION_VERTEX[i * 12] = x * 2 + bitSize;
            POSITION_VERTEX[i * 12 + 1] = y * 2 + bitSize;
            POSITION_VERTEX[i * 12 + 2] = 0;

            POSITION_VERTEX[i * 12 + 3] = x * 2 - bitSize;
            POSITION_VERTEX[i * 12 + 4] = y * 2 + bitSize;
            POSITION_VERTEX[i * 12 + 5] = 0;

            POSITION_VERTEX[i * 12 + 6] = x * 2 - bitSize;
            POSITION_VERTEX[i * 12 + 7] = y * 2 - bitSize;
            POSITION_VERTEX[i * 12 + 8] = 0;

            POSITION_VERTEX[i * 12 + 9] = x * 2 + bitSize;
            POSITION_VERTEX[i * 12 + 10] = y * 2 - bitSize;
            POSITION_VERTEX[i * 12 + 11] = 0;
        }
        vertexBuffer = ByteBuffer.allocateDirect(POSITION_VERTEX.length * 4)
                .order(ByteOrder.nativeOrder())
                .asFloatBuffer();
        vertexBuffer.put(POSITION_VERTEX);
        vertexBuffer.position(0);
        mTexVertexBuffer = ByteBuffer.allocateDirect(TEX_VERTEX.length * 4)
                .order(ByteOrder.nativeOrder())
                .asFloatBuffer()
                .put(TEX_VERTEX);
        mTexVertexBuffer.position(0);
        mVertexIndexBuffer = ByteBuffer.allocateDirect(VERTEX_INDEX.length * 4)
                .order(ByteOrder.nativeOrder())
                .asIntBuffer()
                .put(VERTEX_INDEX);
        mVertexIndexBuffer.position(0);

开始绘制

public void draw(float[] mMVPMatrix, int textureId) {
        GLES30.glUseProgram(mProgram);

        //将变换矩阵传入顶点渲染器
        GLES30.glUniformMatrix4fv(uMatrixLocation, 1, false, mMVPMatrix, 0);
        //启用顶点坐标属性
        GLES30.glEnableVertexAttribArray(aPositionLocation);
        GLES30.glVertexAttribPointer(aPositionLocation, 3, GLES30.GL_FLOAT, false, 0, vertexBuffer);
        //启用纹理坐标属性
        GLES30.glEnableVertexAttribArray(aTextureLocation);
        GLES30.glVertexAttribPointer(aTextureLocation, 2, GLES30.GL_FLOAT, false, 0, mTexVertexBuffer);
        //激活纹理
        GLES30.glActiveTexture(GLES30.GL_TEXTURE0);
        //绑定纹理
        GLES30.glBindTexture(GLES30.GL_TEXTURE_2D, textureId);
        // 绘制
        GLES30.glDrawElements(GLES20.GL_TRIANGLES, VERTEX_INDEX.length, GLES20.GL_UNSIGNED_INT, mVertexIndexBuffer);
        //禁止顶点数组的句柄
        GLES30.glDisableVertexAttribArray(aPositionLocation);
        GLES30.glDisableVertexAttribArray(aTextureLocation);
    }

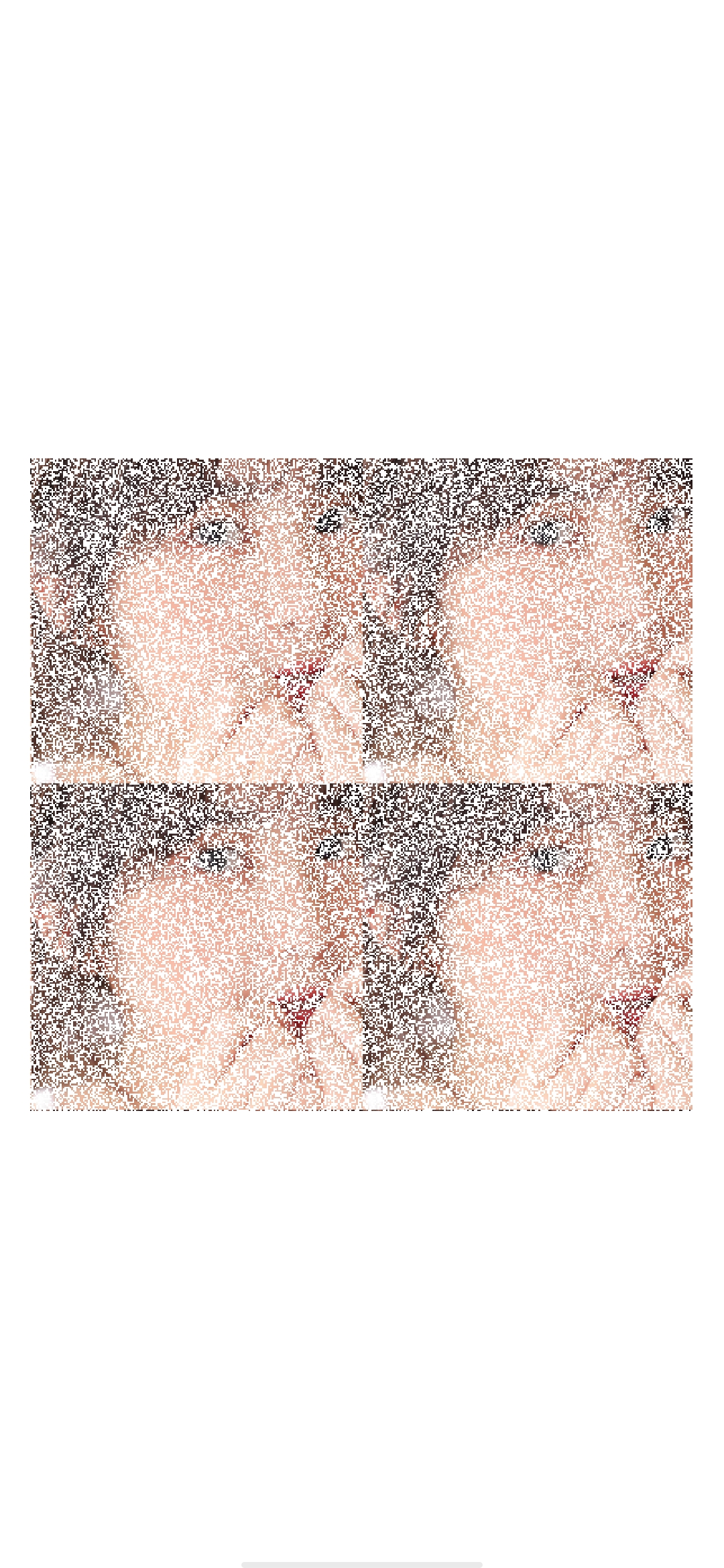

绘制结果

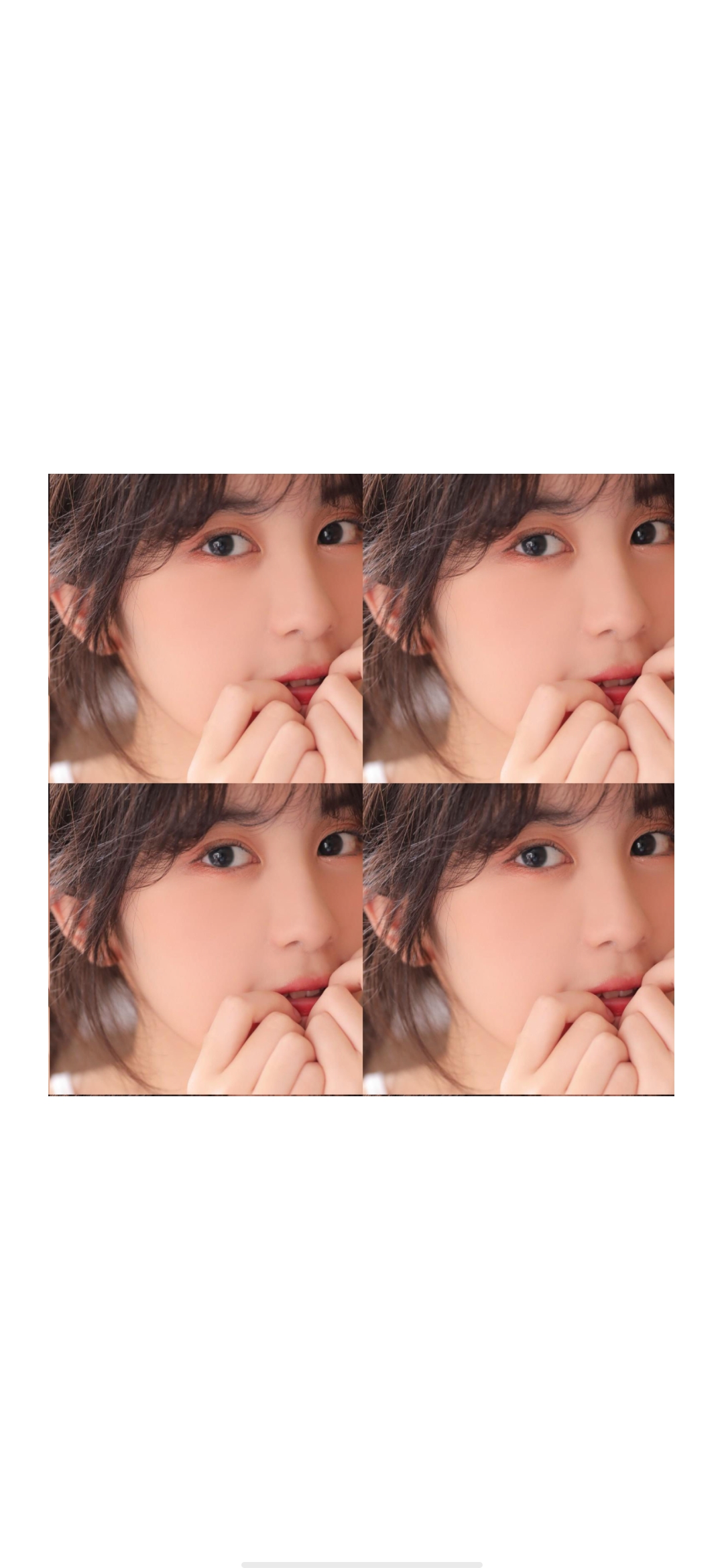

所有坐标填满的结果
