[移动开发]MacOS编译Tensorflow-Lite详细教程（生成Android项目用ARR）

本教程不适用于windows系统，windows系统编译问题比较多。请自行准备翻墙工具，否则部分依赖无法下载。

环境配置

• Tensorflow: 2.5.0
• 操作系统: macOS Big Sur 11.4
• Python: 3.8.2
• Bazel: 3.7.2
• Terminal脚本：zsh

Android NDK:

• NDK version: 20.1.5948944
• API level: 23

Android SDK:

• API level：23
• Android build tools version: 28.0.3

1. 环境安装

以下指令均在Terminal完成

1.1 Homebrew

官方安装指令

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

1.2 Bazel

# 设置bazel版本
export BAZEL_VERSION=3.7.2
# 使用curl下载安装脚本
curl -fLO "https://github.com/bazelbuild/bazel/releases/download/${BAZEL_VERSION}/bazel-${BAZEL_VERSION}-installer-darwin-x86_64.sh"
# 给予文件权限
chmod +x "bazel-${BAZEL_VERSION}-installer-darwin-x86_64.sh"
# 执行脚本
./bazel-${BAZEL_VERSION}-installer-darwin-x86_64.sh --user

在.zshrc文件添加以下代码

export PATH="$PATH:$HOME/bin"

检查是否生效

bazel --version

1.2.1 给bazel添加代理

ip和端口根据自己代理的设置进行填写

# 注意大小写
export HTTP_PROXY="http://127.0.0.1:1087";
export HTTPS_PROXY="http://127.0.0.1:1087";

1.3 Python

macOS 11.4系统自带两个版本的python

• python 对应2.7
• python3 对应3.8.2

1.3.1 安装需要的依赖

pip install -U --user pip numpy wheel
pip install -U --user keras_preprocessing --no-deps

1.3.2 修改python与pip指令的指向

个人把python和pip都指向python3和pip3

# 获得python3和pip3路径
where python3 # 本地结果 /usr/bin/python3
where pip3
# 编辑zsh配置文件
sudo vim ~/.zshrc

在.zshrc文件添加以下代码

alias python='/usr/bin/python3'
alias pip='/usr/bin/pip3'

使用source指令让其生效

source ~/.zshrc

1.4 Android SDK&NDK

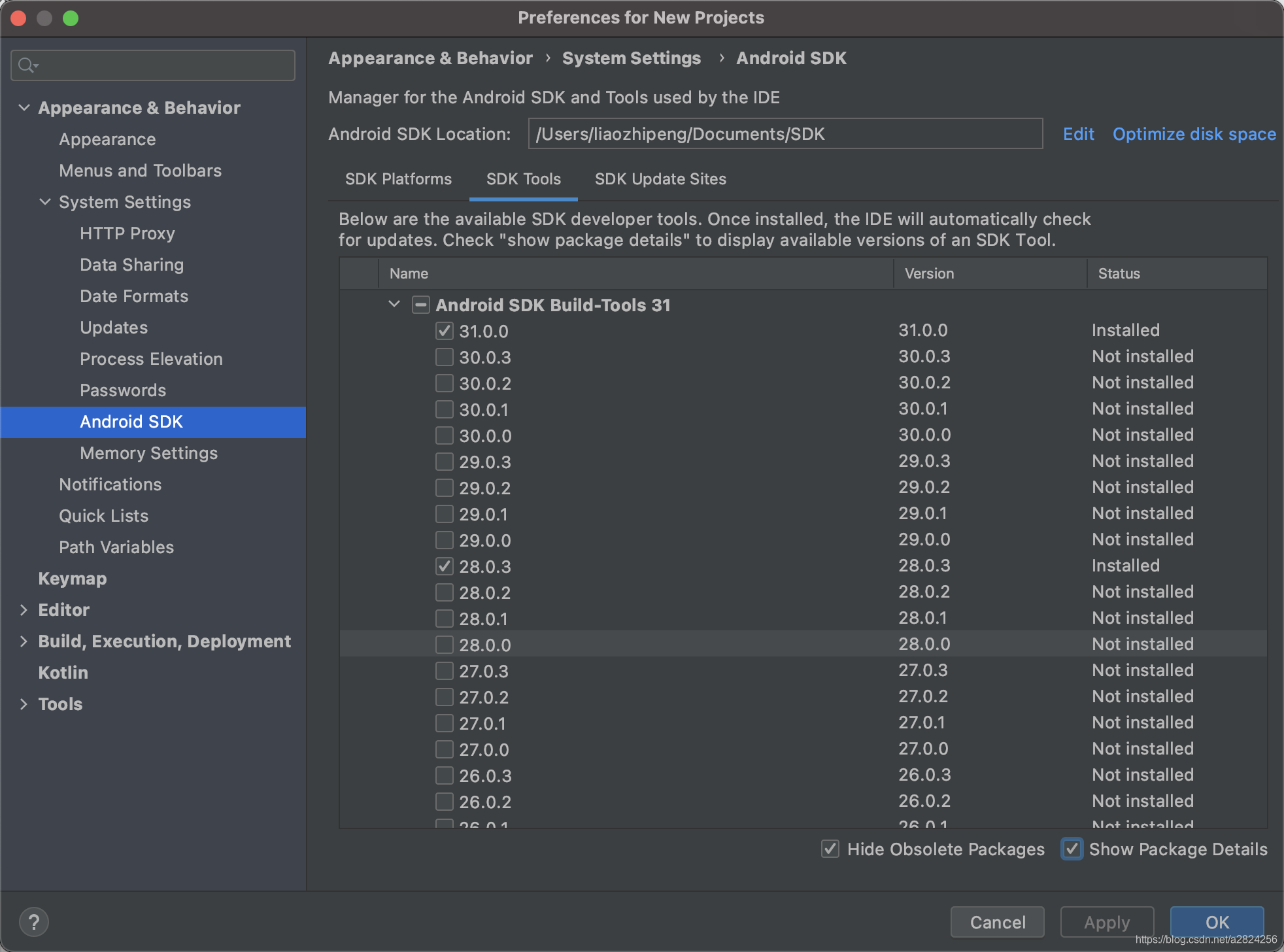

下载Android Studio，打开SDK Manager，勾选右下角的Show Package Details，下载对应的版本

1.5 Tensorflow源码

git clone https://github.com/tensorflow/tensorflow.git
cd tensorflow
# 切换版本
git checkout v2.5.0

2. 编译流程

1. 进入tensorflow源码根目录
2. 执行配置命令

./configure

以下为配置流程

alexleung@liaozhipengdeMacBook-Pro tensorflow % ./configure
You have bazel 3.7.2 installed.
Please specify the location of python. [Default is /Applications/Xcode.app/Contents/Developer/usr/bin/python3]:


Found possible Python library paths:
  /Applications/Xcode.app/Contents/Developer/Library/Frameworks/Python3.framework/Versions/3.8/lib/python3.8/site-packages
Please input the desired Python library path to use.  Default is [/Applications/Xcode.app/Contents/Developer/Library/Frameworks/Python3.framework/Versions/3.8/lib/python3.8/site-packages]

Do you wish to build TensorFlow with ROCm support? [y/N]: n
No ROCm support will be enabled for TensorFlow.

Do you wish to build TensorFlow with CUDA support? [y/N]: n
No CUDA support will be enabled for TensorFlow.

Do you wish to download a fresh release of clang? (Experimental) [y/N]: n
Clang will not be downloaded.

Please specify optimization flags to use during compilation when bazel option "--config=opt" is specified [Default is -Wno-sign-compare]:


Would you like to interactively configure ./WORKSPACE for Android builds? [y/N]: y
Searching for NDK and SDK installations.

Please specify the home path of the Android NDK to use. [Default is /Users/liaozhipeng/library/Android/Sdk/ndk-bundle]: /Users/liaozhipeng/Documents/SDK/ndk/20.1.5948944


WARNING: The NDK version in /Users/liaozhipeng/Documents/SDK/ndk/20.1.5948944 is 20, which is not supported by Bazel (officially supported versions: [10, 11, 12, 13, 14, 15, 16, 17, 18]). Please use another version. Compiling Android targets may result in confusing errors.

Please specify the (min) Android NDK API level to use. [Available levels: ['16', '17', '18', '19', '21', '22', '23', '24', '26', '27', '28', '29']] [Default is 21]: 23


Please specify the home path of the Android SDK to use. [Default is /Users/liaozhipeng/library/Android/Sdk]: /Users/liaozhipeng/Documents/SDK


Please specify the Android SDK API level to use. [Available levels: ['23', '31']] [Default is 31]: 23


Please specify an Android build tools version to use. [Available versions: ['28.0.3', '31.0.0']] [Default is 31.0.0]: 28.0.3


Do you wish to build TensorFlow with iOS support? [y/N]: n
No iOS support will be enabled for TensorFlow.

Preconfigured Bazel build configs. You can use any of the below by adding "--config=<>" to your build command. See .bazelrc for more details.
	--config=mkl         	# Build with MKL support.
	--config=mkl_aarch64 	# Build with oneDNN and Compute Library for the Arm Architecture (ACL).
	--config=monolithic  	# Config for mostly static monolithic build.
	--config=numa        	# Build with NUMA support.
	--config=dynamic_kernels	# (Experimental) Build kernels into separate shared objects.
	--config=v2          	# Build TensorFlow 2.x instead of 1.x.
Preconfigured Bazel build configs to DISABLE default on features:
	--config=noaws       	# Disable AWS S3 filesystem support.
	--config=nogcp       	# Disable GCP support.
	--config=nohdfs      	# Disable HDFS support.
	--config=nonccl      	# Disable NVIDIA NCCL support.
Configuration finished

3. 执行编译指令

bazel build -c opt --fat_apk_cpu=x86,x86_64,arm64-v8a,armeabi-v7a \
  --host_crosstool_top=@bazel_tools//tools/cpp:toolchain \
  //tensorflow/lite/java:tensorflow-lite

4. 等待编译成功，中途会从google云盘下载很多依赖，需要确保网络通畅

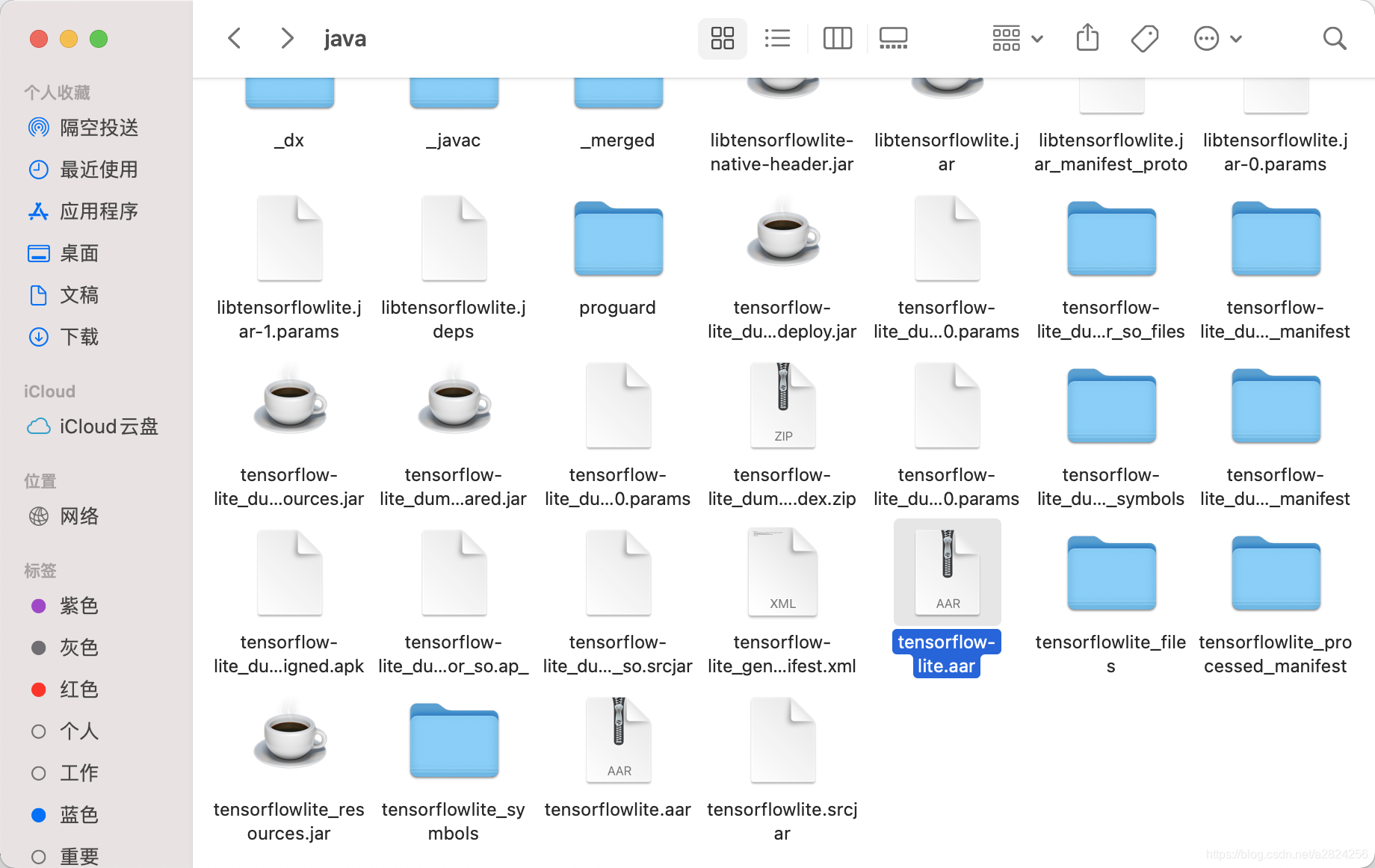

5. 最后在源码根目录下bazel-bin/tensorflow/lite/java/文件夹里面找到.arr文件


问题合集

1. bazel代理失效

错误提示含以下字眼

Proxy address 127.0.0.1:1087 is not a valid URL

可能导致的原因

• 代理参数（如：HTTP_PROXY）写成了小写
• 重新打开了terminal，zsh配置失效，需要重新source一次.zshrc文件
• 代理没连通
