介绍

Android开发过程中，Crash是经常碰到的问题。Android端的Crash分为Java层和Native层崩溃。Java层的Crash可在Application中通过Thread.UncaughtExceptionHandler回调捕捉，但Native层的如何捕捉？
Native层的Crash都会产生响应的signal，现有几个框架可用来捕捉和处理Native层的Crash，Google的Breakpad就是其中之一。Breakpad是一个跨平台的崩溃转储和分析框架，目前支持：iOS、linux、mac、windows。此处只记录Android平台（即linux）的集成和初步使用。

Google Breakpad集成

源码下载

源码地址：breakpad源码地址
若无法下载，可通过：breakpad源码镜像地址

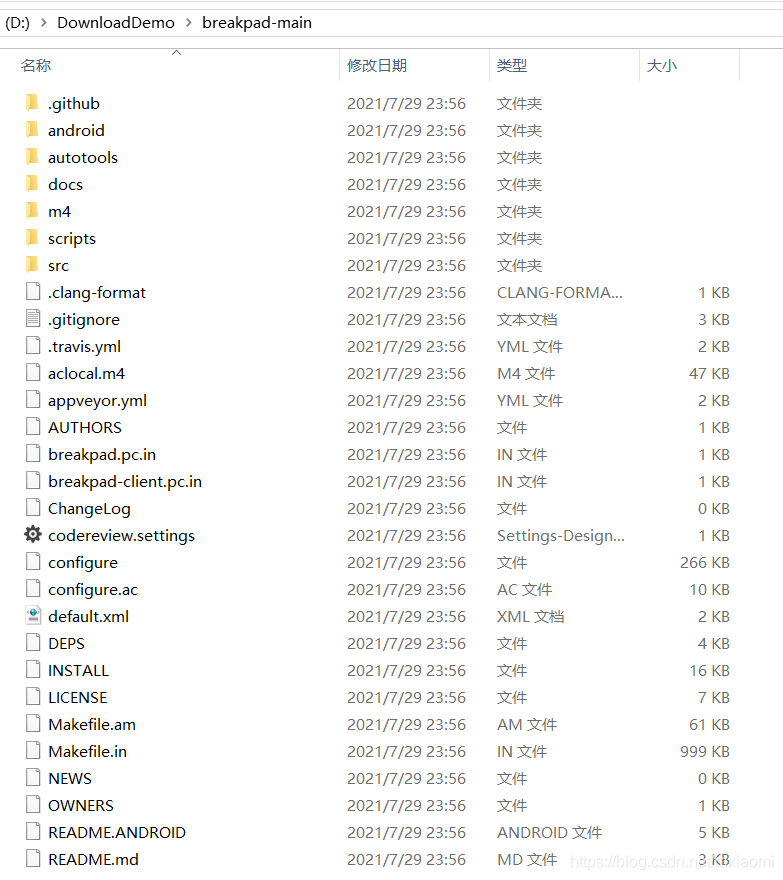

下载后的breakpad-main.zip解压后，目录如下：

在这里插入图片描述
这里只需要src目录下的源码：

在这里插入图片描述

so库编译

Android Studio新建工程

选用Native C++模板

源码目录拷贝

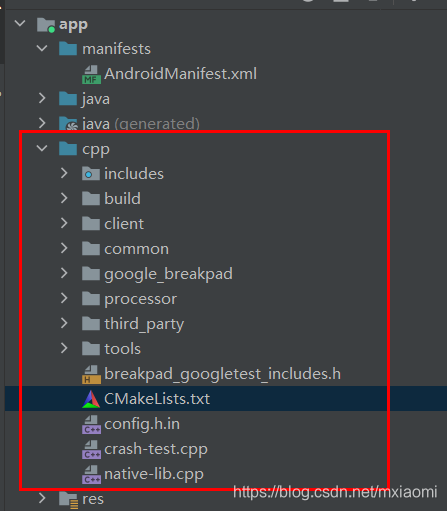

将上面src目录下的文件，拷入Android工程cpp目录下：
在这里插入图片描述

编写CMakeLists

# For more information about using CMake with Android Studio, read the
# documentation: https://d.android.com/studio/projects/add-native-code.html

# Sets the minimum version of CMake required to build the native library.

cmake_minimum_required(VERSION 3.4.1)

set(BREAKPAD_ROOT ${CMAKE_CURRENT_SOURCE_DIR})
include_directories(${BREAKPAD_ROOT} ${BREAKPAD_ROOT}/common/android/include)
file(GLOB BREAKPAD_SOURCES_COMMON
        native-lib.cpp
        ${BREAKPAD_ROOT}/client/linux/crash_generation/crash_generation_client.cc
        ${BREAKPAD_ROOT}/client/linux/dump_writer_common/thread_info.cc
        ${BREAKPAD_ROOT}/client/linux/dump_writer_common/ucontext_reader.cc
        ${BREAKPAD_ROOT}/client/linux/handler/exception_handler.cc
        ${BREAKPAD_ROOT}/client/linux/handler/minidump_descriptor.cc
        ${BREAKPAD_ROOT}/client/linux/log/log.cc
        ${BREAKPAD_ROOT}/client/linux/microdump_writer/microdump_writer.cc
        ${BREAKPAD_ROOT}/client/linux/minidump_writer/linux_dumper.cc
        ${BREAKPAD_ROOT}/client/linux/minidump_writer/linux_ptrace_dumper.cc
        ${BREAKPAD_ROOT}/client/linux/minidump_writer/minidump_writer.cc
        ${BREAKPAD_ROOT}/client/minidump_file_writer.cc
        ${BREAKPAD_ROOT}/common/convert_UTF.cc
        ${BREAKPAD_ROOT}/common/md5.cc
        ${BREAKPAD_ROOT}/common/string_conversion.cc
        ${BREAKPAD_ROOT}/common/linux/elfutils.cc
        ${BREAKPAD_ROOT}/common/linux/file_id.cc
        ${BREAKPAD_ROOT}/common/linux/guid_creator.cc
        ${BREAKPAD_ROOT}/common/linux/linux_libc_support.cc
        ${BREAKPAD_ROOT}/common/linux/memory_mapped_file.cc
        ${BREAKPAD_ROOT}/common/linux/safe_readlink.cc
)

file(GLOB BREAKPAD_ASM_SOURCE ${BREAKPAD_ROOT}/common/linux/breakpad_getcontext.S)
set_source_files_properties(${BREAKPAD_ASM_SOURCE} PROPERTIES LANGUAGE C)

# Creates and names a library, sets it as either STATIC
# or SHARED, and provides the relative paths to its source code.
# You can define multiple libraries, and CMake builds them for you.
# Gradle automatically packages shared libraries with your APK.

add_library( # Sets the name of the library.
             breakpad

             # Sets the library as a shared library.
             SHARED

             # Provides a relative path to your source file(s).
             ${BREAKPAD_SOURCES_COMMON} ${BREAKPAD_ASM_SOURCE} )

# Searches for a specified prebuilt library and stores the path as a
# variable. Because CMake includes system libraries in the search path by
# default, you only need to specify the name of the public NDK library
# you want to add. CMake verifies that the library exists before
# completing its build.

find_library( # Sets the name of the path variable.
              log-lib

              # Specifies the name of the NDK library that
              # you want CMake to locate.
              log )

# Specifies libraries CMake should link to your target library. You
# can link multiple libraries, such as libraries you define in this
# build script, prebuilt third-party libraries, or system libraries.

target_link_libraries( # Specifies the target library.
                       breakpad

                       # Links the target library to the log library
                       # included in the NDK.
                       ${log-lib} )

breakpad引用

#include <jni.h>
#include <string>
#include "client/linux/handler/exception_handler.h"
#include "client/linux/handler/minidump_descriptor.h"
#include "android/log.h"

const char *TAG = "Breakpad";
#define LOGI(fmt, args...) __android_log_print(ANDROID_LOG_INFO,  TAG, fmt, ##args)
#define LOGD(fmt, args...) __android_log_print(ANDROID_LOG_DEBUG, TAG, fmt, ##args)
#define LOGE(fmt, args...) __android_log_print(ANDROID_LOG_ERROR, TAG, fmt, ##args)

// 崩溃回调
bool DumpCallback(const google_breakpad::MinidumpDescriptor& descriptor,
                  void* context,
                  bool succeeded) {

    LOGE("Dump path: %s\n", descriptor.path());
    return succeeded;
}

// 模拟Crash
void Crash() {
    volatile int* a = reinterpret_cast<volatile int*>(NULL);
    *a = 1;
}

extern "C" JNIEXPORT jstring JNICALL
Java_com_example_native_MainActivity_stringFromJNI(
        JNIEnv* env,
        jobject /* this */) {
    std::string hello = "Hello from C++";
	// 若要监控其他so的崩溃，将ExceptionHandler定义为全局变量即可
    google_breakpad::MinidumpDescriptor descriptor("/storage/emulated/0");
    google_breakpad::ExceptionHandler eh(descriptor, NULL, DumpCallback,
                                         NULL, true, -1);
    Crash();

    LOGE("init Breakpad");

    return env->NewStringUTF(hello.c_str());
}
