【平台信息】
CPU：RK3288
Android：7.1
Linux：4.4
WIFI&BT：AP6255
【硬件连接】

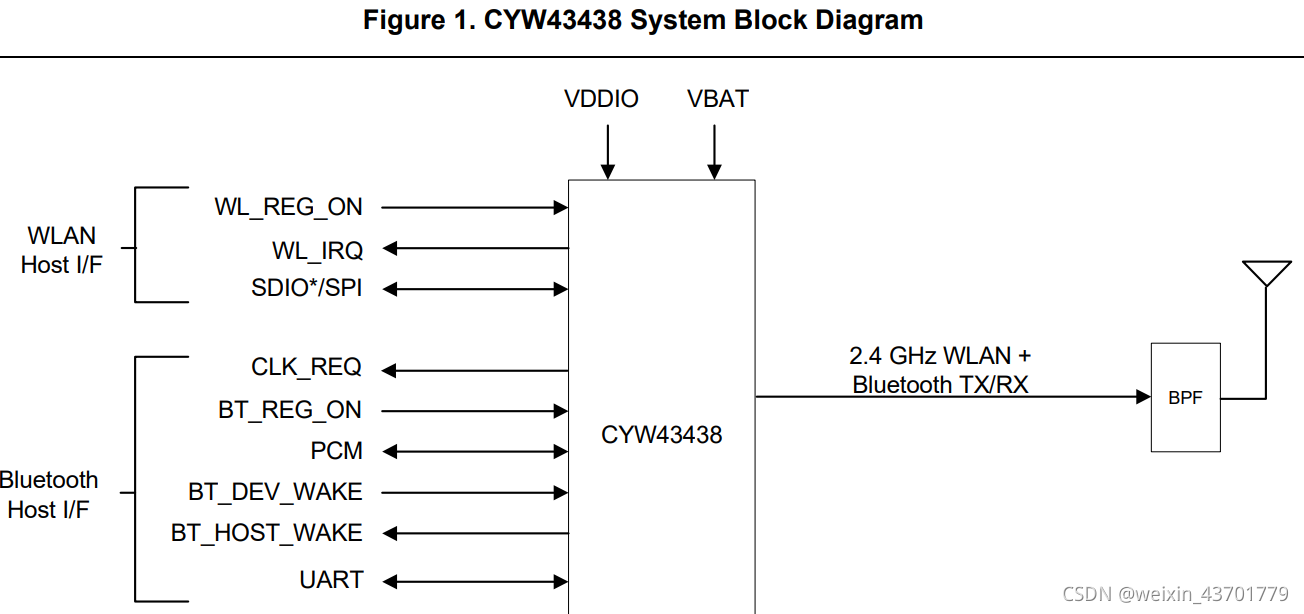

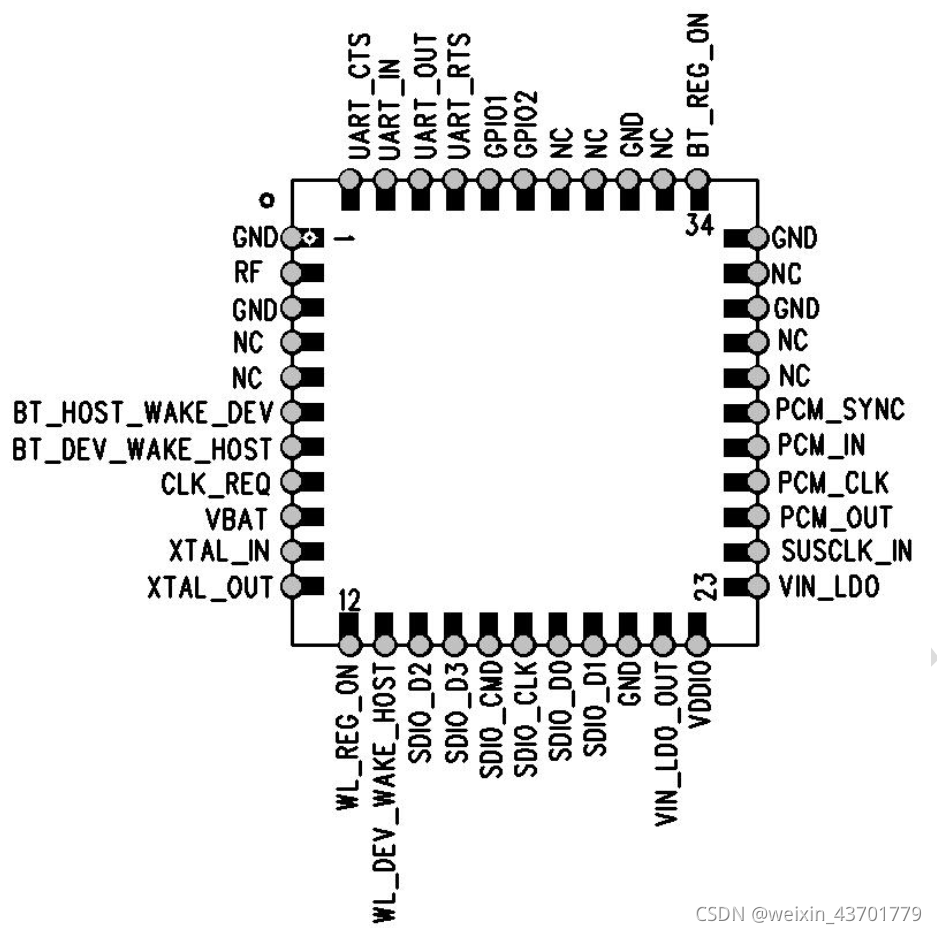

1、芯片介绍
【代码梳理】
1、Dts配置
1) arch/arm/boot/dts/rk3288.dtsi
sdio: rksdmmc@ff0d0000 {
compatible = "rockchip,rk_mmc", "rockchip,rk32xx-sdmmc";
reg = <0xff0d0000 0x4000>;
interrupts = <GIC_SPI 33 IRQ_TYPE_LEVEL_HIGH>;
#address-cells = <1>;
#size-cells = <0>;
pinctrl-names = "default","idle";
pinctrl-0 = <&sdio0_clk &sdio0_cmd &sdio0_bus4>;
pinctrl-1 = <&sdio0_gpio>;
clocks = <&clk_sdio0>, <&clk_gates8 4>;
clock-names = "clk_mmc", "hclk_mmc";
num-slots = <1>;
fifo-depth = <0x100>;
bus-width = <4>; /* 4线模式 */
tune_regsbase = <0x208>;
cru_regsbase = <0x1d8>;
cru_reset_offset = <1>;
};
2) arch/arm/boot/dts/rk3288-n1904.dts
wireless-wlan {
compatible = "wlan-platdata";
/* wifi_chip_type - wifi chip define
* bcmwifi ==> like ap6xxx, rk90x;
* rtkwifi ==> like rtl8188xx, rtl8723xx,rtl8812auv;
* esp8089 ==> esp8089;
* other ==> for other wifi;
*/
wifi_chip_type = "ap6212"; /* 海华和正基模组兼容，realtek需要按实际修改 */
sdio_vref = <1800>; //1800mv or 3300mv，支持SDIO3.0的模组IO一定要接1.8V，SDIO2.0 1.8V/3.3V都可以
//需要根据实际硬件连接设置对应的电压
//keep_wifi_power_on;
//power_ctrl_by_pmu;
power_pmu_regulator = "act_ldo3";
power_pmu_enable_level = <1>; //1->HIGH, 0->LOW
//vref_ctrl_enable;
//vref_ctrl_gpio = <&gpio0 GPIO_A2 GPIO_ACTIVE_HIGH>;
vref_pmu_regulator = "act_ldo3";
vref_pmu_enable_level = <1>; //1->HIGH, 0->LOW
WIFI,poweren_gpio = <&gpio4 GPIO_D4 GPIO_ACTIVE_HIGH>; //WL_REG_ON,wifi模组pin12
WIFI,host_wake_irq = <&gpio4 GPIO_D6 GPIO_ACTIVE_HIGH>; //WL_HOST_WAKE，wifi模组pin13
//WIFI,reset_gpio = <&gpio0 GPIO_A2 GPIO_ACTIVE_LOW>;
status = "okay";
};
&sdio {
clock-frequency = <50000000>;
clock-freq-min-max = <200000 50000000>;
supports-highspeed;
supports-sdio;
ignore-pm-notify;
keep-power-in-suspend;
//cap-sdio-irq;
status = "okay";
};
3) arch/arm/boot/dts/rk3288-pinctrl.dts
pinctrl: pinctrl@ff770000 {
gpio4_sdio0 {
// SDIO四线接口配置
sdio0_clk: sdio0_clk {
rockchip,pins = <SDIO0_CLKOUT>;
rockchip,pull = <VALUE_PULL_DISABLE>;
rockchip,drive = <VALUE_DRV_4MA>;
//rockchip,tristate = <VALUE_TRI_DEFAULT>;
};
sdio0_cmd: sdio0_cmd {
rockchip,pins = <SDIO0_CMD>;
rockchip,pull = <VALUE_PULL_UP>;
rockchip,drive = <VALUE_DRV_4MA>;
//rockchip,tristate = <VALUE_TRI_DEFAULT>;
};
sdio0_bus4: sdio0-bus-width4 {
rockchip,pins = <SDIO0_DATA0>,
<SDIO0_DATA1>,
<SDIO0_DATA2>,
<SDIO0_DATA3>;
rockchip,pull = <VALUE_PULL_UP>;
rockchip,drive = <VALUE_DRV_4MA>;
//rockchip,tristate = <VALUE_TRI_DEFAULT>;
};
//连接wifi模组pin12（WL_REG_ON）
sdio0_pwr: sdio0-pwren{
//rock3288-rk3288.h #define SDIO0_PWREN 0x4d41（bank4、offset:c1、func1）
rockchip,pins = <SDIO0_PWREN>;
rockchip,pull = <VALUE_PULL_UP>;
rockchip,drive = <VALUE_DRV_DEFAULT>;
//rockchip,tristate = <VALUE_TRI_DEFAULT>;
};
//连接wifi模组pin13（WL_HOST_WAKE）
sdio0_intn: sdio0-intn{
//rock3288-rk3288.h #define SDIO0_INTN 0x4d61（bank4、offset:d6、func1）
rockchip,pins = <SDIO0_INTN>;
rockchip,pull = <VALUE_PULL_UP>;
rockchip,drive = <VALUE_DRV_DEFAULT>;
//rockchip,tristate = <VALUE_TRI_DEFAULT>;
};
RK808 PMU芯片的RTC CLK32KOUT2信号接到AP6212芯片SUSCLK_IN脚输入时钟
2、驱动介绍
kernel/.config文件CONFIG_AP6210=y
wifi 驱动路径：kernel/net/rfkill/rfkill-wlan.c
【调试过程】
查看芯片
/sys/bus/sdio/devices/mmc1:0001:3 $ dmesg | grep “card at address”
查看Wifi芯片型号
rk3288:/ $ cat /sys/class/rkwifi/chip
[ 267.558874] Current WiFi chip is AP6255.
查看Wifi日志打印
logcat | grep WifiHW
