[移动开发]安卓开发蓝牙设计

什么是蓝牙

Android 平台包含蓝牙网络堆栈支持，此支持能让设备以无线方式与其他蓝牙设备交换数据。应用框架提供通过 Android Bluetooth API 访问蓝牙功能的权限。这些 API 允许应用以无线方式连接到其他蓝牙设备，从而实现点到点和多点无线功能。

Android 应用可通过 Bluetooth API 执行以下操作：

扫描其他蓝牙设备
查询本地蓝牙适配器的配对蓝牙设备
建立 RFCOMM 通道
通过服务发现连接到其他设备
与其他设备进行双向数据传输
管理多个连接

蓝牙权限

如要在应用中使用蓝牙功能，您必须声明两个权限。第一个是 BLUETOOTH。您需要此权限才能执行任何蓝牙通信，例如请求连接、接受连接和传输数据等。
第二个必须声明的权限是 ACCESS_FINE_LOCATION。您的应用需要此权限，因为蓝牙扫描可用于收集用户的位置信息。此类信息可能来自用户自己的设备，以及在商店和交通设施等位置使用的蓝牙信标。

<uses-permission android:name="android.permission.BLUETOOTH" />
  <uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />

设置蓝牙

1.获取

BluetoothAdapter bluetoothAdapter = BluetoothAdapter.getDefaultAdapter();
if (bluetoothAdapter == null) {
    // Device doesn't support Bluetooth
}

2.启用

if (!bluetoothAdapter.isEnabled()) {
    Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
    startActivityForResult(enableBtIntent, REQUEST_ENABLE_BT);
}

查找设备

1.查询已配对的设备

Set<BluetoothDevice> pairedDevices = bluetoothAdapter.getBondedDevices();

if (pairedDevices.size() > 0) {
    // There are paired devices. Get the name and address of each paired device.
    for (BluetoothDevice device : pairedDevices) {
        String deviceName = device.getName();
        String deviceHardwareAddress = device.getAddress(); // MAC address
    }
}

2.发现设备

@Override
protected void onCreate(Bundle savedInstanceState) {
    ...

    // Register for broadcasts when a device is discovered.
    IntentFilter filter = new IntentFilter(BluetoothDevice.ACTION_FOUND);
    registerReceiver(receiver, filter);
}

// Create a BroadcastReceiver for ACTION_FOUND.
private final BroadcastReceiver receiver = new BroadcastReceiver() {
    public void onReceive(Context context, Intent intent) {
        String action = intent.getAction();
        if (BluetoothDevice.ACTION_FOUND.equals(action)) {
            // Discovery has found a device. Get the BluetoothDevice
            // object and its info from the Intent.
            BluetoothDevice device = intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);
            String deviceName = device.getName();
            String deviceHardwareAddress = device.getAddress(); // MAC address
        }
    }
};

@Override
protected void onDestroy() {
    super.onDestroy();
    ...

    // Don't forget to unregister the ACTION_FOUND receiver.
    unregisterReceiver(receiver);
}

连接设备

private class AcceptThread extends Thread {
    private final BluetoothServerSocket mmServerSocket;

    public AcceptThread() {
        // Use a temporary object that is later assigned to mmServerSocket
        // because mmServerSocket is final.
        BluetoothServerSocket tmp = null;
        try {
            // MY_UUID is the app's UUID string, also used by the client code.
            tmp = bluetoothAdapter.listenUsingRfcommWithServiceRecord(NAME, MY_UUID);
        } catch (IOException e) {
            Log.e(TAG, "Socket's listen() method failed", e);
        }
        mmServerSocket = tmp;
    }

    public void run() {
        BluetoothSocket socket = null;
        // Keep listening until exception occurs or a socket is returned.
        while (true) {
            try {
                socket = mmServerSocket.accept();
            } catch (IOException e) {
                Log.e(TAG, "Socket's accept() method failed", e);
                break;
            }

            if (socket != null) {
                // A connection was accepted. Perform work associated with
                // the connection in a separate thread.
                manageMyConnectedSocket(socket);
                mmServerSocket.close();
                break;
            }
        }
    }

    // Closes the connect socket and causes the thread to finish.
    public void cancel() {
        try {
            mmServerSocket.close();
        } catch (IOException e) {
            Log.e(TAG, "Could not close the connect socket", e);
        }
    }
}

服务端代码

 class AcceptThread extends Thread {
        private BluetoothServerSocket mServerSocket;
        private BluetoothSocket mSocket;
        private InputStream btIs;
        private OutputStream btOs;
        private PrintWriter writer;
        private boolean canAccept;
        private boolean canRecv;

        public AcceptThread() {
            canAccept = true;
            canRecv = true;
        }

        @Override
        public void run() {
            try {
                //获取套接字
                BluetoothServerSocket temp = mBluetoothAdapter.listenUsingInsecureRfcommWithServiceRecord("TEST", UUID.fromString(BT_UUID));
                mServerSocket = temp;
                //监听连接请求 -- 作为测试，只允许连接一个设备
                if (mServerSocket != null) {
                    // while (canAccept) {
                    mSocket = mServerSocket.accept();//阻塞等待客户端连接
                    sendHandlerMsg("有客户端连接");
                    // }
                }
                //获取输入输出流
                btIs = mSocket.getInputStream();
                btOs = mSocket.getOutputStream();
                //通讯-接收消息
                BufferedReader reader = new BufferedReader(new InputStreamReader(btIs, "UTF-8"));
                String content = null;
                while (canRecv) {
                    content = reader.readLine();
                    sendHandlerMsg("收到消息：" + content);
                }
            } catch (IOException e) {
                e.printStackTrace();
            } finally {
                try {
                    if (mSocket != null) {
                        mSocket.close();
                    }
                    // btIs.close();//两个输出流都依赖socket，关闭socket即可
                    // btOs.close();
                } catch (IOException e) {
                    e.printStackTrace();
                    sendHandlerMsg("错误：" + e.getMessage());
                }
            }
        }

        private void sendHandlerMsg(String content) {
            Message msg = mHandler.obtainMessage();
            msg.what = 1001;
            msg.obj = content;
            mHandler.sendMessage(msg);
        }

        public void write(String msg) {
            if (btOs != null) {
                try {
                    if (writer == null) {
                        writer = new PrintWriter(new OutputStreamWriter(btOs, "UTF-8"), true);
                    }
                    writer.println(msg);
                } catch (UnsupportedEncodingException e) {
                    e.printStackTrace();
                    writer.close();
                    sendHandlerMsg("错误：" + e.getMessage());
                }
            }
        }
    }

客户端代码

private class ConnectThread extends Thread {
    private final BluetoothSocket mmSocket;
    private final BluetoothDevice mmDevice;

    public ConnectThread(BluetoothDevice device) {
        // Use a temporary object that is later assigned to mmSocket
        // because mmSocket is final.
        BluetoothSocket tmp = null;
        mmDevice = device;

        try {
            // Get a BluetoothSocket to connect with the given BluetoothDevice.
            // MY_UUID is the app's UUID string, also used in the server code.
            tmp = device.createRfcommSocketToServiceRecord(MY_UUID);
        } catch (IOException e) {
            Log.e(TAG, "Socket's create() method failed", e);
        }
        mmSocket = tmp;
    }

    public void run() {
        // Cancel discovery because it otherwise slows down the connection.
        bluetoothAdapter.cancelDiscovery();

        try {
            // Connect to the remote device through the socket. This call blocks
            // until it succeeds or throws an exception.
            mmSocket.connect();
        } catch (IOException connectException) {
            // Unable to connect; close the socket and return.
            try {
                mmSocket.close();
            } catch (IOException closeException) {
                Log.e(TAG, "Could not close the client socket", closeException);
            }
            return;
        }

        // The connection attempt succeeded. Perform work associated with
        // the connection in a separate thread.
        manageMyConnectedSocket(mmSocket);
    }

    // Closes the client socket and causes the thread to finish.
    public void cancel() {
        try {
            mmSocket.close();
        } catch (IOException e) {
            Log.e(TAG, "Could not close the client socket", e);
        }
    }
}

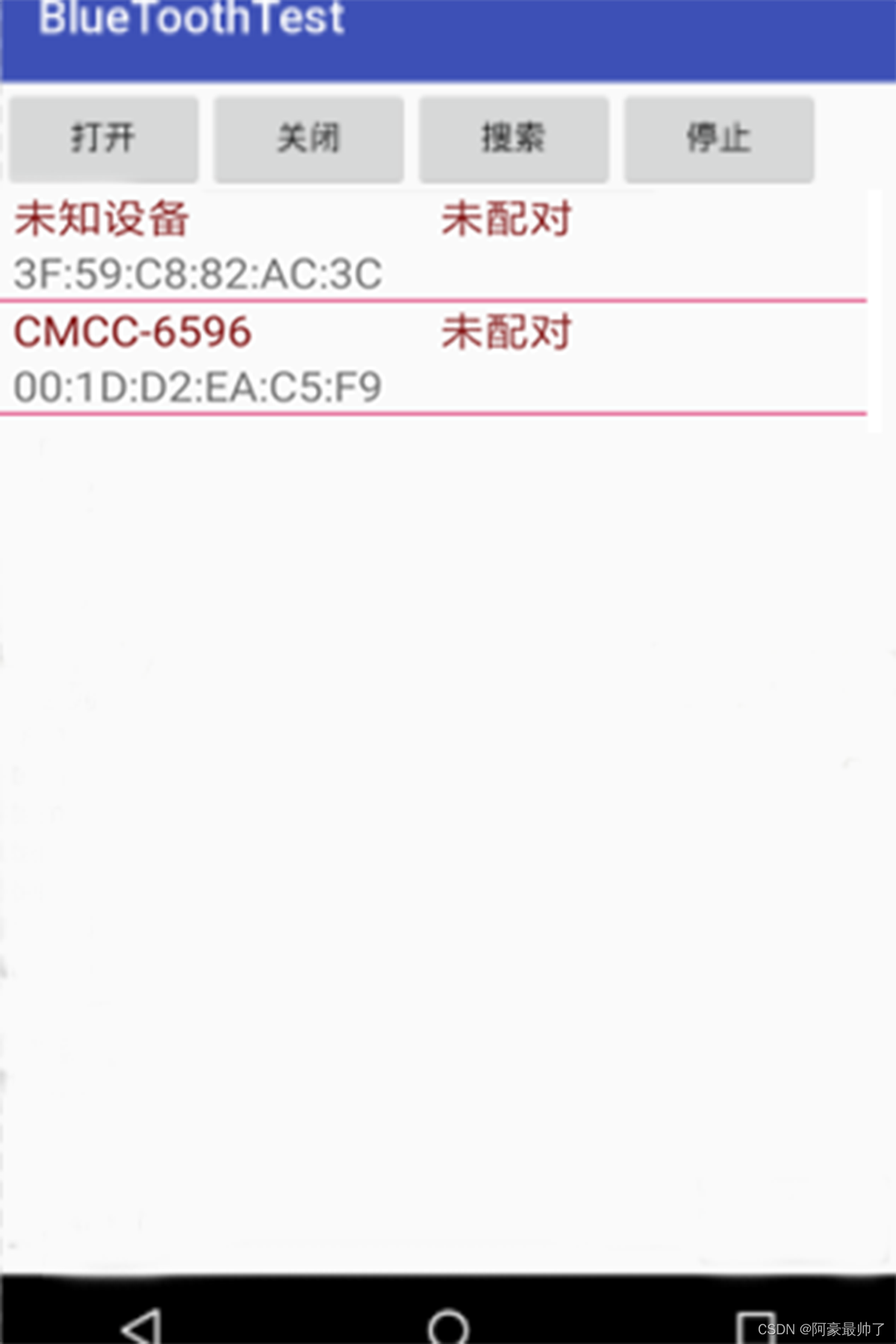

结果截图
