目录

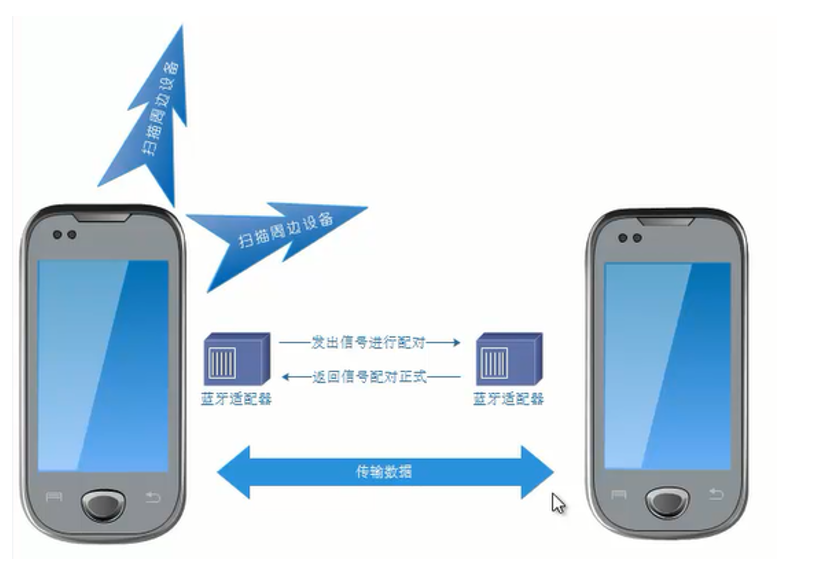

蓝牙工作流程
蓝牙客户端Socket：
1、创建客户端蓝牙Sokcet
2、创建连接
3、读写数据
4、关闭
服务端socket：
1、创建服务端蓝牙Socket
2、连接服务端connect
5、读写数据
6、关闭
开发步骤
添加权限
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.BLUETOOTH_ADVERTISE" />
<uses-permission android:name="android.permission.BLUETOOTH_CONNECT" />
<uses-permission android:name="android.permission.BLUETOOTH_SCAN" />布局文件activity_main.xml

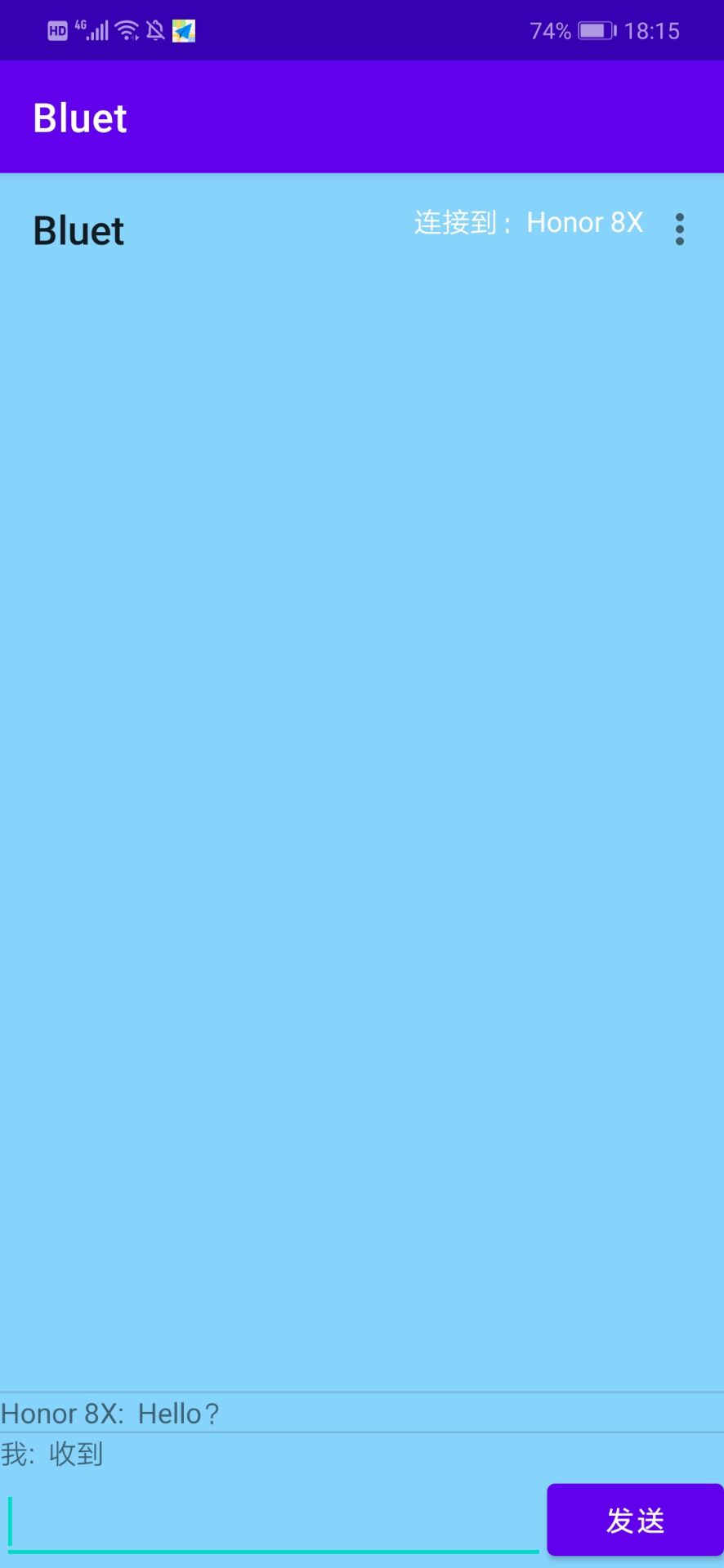

供 Activity组件BluetoothChat使用，发送消息界面
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="#86D3FC">
<androidx.appcompat.widget.Toolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="wrap_content">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="horizontal">
<TextView
android:id="@+id/title_left_text"
style="?android:attr/windowTitleStyle"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_alignParentLeft="true"
android:layout_weight="1"
android:gravity="left"
android:ellipsize="end"
android:singleLine="true" />
<TextView
android:id="@+id/title_right_text"
android:layout_width="0dp"
android:layout_height="match_parent"
android:layout_alignParentRight="true"
android:layout_weight="1"
android:ellipsize="end"
android:gravity="right"
android:singleLine="true"
android:textColor="#fff" />
</LinearLayout>
</androidx.appcompat.widget.Toolbar>
<ListView android:id="@+id/in"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:stackFromBottom="true"
android:transcriptMode="alwaysScroll"
android:layout_weight="1" />
<LinearLayout
android:orientation="horizontal"
android:layout_width="match_parent"
android:layout_height="wrap_content" >
<EditText android:id="@+id/edit_text_out"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_weight="1"
android:layout_gravity="bottom" />
<Button android:id="@+id/button_send"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/send"/>
</LinearLayout>
</LinearLayout>聊天记录列表项布局文件message.xml
<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="TextView" />device_list.xml
供 Activity组件DeviceList使用，选择好友界面
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<TextView
android:id="@+id/title_paired_devices"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="#666"
android:text="@string/title_paired_devices"
android:textColor="#fff"
android:visibility="visible" />
<ListView android:id="@+id/paired_devices"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="1" />
<TextView
android:id="@+id/title_new_devices"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:background="#666"
android:text="@string/title_other_devices"
android:textColor="#fff"
android:visibility="visible" />
<!--android:visibility="gone"表示不占空间的隐藏，invisible是占空间-->
<ListView android:id="@+id/new_devices"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_weight="2" />
<Button android:id="@+id/button_scan"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/button_scan" />
</LinearLayout>设备名列表device_name.xml
<?xml version="1.0" encoding="utf-8"?>
<TextView xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/textView2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="TextView" />strings.xml
添加程序运行过程中的状态描述文本及配色
<resources>
<string name="app_name">Bluet</string>
<string name="send">发送</string>
<string name="not_connected">没有链接设备</string>
<string name="bt_not_enabled_leaving">蓝牙不可用</string>
<string name="title_connecting">链接中...</string>
<string name="title_connected_to">连接到：</string>
<string name="title_not_connected">无链接</string>
<string name="scanning">蓝牙设备搜索中...</string>
<string name="select_device">选择一个好友链接</string>
<string name="none_paired">没有配对好友</string>
<string name="none_found">附近没有发现好友</string>
<string name="title_paired_devices">已配对好友</string>
<string name="title_other_devices">其它可连接好友</string>
<string name="button_scan">搜索好友</string>
<string name="connect">我的好友</string>
<string name="discoverable">设置在线</string>
<string name="back">退出</string>
<string name="startVideo">开始聊天</string>
<string name="stopVideo">结束聊天</string>
</resources>ChatService
蓝牙会话的服务组件
package com.example.bluet;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothServerSocket;
import android.bluetooth.BluetoothSocket;
import android.content.Context;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import java.io.IOException;
import java.io.InputStream;
import java.io.OutputStream;
import java.util.UUID;
public class ChatService {
private static final String NAME = "BluetoothChat";
private static final UUID MY_UUID = UUID.fromString("fa87c0d0-afac-11de-8a39-0800200c9a66");
private final BluetoothAdapter mAdapter;
private final android.os.Handler mHandler;
private AcceptThread mAcceptThread;
private ConnectThread mConnectThread;
private ConnectedThread mConnectedThread;
private int mState;
public static final int STATE_NONE = 0;
public static final int STATE_LISTEN = 1;
public static final int STATE_CONNECTING = 2;
public static final int STATE_CONNECTED = 3;
public ChatService(Context context, Handler handler) {
mAdapter = BluetoothAdapter.getDefaultAdapter();
mState = STATE_NONE;
mHandler = handler;
}
private synchronized void setState(int state) {
mState = state;
mHandler.obtainMessage(BluetoothChat.MESSAGE_STATE_CHANGE, state, -1).sendToTarget();
}
public synchronized int getState() {
return mState;
}
public synchronized void start() {
if (mConnectThread != null) {
mConnectThread.cancel();
mConnectThread = null;
}
if (mConnectedThread != null) {
mConnectedThread.cancel();
mConnectedThread = null;
}
if (mAcceptThread == null) {
mAcceptThread = new AcceptThread();
mAcceptThread.start();
}
setState(STATE_LISTEN);
}
public synchronized void connect(BluetoothDevice device) {
if (mState == STATE_CONNECTING) {
if (mConnectThread != null) {
mConnectThread.cancel();
mConnectThread = null;
}
}
if (mConnectedThread != null) {
mConnectedThread.cancel();
mConnectedThread = null;
}
mConnectThread = new ConnectThread(device);
mConnectThread.start();
setState(STATE_CONNECTING);
}
public synchronized void connected(BluetoothSocket socket, BluetoothDevice device) {
if (mConnectThread != null) {
mConnectThread.cancel();
mConnectThread = null;
}
if (mConnectedThread != null) {
mConnectedThread.cancel();
mConnectedThread = null;
}
if (mAcceptThread != null) {
mAcceptThread.cancel();
mAcceptThread = null;
}
mConnectedThread = new ConnectedThread(socket);
mConnectedThread.start();
Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_DEVICE_NAME);
Bundle bundle = new Bundle();
bundle.putString(BluetoothChat.DEVICE_NAME, device.getName());
msg.setData(bundle);
mHandler.sendMessage(msg);
setState(STATE_CONNECTED);
}
// 停止所有相关线程，设当前状态为 NONE
public synchronized void stop() {
if (mConnectThread != null) {
mConnectThread.cancel();
mConnectThread = null;
}
if (mConnectedThread != null) {
mConnectedThread.cancel();
mConnectedThread = null;
}
if (mAcceptThread != null) {
mAcceptThread.cancel();
mAcceptThread = null;
}
setState(STATE_NONE);
}
public void write(byte[] out) {
ConnectedThread r;
synchronized (this) {
if (mState != STATE_CONNECTED)
return;
r = mConnectedThread;
}
r.write(out);
}
private void connectionFailed() {
setState(STATE_LISTEN);
Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_TOAST);
Bundle bundle = new Bundle();
bundle.putString(BluetoothChat.TOAST, "链接不到设备");
msg.setData(bundle);
mHandler.sendMessage(msg);
}
private void connectionLost() {
setState(STATE_LISTEN);
Message msg = mHandler.obtainMessage(BluetoothChat.MESSAGE_TOAST);
Bundle bundle = new Bundle();
bundle.putString(BluetoothChat.TOAST, "设备链接中断");
msg.setData(bundle);
mHandler.sendMessage(msg);
}
private class AcceptThread extends Thread {
private final BluetoothServerSocket mmServerSocket;
public AcceptThread() {
BluetoothServerSocket tmp = null;
try {
//使用射频端口（RF comm）监听
tmp = mAdapter.listenUsingRfcommWithServiceRecord(NAME, MY_UUID);
} catch (IOException e) {
}
mmServerSocket = tmp;
}
@Override
public void run() {
setName("AcceptThread");
BluetoothSocket socket = null;
while (mState != STATE_CONNECTED) {
try {
socket = mmServerSocket.accept();
} catch (IOException e) {
break;
}
if (socket != null) {
synchronized (ChatService.this) {
switch (mState) {
case STATE_LISTEN:
case STATE_CONNECTING:
connected(socket, socket.getRemoteDevice());
break;
case STATE_NONE:
case STATE_CONNECTED:
try {
socket.close();
} catch (IOException e) {
e.printStackTrace();
}
break;
}
}
}
}
}
public void cancel() {
try {
mmServerSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
private class ConnectThread extends Thread {
private final BluetoothSocket mmSocket;
private final BluetoothDevice mmDevice;
public ConnectThread(BluetoothDevice device) {
mmDevice = device;
BluetoothSocket tmp = null;
try {
tmp = device.createRfcommSocketToServiceRecord(MY_UUID);
} catch (IOException e) {
e.printStackTrace();
}
mmSocket = tmp;
}
@Override
public void run() {
setName("ConnectThread");
mAdapter.cancelDiscovery();
try {
mmSocket.connect();
} catch (IOException e) {
connectionFailed();
try {
mmSocket.close();
} catch (IOException e2) {
e.printStackTrace();
}
ChatService.this.start();
return;
}
synchronized (ChatService.this) {
mConnectThread = null;
}
connected(mmSocket, mmDevice);
}
public void cancel() {
try {
mmSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
private class ConnectedThread extends Thread {
private final BluetoothSocket mmSocket;
private final InputStream mmInStream;
private final OutputStream mmOutStream;
public ConnectedThread(BluetoothSocket socket) {
mmSocket = socket;
InputStream tmpIn = null;
OutputStream tmpOut = null;
try {
tmpIn = socket.getInputStream();
tmpOut = socket.getOutputStream();
} catch (IOException e) {
e.printStackTrace();
}
mmInStream = tmpIn;
mmOutStream = tmpOut;
}
@Override
public void run() {
byte[] buffer = new byte[1024];
int bytes;
while (true) {
try {
bytes = mmInStream.read(buffer);
mHandler.obtainMessage(BluetoothChat.MESSAGE_READ, bytes, -1, buffer).sendToTarget();
} catch (IOException e) {
connectionLost();
break;
}
}
}
public void write(byte[] buffer) {
try {
mmOutStream.write(buffer);
mHandler.obtainMessage(BluetoothChat.MESSAGE_WRITE, -1, -1, buffer).sendToTarget();
} catch (IOException e) {
e.printStackTrace();
}
}
public void cancel() {
try {
mmSocket.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}菜单文件res/menu/option_menu.xml
<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
<item android:id="@+id/scan"
android:icon="@android:drawable/ic_menu_myplaces"
android:title="@string/connect" />
<item android:id="@+id/discoverable"
android:icon="@android:drawable/ic_menu_view"
android:title="@string/discoverable" />
<item android:id="@+id/back"
android:icon="@android:drawable/ic_menu_close_clear_cancel"
android:title="@string/back" />
</menu>DeviceList.java
设备界面
package com.example.bluet;
import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.IntentFilter;
import android.os.Bundle;
import android.provider.Settings;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
import androidx.appcompat.app.AppCompatActivity;
import java.util.Set;
public class DeviceList extends AppCompatActivity {
private BluetoothAdapter mBtAdapter;
private ArrayAdapter<String> mPairedDevicesArrayAdapter;
private ArrayAdapter<String> mNewDevicesArrayAdapter;
public static String EXTRA_DEVICE_ADDRESS = "device_address"; //Mac地址
private final BroadcastReceiver mReceiver = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
String action = intent.getAction();
if (BluetoothDevice.ACTION_FOUND.equals(action)) {
BluetoothDevice device = intent.getParcelableExtra(BluetoothDevice.EXTRA_DEVICE);
if (device.getBondState() != BluetoothDevice.BOND_BONDED) {
mNewDevicesArrayAdapter.add(device.getName() + "\n" + device.getAddress());
}
} else if (BluetoothAdapter.ACTION_DISCOVERY_FINISHED.equals(action)) {
if (mNewDevicesArrayAdapter.getCount() == 0) {
String noDevices = getResources().getText(R.string.none_found).toString();
mNewDevicesArrayAdapter.add(noDevices);
}
}
}
};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.device_list);
setResult(Activity.RESULT_CANCELED);
init();
}
private void init() {
Button scanButton = findViewById(R.id.button_scan);
scanButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
Toast.makeText(DeviceList.this, R.string.scanning, Toast.LENGTH_LONG).show();
doDiscovery();
}
});
mPairedDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
mNewDevicesArrayAdapter = new ArrayAdapter<String>(this, R.layout.device_name);
ListView pairedListView = findViewById(R.id.paired_devices);
pairedListView.setAdapter(mPairedDevicesArrayAdapter);
pairedListView.setOnItemClickListener(mPaireDeviceClickListener);
ListView newDevicesListView = findViewById(R.id.new_devices);
newDevicesListView.setAdapter(mNewDevicesArrayAdapter);
newDevicesListView.setOnItemClickListener(mNewDeviceClickListener);
IntentFilter filter = new IntentFilter(BluetoothDevice.ACTION_FOUND);
registerReceiver(mReceiver, filter);
filter = new IntentFilter(BluetoothAdapter.ACTION_DISCOVERY_FINISHED);
registerReceiver(mReceiver, filter);
mBtAdapter = BluetoothAdapter.getDefaultAdapter();
Set<BluetoothDevice> pairedDevices = mBtAdapter.getBondedDevices();
if (pairedDevices.size() > 0) {
findViewById(R.id.title_paired_devices).setVisibility(View.VISIBLE);
for (BluetoothDevice device : pairedDevices) {
mPairedDevicesArrayAdapter.add(device.getName() + "\n" + device.getAddress());
}
} else {
String noDevices = getResources().getText(R.string.none_paired).toString();
mPairedDevicesArrayAdapter.add(noDevices);
}
}
@Override
protected void onDestroy() {
super.onDestroy();
if (mBtAdapter != null) {
mBtAdapter.cancelDiscovery();
}
this.unregisterReceiver(mReceiver);
}
private void doDiscovery() {
findViewById(R.id.title_new_devices).setVisibility(View.VISIBLE);
if (mBtAdapter.isDiscovering()) {
mBtAdapter.cancelDiscovery();
}
mBtAdapter.startDiscovery();
}
private AdapterView.OnItemClickListener mPaireDeviceClickListener = new AdapterView.OnItemClickListener() {
public void onItemClick(AdapterView<?> av, View v, int arg2, long arg3) {
mBtAdapter.cancelDiscovery();
String info = ((TextView) v).getText().toString();
String address = info.substring(info.length() - 17);
Intent intent = new Intent();
intent.putExtra(EXTRA_DEVICE_ADDRESS, address); //Mac地址
setResult(Activity.RESULT_OK, intent);
finish();
}
};
private AdapterView.OnItemClickListener mNewDeviceClickListener = new AdapterView.OnItemClickListener() {
public void onItemClick(AdapterView<?> av, View v, int arg2, long arg3) {
mBtAdapter.cancelDiscovery();
Toast.makeText(DeviceList.this, "请在蓝牙设置界面手动连接设备", Toast.LENGTH_SHORT).show();
Intent intent = new Intent(Settings.ACTION_BLUETOOTH_SETTINGS);
startActivityForResult(intent, 1);
}
};
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
init();
}
}BluetoothChat.java
蓝牙聊天界面
package com.example.bluet;
import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.appcompat.widget.Toolbar;
import androidx.core.app.ActivityCompat;
import androidx.core.content.ContextCompat;
import android.Manifest;
import android.annotation.SuppressLint;
import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.os.Build;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.KeyEvent;
import android.view.MenuItem;
import android.view.View;
import android.view.inputmethod.EditorInfo;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
public class BluetoothChat extends AppCompatActivity {
public static final int MESSAGE_STATE_CHANGE = 1;
public static final int MESSAGE_READ = 2;
public static final int MESSAGE_WRITE = 3;
public static final int MESSAGE_DEVICE_NAME = 4;
public static final int MESSAGE_TOAST = 5;
public static final String DEVICE_NAME = "device_name";
public static final String TOAST = "toast";
private static final int REQUEST_CONNECT_DEVICE = 1; //请求连接设备
private static final int REQUEST_ENABLE_BT = 2;
private TextView mTitle;
private ListView mConversationView;
private EditText mOutEditText;
private Button mSendButton;
private String mConnectedDeviceName = null;
private ArrayAdapter<String> mConversationArrayAdapter;
private StringBuffer mOutStringBuffer;
private BluetoothAdapter mBluetoothAdapter = null;
//TODO
private ChatService mChatService = null;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
if (ContextCompat.checkSelfPermission(this, Manifest.permission.ACCESS_COARSE_LOCATION) != PackageManager.PERMISSION_GRANTED) {
ActivityCompat.requestPermissions(this, new String[]{Manifest.permission.ACCESS_COARSE_LOCATION}, 1);
}
}
//TODO
Toolbar toolbar = findViewById(R.id.toolbar);
toolbar.inflateMenu(R.menu.option_menu);
toolbar.setOnMenuItemClickListener(new MyMenuItemClickListener());
mTitle = findViewById(R.id.title_left_text);
mTitle.setText(R.string.app_name);
mTitle = findViewById(R.id.title_right_text);
mBluetoothAdapter = BluetoothAdapter.getDefaultAdapter();
if (mBluetoothAdapter == null) {
Toast.makeText(this, "蓝牙不可用", Toast.LENGTH_LONG).show();
finish();
return;
}
if (!mBluetoothAdapter.isEnabled()) {
Intent enableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
startActivityForResult(enableIntent, REQUEST_ENABLE_BT); //
} else {
if (mChatService == null) {
setupChat();
}
}
}
@Override
public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, @NonNull int[] grantResults) {
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
if (grantResults.length > 0) {
if (grantResults[0] != PackageManager.PERMISSION_GRANTED) {
Toast.makeText(this, "未授权，蓝牙搜索功能将不可用！", Toast.LENGTH_SHORT).show();
}
}
}
@Override
public synchronized void onResume() { //synchronized：同步方法实现排队调用
super.onResume();
if (mChatService != null) {
if (mChatService.getState() == com.example.bluet.ChatService.STATE_NONE) {
mChatService.start();
}
}
}
private void setupChat() {
mConversationArrayAdapter = new ArrayAdapter<String>(this,R.layout.message);
mConversationView = findViewById(R.id.in);
mConversationView.setAdapter(mConversationArrayAdapter);
mOutEditText = findViewById(R.id.edit_text_out);
mOutEditText.setOnEditorActionListener(mWriteListener);
mSendButton = findViewById(R.id.button_send);
mSendButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
TextView view = findViewById(R.id.edit_text_out);
String message = view.getText().toString();
sendMessage(message);
}
});
mChatService = (ChatService) new com.example.bluet.ChatService(this, mHandler);
mOutStringBuffer = new StringBuffer("");
}
@Override
public void onDestroy() {
super.onDestroy();
if (mChatService != null)
mChatService.stop();
}
private void ensureDiscoverable() {
if (mBluetoothAdapter.getScanMode() != BluetoothAdapter.SCAN_MODE_CONNECTABLE_DISCOVERABLE) {
Intent discoverableIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
discoverableIntent.putExtra(BluetoothAdapter.EXTRA_DISCOVERABLE_DURATION, 300);
startActivity(discoverableIntent);
Toast.makeText(this, "已经设置本机蓝牙设备的可见性，对方可搜索了。", Toast.LENGTH_SHORT).show();
}
}
private void sendMessage(String message) {
if (mChatService.getState() != com.example.bluet.ChatService.STATE_CONNECTED) {
Toast.makeText(this, R.string.not_connected, Toast.LENGTH_SHORT).show();
return;
}
if (message.length() > 0) {
byte[] send = message.getBytes();
mChatService.write(send);
mOutStringBuffer.setLength(0);
mOutEditText.setText(mOutStringBuffer);
}
}
private TextView.OnEditorActionListener mWriteListener = new TextView.OnEditorActionListener() {
@Override
public boolean onEditorAction(TextView view, int actionId, KeyEvent event) {
if (actionId == EditorInfo.IME_NULL && event.getAction() == KeyEvent.ACTION_UP) {
String message = view.getText().toString();
sendMessage(message);
}
return true;
}
};
@SuppressLint("HandlerLeak")
private final Handler mHandler = new Handler() {
@Override
public void handleMessage(Message msg) {
switch (msg.what) {
case MESSAGE_STATE_CHANGE:
switch (msg.arg1) {
case com.example.bluet.ChatService.STATE_CONNECTED:
mTitle.setText(R.string.title_connected_to);
mTitle.append(mConnectedDeviceName);
mConversationArrayAdapter.clear();
break;
case com.example.bluet.ChatService.STATE_CONNECTING:
mTitle.setText(R.string.title_connecting);
break;
case com.example.bluet.ChatService.STATE_LISTEN:
case com.example.bluet.ChatService.STATE_NONE:
mTitle.setText(R.string.title_not_connected);
break;
}
break;
case MESSAGE_WRITE:
byte[] writeBuf = (byte[]) msg.obj;
String writeMessage = new String(writeBuf);
mConversationArrayAdapter.add("我: " + writeMessage);
break;
case MESSAGE_READ:
byte[] readBuf = (byte[]) msg.obj;
String readMessage = new String(readBuf, 0, msg.arg1);
mConversationArrayAdapter.add(mConnectedDeviceName + ": "
+ readMessage);
break;
case MESSAGE_DEVICE_NAME:
mConnectedDeviceName = msg.getData().getString(DEVICE_NAME);
Toast.makeText(getApplicationContext(), "链接到 " + mConnectedDeviceName, Toast.LENGTH_SHORT).show();
break;
case MESSAGE_TOAST:
Toast.makeText(getApplicationContext(),
msg.getData().getString(TOAST), Toast.LENGTH_SHORT).show();
break;
}
}
};
public void onActivityResult(int requestCode, int resultCode, Intent data) {
//TODO
super.onActivityResult(requestCode, resultCode, data);
switch (requestCode) {
case REQUEST_CONNECT_DEVICE:
if (resultCode == Activity.RESULT_OK) {
String address = data.getExtras().getString(DeviceList.EXTRA_DEVICE_ADDRESS);
BluetoothDevice device = mBluetoothAdapter.getRemoteDevice(address);
mChatService.connect(device);
} else if (resultCode == Activity.RESULT_CANCELED) {
Toast.makeText(this, "未选择任何好友！", Toast.LENGTH_SHORT).show();
}
break;
case REQUEST_ENABLE_BT:
if (resultCode == Activity.RESULT_OK) {
setupChat();
} else {
Toast.makeText(this, R.string.bt_not_enabled_leaving, Toast.LENGTH_SHORT).show();
finish();
}
}
}
private class MyMenuItemClickListener implements Toolbar.OnMenuItemClickListener {
@Override
public boolean onMenuItemClick(MenuItem item) {
switch (item.getItemId()) {
case R.id.scan:
System.out.println("--*****------******-------******--");
//启动DeviceList这个Activity
Intent serverIntent = new Intent(BluetoothChat.this, DeviceList.class);
startActivityForResult(serverIntent, REQUEST_CONNECT_DEVICE);
return true;
case R.id.discoverable:
ensureDiscoverable();
return true;
case R.id.back:
finish();
System.exit(0);
return true;
}
return false;
}
}
}结果截图：
?
