Binder通讯原理
基于Android 11的源码剖析，笔记记录binder通讯原理的实现过程；
根据网络上的各路大神案例，都是从典型的mediaserver进程开始分析，binder服务的注册注册过程；
mediaserver进程启动的main函数开始分析，至于init.rc的注册启动进程就跳过了；main函数代码如下：
int main(int argc __unused, char **argv __unused)
{
signal(SIGPIPE, SIG_IGN);
//创建与binder驱动交互和binder线程池的管理者
sp<ProcessState> proc(ProcessState::self());
//获取ServiceManager的客户端BpServiceManager
sp<IServiceManager> sm(defaultServiceManager());
ALOGI("ServiceManager: %p", sm.get());
//创建MediaPlayerService服务，和向ServiceManager注册服务
MediaPlayerService::instantiate();
ResourceManagerService::instantiate();
registerExtensions();
::android::hardware::configureRpcThreadpool(16, false);
//启动binder线程池
ProcessState::self()->startThreadPool();
IPCThreadState::self()->joinThreadPool();
::android::hardware::joinRpcThreadpool();
}
Binder线程池的注册
每个采用 Binder 的进程会有一个或多个用于处理接收数据的线程，位于 Binder 线程池。采用 Binder 机制的进程最典型的就是应用程序进程了。那应用程序进程的 Binder 线程池是在什么时候启动的呢？
ProcessState
源码位置：frameworks/native/libs/binder/ProcessState.cpp
ProcessState 是 Binder 机制核心之一，它是 Binder 通信的基础，负责与 Binder 驱动的交互与 Binder 线程池的管理。它实现了单例模式，通过 self() 函数获取实例，每个进程仅有一个。
ProcessState创建
实现了单例模式，通过 self() 函数获取实例。来看看它的构造函数，如下：
ProcessState::ProcessState(const char *driver)
: mDriverName(String8(driver))
, mDriverFD(open_driver(driver))//访问binder设备，并与binder驱动交互
, mVMStart(MAP_FAILED)
, mThreadCountLock(PTHREAD_MUTEX_INITIALIZER)
, mThreadCountDecrement(PTHREAD_COND_INITIALIZER)
, mExecutingThreadsCount(0)
, mMaxThreads(DEFAULT_MAX_BINDER_THREADS)
, mStarvationStartTimeMs(0)
, mBinderContextCheckFunc(nullptr)
, mBinderContextUserData(nullptr)
, mThreadPoolStarted(false)
, mThreadPoolSeq(1)
, mCallRestriction(CallRestriction::NONE)
{
// TODO(b/139016109): enforce in build system
#if defined(__ANDROID_APEX__)
LOG_ALWAYS_FATAL("Cannot use libbinder in APEX (only system.img libbinder) since it is not stable.");
#endif
if (mDriverFD >= 0) {
//映射binder驱动，提供通讯的虚拟空间
// mmap the binder, providing a chunk of virtual address space to receive transactions.
mVMStart = mmap(nullptr, BINDER_VM_SIZE, PROT_READ, MAP_PRIVATE | MAP_NORESERVE, mDriverFD, 0);
if (mVMStart == MAP_FAILED) {
// *sigh*
ALOGE("Using %s failed: unable to mmap transaction memory.\n", mDriverName.c_str());
close(mDriverFD);
mDriverFD = -1;
mDriverName.clear();
}
}
#ifdef __ANDROID__
LOG_ALWAYS_FATAL_IF(mDriverFD < 0, "Binder driver '%s' could not be opened. Terminating.", driver);
#endif
}
ProcessState创建是主要步骤是：
- 访问binder设备，并与binder驱动交互；
- 映射binder驱动，提供通讯基础的虚拟空间；
其中提供通讯基础的虚拟空间默认大小是由BINDER_VM_SIZE这个宏来决定的，宏定义如下：
//binder分配的默认内存大小为1M-8k
#define BINDER_VM_SIZE ((1 * 1024 * 1024) - sysconf(_SC_PAGE_SIZE) * 2)
下面来主要看看open_driver函数，函数内容如下：
static int open_driver(const char *driver)
{
int fd = open(driver, O_RDWR | O_CLOEXEC);//访问binder设备
if (fd >= 0) {
int vers = 0;
status_t result = ioctl(fd, BINDER_VERSION, &vers);//进行版本比对
if (result == -1) {
ALOGE("Binder ioctl to obtain version failed: %s", strerror(errno));
close(fd);
fd = -1;
}
if (result != 0 || vers != BINDER_CURRENT_PROTOCOL_VERSION) {
ALOGE("Binder driver protocol(%d) does not match user space protocol(%d)! ioctl() return value: %d",
vers, BINDER_CURRENT_PROTOCOL_VERSION, result);
close(fd);
fd = -1;
}
size_t maxThreads = DEFAULT_MAX_BINDER_THREADS;
result = ioctl(fd, BINDER_SET_MAX_THREADS, &maxThreads);//设置binder线程池最大线程数
if (result == -1) {
ALOGE("Binder ioctl to set max threads failed: %s", strerror(errno));
}
} else {
ALOGW("Opening '%s' failed: %s\n", driver, strerror(errno));
}
return fd;
}
在open_driver函数中主要处理：
-
访问binder设备，通过open函数来实现，具体现在不做详细说明；
-
通过ioctl进行binder的版本比较
-
通知binder驱动binder线程池的默认最大线程数，而这个最大线程数由
DEFAULT_MAX_BINDER_THREADS宏来决定；宏定义如下：//默认binder线程池的最大线程数,那加上本身binder默认的最大可并发访问的线程数为16 #define DEFAULT_MAX_BINDER_THREADS 15
启动binder线程池
ProcessState 实例后调用其 startThreadPool 函数，以启动进程的 Binder 线程池。
void ProcessState::startThreadPool()
{
AutoMutex _l(mLock);
if (!mThreadPoolStarted) {
mThreadPoolStarted = true;
spawnPooledThread(true);
}
}
void ProcessState::spawnPooledThread(bool isMain)
{
if (mThreadPoolStarted) {
String8 name = makeBinderThreadName();
ALOGV("Spawning new pooled thread, name=%s\n", name.string());
sp<Thread> t = new PoolThread(isMain);//创建线程
t->run(name.string());//启动线程
}
}
mThreadPoolStarted 用于标识线程池是否已经启动过，以确保 Binder 线程池仅初始化一次。spawnPooledThread() 函数启动了一个 Binder 线程，类型为 PoolThread，函数参数表示这是 Binder 线程池中的第一线程。
class PoolThread : public Thread
{
public:
explicit PoolThread(bool isMain)
: mIsMain(isMain)
{
}
protected:
//PoolThread继承Thread类。t->run()方法最终调用内部类 PoolThread的threadLoop()方法。
virtual bool threadLoop()
{
IPCThreadState::self()->joinThreadPool(mIsMain);
return false;
}
const bool mIsMain;
};
PoolThread继承Thread类。t->run()方法最终调用内部类 PoolThread的threadLoop()方法。在主要创建了IPCThreadState和执行了IPCThreadState的joinThreadPool函数；
在mediaserver的main函数中后面又执行了一次IPCThreadState的joinThreadPool函数，这两次的区别是一个在子线程执行，一个是在进程主线程执行，**mediaserver默认binder的事件监听线程数是2吗？**这样binder线程池算基本完成！
IPCThreadState
源码位置：frameworks/native/libs/binder/IPCThreadState.cpp
IPCThreadState 同样是 Binder 机制的核心之一，它用于管理与 Binder 通信相关线程的状态，每个 Binder 线程都会通过此将自己注册到 Binder 驱动。一个具有多个线程的进程里应该会有多个IPCThreadState对象了，只不过每个线程只需一个IPCThreadState对象而已。所以要放在binder线程池中统一管理。
IPCThreadState创建
IPCThreadState同样是通过 self() 函数获取实例的。
IPCThreadState* IPCThreadState::self()
{
if (gHaveTLS.load(std::memory_order_acquire)) {
restart:
const pthread_key_t k = gTLS;
//获取当前线程是否创建了IPCThreadState，如果创建了直接返回,类似Looper里的ThreadLocal
IPCThreadState* st = (IPCThreadState*)pthread_getspecific(k);
if (st) return st;
return new IPCThreadState;
}
// Racey, heuristic test for simultaneous shutdown.
if (gShutdown.load(std::memory_order_relaxed)) {
ALOGW("Calling IPCThreadState::self() during shutdown is dangerous, expect a crash.\n");
return nullptr;
}
pthread_mutex_lock(&gTLSMutex);
if (!gHaveTLS.load(std::memory_order_relaxed)) {
//创建线程唯一的标签
int key_create_value = pthread_key_create(&gTLS, threadDestructor);
if (key_create_value != 0) {
pthread_mutex_unlock(&gTLSMutex);
ALOGW("IPCThreadState::self() unable to create TLS key, expect a crash: %s\n",
strerror(key_create_value));
return nullptr;
}
gHaveTLS.store(true, std::memory_order_release);
}
pthread_mutex_unlock(&gTLSMutex);
goto restart;//回到开始根据线程唯一标记创建IPCThreadState
}
self() 函数是一个工厂函数，用于获取 IPCThreadState 实例。self() 根据 pthread_getspecific() 管理每个参与 Binder 通信线程的实例，类似Looper里的ThreadLocal，每个参与 Binder 通信的线程其 IPCThreadState 对象都是相互独立的，保证了后续操作的线程安全。构造函数内容其实，很简单主要是绑定线程唯一标记和初始化输入输出缓冲区；
IPCThreadState::IPCThreadState()
: mProcess(ProcessState::self()),
mServingStackPointer(nullptr),
mWorkSource(kUnsetWorkSource),
mPropagateWorkSource(false),
mStrictModePolicy(0),
mLastTransactionBinderFlags(0),
mCallRestriction(mProcess->mCallRestriction)
{
//将线程唯一标签保存的内容设置为自身
pthread_setspecific(gTLS, this);
//获取当前进程的pid和uid信息
clearCaller();
//设置输入缓冲区大小，默认256
mIn.setDataCapacity(256);
//设置输出缓冲区大小，默认256
mOut.setDataCapacity(256);
}
IPCThreadState::joinThreadPool函数
joinThreadPool函数就是一个死循环，不断从驱动获取数据;
void IPCThreadState::joinThreadPool(bool isMain)
{
LOG_THREADPOOL("**** THREAD %p (PID %d) IS JOINING THE THREAD POOL\n", (void*)pthread_self(), getpid());
mOut.writeInt32(isMain ? BC_ENTER_LOOPER : BC_REGISTER_LOOPER);
status_t result;
do {
//清除上一次通讯的输入缓冲区
processPendingDerefs();
//处理下一条信息或者等待
// now get the next command to be processed, waiting if necessary
result = getAndExecuteCommand();
if (result < NO_ERROR && result != TIMED_OUT && result != -ECONNREFUSED && result != -EBADF) {
LOG_ALWAYS_FATAL("getAndExecuteCommand(fd=%d) returned unexpected error %d, aborting",
mProcess->mDriverFD, result);
}
// Let this thread exit the thread pool if it is no longer
// needed and it is not the main process thread.
if(result == TIMED_OUT && !isMain) {
break;
}
} while (result != -ECONNREFUSED && result != -EBADF);
LOG_THREADPOOL("**** THREAD %p (PID %d) IS LEAVING THE THREAD POOL err=%d\n",
(void*)pthread_self(), getpid(), result);
mOut.writeInt32(BC_EXIT_LOOPER);
talkWithDriver(false);
}
如此看来IPCThreadState是通过getAndExecuteCommand来不断获取通讯数据的；
status_t IPCThreadState::getAndExecuteCommand()
{
status_t result;
int32_t cmd;
//从bender驱动中获取数据
result = talkWithDriver();
if (result >= NO_ERROR) {
size_t IN = mIn.dataAvail();
if (IN < sizeof(int32_t)) return result;
cmd = mIn.readInt32();//读取命令字段
IF_LOG_COMMANDS() {
alog << "Processing top-level Command: "
<< getReturnString(cmd) << endl;
}
pthread_mutex_lock(&mProcess->mThreadCountLock);
mProcess->mExecutingThreadsCount++;
if (mProcess->mExecutingThreadsCount >= mProcess->mMaxThreads &&
mProcess->mStarvationStartTimeMs == 0) {
mProcess->mStarvationStartTimeMs = uptimeMillis();
}
pthread_mutex_unlock(&mProcess->mThreadCountLock);
//进行binder命令解析
result = executeCommand(cmd);
pthread_mutex_lock(&mProcess->mThreadCountLock);
mProcess->mExecutingThreadsCount--;
if (mProcess->mExecutingThreadsCount < mProcess->mMaxThreads &&
mProcess->mStarvationStartTimeMs != 0) {
int64_t starvationTimeMs = uptimeMillis() - mProcess->mStarvationStartTimeMs;
if (starvationTimeMs > 100) {
ALOGE("binder thread pool (%zu threads) starved for %" PRId64 " ms",
mProcess->mMaxThreads, starvationTimeMs);
}
mProcess->mStarvationStartTimeMs = 0;
}
pthread_cond_broadcast(&mProcess->mThreadCountDecrement);
pthread_mutex_unlock(&mProcess->mThreadCountLock);
}
return result;
}
getAndExecuteCommand的执行步骤：
- 通过
talkWithDriver向binder驱动获取通讯数据； - 读取命令字段，并通过
executeCommand函数进行不同命令字段的解析和处理
获取ServiceManager
获取Service Manager是通过defaultServiceManager方法来完成，当进程注册服务(addService)或 获取服务(getService)的过程之前，都需要先调用defaultServiceManager()方法来获取gDefaultServiceManager对象。
大概流程图如下：
defaultServiceManager函数代码如下：
sp<IServiceManager> defaultServiceManager()
{
std::call_once(gSmOnce, []() {
sp<AidlServiceManager> sm = nullptr;
//避免ServiceManager未启动完成，重复请求
while (sm == nullptr) {
//获取BpServiceManager
sm = interface_cast<AidlServiceManager>(ProcessState::self()->getContextObject(nullptr));
if (sm == nullptr) {
ALOGE("Waiting 1s on context object on %s.", ProcessState::self()->getDriverName().c_str());
sleep(1);
}
}
//创建BpServiceManager代理对象
gDefaultServiceManager = new ServiceManagerShim(sm);
});
return gDefaultServiceManager;
}
ServiceManager的对象获取也采用了一个单例模式，一个进程中只要获取一次即可，对象存储在gDefaultServiceManager中。
主要流程如下：
- 获取
ProcessState对象—ProcessState::self()，在上面的流程中可知ProcessState已获取，存入了全局变量中 - 获取
BpBinder对象 –ProcessState::getContextObject(nullptr) - 获取
BpServiceManager对象----interface_cast<IServiceManager> - 创建
ServiceManagerShim对象对BpServiceManager对象进行接管
在ProcessState::getContextObject(nullptr)函数中，主要调用getStrongProxyForHandle进行处理，传入handle=0，那主要看看getStrongProxyForHandle函数；
sp<IBinder> ProcessState::getStrongProxyForHandle(int32_t handle)
{
sp<IBinder> result;
AutoMutex _l(mLock);
//查找handle对应的资源项
handle_entry* e = lookupHandleLocked(handle);
if (e != nullptr) {
// We need to create a new BpBinder if there isn't currently one, OR we
// are unable to acquire a weak reference on this current one. The
// attemptIncWeak() is safe because we know the BpBinder destructor will always
// call expungeHandle(), which acquires the same lock we are holding now.
// We need to do this because there is a race condition between someone
// releasing a reference on this BpBinder, and a new reference on its handle
// arriving from the driver.
IBinder* b = e->binder;
if (b == nullptr || !e->refs->attemptIncWeak(this)) {
if (handle == 0) {
// Special case for context manager...
// The context manager is the only object for which we create
// a BpBinder proxy without already holding a reference.
// Perform a dummy transaction to ensure the context manager
// is registered before we create the first local reference
// to it (which will occur when creating the BpBinder).
// If a local reference is created for the BpBinder when the
// context manager is not present, the driver will fail to
// provide a reference to the context manager, but the
// driver API does not return status.
//
// Note that this is not race-free if the context manager
// dies while this code runs.
//
// TODO: add a driver API to wait for context manager, or
// stop special casing handle 0 for context manager and add
// a driver API to get a handle to the context manager with
// proper reference counting.
Parcel data;
//测试binder是否准备就绪
status_t status = IPCThreadState::self()->transact(
0, IBinder::PING_TRANSACTION, data, nullptr, 0);
if (status == DEAD_OBJECT)
return nullptr;
}
//当handle值所对应的IBinder不存在或弱引用无效时，创建一个BpBinder，handle=0
//create的实现其实就是 new BpBinder(0,trackedUid)
b = BpBinder::create(handle);
e->binder = b;
if (b) e->refs = b->getWeakRefs();
result = b;
} else {
// This little bit of nastyness is to allow us to add a primary
// reference to the remote proxy when this team doesn't have one
// but another team is sending the handle to us.
result.force_set(b);
e->refs->decWeak(this);
}
}
return result;
}
getStrongProxyForHandle的过程也很简单，当handle=0所对应的IBinder不存在或弱引用无效时，先看下Binder是否已经准备就绪，即ServiceManager是否已经就绪，准备好后，创建一个BpBinder(0,trackedUid)，创建BpBinder对象中会将handle相对应Binder的弱引用增加1，最终返回一个BpBiner的对象。
真正获取ServiceManager的代理对象的是 interface_cast<AidlServiceManager> 方法。零号引用的 BpBinder 对象传入 interface_cast() 模版函数，会最终通过 IMPLEMENT_META_INTERFACE() 宏，生成 BpServiceManager 对象。该对象被传入 ServiceManagerShim 的构造函数中，成为其成员变量 mTheRealServiceManager。
#define DO_NOT_DIRECTLY_USE_ME_IMPLEMENT_META_INTERFACE(INTERFACE, NAME)\
const ::android::StaticString16 \
I##INTERFACE##_descriptor_static_str16(__IINTF_CONCAT(u, NAME));\
const ::android::String16 I##INTERFACE::descriptor( \
I##INTERFACE##_descriptor_static_str16); \
const ::android::String16& \
I##INTERFACE::getInterfaceDescriptor() const { \
return I##INTERFACE::descriptor; \
} \
::android::sp<I##INTERFACE> I##INTERFACE::asInterface( \
const ::android::sp<::android::IBinder>& obj) \
{ \
::android::sp<I##INTERFACE> intr; \
if (obj != nullptr) { \
intr = static_cast<I##INTERFACE*>( \
obj->queryLocalInterface( \
I##INTERFACE::descriptor).get()); \
if (intr == nullptr) { \
intr = new Bp##INTERFACE(obj); \
} \
} \
return intr; \
} \
std::unique_ptr<I##INTERFACE> I##INTERFACE::default_impl; \
bool I##INTERFACE::setDefaultImpl(std::unique_ptr<I##INTERFACE> impl)\
{ \
/* Only one user of this interface can use this function */ \
/* at a time. This is a heuristic to detect if two different */ \
/* users in the same process use this function. */ \
assert(!I##INTERFACE::default_impl); \
if (impl) { \
I##INTERFACE::default_impl = std::move(impl); \
return true; \
} \
return false; \
} \
const std::unique_ptr<I##INTERFACE>& I##INTERFACE::getDefaultImpl() \
{ \
return I##INTERFACE::default_impl; \
} \
I##INTERFACE::I##INTERFACE() { } \
I##INTERFACE::~I##INTERFACE() { } \
Android 10在此之后，BpServiceManager 不再通过手动实现，而是采用 AIDL（文件为 IServiceManager.aidl），生成 IServiceManager、BnServiceManager、BpServiceManager 的头文件及具体实现。
关于通过 AIDL 生成 C++ 代码，详见 Generating C++ Binder Interfaces with aidl-cpp
BpServiceManager的继承关系图如下：
Binder 数据传输流程
Binder 数据发送过程
从addService函数来分析Binder的数据传输流程；从获取servicemanage的章节我们得知，servicemanage的Client端是BpServiceManager，那我们直接来看BpServiceManager中的addService函数，如下：
virtual status_t addService(const String16& name, const sp<IBinder>& service,
bool allowIsolated, int dumpsysPriority) {
Parcel data, reply;
data.writeInterfaceToken(IServiceManager::getInterfaceDescriptor());
data.writeString16(name);
data.writeStrongBinder(service);
data.writeInt32(allowIsolated ? 1 : 0);
data.writeInt32(dumpsysPriority);
status_t err = remote()->transact(ADD_SERVICE_TRANSACTION, data, &reply);
return err == NO_ERROR ? reply.readExceptionCode() : err;
}
//Parcel
status_t Parcel::writeStrongBinder(const sp<IBinder>& val)
{
return flattenBinder(val);
}
status_t Parcel::flattenBinder(const sp<IBinder>& binder)
{
flat_binder_object obj;
if (IPCThreadState::self()->backgroundSchedulingDisabled()) {
/* minimum priority for all nodes is nice 0 */
obj.flags = FLAT_BINDER_FLAG_ACCEPTS_FDS;
} else {
/* minimum priority for all nodes is MAX_NICE(19) */
obj.flags = 0x13 | FLAT_BINDER_FLAG_ACCEPTS_FDS;
}
if (binder != nullptr) {
BBinder *local = binder->localBinder();
if (!local) {
BpBinder *proxy = binder->remoteBinder();
if (proxy == nullptr) {
ALOGE("null proxy");
}
const int32_t handle = proxy ? proxy->handle() : 0;
obj.hdr.type = BINDER_TYPE_HANDLE;
obj.binder = 0; /* Don't pass uninitialized stack data to a remote process */
obj.handle = handle;
obj.cookie = 0;
} else {
if (local->isRequestingSid()) {
obj.flags |= FLAT_BINDER_FLAG_TXN_SECURITY_CTX;
}
obj.hdr.type = BINDER_TYPE_BINDER;//type被赋值为BINDER_TYPE_BINDER，即表示此时的obj是一个Binder实体对象
obj.binder = reinterpret_cast<uintptr_t>(local->getWeakRefs());//记录Binder弱引用指针地址
obj.cookie = reinterpret_cast<uintptr_t>(local);//记录Binder实体的指针
}
} else {
obj.hdr.type = BINDER_TYPE_BINDER;
obj.binder = 0;
obj.cookie = 0;
}
return finishFlattenBinder(binder, obj);
}

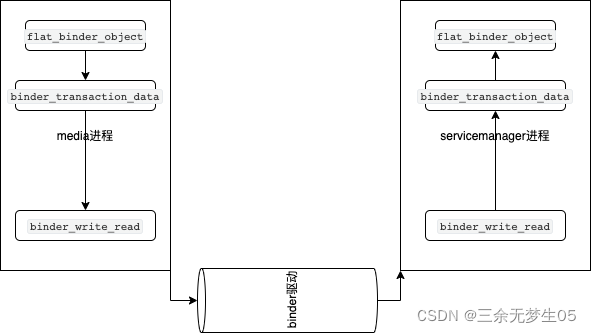

从代码分析Parcel通过writeStrongBinder函数把service封装成flat_binder_object结构体，其中保存了service的Binder弱引用指针地址和Binder实体的指针；flat_binder_object结构体定义如下：
struct flat_binder_object {
struct binder_object_header hdr;
__u32 flags;
/* 8 bytes of data. */
union {
binder_uintptr_t binder; /* local object *///记录Binder弱引用指针地址
__u32 handle; /* remote object *///这个在binder驱动中查找Binder弱引用指针用的关键key，目前这样理解
};
/* extra data associated with local object */
binder_uintptr_t cookie;//记录binder的实体指针
};
remote()->transact()将传出，从defaultServiceManager分析总结remote对应的是在getStrongProxyForHandle函数中创建的BpBinder;而在BpBinder的transact函数中，主要是执行了status_t status = IPCThreadState::self()->transact( mHandle, code, data, reply, flags);,接下来我们就分析一下IPCThreadState的transact函数；
status_t IPCThreadState::transact(int32_t handle,
uint32_t code, const Parcel& data,
Parcel* reply, uint32_t flags)
{
status_t err;
flags |= TF_ACCEPT_FDS;
IF_LOG_TRANSACTIONS() {
TextOutput::Bundle _b(alog);
alog << "BC_TRANSACTION thr " << (void*)pthread_self() << " / hand "
<< handle << " / code " << TypeCode(code) << ": "
<< indent << data << dedent << endl;
}
LOG_ONEWAY(">>>> SEND from pid %d uid %d %s", getpid(), getuid(),
(flags & TF_ONE_WAY) == 0 ? "READ REPLY" : "ONE WAY");
//将数据打包塞到 mOut 里
err = writeTransactionData(BC_TRANSACTION, flags, handle, code, data, nullptr);
if (err != NO_ERROR) {
if (reply) reply->setError(err);
return (mLastError = err);
}
if ((flags & TF_ONE_WAY) == 0) {
if (UNLIKELY(mCallRestriction != ProcessState::CallRestriction::NONE)) {
if (mCallRestriction == ProcessState::CallRestriction::ERROR_IF_NOT_ONEWAY) {
ALOGE("Process making non-oneway call (code: %u) but is restricted.", code);
CallStack::logStack("non-oneway call", CallStack::getCurrent(10).get(),
ANDROID_LOG_ERROR);
} else /* FATAL_IF_NOT_ONEWAY */ {
LOG_ALWAYS_FATAL("Process may not make oneway calls (code: %u).", code);
}
}
#if 0
if (code == 4) { // relayout
ALOGI(">>>>>> CALLING transaction 4");
} else {
ALOGI(">>>>>> CALLING transaction %d", code);
}
#endif
if (reply) { //不是 one way 调用，需要等待回复
err = waitForResponse(reply);
} else {//one way 调用，不用等待回复
Parcel fakeReply;
err = waitForResponse(&fakeReply);
}
#if 0
if (code == 4) { // relayout
ALOGI("<<<<<< RETURNING transaction 4");
} else {
ALOGI("<<<<<< RETURNING transaction %d", code);
}
#endif
IF_LOG_TRANSACTIONS() {
TextOutput::Bundle _b(alog);
alog << "BR_REPLY thr " << (void*)pthread_self() << " / hand "
<< handle << ": ";
if (reply) alog << indent << *reply << dedent << endl;
else alog << "(none requested)" << endl;
}
} else {
err = waitForResponse(nullptr, nullptr);
}
return err;
}
IPCThreadState 中有 mIn、mOut 两个 Parcel 数据，mIn 用来存放从别处读取而来的数据，mOut 存放要写入到别处的数据，而在transact函数中关键代码只有两行（writeTransactionData和waitForResponse），从命名上来看就是一次请求和接收应答的过程。在 writeTransactionData函数中将一堆参数组装进binder_transaction_data结构体并存放到 mOut，准备写入到 binder 驱动;
status_t IPCThreadState::writeTransactionData(int32_t cmd, uint32_t binderFlags,
int32_t handle, uint32_t code, const Parcel& data, status_t* statusBuffer)
{
binder_transaction_data tr;
tr.target.ptr = 0; /* Don't pass uninitialized stack data to a remote process */
tr.target.handle = handle;
tr.code = code;
tr.flags = binderFlags;
tr.cookie = 0;
tr.sender_pid = 0;
tr.sender_euid = 0;
//检查数据是否有效
const status_t err = data.errorCheck();
if (err == NO_ERROR) {
tr.data_size = data.ipcDataSize();
tr.data.ptr.buffer = data.ipcData();
tr.offsets_size = data.ipcObjectsCount()*sizeof(binder_size_t);
tr.data.ptr.offsets = data.ipcObjects();
} else if (statusBuffer) {
tr.flags |= TF_STATUS_CODE;
*statusBuffer = err;
tr.data_size = sizeof(status_t);
tr.data.ptr.buffer = reinterpret_cast<uintptr_t>(statusBuffer);
tr.offsets_size = 0;
tr.data.ptr.offsets = 0;
} else {
return (mLastError = err);
}
mOut.writeInt32(cmd);
mOut.write(&tr, sizeof(tr));
return NO_ERROR;
}
binder_transaction_data结构体在中组装的Parcel数据：
? 图片来源
binder_transaction_data结构体定义如下：
struct binder_transaction_data {
/* The first two are only used for bcTRANSACTION and brTRANSACTION,
* identifying the target and contents of the transaction.
*/
union {
/* target descriptor of command transaction */
__u32 handle;
/* target descriptor of return transaction */
binder_uintptr_t ptr;
} target;
binder_uintptr_t cookie; /* target object cookie */
__u32 code; /* transaction command */
/* General information about the transaction. */
__u32 flags;
pid_t sender_pid;
uid_t sender_euid;
binder_size_t data_size; /* number of bytes of data */
binder_size_t offsets_size; /* number of bytes of offsets */
/* If this transaction is inline, the data immediately
* follows here; otherwise, it ends with a pointer to
* the data buffer.
*/
union {
struct {
/* transaction data */
binder_uintptr_t buffer;
/* offsets from buffer to flat_binder_object structs */
binder_uintptr_t offsets;
} ptr;
__u8 buf[8];
} data;
};
waitForResponse函数去实际执行写入到 binder 驱动，简化后的 waitForResponse函数代码如下:
status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
uint32_t cmd;
int32_t err;
while (1) {
//进一步调用 talkWithDriver 去执行写入数据到 binder 驱动
if ((err=talkWithDriver()) < NO_ERROR) break;
err = mIn.errorCheck();//检查数据有效性
if (err < NO_ERROR) break;
if (mIn.dataAvail() == 0) continue;//检查数据有效性
cmd = (uint32_t)mIn.readInt32();//拿到 binder 驱动发过来的命令
switch (cmd) { //处理命令
case BR_TRANSACTION_COMPLETE:
if (!reply && !acquireResult) goto finish;
break;
case BR_DEAD_REPLY:
err = DEAD_OBJECT;
goto finish;
case BR_FAILED_REPLY:
err = FAILED_TRANSACTION;
goto finish;
case BR_ACQUIRE_RESULT:
{
...
}
goto finish;
case BR_REPLY:
{
...
}
goto finish;
default://其他命令在 executeCommand 方法中处理
err = executeCommand(cmd);
if (err != NO_ERROR) goto finish;
break;
}
}
finish:
if (err != NO_ERROR) {
if (acquireResult) *acquireResult = err;
if (reply) reply->setError(err);
mLastError = err;
}
return err;
}
可以看到 waitForResponse中并没有直接执行写入数据到 binder，而是进一步调用 talkWithDriver 去处理，随后 waitForResponse处理了由 binder 驱动发送过来的命令,因为在BpServiceManager传过来的reply不等于空，所以正常的逻辑是收到BR_REPLY才退出循环；
由 transact到 waitForResponse，已经将要发送的数据准备好，并对后续 binder 驱动的回复也做了处理，但还没看到真正写入数据给 binder 驱动的代码，但已经知道就在 talkWithDriver函数中，此函数中主要做了三个工作：
- 将要发送的数据封装成
binder_write_read结构体； - 通过ioctl把
binder_write_read结构体数据写入binder驱动； - 处理驱动回复
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
//binder驱动是否打开
if (mProcess->mDriverFD < 0) {
return -EBADF;
}
//binder 驱动接受的数据格式
binder_write_read bwr;
// Is the read buffer empty?
const bool needRead = mIn.dataPosition() >= mIn.dataSize();
const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;
bwr.write_size = outAvail; //要写入的数据量
bwr.write_buffer = (uintptr_t)mOut.data(); //要写入的数据
// This is what we'll read.
if (doReceive && needRead) {
bwr.read_size = mIn.dataCapacity();//要读取的数据量
bwr.read_buffer = (uintptr_t)mIn.data();//存放读取数据的内存空间
} else {
bwr.read_size = 0;
bwr.read_buffer = 0;
}
// Return immediately if there is nothing to do.
if ((bwr.write_size == 0) && (bwr.read_size == 0)) return NO_ERROR;
bwr.write_consumed = 0;
bwr.read_consumed = 0;
status_t err;
do {
#if defined(__ANDROID__)
//通过ioctl写入binder驱动
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
err = -errno;
#else
err = INVALID_OPERATION;
#endif
if (mProcess->mDriverFD < 0) {
err = -EBADF;
}
} while (err == -EINTR);
if (err >= NO_ERROR) {
if (bwr.write_consumed > 0) { //成功写入了数据
if (bwr.write_consumed < mOut.dataSize())
else {
//输出数据已经写入binder驱动，清空输出缓冲区
mOut.setDataSize(0);
processPostWriteDerefs();
}
}
//存在回传数据，重置输入缓冲区的读取下标
if (bwr.read_consumed > 0) {//成功读取到了数据
mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);
}
return NO_ERROR;
}
return err;
}
在IPCThreadState.h定义talkWithDriver 函数时，doReceive的默认值为true,waitForResponse() 中没有传入参数，所以这里的 doReceive 为 true。
status_t talkWithDriver(bool doReceive=true);
binder_write_read 是 binder 驱动与用户态共用的、存储读写操作的结构体，在 binder 驱动内部依赖 binder_write_read 决定是要读取还是写入数据：其内部变量 read_size>0 则代表要读取数据，write_size>0 代表要写入数据，若都大于 0 则先写入，后读取。binder_write_read结构体定义如下：
struct binder_write_read {
binder_size_t write_size; /* bytes to write */ //要写入的字节数,write_buffer的总字节数
binder_size_t write_consumed; /* bytes consumed by driver *///驱动程序占用的字节数,write_buffer已消费的字节数
binder_uintptr_t write_buffer;//写缓冲数据的指针
binder_size_t read_size; /* bytes to read *///要读的字节数,read_buffer的总字节数
binder_size_t read_consumed; /* bytes consumed by driver *///驱动程序占用的字节数,read_buffer已消费的字节数
binder_uintptr_t read_buffer;//读缓存数据的指针
};
这样基本完成了数据的发送过程，其中主要的数据类型结构体一定要记住，很重要；
flat_binder_object封装service的结构体，其中重要的参数是binder、handle、cookiebinder_transaction_data组装Parcel数据的结构体;binder_write_read是binder 驱动与用户态共用的、存储读写操作的结构体
Binder 数据接收过程
Binder 线程用于在 Server 中接收处理从 Binder 驱动发送来的数据。startThreadPool提及的函数 IPCThreadState.joinThreadPool 将自己注册到 Binder 线程池，等待接收数据。
在joinThreadPool 函数中，循环执行getAndExecuteCommand,调用 talkWithDriver 从 mIn 窗口解析出需要执行的命令后，执行 executeCommand。在executeCommand的BR_TRANSACTION分支，其中 the_context_object 为 BBinder 对象，也就是 Server 的 Binder 本体。BBinder.transact 会再调用 BBinder.onTransact 函数，实现 Server 进程 Binder 的调用。
而在ServiceManager采用了LooperCallback方式监听binder数据，最终也是循环执行getAndExecuteCommand；这部分的分析会在创建ServiceManager进程详细分析；
接收数据时也在talkWithDriver中ioctl读写获取一个binder_write_read结构体，在executeCommand的BR_TRANSACTION分支中在把数据进一步解析binder_transaction_data结构体并将相应的输入数据转换buffer，buffer是Parcel对象，在 BBinder 的onTransact函数会在BnServiceManager重载onTransact函数；
status_t BnServiceManager::onTransact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
//printf("ServiceManager received: "); data.print();
switch(code) {
case GET_SERVICE_TRANSACTION: {
CHECK_INTERFACE(IServiceManager, data, reply);
String16 which = data.readString16();
sp<IBinder> b = const_cast<BnServiceManager*>(this)->getService(which);
reply->writeStrongBinder(b);
return NO_ERROR;
} break;
case CHECK_SERVICE_TRANSACTION: {
CHECK_INTERFACE(IServiceManager, data, reply);
String16 which = data.readString16();
sp<IBinder> b = const_cast<BnServiceManager*>(this)->checkService(which);
reply->writeStrongBinder(b);
return NO_ERROR;
} break;
case ADD_SERVICE_TRANSACTION: {
CHECK_INTERFACE(IServiceManager, data, reply);
String16 which = data.readString16();
sp<IBinder> b = data.readStrongBinder();
status_t err = addService(which, b);
reply->writeInt32(err);
return NO_ERROR;
} break;
case LIST_SERVICES_TRANSACTION: {
CHECK_INTERFACE(IServiceManager, data, reply);
Vector<String16> list = listServices();
const size_t N = list.size();
reply->writeInt32(N);
for (size_t i=0; i<N; i++) {
reply->writeString16(list[i]);
}
return NO_ERROR;
} break;
default:
return BBinder::onTransact(code, data, reply, flags);
}
}
在ADD_SERVICE_TRANSACTION分支，会通过Parcel的readStrongBinder函数将数据读取flat_binder_object结构体，再获取IBinder弱引用指针地址；其中主要执行的函数是unflattenBinder;
status_t Parcel::unflattenBinder(sp<IBinder>* out) const
{
const flat_binder_object* flat = readObject(false);
if (flat) {
switch (flat->hdr.type) {
case BINDER_TYPE_BINDER: {
sp<IBinder> binder = reinterpret_cast<IBinder*>(flat->cookie);
return finishUnflattenBinder(binder, out);
}
case BINDER_TYPE_HANDLE: {
sp<IBinder> binder =
ProcessState::self()->getStrongProxyForHandle(flat->handle);
return finishUnflattenBinder(binder, out);
}
}
}
return BAD_TYPE;
}
最后会调用ServiceManager的addService函数；
Status ServiceManager::addService(const std::string& name, const sp<IBinder>& binder, bool allowIsolated, int32_t dumpPriority) {
auto ctx = mAccess->getCallingContext();
// apps cannot add services
if (multiuser_get_app_id(ctx.uid) >= AID_APP) {
return Status::fromExceptionCode(Status::EX_SECURITY);
}
if (!mAccess->canAdd(ctx, name)) {
return Status::fromExceptionCode(Status::EX_SECURITY);
}
if (binder == nullptr) {
return Status::fromExceptionCode(Status::EX_ILLEGAL_ARGUMENT);
}
if (!isValidServiceName(name)) {
LOG(ERROR) << "Invalid service name: " << name;
return Status::fromExceptionCode(Status::EX_ILLEGAL_ARGUMENT);
}
// implicitly unlinked when the binder is removed
if (binder->remoteBinder() != nullptr && binder->linkToDeath(this) != OK) {
LOG(ERROR) << "Could not linkToDeath when adding " << name;
return Status::fromExceptionCode(Status::EX_ILLEGAL_STATE);
}
auto entry = mNameToService.emplace(name, Service {
.binder = binder,
.allowIsolated = allowIsolated,
.dumpPriority = dumpPriority,
.debugPid = ctx.debugPid,
});
auto it = mNameToRegistrationCallback.find(name);
if (it != mNameToRegistrationCallback.end()) {
for (const sp<IServiceCallback>& cb : it->second) {
entry.first->second.guaranteeClient = true;
// permission checked in registerForNotifications
cb->onRegistration(name, binder);
}
}
return Status::ok();
}
addService函数中主要执行的是将Ibinder对象封装成Service结构体，并于name为key插入mNameToService中，而mNameToService是一个std::map<std::string, Service>；这样addService在除了内核部分的代码算是基本完成;binder驱动中的数据传递会在binder驱动分析中进行解析；
数据传递过程如下：
ServiceManager进程创建
启动的main函数在frameworks/native/cmds/servicemanager/main.cpp中，其中关键步骤和media进行类型；
- 创建
ProcessState,ServiceManager进程没有调用self，而是通过initWithDriver创建，其实关键代码还是一样的，实现了单例模式，通过initWithDriver获取实例；并通过setThreadPoolMaxThreadCount设置最大线程数为0； - 创建
ServiceManager实例，同样使用addService函数同样把ServiceManager插入mNameToService中；并创建IPCThreadState实通过setTheContextObject设置the_context_object为ServiceManager; - 通过
ProcessState的becomeContextManager函数设置ServiceManager进程为binder驱动的上下文管理者； - 通过
Looper::prepare创建Looper,Looper也是和IPCThreadState一样线程单例，这里可以理解成是java中handle事件中的looper,后续会再对native层的Looper进行详细分析；并BinderCallback的setupTo注册Looper的事件监听和ClientCallbackCallback的setupTo注册Looper的事件； - 进入死循环，调用
looper->pollAll函数，实则是在epoll_wait等待消息;
int main(int argc, char** argv) {
if (argc > 2) {
LOG(FATAL) << "usage: " << argv[0] << " [binder driver]";
}
const char* driver = argc == 2 ? argv[1] : "/dev/binder";
//创建ProcessState，并打开binder驱动
sp<ProcessState> ps = ProcessState::initWithDriver(driver);
//设置最大线程数为了0
ps->setThreadPoolMaxThreadCount(0);
ps->setCallRestriction(ProcessState::CallRestriction::FATAL_IF_NOT_ONEWAY);
//创建ServiceManager实例
sp<ServiceManager> manager = new ServiceManager(std::make_unique<Access>());
if (!manager->addService("manager", manager, false /*allowIsolated*/, IServiceManager::DUMP_FLAG_PRIORITY_DEFAULT).isOk()) {
LOG(ERROR) << "Could not self register servicemanager";
}
//创建IPCThreadState实例和设置IPCThreadState的上下文管理者
IPCThreadState::self()->setTheContextObject(manager);
//设置ServiceManager进程为binder的上下文管理者
ps->becomeContextManager(nullptr, nullptr);
//创建looper
sp<Looper> looper = Looper::prepare(false /*allowNonCallbacks*/);
//创建looper事件监听回调
BinderCallback::setupTo(looper);
//把ClientCallbackCallback作为回调，注册进入Lopper，其中创建了一个定时器对象，5秒跑一次
ClientCallbackCallback::setupTo(looper, manager);
while(true) {
//循环等待驱动是否有事件返回
looper->pollAll(-1);
}
// should not be reached
return EXIT_FAILURE;
}
再BinderCallback中如果有事件返回会回调handleEvent，然后执行IPCThreadState::handlePolledCommands;再看看handlePolledCommands函数中执行了getAndExecuteCommand;getAndExecuteCommand在IPCThreadState::joinThreadPool函数中已经提到过了，是用于读取binder驱动的数据和命令字段的解析处理；
status_t IPCThreadState::handlePolledCommands()
{
status_t result;
//读取binder驱动数据，命令字段解析和处理
do {
result = getAndExecuteCommand();
} while (mIn.dataPosition() < mIn.dataSize());
//清空输入缓冲区
processPendingDerefs();
//执行完成指令，并把Client需要应答的参数写入binder驱动中
flushCommands();
return result;
}
这样ServiceManager进程的启动和消息监听也就分析完成了！
那我们要想想
- binder驱动是如果把Client端的数据进行一次拷贝到
ServiceManager进程中来读取的呢？ ServiceManager进程又是如何成为binder驱动的上下文管理者？- binder驱动如何管理每个进程的binder服务呢？
