[移动开发]基于Wemos D1的wifi避障小车

Wemos D1 接入wifi（STA模式）

原型

#include <ESP8266WiFi.h>
char* ssid = "gcc-tech";           //“wifi热点名称”，最好不要中文
char* passwd = "18650711783";      //”wifi热点密码”
void initWifiSta()
{
  WiFi.mode(WIFI_STA);         // 设置STA模式
  WiFi.begin(ssid, passwd);   //连接网络
  while (WiFi.status() != WL_CONNECTED) {//一直等待wifi是否连接进去，连接进去后，WiFi.status()和WL_CONNECTED相等
         Serial.print(".");
        delay(500);
   }
  Serial.println(WiFi.localIP());  //通过串口打印wemos的IP地址
  delay(500);

}

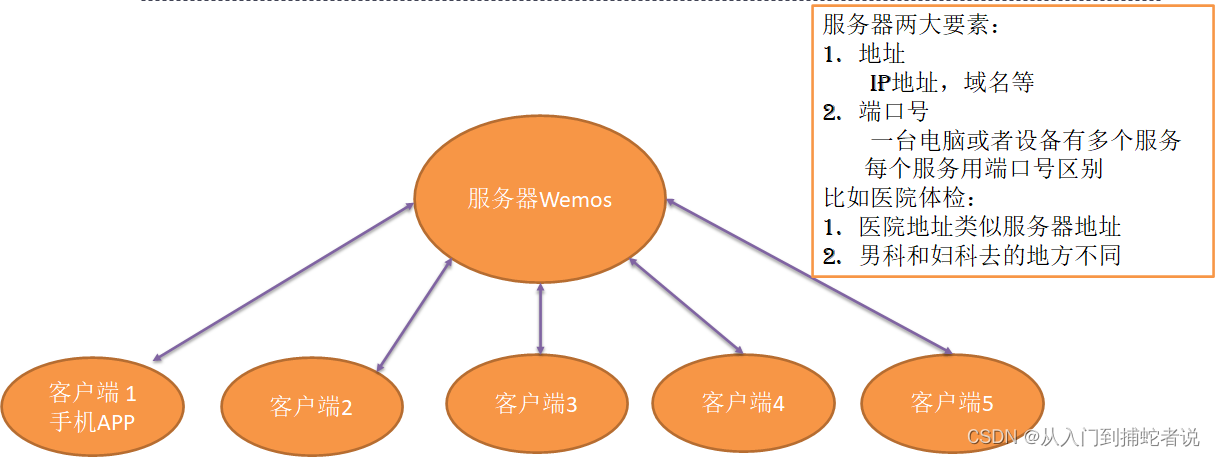

C/S模式

架设Wemos为ftp服务器

int port = 8888;  //端口号
WiFiServer server(port); // 设置服务器端口号
void loop() {
	WiFiClient client = server.available();  //服务初始化
	while (client.connected()) {  //等待客户端连接
		while (client.available() > 0) {  //有数据到来，类似串口的那个函数
 	     		cmd = client.read();//读取数据
		}
	}
}
//Tips: 启动服务器的API:       server.begin();

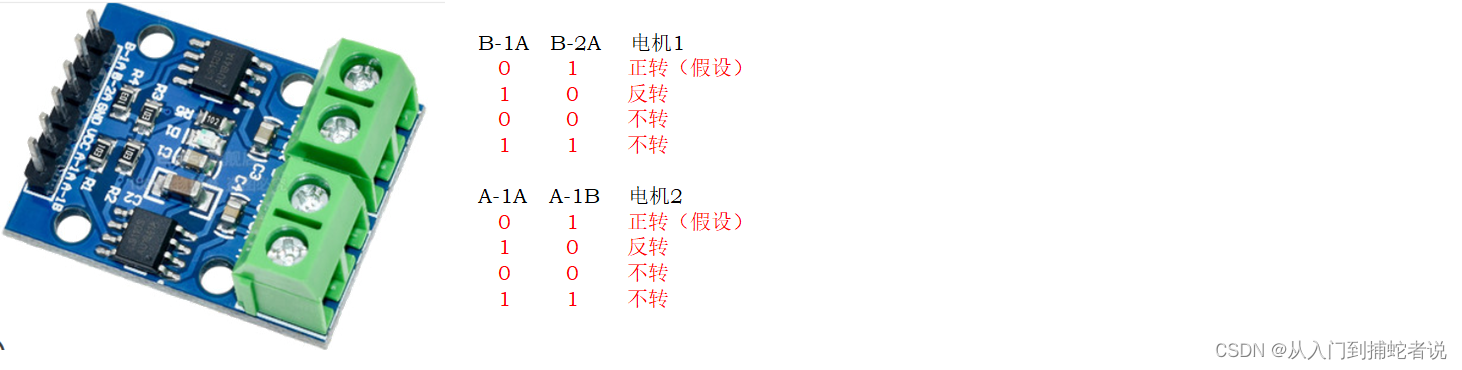

L9110s步进电机控制器

通过串口来调试小车上下左右的代码

#define Dong1 D6
#define Dong2 D7
#define Zhuan1 D3
#define Zhuan2 D4

void initL9110s()
{
  pinMode(Dong1,OUTPUT);
  pinMode(Dong2,OUTPUT);
  pinMode(Zhuan1,OUTPUT);
  pinMode(Zhuan2,OUTPUT);
}

void qian()
{
  digitalWrite(Dong1,HIGH);
  digitalWrite(Dong2,LOW);
}

void hou()
{
  digitalWrite(Dong1,LOW);
  digitalWrite(Dong2,HIGH);
}

void zuo()
{
  digitalWrite(Zhuan1,LOW);
  digitalWrite(Zhuan2,HIGH);
}

void you()
{
  digitalWrite(Zhuan1,HIGH);
  digitalWrite(Zhuan2,LOW);
}

void setup()
{
  initL9110s();
  Serial.begin(115200);
}

void loop()
{
  char cmd;

  if(Serial.available() > 0)
  {
     cmd = Serial.read();
     switch(cmd)
     {
        case 'q': qian();break;
        case 'h': hou();break;
        case 'z': zuo();break;
        case 'y': you();break;
      }
  }
}

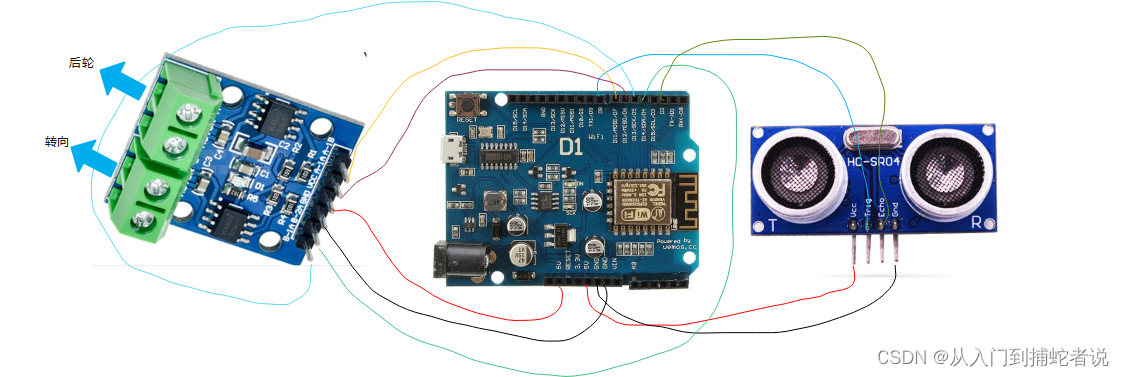

整体项目的电路连接

Android开发环境搭建

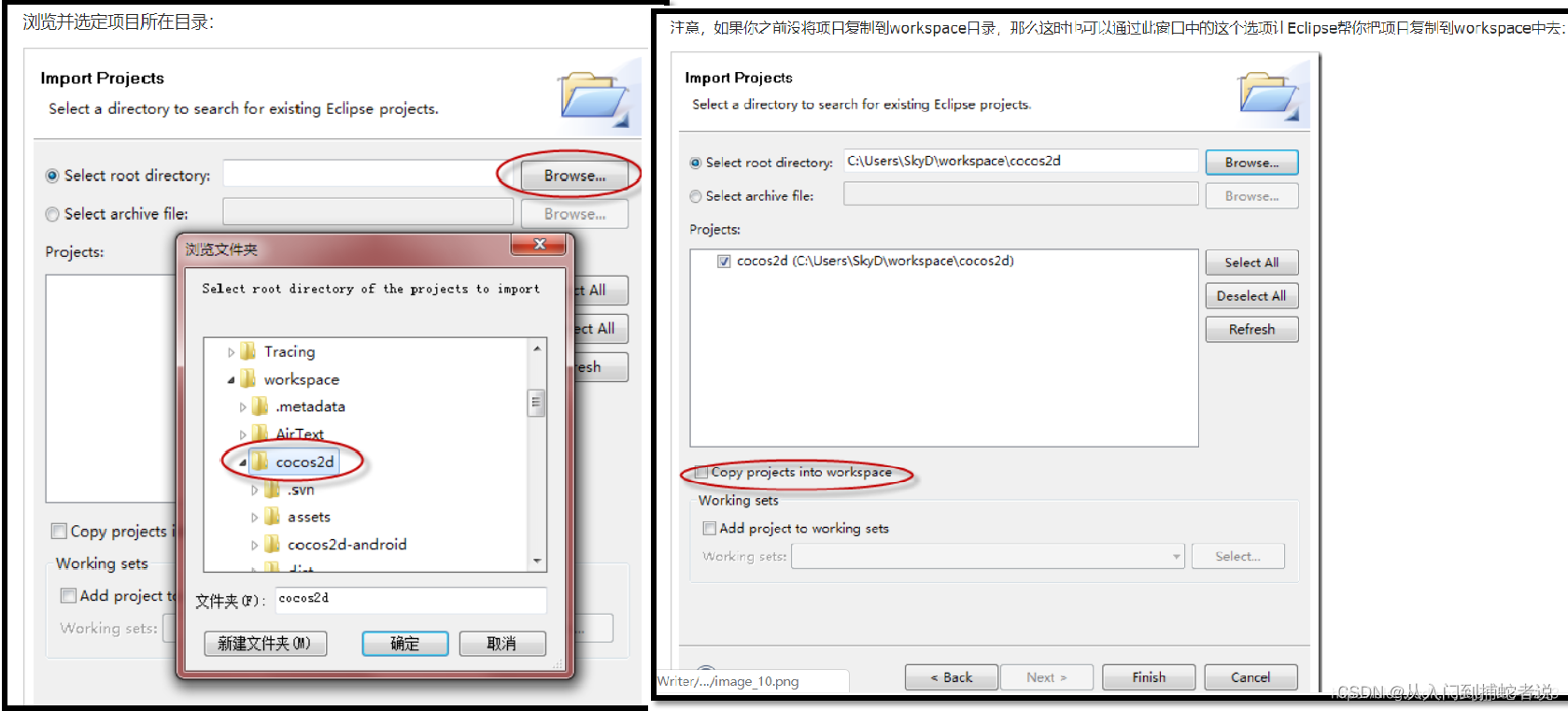

一. 编程软件 Eclipse AD下载，解压。
二. 安卓模拟器（夜神），适合 没安卓手机的同学，下载，双击像普通程序一样安装。

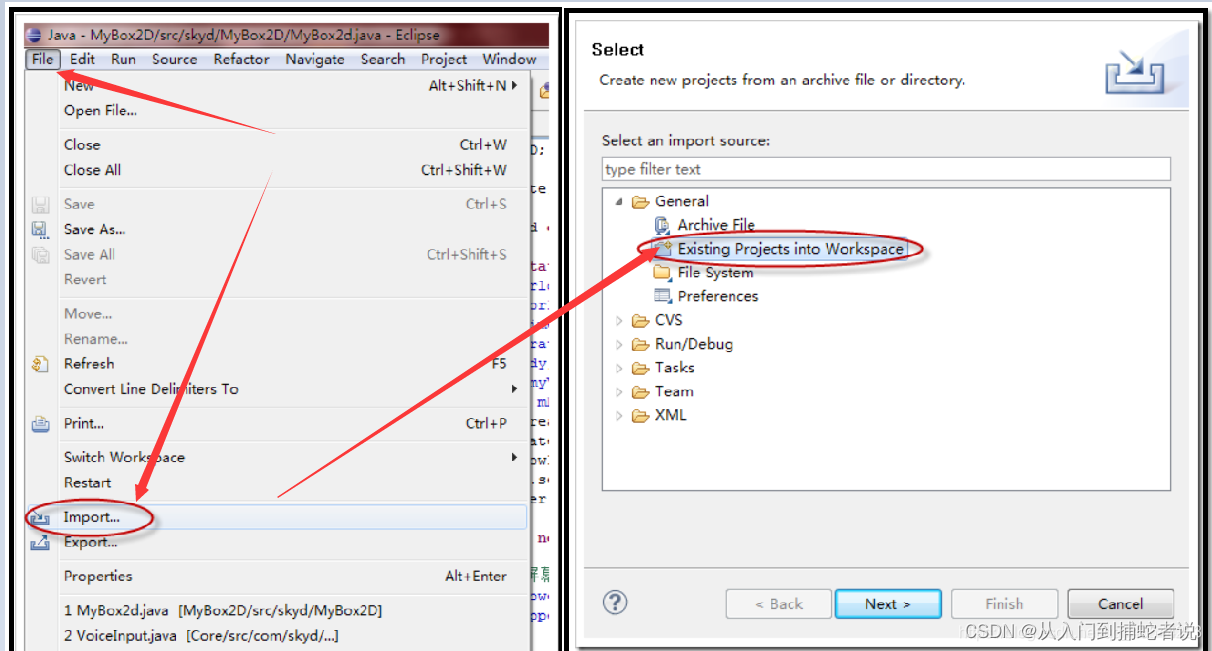

Android导入程序包

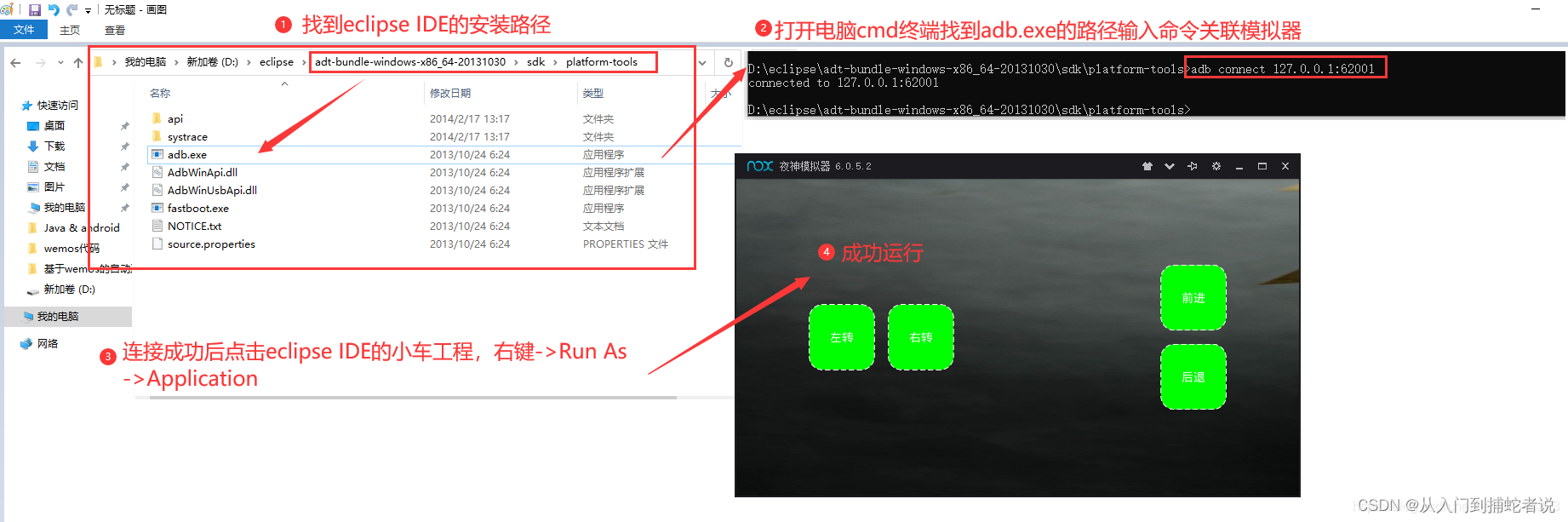

项目整合以及在安卓模拟器上运行演示

项目整合：实现小车方向控制，如果小车距离障碍物的距离小于10厘米 ，并后退一定的距离 。
Arduino完整编程代码：

#include<ESP8266WiFi.h>
#define Echo D2
#define Trig D8
#define Dong1 D6
#define Dong2 D7
#define Zhuan1 D4
#define Zhuan2 D5

char* ssid = "Tenda_D82600";                           //“wifi热点名称”
char* passwd = "123456789aa";            //”wifi热点密码”
int port = 8888;  //端口号
WiFiServer server(port); // 设置服务器端口号
long getTime()
{
  digitalWrite(Trig, HIGH);
  delayMicroseconds(10);
  digitalWrite(Trig, LOW);
  return pulseIn(Echo, HIGH);
}
void initChaoShengBo()
{
  pinMode(Echo, INPUT);
  pinMode(Trig, OUTPUT);
}
void initWifiSta()
{
  WiFi.mode(WIFI_STA);         // 设置STA模式
  WiFi.begin(ssid, passwd);   //连接网络
  while (WiFi.status() != WL_CONNECTED) {
    Serial.print(".");
    delay(500);
  }
  Serial.println(WiFi.localIP());  //通过串口打印wemos的IP地址
}
void dzoutput() {
  pinMode(Dong1, OUTPUT);
  pinMode(Dong2, OUTPUT);
  pinMode(Zhuan1, OUTPUT);
  pinMode(Zhuan2, OUTPUT);
}
void qian() {
  digitalWrite(Dong1, HIGH);
  digitalWrite(Dong2, LOW);
}
void hou() {
  digitalWrite(Dong2, HIGH);
  digitalWrite(Dong1, LOW);
}
void ting() {
  digitalWrite(Dong1, LOW);
  digitalWrite(Dong2, LOW);
}
void zuo() {
  digitalWrite(Zhuan1, HIGH);
  digitalWrite(Zhuan2, LOW);
}
void you() {
  digitalWrite(Zhuan2, HIGH);
  digitalWrite(Zhuan1, LOW);
}
void zheng() {
  digitalWrite(Zhuan1, LOW);
  digitalWrite(Zhuan2, LOW);
}
void setup() {
  dzoutput();
  initChaoShengBo();
  Serial.begin(115200);//打开串口
  initWifiSta();
  server.begin();//启动服务器
}

void loop() {
  char cmd;
  long dis;
  int mark = 0;
  WiFiClient client = server.available();  //服务初始化
  while (client.connected()) {  //等待客户端连接
    while (client.available() > 0) {  //有数据到来，类似串口的那个函数
      cmd = client.read();//读取数据
      //cmd = Serial.read();
      dis = getTime() / 58;
      if (dis < 10) {
        hou();
        delay(500);
        ting();
        mark = 1;
      } else {
        mark = 0;
      }
      if (mark == 0) {
        switch (cmd) { //串口调试
          case 'q':
            qian();
            break;
          case 'h':
            hou();
            break;
          case 'z':
            zuo();
            break;
          case 'y':
            you();
            break;
          case 's':
            ting();
            break;
          case 'd':
            zheng();
            break;
        }
      }
    }
  }
}

java完整编程代码:
ContrlActivity.java:

package com.gec.bluetoothcarlink;

import android.app.Activity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnTouchListener;
import android.view.Window;
import android.view.WindowManager;
import android.widget.Button;

public class ContrlActivity extends Activity {

	Button qian;
	Button hou;
	Button zuo;
	Button you;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		// 璁剧疆鏃犳爣棰樻爮
		requestWindowFeature(Window.FEATURE_NO_TITLE);
		// 璁剧疆鍏ㄥ睆
		getWindow().addFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN);
		// 淇濇寔灞忓箷甯镐寒
		getWindow().addFlags(WindowManager.LayoutParams.FLAG_KEEP_SCREEN_ON);
		setContentView(R.layout.activity_contrl);
		initView();

	}

	void initView() {

		qian = (Button) findViewById(R.id.btnqian);
		hou = (Button) findViewById(R.id.btnhou);
		zuo = (Button) findViewById(R.id.btnzuo);
		you = (Button) findViewById(R.id.btnyou);

		qian.setOnTouchListener(new OnTouchListener() {

			@Override
			public boolean onTouch(View arg0, MotionEvent event) {
				// TODO Auto-generated method stub
				switch (event.getAction()) {
				case MotionEvent.ACTION_DOWN:
					new NetUtils("q").sendMessage();
					break;
				case MotionEvent.ACTION_UP: {
					new NetUtils("s").sendMessage();
					break;
				}

				}
				return false;
			}
		});

		hou.setOnTouchListener(new OnTouchListener() {

			@Override
			public boolean onTouch(View arg0, MotionEvent event) {
				// TODO Auto-generated method stub
				switch (event.getAction()) {
				case MotionEvent.ACTION_DOWN:
					new NetUtils("h").sendMessage();
					break;
				case MotionEvent.ACTION_UP: {
					new NetUtils("s").sendMessage();
					break;
				}

				}
				return false;
			}
		});

		zuo.setOnTouchListener(new OnTouchListener() {

			@Override
			public boolean onTouch(View arg0, MotionEvent event) {
				// TODO Auto-generated method stub
				switch (event.getAction()) {
				case MotionEvent.ACTION_DOWN:
					new NetUtils("z").sendMessage();
					break;
				case MotionEvent.ACTION_UP: {
					new NetUtils("d").sendMessage();
					break;
				}

				}
				return false;
			}
		});

		you.setOnTouchListener(new OnTouchListener() {

			@Override
			public boolean onTouch(View arg0, MotionEvent event) {
				// TODO Auto-generated method stub
				switch (event.getAction()) {
				case MotionEvent.ACTION_DOWN:
					new NetUtils("y").sendMessage();
					break;
				case MotionEvent.ACTION_UP: {
					new NetUtils("d").sendMessage();
					break;
				}

				}
				return false;
			}
		});
	}

}

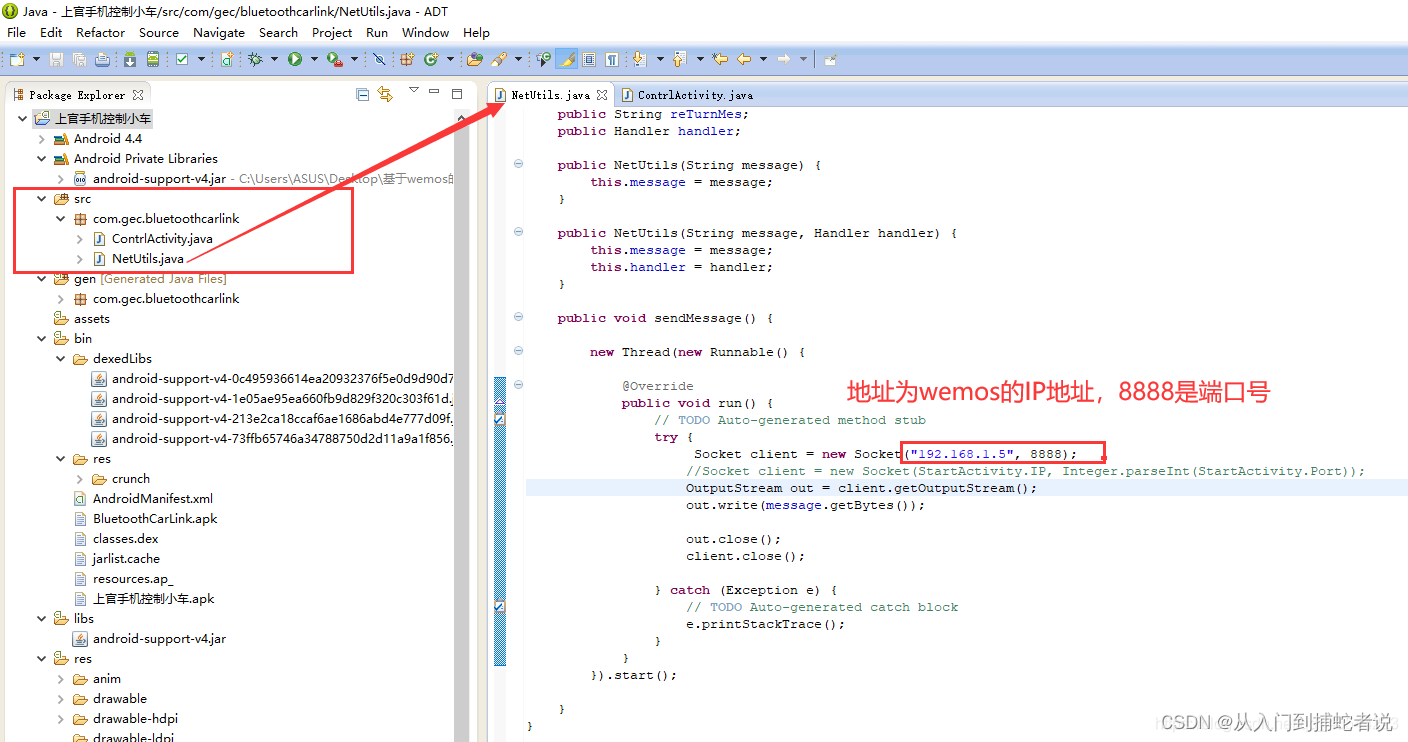

NetUtils.java:

package com.gec.bluetoothcarlink;

import java.io.OutputStream;
import java.net.Socket;

import android.os.Handler;

public class NetUtils {

	public String message;
	public String reTurnMes;
	public Handler handler;

	public NetUtils(String message) {
		this.message = message;
	}

	public NetUtils(String message, Handler handler) {
		this.message = message;
		this.handler = handler;
	}

	public void sendMessage() {

		new Thread(new Runnable() {

			@Override
			public void run() {
				// TODO Auto-generated method stub
				try {
					 Socket client = new Socket("192.168.1.106", 8888);
					//Socket client = new Socket(StartActivity.IP, Integer.parseInt(StartActivity.Port));
					OutputStream out = client.getOutputStream();
					out.write(message.getBytes());

					out.close();
					client.close();

				} catch (Exception e) {
					// TODO Auto-generated catch block
					e.printStackTrace();
				}
			}
		}).start();

	}
}

activity_contrl_xml:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/test"
    tools:context=".ContrlActivity" >

    <LinearLayout
        android:layout_centerVertical="true"
        android:layout_alignParentRight="true"
        android:layout_marginRight="100dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:orientation="vertical" >

        <Button
            android:id="@+id/btnqian"
            android:layout_width="100dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:background="@drawable/btn_back"
            android:text="前进"

            android:layout_margin="10dp"
            android:textColor="#ffffff" />

          <Button
            android:id="@+id/btnhou"
            android:layout_width="100dp"
            android:layout_height="100dp"
            android:layout_weight="1"
            android:layout_margin="10dp"
            android:background="@drawable/btn_back"
            android:text="后退"

            android:textColor="#ffffff" />




    </LinearLayout>

    <LinearLayout
      	android:layout_centerVertical="true"
      	android:layout_marginLeft="100dp"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"

        android:orientation="horizontal" >

        <Button
            android:id="@+id/btnzuo"
            android:layout_height="100dp"
            android:layout_width="100dp"
            android:layout_weight="1"
            android:background="@drawable/btn_back"
            android:text="左转"

            android:layout_margin="10dp"
            android:textColor="#ffffff" />


          <Button
            android:id="@+id/btnyou"
            android:layout_height="100dp"
            android:layout_width="100dp"
            android:layout_weight="1"
            android:layout_margin="10dp"
            android:background="@drawable/btn_back"
            android:text="右转"

            android:textColor="#ffffff" />
    </LinearLayout>


</RelativeLayout>

演示视频
