fpbe
这题通过题目了解到了这是一个用了BPF的程序
通过查看https://github.com/libbpf/libbpf/blob/master/src/libbpf.h
可以知道对程序进行了hook
/**
* @brief **bpf_program__attach_uprobe()** attaches a BPF program
* to the userspace function which is found by binary path and
* offset. You can optionally specify a particular proccess to attach
* to. You can also optionally attach the program to the function
* exit instead of entry.
*
* @param prog BPF program to attach
* @param retprobe Attach to function exit
* @param pid Process ID to attach the uprobe to, 0 for self (own process),
* -1 for all processes
* @param binary_path Path to binary that contains the function symbol
* @param func_offset Offset within the binary of the function symbol
* @return Reference to the newly created BPF link; or NULL is returned on error,
* error code is stored in errno
*/
LIBBPF_API struct bpf_link *
bpf_program__attach_uprobe(const struct bpf_program *prog, bool retprobe,
pid_t pid, const char *binary_path,
size_t func_offset);
//源程序代码
skel->links.uprobe = bpf_program__attach_uprobe(
skel->progs.uprobe, //附加的BPF程序
0,
0,
"/proc/self/exe",
(size_t)uprobed_function - base_addr);
查找skel->progs.uprobe的内容
int __cdecl fpbe_bpf__create_skeleton(fpbe_bpf *obj)
{
int result; // eax
bpf_object_skeleton *s; // [rsp+18h] [rbp-8h]
s = (bpf_object_skeleton *)calloc(1LL, 72LL);
if ( !s )
return -1;
obj->skeleton = s;
s->sz = 72LL;
s->name = "fpbe_bpf";
s->obj = &obj->obj;
s->prog_cnt = 1;
s->prog_skel_sz = 24;
s->progs = (bpf_prog_skeleton *)calloc(s->prog_cnt, s->prog_skel_sz);
if ( s->progs )
{
s->progs->name = "uprobe";
s->progs->prog = &obj->progs.uprobe;
s->progs->link = &obj->links.uprobe;
s->data_sz = 1648LL; // 附加程序字节码的大小
s->data = &loc_4F4018; // 附加程序的字节码
result = 0;
}
else
{
bpf_object__destroy_skeleton(s);
result = -1;
}
return result;
}
运行脚本dump出字节码
static main()
{
auto i,fp;
fp = fopen("C://Users//12196//Desktop//dump","wb"); //dump数据存储的路径
auto start = 0x4F4018; //这里填入要dump的代码的起始地址
auto size = 0x670; //这里填入要dump的代码的大小
for(i=start;i<start+size;i++)
{
fputc(Byte(i),fp);
}
}
反汇编字节码
dump: file format ELF64-BPF
Disassembly of section uprobe/func:
0000000000000000 uprobe:
0: 79 12 68 00 00 00 00 00 r2 = *(u64 *)(r1 + 104)
1: 67 02 00 00 20 00 00 00 r2 <<= 32
2: 77 02 00 00 20 00 00 00 r2 >>= 32
3: 79 13 70 00 00 00 00 00 r3 = *(u64 *)(r1 + 112)
4: 67 03 00 00 20 00 00 00 r3 <<= 32
5: 77 03 00 00 20 00 00 00 r3 >>= 32
6: bf 34 00 00 00 00 00 00 r4 = r3
7: 27 04 00 00 c0 6d 00 00 r4 *= 28096
8: bf 25 00 00 00 00 00 00 r5 = r2
9: 27 05 00 00 88 fb 00 00 r5 *= 64392
10: 0f 45 00 00 00 00 00 00 r5 += r4
11: 79 14 60 00 00 00 00 00 r4 = *(u64 *)(r1 + 96)
12: 67 04 00 00 20 00 00 00 r4 <<= 32
13: 77 04 00 00 20 00 00 00 r4 >>= 32
14: bf 40 00 00 00 00 00 00 r0 = r4
15: 27 00 00 00 fb 71 00 00 r0 *= 29179
16: 0f 05 00 00 00 00 00 00 r5 += r0
17: 79 11 58 00 00 00 00 00 r1 = *(u64 *)(r1 + 88)
18: b7 00 00 00 00 00 00 00 r0 = 0
19: 73 0a f8 ff 00 00 00 00 *(u8 *)(r10 - 8) = r0
20: 7b 0a f0 ff 00 00 00 00 *(u64 *)(r10 - 16) = r0
21: 7b 0a e8 ff 00 00 00 00 *(u64 *)(r10 - 24) = r0
22: 67 01 00 00 20 00 00 00 r1 <<= 32
23: 77 01 00 00 20 00 00 00 r1 >>= 32
24: bf 10 00 00 00 00 00 00 r0 = r1
25: 27 00 00 00 8e cc 00 00 r0 *= 52366
26: 0f 05 00 00 00 00 00 00 r5 += r0
27: b7 06 00 00 01 00 00 00 r6 = 1
28: 18 00 00 00 95 59 73 a1 00 00 00 00 18 be 00 00 r0 = 209012997183893 ll
30: 5d 05 42 00 00 00 00 00 if r5 != r0 goto +66 <LBB0_5>
31: bf 35 00 00 00 00 00 00 r5 = r3
32: 27 05 00 00 bf f1 00 00 r5 *= 61887
33: bf 20 00 00 00 00 00 00 r0 = r2
34: 27 00 00 00 e5 6a 00 00 r0 *= 27365
35: 0f 50 00 00 00 00 00 00 r0 += r5
36: bf 45 00 00 00 00 00 00 r5 = r4
37: 27 05 00 00 d3 ad 00 00 r5 *= 44499
38: 0f 50 00 00 00 00 00 00 r0 += r5
39: bf 15 00 00 00 00 00 00 r5 = r1
40: 27 05 00 00 84 92 00 00 r5 *= 37508
41: 0f 50 00 00 00 00 00 00 r0 += r5
42: 18 05 00 00 40 03 54 e5 00 00 00 00 56 a5 00 00 r5 = 181792633258816 ll
44: 5d 50 34 00 00 00 00 00 if r0 != r5 goto +52 <LBB0_5>
45: bf 35 00 00 00 00 00 00 r5 = r3
46: 27 05 00 00 85 dd 00 00 r5 *= 56709
47: bf 20 00 00 00 00 00 00 r0 = r2
48: 27 00 00 00 28 80 00 00 r0 *= 32808
49: 0f 50 00 00 00 00 00 00 r0 += r5
50: bf 45 00 00 00 00 00 00 r5 = r4
51: 27 05 00 00 2d 65 00 00 r5 *= 25901
52: 0f 50 00 00 00 00 00 00 r0 += r5
53: bf 15 00 00 00 00 00 00 r5 = r1
54: 27 05 00 00 12 e7 00 00 r5 *= 59154
55: 0f 50 00 00 00 00 00 00 r0 += r5
56: 18 05 00 00 a3 4d 48 74 00 00 00 00 f3 a6 00 00 r5 = 183564558159267 ll
58: 5d 50 26 00 00 00 00 00 if r0 != r5 goto +38 <LBB0_5>
59: bf 35 00 00 00 00 00 00 r5 = r3
60: 27 05 00 00 2c 82 00 00 r5 *= 33324
61: bf 20 00 00 00 00 00 00 r0 = r2
62: 27 00 00 00 43 ca 00 00 r0 *= 51779
63: 0f 50 00 00 00 00 00 00 r0 += r5
64: bf 45 00 00 00 00 00 00 r5 = r4
65: 27 05 00 00 8e 7c 00 00 r5 *= 31886
66: 0f 50 00 00 00 00 00 00 r0 += r5
67: bf 15 00 00 00 00 00 00 r5 = r1
68: 27 05 00 00 3a f2 00 00 r5 *= 62010
69: 0f 50 00 00 00 00 00 00 r0 += r5
70: 18 05 00 00 77 72 5a 48 00 00 00 00 9c b9 00 00 r5 = 204080879923831 ll
72: 5d 50 18 00 00 00 00 00 if r0 != r5 goto +24 <LBB0_5>
73: 63 1a f4 ff 00 00 00 00 *(u32 *)(r10 - 12) = r1
74: 63 4a f0 ff 00 00 00 00 *(u32 *)(r10 - 16) = r4
75: 63 2a ec ff 00 00 00 00 *(u32 *)(r10 - 20) = r2
76: 63 3a e8 ff 00 00 00 00 *(u32 *)(r10 - 24) = r3
77: 18 01 00 00 43 54 46 7b 00 00 00 00 25 73 7d 0a r1 = 755886917287302211 ll
79: 7b 1a d8 ff 00 00 00 00 *(u64 *)(r10 - 40) = r1
80: 18 01 00 00 46 4c 41 47 00 00 00 00 3a 20 48 46 r1 = 5064333215653776454 ll
82: 7b 1a d0 ff 00 00 00 00 *(u64 *)(r10 - 48) = r1
83: 18 01 00 00 45 21 20 59 00 00 00 00 4f 55 52 20 r1 = 2329017756590022981 ll
85: 7b 1a c8 ff 00 00 00 00 *(u64 *)(r10 - 56) = r1
86: 18 01 00 00 57 45 4c 4c 00 00 00 00 20 44 4f 4e r1 = 5642803763628229975 ll
88: 7b 1a c0 ff 00 00 00 00 *(u64 *)(r10 - 64) = r1
89: b7 06 00 00 00 00 00 00 r6 = 0
90: 73 6a e0 ff 00 00 00 00 *(u8 *)(r10 - 32) = r6
91: bf a1 00 00 00 00 00 00 r1 = r10
92: 07 01 00 00 c0 ff ff ff r1 += -64
93: bf a3 00 00 00 00 00 00 r3 = r10
94: 07 03 00 00 e8 ff ff ff r3 += -24
95: b7 02 00 00 21 00 00 00 r2 = 33
96: 85 00 00 00 06 00 00 00 call 6
0000000000000308 LBB0_5:
97: bf 60 00 00 00 00 00 00 r0 = r6
98: 95 00 00 00 00 00 00 00 exit
r1 * 28096 + r2 * 64392 + r3 * 29179 + r4 * 52366 = 209012997183893
r1 * 61887+ r2 * 27365+ r3 * 44499+ r4 * 37508= 181792633258816
r1 * 56709+ r2 * 32808+ r3 * 25901+ r4 * 59154= 183564558159267
r1 * 33324+ r2 * 51779+ r3 * 31886+ r4 * 62010= 204080879923831
使用z3求解
import struct
from typing import KeysView
from z3 import *
from Crypto.Util.number import *
solver = Solver()
r1,r2,r3,r4 = Ints("r1 r2 r3 r4")
solver.add(r1 * 28096 + r2 * 64392 + r3 * 29179 + r4 * 52366 == 209012997183893)
solver.add(r1 * 61887 + r2 * 27365 + r3 * 44499 + r4 * 37508 == 181792633258816)
solver.add(r1 * 56709 + r2 * 32808 + r3 * 25901 + r4 * 59154 == 183564558159267)
solver.add(r1 * 33324 + r2 * 51779 + r3 * 31886 + r4 * 62010 == 204080879923831)
print(solver.check())
print(solver.model())
keys = solver.model()
flag = ''
for i in [r1,r2,r3,r4]:
print(hex(keys[i].as_long()))
flag += struct.pack('<I',keys[i].as_long()).decode('utf-8')
print(flag)
#0vR3sAlbs8pD2h53
the_shellcode
使用ScyllaHide+Magicmida脱去themida壳并dump下文件

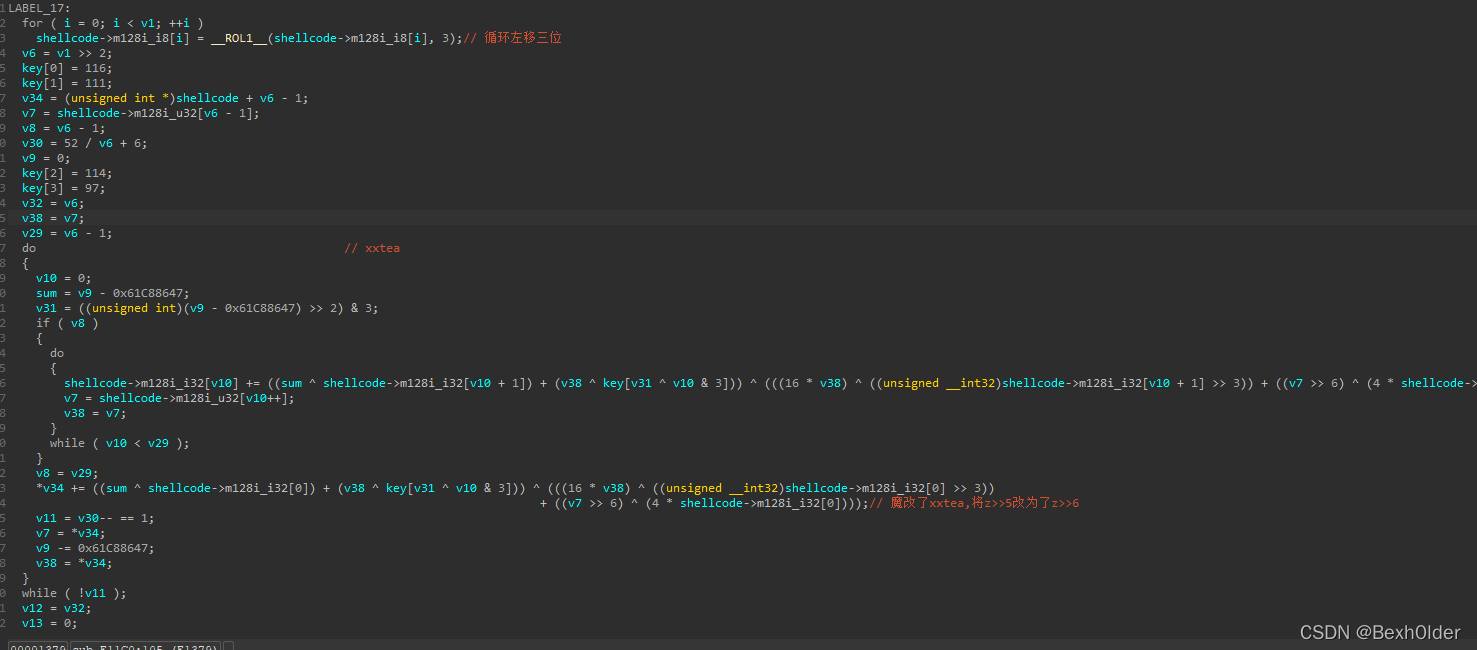

文件主要逻辑是先对输入的shellcode进行base64解密，再rol循环左移3位，之后再用魔改xxtea加密，最后再用输入的shellcode检验flag

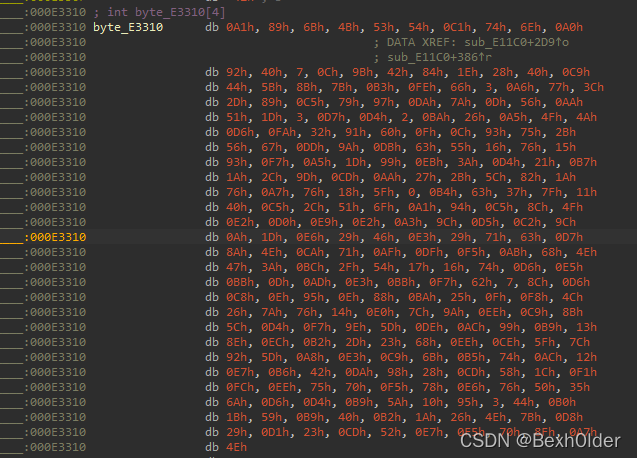

xxtea密文
unsigned char ida_chars[] =
{
0xA1, 0x89, 0x6B, 0x4B, 0x53, 0x54, 0xC1, 0x74, 0x6E, 0xA0,
0x92, 0x40, 0x07, 0x0C, 0x9B, 0x42, 0x84, 0x1E, 0x28, 0x40,
0xC9, 0x44, 0x5B, 0x8B, 0x7B, 0xB3, 0xFE, 0x66, 0x03, 0xA6,
0x77, 0x3C, 0x2D, 0x89, 0xC5, 0x79, 0x97, 0xDA, 0x7A, 0x0D,
0x56, 0xAA, 0x51, 0x1D, 0x03, 0xD7, 0xD4, 0x02, 0xBA, 0x26,
0xA5, 0x4F, 0x4A, 0xD6, 0xFA, 0x32, 0x91, 0x60, 0x0F, 0x0C,
0x93, 0x75, 0x2B, 0x56, 0x67, 0xDD, 0x9A, 0xDB, 0x63, 0x55,
0x16, 0x76, 0x15, 0x93, 0xF7, 0xA5, 0x1D, 0x99, 0xEB, 0x3A,
0xD4, 0x21, 0xB7, 0x1A, 0x2C, 0x9D, 0xCD, 0xAA, 0x27, 0x2B,
0x5C, 0x82, 0x1A, 0x76, 0xA7, 0x76, 0x18, 0x5F, 0x00, 0xB4,
0x63, 0x37, 0x7F, 0x11, 0x40, 0xC5, 0x2C, 0x51, 0x6F, 0xA1,
0x94, 0xC5, 0x8C, 0x4F, 0xE2, 0xD0, 0xE9, 0xE2, 0xA3, 0x9C,
0xD5, 0xC2, 0x9C, 0x0A, 0x1D, 0xE6, 0x29, 0x46, 0xE3, 0x29,
0x71, 0x63, 0xD7, 0x8A, 0x4E, 0xCA, 0x71, 0xAF, 0xDF, 0xF5,
0xAB, 0x68, 0x4E, 0x47, 0x3A, 0xBC, 0x2F, 0x54, 0x17, 0x16,
0x74, 0xD6, 0xE5, 0xBB, 0x0D, 0xAD, 0xE3, 0xBB, 0xF7, 0x62,
0x07, 0x8C, 0xD6, 0xC8, 0x0E, 0x95, 0x0E, 0x88, 0xBA, 0x25,
0x0F, 0xF8, 0x4C, 0x26, 0x7A, 0x76, 0x14, 0xE0, 0x7C, 0x9A,
0xEE, 0xC9, 0x8B, 0x5C, 0xD4, 0xF7, 0x9E, 0x5D, 0xDE, 0xAC,
0x99, 0xB9, 0x13, 0x8E, 0xEC, 0xB2, 0x2D, 0x23, 0x68, 0xEE,
0xCE, 0x5F, 0x7C, 0x92, 0x5D, 0xA8, 0xE3, 0xC9, 0x6B, 0xB5,
0x74, 0xAC, 0x12, 0xE7, 0xB6, 0x42, 0xDA, 0x98, 0x28, 0xCD,
0x58, 0x1C, 0xF1, 0xFC, 0xEE, 0x75, 0x70, 0xF5, 0x78, 0xE6,
0x76, 0x50, 0x35, 0x6A, 0xD6, 0xD4, 0xB9, 0x5A, 0x10, 0x95,
0x03, 0x44, 0xB0, 0x1B, 0x59, 0xB9, 0x40, 0xB2, 0x1A, 0x26,
0x4E, 0x7B, 0xD8, 0x29, 0xD1, 0x23, 0xCD, 0x52, 0xE7, 0xF5,
0x70, 0x8F, 0xA7, 0x4E
};
解密代码
参考https://bbs.pediy.com/thread-266933.htm#msg_header_h1_3
#include <stdio.h>
#include <stdint.h>
#define DELTA 0x61C88647 //固定的一个常量
#define MX (((z>>6^y<<2) + (y>>3^z<<4)) ^ ((sum^y) + (key[(p&3)^e] ^ z))) //魔改
//#define MX (((z>>5^y<<2) + (y>>3^z<<4)) ^ ((sum^y) + (key[(p&3)^e] ^ z))) //固定的运算
void btea(uint32_t *v, int n, uint32_t const key[4]) //v是要加密的两个元素的数组
{ //n为数组的长度
uint32_t y, z, sum; //无符号整型
unsigned p, rounds, e;
if (n > 1) /* Coding Part */
{
rounds = 6 + 52/n; //固定的得出轮数
sum = 0;
z = v[n-1];
do
{
sum += DELTA; //每次进行叠加
e = (sum >> 2) & 3; //固定运算
for (p=0; p<n-1; p++)
{
y = v[p+1];
v[p] += MX;
z = v[p];
}
y = v[0];
z = v[n-1] += MX;
}
while (--rounds);
}
else if (n < -1) /* Decoding Part */
{
n = -n;
rounds = 6 + 52/n;
sum = 0 - rounds*DELTA;
y = v[0];
do
{
e = (sum >> 2) & 3;
for (p=n-1; p>0; p--)
{
z = v[p-1];
y = v[p] -= MX;
}
z = v[n-1];
y = v[0] -= MX;
sum += DELTA;
}
while (--rounds);
}
}
unsigned char ida_chars[] =
{
0xA1, 0x89, 0x6B, 0x4B, 0x53, 0x54, 0xC1, 0x74, 0x6E, 0xA0,
0x92, 0x40, 0x07, 0x0C, 0x9B, 0x42, 0x84, 0x1E, 0x28, 0x40,
0xC9, 0x44, 0x5B, 0x8B, 0x7B, 0xB3, 0xFE, 0x66, 0x03, 0xA6,
0x77, 0x3C, 0x2D, 0x89, 0xC5, 0x79, 0x97, 0xDA, 0x7A, 0x0D,
0x56, 0xAA, 0x51, 0x1D, 0x03, 0xD7, 0xD4, 0x02, 0xBA, 0x26,
0xA5, 0x4F, 0x4A, 0xD6, 0xFA, 0x32, 0x91, 0x60, 0x0F, 0x0C,
0x93, 0x75, 0x2B, 0x56, 0x67, 0xDD, 0x9A, 0xDB, 0x63, 0x55,
0x16, 0x76, 0x15, 0x93, 0xF7, 0xA5, 0x1D, 0x99, 0xEB, 0x3A,
0xD4, 0x21, 0xB7, 0x1A, 0x2C, 0x9D, 0xCD, 0xAA, 0x27, 0x2B,
0x5C, 0x82, 0x1A, 0x76, 0xA7, 0x76, 0x18, 0x5F, 0x00, 0xB4,
0x63, 0x37, 0x7F, 0x11, 0x40, 0xC5, 0x2C, 0x51, 0x6F, 0xA1,
0x94, 0xC5, 0x8C, 0x4F, 0xE2, 0xD0, 0xE9, 0xE2, 0xA3, 0x9C,
0xD5, 0xC2, 0x9C, 0x0A, 0x1D, 0xE6, 0x29, 0x46, 0xE3, 0x29,
0x71, 0x63, 0xD7, 0x8A, 0x4E, 0xCA, 0x71, 0xAF, 0xDF, 0xF5,
0xAB, 0x68, 0x4E, 0x47, 0x3A, 0xBC, 0x2F, 0x54, 0x17, 0x16,
0x74, 0xD6, 0xE5, 0xBB, 0x0D, 0xAD, 0xE3, 0xBB, 0xF7, 0x62,
0x07, 0x8C, 0xD6, 0xC8, 0x0E, 0x95, 0x0E, 0x88, 0xBA, 0x25,
0x0F, 0xF8, 0x4C, 0x26, 0x7A, 0x76, 0x14, 0xE0, 0x7C, 0x9A,
0xEE, 0xC9, 0x8B, 0x5C, 0xD4, 0xF7, 0x9E, 0x5D, 0xDE, 0xAC,
0x99, 0xB9, 0x13, 0x8E, 0xEC, 0xB2, 0x2D, 0x23, 0x68, 0xEE,
0xCE, 0x5F, 0x7C, 0x92, 0x5D, 0xA8, 0xE3, 0xC9, 0x6B, 0xB5,
0x74, 0xAC, 0x12, 0xE7, 0xB6, 0x42, 0xDA, 0x98, 0x28, 0xCD,
0x58, 0x1C, 0xF1, 0xFC, 0xEE, 0x75, 0x70, 0xF5, 0x78, 0xE6,
0x76, 0x50, 0x35, 0x6A, 0xD6, 0xD4, 0xB9, 0x5A, 0x10, 0x95,
0x03, 0x44, 0xB0, 0x1B, 0x59, 0xB9, 0x40, 0xB2, 0x1A, 0x26,
0x4E, 0x7B, 0xD8, 0x29, 0xD1, 0x23, 0xCD, 0x52, 0xE7, 0xF5,
0x70, 0x8F, 0xA7, 0x4E
};
int main()
{
uint32_t* v = (uint32_t *)ida_chars;
uint32_t const k[4] = {116, 111, 114, 97 };
int n= -66; //n的绝对值表示v的长度，取正表示加密，取负表示解密
// v为要加密的数据是两个32位无符号整数
// k为加密解密密钥，为4个32位无符号整数，即密钥长度为128位
btea(v, n, k);
for (int i = 0; i < 264; i++)
{
ida_chars[i] = ((ida_chars[i] >> 3) & 0XFF) | ((ida_chars[i] << 5) & 0XFF);
}
for (int i = 0; i < 264; i++)
{
printf("%02x", ida_chars[i]);
}
FILE *fshell = fopen("shellcode", "wb");
fwrite((void *)enc, 4, 66, fshell);
fclose(fshell);
return 0;
}
使用shellcodeloader加载shellcode

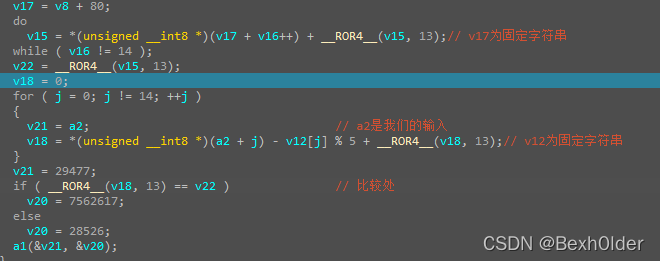

加载后用IDA动调

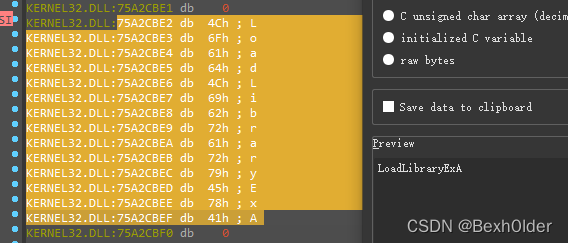

v17

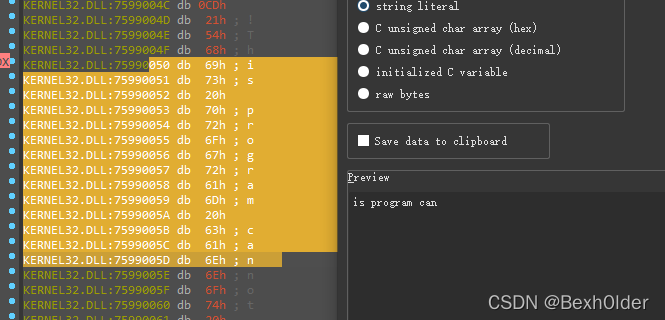

v22
脚本求解
import hashlib
str1 = "LoadLibraryExA"
str2 = "is program can"
str3 = ""
flag = "HFCTF{"
for i in range(14):
str3 += chr(ord(str2[i]) + ord(str1[i]) % 5)

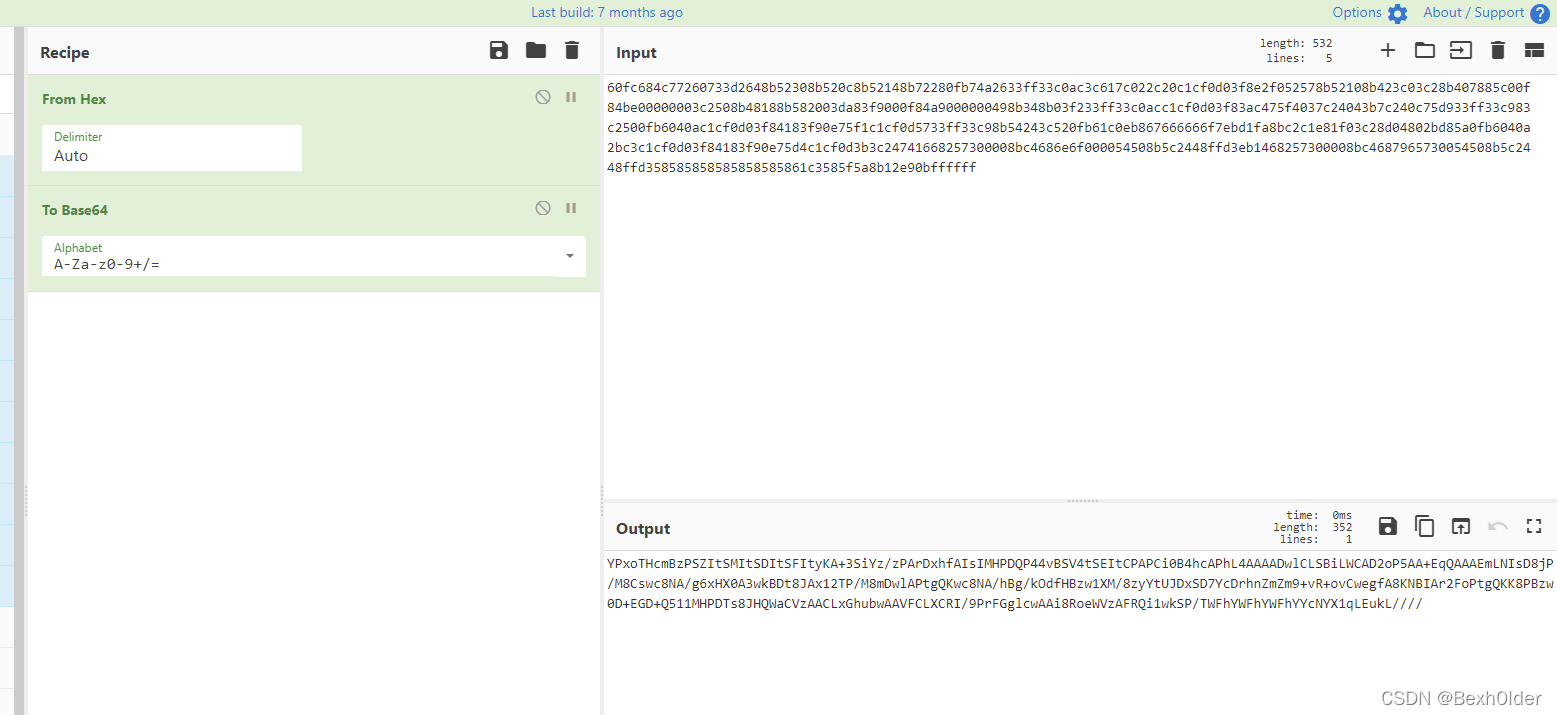

enc = "YPxoTHcmBzPSZItSMItSDItSFItyKA+3SiYz/zPArDxhfAIsIMHPDQP44vBSV4tSEItCPAPCi0B4hcAPhL4AAAADwlCLSBiLWCAD2oP5AA+EqQAAAEmLNIsD8jP/M8Cswc8NA/g6xHX0A3wkBDt8JAx12TP/M8mDwlAPtgQKwc8NA/hBg/kOdfHBzw1XM/8zyYtUJDxSD7YcDrhnZmZm9+vR+ovCwegfA8KNBIAr2FoPtgQKK8PBzw0D+EGD+Q511MHPDTs8JHQWaCVzAACLxGhubwAAVFCLXCRI/9PrFGglcwAAi8RoeWVzAFRQi1wkSP/TWFhYWFhYWFhYYcNYX1qLEukL"
enc += str3
flag += hashlib.md5(enc.encode()).hexdigest() + '}'
print(flag)
参考
https://zzzzsky.com/2022/03/21/2022%E8%99%8E%E7%AC%A6CTF_%E9%83%A8%E5%88%86RE_WP/
