前言
在前面已经通过阿里云服务器搭建了MQTT平台,这里为大家分享MQTT在安卓开发上的使用
环境搭建

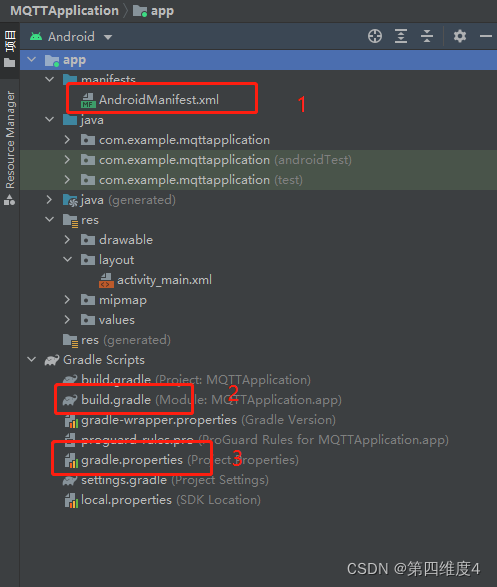

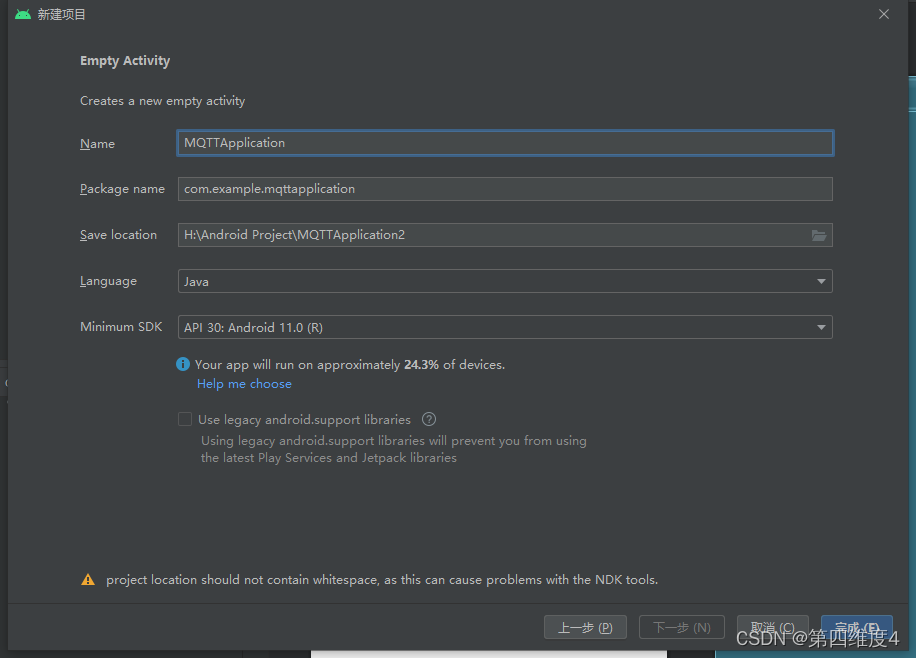

1、创建简单工程 2、主要修改一下三个文件 (1)AndroidManifest.xml 添加权限
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
添加服务(在application里)
<service android:name="org.eclipse.paho.android.service.MqttService"></service>
(2)build.gradle 添加依赖
dependencies{
...............
//mqtt
implementation 'org.eclipse.paho:org.eclipse.paho.client.mqttv3:1.1.0'
implementation 'org.eclipse.paho:org.eclipse.paho.android.service:1.1.1'
implementation 'androidx.legacy:legacy-support-v4:1.0.0'
}
(3)gradle.properties 添加支持
android.enableJetifier=true
布局设计
直接贴代码
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="40dp"
android:layout_marginLeft="20dp"
android:layout_marginRight="20dp"
android:orientation="horizontal">
<Switch
android:id="@+id/mqtt_switch"
android:layout_width="100dp"
android:layout_height="match_parent"
android:text="Switch" />
<androidx.constraintlayout.widget.ConstraintLayout
android:layout_width="30dp"
android:layout_height="match_parent">
</androidx.constraintlayout.widget.ConstraintLayout>
<Button
android:id="@+id/mqtt_button"
android:layout_width="100dp"
android:layout_height="match_parent"
android:text="点击" />
<androidx.constraintlayout.widget.ConstraintLayout
android:layout_width="30dp"
android:layout_height="match_parent">
</androidx.constraintlayout.widget.ConstraintLayout>
<Button
android:id="@+id/clean_button"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:layout_weight="1"
android:text="清空" />
</LinearLayout>
<TextView
android:id="@+id/mqttMessage"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingLeft="30dp"
android:paddingTop="20dp"
android:paddingEnd="50dp"
android:paddingRight="30dp"
android:text="TextView"
android:textSize="30px" />
</LinearLayout>
</androidx.constraintlayout.widget.ConstraintLayout>
MQTT相关程序
定义各种变量
public final String TAG = "MQTT";
private MqttAndroidClient mqttAndroidClient;
private MqttConnectOptions mMqttConnectOptions;
public String MQTT_HOST = "tcp://xxx.xxx.xxx.xxx:1883";
public String MQTT_UserName = "admin";
public String MQTT_PassWord = "admin";
public int MQTT_ConnectionTimeout = 10;
public int KeepAliveIntervalTime = 20;
public boolean CleanSession = true;
public String Subscribe_Topic = "androidTopic";
public String EndWillMsgPublish_Topic = "EndWillMsg";
public static String RESPONSE_TOPIC = "message_arrived";
public String CLIENTID = "test";
private Handler MQTThandler;
初始化函数
public void init(Context context, Handler MQTThandlerS) {
MQTThandler = MQTThandlerS;
String serverURI = MQTT_HOST;
mqttAndroidClient = new MqttAndroidClient(context, serverURI, CLIENTID);
mqttAndroidClient.setCallback(mqttCallback);
mMqttConnectOptions = new MqttConnectOptions();
mMqttConnectOptions.setCleanSession(CleanSession);
mMqttConnectOptions.setConnectionTimeout(MQTT_ConnectionTimeout);
mMqttConnectOptions.setKeepAliveInterval(KeepAliveIntervalTime);
mMqttConnectOptions.setUserName(MQTT_UserName);
mMqttConnectOptions.setPassword(MQTT_PassWord.toCharArray());
boolean doConnect = true;
String message = "{\"terminal_uid\":\"" + CLIENTID + "\",\"msg\":\"Client offline\"}";
try {
mMqttConnectOptions.setWill(EndWillMsgPublish_Topic, message.getBytes(), 2, false);
} catch (Exception e) {
Log.e(TAG, "Exception Occured", e);
doConnect = false;
}
if (doConnect) {
doClientConnection();
}
}
连接MQTT
private void doClientConnection() {
if (!mqttAndroidClient.isConnected()) {
try {
mqttAndroidClient.connect(mMqttConnectOptions, null, new IMqttActionListener() {
@Override
public void onSuccess(IMqttToken asyncActionToken) {
MQTT_Subscribe(Subscribe_Topic);
MQTT_Subscribe("androidTopic2");
System.out.println("连接mqtt服务器成功");
}
@Override
public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
System.out.println("连接mqtt服务器失败");
}
});
} catch (MqttException e) {
e.printStackTrace();
}
}
}
订阅主题及数据处理
private MqttCallback mqttCallback = new MqttCallback() {
@Override
public void messageArrived(String topic, MqttMessage message) throws Exception {
Log.e(TAG, "收到消息MQTT: " + topic + " 发来的消息 :" + new String(message.getPayload()));
}
@Override
public void deliveryComplete(IMqttDeliveryToken arg0) {
}
@Override
public void connectionLost(Throwable arg0) {
Log.e(TAG, "MQTT 服务器连接断开 ");
doClientConnection();
}
};
private void MQTT_Subscribe(String Publish_Topic) {
Boolean retained = false;
try {
mqttAndroidClient.subscribe(Publish_Topic, 0, null, new IMqttActionListener() {
@Override
public void onSuccess(IMqttToken asyncActionToken) {
System.out.println("订阅成功");
}
@Override
public void onFailure(IMqttToken asyncActionToken, Throwable exception) {
System.out.println("订阅失败" + exception);
}
});
mqttAndroidClient.subscribe(Publish_Topic, 0, new IMqttMessageListener() {
@Override
public void messageArrived(String topic, MqttMessage message) throws Exception {
Message msg = new Message();
MyMqttMessage myMqttMessage = new MyMqttMessage(topic, message.toString());
msg.obj = myMqttMessage;
MQTThandler.sendMessage(msg);
System.out.println("主题:" + topic);
System.out.println("消息:" + message);
}
});
} catch (MqttException e) {
e.printStackTrace();
}
}
取消订阅
public void MQTT_UnSubscribe(String Publish_Topic) {
Boolean retained = false;
try {
mqttAndroidClient.unsubscribe(Publish_Topic);
} catch (MqttException e) {
e.printStackTrace();
}
}
消息发布
public void MQTT_Publish(String Publish_Topic, Integer qos, String message) {
Boolean retained = false;
try {
mqttAndroidClient.publish(Publish_Topic, message.getBytes(), qos, retained.booleanValue());
} catch (MqttException e) {
e.printStackTrace();
}
}
主函数调用(主要程序)
MyMqtt myMqtt = new MyMqtt();
myMqtt.init(context, MQTTHandler);
button.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
myMqtt.MQTT_Publish("androidTopic2", 0, "按钮点击了");
}
});
效果图

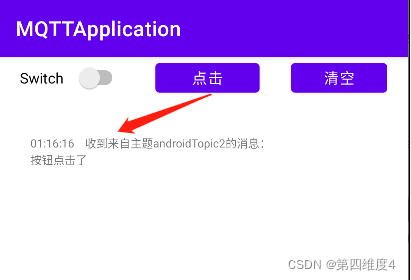

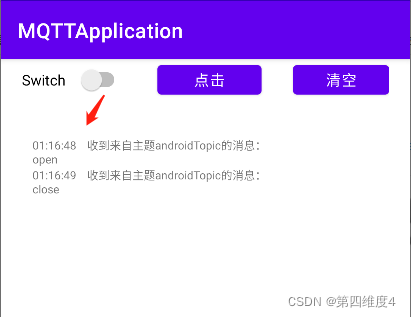

点击按钮 切换开关 接收到该主题下的内容
完整工程代码
https://download.csdn.net/download/qq_46079439/85174550
|
