前言
有几天没更新了,最近一直忙着电赛,学习这个TI处理器芯片,因为我之前并没有接触过。毕竟我学的51单片机和32单片机,感觉这个16位的单片机“食之乏味,弃之可惜”,但是没办法,电赛TI公司赞助的,还是得准备准备哈哈,这里我是用CCS软件来入门的。
一、1.44寸OLED “独白”
其实相对于0.96寸OLED ,该OLED 最明显的特点就是它多出了四个接口(RES、DC、CS、BLK),同时保留了原有的接口(VCC、GND、SCL、SDA),下面讲一下接线问题:
电源接线:
VCC :接 5V? ? ?
GND :接地
液晶屏数据线接线:
CS? :? ? ? 片选信号
SCL(CLK):??? ?SPI 时钟信号引脚
SDA(SDI) :? SPI 总线数据信号引脚
液晶屏控制线接线:
BLK(LED):? ? ? ? 背光控制信号,高电平点亮
DC(RS) :? ? ?? 寄存器/数据选择信号(RS=0 数据总线发送的是指令;RS=1 数据总线 发送的是像素数据)
RES(RST):? ? ? ???液晶屏复位信号,低电平复位

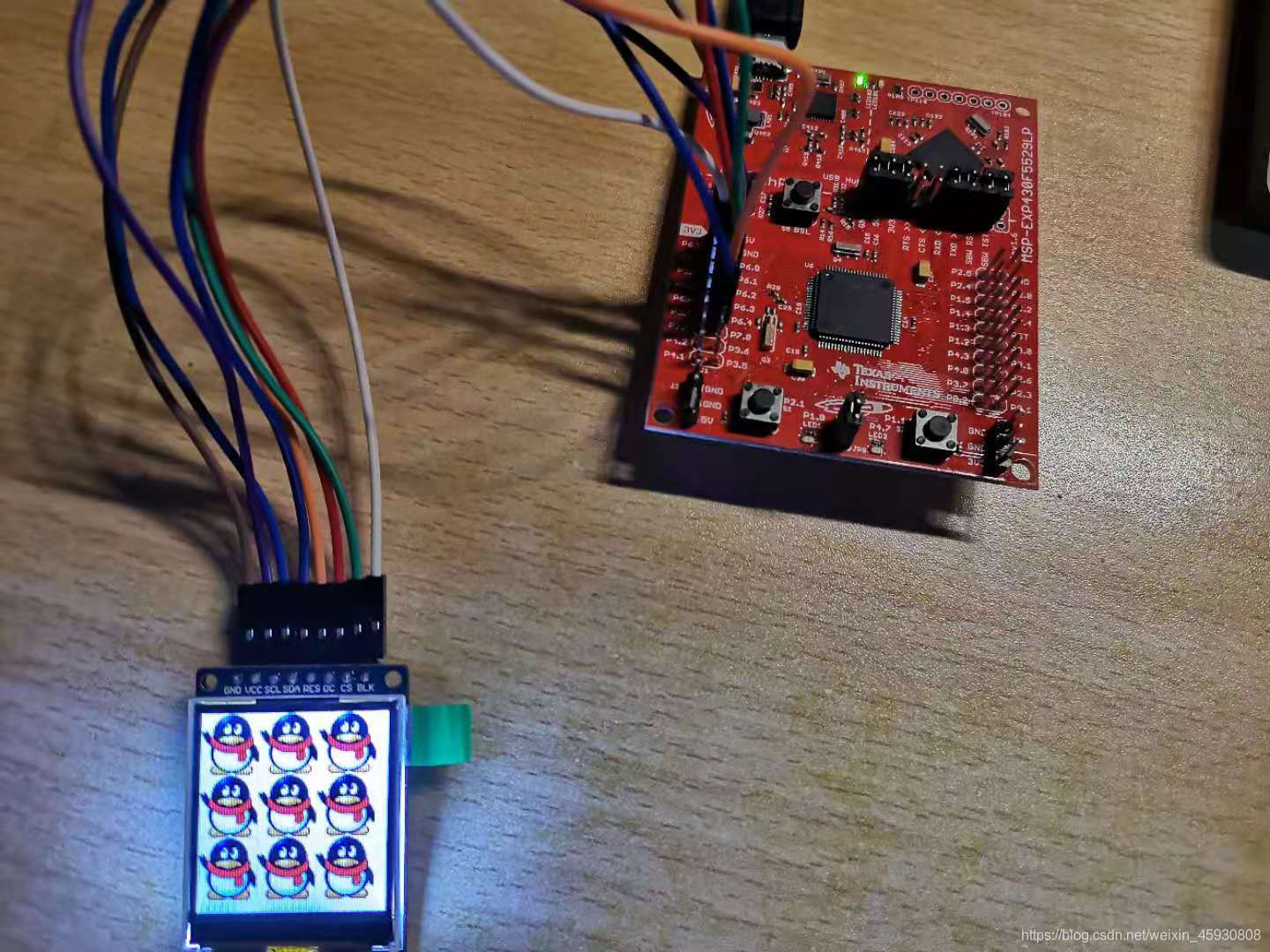

上图利用MSP430F5529实现对1.44寸OLED的驱动+显示(9只小企鹅哈哈)
后面大家可以根据自己喜欢去模后显示出来,附上文字和图片取模软件:
链接:https://pan.baidu.com/s/14uSXRJGgxpHG_FlqXhDNKQ? 提取码:2580
也可以点此链接到浏览器打开:
PCtoLCD2 ()_3 次经济不等|次次要的"无政府"的"无政府之比" (baidu.com)
二、 驱动OLED 主要代码
这里代码确实比较多,我就列举一些,具体会分享出来?
下面讲一下主函数:首选就是原先自带的系统时钟默认就是1MHZ,相比于32F1板的72MHZ和那肯定是不用比了,大家也可以试一下升时钟,直接运行,结果你会发现,运行速度龟速,因此升级时钟频率尤为重要,在升级时钟频率前也要先升压。
#include <msp430.h>
#include "type.h"
#include "timeup.h"
#include "QDTFT_demo.h"
#include "Lcd_Driver.h"
#include "GUI.h"
#include "Picture.h"
void main(void)
{
WDTCTL = WDTPW + WDTHOLD;
upVcc();//核心电压上升
delay_ms(200);
timerup();//配置时钟25MHZ
delay_ms(500);
Lcd_Init();//初始化
LCD_LED_SET;//通过IO控制背光亮
showimage(gImage_qq);//取模图像的代码显示企鹅
while(1)
{
}
}
?下面是关键代码:
#include "msp430.h"
#include "Lcd_Driver.h"
#include "LCD_Config.h"
//液晶IO初始化配置
void LCD_GPIO_Init(void)
{
LCD_SDA;
LCD_RS ;
LCD_CS ;
LCD_RST ;
LCD_SCL ;
LCD_LED ;
}
//向SPI总线传输一个8位数据
void SPI_WriteData(u8 Data)
{
unsigned char i=0;
for(i=8;i>0;i--)
{
if(Data&0x80)
LCD_SDA_SET; //输出数据
else LCD_SDA_CLR;
LCD_SCL_CLR;
LCD_SCL_SET;
Data<<=1;
}
}
//向液晶屏写一个8位指令
void Lcd_WriteIndex(u8 Index)
{
//SPI 写命令时序开始
LCD_CS_CLR;
LCD_RS_CLR;
SPI_WriteData(Index);
LCD_CS_SET;
}
//向液晶屏写一个8位数据
void Lcd_WriteData(u8 Data)
{
LCD_CS_CLR;
LCD_RS_SET;
SPI_WriteData(Data);
LCD_CS_SET;
}
//向液晶屏写一个16位数据
void LCD_WriteData_16Bit(u16 Data)
{
LCD_CS_CLR;
LCD_RS_SET;
SPI_WriteData(Data>>8); //写入高8位数据
SPI_WriteData(Data); //写入低8位数据
LCD_CS_SET;
}
void Lcd_WriteReg(u8 Index,u8 Data)
{
Lcd_WriteIndex(Index);
Lcd_WriteData(Data);
}
void Lcd_Reset(void)
{
LCD_RST_CLR;
delay_ms(100);
LCD_RST_SET;
delay_ms(50);
}
//LCD Init For 1.44Inch LCD Panel with ST7735R.
void Lcd_Init(void)
{
LCD_GPIO_Init();
Lcd_Reset(); //Reset before LCD Init.
//LCD Init For 1.44Inch LCD Panel with ST7735R.
Lcd_WriteIndex(0x11);//Sleep exit
delay_ms (120);
//ST7735R Frame Rate
Lcd_WriteIndex(0xB1);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB2);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB3);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteData(0x01);
Lcd_WriteData(0x2C);
Lcd_WriteData(0x2D);
Lcd_WriteIndex(0xB4); //Column inversion
Lcd_WriteData(0x07);
//ST7735R Power Sequence
Lcd_WriteIndex(0xC0);
Lcd_WriteData(0xA2);
Lcd_WriteData(0x02);
Lcd_WriteData(0x84);
Lcd_WriteIndex(0xC1);
Lcd_WriteData(0xC5);
Lcd_WriteIndex(0xC2);
Lcd_WriteData(0x0A);
Lcd_WriteData(0x00);
Lcd_WriteIndex(0xC3);
Lcd_WriteData(0x8A);
Lcd_WriteData(0x2A);
Lcd_WriteIndex(0xC4);
Lcd_WriteData(0x8A);
Lcd_WriteData(0xEE);
Lcd_WriteIndex(0xC5); //VCOM
Lcd_WriteData(0x0E);
Lcd_WriteIndex(0x36); //MX, MY, RGB mode
Lcd_WriteData(0xC8);
//ST7735R Gamma Sequence
Lcd_WriteIndex(0xe0);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x1a);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x18);
Lcd_WriteData(0x2f);
Lcd_WriteData(0x28);
Lcd_WriteData(0x20);
Lcd_WriteData(0x22);
Lcd_WriteData(0x1f);
Lcd_WriteData(0x1b);
Lcd_WriteData(0x23);
Lcd_WriteData(0x37);
Lcd_WriteData(0x00);
Lcd_WriteData(0x07);
Lcd_WriteData(0x02);
Lcd_WriteData(0x10);
Lcd_WriteIndex(0xe1);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x1b);
Lcd_WriteData(0x0f);
Lcd_WriteData(0x17);
Lcd_WriteData(0x33);
Lcd_WriteData(0x2c);
Lcd_WriteData(0x29);
Lcd_WriteData(0x2e);
Lcd_WriteData(0x30);
Lcd_WriteData(0x30);
Lcd_WriteData(0x39);
Lcd_WriteData(0x3f);
Lcd_WriteData(0x00);
Lcd_WriteData(0x07);
Lcd_WriteData(0x03);
Lcd_WriteData(0x10);
Lcd_WriteIndex(0x2a);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x7f);
Lcd_WriteIndex(0x2b);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x00);
Lcd_WriteData(0x9f);
Lcd_WriteIndex(0xF0); //Enable test command
Lcd_WriteData(0x01);
Lcd_WriteIndex(0xF6); //Disable ram power save mode
Lcd_WriteData(0x00);
Lcd_WriteIndex(0x3A); //65k mode
Lcd_WriteData(0x05);
Lcd_WriteIndex(0x29);//Display on
}
/*************************************************
函数名:LCD_Set_Region
功能:设置lcd显示区域,在此区域写点数据自动换行
入口参数:xy起点和终点
返回值:无
*************************************************/
void Lcd_SetRegion(u16 x_start,u16 y_start,u16 x_end,u16 y_end)
{
Lcd_WriteIndex(0x2a);
Lcd_WriteData(0x00);
Lcd_WriteData(x_start+2);
Lcd_WriteData(0x00);
Lcd_WriteData(x_end+2);
Lcd_WriteIndex(0x2b);
Lcd_WriteData(0x00);
Lcd_WriteData(y_start+3);
Lcd_WriteData(0x00);
Lcd_WriteData(y_end+3);
Lcd_WriteIndex(0x2c);
}
/*************************************************
函数名:LCD_Set_XY
功能:设置lcd显示起始点
入口参数:xy坐标
返回值:无
*************************************************/
void Lcd_SetXY(u16 x,u16 y)
{
Lcd_SetRegion(x,y,x,y);
}
/*************************************************
函数名:LCD_DrawPoint
功能:画一个点
入口参数:无
返回值:无
*************************************************/
void Gui_DrawPoint(u16 x,u16 y,u16 Data)
{
Lcd_SetRegion(x,y,x+1,y+1);
LCD_WriteData_16Bit(Data);
}
/*****************************************
函数功能:读TFT某一点的颜色
出口参数:color 点颜色值
******************************************/
unsigned int Lcd_ReadPoint(u16 x,u16 y)
{
unsigned int Data;
Lcd_SetXY(x,y);
//Lcd_ReadData();//丢掉无用字节
//Data=Lcd_ReadData();
Lcd_WriteData(Data);
return Data;
}
/*************************************************
函数名:Lcd_Clear
功能:全屏清屏函数
入口参数:填充颜色COLOR
返回值:无
*************************************************/
void Lcd_Clear(u16 Color)
{
unsigned int i,m;
Lcd_SetRegion(0,0,X_MAX_PIXEL-1,Y_MAX_PIXEL-1);
Lcd_WriteIndex(0x2C);
for(i=0;i<X_MAX_PIXEL;i++)
for(m=0;m<Y_MAX_PIXEL;m++)
{
LCD_WriteData_16Bit(Color);
}
}
附上其头文件:
#include "type.h"
#define CPU_F ((double)1000000)
#define delay_us(x) __delay_cycles((long)(CPU_F*(double)x/1000000.0))
#define delay_ms(x) __delay_cycles((long)(CPU_F*(double)x/1000.0))
#define RED 0xf800
#define GREEN 0x07e0
#define BLUE 0x001f
#define WHITE 0xffff
#define BLACK 0x0000
#define YELLOW 0xFFE0
#define GRAY0 0xEF7D //灰色0 3165 00110 001011 00101
#define GRAY1 0x8410 //灰色1 00000 000000 00000
#define GRAY2 0x4208 //灰色2 1111111111011111
#define LCD_SDA P6DIR |= BIT0
#define LCD_RS P6DIR |= BIT1
#define LCD_CS P6DIR |= BIT2
#define LCD_RST P6DIR |= BIT3
#define LCD_SCL P6DIR |= BIT4
#define LCD_LED P6DIR |= BIT5
//液晶控制口置1操作语句宏定义
#define LCD_CS_SET P6OUT |= BIT2
#define LCD_RS_SET P6OUT |= BIT1
#define LCD_SDA_SET P6OUT |= BIT0
#define LCD_SCL_SET P6OUT |= BIT4
#define LCD_RST_SET P6OUT |= BIT3
#define LCD_LED_SET P6OUT |= BIT5
//液晶控制口置0操作语句宏定义
#define LCD_CS_CLR P6OUT &=~ BIT2
#define LCD_RS_CLR P6OUT &=~ BIT1
#define LCD_SDA_CLR P6OUT &=~ BIT0
#define LCD_SCL_CLR P6OUT &=~ BIT4
#define LCD_RST_CLR P6OUT &=~ BIT3
#define LCD_LED_CLR P6OUT &=~ BIT5
void LCD_GPIO_Init(void);
void Lcd_WriteIndex(u8 Index);
void Lcd_WriteData(u8 Data);
void Lcd_WriteReg(u8 Index,u8 Data);
u16 Lcd_ReadReg(u8 LCD_Reg);
void Lcd_Reset(void);
void Lcd_Init(void);
void Lcd_Clear(u16 Color);
void Lcd_SetXY(u16 x,u16 y);
void Gui_DrawPoint(u16 x,u16 y,u16 Data);
unsigned int Lcd_ReadPoint(u16 x,u16 y);
void Lcd_SetRegion(u16 x_start,u16 y_start,u16 x_end,u16 y_end);
void LCD_WriteData_16Bit(u16 Data);
具体接线在上面头文件已经声明了,这个代码大家简单修改就可以直接上手了
代码确实会比较多,因此我就不再一一列举
这个代码也是在STM32基础上改造出来的,32的代码有时间再写一份,其实原理都是差不多的。
?大家也可以根据自己实际情况再加以修改。
?三、取模使用与总结
开门见山:
?

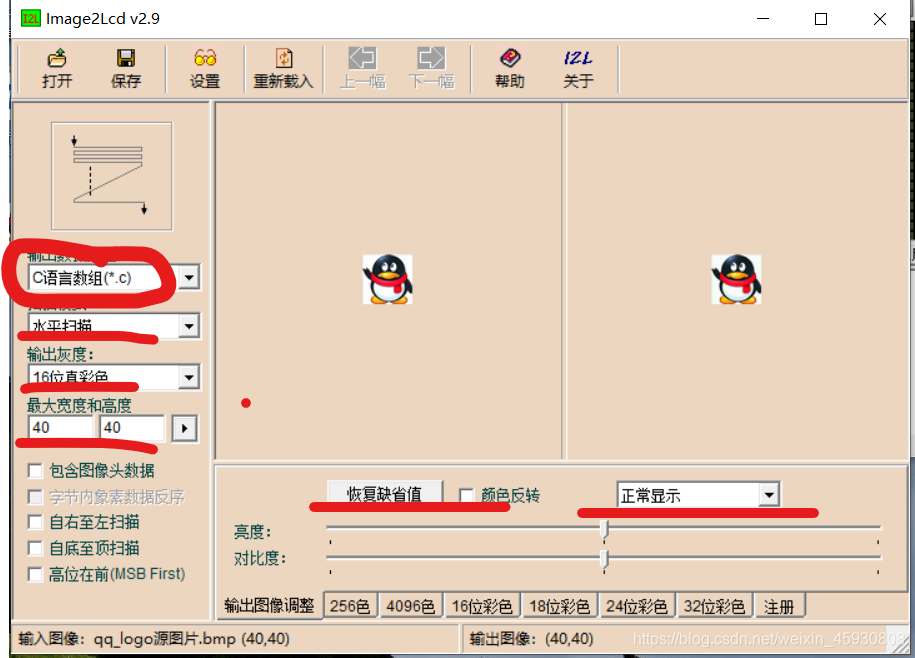

?取好这些选项,就可以开始取模了,其他的哪里不明白欢迎随时评论,一起探讨交流!
觉得有用的话点个赞再走呗!
四、代码链接
链接:https://pan.baidu.com/s/1qhu37QGhI8jmy8sGuwZn_g? 提取码:2580
