[嵌入式]STM32F0 系列IAP升级笔记

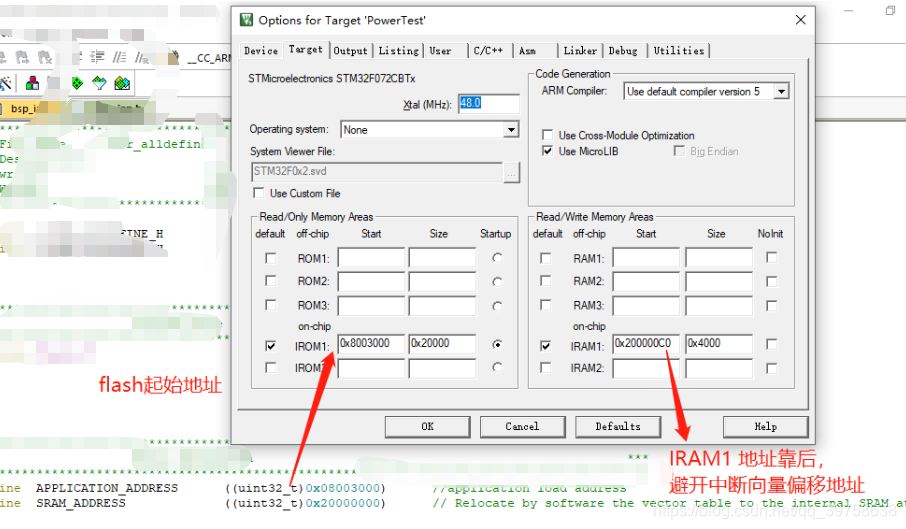

注意：F0系列在app工程中需要添加中断偏移函数，在MDK中要修改偏移地址，IROM1和IRAM1;

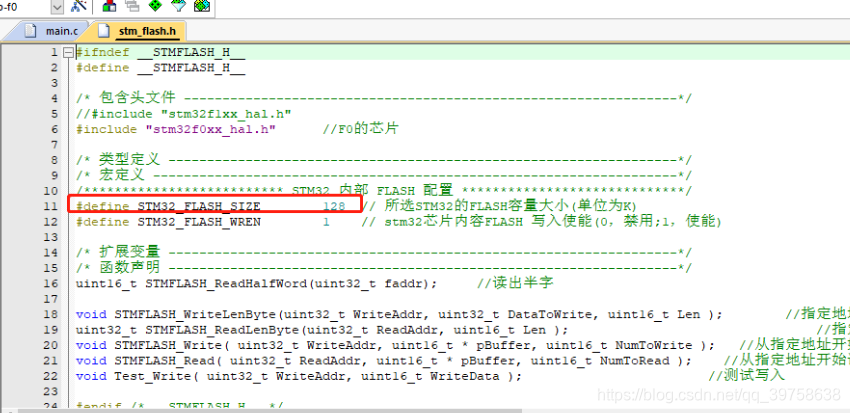

具体移植文件请参考我之前发布的iap教程，此处只做区分笔记；

1、IAP程序：

?

2、app程序

#define  APPLICATION_ADDRESS			((uint32_t)0x08003000)			//application load address
#define  SRAM_ADDRESS							((uint32_t)0x20000000)			// Relocate by software the vector table to the internal SRAM at 0x20000000

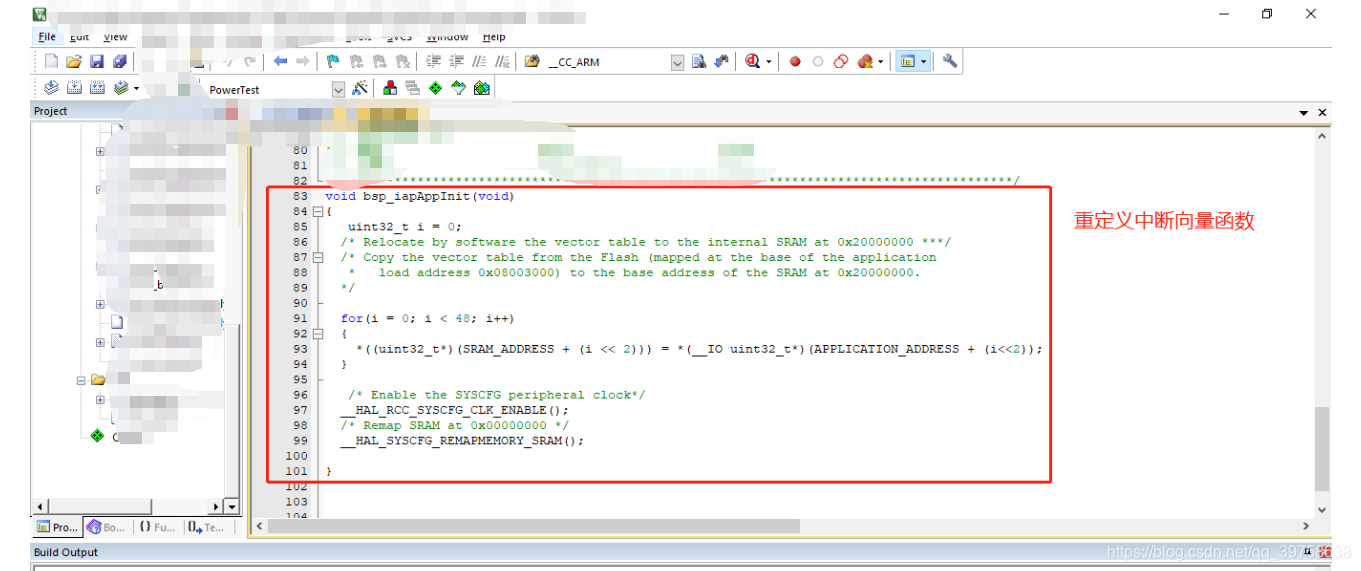

void bsp_iapAppInit(void)
{
   uint32_t i = 0;
	/* Relocate by software the vector table to the internal SRAM at 0x20000000 ***/
  /* Copy the vector table from the Flash (mapped at the base of the application
   *   load address 0x08003000) to the base address of the SRAM at 0x20000000.
	*/

	for(i = 0; i < 48; i++)
  {
    *((uint32_t*)(SRAM_ADDRESS + (i << 2))) = *(__IO uint32_t*)(APPLICATION_ADDRESS + (i<<2));
	}

   /* Enable the SYSCFG peripheral clock*/
  __HAL_RCC_SYSCFG_CLK_ENABLE();
  /* Remap SRAM at 0x00000000 */
  __HAL_SYSCFG_REMAPMEMORY_SRAM();

}

?

?

?

bin文件生成：

E:\XXXXXXX\Keil_v5\ARM\ARMCC\bin\fromelf.exe --bin -o $L@P.bin #L
