[嵌入式]2. stm32h7 移植RL-USB（AC6）MSC模式基于CUBEMX

本文参考了安富莱论坛的相关教程：
RL-USB教程开工制作，各种常用USB通信协议和上位机案例统统整出来，更新至第9章（2020-11-16）

需要先完成 RTX5 的移植工作：
1. stm32h7 移植RTX5（AC6）基于CUBEMX

一. cubemx 准备工作:

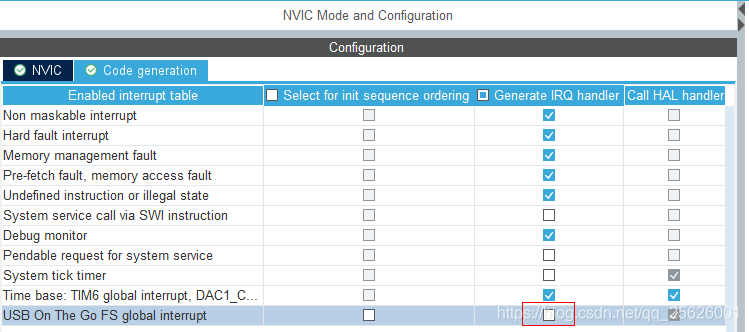

1.打开 cubemx 初始化 usbfs，打开中断，并设置USB时钟为48M: 在这里插入图片描述

在这里插入图片描述
生成代码。
二.MDK设置：
1.打开 KEIL 工程，配置 RL-USB 组件：

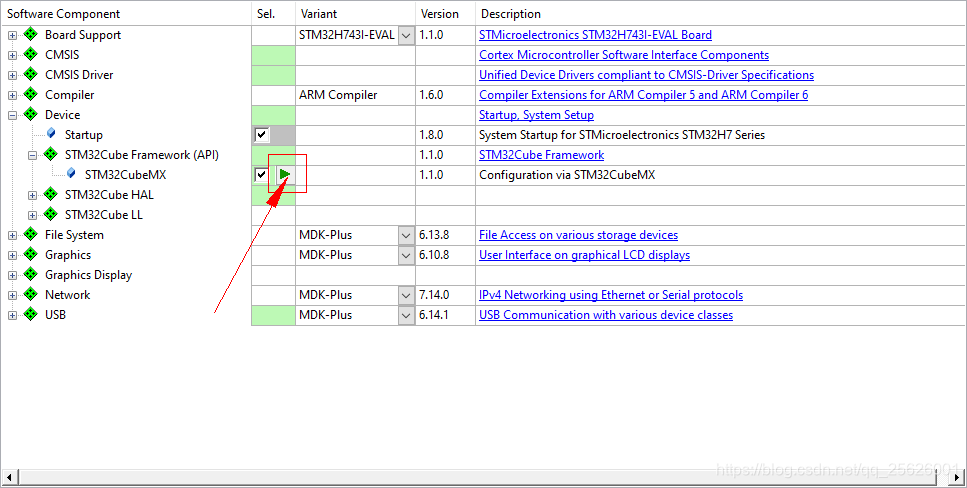

2.启动一次 CUBEMX API:

3.在 CUBEMX API 中，打开USBFS，不用初始化USB的时钟，直接生成代码，然后关闭 CUBEMX API。

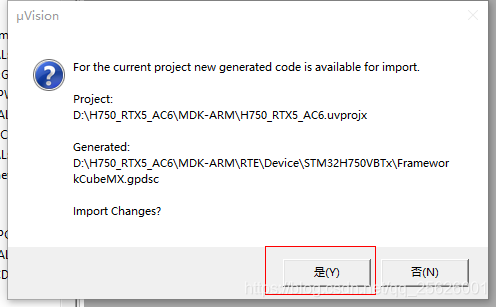

4.回到KEIL，点击更新代码。

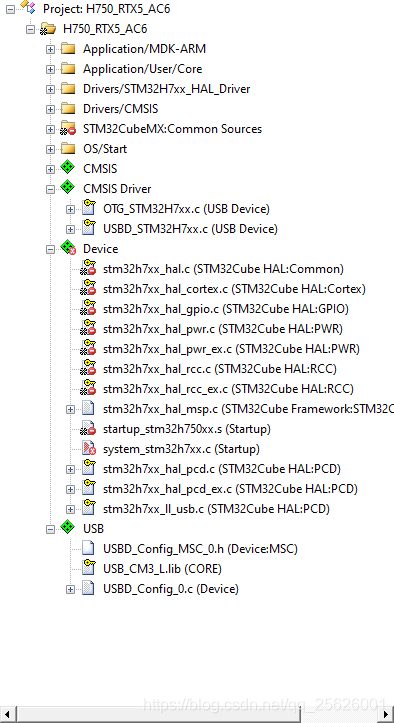

在这里插入图片描述
当前工程文件如下：

5.屏蔽并添加文件。
5.1屏蔽 CMSIS Driver 中的全部文件。

5.2在 C:\Users\用户名\AppData\Local\Arm\Packs\Keil\STM32H7xx_DFP\2.7.0\CMSIS\Driver 中找到下列文件：

复制到工程下RL-USB文件夹中：
在这里插入图片描述

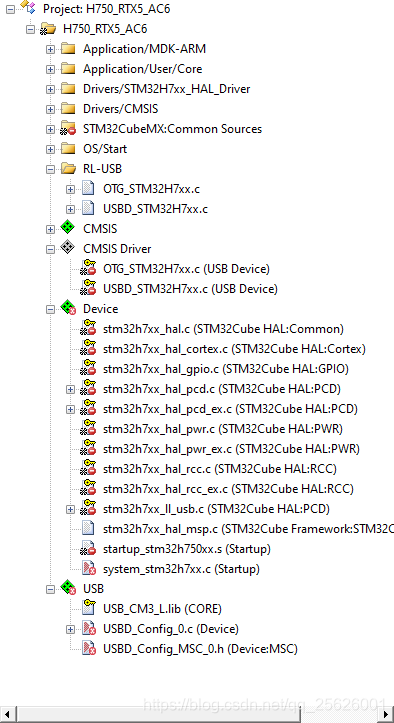

将下列文件添加至工程中，
在这里插入图片描述

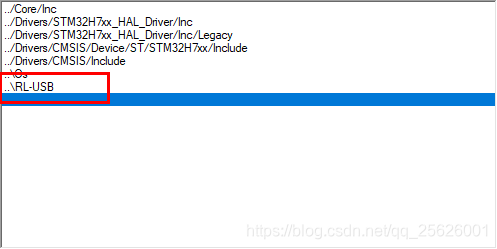

做好头文件引用目录：

修改 USBD_STM32H7xx.c ，将 #include “stm32h7xx.h” 提前:
在这里插入图片描述
5.3屏蔽 Driver 中的文件。

屏蔽结果如下：

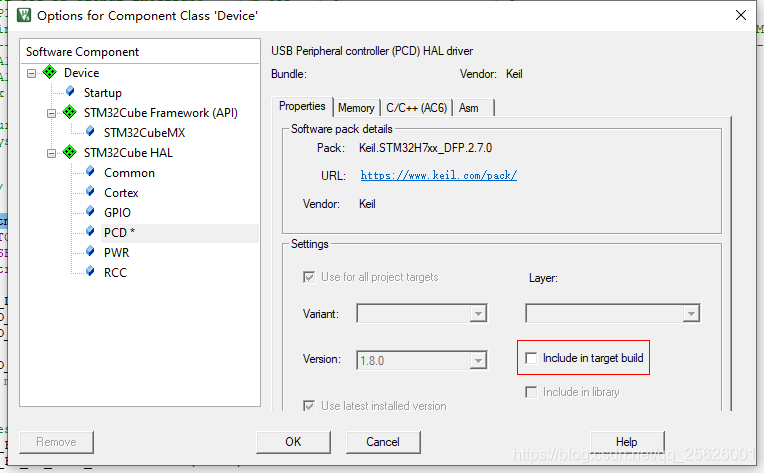

5.4 在 stm32h7xx_hal_msp.c 中添加条件编译来屏蔽文件：

5.5 复制 C:\Users\用户名\AppData\Local\Arm\Packs\ARM\CMSIS\5.8.0\CMSIS\Driver 下列文件的 Include 目录到工程目录下的 CMSIS_Driver_Include文件夹：
在这里插入图片描述
并添加头文件引用目录：

5.6 此时的工程文件如下：

5.7 编译工程，完成移植。

三. 功能测试：
使用内存模拟U盘，并写入一个TXT文件。
1.添加 USBD_User_MSC.c 文件

/*------------------------------------------------------------------------------
 * MDK Middleware - Component ::USB:Device:MSC
 * Copyright (c) 2004-2020 Arm Limited (or its affiliates). All rights reserved.
 *------------------------------------------------------------------------------
 * Name:    USBD_User_MSC_0.c
 * Purpose: USB Device Mass Storage Device class (MSC) User module
 * Rev.:    V6.3.4
 *----------------------------------------------------------------------------*/
/**
 * \addtogroup usbd_mscFunctions
 *
 */


//! [code_USBD_User_MSC]

#include <stdint.h>
#include <stdbool.h>
#include <string.h>
#include "rl_usb.h"

// If the USE_FILE_SYSTEM value is 1 then File System is used and media can
// be accessed from application code or can be accessed by USB Mass Storage
// requests, default media in that case is one selected as default in File
// System Configuration file.
// If the USE_FILE_SYSTEM value is 0 then File System is not used and media
// can only be accessed by USB Mass Storage requests, default media in that
// case is RAM memory containing dummy disk image.
#define USE_FILE_SYSTEM   0             // 1 = File System is used, 0 = File System is not used

// Definition MEDIA_DRIVE is used to define Drive to be used for media
// Available options are:
//   "R:" or "R0:" if media is RAM
//   "M:" or "M0:" if media is Memory Card 0
//           "M1:" if media is Memory Card 1
//   "N:" or "N0:" if media is NAND Flash 0
//           "N1:" if media is NAND Flash 1
#define MEDIA_DRIVE     "M0:"


#if (USE_FILE_SYSTEM == 1)              // If File System is used
#include "rl_fs.h"
#define  MEDIA_OWN_USB     (1U     )    // Media owned by USB (bit mask)
#define  MEDIA_OWN_CHG     (1U << 1)    // Media ownership change requested (bit mask)
extern
volatile uint8_t  usbd_msc0_media_own;
volatile uint8_t  usbd_msc0_media_own;  // USB MSC0 media ownership
static   int32_t  drv_id;               // FAT drive id
static   bool     media_ok;             // Media is initialized and ok
#else
static   uint32_t memory   [8192/4];    // Memory in RAM for dummy disk image
static   uint32_t block_buf[ 512/4];    // Buffer for block read/write to media
extern
const    uint8_t  memory_disk_image[4096];  // Dummy Memory Disk Image
#endif


// Called during USBD_Initialize to initialize the USB MSC class instance.
void USBD_MSC0_Initialize (void) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
  uint32_t param_status;

  usbd_msc0_media_own = MEDIA_OWN_USB;  // Initially media is owned by USB
  media_ok            = false;          // Current media status (not initialized = not ok)

  if (finit (MEDIA_DRIVE) != fsOK) {    // Initialize File System
    return;                             // Exit if failed
  }

  drv_id = fs_ioc_get_id (MEDIA_DRIVE); // Get ID of media drive
  if (drv_id < 0)           { return; } // If ID is invalid exit

  param_status = 0U;                    // Parameter for function call is 0
                                        // Initialize media
  if (fs_ioc_device_ctrl (drv_id, fsDevCtrlCodeControlMedia, &param_status) != fsOK) {
    return;                             // Exit if failed
  }

  if (fs_ioc_lock (drv_id)) {           // Lock media for USB usage
    return;                             // Exit if failed
  }

  media_ok = true;                      // Media was initialized and is ok
#else
                                        // Copy the dummy image from code to RAM
  memcpy (memory, memory_disk_image, sizeof(memory_disk_image));
#endif
}


// \brief Called during USBD_Uninitialize to de-initialize the USB MSC class instance.
void USBD_MSC0_Uninitialize (void) {
  // Add code for de-initialization
}


// Get cache information.
// \param[out]    buffer               cache buffer address.
// \param[out]    size                 cache buffer size.
// \return        true                 operation succeeded.
// \return        false                operation failed.
bool USBD_MSC0_GetCacheInfo (uint32_t *buffer, uint32_t *size) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
  fsIOC_Cache cache_info;

  // Get cache settings of File System
  if (fs_ioc_get_cache(drv_id, &cache_info) != fsOK) {
    return false;                       // Exit if failed
  }

  // Use File Systems cache for MSC
  *buffer = (uint32_t)cache_info.buffer;// Cache buffer from File System
  *size   = cache_info.size;            // Cache size
#else
  *buffer = (uint32_t)block_buf;        // Local buffer for data
  *size   = sizeof(block_buf);          // Size of local buffer
#endif

  return true;
}


// Get media capacity.
// \param[out]    block_count          total number of blocks on media.
// \param[out]    block_size           media block size.
// \return        true                 operation succeeded.
// \return        false                operation failed.
bool USBD_MSC0_GetMediaCapacity (uint32_t *block_count, uint32_t *block_size) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
  fsMediaInfo media_info;

  // Read media information of actual media
  if (fs_ioc_read_info(drv_id, &media_info) != fsOK) {
    return false;                       // Exit if failed
  }

  *block_count = media_info.block_cnt;  // Total number of blocks on media
  *block_size  = media_info.read_blen;  // Block size of blocks on media
#else
  *block_count = sizeof(memory)/512U;   // Total number of blocks on media
  *block_size  = 512U;                  // Block size of blocks on media
#endif

  return true;
}


// Read data from media.
// \param[in]     lba                  logical address of first block to read.
// \param[in]     cnt                  number of contiguous blocks to read from media.
// \param[out]    buf                  data buffer for data read from media.
// \return        true                 read succeeded.
// \return        false                read failed.
bool USBD_MSC0_Read (uint32_t lba, uint32_t cnt, uint8_t *buf) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
                                        // Read data directly from media
  if (fs_ioc_read_sector (drv_id, lba, buf, cnt) != fsOK) {
    return false;
  }
#else
                                        // Read data from dummy image in RAM
  memcpy (buf, &memory[lba * (512U/4U)], cnt * 512U);
#endif

  return true;
}


// Write data to media.
// \param[in]     lba                  logical address of first block to write.
// \param[in]     cnt                  number of contiguous blocks to write to media.
// \param[out]    buf                  data buffer containing data to write to media.
// \return        true                 write succeeded.
// \return        false                write failed.
bool USBD_MSC0_Write (uint32_t lba, uint32_t cnt, const uint8_t *buf) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
                                        // Write data directly to media
  if (fs_ioc_write_sector (drv_id, lba, buf, cnt) != fsOK) {
    return false;
  }
#else
                                        // Write data to image in RAM
  memcpy (&memory[lba * (512U/4U)], buf, cnt * 512U);
#endif

  return true;
}


// Check media presence and write protect status.
//        (if media is not owned by USB it returns that media is not ready)
// \return                             media presence and write protected status
//                bit 1:               write protect bit
//                 - value 1:            media is write protected
//                 - value 0:            media is not write protected
//                bit 0:               media presence bit
//                 - value 1:            media is present
//                 - value 0:            media is not present
uint32_t USBD_MSC0_CheckMedia (void) {

#if (USE_FILE_SYSTEM == 1)              // If File System is used
       uint32_t param_status;
       uint8_t  media_state;            // Bit 0. media ready, Bit 1. media write protect
static uint8_t  media_ready_ex = 0U;    // Previous media ready state
       uint8_t  own;

  // Get current media status
  media_state = 0U;
  switch (fs_ioc_device_ctrl (drv_id, fsDevCtrlCodeCheckMedia, &param_status)) {
    case fsOK:
      if (param_status & FS_MEDIA_NOCHKMEDIA) {
        // If check media not available on hardware layer
        media_state  =  USBD_MSC_MEDIA_READY;
        break;
      }
      if (param_status & FS_MEDIA_INSERTED) {
        media_state  =  USBD_MSC_MEDIA_READY;
      }
      if (param_status & FS_MEDIA_PROTECTED) {
        media_state |=  USBD_MSC_MEDIA_PROTECTED;
      }
      break;
    case fsError:
    case fsUnsupported:
    case fsAccessDenied:
    case fsInvalidParameter:
    case fsInvalidDrive:
    case fsInvalidPath:
    case fsUninitializedDrive:
    case fsDriverError:
    case fsMediaError:
    case fsNoMedia:
    case fsNoFileSystem:
    case fsNoFreeSpace:
    case fsFileNotFound:
    case fsDirNotEmpty:
    case fsTooManyOpenFiles:
    case fsAlreadyExists:
    case fsNotDirectory:
      break;
  }

  // Store current owner so no new request can interfere
  own = usbd_msc0_media_own;

  // De-initialize media according to previous owner
  if (own & MEDIA_OWN_CHG) {                    // If owner change requested
    if (own & MEDIA_OWN_USB) {                  // If new requested owner is USB (previous owner was File System)
      (void)funmount (MEDIA_DRIVE);             // De-initialize media and dismount Drive
    } else {                                    // If new requested owner is File System (previous owner was USB)
      (void)fs_ioc_unlock (drv_id);             // Un-lock media
    }
  }

  // Initialize media according to current owner
  if ((own & MEDIA_OWN_CHG)        ||           // If owner change requested or
      (media_state ^ media_ready_ex)) {         // if media ready state has changed (disconnect(SD remove)/connect(SD insert))
    if (media_state & USBD_MSC_MEDIA_READY) {   // If media is ready
      if (own & MEDIA_OWN_USB){                 // If current owner is USB
        media_ok     = false;                   // Invalidate current media status (not initialized = not ok)
        param_status = 0U;                      // Parameter for function call is 0
        if (fs_ioc_device_ctrl (drv_id, fsDevCtrlCodeControlMedia, &param_status) == fsOK) {
                                                // Initialization of media has succeeded
          if (fs_ioc_lock (drv_id) == fsOK) {   // If lock media for USB usage has succeeded
            media_ok = true;                    // Media was initialized and is ok
          }
        }
      } else {                                  // If current owner is File System
        if (fmount (MEDIA_DRIVE) == fsOK) {     // Initialize media and Mount Drive for File System usage
          media_ok = true;                      // Media was initialized and is ok
        }
      }
    }
    if (own & MEDIA_OWN_CHG) {
      usbd_msc0_media_own &= ~MEDIA_OWN_CHG;    // Clear request to change media owner if it was handled
    }
    media_ready_ex = media_state & USBD_MSC_MEDIA_READY;
  }

  // If media is not ok or owned by File System return that it is not ready for USB
  if ((!media_ok) || (!(usbd_msc0_media_own & MEDIA_OWN_USB))) {
    return 0U;
  }

  return media_state;
#else
  return USBD_MSC_MEDIA_READY;
#endif
}
//! [code_USBD_User_MSC]

添加 MemoryDiskImage.c 文件

/*------------------------------------------------------------------------------
 * MDK Middleware - Component ::USB:Device
 * Copyright (c) 2004-2019 Arm Limited (or its affiliates). All rights reserved.
 *------------------------------------------------------------------------------
 * Name:    MemoryDiskImage.c
 * Purpose: Memory disk image file
 *----------------------------------------------------------------------------*/

extern
const unsigned char memory_disk_image[0x1000];
const unsigned char memory_disk_image[0x1000] = {
0xEB,0x3C,0x90,0x4D,0x53,0x44,0x4F,0x53,0x35,0x2E,0x30,0x00,0x02,0x01,0x01,0x00,
0x01,0x10,0x00,0x40,0x00,0xF8,0x02,0x00,0x01,0x00,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x29,0x74,0x19,0x02,0x27, 'S', 'T', 'M', '3', '2',
 ' ', 'U', 'S', 'B', ' ', ' ',0x46,0x41,0x54,0x31,0x32,0x20,0x20,0x20,0x33,0xC9,
0x8E,0xD1,0xBC,0xF0,0x7B,0x8E,0xD9,0xB8,0x00,0x20,0x8E,0xC0,0xFC,0xBD,0x00,0x7C,
0x38,0x4E,0x24,0x7D,0x24,0x8B,0xC1,0x99,0xE8,0x3C,0x01,0x72,0x1C,0x83,0xEB,0x3A,
0x66,0xA1,0x1C,0x7C,0x26,0x66,0x3B,0x07,0x26,0x8A,0x57,0xFC,0x75,0x06,0x80,0xCA,
0x02,0x88,0x56,0x02,0x80,0xC3,0x10,0x73,0xEB,0x33,0xC9,0x8A,0x46,0x10,0x98,0xF7,
0x66,0x16,0x03,0x46,0x1C,0x13,0x56,0x1E,0x03,0x46,0x0E,0x13,0xD1,0x8B,0x76,0x11,
0x60,0x89,0x46,0xFC,0x89,0x56,0xFE,0xB8,0x20,0x00,0xF7,0xE6,0x8B,0x5E,0x0B,0x03,
0xC3,0x48,0xF7,0xF3,0x01,0x46,0xFC,0x11,0x4E,0xFE,0x61,0xBF,0x00,0x00,0xE8,0xE6,
0x00,0x72,0x39,0x26,0x38,0x2D,0x74,0x17,0x60,0xB1,0x0B,0xBE,0xA1,0x7D,0xF3,0xA6,
0x61,0x74,0x32,0x4E,0x74,0x09,0x83,0xC7,0x20,0x3B,0xFB,0x72,0xE6,0xEB,0xDC,0xA0,
0xFB,0x7D,0xB4,0x7D,0x8B,0xF0,0xAC,0x98,0x40,0x74,0x0C,0x48,0x74,0x13,0xB4,0x0E,
0xBB,0x07,0x00,0xCD,0x10,0xEB,0xEF,0xA0,0xFD,0x7D,0xEB,0xE6,0xA0,0xFC,0x7D,0xEB,
0xE1,0xCD,0x16,0xCD,0x19,0x26,0x8B,0x55,0x1A,0x52,0xB0,0x01,0xBB,0x00,0x00,0xE8,
0x3B,0x00,0x72,0xE8,0x5B,0x8A,0x56,0x24,0xBE,0x0B,0x7C,0x8B,0xFC,0xC7,0x46,0xF0,
0x3D,0x7D,0xC7,0x46,0xF4,0x29,0x7D,0x8C,0xD9,0x89,0x4E,0xF2,0x89,0x4E,0xF6,0xC6,
0x06,0x96,0x7D,0xCB,0xEA,0x03,0x00,0x00,0x20,0x0F,0xB6,0xC8,0x66,0x8B,0x46,0xF8,
0x66,0x03,0x46,0x1C,0x66,0x8B,0xD0,0x66,0xC1,0xEA,0x10,0xEB,0x5E,0x0F,0xB6,0xC8,
0x4A,0x4A,0x8A,0x46,0x0D,0x32,0xE4,0xF7,0xE2,0x03,0x46,0xFC,0x13,0x56,0xFE,0xEB,
0x4A,0x52,0x50,0x06,0x53,0x6A,0x01,0x6A,0x10,0x91,0x8B,0x46,0x18,0x96,0x92,0x33,
0xD2,0xF7,0xF6,0x91,0xF7,0xF6,0x42,0x87,0xCA,0xF7,0x76,0x1A,0x8A,0xF2,0x8A,0xE8,
0xC0,0xCC,0x02,0x0A,0xCC,0xB8,0x01,0x02,0x80,0x7E,0x02,0x0E,0x75,0x04,0xB4,0x42,
0x8B,0xF4,0x8A,0x56,0x24,0xCD,0x13,0x61,0x61,0x72,0x0B,0x40,0x75,0x01,0x42,0x03,
0x5E,0x0B,0x49,0x75,0x06,0xF8,0xC3,0x41,0xBB,0x00,0x00,0x60,0x66,0x6A,0x00,0xEB,
0xB0,0x4E,0x54,0x4C,0x44,0x52,0x20,0x20,0x20,0x20,0x20,0x20,0x0D,0x0A,0x52,0x65,
0x6D,0x6F,0x76,0x65,0x20,0x64,0x69,0x73,0x6B,0x73,0x20,0x6F,0x72,0x20,0x6F,0x74,
0x68,0x65,0x72,0x20,0x6D,0x65,0x64,0x69,0x61,0x2E,0xFF,0x0D,0x0A,0x44,0x69,0x73,
0x6B,0x20,0x65,0x72,0x72,0x6F,0x72,0xFF,0x0D,0x0A,0x50,0x72,0x65,0x73,0x73,0x20,
0x61,0x6E,0x79,0x20,0x6B,0x65,0x79,0x20,0x74,0x6F,0x20,0x72,0x65,0x73,0x74,0x61,
0x72,0x74,0x0D,0x0A,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xAC,0xCB,0xD8,0x55,0xAA,
0xF8,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
 'S', 'T', 'M', '3', '2', ' ', 'U', 'S', 'B', ' ', ' ',0x28,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x52,0x45,0x41,0x44,0x4D,0x45,0x20,0x20,0x54,0x58,0x54,0x21,0x00,0x00,0x00,0x00,
0x21,0x00,0xBB,0x32,0x00,0x00,0xDC,0x83,0xBB,0x32,0x02,0x00,0x5D,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
 'T', 'h', 'i', 's', ' ', 'i', 's', ' ', 'a', ' ', 'U', 'S', 'B', ' ', 'M', 'e',
 'm', 'o', 'r', 'y', ' ', 'D', 'e', 'v', 'i', 'c', 'e', ' ', 'D', 'e', 'm', 'o',
 'n', 's', 't', 'r', 'a', 't', 'i', 'o', 'n', ' ', 'f', 'o', 'r','\r','\n', 't',
 'h', 'e', ' ', 'K', 'e', 'i', 'l', ' ', 'M', 'C', 'B', 'S', 'T', 'M', '3', '2',
 'F', '4', '0', '0', ' ', 'B', 'o', 'a', 'r', 'd', ' ', 'w', 'i', 't', 'h', ' ',
 'S', 'T', ' ', 'S', 'T', 'M', '3', '2', 'F', '4', '0', '7', '.',0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
};

在这里插入图片描述
修改 OS_Start.c

#include "rl_usb.h" //添加

void AppTaskStart(void *argument)
{
	const uint16_t usFrequency = 1;
	uint32_t tick;

	HAL_ResumeTick();
	AppTaskCreate();

	USBD_Initialize(0U); 		//添加
	USBD_Connect (0U); 			//添加

	tick = osKernelGetTickCount();

    while(1)
    {
		tick += usFrequency;
		osDelayUntil(tick);
    }
}
