国民技术MCU全系列可与STM32、兆易GD32 兼容 硬件PinToPin
国民技术通用MCU与国产同类产品相比的优势
- 台积电40纳米工艺，功耗低功能强
- 国民技术多年安全领域积累自带安全IP，安全性高
- 与台积电签订多份采购订单，供货较为稳定
国民技术MCU表示Pin数与flash容量的字母后缀与ST、GD对应含义相同

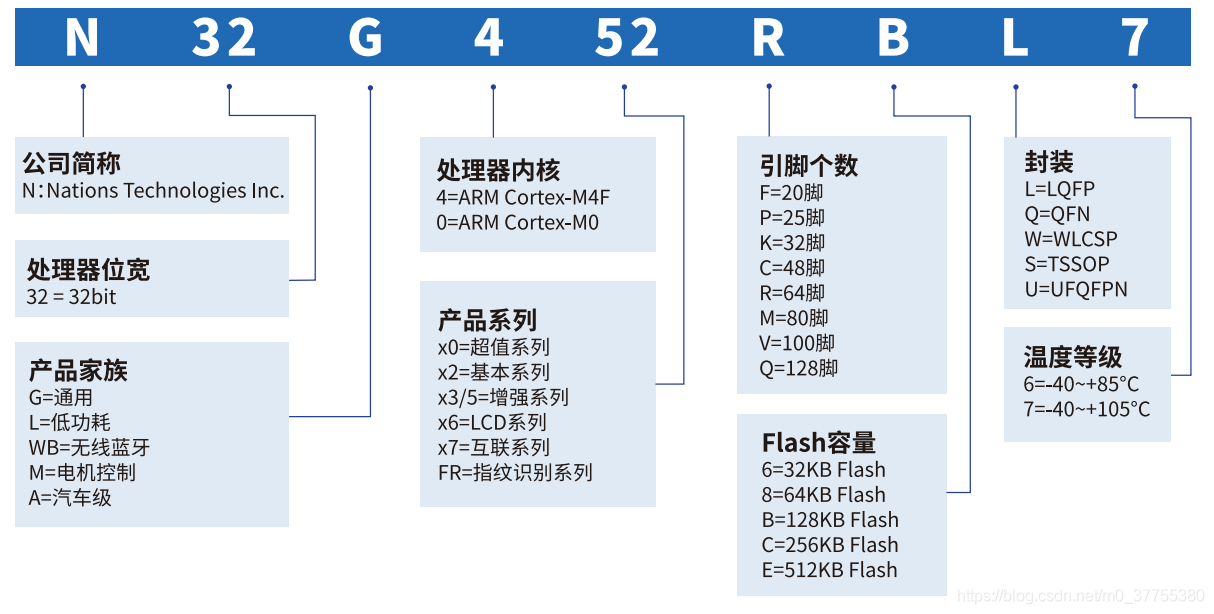

国民技术MCU命名规则

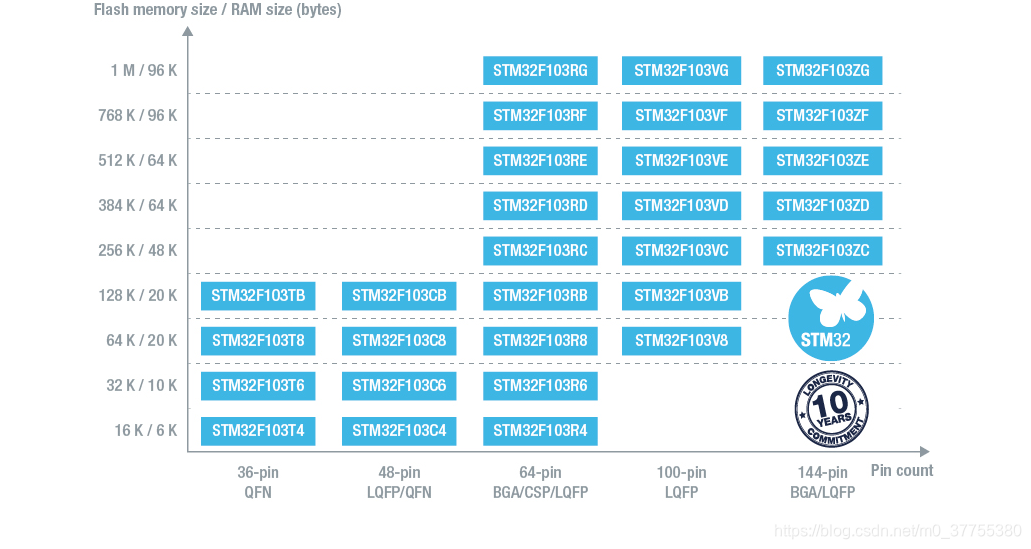

STM32F1系列命名举例
国民N32G45x 系列——高性能、丰富的模拟、连接性MCU
ARM Cortex-M4 + FPU based 32-bit MCU up to 144MHz，128/256/512KB Flash，80/144KB SRAM，USB, SDIO、Ethernet, 2xCANs, 2xDACs ,up to 4xADCs、4xOPAMPs、7xCOMPs、15 communication interfaces, Security
国民技术MCU兼容举例
N32G452CBL7 48Pin 128KB Flash 兼容
STM32F101CBT6
STM32F103CBT6
GD32F101CBT6
GD32F103CBT6
GD32F330CBT6
N32G452RBL7 64Pin 128KB Flash 兼容
STM32F101RBT6
STM32F103RBT6
STM32F105RBT6
STM32F205RBT6
STM32F401RBT6
STM32F410RBT6
GD32F101RBT6
GD32F103RBT6
GD32F105RBT6
GD32F305RBT6
N32G452RCL7 64Pin 256KB Flash 兼容
STM32F101RCR6
STM32F103RCT6
STM32F105RCT6
STM32F205RCT6
STM32F401RCT6
STM32F411RCT6
STM32F446RCT6
GD32F101RCT6
GD32F103RCT6
GD32F105RCT6
GD32F205RCT6
GD32F303RCT6
GD32F305RCT6
GD32F403RCT6
N32G452REL7 64Pin 512KB Flash 兼容
STM32F101RDT6
STM32F101RET6
ST32F103RDT6
STM32F103RET6
STM32F205RET6
STM32F215RET6
STM32F401RDT6
STM32F401RET6
STM32F411RET6
STM32F446RET6
GD32F101RDT6
GD32F101RET6
GD32F103RDT6
GD32F103RET6
GD32F105RDT6
GD32F105RET6
GD32F205RET6
GD32F303RET6
GD32F305RET6
GD32F403RET6
N32G452VEL7 100Pin 512KB Flash 兼容
STM32F101VDT6
STM32F101VET6
STM32F103VDT6
STM32F103VET6
STM32F205VET6
STM32F215VET6
STM32F401VDT6
STM32F401VET6
STM32F411VET6
STM32F446VET6
GD32F101VDT6
GD32F101VET6
GD32F103VDT6
GD32F103VET6
GD32F105VDT6
GD32F105VET6
GD32F205VET6
GD32F303VET6
GD32F305VET6
GD32F403VET6
N32G455CBL7 48Pin 128KB Flash 兼容
STM32F302CBT6
STM32F303CBT6
STM32F373CBT6
GD32F350CBT6
GD32F350CBT6
N32G455CCL7 48Pin 256KB Flash 兼容
STM32F302CCT6
STM32F303CCT6
STM32F373CCT6
N32G455RCL7 64Pin 256KB Flash 兼容
STM32F302RCT6
STM32F303RCT6
STM32F373RCT6
N32G455REL7 64Pin 512KB Flash 兼容
STM32F302RDT6
STM32F302RET6
STM32F303RDT6
STM32F303RET6
GD32F405RET6
N32G455VEL7 100Pin 512KB Flash 兼容
STM32F302VDT6
STM32F302VET6
STM32F303VDT6
STM32F303VET6
GD32F450VET6
N32G457RCL7 64Pin 256KB Flash 兼容
STM32F107RBT6
STM32F107RCT6
GD32F107RBT6
GD32F107RCT6
GD32F207RCT6
GD32F307RCT6
N32G457VEL7 100Pin 512KB Flash兼容
STM32F207VET6
STM32F217VET6
STM32F407VET6
STM32F417VET6
GD32F107VDT6
GD32F107VET6
GD32F207VET6
GD32F307VET6
GD32F407VET6
国民 N32L40/3x 系列——低功耗 MCU
ARM Cortex-M4F based 32-bit MCU up to 108MHz，64/128KB Flash，16/24/32KB SRAM，USB, CAN, DACs , ADC、LPRCNT、
LCD、24 touchkeys, 2xOPAMPs、2xCOMPs、10 communication interfaces, Security
N32L436R8L7 64Pin 64 KB Flash 兼容
STM32L010R8T6
STM32L051R8T6
STM32L052R8T6
STM32L053R8T6
STM32L063R8T6
STM32L100R8T6-A
STM32L151R8T6-A
STM32L152R8T6-A
N32L406RBL7 64Pin 128KB Flash 兼容
STM32L053R6T6
STM32L053R8T6
STM32L063R8T6
STM32L073RBT6
STM32L083RBT6
无LCD：
STM32L010RBT6
STM32L071RBT6
STM32L072RBT6
STM32L100RBT6-A
STM32L151RBT6-A
STM32L152RBT6-A
国民 N32G43x 系列——通用 MCU
N32G435CBL7 48Pin 256KB Flash 兼容
STM32G071CBT6
STM32G081CBT6
STM32F071CBT6
STM32F072CBT6
STM32F091CBT6
STM32F302CBT6
STM32F303CBT6
STM32F373CBT6
GD32F350CBT6
N32G0 系列——超值系列 MCU
ARM Cortex-M0 based 32-bit MCU up to 80MHz，32/64/128/256KB Flash，8/16/21KB SRAM，CAN, ADC、24 touchkeys, 1xOPAMP、3xCOMPs、9 communication interfaces, Security
N32G030C8L7 48Pin 64KB Flash 兼容
STM32F030C8T6
STM32F031C6T6
