一、 设计要求
?通过对时间定时控制器和温度设定器进行设定，然后当达到时间定时控制器设定的开启值时，离子风机和抽风机启动，然后对设备主体内部进行散热和除尘作用，通过离子风机吹出的离子风可以对内部进行防静电处理，然后通过抽风机使内部的灰尘吸走，当达到设定的关闭值时，离子风机和抽风机关闭。当温度感应器感应到设备主体内部的温度高于设定值时，此时温度设定器会控制风机进行启动，对内部进行散热处理，低于设定值时停止。（设定的时间间隔,温度阈值，当前温度由OLED显示，LED表示工作状态。）

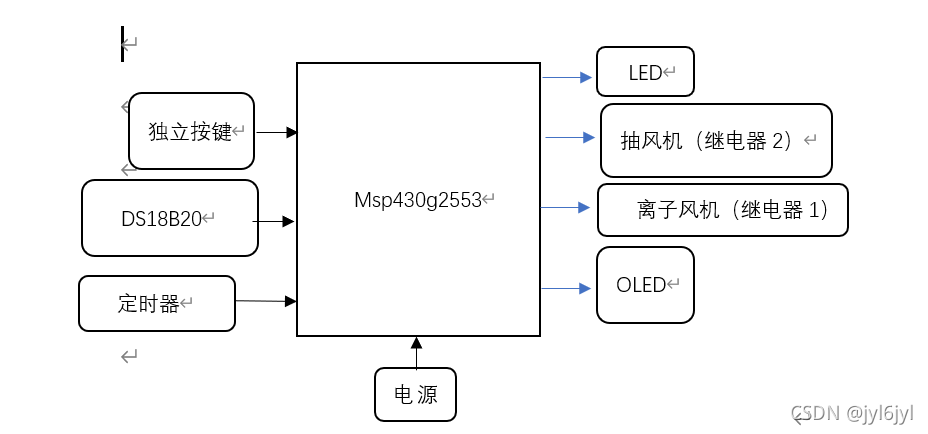

二、 总体设计和系统框图
三、设计方案
1. DS18B20：温度检测采用 DS18B20 温度传感器数据经过单片机处理后，与用户设定（键盘能修改）的温度上限（Tmax）
当前温度＞Tmax： 控制风机进行启动
2. 定时器：时间到开启值（开启时长），离子风机（继电器1闭合）和抽风机启动（继电器2闭合）时间到关闭值（关闭时长）离子风机（继电器1打开）和抽风机启动（继电器2打开）
3.独立按键
S1：选择按键
??
S2:为“加”功能键
S3:为“减”功能键。
4.OLED
(1) 完成设置，显示当前温度，开启时长，关闭时长，温度上限
(2) 温度上限设置显示
(3) 时间间隔设置（开启时长设置，关闭时长设置）
(4) 显示工作模式（手动、自动）
5.LED
(1)LED4表示是否超温
(2) LED3表示离子风机
(3) LED2表示抽风机
6.电源
(1) 3V3为单片机提供电源。
(2) 5V为继电器，OLED，LED，DS18B20供电。

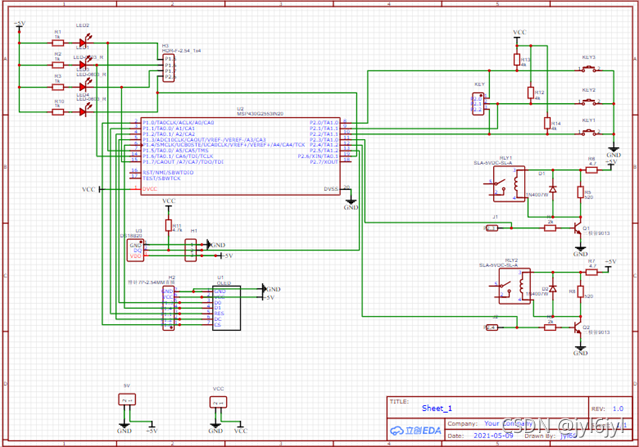

?四、电路原理总图
五、软件设计主程序及子程序?
#include <io430.h>
#include "oled.h"
#include "jidianqi.h"
#include "led.h"
#include "ds18b20.h"
void P2_IODect();
void P20_Onclick();
void P21_Onclick();
void P22_Onclick();
void GPIO_init();
void WDT_init();
void xianshi();
unsigned int wendu;
unsigned char m=0,s=0,n=0,h=0,t=0,i=0,j=0,jiange=2;
unsigned char chixushijian=2,moshi=4,flaglizi=0,flagchoufenji=0;//moshi=0当前温度moshi=1设置上限 moshi=2设置开启时长单位分钟 moshi=3设置关闭时长单位小时moshi=4定时、手动模式
unsigned char wendumax=30;
int main( void )
{
WDTCTL = WDTPW + WDTHOLD;
GPIO_init(); //IO初始化
__enable_interrupt(); //使能总中断
WDT_init(); //开总中断
OLED_Init(); //初始化OLED
choufenledoff();
liziledoff();
while(1)
{
if(moshi!= 4)
{
if(wendu>wendumax){chaowenledon();lizion();choufenon();}
else {chaowenledoff();lizioff();choufenoff();}}
if(j==0){j++;xianshi();}
wendu=get_one_temperature();
}
}
void WDT_init()
{
//-----设定WDT为1000ms中断-----
WDTCTL=WDT_ADLY_1000;
//-----WDT中断使能-----
IE1|=WDTIE;
}
#pragma vector=WDT_VECTOR
__interrupt void WDT_ISR(void)
{
if(moshi==0){ OLED_ShowNum(70,0,wendu,3,16);}
s++;if(s==7){s=0;m++;t--;}
if(m==60){m=0;h++;}
if(moshi==4)
{ if((h==jiange)&&(i==0))
{
i++;
lizion();
choufenon();
t=chixushijian+2;
}
if(t==2){choufenoff();lizioff();h=0;i=0;t=0;}}
if(h==255){h=0;t=0;}
}
/******************************************************************************************************
* 名 称：GPIO_Init()
* 功 能：设定按键和LED控制IO的方向，启用按键IO的上拉电阻
* 入口参数：无
* 出口参数：无
* 说 明：无
* 范 例：无
******************************************************************************************************/
void GPIO_init()
{
//-----配置中断参数-----
P2DIR &= ~(BIT0+BIT1+BIT2); // 设为输入(可省略)
P2IES |= (BIT0+BIT1+BIT2); // 设为下降沿中断
P2IE |= (BIT0+BIT1+BIT2); // 允许中断
}
/******************************************************************************************************
* 名 称：PORT2_ISR()
* 功 能：响应P2口的外部中断服务
* 入口参数：无
* 出口参数：无
* 说 明：P2.0~P2.8共用了PORT1中断，所以在PORT2_ISR()中必须查询标志位P2IFG才能知道
* 具体是哪个IO引发了外部中断。P1IFG必须手动清除，否则将持续引发PORT2中断。
* 范 例：无
******************************************************************************************************/
#pragma vector = PORT2_VECTOR
__interrupt void PORT2_ISR(void)
{
P2_IODect(); //检测通过，则会调用事件处理函数
P2IFG=0; //退出中断前必须手动清除IO口中断标志
}
/******************************************************************************************************
* 名 称：P2_IODect()
* 功 能：判断具体引发中断的IO，并调用相应IO的中断事件处理函数
* 入口参数：无
* 出口参数：无
* 说 明：该函数兼容所有8个IO的检测，请根据实际输入IO激活“检测代码”。
*
* 范 例：无
******************************************************************************************************/
void P2_IODect()
{
unsigned int Push_Key=0;
//-----排除输出IO的干扰后，锁定唯一被触发的中断标志位-----
Push_Key=P2IFG&(0x07);
//-----延时一段时间，避开机械抖动区域-----
__delay_cycles(10000); //消抖延时
//----判断按键状态是否与延时前一致-----
if((P2IN&Push_Key)==0) //如果该次按键确实有效
{
//----判断具体哪个IO被按下，调用该IO的事件处理函数-----
switch(Push_Key){
case BIT0: P20_Onclick(); break;
case BIT1: P21_Onclick(); break;
case BIT2: P22_Onclick(); break;
default: break; //任何情况下均加上default
}
}
}
/******************************************************************************************************
* 名 称：P_Onclick()
* 功 能：P1.3的中断事件处理函数，即当键被按下后，下一步干什么
* 入口参数：无
* 出口参数：无
* 说 明：使用事件处理函数的形式，可以增强代码的移植性和可读性
* 范 例：无
******************************************************************************************************/

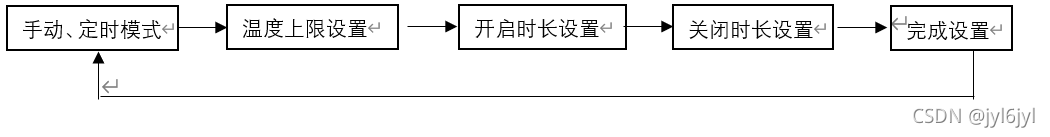

void P20_Onclick()//模式转换moshi=0当前温度moshi=1设置上限 moshi=2设置开启时长单位分钟 moshi=3设置关闭时长单位小时KEY3
{
if(moshi==4){moshi=0;OLED_Clear();xianshi();}
else if(moshi==0){moshi=1;OLED_Clear();xianshi();}
else if(moshi==1){moshi=2;OLED_Clear();xianshi();}
else if(moshi==2){moshi=3;OLED_Clear();xianshi();}
else if(moshi==3){moshi=4;OLED_Clear();xianshi();}
else if(moshi==4){moshi=0;OLED_Clear();xianshi();}
}
void P21_Onclick()//数值++KEY1
{
if(moshi==4){Set_Bit(P2DIR,BIT3);P2OUT ^= BIT3; Set_Bit(P1DIR,BIT5);P1OUT ^= BIT5;}
else if(moshi==1)
{
wendumax++;
if(wendumax==255)wendumax=0;
OLED_ShowNum(70,4,wendumax,3,16);
}
else if(moshi==2)
{
chixushijian++;
if(chixushijian==255)chixushijian=0;
OLED_ShowNum(70,4,chixushijian,3,16);
}
else if(moshi==3)
{
jiange++;
if(jiange==255)jiange=0;
OLED_ShowNum(70,4,jiange,3,16);
}
}
void P22_Onclick()//数值--KEY2
{
if(moshi==4){Set_Bit(P2DIR,BIT4);P2OUT ^= BIT4; Set_Bit(P1DIR,BIT7);P1OUT ^= BIT7;}
else if(moshi==1)
{
if(wendumax==0)wendumax=1;
wendumax--;
OLED_ShowNum(70,4,wendumax,3,16);
}
else if(moshi==2)
{
if(chixushijian==0)chixushijian=1;
chixushijian--;
OLED_ShowNum(70,4,chixushijian,3,16);
}
else if(moshi==3)
{
if(jiange==0)jiange=1;
jiange--;
OLED_ShowNum(70,4,jiange,3,16);
}
}
void xianshi()
{
if(moshi==4)
{
OLED_ShowChinese(18,0,39,16);//欢迎使用
OLED_ShowChinese(36,0,40,16);//
OLED_ShowChinese(54,0,41,16);//
OLED_ShowChinese(70,0,42,16);//
OLED_ShowChinese(0,4,45,16);//当前模式为
OLED_ShowChinese(18,4,46,16);//
OLED_ShowChinese(36,4,52,16);//
OLED_ShowChinese(54,4,53,16);//
OLED_ShowChinese(70,4,47,16);//
OLED_ShowChinese(0,6,48,16);//手动/定时
OLED_ShowChinese(18,6,49,16);
OLED_ShowChar(36,6,'/',16);
OLED_ShowChinese(54,6,50,16);
OLED_ShowChinese(70,6,51,16);
}
if(moshi==0)
{
OLED_ShowChinese(0,0,7,16);//当
OLED_ShowChinese(18,0,8,16);//前
OLED_ShowChinese(36,0,9,16);//温
OLED_ShowChinese(54,0,10,16);//度
OLED_ShowChinese(0,2,12,16);//上
OLED_ShowChinese(18,2,13,16);//限
OLED_ShowChinese(36,2,9,16);//温
OLED_ShowChinese(54,2,10,16);//度
OLED_ShowNum(70,2,wendumax,3,16);
OLED_ShowChinese(0,4,34,16);//打开时长
OLED_ShowChinese(18,4,35,16);//开
OLED_ShowChinese(36,4,28,16);//时
OLED_ShowChinese(54,4,36,16);//长
OLED_ShowNum(70,4,chixushijian,3,16);
OLED_ShowChinese(0,6,37,16);//关闭时长
OLED_ShowChinese(18,6,38,16);//关闭
OLED_ShowChinese(36,6,28,16);//时
OLED_ShowChinese(54,6,36,16);//长
OLED_ShowNum(70,6,jiange,3,16);}
else if(moshi==1)//moshi=0当前温度moshi=1设置上限 moshi=2设置开启时长单位分钟 moshi=3设置关闭时长单位小时
{
OLED_ShowChinese(0,0,15,16);//设
OLED_ShowChinese(18,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//单位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChinese(70,0,11,16);//
OLED_ShowChar(80,0,'C',16);
OLED_ShowChinese(0,4,9,16);//温
OLED_ShowChinese(18,4,10,16);//度
OLED_ShowChinese(36,4,12,16);//上
OLED_ShowChinese(54,4,13,16);//限
OLED_ShowNum(70,4,wendumax,3,16);}
else if(moshi==2)
{
OLED_ShowChinese(0,0,15,16);//设
OLED_ShowChinese(18,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//单位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChar(80,0,'m',16);
OLED_ShowChinese(0,4,34,16);//打开时长
OLED_ShowChinese(18,4,35,16);//开
OLED_ShowChinese(36,4,28,16);//时
OLED_ShowChinese(54,4,36,16);//长
OLED_ShowNum(70,4,chixushijian,3,16);}
else if(moshi==3)
{
OLED_ShowChinese(38,0,15,16);//设
OLED_ShowChinese(56,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//单位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChar(80,0,'h',16);
OLED_ShowChinese(0,4,37,16);//关闭时长
OLED_ShowChinese(18,4,38,16);//关闭
OLED_ShowChinese(36,4,28,16);//时
OLED_ShowChinese(54,4,36,16);//长
OLED_ShowNum(70,4,jiange,3,16);}
}?注意：开发环境为IAR,大家想用各个模块添加头文件和函数文件即可
子程序
//子程序
#include "ds18b20.h"
#define CPU_F ( (double) 1000000)
#define delay_us( x ) __delay_cycles( (long) (CPU_F * (double) x / 1000000.0) )
#define delay_ms( x ) __delay_cycles( (long) (CPU_F * (double) x / 1000.0) )
/************************************************
** 函数名称 ： void reset(void)
** 函数功能 ： ds18b20复位函数
** 输 入 ： 无
** 输 出 ： 无
** 说 明 ：
************************************************/
void reset(void)
{
DQ_out; /* 先设为输入口 */
DQ_0; /* 主机发送复位脉冲，强制拉DQ至低电平 */
delay_us(750); /* 延时500vs */
DQ_1;
delay_us(15);
}
//等待DS18B20的回应
//返回1:未检测到DS18B20的存在
//返回0:存在
unsigned char DS18B20_Check(void)
{
unsigned char retry = 0;
DQ_in; //SET PA0 INPUT
while (DQ_val && retry < 200)
{
retry++;
delay_us(1);
};
if (retry >= 200)
return 1;
else
retry = 0;
while (!DQ_val && retry < 240)
{
retry++;
delay_us(1);
};
if (retry >= 240)
return 1;
return 0;
}
//从DS18B20读取一个位
//返回值：1/0
unsigned char DS18B20_Read_Bit(void) // read one bit
{
unsigned char data;
DQ_out; //SET PA0 OUTPUT
DQ_0;
delay_us(2);
DQ_1;
DQ_in; //SET PA0 INPUT
delay_us(12);
if (DQ_val)
data = 1;
else
data = 0;
delay_us(50);
return data;
}
//从DS18B20读取一个字节
//返回值：读到的数据
unsigned char DS18B20_Read_Byte(void) // read one byte
{
unsigned char i, j, dat;
dat = 0;
for (i = 1; i <= 8; i++)
{
j = DS18B20_Read_Bit();
dat = (j << 7) | (dat >> 1);
}
return dat;
}
//写一个字节到DS18B20
//dat：要写入的字节
void DS18B20_Write_Byte(unsigned char dat)
{
unsigned char j;
unsigned char testb;
DQ_out; //SET PA0 OUTPUT;
for (j = 1; j <= 8; j++)
{
testb = dat & 0x01;
dat = dat >> 1;
if (testb)
{
DQ_0; // Write 1
delay_us(2);
DQ_1;
delay_us(60);
}
else
{
DQ_0; // Write 0
delay_us(60);
DQ_1;
delay_us(2);
}
}
}
//开始温度转换
void DS18B20_Start(void) // ds1820 start convert
{
reset();
DS18B20_Check();
DS18B20_Write_Byte(0xcc); // skip rom
DS18B20_Write_Byte(0x44); // convert
}
/* 读取温度 */
unsigned int get_one_temperature(void)
{
unsigned int Temp_l = 0, Temp_h = 0, Temp = 0;
reset();
DS18B20_Check();
DS18B20_Write_Byte(0xcc);
DS18B20_Write_Byte(0xbe); // convert
Temp_l = DS18B20_Read_Byte(); // LSB
Temp_h = DS18B20_Read_Byte(); // MSB
DS18B20_Start(); // ds1820 start convert
Temp=(Temp_l>>4)|(Temp_h<<4);
return (Temp); /* Temp是整型 */
}
#ifndef __DS18B20_H
#define __DS18B20_H
#include "io430.h"
#define DQ_1 P2OUT |= BIT5
#define DQ_0 P2OUT &= ~BIT5
#define DQ_in P2DIR &= ~BIT5
#define DQ_out P2DIR |= BIT5
#define DQ_val (P2IN & BIT5)
unsigned int get_one_temperature(void);
#endif
#include"jidianqi.h"
#include"oled.h"
#include"led.h"
void choufenon()
{
Set_Bit(P2DIR,BIT3);
Set_Bit(P2OUT,BIT3);
choufenledon();
}
void lizion()
{
Set_Bit(P2DIR,BIT4);
Set_Bit(P2OUT,BIT4);
liziledon();
}
void choufenoff()
{ Set_Bit(P2DIR,BIT3);
Clr_Bit(P2OUT,BIT3);
choufenledoff();
}
void lizioff()
{
Set_Bit(P2DIR,BIT4);
Clr_Bit(P2OUT,BIT4);
liziledoff();
}
#ifndef __jidianqi_H
#define __jidianqi_H
void choufenon();
void lizion();
void choufenoff();
void lizioff();
#endif
#include"led.h"
#include"oled.h"
void liziledon()//led3
{
Set_Bit(P1DIR,BIT7);
Clr_Bit(P1OUT,BIT7);
}
void liziledoff()//led2
{
Set_Bit(P1DIR,BIT7);
Set_Bit(P1OUT,BIT7);
}
void choufenledoff()//led1
{
Set_Bit(P1DIR,BIT5);
Set_Bit(P1OUT,BIT5);
}
void choufenledon()
{
Set_Bit(P1DIR,BIT5);
Clr_Bit(P1OUT,BIT5);
}
void chaowenledon()
{
Set_Bit(P1DIR,BIT6);
Clr_Bit(P1OUT,BIT6);
}
void chaowenledoff()
{
Set_Bit(P1DIR,BIT6);
Set_Bit(P1OUT,BIT6);
}
//led灯显示
#ifndef __LED_H
#define __LED_H
void liziledon();//led3
void liziledoff();//led2
void choufenledoff();//led1
void choufenledon();
void chaowenledon();
void chaowenledoff();
#endif
#include "oled.h"
#include "oledfont.h"
//OLED的显存
//存放格式如下.
//[0]0 1 2 3 ... 127
//[1]0 1 2 3 ... 127
//[2]0 1 2 3 ... 127
//[3]0 1 2 3 ... 127
//[4]0 1 2 3 ... 127
//[5]0 1 2 3 ... 127
//[6]0 1 2 3 ... 127
//[7]0 1 2 3 ... 127
void delay_ms(unsigned int ms)
{
unsigned int a;
while(ms)
{
a=1800;
while(a--);
ms--;
}
return;
}
//反显函数
void OLED_ColorTurn(u8 i)
{
if(i==0)
{
OLED_WR_Byte(0xA6,OLED_CMD);//正常显示
}
if(i==1)
{
OLED_WR_Byte(0xA7,OLED_CMD);//反色显示
}
}
//屏幕旋转180度
void OLED_DisplayTurn(u8 i)
{
if(i==0)
{
OLED_WR_Byte(0xC8,OLED_CMD);//正常显示
OLED_WR_Byte(0xA1,OLED_CMD);
}
if(i==1)
{
OLED_WR_Byte(0xC0,OLED_CMD);//反转显示
OLED_WR_Byte(0xA0,OLED_CMD);
}
}
void OLED_WR_Byte(u8 dat,u8 cmd)
{
u8 i;
if(cmd)
OLED_DC_Set();
else
OLED_DC_Clr();
OLED_CS_Clr();
for(i=0;i<8;i++)
{
OLED_SCL_Clr();
if(dat&0x80)
{
OLED_SDA_Set();
}
else
{
OLED_SDA_Clr();
}
OLED_SCL_Set();
dat<<=1;
}
OLED_CS_Set();
OLED_DC_Set();
}
//坐标设置
void OLED_Set_Pos(u8 x, u8 y)
{
OLED_WR_Byte(0xb0+y,OLED_CMD);
OLED_WR_Byte(((x&0xf0)>>4)|0x10,OLED_CMD);
OLED_WR_Byte((x&0x0f),OLED_CMD);
}
//开启OLED显示
void OLED_Display_On(void)
{
OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令
OLED_WR_Byte(0X14,OLED_CMD); //DCDC ON
OLED_WR_Byte(0XAF,OLED_CMD); //DISPLAY ON
}
//关闭OLED显示
void OLED_Display_Off(void)
{
OLED_WR_Byte(0X8D,OLED_CMD); //SET DCDC命令
OLED_WR_Byte(0X10,OLED_CMD); //DCDC OFF
OLED_WR_Byte(0XAE,OLED_CMD); //DISPLAY OFF
}
//清屏函数,清完屏,整个屏幕是黑色的!和没点亮一样!!!
void OLED_Clear(void)
{
u8 i,n;
for(i=0;i<8;i++)
{
OLED_WR_Byte (0xb0+i,OLED_CMD); //设置页地址（0~7）
OLED_WR_Byte (0x00,OLED_CMD); //设置显示位置—列低地址
OLED_WR_Byte (0x10,OLED_CMD); //设置显示位置—列高地址
for(n=0;n<128;n++)OLED_WR_Byte(0,OLED_DATA);
} //更新显示
}
//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//sizey:选择字体 6x8 8x16
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 sizey)
{
u8 c=0,sizex=sizey/2;
u16 i=0,size1;
if(sizey==8)size1=6;
else size1=(sizey/8+((sizey%8)?1:0))*(sizey/2);
c=chr-' ';//得到偏移后的值
OLED_Set_Pos(x,y);
for(i=0;i<size1;i++)
{
if(i%sizex==0&&sizey!=8) OLED_Set_Pos(x,y++);
if(sizey==8) OLED_WR_Byte(asc2_0806[c][i],OLED_DATA);//6X8字号
else if(sizey==16) OLED_WR_Byte(asc2_1608[c][i],OLED_DATA);//8x16字号
// else if(sizey==xx) OLED_WR_Byte(asc2_xxxx[c][i],OLED_DATA);//用户添加字号
else return;
}
}
//m^n函数
u32 oled_pow(u8 m,u8 n)
{
u32 result=1;
while(n--)result*=m;
return result;
}
//显示数字
//x,y :起点坐标
//num:要显示的数字
//len :数字的位数
//sizey:字体大小
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 sizey)
{
u8 t,temp,m=0;
u8 enshow=0;
if(sizey==8)m=2;
for(t=0;t<len;t++)
{
temp=(num/oled_pow(10,len-t-1))%10;
if(enshow==0&&t<(len-1))
{
if(temp==0)
{
OLED_ShowChar(x+(sizey/2+m)*t,y,' ',sizey);
continue;
}else enshow=1;
}
OLED_ShowChar(x+(sizey/2+m)*t,y,temp+'0',sizey);
}
}
//显示一个字符号串
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 sizey)
{
u8 j=0;
while (chr[j]!='\0')
{
OLED_ShowChar(x,y,chr[j++],sizey);
if(sizey==8)x+=6;
else x+=sizey/2;
}
}
//显示汉字
void OLED_ShowChinese(u8 x,u8 y,u8 no,u8 sizey)
{
u16 i,size1=(sizey/8+((sizey%8)?1:0))*sizey;
for(i=0;i<size1;i++)
{
if(i%sizey==0) OLED_Set_Pos(x,y++);
if(sizey==16) OLED_WR_Byte(Hzk[no][i],OLED_DATA);//16x16字号
// else if(sizey==xx) OLED_WR_Byte(xxx[c][i],OLED_DATA);//用户添加字号
else return;
}
}
//显示图片
//x,y显示坐标
//sizex,sizey,图片长宽
//BMP：要显示的图片
void OLED_DrawBMP(u8 x,u8 y,u8 sizex, u8 sizey,u8 BMP[])
{
u16 j=0;
u8 i,m;
sizey=sizey/8+((sizey%8)?1:0);
for(i=0;i<sizey;i++)
{
OLED_Set_Pos(x,i+y);
for(m=0;m<sizex;m++)
{
OLED_WR_Byte(BMP[j++],OLED_DATA);
}
}
}
//初始化SSD1306
void OLED_Init(void)
{
OLED_SSD1306_SCL_IO_INIT;
OLED_SSD1306_SDA_IO_INIT;
OLED_SSD1306_DC_IO_INIT;
OLED_SSD1306_CS_IO_INIT;
OLED_SSD1306_RES_IO_INIT;
OLED_RES_Clr();
delay_ms(200);
OLED_RES_Set();
OLED_WR_Byte(0xAE,OLED_CMD);//--turn off oled panel
OLED_WR_Byte(0x00,OLED_CMD);//---set low column address
OLED_WR_Byte(0x10,OLED_CMD);//---set high column address
OLED_WR_Byte(0x40,OLED_CMD);//--set start line address Set Mapping RAM Display Start Line (0x00~0x3F)
OLED_WR_Byte(0x81,OLED_CMD);//--set contrast control register
OLED_WR_Byte(0xCF,OLED_CMD); // Set SEG Output Current Brightness
OLED_WR_Byte(0xA1,OLED_CMD);//--Set SEG/Column Mapping 0xa0左右反置 0xa1正常
OLED_WR_Byte(0xC8,OLED_CMD);//Set COM/Row Scan Direction 0xc0上下反置 0xc8正常
OLED_WR_Byte(0xA6,OLED_CMD);//--set normal display
OLED_WR_Byte(0xA8,OLED_CMD);//--set multiplex ratio(1 to 64)
OLED_WR_Byte(0x3f,OLED_CMD);//--1/64 duty
OLED_WR_Byte(0xD3,OLED_CMD);//-set display offset Shift Mapping RAM Counter (0x00~0x3F)
OLED_WR_Byte(0x00,OLED_CMD);//-not offset
OLED_WR_Byte(0xd5,OLED_CMD);//--set display clock divide ratio/oscillator frequency
OLED_WR_Byte(0x80,OLED_CMD);//--set divide ratio, Set Clock as 100 Frames/Sec
OLED_WR_Byte(0xD9,OLED_CMD);//--set pre-charge period
OLED_WR_Byte(0xF1,OLED_CMD);//Set Pre-Charge as 15 Clocks & Discharge as 1 Clock
OLED_WR_Byte(0xDA,OLED_CMD);//--set com pins hardware configuration
OLED_WR_Byte(0x12,OLED_CMD);
OLED_WR_Byte(0xDB,OLED_CMD);//--set vcomh
OLED_WR_Byte(0x40,OLED_CMD);//Set VCOM Deselect Level
OLED_WR_Byte(0x20,OLED_CMD);//-Set Page Addressing Mode (0x00/0x01/0x02)
OLED_WR_Byte(0x02,OLED_CMD);//
OLED_WR_Byte(0x8D,OLED_CMD);//--set Charge Pump enable/disable
OLED_WR_Byte(0x14,OLED_CMD);//--set(0x10) disable
OLED_WR_Byte(0xA4,OLED_CMD);// Disable Entire Display On (0xa4/0xa5)
OLED_WR_Byte(0xA6,OLED_CMD);// Disable Inverse Display On (0xa6/a7)
OLED_Clear();
OLED_WR_Byte(0xAF,OLED_CMD); /*display ON*/
}
#ifndef __OLED_H
#define __OLED_H
#include <io430.h>
#include <in430.h>
#include <intrinsics.h>
#define u8 unsigned char
#define u16 unsigned int
#define u32 unsigned int
#define OLED_CMD 0 //写命令
#define OLED_DATA 1 //写数据
#define Set_Bit(val, bitn) (val |= (/*1 <<*/(bitn))) //竚琘 1
#define Clr_Bit(val, bitn) (val &= ~(/*1<<*/(bitn))) //竚琘 0
#define Get_Bit(val, bitn) (val & (1<<(bitn)) ) //眔琘
//----------------------------------------------------------------------------------
//OLED SSD1306 SPI 时钟D0
#define OLED_SSD1306_SCL_PIN_NUM (BIT3)
#define OLED_SSD1306_SCL_IO_INIT (Set_Bit(P1DIR,OLED_SSD1306_SCL_PIN_NUM))
#define OLED_SCL_Set() (Set_Bit(P1OUT,OLED_SSD1306_SCL_PIN_NUM))
#define OLED_SCL_Clr() (Clr_Bit(P1OUT,OLED_SSD1306_SCL_PIN_NUM))
//----------------------------------------------------------------------------------
//OLED SSD1306 SPI 数据D1
#define OLED_SSD1306_SDA_PIN_NUM (BIT4)
#define OLED_SSD1306_SDA_IO_INIT (Set_Bit(P1DIR,OLED_SSD1306_SDA_PIN_NUM))
#define OLED_SDA_Set() (Set_Bit(P1OUT,OLED_SSD1306_SDA_PIN_NUM))
#define OLED_SDA_Clr() (Clr_Bit(P1OUT,OLED_SSD1306_SDA_PIN_NUM))
//----------------------------------------------------------------------------------
//OLED SSD1306 复位/RES
#define OLED_SSD1306_RES_PIN_NUM (BIT1)
#define OLED_SSD1306_RES_IO_INIT (Set_Bit(P1DIR,OLED_SSD1306_RES_PIN_NUM))
#define OLED_RES_Set() (Set_Bit(P1OUT,OLED_SSD1306_RES_PIN_NUM))
#define OLED_RES_Clr() (Clr_Bit(P1OUT,OLED_SSD1306_RES_PIN_NUM))
//----------------------------------------------------------------------------------
//OLED SSD1306 数据/命令DC
#define OLED_SSD1306_DC_PIN_NUM (BIT2)
#define OLED_SSD1306_DC_IO_INIT (Set_Bit(P1DIR,OLED_SSD1306_DC_PIN_NUM))
#define OLED_DC_Set() (Set_Bit(P1OUT,OLED_SSD1306_DC_PIN_NUM))
#define OLED_DC_Clr() (Clr_Bit(P1OUT,OLED_SSD1306_DC_PIN_NUM))
//----------------------------------------------------------------------------------
//OLED SSD1306 片选CS
#define OLED_SSD1306_CS_PIN_NUM (BIT0)
#define OLED_SSD1306_CS_IO_INIT (Set_Bit(P1DIR,OLED_SSD1306_CS_PIN_NUM))
#define OLED_CS_Set() (Set_Bit(P1OUT,OLED_SSD1306_CS_PIN_NUM))
#define OLED_CS_Clr() (Clr_Bit(P1OUT,OLED_SSD1306_CS_PIN_NUM))
//----------------------------------------------------------------------------------
//OLED控制用函数
void delay_ms(unsigned int ms);
void OLED_ColorTurn(u8 i);
void OLED_DisplayTurn(u8 i);
void OLED_WR_Byte(u8 dat,u8 cmd);
void OLED_Set_Pos(u8 x, u8 y);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Clear(void);
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 sizey);
u32 oled_pow(u8 m,u8 n);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 sizey);
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 sizey);
void OLED_ShowChinese(u8 x,u8 y,u8 no,u8 sizey);
void OLED_DrawBMP(u8 x,u8 y,u8 sizex, u8 sizey,u8 BMP[]);
void OLED_Init(void);
#endif
#ifndef __OLEDFONT_H
#define __OLEDFONT_H
#include <io430.h>
#include <in430.h>
#include <intrinsics.h>
/************************************6*8的点阵************************************/
const unsigned char asc2_0806[][6] ={
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00},// sp
{0x00, 0x00, 0x00, 0x2f, 0x00, 0x00},// !
{0x00, 0x00, 0x07, 0x00, 0x07, 0x00},// "
{0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14},// #
{0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12},// $
{0x00, 0x62, 0x64, 0x08, 0x13, 0x23},// %
{0x00, 0x36, 0x49, 0x55, 0x22, 0x50},// &
{0x00, 0x00, 0x05, 0x03, 0x00, 0x00},// '
{0x00, 0x00, 0x1c, 0x22, 0x41, 0x00},// (
{0x00, 0x00, 0x41, 0x22, 0x1c, 0x00},// )
{0x00, 0x14, 0x08, 0x3E, 0x08, 0x14},// *
{0x00, 0x08, 0x08, 0x3E, 0x08, 0x08},// +
{0x00, 0x00, 0x00, 0xA0, 0x60, 0x00},// ,
{0x00, 0x08, 0x08, 0x08, 0x08, 0x08},// -
{0x00, 0x00, 0x60, 0x60, 0x00, 0x00},// .
{0x00, 0x20, 0x10, 0x08, 0x04, 0x02},// /
{0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E},// 0
{0x00, 0x00, 0x42, 0x7F, 0x40, 0x00},// 1
{0x00, 0x42, 0x61, 0x51, 0x49, 0x46},// 2
{0x00, 0x21, 0x41, 0x45, 0x4B, 0x31},// 3
{0x00, 0x18, 0x14, 0x12, 0x7F, 0x10},// 4
{0x00, 0x27, 0x45, 0x45, 0x45, 0x39},// 5
{0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30},// 6
{0x00, 0x01, 0x71, 0x09, 0x05, 0x03},// 7
{0x00, 0x36, 0x49, 0x49, 0x49, 0x36},// 8
{0x00, 0x06, 0x49, 0x49, 0x29, 0x1E},// 9
{0x00, 0x00, 0x36, 0x36, 0x00, 0x00},// :
{0x00, 0x00, 0x56, 0x36, 0x00, 0x00},// ;
{0x00, 0x08, 0x14, 0x22, 0x41, 0x00},// <
{0x00, 0x14, 0x14, 0x14, 0x14, 0x14},// =
{0x00, 0x00, 0x41, 0x22, 0x14, 0x08},// >
{0x00, 0x02, 0x01, 0x51, 0x09, 0x06},// ?
{0x00, 0x32, 0x49, 0x59, 0x51, 0x3E},// @
{0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C},// A
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x36},// B
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x22},// C
{0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C},// D
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x41},// E
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x01},// F
{0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A},// G
{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F},// H
{0x00, 0x00, 0x41, 0x7F, 0x41, 0x00},// I
{0x00, 0x20, 0x40, 0x41, 0x3F, 0x01},// J
{0x00, 0x7F, 0x08, 0x14, 0x22, 0x41},// K
{0x00, 0x7F, 0x40, 0x40, 0x40, 0x40},// L
{0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F},// M
{0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F},// N
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E},// O
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x06},// P
{0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E},// Q
{0x00, 0x7F, 0x09, 0x19, 0x29, 0x46},// R
{0x00, 0x46, 0x49, 0x49, 0x49, 0x31},// S
{0x00, 0x01, 0x01, 0x7F, 0x01, 0x01},// T
{0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F},// U
{0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F},// V
{0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F},// W
{0x00, 0x63, 0x14, 0x08, 0x14, 0x63},// X
{0x00, 0x07, 0x08, 0x70, 0x08, 0x07},// Y
{0x00, 0x61, 0x51, 0x49, 0x45, 0x43},// Z
{0x00, 0x00, 0x7F, 0x41, 0x41, 0x00},// [
{0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55},// 55
{0x00, 0x00, 0x41, 0x41, 0x7F, 0x00},// ]
{0x00, 0x04, 0x02, 0x01, 0x02, 0x04},// ^
{0x00, 0x40, 0x40, 0x40, 0x40, 0x40},// _
{0x00, 0x00, 0x01, 0x02, 0x04, 0x00},// '
{0x00, 0x20, 0x54, 0x54, 0x54, 0x78},// a
{0x00, 0x7F, 0x48, 0x44, 0x44, 0x38},// b
{0x00, 0x38, 0x44, 0x44, 0x44, 0x20},// c
{0x00, 0x38, 0x44, 0x44, 0x48, 0x7F},// d
{0x00, 0x38, 0x54, 0x54, 0x54, 0x18},// e
{0x00, 0x08, 0x7E, 0x09, 0x01, 0x02},// f
{0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C},// g
{0x00, 0x7F, 0x08, 0x04, 0x04, 0x78},// h
{0x00, 0x00, 0x44, 0x7D, 0x40, 0x00},// i
{0x00, 0x40, 0x80, 0x84, 0x7D, 0x00},// j
{0x00, 0x7F, 0x10, 0x28, 0x44, 0x00},// k
{0x00, 0x00, 0x41, 0x7F, 0x40, 0x00},// l
{0x00, 0x7C, 0x04, 0x18, 0x04, 0x78},// m
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x78},// n
{0x00, 0x38, 0x44, 0x44, 0x44, 0x38},// o
{0x00, 0xFC, 0x24, 0x24, 0x24, 0x18},// p
{0x00, 0x18, 0x24, 0x24, 0x18, 0xFC},// q
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x08},// r
{0x00, 0x48, 0x54, 0x54, 0x54, 0x20},// s
{0x00, 0x04, 0x3F, 0x44, 0x40, 0x20},// t
{0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C},// u
{0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C},// v
{0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C},// w
{0x00, 0x44, 0x28, 0x10, 0x28, 0x44},// x
{0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C},// y
{0x00, 0x44, 0x64, 0x54, 0x4C, 0x44},// z
{0x14, 0x14, 0x14, 0x14, 0x14, 0x14},// horiz lines
};
//16*16 ASCII字符集点阵
const unsigned char asc2_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
const unsigned char Hzk[][32]={
{0x00,0x00,0xF0,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0xF0,0x00,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x0F,0x00,0x00,0x00},/*"",0*/
{0x40,0x40,0x40,0x5F,0x55,0x55,0x55,0x75,0x55,0x55,0x55,0x5F,0x40,0x40,0x40,0x00,0x00,0x40,0x20,0x0F,0x09,0x49,0x89,0x79,0x09,0x09,0x09,0x0F,0x20,0x40,0x00,0x00},/*"",1*/
{0x00,0xFE,0x02,0x42,0x4A,0xCA,0x4A,0x4A,0xCA,0x4A,0x4A,0x42,0x02,0xFE,0x00,0x00,0x00,0xFF,0x40,0x50,0x4C,0x43,0x40,0x40,0x4F,0x50,0x50,0x5C,0x40,0xFF,0x00,0x00},/*",2*/
{0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x88,0xF8,0x00,0x00,0x00,0x00,0x00,0x1F,0x08,0x08,0x08,0x08,0x7F,0x88,0x88,0x88,0x88,0x9F,0x80,0xF0,0x00},/*"",3*/
{0x80,0x82,0x82,0x82,0x82,0x82,0x82,0xE2,0xA2,0x92,0x8A,0x86,0x82,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"",4*/
{0x10,0x10,0x10,0xFF,0x10,0x90,0x08,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x08,0x00,0x04,0x44,0x82,0x7F,0x01,0x80,0x80,0x40,0x43,0x2C,0x10,0x28,0x46,0x81,0x80,0x00},/*"",5*/
{0x00,0x10,0x10,0x10,0x10,0xD0,0x30,0xFF,0x30,0xD0,0x12,0x1C,0x10,0x10,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0xFF,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"",6*/
/*-- 文字: 当 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x40,0x42,0x44,0x58,0x40,0x40,0x7F,0x40,0x40,0x50,0x48,0xC6,0x00,0x00,0x00,
0x00,0x40,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0xFF,0x00,0x00,0x00},//7
/*-- 文字: 前 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x08,0x08,0xE8,0x29,0x2E,0x28,0xE8,0x08,0x08,0xC8,0x0C,0x0B,0xE8,0x08,0x08,0x00,
0x00,0x00,0xFF,0x09,0x49,0x89,0x7F,0x00,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00,0x00},//8
/*-- 文字: 温 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,
0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00},//9
/*-- 文字: 度 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,
0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},//10
/*-- 文字: ° --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x0C,0x12,0x12,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},//11
/*-- 文字: 上 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x00,0x00,
0x40,0x40,0x40,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00},//12
/*-- 文字: 限 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xFE,0x22,0x5A,0x86,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,
0x00,0xFF,0x04,0x08,0x07,0x00,0xFF,0x40,0x20,0x03,0x0C,0x14,0x22,0x41,0x40,0x00},//13
/*-- 文字: 下 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x02,0x02,0x02,0x02,0x02,0x02,0xFE,0x02,0x02,0x42,0x82,0x02,0x02,0x02,0x02,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x01,0x06,0x00,0x00,0x00},//14
/*-- 文字: 设 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x40,0x40,0x42,0xCC,0x00,0x40,0xA0,0x9E,0x82,0x82,0x82,0x9E,0xA0,0x20,0x20,0x00,
0x00,0x00,0x00,0x3F,0x90,0x88,0x40,0x43,0x2C,0x10,0x28,0x46,0x41,0x80,0x80,0x00},//15
/*-- 文字: 置 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x17,0x15,0xD5,0x55,0x57,0x55,0x7D,0x55,0x57,0x55,0xD5,0x15,0x17,0x00,0x00,
0x40,0x40,0x40,0x7F,0x55,0x55,0x55,0x55,0x55,0x55,0x55,0x7F,0x40,0x40,0x40,0x00},//16
/*-- 文字: 正 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x02,0x02,0xC2,0x02,0x02,0x02,0xFE,0x82,0x82,0x82,0x82,0x82,0x02,0x00,0x00,
0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00},//17
/*-- 文字: 常 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x20,0x18,0x08,0xEA,0xAC,0xA8,0xA8,0xAF,0xA8,0xA8,0xAC,0xEA,0x08,0x28,0x18,0x00,
0x00,0x00,0x3E,0x02,0x02,0x02,0x02,0xFF,0x02,0x02,0x12,0x22,0x1E,0x00,0x00,0x00},//18
/*-- 文字: 工 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x04,0x04,0x04,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x04,0x04,0x00,0x00,
0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00},//19
/*-- 文字: 作 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x80,0x60,0xF8,0x07,0x40,0x30,0x0F,0xF8,0x88,0x88,0x88,0x88,0x08,0x08,0x00,
0x01,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0xFF,0x08,0x08,0x08,0x08,0x08,0x00,0x00},//20
/*-- 文字: 异 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x7E,0x92,0x92,0x92,0x92,0x92,0x92,0x92,0x92,0x9E,0x80,0xE0,0x00,0x00,
0x08,0x88,0x48,0x28,0x1E,0x08,0x08,0x08,0x08,0x08,0xFE,0x08,0x08,0x08,0x08,0x00},//21
/*-- 文字: 时 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xFC,0x84,0x84,0x84,0xFC,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x00,
0x00,0x3F,0x10,0x10,0x10,0x3F,0x00,0x00,0x01,0x06,0x40,0x80,0x7F,0x00,0x00,0x00},//22
/*-- 文字: 间 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xF8,0x01,0x06,0x00,0xF0,0x12,0x12,0x12,0xF2,0x02,0x02,0x02,0xFE,0x00,0x00,
0x00,0xFF,0x00,0x00,0x00,0x1F,0x11,0x11,0x11,0x1F,0x00,0x40,0x80,0x7F,0x00,0x00},//23
/*-- 文字: 隔 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xFE,0x22,0x5A,0x86,0x00,0x02,0x7A,0x4A,0x4A,0x4A,0x4A,0x4A,0x7A,0x02,0x00,
0x00,0xFF,0x04,0x08,0x07,0x00,0xFF,0x09,0x0B,0x0D,0x79,0x0D,0x4B,0x89,0x7F,0x00},//24
/*-- 文字: 单 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xF8,0x49,0x4A,0x4C,0x48,0xF8,0x48,0x4C,0x4A,0x49,0xF8,0x00,0x00,0x00,
0x10,0x10,0x13,0x12,0x12,0x12,0x12,0xFF,0x12,0x12,0x12,0x12,0x13,0x10,0x10,0x00},//25
/*-- 文字: 位 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x80,0x60,0xF8,0x07,0x10,0x90,0x10,0x11,0x16,0x10,0x10,0xD0,0x10,0x00,0x00,
0x01,0x00,0x00,0xFF,0x40,0x40,0x41,0x5E,0x40,0x40,0x70,0x4E,0x41,0x40,0x40,0x00},//26
/*-- 文字: 小 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x20,0x40,0x80,0x00,0x00,
0x08,0x04,0x03,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x01,0x0E,0x00},//27
/*-- 文字: 时 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xFC,0x84,0x84,0x84,0xFC,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x00,
0x00,0x3F,0x10,0x10,0x10,0x3F,0x00,0x00,0x01,0x06,0x40,0x80,0x7F,0x00,0x00,0x00},//28
/*-- 文字: 摄 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x10,0x10,0xFF,0x10,0x90,0x82,0xFE,0xAA,0xAA,0xAA,0xAA,0xFE,0x42,0x40,0x00,
0x04,0x44,0x82,0x7F,0x81,0x42,0x2A,0x12,0x6E,0x80,0x5E,0x22,0x53,0x8E,0x80,0x00},//29
/*-- 文字: 氏 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xFC,0x44,0x44,0x44,0x44,0x44,0xFE,0x42,0x42,0x43,0x42,0x40,0x40,0x00,
0x00,0x00,0xFF,0x40,0x20,0x00,0x00,0x00,0x01,0x06,0x08,0x10,0x20,0x40,0xF8,0x00},//30
/*-- 文字: 度 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,
0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},//31
/*-- 文字: 加 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x10,0x10,0xFF,0x10,0x10,0xF0,0x00,0x00,0xF8,0x08,0x08,0x08,0xF8,0x00,0x00,
0x80,0x40,0x30,0x0F,0x40,0x80,0x7F,0x00,0x00,0x7F,0x20,0x20,0x20,0x7F,0x00,0x00},//32
/*-- 文字: 减 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x02,0x0C,0xC0,0x00,0xF8,0x08,0x48,0x48,0x48,0x08,0xFF,0x08,0x09,0x8A,0x00,
0x02,0x02,0x7F,0x80,0x40,0x3F,0x00,0x1E,0x92,0x5E,0x20,0x17,0x38,0x46,0xF1,0x00},//33
/*-- 文字: 打 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x10,0x10,0xFF,0x10,0x90,0x04,0x04,0x04,0x04,0xFC,0x04,0x04,0x04,0x04,0x00,
0x04,0x44,0x82,0x7F,0x01,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00},//34
/*-- 文字: 开 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x80,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0x80,0x00,
0x00,0x80,0x40,0x30,0x0F,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},//35
/*-- 文字: 长 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x80,0x80,0x80,0x80,0xFF,0x80,0x80,0xA0,0x90,0x88,0x84,0x82,0x80,0x80,0x80,0x00,
0x00,0x00,0x00,0x00,0xFF,0x40,0x21,0x12,0x04,0x08,0x10,0x20,0x20,0x40,0x40,0x00},//36
/*-- 文字: 关 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x10,0x11,0x16,0x10,0x10,0xF0,0x10,0x10,0x14,0x13,0x10,0x00,0x00,0x00,
0x81,0x81,0x41,0x41,0x21,0x11,0x0D,0x03,0x0D,0x11,0x21,0x41,0x41,0x81,0x81,0x00},//37
/*-- 文字: 闭 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xF8,0x01,0x22,0x20,0x22,0x22,0xA2,0xFA,0x22,0x22,0x22,0x02,0xFE,0x00,0x00,
0x00,0xFF,0x00,0x08,0x04,0x02,0x11,0x20,0x1F,0x00,0x00,0x40,0x80,0x7F,0x00,0x00},//38
/*-- 文字: 欢 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x04,0x24,0x44,0x84,0x64,0x9C,0x40,0x30,0x0F,0xC8,0x08,0x08,0x28,0x18,0x00,0x00,
0x10,0x08,0x06,0x01,0x82,0x4C,0x20,0x18,0x06,0x01,0x06,0x18,0x20,0x40,0x80,0x00},//39
/*-- 文字: 迎 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x40,0x40,0x42,0xCC,0x00,0x00,0xFC,0x04,0x02,0x00,0xFC,0x04,0x04,0xFC,0x00,0x00,
0x00,0x40,0x20,0x1F,0x20,0x40,0x4F,0x44,0x42,0x40,0x7F,0x42,0x44,0x43,0x40,0x00},//40
/*-- 文字: 使 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x80,0x60,0xF8,0x07,0x04,0xE4,0x24,0x24,0x24,0xFF,0x24,0x24,0x24,0xE4,0x04,0x00,
0x00,0x00,0xFF,0x00,0x80,0x81,0x45,0x29,0x11,0x2F,0x41,0x41,0x81,0x81,0x80,0x00},//41
/*-- 文字: 用 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0xFE,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00,
0x80,0x60,0x1F,0x02,0x02,0x02,0x02,0x7F,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},//42
/*-- 文字: 单 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0xF8,0x49,0x4A,0x4C,0x48,0xF8,0x48,0x4C,0x4A,0x49,0xF8,0x00,0x00,0x00,
0x10,0x10,0x13,0x12,0x12,0x12,0x12,0xFF,0x12,0x12,0x12,0x12,0x13,0x10,0x10,0x00},//43
/*-- 文字: 位 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x80,0x60,0xF8,0x07,0x10,0x90,0x10,0x11,0x16,0x10,0x10,0xD0,0x10,0x00,0x00,
0x01,0x00,0x00,0xFF,0x40,0x40,0x41,0x5E,0x40,0x40,0x70,0x4E,0x41,0x40,0x40,0x00},//44
/*-- 文字: 当 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x40,0x42,0x44,0x58,0x40,0x40,0x7F,0x40,0x40,0x50,0x48,0xC6,0x00,0x00,0x00,
0x00,0x40,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0xFF,0x00,0x00,0x00},//45
/*-- 文字: 前 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x08,0x08,0xE8,0x29,0x2E,0x28,0xE8,0x08,0x08,0xC8,0x0C,0x0B,0xE8,0x08,0x08,0x00,
0x00,0x00,0xFF,0x09,0x49,0x89,0x7F,0x00,0x00,0x0F,0x40,0x80,0x7F,0x00,0x00,0x00},//46
/*-- 文字: 为 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x20,0x22,0x2C,0x20,0x20,0xE0,0x3F,0x20,0x20,0x20,0x20,0xE0,0x00,0x00,0x00,
0x80,0x40,0x20,0x10,0x08,0x06,0x01,0x00,0x01,0x46,0x80,0x40,0x3F,0x00,0x00,0x00},//47
/*-- 文字: 手 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0x00,0x24,0x24,0x24,0x24,0x24,0xFC,0x22,0x22,0x22,0x23,0x22,0x00,0x00,0x00,
0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x00},//48
/*-- 文字: 动 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x40,0x44,0xC4,0x44,0x44,0x44,0x40,0x10,0x10,0xFF,0x10,0x10,0x10,0xF0,0x00,0x00,
0x10,0x3C,0x13,0x10,0x14,0xB8,0x40,0x30,0x0E,0x01,0x40,0x80,0x40,0x3F,0x00,0x00},//49
/*-- 文字: 定 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x0C,0x44,0x44,0x44,0x44,0x45,0xC6,0x44,0x44,0x44,0x44,0x44,0x14,0x0C,0x00,
0x80,0x40,0x20,0x1E,0x20,0x40,0x40,0x7F,0x44,0x44,0x44,0x44,0x44,0x40,0x40,0x00},//50
/*-- 文字: 时 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x00,0xFC,0x84,0x84,0x84,0xFC,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x00,
0x00,0x3F,0x10,0x10,0x10,0x3F,0x00,0x00,0x01,0x06,0x40,0x80,0x7F,0x00,0x00,0x00},//51
/*-- 文字: 模 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x10,0xD0,0xFF,0x90,0x14,0xE4,0xAF,0xA4,0xA4,0xA4,0xAF,0xE4,0x04,0x00,0x00,
0x04,0x03,0x00,0xFF,0x00,0x89,0x4B,0x2A,0x1A,0x0E,0x1A,0x2A,0x4B,0x88,0x80,0x00},//52
/*-- 文字: 式 --*/
/*-- 宋体12; 此字体下对应的点阵为：宽x高=16x16 --*/
{0x10,0x10,0x90,0x90,0x90,0x90,0x90,0x10,0x10,0xFF,0x10,0x10,0x11,0x16,0x10,0x00,
0x00,0x20,0x60,0x20,0x3F,0x10,0x10,0x10,0x00,0x03,0x0C,0x10,0x20,0x40,0xF8,0x00},//53
};//44
#endif
