1. 硬件电路

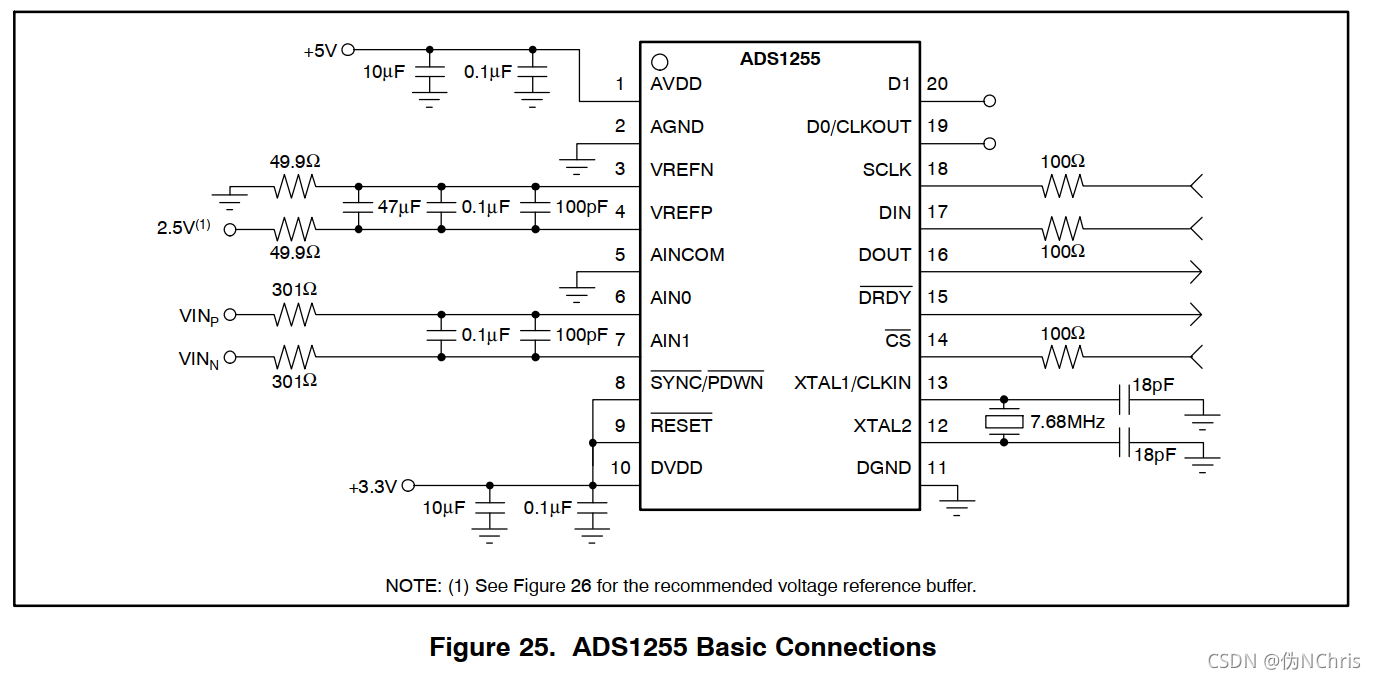

##1. 官方设计
在这里插入图片描述

2. 软件设计

关于ADC值的计算
因为是24位的，然后1/2^24 大概计算得到 0.000000596，在代入计算ADC测量的值也大概准确

ADC 函数，总共写了三个函数，一个读寄存器
ADS1256_Read：读寄存器
ADS1256_Write：写寄存器
ADS1256_Read_ADC_data：读取ADC的数据

2. 1 ads1256.C

#include <stdio.h>
#include "main.h"
#include "ADS1256.h"

extern SPI_HandleTypeDef hspi3;
/*
功能：读取寄存器中的数值
address： start address
size ； 读多少位
recv_buf ； 数据的地址
*/
void ADS1256_Read(uint8_t address, uint8_t size,uint8_t *recv_buf )
{
	address = 0x10 + address;
    uint8_t send_data[2] = {address,size-1};   //待发送数据，命令+地址
	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_RESET);//low
	if (HAL_OK == HAL_SPI_Transmit(&hspi3, send_data, 2, 100))
	{
			if(HAL_OK ==  HAL_SPI_Receive(&hspi3, recv_buf, size, 100))
			{}
	}
	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_SET);//high
}
/*写寄存器*/
void ADS1256_Write(uint8_t address,uint8_t number)
{
    uint8_t send_data[4] = {0x50+address,0x00,number};
	while(HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_2)==0);
	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_RESET);//low

	if (HAL_OK == HAL_SPI_Transmit(&hspi3, send_data, 3, 100))
	{		}
	while(HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_2)==0);
	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_SET);//high
}

/*
功能：读取ADC的值
*/
void ADS1256_Read_ADC_data(uint8_t COMMAND ,uint8_t *recv_buf)
{
    uint8_t send_data[1] = {0X01};   //待发送数据，命令+地址
		//等待准备好
		while(HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_2)==0);

	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_RESET);//low
	if (HAL_OK == HAL_SPI_Transmit(&hspi3, send_data, 1, 100))
	{
			if(HAL_OK ==  HAL_SPI_Receive(&hspi3, recv_buf, 0x03, 100))
			{
			}
	}

	//CS
	HAL_GPIO_WritePin(GPIOA, GPIO_PIN_3, GPIO_PIN_SET);//high

}

2.2 ads1256.h

#ifndef __ADS1256_H_
#define	__ADS1256_H_

#include "main.h"


void ADS1256_Init(void);   //初始化ADS1256

void ADS1256_Read(uint8_t address, uint8_t size,uint8_t *recv_buf );


void ADS1256_Write(uint8_t address,uint8_t number);
void ADS1256_Read_ADC_data(uint8_t COMMAND,uint8_t *recv_buf);
#endif

main.c

大概主函数使用的代码就是如下，可以参考其中的逻辑


#include <stdio.h>

#ifdef __GNUC__
  #define PUTCHAR_PROTOTYPE int __io_putchar(int ch)
#else
  #define PUTCHAR_PROTOTYPE int fputc(int ch, FILE *f)
#endif

PUTCHAR_PROTOTYPE
{
  HAL_UART_Transmit(&huart1,(uint8_t *)&ch,1,0xFFFF);//阻塞方式打印
  return ch;
}
//使用printf显示16进制数
//使用printf显示16进制数
void UART0_ShowHex(uint8_t *buf,uint8_t len)
{
    uint8_t i;
    printf("hex = ");
    for( i = 0; i < len; i++){
        printf(" %02X",buf[i]); //使用前导0补齐
        //printf(" %2X",buf[i]);  //使用前导空格补齐
        //printf(" %X",buf[i]);  //输出最短的16进制格式
    }
    printf( "\r\n");
}

int main(void)
{
  HAL_Init();
  SystemClock_Config();
  MX_GPIO_Init();
  MX_SPI3_Init();
  MX_USART1_UART_Init();

ADS1256_Init();

  while (1)
  {
		unsigned int sum=0;
		unsigned int sum1=0;
		unsigned int sum2=0;
		float Volts;


		uint8_t SPI_Buffer_Read[13] = {0};

		uint8_t ADC_Read[5] = {0};


		printf("start*****************************************\r\n");

		ADS1256_Write(0x01,0x08);//AIN0
		HAL_Delay(2);
		ADS1256_Read_ADC_data( 0x01,ADC_Read);
		sum |= (ADC_Read[0]<<16);
		sum |= (ADC_Read[1]<<8);
		sum |= (ADC_Read[2]);
		Volts = sum*0.000000596;
		printf("AIN0 = %.4fV  \r\n",Volts);
//		UART0_ShowHex(ADC_Read, 5);
//		ADS1256_Read(0x00,0X0B,SPI_Buffer_Read);
//		UART0_ShowHex(SPI_Buffer_Read, 13);

		ADS1256_Write(0x01,0x18);//AIN1
		HAL_Delay(2);
		ADS1256_Read_ADC_data( 0x01,ADC_Read);
		sum1 |= (ADC_Read[0]<<16);
		sum1 |= (ADC_Read[1]<<8);
		sum1 |= (ADC_Read[2]);
		Volts = sum1*0.000000596;
		printf("AIN1 = %.4fV  \r\n",Volts);
//		UART0_ShowHex(ADC_Read, 5);
//		ADS1256_Read(0x00,0X0B,SPI_Buffer_Read);
//		UART0_ShowHex(SPI_Buffer_Read, 13);



		ADS1256_Write(0x01,0x28);//AIN2
		HAL_Delay(2)	;
		ADS1256_Read_ADC_data( 0x01,ADC_Read);
		sum2 |= (ADC_Read[0]<<16);
		sum2 |= (ADC_Read[1]<<8);
		sum2 |= (ADC_Read[2]);
		Volts = sum2*0.000000596;
		printf("AIN2 = %.4fV  \r\n",Volts);
//		UART0_ShowHex(ADC_Read, 5);
//		ADS1256_Read(0x00,0X0B,SPI_Buffer_Read);
//		UART0_ShowHex(SPI_Buffer_Read, 13);

		HAL_Delay(2000);


  }
}
