[嵌入式]STM32 LCD12864使用教程

一、LCD12864简介

带中文字库的128X64 是一种具有4 位/8 位并行、2 线或3 线串行多种接口方式
显示分辨率为128×64, 内置8192 个1616 点汉字，和128 个168 点ASCII 字符集

二、引脚介绍

1、LCD12864引脚

LCD12864有16脚和20脚两种，但引脚功能都差不多，重要的也就那几个引脚，下图是20引脚的LCD12864的引脚描述：

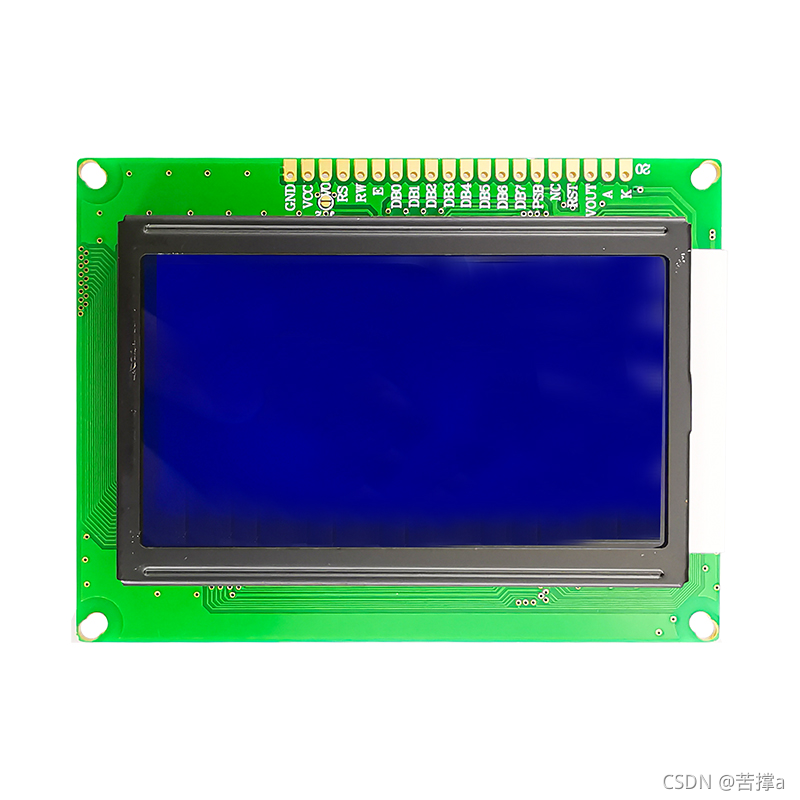

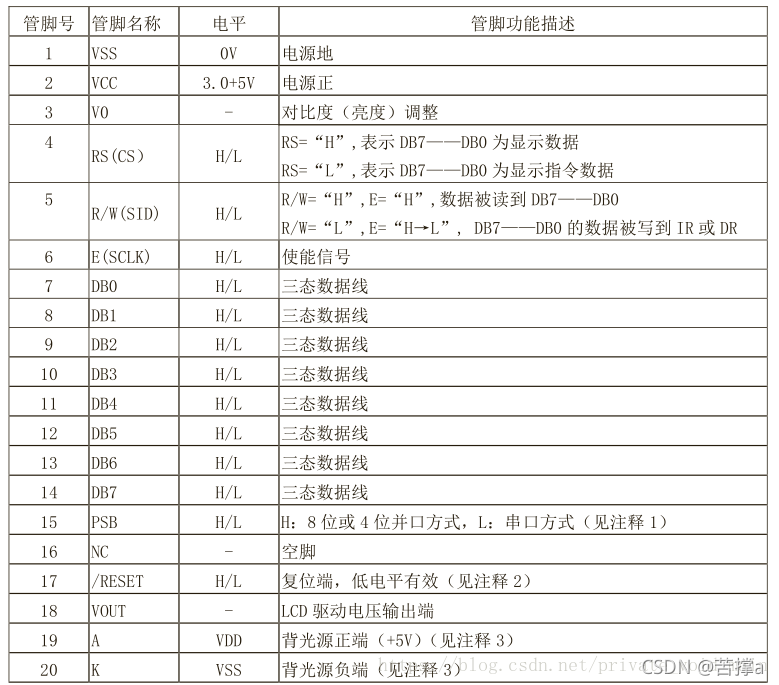

在这里插入图片描述
模块有串行和并行两种方式，由于我用的是串行方式，所以下面的介绍都是串行方式的。

2、串行控制引脚

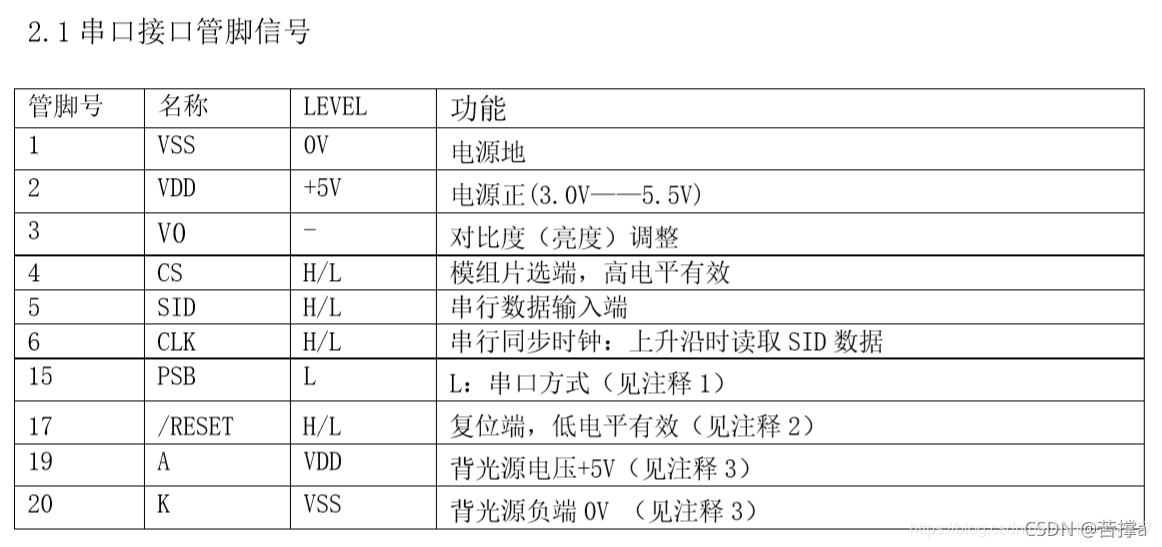

在这里插入图片描述

引脚
1 VSS 电源负极
2 VDD 电源正极
4 CS 片选引脚高电位可接受数据，低电位锁存
5 SID 串行数据输入端
6 CLK 串行同步时钟
可选引脚
3 V0 调节屏幕亮度
15 PSB 低电平有效其中低电平为串口方式 ，如果只用串口通信模式可以将PSB引脚飞线与地线相连即固定低电平
-17 RESET 复位引脚低电平可使LCD复位
19 A LCD背光源的电源
20 K LCD背光源的地，如果需要背光，可以将19引脚与LCD2引脚电源正极相连，20引脚与LCD1引脚电源地相连

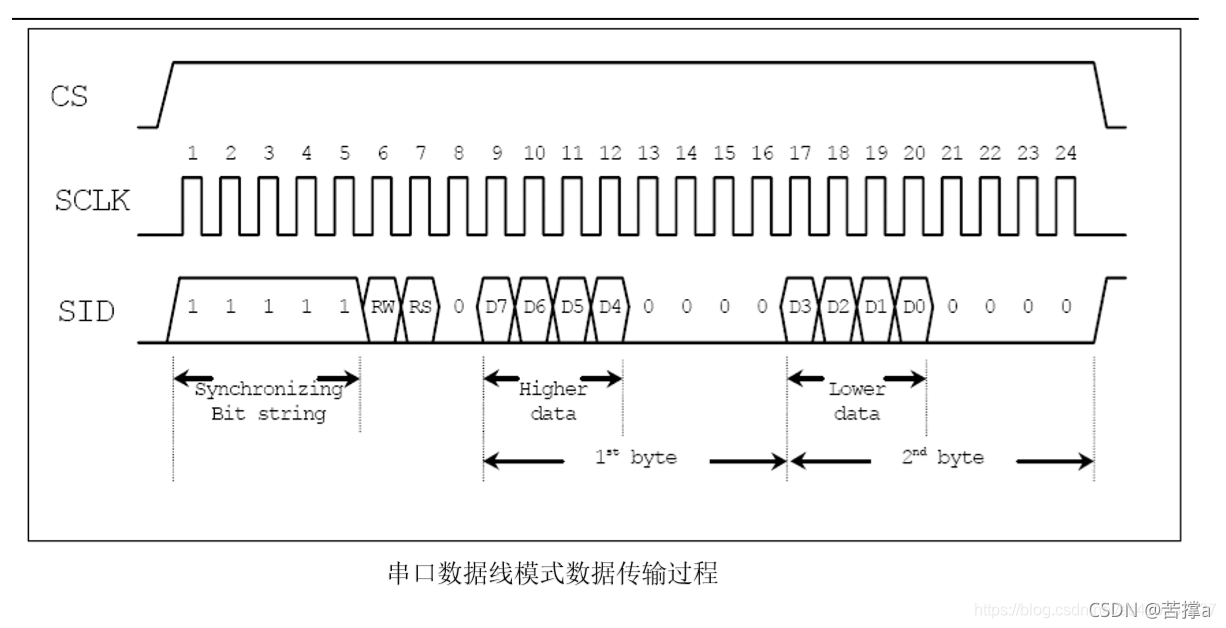

通过时序图即可知道串口模式下控制LCD12864的步骤。

三、CubeIDE配置

使用的是STM32F407ZET6芯片，通过CubeIDE对其进行配置，配置过程如下：

1、新建工程选择对应的芯片，CubeIDE新建工程和系统配置的教程网上太多了，我就不再介绍。

2、引脚配置

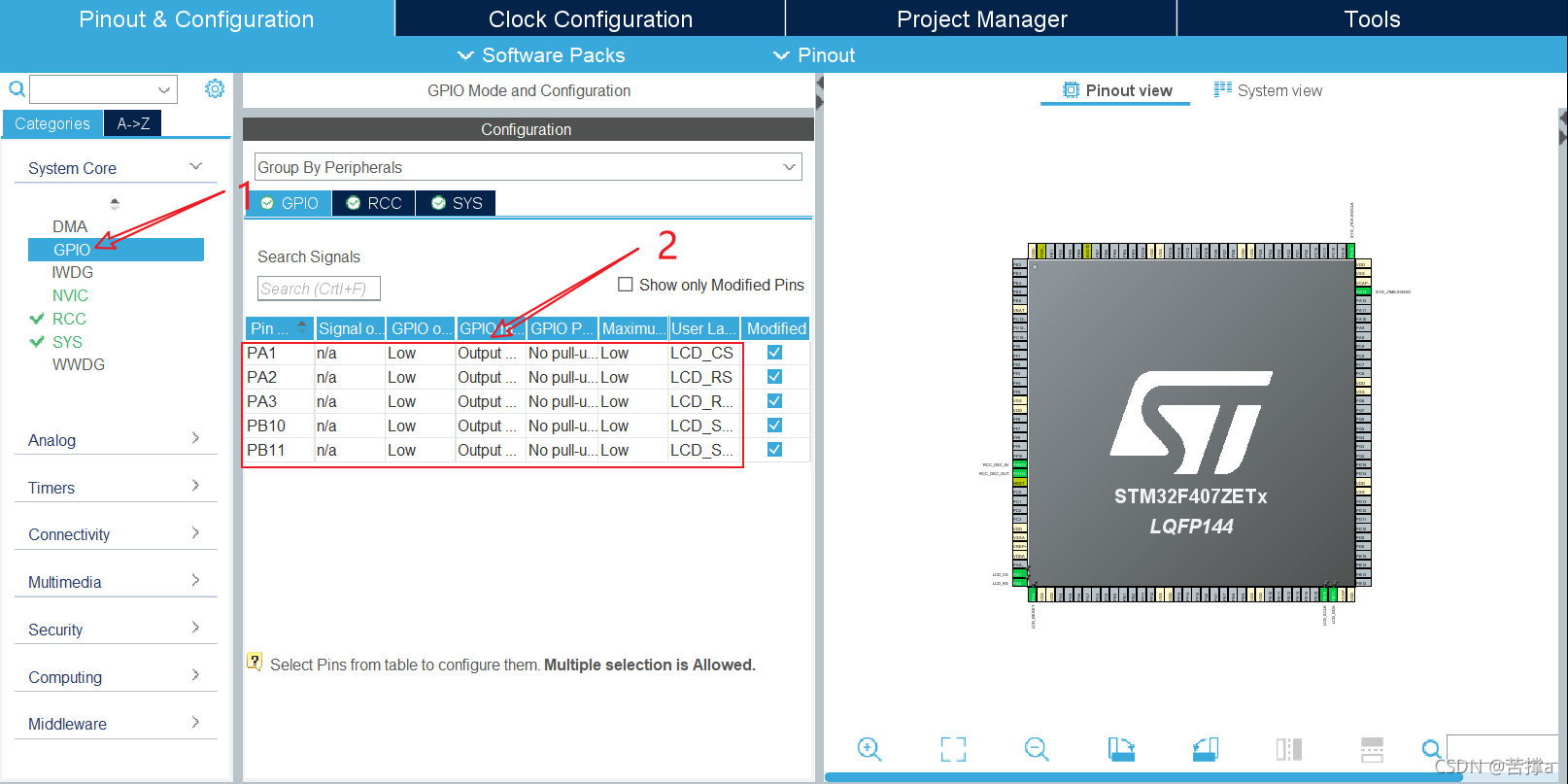

在这里插入图片描述
只需要配置这几个I/O口就可以了，其他时钟配置就不在这里介绍。

四、程序

1、LCD12864.h

/*
 * lcd12864.h
 *
 *  Created on: Aug 13, 2021
 *      Author: along
 */
/*
 * 注：显示屏正面朝上，排针那一侧靠近自己，右侧第一个为Pin1，左侧第一个为Pin16
 * Pin7：SCLK
 * Pin8：SDA
 * Pin9：VCC(3.3V)
 * Pin10：GND
 * Pin11：背光电压正极(3.3V)
 * Pin12：片选信号CS(低有效)
 * Pin13：复位脚RESET
 * Pin14：命令或数据切换RS
 *
 * 									LCD12864-->STM32F407ZET6     User Label
 * 		 								  CS-->PA1				   LCD_CS
 * 		 								  RS-->PA2				   LCD_RS
 * 	  								   RESET-->PA3				  LCD_RESET
 * 	   								    SCLK-->PB10				  LCD_SCLK
 * 										 SDA-->PB11				   LCD_SDA
 */


#ifndef INC_LCD12864_H_
#define INC_LCD12864_H_

#include "gpio.h"


#define CS_0 HAL_GPIO_WritePin(GPIOA, LCD_CS_Pin, GPIO_PIN_RESET)
#define CS_1 HAL_GPIO_WritePin(GPIOA, LCD_CS_Pin, GPIO_PIN_SET)
#define RS_0 HAL_GPIO_WritePin(GPIOA, LCD_RS_Pin, GPIO_PIN_RESET)
#define RS_1 HAL_GPIO_WritePin(GPIOA, LCD_RS_Pin, GPIO_PIN_SET)
#define RESET_0 HAL_GPIO_WritePin(GPIOA, LCD_RESET_Pin, GPIO_PIN_RESET)
#define RESET_1 HAL_GPIO_WritePin(GPIOA, LCD_RESET_Pin, GPIO_PIN_SET)
#define SCLK_0 HAL_GPIO_WritePin(GPIOB, LCD_SCLK_Pin, GPIO_PIN_RESET)
#define SCLK_1 HAL_GPIO_WritePin(GPIOB, LCD_SCLK_Pin, GPIO_PIN_SET)
#define SDA_0 HAL_GPIO_WritePin(GPIOB, LCD_SDA_Pin, GPIO_PIN_RESET)
#define SDA_1 HAL_GPIO_WritePin(GPIOB, LCD_SDA_Pin, GPIO_PIN_SET)


void Delay(unsigned short tick);
void InitLCD(void);
void WriteToLCD(unsigned char data, unsigned char flg);
void ClearScreen(void);
void LCDAddr(unsigned char page,unsigned char column);
void DisplayStr(unsigned short page,unsigned short column,char *text);
void DisplayChinese(unsigned char page,unsigned char column,unsigned char no);


#endif /* INC_LCD12864_H_ */

2、LCD12864.c

/*
 * lcd12864.c
 *
 *  Created on: Aug 13, 2021
 *      Author: along
 */
#include "lcd12864.h"
#include "codelib.h"



void Delay(unsigned short tick)
{
	uint8_t j,k;
	for(j=0;j<tick;j++)
	for(k=0;k<110;k++);
}

/*********************************************************************************************************
** 函数名称: InitLCD
** 功能描述: 初始化LCD模块
** 输  　入: 无
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void InitLCD(void)
{
	Delay(20);
	RESET_0;
	Delay(5);
	RESET_1;

	WriteToLCD(0xE2, 1);
	Delay(5);
	WriteToLCD(0x2c, 1);		/*升压步聚1*/
	Delay(5);
	WriteToLCD(0x2e, 1);		/*升压步聚2*/
	Delay(5);
	WriteToLCD(0x2f, 1);		/*升压步聚3*/
	Delay(5);
	WriteToLCD(0x25, 1);		/*粗调对比度，可设置范围20～27*/
	WriteToLCD(0x81, 1);		/*微调对比度*/
	WriteToLCD(0x1a, 1);		/*微调对比度的值，可设置范围0～63  1f*/
	WriteToLCD(0xa2, 1);		/*1/9偏压比（bias）*/
	WriteToLCD(0xc8, 1);		/*行扫描顺序：从上到下*/
	WriteToLCD(0xa0, 1);		/*列扫描顺序：从左到右*/
	WriteToLCD(0x40, 1);		/*起始行：从第一行开始*/
	ClearScreen();
	WriteToLCD(0xaf, 1);		/*开显示*/
}

/*********************************************************************************************************
** 函数名称: WriteToLCD
** 功能描述: 写数据进LCD
** 输  　入: data:写数据
**			 flg:标识。(0,数据)(1,命令)
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void WriteToLCD(unsigned char data, unsigned char flg)
{
	unsigned char i;
	CS_0;
	if(flg)
	{RS_0;}
	else{RS_1;}
	for(i=0;i<8;i++)
	{
		SCLK_0;
		if(flg)Delay(2);
		if(data&0x80)
		{SDA_1;}
		else
		{SDA_0;}
		SCLK_1;
		data <<= 1;
	}
}

/*********************************************************************************************************
** 函数名称: ClearScreen
** 功能描述: 清除屏幕
** 输  　入: 无
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void ClearScreen(void)
{
	unsigned char i,j;
	for(i=0;i<9;i++)
	{
		CS_0;
		WriteToLCD(0xb0+i,1);
		WriteToLCD(0x10,1);
		WriteToLCD(0x00,1);
		for(j=0;j<132;j++)
		{
			WriteToLCD(0x00,0);
		}
	}
}

/*********************************************************************************************************
** 函数名称: LCDAddr
** 功能描述: LCD地址偏移,内部使用
** 输  　入: page:页,column:列
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void LCDAddr(unsigned char page,unsigned char column)
{
	CS_0;
	column--;
	page--;
	WriteToLCD(0xb0+page,1);
	WriteToLCD(((column>>4)&0x0f)+0x10,1);
	WriteToLCD(column&0x0f,1);
}

/*********************************************************************************************************
** 函数名称: DisplayStr
** 功能描述: 显示字符串
** 输  　入: page:页,column:列,text:文本指针
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void DisplayStr(unsigned short page,unsigned short column,char *text)
{
  unsigned short i=0,j,k,n;
  CS_0;
  while(text[i]>0x00)
  {
    if((text[i]>=0x20)&&(text[i]<=0x7e))
    {
      j=text[i]-0x20;
      for(n=0;n<2;n++)
      {
        LCDAddr(page+n,column);
        for(k=0;k<8;k++)
        {
          WriteToLCD(ascii_table_8x16[j][k+8*n],0);
        }
      }
      i++;
      column+=8;
    }
    else
	{
		i++;
	}
  }
	CS_1;
}

/*********************************************************************************************************
** 函数名称: DisplayChinese
** 功能描述: 显示汉字
** 输  　入: page:页,column:列,no:汉字序号
** 输  　出: 无
** 全局变量: 无
** 调用模块: 无
********************************************************************************************************/
void DisplayChinese(unsigned char page,unsigned char column,unsigned char no)
{
  unsigned char i,j;
  CS_0;
  for(j=0;j<2;j++)
  {
	LCDAddr(page+j,column);
	for (i=0;i<16;i++)
	{
		WriteToLCD(Hzk[2*no+j][i],0);    //写数据到 LCD,每写完一个 8 位的数据后列地址自动加 1
	}
  }
  CS_1;
}
