一、实现温湿度串口显示

详细步骤参考：https://blog.csdn.net/qq_57357292/article/details/121414127?spm=1001.2014.3001.5501

二、实现温湿度在OLED显示

在串口显示的代码基础上添加gui.c，test.c，oled.c，spi.c文件

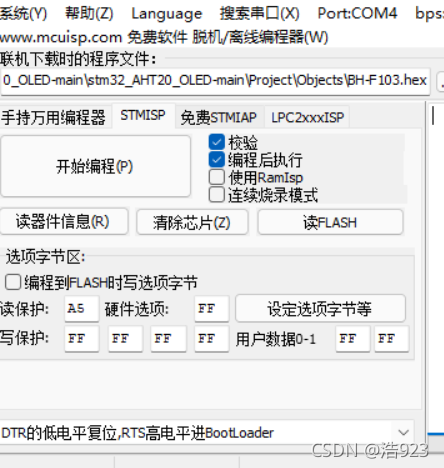

在这里插入图片描述
显示温度的代码：

void read_AHT20(void)
{
	uint8_t   i;
	for(i=0; i<6; i++)
	{
		readByte[i]=0;
	}

	//-------------
	I2C_Start();

	I2C_WriteByte(0x71);
	ack_status = Receive_ACK();
	readByte[0]= I2C_ReadByte();
	Send_ACK();

	readByte[1]= I2C_ReadByte();
	Send_ACK();

	readByte[2]= I2C_ReadByte();
	Send_ACK();

	readByte[3]= I2C_ReadByte();
	Send_ACK();

	readByte[4]= I2C_ReadByte();
	Send_ACK();

	readByte[5]= I2C_ReadByte();
	SendNot_Ack();
	//Send_ACK();

	I2C_Stop();

	//--------------
	if( (readByte[0] & 0x68) == 0x08 )
	{
		H1 = readByte[1];
		H1 = (H1<<8) | readByte[2];
		H1 = (H1<<8) | readByte[3];
		H1 = H1>>4;

		H1 = (H1*1000)/1024/1024;

		T1 = readByte[3];
		T1 = T1 & 0x0000000F;
		T1 = (T1<<8) | readByte[4];
		T1 = (T1<<8) | readByte[5];

		T1 = (T1*2000)/1024/1024 - 500;

		AHT20_OutData[0] = (H1>>8) & 0x000000FF;
		AHT20_OutData[1] = H1 & 0x000000FF;

		AHT20_OutData[2] = (T1>>8) & 0x000000FF;
		AHT20_OutData[3] = T1 & 0x000000FF;
	}
	else
	{
		AHT20_OutData[0] = 0xFF;
		AHT20_OutData[1] = 0xFF;

		AHT20_OutData[2] = 0xFF;
		AHT20_OutData[3] = 0xFF;
		printf("lyy");

	}
	/*通过串口显示采集得到的温湿度
	printf("\r\n");
	printf("温度:%d%d.%d",T1/100,(T1/10)%10,T1%10);
	printf("湿度:%d%d.%d",H1/100,(H1/10)%10,H1%10);
	printf("\r\n");*/
	t=T1/10;
	t1=T1%10;
	a=(float)(t+t1*0.1);
	h=H1/10;
	h1=H1%10;
	b=(float)(h+h1*0.1);
	sprintf(strTemp,"%.1f",a);   //调用Sprintf函数把DHT11的温度数据格式化到字符串数组变量strTemp中
    sprintf(strHumi,"%.1f",b);    //调用Sprintf函数把DHT11的湿度数据格式化到字符串数组变量strHumi中
	GUI_ShowCHinese(16,00,16,"温湿度显示",1);
	GUI_ShowCHinese(16,20,16,"温度",1);
	GUI_ShowString(53,20,strTemp,16,1);
	GUI_ShowCHinese(16,38,16,"湿度",1);
	GUI_ShowString(53,38,strHumi,16,1);
	delay_ms(1500);
	delay_ms(1500);
}

添加“温湿度显示”的字模代码：

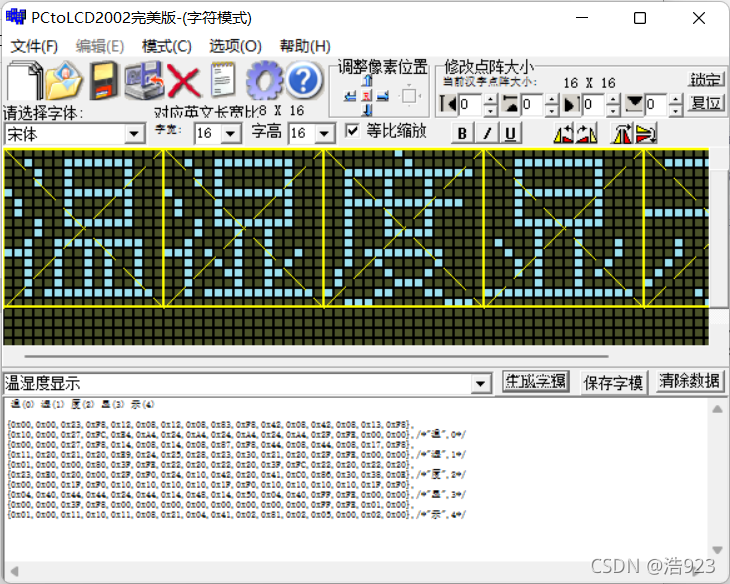

在这里插入图片描述

"温",0x00,0x00,0x23,0xF8,0x12,0x08,0x12,0x08,0x83,0xF8,0x42,0x08,0x42,0x08,0x13,0xF8,
  0x10,0x00,0x27,0xFC,0xE4,0xA4,0x24,0xA4,0x24,0xA4,0x24,0xA4,0x2F,0xFE,0x00,0x00,/*"温",0*/
	"度",0x01,0x00,0x00,0x80,0x3F,0xFE,0x22,0x20,0x22,0x20,0x3F,0xFC,0x22,0x20,0x22,0x20,
  0x23,0xE0,0x20,0x00,0x2F,0xF0,0x24,0x10,0x42,0x20,0x41,0xC0,0x86,0x30,0x38,0x0E,/*"度",0*/
	"湿",0x00,0x00,0x27,0xF8,0x14,0x08,0x14,0x08,0x87,0xF8,0x44,0x08,0x44,0x08,0x17,0xF8,
  0x11,0x20,0x21,0x20,0xE9,0x24,0x25,0x28,0x23,0x30,0x21,0x20,0x2F,0xFE,0x00,0x00,/*"湿",0*/
	"显",0x00,0x00,0x1F,0xF0,0x10,0x10,0x10,0x10,0x1F,0xF0,0x10,0x10,0x10,0x10,0x1F,0xF0,
  0x04,0x40,0x44,0x44,0x24,0x44,0x14,0x48,0x14,0x50,0x04,0x40,0xFF,0xFE,0x00,0x00,/*"显",0*/
	"示",0x00,0x00,0x3F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x01,0x00,
  0x01,0x00,0x11,0x10,0x11,0x08,0x21,0x04,0x41,0x02,0x81,0x02,0x05,0x00,0x02,0x00,/*"示",0*/

main.c文件

#include "delay.h"
#include "usart.h"
#include "bsp_i2c.h"
#include "sys.h"

#include "oled.h"
#include "gui.h"
#include "test.h"

int main(void)
{
	delay_init();	    	       //延时函数初始化
	uart_init(115200);
	IIC_Init();

	NVIC_Configuration(); 	   //设置NVIC中断分组2:2位抢占优先级，2位响应优先级
	OLED_Init();			         //初始化OLED
	OLED_Clear(0);
	while(1)
	{
		//printf("温度湿度显示");
		read_AHT20_once();
		OLED_Clear(0);
		delay_ms(1500);
  }
}
