香蕉派BPI-R64开源路由器，采用MTK MT7622 64位芯片方案设计
主要功能：
1,MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
2,1G DDR3 SDRAM
3,Mini PCIE interface support 4G module
4,built-in 4x4n 802.11n/Bluetooth 5.0 system-on-chip
5,MTK7615 4x4ac wifi on board
6,support 1 SATA interface
7,MicroSD slot supports up to 256GB expansion
8,8G eMMC flash (option 16/32/64G)
9,5 port 10/100/1000 Mb Ethernet port
10,(1) USB 3.0
11,Slow I/O:ADC, Audio Amplifier, GPIO, I2C, I2S, IR, PMIC I/F, PWM, RTC, SPI, UART
12,POE function support

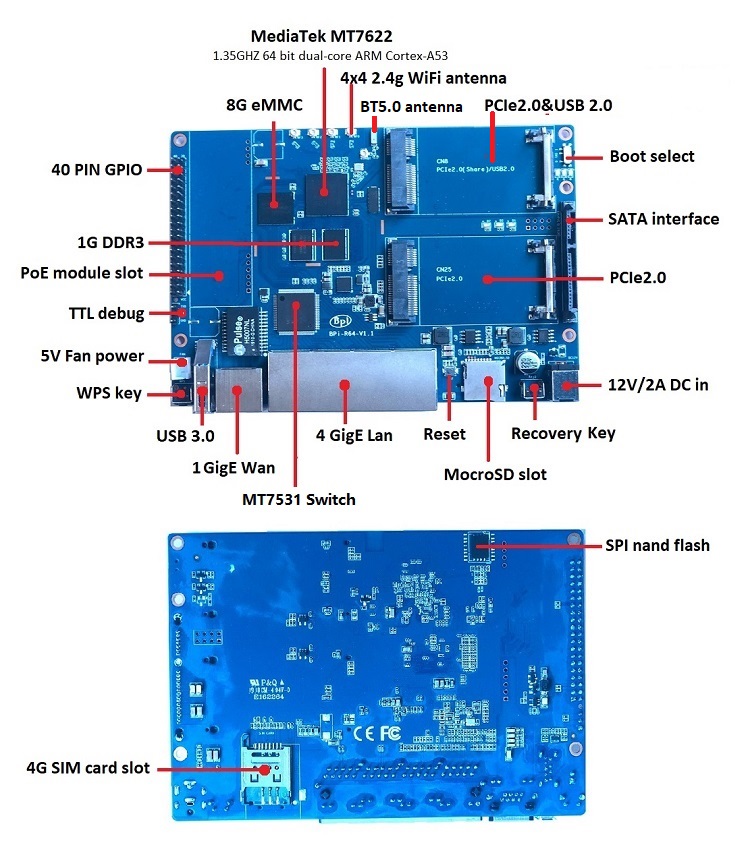

硬接口示意图：
Hardware spec
| HardWare Specification of Banana pi BPI-R64 | |||
| CPU | MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53 | ||
| SDRAM | 1 GB DDR3 | ||
| SATA | support 1 SATA interface | ||
| GPIO | 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. | ||
| On board Network | 5 10/100/1000Mbps Ethernet | ||
| Wifi | built-in 4x4n 802.11n (800Mbps) sysem-on-chip and MTK7615 4x4ac wifi Module (1733Mbps) (option) | ||
| Bluetooth | Bluetooth 5.0 system-on-chip | ||
| On board Storage | MicroSD \(TF\) card,8GB eMMC onboard | ||
| mini PCIE | 1 mini pcie interface for 4G | ||
| USB | 1 USB 3.0 host | ||
| Buttons | Reset button | ||
| Leds | Power status Led and RJ45 Led | ||
| IR | PIN define with GPIO | ||
| DC Power | 12V/2A with DC in | ||
| POE | support POE module interface,can add POE module | ||
| Sizes | 148 mm × 100.5mm | ||
| Weight | 100g | ||
